Product type	Battery grass trimmer
Brand	BOSCH
Model	ART 26 EASYTRIM
Cutting diameter	26 cm
No-load speed	9,000 rpm
Rated voltage	14.4 V
Battery type	NiMH
Battery capacity	1.5 Ah
Charger	AL 1404 (0.4 A)
Charging time (empty battery)	3 to 5 hours
Weight (without accessories)	2.0 kg
Intended use	Mowing grass, cutting weeds under bushes, slopes and edges inaccessible to lawnmowers
Power supply	Battery
Safety	Wear safety goggles, closed shoes, and long trousers. Do not use in rain. Keep children away. Stop and remove battery before any maintenance.
Maintenance	Clean with a soft brush and cloth. Remove battery before cleaning. Replace worn blade with original Bosch blade. Store in a dry place between 0 and 45 °C.
Spare parts	Use original Bosch parts. The serial number is on the rating plate.
After-sales service	Bosch: France 01 43 11 90 06, Belgium/Luxembourg +32 (0)70/22 55 65, Switzerland 0 44/8 47 15 12

Frequently Asked Questions - ART 26 EASYTRIM BOSCH

How to assemble the grass trimmer?

Assemble the upper and lower parts of the shaft until you hear a click. Then mount the protective guard by hooking it and pushing it down until it clicks. Finally, press the plate onto the drive shaft and mount the blade on the shaft by pushing it down and then pulling it outward until it clicks.

How to charge the battery?

Insert the battery into the charger slot and plug the charger into a power outlet. The green LED lights up to indicate charging. The charging time is approximately 3 to 5 hours. Do not charge for more than 5.5 hours. After charging, remove the battery and unplug the charger.

What to do if the device does not work?

First check that the battery is charged. If the problem persists, consult the troubleshooting table in the manual: for example, if the grass trimmer works intermittently, the internal wiring or switch may be faulty. Contact Bosch after-sales service for any repairs.

How to replace the blade?

Before any intervention, stop the device and remove the battery. Push the worn blade inward until it comes out of the shaft. Clean the shaft with a sharp knife. Mount the new blade by pushing it onto the shaft and pulling it outward until it clicks. Use only original Bosch blades.

What safety precautions should I take?

Always wear safety goggles, closed shoes, and long trousers. Do not use the device in rain or when people (especially children) or animals are nearby. Wait for the blade to come to a complete stop before touching it. Never use metal blades.

How to clean the grass trimmer?

Stop the device and remove the battery. Clean the external parts with a soft brush and cloth. Do not use water or solvents. Remove grass stuck in the protective guard using a piece of wood or plastic. Clean the ventilation slots regularly.

Where can I find spare parts?

Spare parts must be original Bosch parts. You can find exploded views and information on www.bosch-pt.com. For any order, please specify the ten-digit reference number on the rating plate of the device.

How long does the battery last per charge?

The usage duration depends on working conditions. Under average conditions, the battery can cut up to 300 meters of grass. If the runtime decreases significantly after a charge, the battery is worn out and must be replaced.

Can metal blades be used?

No, it is strictly prohibited to use metal blades on this grass trimmer. Use only original Bosch plastic blades, specifically designed for this device.

How to store the device?

Remove the battery before storing the device. Clean it thoroughly. Store it in a dry and safe place out of reach of children. The battery should be stored at a temperature between 0 and 45 °C.

USER MANUAL ART 26 EASYTRIM BOSCH

3D rendering of a Bosch vacuum cleaner with handle and spout (no text or symbols visible)

Line drawing of a pair of safety glasses with adjustable arms (no text or symbols)

F 016 800 178

24x

F 016 800 177

(ART 23/2300 EASYTRIM ACCU)

F 016 800 183

(ART 26/2600 EASYTRIM ACCU)

14

9

Person using a long-handled hair anti-sprayer cleaning tool, no text or symbols visible

Simple line drawing of abstract black shapes on white background (no text or symbols)

Abstract black-and-white brushstroke pattern with no text or symbols

Black and white illustration of grass blades (no text or symbols)

Senior Vice President

Engineering

Dr. Eckerhard Strötgen

Head of Product

Certification

i.v. Mogen

Robert Bosch GmbH, Power Tools Division

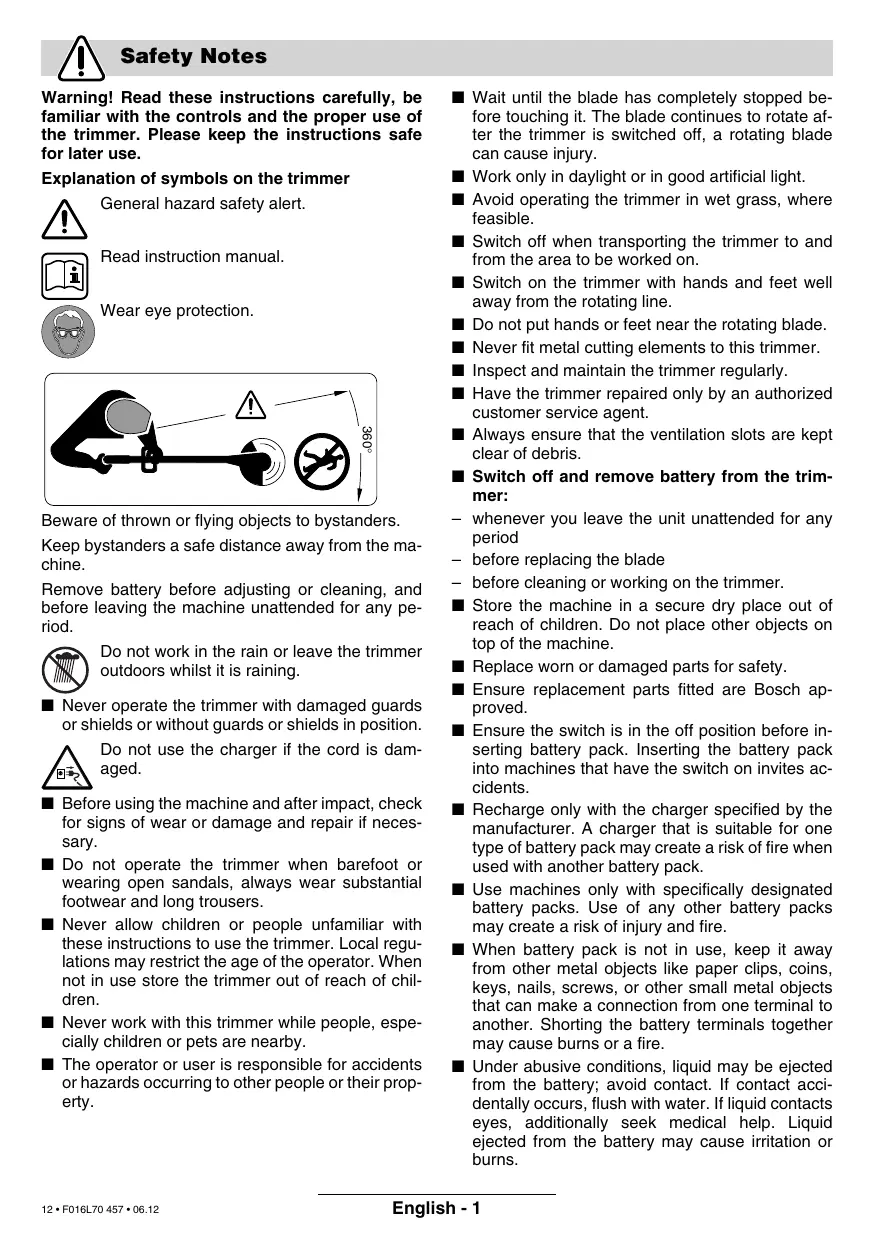

Warning! Read these instructions carefully, be familiar with the controls and the proper use of the trimmer. Please keep the instructions safe for later use.

Explanation of symbols on the trimmer

General hazard safety alert.

Read instruction manual.

Wear eye protection.

Beware of thrown or flying objects to bystanders.

Keep bystanders a safe distance away from the machine.

Remove battery before adjusting or cleaning, and before leaving the machine unattended for any period.

Do not work in the rain or leave the trimmer outdoors whilst it is raining.

■ Never operate the trimmer with damaged guards or shields or without guards or shields in position.

Do not use the charger if the cord is damaged.

■ Before using the machine and after impact, check for signs of wear or damage and repair if necessary.
■ Do not operate the trimmer when barefoot or wearing open sandals, always wear substantial footwear and long trousers.
■ Never allow children or people unfamiliar with these instructions to use the trimmer. Local regulations may restrict the age of the operator. When not in use store the trimmer out of reach of children.
■ Never work with this trimmer while people, especially children or pets are nearby.
■ The operator or user is responsible for accidents or hazards occurring to other people or their property.

■ Wait until the blade has completely stopped before touching it. The blade continues to rotate after the trimmer is switched off, a rotating blade can cause injury.
■ Work only in daylight or in good artificial light.
■ Avoid operating the trimmer in wet grass, where feasible.
■ Switch off when transporting the trimmer to and from the area to be worked on.
■ Switch on the trimmer with hands and feet well away from the rotating line.
■ Do not put hands or feet near the rotating blade.
■ Never fit metal cutting elements to this trimmer.
■ Inspect and maintain the trimmer regularly.
■ Have the trimmer repaired only by an authorized customer service agent.
■ Always ensure that the ventilation slots are kept clear of debris.
■ Switch off and remove battery from the trim-mer:

– whenever you leave the unit unattended for any period
– before replacing the blade
– before cleaning or working on the trimmer.
■ Store the machine in a secure dry place out of reach of children. Do not place other objects on top of the machine.
■ Replace worn or damaged parts for safety.
■ Ensure replacement parts fitted are Bosch approved.
■ Ensure the switch is in the off position before inserting battery pack. Inserting the battery pack into machines that have the switch on invites accidents.
■ Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
■ Use machines only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
■ When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
■ Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

Product Specification

Trimmer		ART 23 EASYTRIM ACCU/ ART 2300 EASYTRIM ACCU	ART 26 EASYTRIM ACCU/ ART 2600 EASYTRIM ACCU
Part number (typ)		3 600 H78 H..	3 600 H78 J..
No-load speed	[rpm]	9 500	9 000
Cutting circle	[cm]	23	26
Weight (without optional extras)	[kg]	1.9	2.0
Serial Number	See serial No 14 (rating plate) on machine.
Battery type		NiMH	NiMH
Battery order number		2 607 335 699	2 607 335 699
Battery Voltage	[V]	14.4	14.4
Battery rating	[Ah]	1.5	1.5
Charging time (empty battery)	[h]	3 - 5*	3 - 5*
Battery charger		AL 1404	AL 1404
Order number		2 607 225 ..	2 607 225 ..
Charging current	[A]	0.4	0.4
Allowable charging temperature range	[°C]	0-45	0-45

*Charging time based on a battery charger input voltage of 230 V.

Intended Use

The product is intended for the cutting of grass and weeds under bushes, as well as on slopes and edges that can not be reached with the lawn mower. Intended Use is related to operation within 0 °C and 40 °C ambient temperature.

Introduction

This manual gives instructions on the correct assembly and safe use of your machine. It is important that you read these instructions carefully.

Delivered Items

Carefully remove the machine from its packaging and check that you have all the following items:

• Trimmer
• Cutting guard
• Cutting disc
• Blades
• Battery charger
• Operating instructions

When parts are missing or damaged, please contact your dealer.

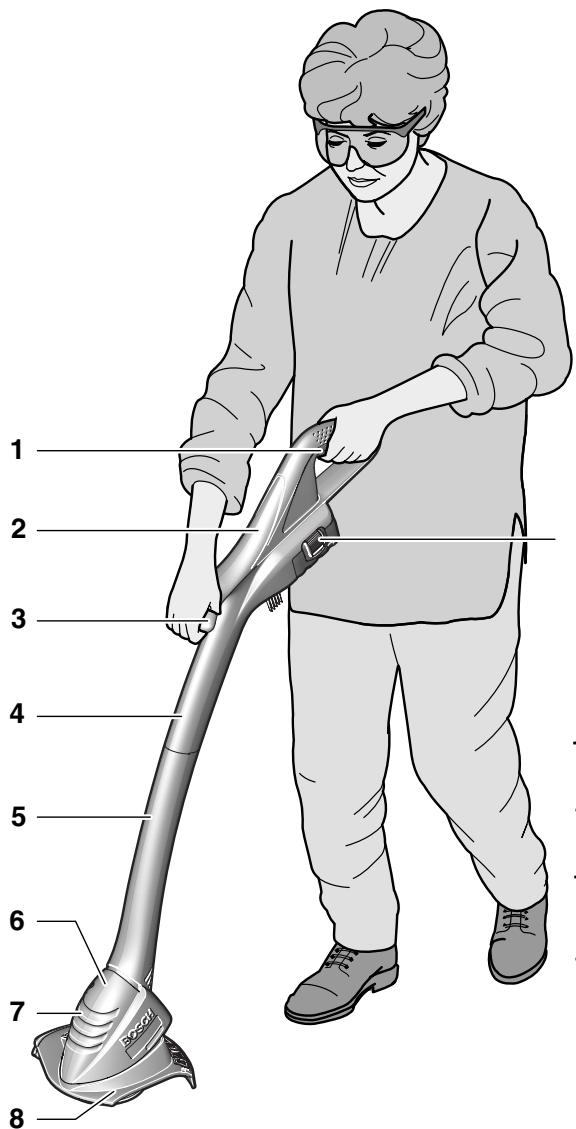

Operating Controls

1 On/Off switch
2 Handle
3 Guide handle
4 Shaft, upper
5 Shaft, lower
6 Trimmer head
7 Ventilation slots
8 Cutting guard
9 Battery

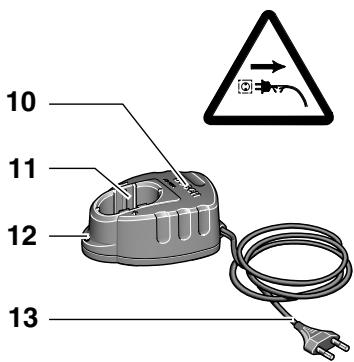

10 Battery charger
11 Chraging compartment
12 LED indicator
13 Mains plug**
14 Serial No

**Country specific

Not all of the accessories illustrated or described are included as standard delivery.

For Your Safety

Warning! Switch off, remove battery from machine before adjusting or cleaning.

The blade continues to rotate for a few seconds after the trimmer is switched off.

Caution – do not touch rotating blade.

Charging Procedure

The charging procedure starts as soon as the mains plug is plugged into the socket and the battery 9 is inserted into the charging compartment 11.

The green LED 12 is not a charge control indicator! When the green LED is lit, it indicates that a charging current flows.

After the end of the charging process (approx. 3 h–5 h), pull the mains plug of the battery charger from the socket and remove the battery.

The battery should not be charged for longer than 5.5 hours.

A temperature increase of the battery indicates that it is fully charged.

Charging Advice

With continuous or several repetitive charging cycles without interruption, the charger can warm up. This is not harmful and does not indicate a technical defect of the unit.

A battery that is new or has not been used for a longer period does not develop its full capacity until after approximately 5 charging/discharging cycles. Leave such batteries in the charging compartment until they have clearly warmed up.

A significantly reduced working period after charging indicates that the batteries are used and must be replaced.

Assembly

Do not connect the battery before product is completely assembled.

Ensure product is assemble in the following order:

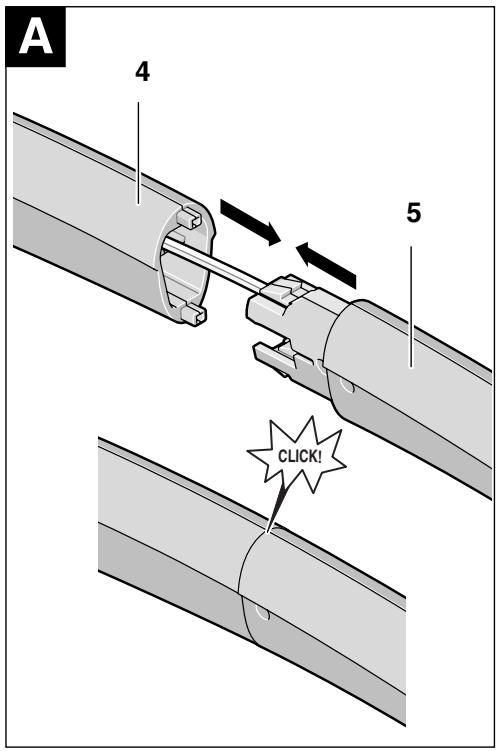

A Assemble trimmer shaft

Push the upper shaft 4 and lower shaft 5 together until a click can be heard.

Note: Once the upper and lower shaft is assembled it can not be disassembled.

Ensure internal cable is not trapped or twisted.

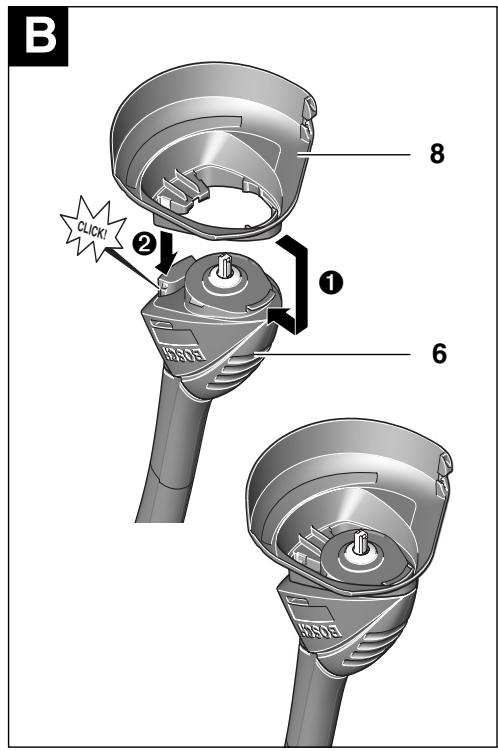

B Mounting the Cutting Guard

Place the cutting guard 8 on the trimmer head 6.

① Hook the guard onto trimmer head and push until secure fitting.

② Push rear of guard until secure (click).

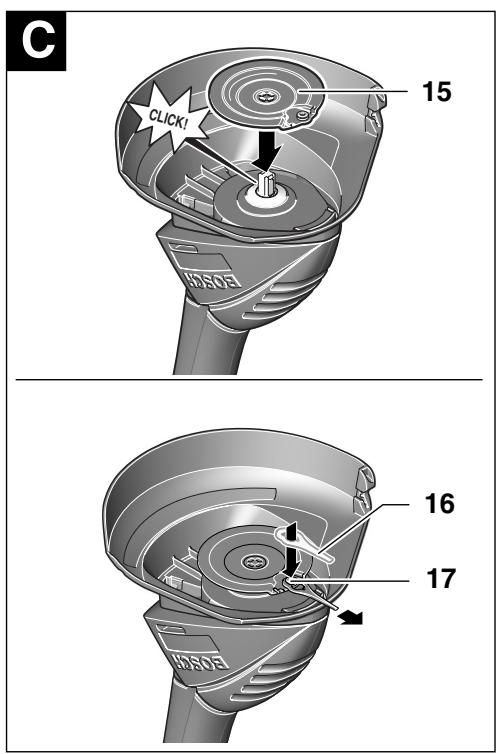

C Fitting Cutting Disc/Fitting Blade

Press cutting disc 15 onto drive adaptor as shown (click).

Fit the blade, place the blade 16 over the pivot 17 and pull outwards until it snaps into place.

Cutting and Edging

Remove stones, loose pieces of wood and other objects from the cutting area.

The blade continues to rotate for a few seconds after the trimmer is switched off. Allow the motor/blade to stop rotating before switching “on” again.

Do not rapidly switch off and on.

Switching On and Off

Press switch 1 and hold depressed. Release switch 1 for switching off.

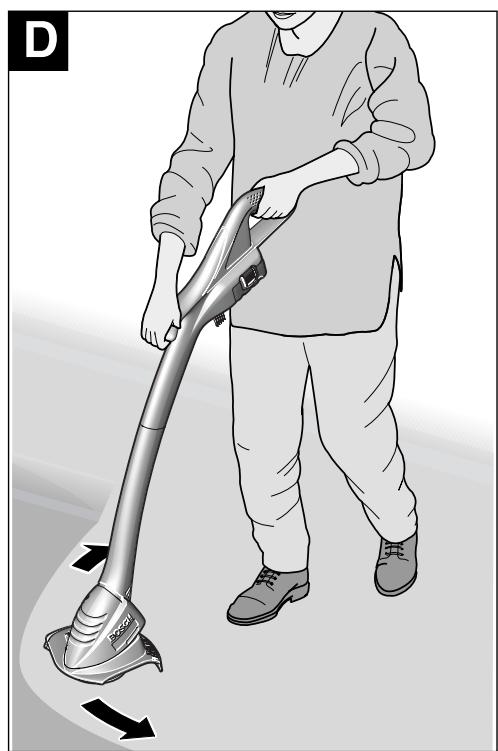

D Cutting Grass

Move the trimmer left and right, keeping it well away from the body.

The trimmer can efficiently cut grass up to a height of 15 cm. Cut taller grass in stages.

Cutting Around Trees and Bushes

Carefully cut around trees and bushes so that they do not come into contact with the cutting line.

Plants can die if you damage the bark.

Battery duration

Battery duration is dependent on the working conditions:

Simple line drawing of a fence with no text or symbols

light conditions:

up to 500 metres

Black and white illustration of grass blades (no text or symbols)

medium conditions:

up to 300 metres

Black and white illustration of grass blades (no text or symbols)

tough conditions:

up to 50 metres

Maintenance

Before any work on the machine itself, remove battery from machine.

Note: To ensure long and reliable service, carry out the following maintenance regularly.

Regularly check for obvious defects such as loose fixings, and worn or damaged components.

Check that covers and guards are undamaged and correctly fitted. Carry out necessary maintenance or repairs before using.

If the trimmer should happen to fail despite the care taken in manufacture and testing, repair should be carried out by an authorized customer service agent for Bosch garden products.

For all correspondence and spare parts orders, always include the 10-digit part number (TYP) from the nameplate of the machine!

D Blade Maintenance

Before any work on the machine itself, remove battery from machine.

To remove the worn blade 16 push in direction of the arrow until it snaps off the pivot 17.

Clean the pivot 17 of any residual plastic/debris with a sharp knife.

To refit the new blade 16 place the eyelet over the pivot 17 and pull outwards until it snaps into place.

Note: Only use Bosch replacement blades. They have been developed specially for improved cutting performance. The use of other cutter blades will lead to a deterioration in performance and possible damage to the product.

After Trimming/Storage

Stop and remove battery from product. Ensure battery is removed before storage.

Clean the exterior of the machine thoroughly using a soft brush and cloth. Do not use water, solvents or polishes. Remove all grass and debris, especially from the ventilation slots 7.

Turn the machine on its side and clean the cutting guard 8 inside. If grass cuttings are compacted, remove with a wooden or plastic implement.

Battery should be stored between 0–45 °C; incorrect storage could result in the battery being damaged.

Fault Finding

The following table gives checks and actions that you can perform if your machine does not operate correctly. If these do not identify/remedy the problem, contact your service agent.

Warning: Switch off and remove battery before investigating fault.

Symptom	Possible Cause	Remedy
Can not fit Guard over cutting disc	Incorrect assembly	Remove cutting disc and fit guard, see also Product assembly
Machine fails to operate	Battery discharged	Recharge battery, see also Charging advice
Machine functions intermittently	Internal wiring defectiveOn/Off switch defective	Contact Service AgentContact Service Agent
Excessive vibration/noise	Machine faultBlade broken	Contact Service AgentReplace blade
Cutting time low on one battery charge	Battery not used for long period or initial usageGrass too highBattery worn out	Fully charge battery, see also charging adviceCut in stagesReplace the battery
Blade will not move	Battery dischargedMachine fault	Recharge battery, see also Charging adviceContact Service Agent
Machine is not cutting	Blade brokenBattery not fully chargedGrass entangled around cutting disc	Replace bladeRecharge battery, see also Charging adviceRemove grass
No charging procedure possible due to defective battery	The contacts of the battery are contaminatedThe battery is defective, due to a disconnection in the battery (individual cells)	Clean the contacts (e. g. by inserting and removing the battery several times) or replace the battery, as requiredReplace the battery
The LED indicator 12 does not light up after plugging the mains plug into the socket and inserting the battery into the charging compartment 11	The charger plug is not inserted (properly)Socket, cable or charger are defective	Insert the plug (fully) into the socketCheck the mains voltage and if necessary, have the battery charger checked by an authorized customer service station for Bosch garden tools

Disposal

Product, accessories and packaging should be sorted for environmentally-friendly recycling.

Only for EC countries:

Do not dispose of the product into household waste!

According to the European Directive 2002/96/EC on waste electrical and electronic equipment and its incorporation into national law, products that

are no longer suitable for use must be separately collected and sent for recovery in an environmentally-friendly manner.

Service

Exploded views and information on spare parts can be found under:

www.bosch-pt.com

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O. Box 98

Broadwater Park

North Orbital Road

Denham-Uxbridge

Middlesex UB 9 5HJ

Service.... +44 (0) 18 95 / 83 87 82

Fax Service ....+44 (0) 18 95 / 83 87 89

Advice line.... +44 (0) 18 95 / 83 87 91

Fax Advice.... +44 (0) 18 95 / 83 87 93

Ireland

Beaver Distribution Ltd.

Greenhills Road

Tallaght-Dublin 24

Service....+353 (0)1 / 45 15 211

Fax ...... +353 (0)1 / 45 17 127

Malaysia

Robert Bosch (SEA.) Pte. Ltd.

No. 8a, Jalan 13/6

Selangor Darul Ehsan

Petaling Jaya 46200

Malaysia

📞 [phone]

Fax (EW Dept.) ....+60 3 79 58 38 38

www.bosch.com.sg

Australia

Robert Bosch Australia Ltd.

RBAU/SPT2

1555 Centre Road

P.O. Box 66 Clayton

3168 Clayton/Victoria

📞 +61 (0)1 / 800 804 777

Fax....+61 (0)1 / 800 819 520

www.bosch.com.au

E-Mail: [e-mail]

New Zealand

Robert Bosch Limited

14-16 Constellation Drive

Mairangi Bay

Auckland

New Zealand

Declaration of Conformity

Measured values determined according to 2000/14/EC (1.60 m height, 1.0 m distance away) and EN 28 662.

Typically the A-weighted noise level of the product is: sound pressure level 72 dB (A); sound power level 88 dB (A).

The typical hand/arm vibration is below 2.5 m/s^2 .

We declare under our sole responsibility that this product is in conformity with the following standards or standardization documents: EN 786, EN 60 335 according to the provisions of the directives 89/336/EEC, 98/37/EC, 2000/14/EC.

2000/14/EC: The guaranteed sound power level L_WA is lower than 94 dB (A). Conformity assessment procedure according to Annex VI.

Notified body: SRL, Sudbury England

Notified body identifications number: 1088

Leinfelden, 01.06.2006.

Dr. Egbert Schneider Dr. Eckerhard Strötgen

Senior Vice President Head of Product

Engineering Certification

ppu. Macau i.v. Moyen

Robert Bosch GmbH, Power Tools Division

Subject to change without notice

Simple line drawing of abstract black shapes on white background (no text or symbols)

Conditions faciles :

jusqu'à 500 mètres

Black and white illustration of grass blades (no text or symbols)

Black and white illustration of grass blades (no text or symbols)

Conditions difficiles :

jusqu'à 50 mètres

Nettoyage

Robert Bosch France S.A.S.

Service Après-vente/Outillage

Senior Vice President

Engineering

Dr. Eckerhard Strötgen

Head of Product

Certification

i.v. Mogen

Robert Bosch GmbH, Power Tools Division

Simple line drawing of abstract black shapes on white background (no text or symbols)

Abstract black-and-white brushstroke pattern with no text or symbols

Black and white illustration of grass blades (no text or symbols)

Senior Vice President

Engineering

Dr. Eckerhard Strötgen

Head of Product

Certification

i.v. Nuoyen

Robert Bosch GmbH, Power Tools Division

Simple line drawing of abstract black shapes on white background (no text or symbols)

Leves condições:

até 500 metros

Black and white illustration of grass blades (no text or symbols)

Médias condições:

até 300 metros

Black and white illustration of grass blades (no text or symbols)

Severas condições:

até 50 metros

Manutenção

Senior Vice President

Engineering

Dr. Eckerhard Strötgen

Head of Product

Certification

i.v. Mogen

Robert Bosch GmbH, Power Tools Division

Simple line drawing of abstract black shapes on white background (no text or symbols)

Black and white illustration of grass blades (no text or symbols)

Black and white illustration of grass blades (no text or symbols)

Senior Vice President

Engineering

Dr. Eckerhard Strötgen

Head of Product

Certification

i.v. Mogen

Robert Bosch GmbH, Power Tools Division

Simple line drawing of abstract black shapes on white background (no text or symbols)

Lichte omstandigheden:

tot 500 meter

Abstract black-and-white brushstroke pattern with no text or symbols

Black and white illustration of grass blades (no text or symbols)

Dr. Egbert Schneider Senior Vice President Engineering Dr. Eckerhard Strötgen Head of Product Certification

ppa. Macau i.v. Wuzyu

Robert Bosch GmbH, Power Tools Division

Simple line drawing of a fence with no text or symbols

Nemme betingelser:

indtil 500 meter

Black and white illustration of grass blades (no text or symbols)

Gennemsnitlige betingelser:

indtil 300 meter

Black and white illustration of grass blades (no text or symbols)

Vanskelige betingelser:

indtil 50 meter

Vedligeholdelse

After trimming/opbevaring

Senior Vice President

Engineering

Dr. Eckerhard Strötgen

Head of Product

Certification

i.v. Mogen

Robert Bosch GmbH, Power Tools Division

Simple line drawing of a rectangular frame with no text, numbers, or symbols

Lätt klippning:

upp till 500 meter

Black-and-white illustration of grass blades with no text or symbols

Black and white illustration of grass blades (no text or symbols)

Kraftig klippning:

upp till 50 meter

Underhåll

Senior Vice President

Engineering

Dr. Eckerhard Strötgen

Head of Product

Certification

ppa. deuca

i.v. Mogen

Robert Bosch GmbH, Power Tools Division

Simple line drawing of a flame pattern with no text or symbols

Black-and-white illustration of grass blades with no text or symbols

Black and white illustration of grass blades (no text or symbols)

Vamarbeidsforhold:

inntil 50 meter

Vedlikehold

Senior Vice President

Engineering

Dr. Eckerhard Strötgen

Head of Product

Certification

i.v. Mogen

Robert Bosch GmbH, Power Tools Division

Simple line drawing of a flame pattern with no text or symbols

Kevyet olosuhteet:

jopa 500 metriä

Black and white illustration of grass blades (no text or symbols)

Black and white illustration of grass blades (no text or symbols)

Raskaat olosuhteet:

jopa 50 metriä

Huolto

Senior Vice President

Engineering

Dr. Eckerhard Strötgen

Head of Product

Certification

i.v. Mogen

Robert Bosch GmbH, Power Tools Division

Simple line drawing of abstract black shapes on white background (no text or symbols)

Ελαφρές συνθήκες:

έως 500 μέτρα

Abstract black-and-white brushstroke pattern with no text or symbols

Μέτριες συνθήκες:

έως 300 μέτρα

Black and white illustration of grass blades (no text or symbols)

Βαριές συνθήκες:

έως 50 μέτρα

Συντήρηση

Senior Vice President

Engineering

Dr. Eckerhard Strötgen

Head of Product

Certification

i.v. Mogen

Robert Bosch GmbH, Power Tools Division

Simple line drawing of a fence with five legs (no text or symbols)

Black and white illustration of grass blades (no text or symbols)

Black and white illustration of grass blades (no text or symbols)

Bosch San. ve Tic. A.S.

Ahi Evran Cad. No:1 Kat:22

Polaris Plaza

80670 Maslak/Istanbul

Senior Vice President

Engineering

Dr. Eckerhard Strötgen

Head of Product

Certification

i.v. Mogen

Robert Bosch GmbH, Power Tools Division

Simple line drawing of abstract black shapes on white background (no text or symbols)

Korzystne warunki:

Black-and-white illustration of grass blades with no text or symbols

Black and white illustration of grass blades (no text or symbols)

Trudne warunki:

Senior Vice President

Engineering

Dr. Eckerhard Strötgen

Head of Product

Certification

ppa. Mauca

i.v. Mogen

Robert Bosch GmbH, Power Tools Division

Simple line drawing of abstract black shapes on white background (no text or symbols)

Lehké podmínky:

až do 500 metrÛ

Black and white illustration of grass blades (no text or symbols)

Střední podmínky:

až do 300 metrů

Black and white illustration of grass blades (no text or symbols)

Těžké podmínky:

až do 50 metrů

Údržba

Senior Vice President

Engineering

Dr. Eckerhard Strötgen

Head of Product

Certification

i.v. Mogen

Robert Bosch GmbH, Power Tools Division

Změny vyhrazeny

Simple line drawing of abstract black shapes on white background (no text or symbols)

L'ahké podmienky:

až do 500 metrov

Black-and-white illustration of grass blades with no text or symbols

Stredné podmienky:

až do 300 metrov

Black and white illustration of grass blades (no text or symbols)

Čažké podmienky:

až do 50 metrov

Údržba

Senior Vice President

Engineering

Dr. Eckerhard Strötgen

Head of Product

Certification

i.v. Mogen

Robert Bosch GmbH, Power Tools Division

Simple line drawing of abstract black shapes on white background (no text or symbols)

Könnyű körülmények:

500 méterig

Abstract black-and-white brushstroke pattern with no text or symbols

Black and white illustration of grass blades (no text or symbols)

Nehéz körülmények:

50 méterig

Karbantartás

Senior Vice President

Engineering

Dr. Eckerhard Strötgen

Head of Product

Certification

i.v. Mogen

Robert Bosch GmbH, Power Tools Division

Simple line drawing of a fence with no text or symbols

Легкие условия

до 500 м

Black-and-white illustration of grass blades with no text or symbols

Средние условия:

до 300 м

Black and white illustration of grass blades (no text or symbols)

Тяжелые условия:

до 50 м

Обслуживание

Senior Vice President

Engineering

Dr. Eckerhard Strötgen

Head of Product

Certification

i.v. Mogen

Robert Bosch GmbH, Power Tools Division

Simple line drawing of abstract black shapes on white background (no text or symbols)

Abstract black-and-white brushstroke pattern with no text or symbols

Black and white illustration of grass blades (no text or symbols)

Senior Vice President

Engineering

Dr. Eckerhard Strötgen

Head of Product

Certification

ppa. Macaca

i.v. Mogen

Robert Bosch GmbH, Power Tools Division

Можливі зміни

Simple line drawing of abstract black shapes on white background (no text or symbols)

Black-and-white illustration of grass blades with no text or symbols

Black and white illustration of grass blades (no text or symbols)

Bosch Service Center

România

Str. Horia Măcelariu 30–34, sector 1, Bucureşti

📞 +40 (0)21 / 405 75 40

📞 +40 (0)21 / 405 75 41

📞 +40 (0)21 / 405 75 81

Fax +40 (0)21 / 405 75 66

Declaratie de conformitate

Senior Vice President

Engineering

Dr. Eckerhard Strötgen

Head of Product

Certification

i.v. Mogen

Robert Bosch GmbH, Power Tools Division

Three identical black-and-white line drawings of grass or reeds, arranged vertically with no text or symbols.

Леки работни условия:

до zu 500 метра

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

i.v. Nuoyen

Robert Bosch GmbH, Power Tools Division

Paziti na to, da osobe koje stoje u blizini ne budu povredjene usled odbačenih stranih tela.

Osobe koje budu u blizini držati na sigurnom rastojanju od mašine.

Uklonite Akku pre čišćenja uredjaja, isključenja ili ostavljanja na kratko bez nadzora.

Simple line drawing of abstract black shapes on white background (no text or symbols)

Laki uslovi: do 500 metara

Black and white illustration of grass blades (no text or symbols)

Srednji uslovi: do 300 metara

Black and white illustration of grass blades (no text or symbols)

Teški uslovi: do 50 metara

Održavanje

Uklonite akumulator pre svih radova na uredjaju.

Senior Vice President

Engineering

Dr. Eckerhard Strötgen

Head of Product

Certification

i.v. Mogen

Robert Bosch GmbH, Power Tools Division

Simple line drawing of abstract black shapes on white background (no text or symbols)

Lahki pogoji:

do 500 metrov

Black and white illustration of grass blades (no text or symbols)

Srednji pogoji:

do 300 metrov

Black and white illustration of grass blades (no text or symbols)

Težki pogoji:

do 50 metrov

Vzdrževanje

Senior Vice President

Engineering

Dr. Eckerhard Strötgen

Head of Product

Certification

i.v. Mogen

Robert Bosch GmbH, Power Tools Division

Pridržujemo si pravico do sprememb

Pazite da osobe koje se nalaze oko uređaja ne ozlijede odbačena strana tijela.

Treba održavati siguran razmak do osoba koje se nalaze blizu uređaja.

Izvadite aku-bateriju prije nego što ćete uređaj čistiti, podešavati ili na kratko ostaviti bez nadzora.

Simple line drawing of a fence with five legs and four chairs, no text or symbols present

Lakši uvjeti:

do zu 500 m

Black-and-white illustration of grass blades (no text or symbols)

Srednji uvjeti:

do zu 300 m

Black and white illustration of grass blades (no text or symbols)

Teški uvjeti:

do zu 50 m

Održavanje

Senior Vice President

Engineering

Dr. Eckerhard Strötgen

Head of Product

Certification

ppa. Mauca

i.v. Mogen

Robert Bosch GmbH, Power Tools Division

Simple line drawing of a fence with five legs (no text or symbols)

Kerged tingimused:

kuni 500 meetrit

Black and white illustration of grass blades (no text or symbols)

Black and white illustration of grass blades (no text or symbols)

Rasked tingimused:

kuni 50 meetrit

Hooldus

Senior Vice President

Engineering

Dr. Eckerhard Strötgen

Head of Product

Certification

i.v. Nguyen

Robert Bosch GmbH, Power Tools Division

Simple line drawing of abstract black shapes on white background (no text or symbols)

Black and white illustration of grass blades (no text or symbols)

Black and white illustration of grass blades (no text or symbols)

Senior Vice President

Engineering

Dr. Eckerhard Strötgen

Head of Product

Certification

i.v. Mogen

Robert Bosch GmbH, Power Tools Division

Simple line drawing of abstract black shapes on white background (no text or symbols)

Lengvos salygos:

iki 500 metru

Black-and-white illustration of grass blades with no text or symbols

Vidutinio sunkumo sąlygos:

iki 300 metru

Black and white illustration of grass blades (no text or symbols)

Sunkios sąlygos:

iki 50 metru

Techninė priežiūra

Senior Vice President

Engineering

Dr. Eckerhard Strötgen

Head of Product

Certification

i.v. Mogen

Robert Bosch GmbH, Power Tools Division

Power Tools Division

70745 Leinfelden-Echterdingen

www.bosch-pt.com

F016 L70 457 (06.12) O/168
