Product type	Cordless battery-powered brush cutter
Brand	Bosch
Model	ART 23 LI
Cutting diameter	23 cm
No-load speed	7500 rpm
Weight (according to EPTA)	2.3 kg
Power supply	Lithium-ion battery 14.4 V, 1.3 Ah
Charger	AL 2204 CV, charging time 180 min
Runtime (light conditions)	Up to 800 m
Runtime (normal conditions)	Up to 350 m
Runtime (heavy conditions)	Up to 60 m
Adjustable handle	Yes, position adjustable
Head angle adjustment	Yes, by pedal
Main functions	Mowing grass, trimming weeds, edging, cutting under bushes
Safety	Start lock, automatic stop, deep discharge protection (ECP)
Maintenance and cleaning	Clean with soft brush and cloth; do not use water or solvents
Spare parts	Original Bosch blades, battery, charger
Repairability	Repair only by authorized Bosch after-sales service
Operating temperature	0 °C to 40 °C
Sound pressure level	80 dB(A)
Sound power level	88 dB(A)

Frequently Asked Questions - ART 23 LI BOSCH

How to charge the battery of the Bosch ART 23 Li brush cutter?

Place the battery into the supplied AL 2204 CV charger. Plug the charger into a mains socket. Charging takes about 180 minutes. The LED indicator flashes during charging and becomes steady when the battery is fully charged. The charging temperature must be between 0 °C and 45 °C.

What type of blade should I use with the Bosch ART 23 Li?

Use only original Bosch blades specifically designed for this model. Metal blades are prohibited. The original blade offers improved cutting characteristics.

How to replace a worn blade?

Before any intervention, remove the battery. Push the blade inward until it comes off the pin. Clean the pin with a sharp knife. Mount the new blade by pushing it down onto the pin and then pulling it outward until it clicks into place.

What to do if the brush cutter does not work?

First check the battery charge: recharge it if necessary. Make sure the battery is properly engaged. If the battery temperature is too high or too low (outside 0-45 °C), wait until it returns to the range. If the problem persists, contact Bosch after-sales service.

How to adjust the cutting head angle?

Press the adjustment pedal (12) fully and turn the head (7) to the desired position. Release the pedal to lock the angle. For edging, adjust the head to the low position and rotate the shaft.

What is the battery runtime?

Runtime depends on working conditions: up to 800 m in light conditions (low grass, flat ground), up to 350 m in normal conditions, and up to 60 m in heavy conditions (tall grass, uneven terrain).

How to maintain the brush cutter?

After each use, remove the battery and clean the device with a soft brush and cloth. Do not use water, solvents, or abrasive detergents. Clean the ventilation slots and the inside of the protective cover. Check the condition of screws and guards.

What are the essential safety instructions?

Wear safety goggles and closed-toe shoes. Do not work in the rain. Keep children and animals at a distance. Do not touch the rotating blade: it continues to spin for a few seconds after stopping. Always remove the battery before any cleaning or adjustment.

How to adjust the length of the edging shaft?

Turn the spring washer (6) to unlock the shaft. Pull or push the shaft to adjust the desired length, then retighten the spring washer.

Where to find spare parts and after-sales service?

Contact Bosch after-sales service: in France at 0800 05 50 51 or by email to [e-mail]. For parts, use the exploded views on the Bosch website. Use only original Bosch parts.

USER MANUAL ART 23 LI BOSCH

Power Tools Division

70745 Leinfelden-Echterdingen

www.bosch-pt.com

F016 L70 510 (2007.11) O / 279

ART

23 LI | 26 LI

BOSCH

de Originalbetriebsanleitung en Original instructions fr Notice originale es Manual original pt Manual original it Istruzioni originali nl Oorspronkelijke gebruiksaanwijzing da Original brugsanvisning sv Bruksanvisning i original no Original driftsinstruks fi Alkuperäiset ohjeet

Ukrainian page 188

Romanian page 199

Bulgarian page 209

Serbian page 221

Slovenian page 231

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Ströttgen Head of Product Certification

i.v. Moju

20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

For your safety

Warning! Read these instructions carefully, be familiar with the controls and the proper use of the cordless trimmer. Please keep the instructions safe for later use!

Explanation of symbols on the cordless trimmer

General hazard safety alert.

Read instruction manual.

Wear eye protection.

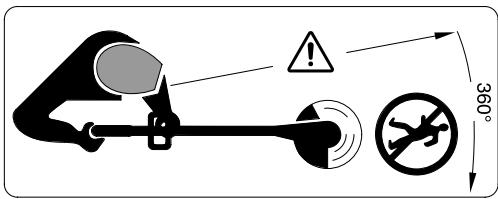

Pay attention that bystanders are not injured through foreign objects thrown from the machine.

Keep bystanders a safe distance away from the machine.

Remove battery before adjusting or cleaning, and before leaving the machine unattended for any period.

Do not work in the rain or leave the cordless trimmer outdoors whilst it is raining.

• Never operate the cordless trimmer with damaged guards or shields or without guards or shields in position.

Do not use the charger if the cord is damaged.

Before using the machine and after impact, check for signs of wear or damage, and repair if necessary.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. Do not operate the cordless trimmer when barefoot or wearing open sandals; always wear substantial footwear and long trousers. Never allow children or people unfamiliar with these instructions to use the cordless trimmer. Local regulations may restrict the age of the operator. When not in use store the trimmer out of reach of children. Never work with this trimmer while people, especially children or pets are nearby. The operator or user is responsible for accidents or hazards occurring to other people or their property. Wait until the blade has completely stopped before touching it. The blade continues to rotate after the trimmer is switched off; a rotating blade can cause injury. Work only in daylight or in good artificial light. Avoid operating the cordless trimmer in wet grass, where feasible. Switch off when transporting the cordless trimmer to and from the area to be worked on. Switch on the cordless trimmer with hands and feet well away from the rotating blade. Do not put hands or feet near the rotating blade. Never use a metal blade in this trimmer. Inspect and maintain the cordless trimmer regularly. Have the cordless trimmer repaired only by an authorized customer service agent. Always ensure that the ventilation slots are kept clear of debris.

Switch off and remove the battery:

• whenever you leave the machine unattended for any period
• before replacing the blade
• before cleaning or working on the cordless trimmer.
• Store the machine in a secure dry place out of the reach of children. Do not place other objects on top of the machine. Replace worn or damaged parts for safety. Ensure replacement parts fitted are Bosch approved. Ensure the switch is in the off position before inserting battery pack. Inserting the battery pack into machines that have the switch on invites accidents.
• Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
• Use only battery packs intended specifically for the machine. Use of any other battery packs may create a risk of injury and fire.
• When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause skin irritation or burns.

Functional Description

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Intended Use

The machine is intended for the cutting of grass and weeds under bushes, as well as on slopes and edges that cannot be reached with the lawn mower.

Intended use is related to operation within 0°C and 40°C ambient temperature.

Delivery Scope

Carefully remove the machine from its packaging and check if the following parts are complete:

• Cordless trimmer
• Blade guard
• Adjustable handle (fitted) Cutting disc
• Blade Battery Charger
• Operating instructions

When parts are missing or damaged, please contact your dealer.

Product Features

The numbering of the components shown refers to the representation of the machine on the graphic pages.

1 On/Off switch 2 Lock-off button for On/Off switch 3 Handle 4 Handle screw 5 Adjustable handle 6 Adjusting collar 7 Shaft 8 Ventilation slots 9 Trimmer head

10 Blade 11 Blade guard 12 Foot pedal for trimmer-head angle adjustment 13 LED indicator 14 Battery charger 15 Battery 16 Cutting disc 17 Pin 18 Plant protector 19 Serial number

The accessories illustrated or described are not included as standard delivery.

Technical Data

Cordless Trimmer	ART 23 Li		ART 26 Li
Article number	3 600 H78 K..		3 600 H78 L..
No-load speed	rpm	7500	7400
Adjustable handle		●	●
Trimmer-head angle adjustment/edging adjustment		●	●
Cutting diameter	cm	23	26
Weight according to EPTA-Procedure 01/2003	kg	2.3	2.4
Serial number	See serial number 19 (type plate) on the machine
Battery	Li-Ion		Li-Ion
Article number	2 607 336 037		2 607 336 039
Rated voltage	V=	14.4	18
Capacity	Ah	1.3	1.3
Charging period (battery discharged)	min	180	180
Battery Charger	AL 2204 CV		AL 2204 CV
Article number	2 607 225 2..		2 607 225 2..
Charging current	mA	230	230
Allowable charging temperature range	°C	0-45	0-45
Weight according to EPTA-Procedure 01/2003	kg	0.7	0.7

Noise/Vibration Information

Measured values determined according to 2000/14/EG (1.60 m height, 1.0 m clearance) and EN 28 662.

Typically the A-weighted noise levels of the product are: Sound pressure level 80 dB(A); Sound power level 88 dB(A). Uncertainty K = 5 dB.

Wear hearing protection!

The hand-arm acceleration is typically below 2.5 m/s².

Declaration of Conformity

We declare under our sole responsibility that this product is in conformity with the following standards or standardization documents: EN 786, EN 60 335 according to the provisions of the directives 89/336/EWG, 98/37/EG, 2000/14/EC.

2000/14/EC: The guaranteed sound power level LWA is lower than 94 dB (A). Conformity assessment procedure according to Annex VI.

Notified body: SRL, Sudbury England

Notified body identification number: 1088

Technical file at:

Robert Bosch GmbH, PT/ESC,

D-70745 Leinfelden-Echterdingen

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

For Your Safety

Switch off and remove battery from machine before adjusting or cleaning.

The blade continues to rotate for a few seconds after the cordless trimmer is switched off.

Caution - do not touch the rotating blade.

Assembly

Battery Charging

Observe correct mains voltage: The voltage of the power source must agree with the voltage specified on the nameplate of the unit. Equipment marked with 230 V can also be connected to 220 V or 240 V.

Use only the charging unit supplied. Only this charging unit is matched to the lithium-ion battery used in the product.

The battery is equipped with temperature monitoring that allows charging only in the temperature range between 0°C and 45°C. In this manner, a high battery service life is achieved.

Note: The battery is supplied partially charged. To ensure full capacity of the battery, completely charge the battery in the battery charger before using your power tool for the first time.

The lithium ion battery can be charged at any time without reducing its service life. Interrupting the charging procedure does not damage the battery.

Removing the Battery A

Press the battery unlocking button and pull out the battery 15 toward the rear.

Charging Procedure

The charging procedure starts as soon as the mains plug is plugged into the socket and the battery is then inserted into the battery charger 14.

Firstly, place the battery 15 as shown in the figure onto the front of the battery charger (0) and then press the battery 15 down at the rear (2). To remove the battery, proceed in reverse order.

Due to the intelligent charging method, the charging condition of the battery is automatically detected and the battery is charged with the optimum charging current, depending on battery temperature and voltage.

This gives longer life to the battery and always leaves it fully charged when kept in the charger for storage.

Note: The charging procedure is only possible when the battery temperature is within the allowable charging temperature range, see section "Technical Data".

Flashing Battery Charge Indicator 13

The charging procedure is signalled by a flashing battery charge indicator 13.

Continuous Lighting of the Battery Charge Indicator 13

Continuous lighting of the battery charge indicator 13 indicates that the battery is fully charged or that the tempera

The battery is not within the allowable charging temperature range, and therefore cannot be charged. The battery will charge as soon as the allowable charging temperature range is reached.

When the battery is not inserted, the continuous lighting of the battery charge indicator 13 indicates that the mains plug is inserted in the socket and that the battery charger is ready for operation.

Charging Advice

With continuous or several repetitive charging cycles without interruption, the charger can warm up. This is not a cause for concern and does not indicate a technical defect of the battery charger.

A significantly reduced working period after charging indicates that the battery is used and must be replaced.

The Electronic Cell Protection (ECP) protects the lithium ion battery against deep discharging. When the battery is run down or discharged, the machine is shut off by means of a protective circuit: The blade no longer rotates.

Do not continue to press the On/Off switch after an automatic shut-off of the machine.

The battery can become damaged.

Product Assembly

Do not insert the battery until the cordless trimmer is completely assembled.

Ensure that the cordless trimmer is assembled in the following order:

Mounting the Blade Guard

Place the blade guard 11 on the trimmer head 9.

Hook the blade guard onto the trimmer head and push it toward the rear. Press the blade guard downward until securely latched (click).

Mounting the Cutting Disc/Blade

Press the cutting disc 16 onto the drive shaft (click).

Position the blade 10 onto the pin 17, push it down and pull it outward until it engages.

Operation

Starting

Remove stones, loose pieces of wood and other objects from the cutting area.

The blade continues to rotate for a few seconds after the cordless trimmer is switched off. Allow the motor/blade to stop rotating before switching "on" again.

Do not rapidly switch off and on.

Inserting the Battery

Insert the battery into the machine as shown. The battery must be felt to engage.

Switching On

Press the lock-off button 2 and hold while actuating the On/Off switch 1.

Release the lock-off button 2 again.

Switching Off

Release the On/Off switch 1.

Note: There is a short delay in the motor starting after engaging the on/off switch 1.

Adjustment

Using the Adjustable Handle

The adjustable handle 5 can be set in various positions:

To change the position, loosen the handle screw 4 and move the adjustable handle 5. Tighten the handle screw 4 securely to fix the adjustable handle 5 in the adjusted position.

Adjusting the Trimmer Length F

1. Turn the adjusting collar 6 by 90°. Pull the shaft out to increase the height, or push the shaft in to decrease the height. Re-tighten the adjusting collar 6.

Adjusting the Trimmer-head Angle G

To change the cutting angle, press the foot pedal 12 down and move the shaft 7 to the requested position.

Release the foot pedal 12.

Adjusting for Edging Mode

H Adjusting the trimmer-head angle:

• Press the foot pedal 12 down. Θ Move the shaft 7 to the lowest position. Release the foot pedal 12 again.

1. Moving the trimmer head: Loosen the adjusting collar 6. Turn the shaft 7 by 90° to adjust the trimmer head 9 for trimming/edging as shown. Re-tighten the adjusting collar 6.

Working Advice

Protect the battery from heat, for example, also the continuous exposure to sun radiation and fire.

Product will not function if temperature is below 0°C or above 45°C

Cutting Grass

Move the cordless trimmer left and right, keeping it well away from the body.

The trimmer can efficiently cut grass up to a height of 15 cm. Cut higher grass in stages.

Trimming Edges

Guide the cordless trimmer along the edge of the lawn. Avoid contact with paved surfaces, stones or garden walls, as this will wear the blade rapidly.

For better control, use the plant protector 18 (accessory) as a guide.

Cutting Around Trees and Bushes

Carefully cut around trees and bushes so that they do not come into contact with the blade.

Plants can die if you damage the bark.

For better control, use the plant protector 18 (accessory) as a guide.

Battery Duration

The battery duration is dependent on the working conditions:

Light conditions:

up to 800 metres (ART 23 Li)

up to 1000 metres (ART 26 Li)

Medium conditions:

up to 350 metres (ART 23 Li)

up to 440 metres (ART 26 Li)

Tough conditions:

up to 60 metres (ART 23 Li)

up to 75 metres (ART 26 Li)

Changing the Blade

Before any work on the machine itself, remove the battery from the machine.

To remove the worn blade 10, push it inward until it snaps off of the pin 17.

Clean the pin 17 of any residual plastic/debris with a sharp knife.

To mount a new blade 10, place the blade 10 onto the pin 17, push it down and pull it outward until it engages.

Note: Only use Bosch replacement blades. They have been developed specially for improved cutting and feed performance. The use of other blades will lead to a deterioration in performance.

Troubleshooting

The following chart lists problem symptoms, possible causes and corrective action, if your machine does not operate properly. If these do not identify and correct the problem, contact your service agent.

Warning: Switch the machine off and remove the battery prior to any troubleshooting.

Problem	Possible Cause	Corrective Action
Blade guard can not be mounted over cutting disc	Incorrect assembly	Remove cutting disc and mount blade guard again; also see "Assembly"
Trimmer fails to operate	Battery discharged	Recharge battery; also see "Battery Charging"
	Battery too hot/cold	Allow to cool/warm
Trimmer runs intermittently	Internal wiring of machine damaged	Contact Service Agent
	On/Off switch defective	Contact Service Agent
Excessive vibrations/noise	Machine defective	Contact Service Agent
	Blade broken	Replace the blade
Cutting time per battery charge too low	Battery has not been used for long period or only for short terms	Fully charge battery; also see "Battery Charging"
	Grass too high	Cut in stages
	Battery dead or defective	Replace the battery
Blade will not move	Battery discharged	Recharge battery; also see "Battery Charging"
	Machine defective	Contact Service Agent
Machine does not cut	Blade broken	Replace the blade
	Battery not fully charged	Recharge battery; also see "Battery Charging"
	Grass entangled around cutting disc	Remove grass
Continuous lighting of the battery charge indicator 13	Battery not (properly) inserted	Properly insert battery into battery charger
No charging probedure possible	Battery contacts contaminated	Clean the battery contacts (e.g. by inserting and removing the battery several times) or replace the battery
	Battery defective	Replace the battery
Battery charge indicator 13 does not light up	Mains plug of battery charger not plugged in (properly)	Insert mains plug (fully) into the socket outlet
	Socket outlet, mains cable or battery charger defective	Check the mains voltage; have the battery charger checked by an authorised after-sales service agent for Bosch power tools

Maintenance and Service

Maintenance and Cleaning

Before any work on the machine itself, remove the battery from the machine.

Note: To ensure long and reliable service, carry out the following maintenance regularly.

Regularly check for obvious defects such as loose fixings, and worn or damaged components.

Check that covers and guards are undamaged and correctly fitted. Carry out necessary maintenance or repairs before using.

If the machine should happen to fail despite the care taken in manufacture and testing, repair should be carried out by an authorised customer service agent for Bosch garden products.

In all correspondence and spare parts order, please always include the 10-digit article number given on the type plate of the machine.

After Trimming/Storage

Switch the machine off and remove the battery. Ensure battery is removed before storage.

Clean the exterior of the machine thoroughly using a soft brush and cloth. Do not use water, solvents or polishes. Remove all grass and debris, especially from the ventilation slots 8.

Turn the machine on its side and clean the cutting guard 11 inside. If grass cuttings are compacted, remove with a wooden or plastic implement.

Check if guards and protective devices are undamaged and properly mounted. Before using, carry out possibly necessary maintenance and repairs.

The battery should be stored between 0°C and 45°C.

After-sales service and customer assistance

Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. Exploded views and information on spare parts can also be found under:

www.bosch-pt.com

Our customer consultants answer your questions concerning best buy, application and adjustment of products and accessories.

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O.Box 98

Broadwater Park

North Orbital Road

Denham

Uxbridge

UB 95HJ

Tel. Service: [phone]

Fax: [phone]

Australia, New Zealand and Pacific Islands

Robert Bosch Australia Pty. Ltd.

Power Tools

Locked Bag 66

Clayton South VIC 3169

Customer Contact Center

Inside Australia:

Phone: [phone]

Fax: [phone]

Inside New Zealand:

Phone: [phone]

Fax: [phone]

Outside AU and NZ:

Phone: [phone]

www.bosch.com.au

Transport

The battery is tested according to UN document ST/SG/AC.10/11/Rev.3 Part III, subsection 38.3. It has effective protection against internal overpressure and short circuiting as well as devices for the prevention of violent rupture and dangerous reverse current flow.

The lithium-equivalent content in the battery is below applicable limit values. Therefore, the battery is not subject to national or international regulations pertaining to dangerous mediums, neither as an individual component nor when inserted into a machine. However, the regulations governing dangerous goods may be relevant when transporting several batteries. In this case, it can be necessary to comply with special conditions (e.g., concerning the packaging). For more information, please refer to the instruction sheet (in English) under the following Internet address: http://purchasing.bosch.com/en/start/Allgemeines/Download/index.htm.

Disposal

The machine, accessories and packaging should be sorted for environmental-friendly recycling.

Only for EC countries:

Do not dispose of power tools into household waste!

According the European Guideline 2002/96/EC for Waste Electrical and Electronic Equipment and its implementation into national right,

power tools that are no longer usable must be collected separately and disposed of in an environmentally correct manner.

Battery packs/batteries:

Li-ion:

Please observe the instructions in section "Transport", page 26.

Do not dispose of battery packs/batteries into household waste, fire or water. Battery packs/batteries should be collected, recycled or disposed of in an environmental-friendly manner.

Only for EC countries:

Defective or dead out battery packs/batteries must be recycled according the guideline 91/157/EEC.

Batteries no longer suitable for use can be directly returned at:

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O.Box 98

Broadwater Park

North Orbital Road

Denham

Uxbridge

UB 95HJ

Tel. Service: [phone]

Fax: [phone]

Subject to change without notice.

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

i.v. Mojgcu

20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

For your safety

Robert Bosch (France) S.A.S.

Subject to modification without notice.

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

i.v. Mo7gc

20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

For your safety

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

Senior Vice President

Engineering

Dr. Eckerhard Strötgen

Head of Product

Certification

i.v. Moju

20.08.2007, Robert Bosch GmbH, Power Tools Division

D-70745 Leinfelden-Echterdingen

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

i.v. Moju

20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Voor uweiligkeit

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product

Certification

20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Bosch Service Center

Telegrafvej 3

2750 Ballerup

Tel. Service Center: [phone]

Fax: [phone]

E-Mail: [e-mail]

Transport

The batteries have been tested in accordance with the UN manual.

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

i.v. Moju

20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

For your safety

Only for EU countries:

Only for EU countries:

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

For safety reasons

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Do not operate the machine out of service and remove the battery before any adjustment, cleaning, or maintenance.

The saw blade continues to rotate for a few seconds after the machine has been switched off.

Caution: Do not touch the rotating saw blade.

Assembly

Battery insertion

Attention regarding the mains voltage: The voltage of the power source must match the voltage specified on the nameplate of the machine. Machines with a characteristic voltage of 230 V can also be operated at 220 V/240 V.

Use the tool that is included in the package. Only this tool fits the battery of the same type used in your machine.

The battery can be used in the temperature range of 0°C to 45°C. This ensures a long battery life.

Note: The battery is supplied partially charged. To ensure the full performance of the battery, it must be fully charged before first use.

The lithium-ion battery can be charged at any time. Charging does not affect the battery.

Removing the battery

Never remove the battery while the appliance is in operation. Remove the battery from the bottom of the appliance.

Charging

In operation

When the appliance is switched off, press the release button and then the ON/OFF switch 1.

Release the release button on the battery 2.

Switch off

Release the ON/OFF switch 1.

Note: When you press the ON/OFF switch 1, the motor starts with a minimum speed.

Adjusting the appliance

Using the handle E

The handle 5 can be adjusted to different positions:

This device is intended for cutting grass and similar vegetation. The cutting blade rotates at high speed. Always ensure the blade is properly secured before use.

For the user

Turn the device upside down 6 at 90° to expose the cutting blade. Guide the blade guard towards the outside, so that you can cut towards the inside. Make sure the blade guard is securely in place.

Adjusting the cutting angle

To set the cutting angle, press the lever 12 and rotate the blade guard 7 to the desired position.

Release the lever 12.

Adjusting the cutting angle

Adjusting the cutting angle: 1. Press the lever 12. 2. Rotate the blade guard 7 to the desired position. Release the lever 12.

Moving the blade guard 6. Turn the blade guard 7 by 90° to adjust the cutting angle 9, as shown, for cutting/trimming edges. Make sure the blade guard is securely in place.

Operation

Protect the device from strong heat sources, e.g., intense sunlight and heat. The device does not operate at temperatures below 0°C or above 45°C!

Cutting grass

Move the cutting blade from side to side, keeping a safe distance from your body.

The cutting blade can cut grass effectively up to 15 cm. If the grass is taller, cut it in stages.

Cutting

To protect the tool from unexpected starting, you must switch off the tool and lock the switch with the locking device / or remove the battery.

For the best guidance, use the protective device for trees 18 (figure in the appendix) as a guide.

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

20.08.2007, Robert Bosch GmbH, Power Tools DivisionD-70745 Leinfelden-Echterdingen

For your safety

Up to 350 meters (ART 23 Li)

Bosch San. ve Tic. A.S.

Ahi Evran Cad. No:1 Kat:22

Polaris Plaza

80670 Maslak/Istanbul

Customer Advisor: [phone]

Customer Service Line: [phone]

Transport

Dr Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Ströttgen Head of Product Certification

i.v. Mojgcu

20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Robert Bosch Sp. z o.o.

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

For your safety

Bosch Service Center PT

K Vapence 1621/16

692 01 Mikulov

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

www.bosch.cz

Preprava

Senior Vice President

Engineering

Dr. Eckerhard Strötgen

Head of Product

Certification

i.v. Mo Tu We Th Fr So Su

20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Ströttgen Head of Product Certification

i.v. Moju

20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Az OnBiztonsagsaert

He pa6oTaIe TIOA DOXDEM H He OCTaBIAIte aKKyMMyAITOPHbI TpIMMep CTOrTb IOA DOXDEM.

HnB Koem cayuee He pa6oTaTe C TpMMepom C IOBpeJxDeHHbIMN KOJIaKaMn 3aunTHbIMN yCTpoiCTBaMn, Hn eCAn OHN CHrTbl.

Check the device with a damaged power cord.

After each use, inspect the tool for wear or damage. If necessary, have it repaired before use. This power tool is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the power tool.

Do not use the trimmer with bare feet or in open shoes, and always wear sturdy, closed-toe shoes and long trousers. Never allow children or persons unfamiliar with these instructions to use the trimmer. Local regulations may restrict the operator's age. Store the trimmer out of reach of children. Do not work with the tool when people, especially children, or pets are nearby. The operator is responsible for accidents or damage to others or their property. Do not touch the rotating blade until it has come to a complete stop. The blade continues to rotate after the motor is switched off and can cause injury. Work only in daylight or good artificial light. If possible, do not use the trimmer in wet grass.

Switch off the trimmer when transporting it to and from the area to be trimmed. Switch on the trimmer only when the rotating blade is at a sufficient distance from your hands and feet. Keep a safe distance between your hands and feet and the rotating blade. Do not use a metal blade for this trimmer. Regularly check and maintain the trimmer. Have the trimmer repaired only by authorized service workshops. Always keep the ventilation slots clean. Remove the battery from the trimmer:

Improvements made in compliance with the instructions and safety techniques can become the cause of electric shock.

Injury, risk of serious injury.

Intended use

This tool is intended for trimming grass and weeds along edges, as well as on slopes and for trimming borders that cannot be reached with a lawnmower.

Intended use is limited to an ambient temperature range of 0°C to 40°C.

Scope of delivery

Carefully unpack the trimmer and check that the following parts are present:

10 Blade 11 Protective cover 12 Guard 13 Charge indicator 14 Charger 15 Battery 16 Cutting head 17 Spool 18 Protective bracket 19 Serial number

The illustrated and described accessories are not included in the standard delivery.

Technical data

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

i.v. Mojgcu

20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Safety Instructions

Pull out the tool and remove the battery before adjusting or cleaning.

After switching off the cordless trimmer, the blade continues to rotate for a few seconds.

Caution - Do not touch the rotating blade.

Assembly

Battery charging

The voltage of the power source must correspond to the data on the type plate of the tool. Power tools for 230 V can also operate at 220 V.

Use only the charging device supplied with the tool. Only this charging device is compatible with the lithium-ion battery of your tool.

The battery is equipped with a temperature control device that allows charging only within a temperature range of 0°C to 45°C. This ensures a long service life for the battery.

Note: The battery is supplied partially charged. To ensure full battery capacity, charge it completely before first use.

The lithium-ion battery can be charged at any time without reducing its service life. Interrupting the charging process does not damage the battery.

Charging the battery

Press the release button and pull out the battery 15 from the tool.

Charging procedure

The charging procedure starts as soon as the plug of the charging device is inserted into the mains socket and the battery is subsequently placed in the charging device 14.

Place the battery 15 according to the figure, first onto the charging device (1) and then press the battery 15 from above until it clicks into place (2). Remove the battery from the charging device in the reverse order.

The intelligent charging method automatically determines the state of charge of the battery and, depending on its temperature and voltage, charging is carried out with the optimal current.

This ensures gentle handling of the battery. When left in the charging device, it is always fully charged.

Note: Charging is only possible when the battery temperature is within the charging range; see section "Technical Data".

Battery charge indicator 13

The battery charge indicator 13 signals the charging process by lighting up.

Intermittent lighting of the battery charge indicator 13

Intermittent light

The intermittent light of the battery charge indicator 13 indicates that the battery is fully charged or that the charging process has been interrupted because the battery temperature has exceeded the permissible range. As soon as the temperature is within the permissible range, charging of the battery will continue.

Without the battery, the intermittent light of the charge indicator 13 indicates that the plug is inserted into the mains socket and the charging device is in working order.

Battery charging instructions

During continuous or multiple charging cycles without interruption, the charging device may heat up. This, however, does not pose a danger and does not indicate a technical malfunction of the power tool.

A noticeable reduction in operating time per charge indicates aging of the batteries and the need to replace them.

The battery is equipped with an "Electronic Cell Protection (ECP)" against deep discharge. The protection circuit switches off the power tool when the battery is discharged. The tool then stops rotating.

After the automatic switch-off of the tool, do not press the switch again. The battery may be damaged.

Assembling the tool

Insert the battery only after the battery trimmer has been fully assembled.

Assemble the battery trimmer only in the following order:

Mounting the protective cap

Slide the protective cap 11 onto the head of the trimmer 9.

Screw the protective cap onto the head of the trimmer and tighten it. Press the protective cap down until it clicks into place (click).

Installing the cutting blade/knife

Press the cutting blade 16 onto the drive shaft (click). Then install the knife 10 onto the pin 17, press on the knife and pull it outward until it locks.

Working with the tool

Switching on

Check the device for damage before starting work.

After switching on the battery trigger, the tool continues to run for a few seconds due to inertia. Wait for the motor/tool to stop before switching on again.

Do not switch the tool off and on without an intermediate pause.

Installing the battery

Insert the battery into the tool as shown. The battery must click into place.

Switching on

Press the lock-off button and, in this position, activate the switch 1.

Release the lock-off button.

Switching off

Release the switch 1.

Note: The motor starts when the switch 1 is activated with a slight delay.

Adjusting the tool

Using the adjustable handle

The adjustable handle 5 can be set in different positions:

To change the position, release the handle 5 and adjust it. Tighten the handle 5 to fix the adjustable handle in the set position.

1. Turn the protective sleeve 6 by 90°. 2. Pull the sleeve and guide it out. 3. Tighten the protective sleeve 6.

Changing the angle of the trimmer head

Change the cutting angle to the desired position. 12. Turn the handle 7 to the desired position. Release the handle 12.

Position for edge trimming

Adjusting the trimmer head

Press the handle 12. Bring 7 to the lowest position. Release the handle 12.

Usage instructions

Protect the battery from exposure to high temperatures, for example, direct sunlight or heat. The tool does not work at temperatures below 0°C or above 45°C!

Trimming grass

Move the battery trimmer left or right and keep a sufficient distance from your body.

The battery trimmer effectively cuts grass up to 15 cm high. Taller grass should be cut gradually.

Edge trimming

Guide the battery trimmer along the edge of the lawn. To prevent rapid wear of the blade, avoid contact with hard surfaces and stone or brick walls. For edge trimming, use the protective guard for trees 18 as an auxiliary cutting device (accessory).

Trimming grass around trees and bushes

Cut the grass around trees and bushes to avoid contact with the deck.

1000 meters (ART 26 Li)

Average conditions

30-350 meters (ART 23 Li)

Delta 0440 meters (ART 26 Li)

Difficult conditions

Delta 060 meters (ART 23 Li)

70-5 meters (ART 26 Li)

Blade replacement

Clean the blade with a sharp knife from the remains of the grass and all dirt.

Insert the new blade onto the blade holder, push it down, and pull it out after locking.

Note: Use only Bosch blades. This special design has improved cutting properties. Blades from other manufacturers have a shorter lifespan.

Troubleshooting

The following table lists the signs and possible remedies for malfunctions in case of improper operation of the mower. If you cannot locate and fix the problem with this help, contact your service workshop.

Warning: Before troubleshooting, switch off the tool and remove the battery.

The accumulator must be stored at a temperature between 0°C and 45°C.

Service and consultation for customers

The service department will answer all your questions regarding repair and maintenance of your product as well as spare parts. You can also find spare parts information at the following address:

www.bosch-pt.com

The Bosch consulting team will gladly assist you with questions about purchasing, application, and adjustment of products and accessories.

Russia

Robert Bosch LLC

Service center for power tools

ul. Akademika Koroleva 13, stroenie 5

129515, Moscow

Tel.: [phone]

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

E-Mail: [e-mail]

LLC "Robert Bosch"

Service Center for Power Tools

Electrical Tools

Zaitseva St., 41

198188, Saint Petersburg

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

LLC "Robert Bosch"

Service Center for Power Tools

Electrical Tools

Gorsky Microdistrict, 53

630032, Novosibirsk

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Robert Bosch LLC

Central Service Center for Power Tools

Power Tools

14, Fontannaya Embankment,

620017, Yekaterinburg

Tel.: [phone]

Tel.: [phone]

Fax: [phone]

Belarus

ACU YT-18

220064 Minsk, st. Kurchatova, 7

Tel.: [phone]

Fax: [phone]

Transport

The battery is tested in accordance with UN ST/SG/AC.10/11/Rev.3, Part III, Subsection 38.3. The battery is equipped with effective protection against internal overpressure, short circuit, and also with devices to prevent static discharge under the influence of shock load and dangerous reverse current. The equivalent quantity of lithium batteries is below the corresponding limit values. Therefore, the battery, both as a separate part and in the built-in state in the instrument, is not subject to the regulations for hazardous substances. However, the regulations for hazardous substances may become relevant when transporting several batteries. In such a case, it may become necessary to observe special conditions (e.g., for packaging). You can find details in the English brochure at the following address on the Internet: http://purchasing.bosch.com/en/start/ Allgemeines/Download/index.htm.

Disposal

Power tools, accessories and packaging should be sorted for environmentally friendly recycling.

Only for EU countries:

Do not dispose of power tools into household waste! According to the European Directive 2002/96/EC on waste electrical and electronic equipment and its implementation in national law, power tools that have reached the end of their service life must be collected separately and returned to an environmentally compatible recycling facility.

Implementation of this Directive in national law, power tools that have reached the end of their service life must be collected separately and returned to an environmentally compatible recycling facility.

Batteries:

Please:

Observe the note in section “Transport”, page 186.

Do not dispose of batteries into household waste, do not throw them into fire or water. Batteries should be collected and returned for recycling or to an environmentally compatible disposal facility.

Only for EU countries:

Defective or used-up batteries must be recycled according to Directive 91/157/EEC.

We reserve the right to make changes.

Safety instructions

Warning! Read all safety instructions carefully. Familiarize yourself with the controls and the proper use of the device with the battery. Keep the instruction manual for future use.

Example with battery

General safety instructions.

Read the operating instructions.

Wear protective goggles.

• Example
• Protective cover Adjustable auxiliary handle (mounted)
• Disc blade - blade
• Charging instructions Operating instructions

If the device does not work or is damaged, please contact the store.

Illustrated components

The numbering of the illustrated components refers to the illustration on the fold-out page.

1 Trigger 2 Lock button 3 Handle 4 Auxiliary handle 5 Adjustable auxiliary handle 6 Locking sleeve 7 Tube 8 Ventilation slots 9 Example head

10 Blade 11 Protective cover 12 Blade guard for cutting example head 13 Light indicator 14 Charging instructions 15 Battery 16 Disc blade 17 Blade 18 Protective cover 19 Serial number

The illustrated accessory is not included in the standard delivery scope.

Technical data

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

i.v. Mojgcu

20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Safety Warnings

Before using the power tool, read and follow all safety warnings and instructions. Charge the battery pack.

After removing the battery pack from the tool, wait a few seconds.

Caution - Do not touch the contacts, they may be hot.

Mounting

Charging the battery

Charging the battery: The charger's mains voltage must match the data on the rating plate of the device. Chargers rated for 230 V can also operate on 220 V/240 V.

Use only the supplied charger. The charger is designed for the lithium-ion battery pack used in your power tool.

The battery pack has a temperature monitoring system that allows charging only in the temperature range from 0°C to 45°C. This ensures a long service life of the battery.

Note: The battery pack is supplied partially charged. To ensure full battery capacity, fully charge the battery pack in the charger before first use.

The lithium-ion battery pack can be charged at any time without reducing its service life. Interrupting the charging process does not damage the battery pack.

Battery charger A

Press the battery release button, pull the battery pack back and remove it from the device.

Charging

The charging process begins when the charger is plugged into a power outlet and the battery pack is inserted into the charging slot.

Insert the battery pack as shown in the figure, slide it into the charging slot (0) and then press the battery pack down (2). To remove the battery, do the reverse.

Thanks to the intelligent charging procedure, the charge level of the battery pack is automatically detected and charging is carried out with an optimal current depending on the temperature and voltage of the battery.

Store the battery pack, and if it is stored in the charger, it will be fully charged.

Note: The charging process is only possible if the temperature of the battery pack is within the permissible temperature range for charging, see the “Technical Data” section.

Battery charge indicator 13

The charging process is indicated by the battery charge indicator 13.

Steady light of the battery charge indicator 13

Steady light

The battery charge indicator 13 indicates that the battery pack is

fully charged or the temperature of the battery pack is outside the permissible temperature range for charging, and therefore charging is not possible. Only when the permissible temperature range for charging is reached, the battery pack will be charged.

If the battery pack is not inserted, the steady light of indicator 13 indicates that the charger is plugged into a power outlet and the charging slot is ready for operation.

Bka3iBKn 0oDo 3apAxxaHH

Press the protective cap 11 onto the head of the trimmer 9.

Pull the protective cap over the head of the trimmer and push it back. Press the protective cap down until it clicks.

INSTALLING THE DISC KNIFE/BLADE

Place the disc knife 16 onto the shaft, pressing it down (click). Place it onto the flange 17, press it down and turn it to ensure it is securely engaged.

Operation

Operating instructions

Remove stones, branches, and other objects from the area where you will be working.

After switching off the trimmer with the battery pack, it continues to rotate for a few seconds. Wait until it has completely stopped before switching it on again.

Do not switch it on again immediately after switching off.

Installing the battery pack

Insert the battery pack into the handle as shown. The battery pack must click into place.

Switching on

Press the lock-off button 2 and, while holding it down, press the on/off switch 1.

Release the lock-off button 2.

Note: The trimmer is started unintentionally by the trigger.

Adjusting the trimmer head

Using the adjustable handle

The adjustable handle 5 can be set in different positions:

For the lowest position, loosen the screw on the handle 4 and move the adjustable handle 5. Tighten the screw on the handle 4 to fix the adjustable handle 5 in the set position.

Adjusting the trimmer line length

1. Turn the locking ring 6 by 90° counterclockwise and pull the tube to extend the line. Then tighten the locking ring 6 again.

Adjusting the trimmer head angle

To change the cutting angle, press the release button 12 and tilt the tube 7 to the desired position.

Release the button 12.

Adjusting the cutting of grass with the guard

For adjusting the trimmer head angle: press the release button 12. Move the tube 7 to the desired position. Then release the button 12.

To adjust the trimmer head: 1. Loosen the locking ring 6. 2. Turn the tube 7 by 90° to adjust the trimmer head 9 for cutting grass with the guard, as shown. Then tighten the locking ring 6 again.

Protect the battery from heat, e.g., from direct sunlight, as well as from fire. The device does not operate at temperatures below 0°C or above 45°C!

Trimming the grass

Hold the trimmer with the battery in the right hand, keeping it in a stable position.

With the battery in an effective state, you can trim grass up to 15 cm high. Taller grass should be trimmed gradually.

Trimming with the grass trimmer

Hold the trimmer with the battery at the edge of the lawn. Move the trimmer slowly, avoiding contact with hard surfaces and stones.

For best results, use the protective guard for the cutting line (accessory).

Trimming grass around trees and bushes

Trim grass around trees and bushes carefully to avoid damaging them with the blade. Roots may be damaged by the cutting line.

For best results, use the protective guard for the cutting line (accessory).

Operating time of the battery

The operating time of the battery depends on the working conditions:

Light conditions:

Δ 0800 meters (ART23Li)

Important conditions:

30 to 50 meters (ART 23 Li)

up to 40 meters (ART 26 Li)

Important conditions:

up to 60 meters (ART 23 Li)

70 to 5 meters (ART 26 Li)

Replacing the blade

Before all work, carefully remove the battery pack from the tool.

To remove the blade, press it inward so that it pops out of the holder 17.

With the help of a sharp knife, clean all residues of the blade/brush from the holder 17.

To install a new blade, place the blade on the holder 17, press and turn it until it locks into place.

Tip: Use only original Bosch blades. This special development has better properties from the point of view of the saw. These blades lead to the first productivity of work.

Troubleshooting

If the saw does not start despite the switch being pressed, follow the steps to make your device work properly again. If this does not help you solve the problem, please contact the service workshop.

Warning: To reduce the risk of injury, read the instructions and charge the battery.

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

ppa. Maee i.v. Nogcu

20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

For your safety

Switch off the power tool and remove the battery before making any adjustments or cleaning.

Bosch Service Center

Str. Horia Macelariu Nr. 30-34, 013937 Bucuresti

Tel. Service power tools: [phone]

Fax: [phone]

E-Mail: [e-mail]

Tel. Technical consultation: [phone]

Fax: [phone]

E-Mail: [e-mail]

Transport

The battery is tested according to the UN Manual of Tests and Criteria, ST/SG/AC.10/11/Rev.3, Part III, subsection 38.3. It has adequate protection against internal overpressure and short circuiting, and is also provided with protective devices that prevent forced rupture and dangerous reverse current.

Before using the battery,

read the instructions supplied by the manufacturer of the power tool carefully.

Do not work on or leave the battery or the power tool exposed to rain or moisture.

Do not work with the battery charger if the cables or plugs are damaged or if they have been repaired.

Do not expose the charging device to rain or moisture.

If the power tool is dropped or subjected to impact, check for damage and wear; if necessary, have it repaired by a qualified person. This power tool is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the power tool. Do not work with the battery charger in the presence of flammable liquids or gases. In no case allow the battery charger to be used by persons who have not read these instructions. It is possible that national regulations restrict the age of persons working with the charger. When not using the charger, store it in a place where it is not accessible to children. Do not work with the power tool while other people, especially children or pets, are in the immediate vicinity. The operator is responsible for accidents or damage to other persons or their property while working with the charger. Keep all parts of the machine away from the body and head, before switching it on. After switching off the power tool, the blades continue to rotate for a short time and can cause injury.

Work with the tool in daylight or artificial lighting. If possible, do not work with the cordless chainsaw if the weather is damp. When you finish using the cordless chainsaw, switch it off. Switch on the cordless chainsaw only when your hands and the chain are at a sufficient distance from the rotating blade. Do not bring your hands or the chain close to the rotating blades. Do not mount metal blades on this power tool. - Periodically check and carry out technical maintenance of the cordless chainsaw. Have the cordless chainsaw repaired only by qualified service personnel for power tools. Keep the ventilation openings clean and check that they are not clogged with sawdust. Switch off the power tool and remove the battery:

- when leaving the power tool unattended - before changing the blade - before checking, cleaning or carrying out work on the cordless chainsaw.

Store the power tool in a dry, clean place, out of the reach of children. Do not place other objects on top of it. For safety reasons, replace worn or damaged parts. Make sure that the spare parts you install are genuine Bosch parts.

Remove the battery. Make sure the power tool is switched off. Inserting the battery into a switched-on power tool can cause accidents. Charge the batteries only with the chargers specified by the manufacturer. If the charger is used to charge different types of batteries, there is a risk of fire. Use only the batteries intended for the corresponding power tool. The use of other batteries can cause accidents and/or fire. When the battery is removed from the power tool, keep it at a safe distance from staples, coins, keys, nails, screws or other small metal objects that could bridge the contacts.

Short-circuiting the battery contacts can cause burns or fire.

If the battery is used incorrectly, liquid may leak from it. Avoid contact with it.

If you accidentally come into contact with the liquid, rinse the area with water. If the liquid gets into your eyes, seek medical help immediately. The liquid can cause skin irritation or burns.

Function description

Read all the instructions carefully. Failure to follow the instructions below can result in electric shock, fire and/or serious injury.

2000/14/EC: guaranteed sound power level is less than 94 dB (A). The conformity assessment method is in accordance with Annex

Authorised certification body SRL, Sudbury England

Identification number of the authorised certification body: 1088

Technical description for: Robert Bosch GmbH, PT/ESC, D-70745 Leinfelden-Echterdingen

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

i.v. Mojgcu

20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

For your safety

Before adjusting or servicing the power tool, or before cleaning it, remove the battery pack from the power tool.

Remove the battery pack from the power tool before making any adjustments, changing accessories, or storing the power tool.

The battery pack supplied has been only partially charged. To ensure full battery capacity, charge the battery pack completely before first use.

Caution: Do not use the charger outdoors.

Mounting

Charging the battery pack

Note the mains voltage! The voltage of the power source must match the data given on the rating plate of the power tool. Power tools marked with 230 V can also be operated with 220 V/240 V.

Use only the charger supplied with the power tool. Using a charger with different parameters may damage the battery pack.

The battery pack has a temperature control that allows charging only in the range between 0 °C and 45 °C. This increases the service life of the battery pack.

The battery is supplied partially charged. Before first use, fully charge the battery in the charger.

The lithium-ion battery can be charged at any time without reducing its service life. Interrupting the charging process does not damage the battery.

Removing the battery

Press the battery release button and pull the battery out of the power tool.

Charging

The automatic shut-off of the power tool does not work if you keep pressing the trigger.

The battery can be damaged.

Inserting the power tool

Insert the battery into the handle until the release button clicks into place.

The insertion of the battery must be carried out in the following sequence:

Mounting the cutting blade 3

Place the cutting blade 11 on the blade holder 9.

Turn the blade holder until it stops. Press the cutting blade down until you hear a distinct click.

Mounting the cutting blade disc/hook

Press the locking button (click). Place the hook 10 on the shaft 17, press it down and turn it until you hear a click.

Pa6ota cypeda

BkIouBaHe

OTCTpaHete OT MRCTO, KbDeTo ue KOcHTe, KaMbHN, KLoHn N ApyTN TBbpAn PpeMetn.

CLeD n3KIAUOBAHe Ha aKymyAaTopHaTa TpeBOKocaKa HOXbT IPOdIaXaBa Da ce BbptN HRAKOceYHnTo INHePun. IPeDN Da BKAIOuBaTe IOBTOpHo, N3UaKaIne TBpTeHTo Ha eLEKTPoDBHrAteA/HoxKa Da CIIpe HAITbAHO.

He BKAIOUBAIte eAeKTPoHCTpymeHTa HETOCpeACTBEHO CAE KATO CTFOHKAIOUHAN.

TIOCTABRHe Ha akymylaTophata 6aTePnA

BkapaTe akymylaTOpHaTa 6aTepeRnBa eIeKTPoHnCTpyMeHTo, KaKTo e Ioka3aHo Ha fHiyPata. Tp6Ba Da ycTe OTuEtAnBO IpeuPaKaBaHe.

BkIouBaHe

HaTnCHete n 3aApbXkTe 6yToHa 3a De6IoKnpaHe Ha TpCKOBnI PpeKBcBaU 2 n CLeA TOBa HATnCHete TpCKOBnI PpeKBcBaU 1.

OTnycheTe 6yToHa 3a De6IoKnPaHe Ha IyCKOBnI pekcbau 2.

N3KIAOyBaHe

OTnycheTe nycKOBnI pekcbau 1.

YtBtBaHe: EAnKtpoDbnIgATEIaTcCTapTnpa MaKo CLeA KaTo 6bDe HATNCHaT PyCKOBnT PpeKcbau 1.

HactpoBaHe Ha eNeKtponHcTpymenta

N3TNOA3BaHe Ha TIOABHXKaHa TaPbKoXBaTaKa

The handle can be installed in different positions:

To change the position, unscrew the handle screw 4 and remove the handle 5. Then tighten screw 4 to lock the handle 5 in the selected position.

Adjusting the height of the alarm F

Turn the locking sleeve 6 by 90° to release the guide rod, for extension pull it outwards.

Then tighten the locking sleeve 6 again.

Adjusting the tilt of the cutting head C

To change the tilt of the cutting head, press lever 12 and turn the guide rod 7 to the desired position.

Release lever 12.

Setting for cutting close to a wall

Set the tilt of the cutting head:

Press lever 12. Place the guide rod 7 in the starting position. Release lever 12 again.

1 Changing the cutting head:

Loosen the locking sleeve 6. Turn the guide rod 7 by 90° with the cutting head 9 as shown in the figure. Then tighten the sleeve 6.

Operating instructions

Disconnect the battery before any work, e.g., due to the risk of injury from the saw blade.

The tool does not work at temperatures below 0°C or above 45°C!

Cutting depth adjustment

Always keep the hedge trimmer away from your body and maintain a safe distance from the blade.

The hedge trimmer can effectively trim hedges up to 15 cm thick. If the hedge is thicker, cut in stages.

Cutting near the ground

Guide the hedge trimmer along the ground at the cutting area. To avoid rapid blade wear, avoid contact with hard surfaces and walls.

For better control, use the guide hook for the blade as a guide for guiding (not included in the kit).

Cutting around trees and shrubs

Cut carefully around trees and shrubs to avoid damaging them with the blade. If the bark of the plants is damaged, they may die.

For better control, use the guide hook for the blade as a guide for guiding (not included in the kit).

Battery life

The operating time of the battery depends on the working conditions:

Working conditions:

Up to 800 meters (ART23Li)

Up to 1000 meters (ART 26 Li)

Work area:

0.350 m (ART 23 Li)

0.440 m (ART 26 Li)

Work area:

0.60 m (ART 23 Li)

0.75 m (ART 26 Li)

Blade length D

Before any work on the power tool, remove the battery pack.

To remove the worn blade 10, press the button and pull the blade out of the holder 17.

Clean the holder 17 with a sharp blade from any debris or residue.

To mount a new blade 10, place the blade 10 on the holder 17, press it in and push it in until you hear it click into place.

Note: Use only original spare blades. They are specially developed and have optimal properties. Using other blades may affect safety and performance.

Troubleshooting

The table below shows symptoms of faults and how you can help yourself if the power tool stops working normally. If you cannot identify the problem by following the instructions in the table, contact the authorized service center for power tools.

Caution: Before troubleshooting, switch off the power tool and remove the battery pack.

Remove the battery from the power tool before any work on the power tool itself, e.g., adjustment, maintenance, or cleaning.

Warning: Follow the maintenance procedures to ensure the power tool is functioning correctly and safely.

Always check the power tool for damage, e.g., cracked housings, loose connections, or damaged parts.

Check that the accessories are correctly and securely mounted. Perform the necessary repairs before using the power tool.

If the power tool is damaged despite careful manufacturing and testing, have it repaired by an authorized service center for power tools.

When contacting the representative of Bosch, please provide the 10-digit order number from the power tool's nameplate.

After finishing work/storage

Remove the power tool from the battery. To remove the power tool, make sure the battery is removed.

Clean the power tool housing carefully with a soft brush and cloth. Do not use water, solvents, or polishing agents. Remove all dirt and debris, especially from the ventilation slots.

Place the power tool in the storage case 11 after cleaning. Remove the compact dust extraction with the brush or plastic tube.

Make sure that the accessories and attachments are not damaged and function correctly. Perform the necessary repairs before finishing work with the power tool.

The battery must be stored at a temperature between 0°C and 45°C.

Service and consultation

The service will answer your questions regarding repair and maintenance of your product, as well as regarding spare parts. Exploded views and information on spare parts can also be found at www.bosch-pt.com

The Bosch consultation team will help you with questions regarding purchase, use, and adjustment possibilities for various products from the Bosch product range and accessories for them.

Robert Bosch EOOD - Varna

Bosch Service Center

Warranty and post-warranty repair

ul. Srebarna 9

1907 Sofia

Tel.: [phone]

Tel.: [phone]

Tel.: [phone]

Fax: [phone]

Transport

The battery has been tested in accordance with the UN ST/SG/AC.10/11/3 manual, Part III, Section 38.3. It has effective protection against internal overpressure and short circuit, and is protected against mechanical damage and reverse current. The equivalent amount of lithium contained in the battery is below the permitted limit. Therefore, the battery is not subject to national or international regulations for working with hazardous waste/materials. Despite this, when transporting many batteries, these regulations may become applicable. In such a case, it may be necessary to comply with special requirements (e.g., regarding packaging). You can find more details in the leaflet (in English) at the following internet address: http://purchasing.bosch.com/en/start/ Allgemeines/ Download/index.htm.

Disposal

Due to the risk of harm to the environment, power tools, accessories, and packaging must be disposed of in a manner suitable for recycling of the materials contained in them.

Only for EU countries:

Do not dispose of power tools in household waste! According to the EU Directive 2002/96/EC on waste electrical and electronic equipment and its implementation,

According to the law on electronic instruments, which cannot be used further, they must be collected separately to be disposed of at the recycling facility for the recovery of the secondary raw materials contained in them.

Batteries and ordinary batteries:

Li-Ion:

Please follow the instructions in the 'Transport' section, page 219.

Do not dispose of batteries in household waste or in fire. Ordinary batteries or rechargeable batteries must be collected, recycled, or disposed of in an environmentally friendly manner.

Only for EU countries:

According to Directive 91/157/EEC, defective or worn-out rechargeable batteries or ordinary batteries must be recycled.

Rights to changes reserved.

Safety instructions

Attention! Read the following instructions carefully. Familiarize yourself with the working elements and the correct use of the cordless grass trimmer. Please keep the operating instructions safe for later use.

Explanation of symbols on the cordless grass trimmer

General safety instructions.

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

i.v. Moju

20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

For your safety

Switch off the device and remove the battery before performing adjustment and cleaning work.

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

For your safety

Before adjusting or cleaning the device, switch it off and remove the battery.

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

For your safety

Before adjusting or cleaning, switch off the device and remove the battery.

After the battery vacuum cleaner is switched off, the blade continues to rotate for a few seconds.

Caution - do not touch the rotating blade.

Assembly

Charging the battery

Observe the mains voltage: The voltage of the power source must match the data on the rating plate of the device. Devices marked with 230 V can also operate on 220 V/240 V.

Use only the supplied charger. Only this charger is compatible with the Li-ion battery installed in your device.

The battery is equipped with a temperature control that allows charging only in the temperature range between 0°C and 45°C. This ensures a long battery service life.

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

Instructions

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Strötgen Head of Product Certification

i.v. Moju

20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

For your safety

Always switch off the tool and remove the battery from it before adjusting or cleaning.

After switching off the hedge trimmer, the cutting blade will continue to rotate for a few seconds.

Be careful - do not touch the rotating cutting blade.

Assembly

Charging the battery

Use the correct mains voltage!

The mains voltage must match the value specified on the charger's rating plate. Devices designed for 230 V can also be operated from a 220 V or 240 V mains supply.

Dr. Egbert Schneider Senior Vice President Engineering

Dr. Eckerhard Ströttgen Head of Product Certification

20.08.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen

For your safety
