TKG VC 36 - Vacuum Cleaner KALORIK - Free user manual and instructions

Brand	Kalorik
Model	TKG VC 36
Type	Bagless vacuum cleaner
Dust collector	Bagless, manual emptying
Main filter	Washable HEPA filter
Secondary filter	Washable nylon filter (pre-filter)
Motor filter	Washable (every 3 months)
Air outlet filter	Washable air filter (3 times a year)
Telescopic tube	Yes, adjustable
Combined nozzle	Yes, 2 positions (smooth floors/carpets)
Included accessories	Crevice tool, furniture brush
Blower function	Yes (via air propulsion port)
Power control	Electronic and manual
Cord rewinder	Yes, automatic
Power supply	Mains, 220-240 V ~ 50 Hz
Cable length	Approximately 6 m (estimated)
Weight	Approximately 4.5 kg (estimated)
Dimensions (L x W x H)	Approximately 35 x 25 x 30 cm (estimated)
Noise level	Approximately 75 dB (estimated)
Collector capacity	Approximately 2 L (estimated)

Frequently Asked Questions - TKG VC 36 KALORIK

How to empty the dust collector?

Press the unlock button on the top of the dust collector cover and remove the collector from the appliance. Then, press the bottom unlock button to open it and empty the contents into a trash can. Close the collector and put it back in place.

How to clean the filters?

For the HEPA filter and nylon filter, remove the dust collector cover, turn the filters in the 'OPEN' direction to detach them. Rinse with water (no dishwasher or hair dryer) and dry thoroughly before replacing. The motor filter should be cleaned with soapy water every 3 months. The air outlet filter should be cleaned with a soft brush or under warm water 3 times a year.

What to do if suction decreases?

First check if the dust collector is full and empty it. If the problem persists, clean the filters (HEPA, nylon, motor, air outlet). Also check for blockages in the tube or hose. If nothing works, contact an authorized after-sales service.

How to use the blower function?

Unplug the appliance, then attach the flexible hose to the air propulsion port on the right side of the appliance. Use this function briefly to gather dry debris. Caution: the nozzle and handle may become hot; stop the appliance if they become too hot.

How to adjust the suction power?

The power can be adjusted manually via the slider on the hose handle or electronically via the power control on the appliance. Use low power for delicate surfaces (curtains, furniture) and maximum for carpets and hard floors.

How to assemble the vacuum cleaner?

Connect the hose end into the port on the hood until it clicks. Assemble the telescopic tube on the hose handle (adjust the length with the button in the middle). Attach the combined nozzle or another accessory to the other end of the tube.

What are the important safety instructions?

Never use the appliance without a filter or with a damaged filter. Do not vacuum liquids, flammable substances, or glowing objects. Unplug the appliance before any maintenance. Do not use outdoors. Supervise children. If the cable is damaged, have it replaced by a professional.

How to use the combined nozzle?

The combined nozzle has two positions: brush retracted for carpets and rugs, brush extended for smooth floors (tile, parquet). Change the position by actuating the pedal or slider on the nozzle.

How to store the vacuum cleaner?

After use, unplug the appliance and press the cord rewind button to store the cable (guide it with your hand to avoid knots). A compartment at the back allows you to attach the combined nozzle for storage. Empty the dust collector and clean the filters if necessary.

Where to find replacement filters?

Contact the nearest after-sales service to your home to obtain new filters (HEPA, nylon, motor, air outlet). Use only filters recommended by the manufacturer.

USER MANUAL TKG VC 36 KALORIK

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Doppelter Zyklonstaubsauger Dual cyclone vacuum cleaner Aspirateur double cyclone Dubbele cycloonstofzuiger Aspirador doble ciclón Aspirador sem saco “dual cyclone” Aspirapolvere senza sacchetto Okurzacz cykloniczny Aspirator de praf fara sac

I/B Version 090727

TKG VC 36

230V\~ 50Hz 2700Wmax

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Fax [phone]
Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

D

1. Brush
2. ON/OFF switch / suction power control
3. Dust cup cover
4. Dust cup release button
5. HEPA filter
6. Nylon filter
7. Dust cup cover release button
8. Dust cup bottom release button
9. Dust cup
10. Dust cup bottom
11. Crevice nozzle
12. Furniture nozzle
    2 TKG VC 36-090727

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Fax [phone]

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

13. Air outlet socket

FR

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Fax [phone]

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

PT

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Fax [phone]

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Fax [phone]
Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Fig 1

Fig 2

Fax [phone]
Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Fig 3

Fig 4

Fig 5
7 TKG VC 36 - 090727

Fax [phone]

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Fax [phone]
Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

NACH DEM GEBRAUCH

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

UMWELTSCHUTZ - RICHTLINIE 2002/96/EG

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

GB OPERATING INSTRUCTIONS

IMPORTANT SAFEGUARDS

Please read these instructions carefully before using the appliance, and always follow the safety and operating instructions.

Important: People (including children) who are not able to use the appliance in a safe way, due to their physical, sensorial or mental capacity or their lack of experience or knowledge, must never use the appliance except if they are supervised by a person responsible for their safety or if they previously received instructions concerning the safe use of the appliance. Close supervision is necessary to prevent children from using the appliance as a toy.

Before use, check that your network mains voltage corresponds to that stated on the appliance.
☐ Never leave the appliance unsupervised when in use or when plugged to the electric network.
☐ Regularly check the appliance for damages. Never use the appliance if cord or appliance shows any signs of damage but have it checked and repaired by a competent qualified service ^[1] . Should the cord be damaged, it must be replaced by a competent qualified service ^[2] .
☐ Only use the appliance for domestic purposes and in the way indicated in these instructions.
☐ Never immerse the appliance in water or any other liquid for any reason whatsoever.
☐ Never use the appliance near hot surfaces.
☐ Unplug the appliance when not in use or when emptying the dust container or cleaning or replacing the filters.
☐ Never use the appliance outside and always place it in a dry environment.
☐ Never use accessories which are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
☐ Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way, to prevent the appliance from falling. Do not wind the cord around the appliance and do not bend it.
Before plugging in the cord, make sure the switch is set to the off-position.
☐ This appliance is not a toy, it is not supposed to be sat on.
☐ Never use the appliance to vacuum matches, pointed objects, cigarettes, butts or other glowing things. Do not use it on wet surfaces or surfaces covered with cement or other substances that are too fine or even toxic when inhaled. Never vacuum any kind of liquid with this appliance, particularly flammable liquids.
☐ Do not try to repair the winding-on spool yourself. Make sure it is repaired by a competent qualified electrician ¹ .
☐ Do not block the vacuum passage. If this should happen by accident, unplug the appliance before unblocking it.
☐ Make sure not to point the vacuum cleaner at persons or animals, and especially stay clear of eyes and ears.
☐ If you use the appliance with a full dust container or saturated filters, the appliance might get damaged. Make sure to check the good quality and placement of the dust container and/or filters.
☐ If your appliance no longer vacuums correctly or if the dust container is full, clean the filter and empty the dust container in order to prevent the appliance from overheating.

Fax [phone]

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

(1) Competent qualified electrician: after-sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In case of need you should return the appliance to this electrician.

14 TKG VC 36-090727

Fax [phone]

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Using the appliance when not all the filters are installed properly and in good shape might damage the appliance. No guarantee claims will be accepted for damages due to that reason.

ASSEMBLING THE VACUUM CLEANER

• Remove all packaging material from the appliance and its accessories.

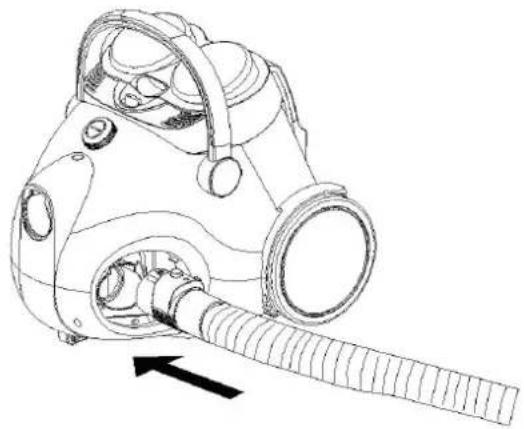

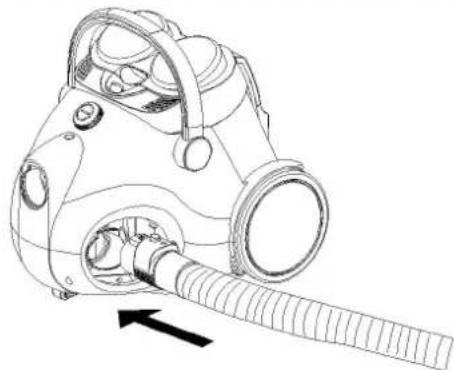

• Insert the nozzle of the flexible hose into the hose connection inlet on the front part of the appliance. Press until it clicks. To remove the flexible hose, press on the release button of the connection piece and pull it out of the appliance.
  • Fit the telescopic tube to the handle of the flexible hose.
• You can adjust the length of the telescopic tube by pressing the button situated in the middle of the tube.
  • Fit the other end of the telescopic tube to the suction device or any other accessory.
• The floor brush is ideal for the daily cleaning of carpets and hard floors. Setting with the bristles inside for cleaning carpets. Setting with the bristles outside for cleaning hard floors.
• The appliance is delivered with the following accessories: a crevice tool: for radiators, crevices, corners, baseboards and between cushions. an upholstery brush: for curtains, cushions, edges, doors, mattresses etc.

OPERATION

• Make sure that filters are installed correctly. Using the vacuum cleaner without filters or with filters wrongly installed could damage the engine (cf paragraph "FILTERS").
• Once the appliance is assembled, pull out the cord to have the desired cord length. A yellow mark indicates that you unwound nearly the whole cord length. The red mark is the maximum limit above which you should not go. Plug in the appliance. Start the engine by softly pressing the "ON/OFF" switch.
• You can adjust the suction power manually with the wind force adjuster situated on the hose handle, or with the electronic power control switch. Use a low suction power for furniture and other delicate surfaces and use high suction power for fitted carpet and other floors.

Air Blower Function (additional function)

• You may convert your machine to blow air out by attaching the flexible hose to the machine's air outlet socket (at the right side of the vacuum cleaner).
• The blower function is recommended to gather scattered dry waste such as leaves and confetti.

CAUTION: This blower function is just an additional, substandard, unofficial function of this vacuum cleaner. SO WE RECOMMEND USING THIS FUNCTION QUICKLY AND ONLY FOR A LITTLE WHILE FOR EACH USE.

The flexible hose and handle may become very hot after a long-time use, at that time you should stop using this function; use again after several minutes, when the appliance has cooled down.

Fax [phone]
Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

AFTER USE

Stop the vacuum cleaner by pressing the ON/OFF switch.

- Unplug the appliance from the power supply.

- Simply press the cable rewind button to activate the cable rewind mechanism. During the winding up of the power cord, please guide the cord with your hand to avoid wounds due to the speed of the rewinding.

- In order to avoid bad smells or mould, empty the dust container after each use if possible (see paragraph below).

EMPTYING THE DUST CONTAINER

• Press the unlock button on top of the dust container and simultaneously remove the container as shown in fig. 1 page 6.
• Press the unlock button at the bottom of the dust container to open and empty it. This should be done above a dustbin as shown in pic A fig. 2 page 6.
• Close the container (fig. 3, page 7).

FILTERS

This device is equipped with a HEPA filter protected with a nylon filter and another nylon filter situated in the dust container, an air filter situated behind the grid of the appliance, and also a motor filter situated behind the dust container.

Cleaning the HEPA filter and the nylon filter

If the suction power is reduced even after emptying the dust container, it is necessary to clean the HEPA filter and the nylon filter.

• Remove the dust cup cover by pressing the dust cup cover release button as shown in pic B fig. 2 page 6.
• Remove the nylon filter "A" by turning it to the "OPEN" direction as mentioned under the filter.
• Remove the HEPA filter "B" by turning it to the "OPEN" direction as mentioned under the filter.
• Another nylon filter is situated around the HEPA filter "B". To remove it, you just have to pull it out.

Fax [phone]

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

• Rinse the HEPA filter "B", the nylon filters "A" and the one around the HEPA filter with water as shown in fig. 3 page 7. If necessary, you may use a smooth brush. Carefully dry the fillers. Never put them in a dishwasher or dry them with a hair dryer.
• To put back the filters, do it the opposite way. Please pay attention to the "A" and "B" mark on both filters and cover, in order to put the filters at the correct place on the cover.

Motor filter

To clean the motor filter (filter situated on top of the motor).

To remove the motor filter; switch off the appliance, remove the dust container and remove the filter to wash it in soapsuds (approximately every 3 months). When it is completely dry, put it back in the appliance and replace the dust container.

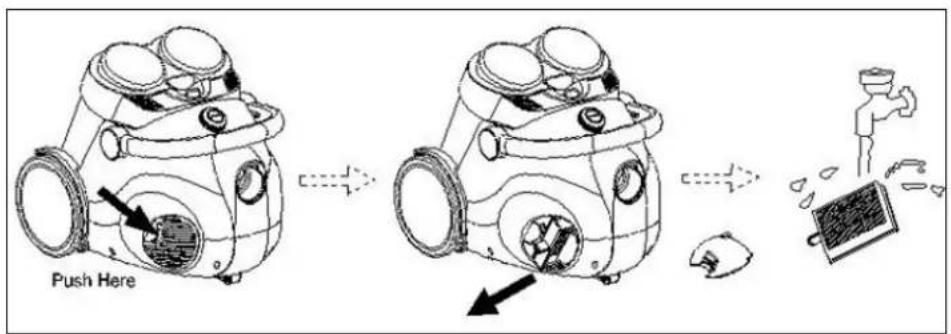

Cleaning of the exhaust HEPA air filter

The air filter is situated behind the grid on the side of the appliance opposite to the power cord and guarantees fresh air when vacuum cleaning. This filter should be cleaned approximately three times a year.

Unplug the appliance, open the grid and remove the filter. Clean it with a soft brush or by using running, lukewarm water as shown in fig. 5 page 7.

Give the HEPA filter enough time to dry out completely, then put it back in the appliance with the plastic grid downwards and close the grid.

NOTE: After a certain number of cleanings, the filters will be damaged or impossible to get back in their initial shape. In such case, please contact the nearest customer service to obtain new filters.

Cleaning of the dust container

Clean the dust container with a wet towel or a non-abrasive sponge. Make sure it is fully dry before putting it back into the appliance.

PRACTICAL HINTS

• The floor brush is equipped with a hook, allowing you to attach the tube to the rear part of the appliance when it is in use, for instance when you want to move a piece of furniture or after use when storing your appliance.
• If you notice a loss of suction power, it is probably due to one or a combination of the following events: blocked filter, full or punctured bag or blockage in tubes. If your appliance still does not work properly after you have checked those problems, please ask a qualified electrician for advice.

PROTECTION OF THE ENVIRONMENT - DIRECTIVE 2002/96/EC

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the

implication of both suppliers and users. For this reason, as indicated by the symbol on the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it to a municipal collection point performing

17 TKG VC 36 - 090727

Fax [phone]

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.

18 TKG VC 36-090727

Fax [phone]

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

FR MODE D'EMPLOI

POUR VOTRE SECURITE

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

APRES UTILISATION

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Fax [phone]

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Fax [phone]
Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

NA GEBRUIK

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

SP MANUAL DE INSTRUCCIONES

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

DESPUES DEL USO

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

FILTROS

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

CONSEJOS PRÁCTICOS

Fax [phone]
Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

MODO DE EMPREGO

PARA A SUA SEGURANÇA

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

FILTROS

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

① ISTRUZIONI PER L'USO

AVVERTENZE

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Fax [phone]
Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

DOPO L'USO

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

DIRETTIVA 2002/96/CE PER LO SMALTIMENTO DELLE APPARECCHIATURE ELETTRICHE ED ELETTRONICHE

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

PL INSTRUKCJA OBSŁUGI

ZASADY BEZPIECZNEGO UŻYTKOWANIA

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

MONTAŻ URZADZENIA

TKG VC 36 - 090727

Fax [phone]

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

PO ZAKOŃCZENIU ODKURZANIA

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

RO INSTRUCTIUNI DE OPERARE

MASURI IMPORTANTE DE SIGURANTA

Va rugam cititi cu atentie aceste instructiuni inainte de a folosi aparatul si intotdeauna urmati instructiunile de siguranta si operare.

Important: persoanele (inclusiv copii) care nu sunt capabile sa foloseasca produsul in siguranta, datorita capacitatii lor fizice, senzoriale sau mentale, sau datorita lipsei de experienta sau cunostere, nu trebuie niciodata sa foloseasca produsul decat daca sunt supravegheati de o persoana responsabila cu siguranta lor sau daca ei anterior au primit instructiuni privind folorirea aparatului.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Fax [phone]
Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

DUPA FOLOSIRE

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.
