TKG VC 33 - Vacuum Cleaner KALORIK - Free user manual and instructions

Product type	Canister vacuum cleaner
Brand	Kalorik
Model	TKG VC 33
Dimensions (L x W x H)	Approx. 40 x 25 x 30 cm
Weight	Approx. 4.5 kg
Power supply	220-240 V ~ 50/60 Hz
Power consumption	900 W
Power cord	6 m with automatic rewinder
Suction type	Dry
Filtration system	Dust bag + motor filter + HEPA exhaust filter
Tank capacity	2.5 L
Noise level	76 dB(A)
Operating radius	8 m (cord + hose)
Main functions	Electronic power adjustment, full bag indicator, automatic shut-off in case of overheating
Included accessories	Floor nozzle, crevice tool, upholstery brush, fabric nozzle
Maintenance and cleaning	Disposable dust bag, washable filter (every 2 months)
Safety	Thermal protection with automatic shut-off
Spare parts available	Dust bags (type KALORIK VC33), filters, nozzles
Repairability	Repairability rating 7.8/10 (estimated)
Warranty	2 years

Frequently Asked Questions - TKG VC 33 KALORIK

How to change the dust bag?

Open the front compartment, remove the full bag, insert a new bag (model KALORIK VC33) ensuring the cardboard support clips properly.

How to clean the filters?

The motor filter and HEPA exhaust filter are washable with lukewarm soapy water. Let them dry completely (24h) before reinstalling.

Why does the vacuum cleaner stop during use?

The thermal protection cuts the power if the motor overheats. Check that the bag is not full and filters are not clogged. Let it cool for 30 minutes before restarting.

The cord does not retract completely, what to do?

Unwind the cord completely then press the rewinder pedal fully. If the problem persists, there may be a knot or obstruction.

Which accessories are compatible?

All original Kalorik accessories for canister vacuum cleaners with 32 mm diameter are compatible. You can also use universal accessories of the same diameter.

How to know if the bag is full?

A red indicator on the housing lights up when airflow is insufficient. Replace the bag as soon as the indicator lights up or every 3 months under normal use.

Can I use the vacuum cleaner without a bag?

No, this vacuum cleaner is designed to operate with a disposable bag. Without a bag, dust would damage the motor filter and reduce performance.

Is the noise level high?

The noise is about 76 dB(A), which is standard for a canister vacuum cleaner. Use the minimum power for small areas to reduce noise.

How to adjust the suction power?

An electric slider on the vacuum body allows power adjustment from 1 (minimum) to 3 (maximum). Adjust the power according to the surface and type of dirt.

Where to buy spare parts?

Bags and filters are available on the official Kalorik website or at appliance retailers. Use the reference TKG VC 33 to find compatible parts.

USER MANUAL TKG VC 33 KALORIK

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Fax [phone]
Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

15

D

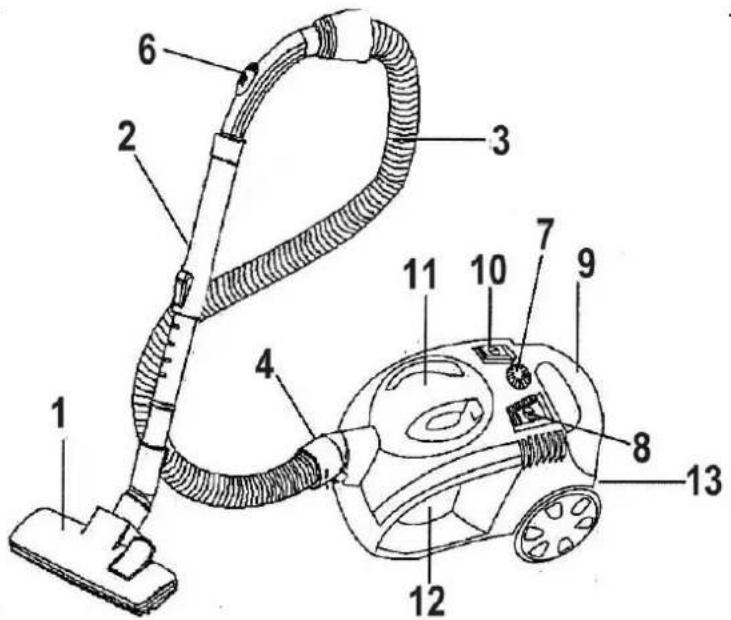

1. Floor brush
2. Telescopic tube
3. Flexible hose
4. Flexible hose adapter
5. Button for setting the length of the telescopic tube
6. Manual suction power regulator
7. Automatic suction power regulator
8. ON/OFF switch

2 TKG VC 33-080407

1. Carrying handle
2. Cable rewind button
3. Lid of the dust container
4. Dust container
5. Storage place for accessories
6. Small brush
7. Combined accessory

FR

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

NL

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

IT

Fax [phone]
Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

5 TKG VC 33-080407

Fax [phone]

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

PRAKTISCHE HINWEISE

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

GB OPERATING INSTRUCTIONS

IMPORTANT SAFEGUARDS

Please read these instructions carefully before using the appliance.

Important: People (including children) who are not able to use the appliance in a safe way, due to their physical, sensorial or mental capacity or their lack of experience or knowledge, must never use the appliance except if they are supervised by a person responsible for their safety or if they previously received instructions concerning the safe use of the appliance. Close supervision is necessary to prevent children from using the appliance as a toy.

Before use, check that your network mains voltage corresponds to that stated on the appliance.
☐ Never leave the appliance unsupervised when in use or when plugged to the electric network.
☐ Regularly check the appliance for damages. Never use the appliance if cord or appliance shows any signs of damage but have it checked and repaired by a competent qualified service ^[1] . Should the cord be damaged, it must be replaced by a competent qualified service (*)
☐ Only use the appliance for domestic purposes and in the way indicated in these instructions.
☐ Never immerse the appliance in water or any other liquid for any reason whatsoever.
☐ Never use the appliance near hot surfaces.
☐ Unplug the appliance when not in use or when emptying the dust container or cleaning or replacing the filters.
☐ Never use the appliance outside and always place it in a dry environment.
☐ Never use accessories which are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
☐ Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way, to prevent the appliance from falling. Do not wind the cord around the appliance and do not bend it.
Before plugging in the cord, make sure the switch is set to the off position.
☐ This appliance is not a toy, it is not supposed to be sat on.
☐ Never use the appliance to vacuum matches, pointed objects, cigarettes, butts or other glowing things. Do not use it on wet surfaces or surfaces covered with cement or other substances that are too fine or even toxic when inhaled. Never vacuum any kind of liquid with this appliance, particularly flammable liquids.
☐ Do not try to repair the winding-on spool yourself. Make sure it is repaired by a competent qualified electrician (*).
☐ Do not block the vacuum passage. If this should happen by accident, unplug the appliance before unblocking it.
☐ Make sure not to point the vacuum cleaner at persons or animals, and especially stay clear of eyes and ears.
☐ If you use the appliance with a full dust container or saturated filters the appliance might get damaged. Make sure to check the good quality and placement of the dust container and/or filters.
☐ If your appliance no longer vacuums correctly or if the dust container is full, clean the filler and empty the dust container in order to prevent the appliance from overheating.

Fax [phone]

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

1) Competent qualified electrician: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician.

Using the appliance when not all the filters are installed properly and in good shape might damage the appliance. No guarantee claims will be accepted for damages due to that reason.

ASSEMBLING THE VACUUM CLEANER

• Remove all packaging material from the appliance and its accessories.
• Insert the nozzle of the flexible hose (4) into the hose connection inlet on the front part of the appliance. Press until it clicks (Fig 1). To remove the flexible hose, press on the release button of the connection piece and pull it out of the appliance.

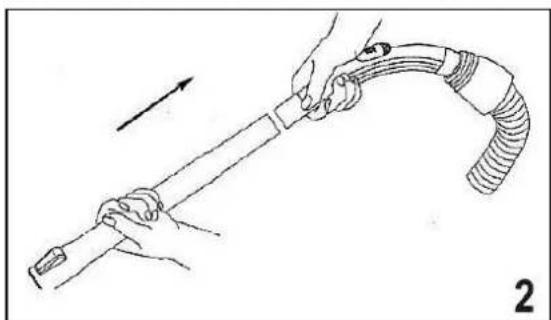

  • Fit the telescopic tube (2) to the handle of the flexible hose (Fig. 2).

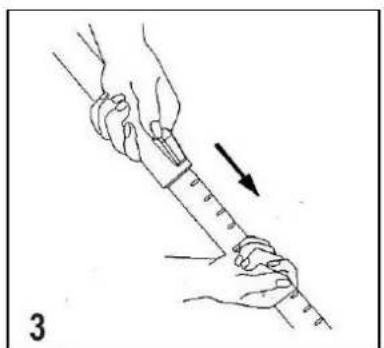

• You can adjust the length of the telescopic tube by pressing the button (5) situated in the middle of the tube. (Fig. 3)
• Fit the other end of the telescopic tube to the suction device (1) or any other accessory (Fig. 4).
• The 2-settings suction device allows you to clean all surfaces very easily, smooth surfaces or carpets, simply by changing the brush position:

Setting with the bristles inside for cleaning carpets. Setting with the bristles outside for cleaning hard floors.

OPERATION

• Make sure that filters are installed correctly. Using the vacuum cleaner without filters or with filters wrongly installed could damage the appliance engine (cf paragraph "FILTERS")
• WARNING: In order to avoid electric disturbances when starting the appliance, it is equipped with a "soft start" system. This prevents the engine from starting with too much power, and for this reason, there can be a small interval (1 to 2 seconds) between pressing the "start" button and the starting of the engine. This is perfectly normal.
• Once the appliance is assembled, pull out the cord to have the desired cord length. A yellow mark indicates that you unwound nearly the whole cord length. The red mark is the maximum limit above which you should not go. Plug the appliance in. Start the engine by softly pressing the "ON/OFF" switch (8).
• You can adjust the suction power manually with the wind force adjuster (6) situated on the hose handle, or with the electronic power control switch (7). Use a low suction power for furniture and other delicate surfaces and use high suction power for fitted carpet and other floors.
• A combined accessory (15) is provided to clean unreachable surfaces (narrow inlet) or fragile surfaces such as furniture or curtains (long hair inlet). This accessory is fixed either to the handle or to the extremity of the hose.
  • The brush (14) is recommended for mattresses, stuffed furniture, sofas, tapestries.
  • A place is foreseen at the back of the appliance to put every accessory.

AFTER USE

Stop the vacuum cleaner by pressing the ON/OFF switch (8).

- Unplug the appliance from the power supply.

12 TKG VC 33-080407

Fax [phone]

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

• Simply press the cable rewind button (10) to activate the cable rewind mechanism.
- In order to avoid bad smells or mould, empty the dust container after each use if possible (see "Cleaning the dust container and the filters" section)

Fax [phone]

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

EMPTYING THE DUST CONTAINER

• Press the unlock buttons on the sides of the front part of the dust container and simultaneously remove the container (Fig. 6)
• Press the unlock button at the bottom of the dust container (Fig. 7). Open the bottom of the container and empty it. This should be made above a dustbin.
• Close the container.

FILTERS

This device is equipped with a HEPA filter and a nylon filter situated in the dust container, and an air filter situated behind the grid of the appliance.

Cleaning the HEPA filter and the nylon filter

If the suction power is reduced even after emptying the dust container, it is necessary to clean the HEPA filter and the nylon filter.

• Remove the dust container as mentioned here above.
  • Turn the superior front part of the container anticlockwise until it comes off.
• Remove the front part and the dust container filters.
• Remove the front part filters of the container by making it turn anticlockwise (Fig. 8)
  • The nylon filter is situated around the HEPA filter, to remove it, you just have to pull it out.
• Rinse the HEPA filter and the nylon filter with water. If necessary, you may use a smooth brush. Carefully dry the filters. Never put them in a dishwasher or dry them with a hair dryer.

• To put back the filters, do it the opposite way.

Cleaning of the air filter

The air filter is situated behind the grid at the back of the appliance and guarantees fresh air when vacuum cleaning. This filter should be cleaned approximately three times a year. Unplug the appliance, open the grid situated at the back of the appliance and remove the filter (Fig. 9). Shake it, then put it back in the appliance and close the grid.

NOTE: After a certain number of cleanings the filters will be damaged or impossible to get back in their initial shape. In such case, please contact the nearest customer service to obtain new filters.

Cleaning of the dust container

Clean the dust container with a wet towel or a non-abrasive sponge. Make sure it is fully dry before putting it back into the appliance.

Fax [phone]

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

PRACTICAL HINTS

• To clean stairs, put the appliance vertically.
- The telescopic tube is equipped with a hook, allowing you to attach the tube the rear part of the appliance when it is in use, for instance when you want to move a piece of furniture or after use when storing your appliance.
- If you notice a loss of suction power, it is probably due to one or a combination of the following events: blocked filter, full or punctured bag or blockage in tubes. If your appliance still does not work properly after you have checked those problems, please ask a qualified electrician for advice.

PROTECTION OF THE ENVIRONMENT- DIRECTIVE 2002/96/EC

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the

implication of both suppliers and users. For this reason, as indicated by the symbol ■ the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.
