USER MANUAL STYLE 12 AEG

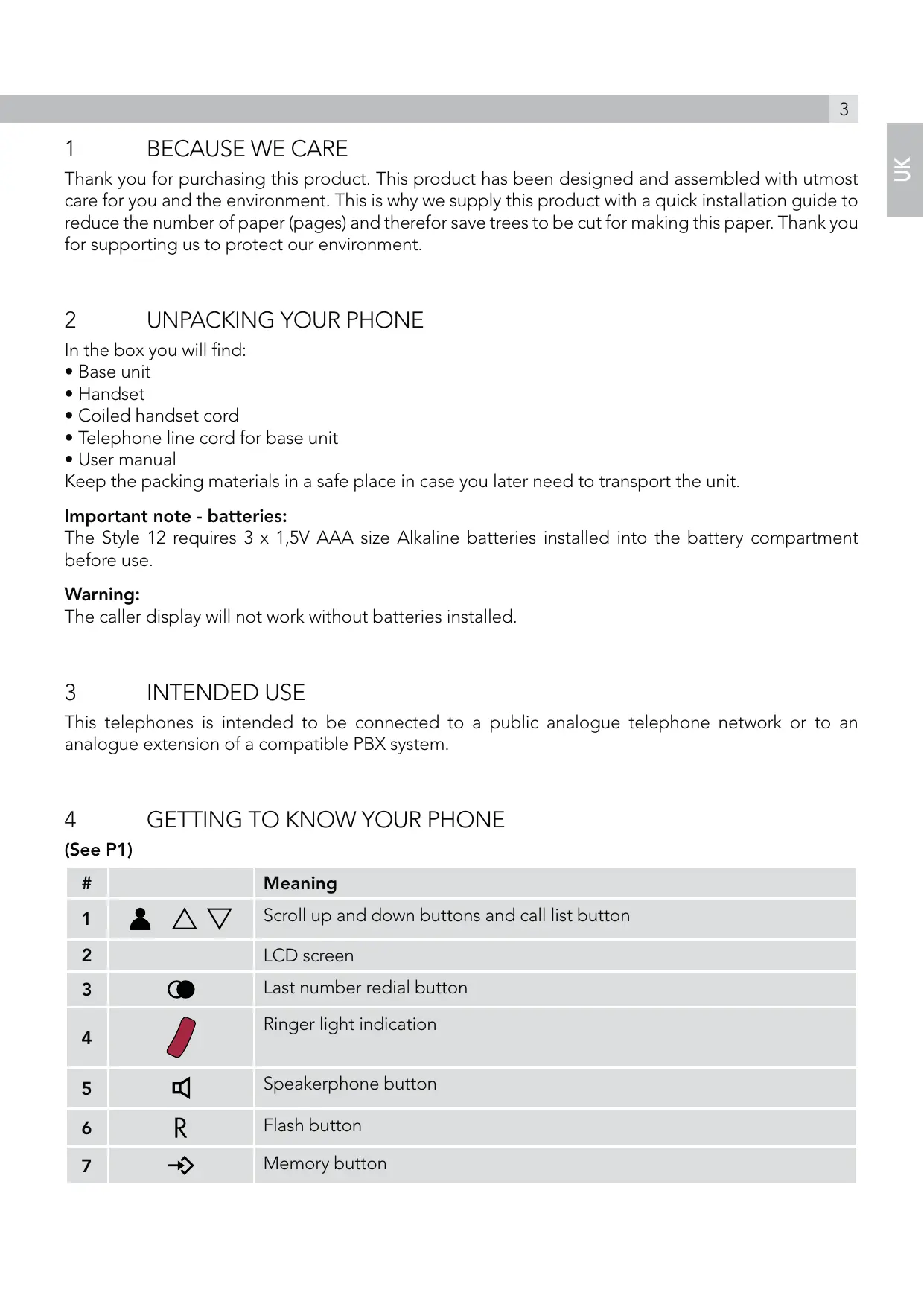

Thank you for purchasing this product. This product has been designed and assembled with utmost care for you and the environment. This is why we supply this product with a quick installation guide to reduce the number of paper (pages) and therefor save trees to be cut for making this paper. Thank you for supporting us to protect our environment.

In the box you will find: tBase unit tHandset tCoiled handset cord tTelephone line cord for base unit tUser manual Keep the packing materials in a safe place in case you later need to transport the unit. Important note - batteries: The Style 12 requires 3 x 1,5V AAA size Alkaline batteries installed into the battery compartment before use.

The caller display will not work without batteries installed.

INTENDED USE This telephones is intended to be connected to a public analogue telephone network or to an analogue extension of a compatible PBX system.

Scroll up and down buttons and call list button

Ringer high/low switch INSTALLATION 1.Locating the base unit (see P2 and P3) The base unit should be placed on a level surface, in a position where: tthe telephone line cable will reach your telephone line socket or extension socket. tit is not close to a sink, bath or shower, or anywhere else where it might get wet. tit is not close to other electrical equipment - fridges, washing machines, microwave ovens, TVs, fluorescent lights, etc. 2.Installing (or replacing) the batteries (see P4) IMPORTANT: Before removing the battery compartment cover, always make sure the base unit is disconnected from the telephone line. tInstall 3 Alkaline AAA batteries into the battery compartment and place back the cover before use. Note:

1) Please do NOT use rechargeable batteries in this phone.

2) Batteries are not included with the unit.

3) The battery life is typically about 6 months, depending on usage.

When the battery is low? will show up on the display screen. If you do not replace the batteries, they will become totally discharged and your display screen will not work. You may lose all the telephone memories and settings. 3.Plug the coiled handset cord into the handset. Plug the other end into the jack on the left side of the base unit. 4.Place the handset in the base unit. 5.Plug the telephone line cord free end into a modular wall jack. Press the cable into the groove so that the base unit stands level. 6.Lift the handset and check for dial tone in the handset.

Press the set button to enter the menu and then use up and down buttons the following options: tSET 1 DATE tSET 2 LCD tSET 3 FLASH to cycle through Note: The system will time out if you leave more than 8 seconds between key presses. Set time/date You will need to set the correct time and date so they can be displayed correctly on the display. If you subscribe to a caller display service, the time and date will be set automatically on receipt of your first incoming call. tIn standby mode, press the set button . >The display shows “SET 1 DATE“. tPress the store button to confirm. >The “year” icon will be blinking. tPress the up or down button to set the year. tPress the store button to confirm. >The “month” icon will be blinking. tPress the up or down button to set the month. tPress the store button to confirm. >The “date” icon will be blinking. tPress the up or down button to set the date. tPress the store button to confirm. >The “hour” icon will be blinking. tPress the up or down button to set the hour. tPress the store button to confirm. >The “minute” icon will be blinking. tPress the up or down button to set the minute. tPress the store button to confirm the setting. >The display shows “SET 2 LCD”, you can continue with programming or press the delete button to return to standby mode. Set LCD contrast tIn standby mode, press the set button . >The display shows “SET 1 DATE”. >Press the up or down button until the display shows “SET 2 LCD”. tPress the store button to confirm. tPress the up or down button to select your comfortable display viewing level (1~8). >The default setting is 4. tPress store button to confirm the setting. >The display shows “SET 3 FLASH”, you can continue with programming or press the delete button to return to standby mode.

Set flash time This telephone gives you the possibility to use the special services of your network provider. When pressing the flash button , the phone generates a line interruption and the length depends on your flash time setting. tIn standby mode, press the set button . >The display shows “SET 1 DATE”. >Press the up or down button until the display shows “SET 3 FLASH”. tPress the store button to confirm. tPress the up or down button to select 100 (default), 300, 600, or 1000. tPress the store button to confirm the setting. >The display shows “SET 1 DATE”, you can continue with programming or press the delete button to return to standby mode.

Making a call tLift the handset and listen for a dial tone. >The display shows “00-00”. tDial the telephone number. >The display shows the number as you dial (maximum of 14 digits will be shown) tTo end the call, return the handset to the base unit. To answer a call When the phone rings: tLift the handset or press the speakerphone button on the base unit. >The call timer starts about 7 seconds after going on line. To adjust the speakerphone volume During a call: Adjust the volume of the speakerphone to your comfortable volume level using the speakerphone volume.

To end a call tReplace the handset on the base unit cradle or press the speakerphone button >The speakerphone light indicator will turn off.

on the base unit. To switch between the handset and the speakerphone to speak tDuring a phone conversation through the handset, press the speakerphone button hands-free. >Then the speakerphone light will turn on, but the conversation remains through the handset until the handset is replaced on the base unit cradle. >While in speakerphone mode, lift the handset to enable a private conversation.

Mute function tDuring a call press the mute button . >When the microphone is muted, the person at the other end of the call cannot hear you, but you can hear his side. tTo get back to the call, press the mute button again to release. Use on PBX If you are using your phone on a PBX and the PBX user guide tells you to press Flashl tPress the flash button on your phone. Storing a number in (0-9) the indirect memories tIn standby mode, key in the telephone number you wish to store. >Up to maximum 16 digits. tPress the store button . tPress the (0-9) button to store the number in the selected memory. Dial out an (0-9) indirect memory number To dial a number stored in a two-touch indirect memory (0-9): tLift up the handset or press the speakerphone button . tPress the memory button tKey in the memory location number (0-9). >The number dials automatically.

VERY IMPORTANT: To use caller display you must first subscribe to your network provider’s caller display service. If you subscribe to a caller display service, you can see the phone number of the person calling you before you answer and in the calls list afterwards. The caller display information includes: tThe caller’s number tThe date and time of the call Condition of incoming caller information LCD screen will display It is a repeated call REP It is a new call NEW A call from someone whose number is with held (private call) __P__

A call from someone whose number is unavailable (for example an international call) __O__ The caller display is incomplete or corrupted __E__ Your have a new voice mail message. (this is a network service provided by your network operator) Caller display list The phone dynamically stores up to 30 calls (12 digits) incoming information. If a call is received when the caller list is full, then the new entry will replace the oldest one. Viewing the caller display list tIn standby mode, press the up or down button >The display shows the most recent record. >If there are no caller display records, the display will show “00 CALL”. tPress the up or down button again to scroll to the next caller display record. To return a call tWhen the caller display record is displayed press the redial button tLift the handset or press the speakerphone button on the base unit. >The phone automatically dials out the displayed record. To delete caller display records tWhen the caller display record is displayed. Press the delete button to delete the caller display record. >The display shows the next caller displayed record. tPress and hold the delete button for 3 seconds, all the caller display records will be deleted. >The display automatically return to standby mode.

The unit is guaranteed for 24 months from the date of purchase shown on your sales receipt. This guarantee does not cover any faults or defects caused by accidents, misuse, fair wea r and tear, neglect, faults on the telephone line, lightning, tampering with the equipment, or any attempt at adjustment or repair other than through approved agents. Please keep your sales (till) receipt this is your proof of guarantee. While the unit is under Guarantee tDisconnect the base unit from the telephone line and the mains electricity supply. tPack up all parts of your unit, using the original package. tReturn the unit to the shop where you bought it, making sure you take your sales receipt. tRemember to include the mains adapter. After the Guarantee has expired If the unit is no longer under Guarantee, contact us via www.aegtelephones.eu

TECHNICAL DETAILS Model Style 12 Temperature range Operating 0 ºC to 40 ºC Storage -20 ºC to 60 ºC PBX compatibility Pause length: 3,6 seconds. Signalling type: DTMF (dual-tone multifrequency)

CE DECLARATION This product is in compliance with the essential requirements and other relevant provisions of the R&TTE directive 1999/5/EC. The declaration of conformity can be found on: www.aegtelephones.eu

DISPOSAL OF THE DEVICE (ENVIRONMENT) At the end of the product lifecycle, you should not throw this product into the normal household garbage but bring the product to a collection point for the recycling of electrical and electronic equipment. The symbol on the product, user guide and/or box indicate this. Some of the product materials can be re-used if you bring them to a recycling point. By reusing some parts or raw materials from used products you make an important contribution to the protection of the environment. Please contact your local authorities in case you need more information on the collection points in your area. Batteries must be removed before disposing of the device. Dispose of the batteries in an environmental manner according to your country regulations.

Do not clean any part of your phone with benzene, thinners or other solvent chemicals as this may cause permanent damage which is not covered by the Guarantee. When necessary, clean it with a damp cloth. Keep your phone system away from hot, humid conditions or strong sunlight, and don‘t let it get wet.

© 2012 Binatone Electronics International Limited All rights reserved Subject to avaibility. Rights of modification reserved. AEG is a registered trademark used under license from AB Electrolux (publ) www.aegtelephones.eu
