Product type	Air-to-water heat pump
Brand	Panasonic
Model	WH-SDC07H3E51
Nominal heating capacity	7 kW
Power supply	230 V / 50 Hz / single-phase
Dimensions (W x H x D)	900 x 600 x 300 mm
Weight	~40 kg
Refrigerant	R32
Main functions	Heating, cooling, domestic hot water production
Operating modes	Quick menu, Force DHW, Turbo heating, Silent mode, Force backup heating, Force defrost, Weekly programming, Remote control lock
Routine maintenance	Regular cleaning of the air filter
Safety	Remote control lock by code, Frost protection
Repairability	Spare parts available via after-sales service

Frequently Asked Questions - WH-SDC07H3E51 PANASONIC

How to activate silent mode?

Select the Silent mode icon in the quick menu, then press ▼ to confirm. The mode starts about 1 minute after activation.

What to do if an error code is displayed?

Use the Error code initialization option in the quick menu to restore previous settings. Make sure the unit is stopped before proceeding.

How to lock the remote control?

In the quick menu, select Remote lock, then press ▼. Confirm by choosing 'Yes'. To unlock, press any key and enter the 4-digit code.

How to program weekly heating?

Select Weekly prog in the quick menu. Set programs 1 to 6 with desired times, temperatures and modes for each day. Confirm with 'Yes'.

How to force domestic hot water production?

In the quick menu, choose Force backup DHW and press ▼. This function activates the backup resistance of the DHW tank.

How to defrost frozen pipes?

Select Force defrost in the quick menu. A message 'Request accepted' confirms activation.

What do the operation icons mean?

The '............' icon indicates stop, while '— —' indicates operation. These symbols appear on the main screen.

How to reset the remote control password?

On the stop screen, simultaneously press the ▲, ▼ and ↓ keys for 5 seconds. Select 'Reset' to initialize the code to 0000.

Is turbo heating compatible with silent mode?

No, these modes are mutually exclusive. Activate one or the other according to your needs. Turbo heating prioritizes speed.

How to copy a timer programming setting?

In the Weekly prog menu, select Clock copy to duplicate an existing timer setting to other days.

USER MANUAL WH-SDC07H3E51 PANASONIC

Air-to-Water Heatpump

Model No.

Indoor Unit

WH-SDC03H3E5-1

WH-SDC05H3E5-1

WH-SDC07H3E5-1

WH-SDC09H3E5-1

Outdoor Unit

WH-UD03HE5-1

WH-UD05HE5-1

WH-UD07HE5-1

WH-UD09HE5-1

Quick Menu Guide

Air-to-Water Heatpump

2-7

English

Please read the Operating Instructions thoroughly before using the Quick Menu.

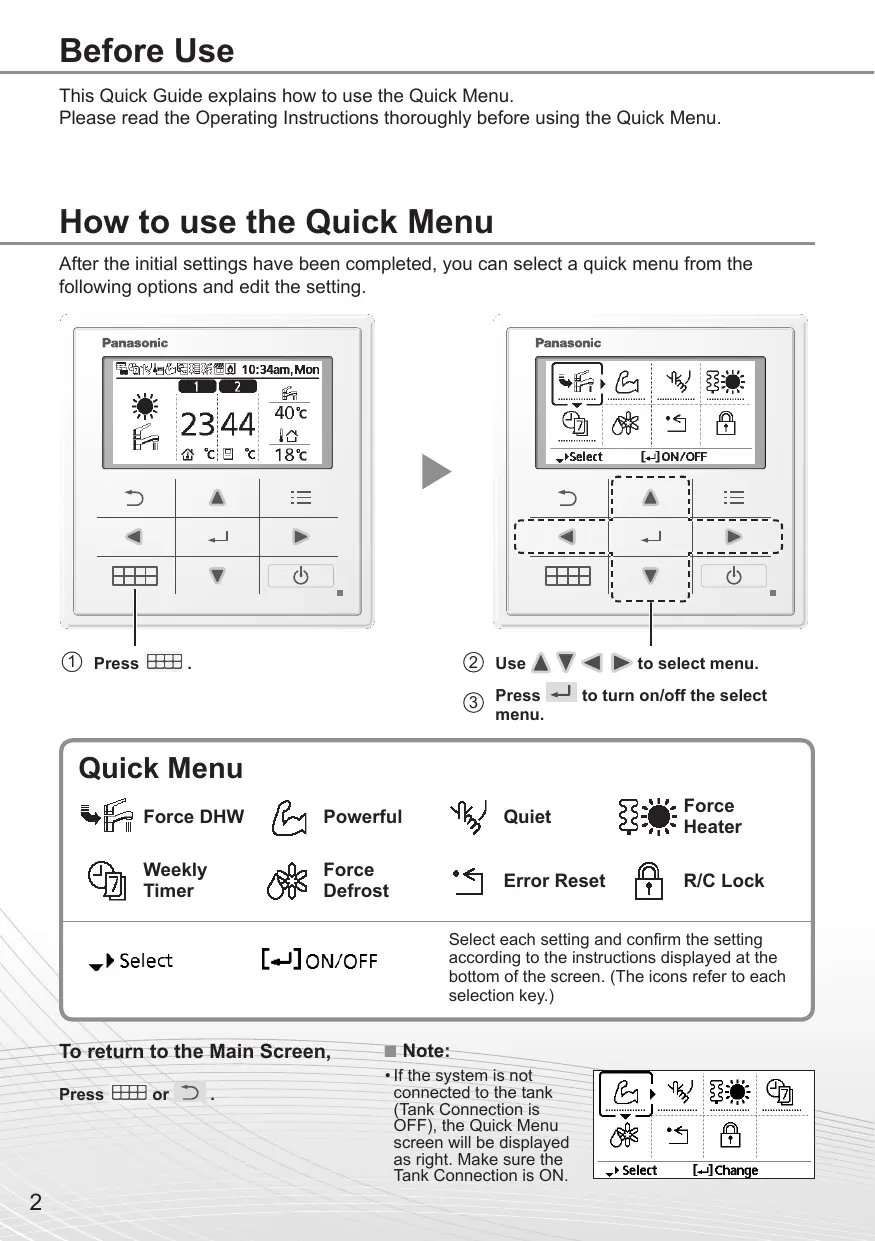

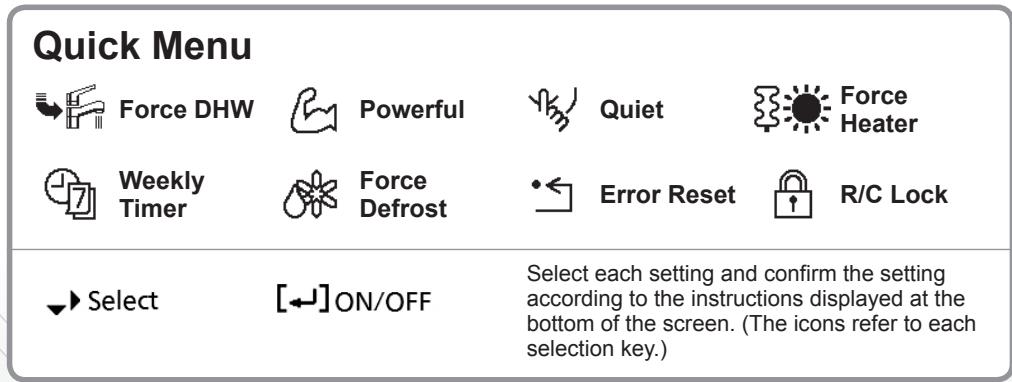

How to use the Quick Menu

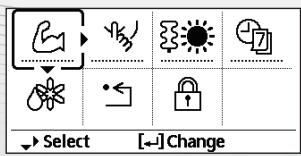

After the initial settings have been completed, you can select a quick menu from the following options and edit the setting.

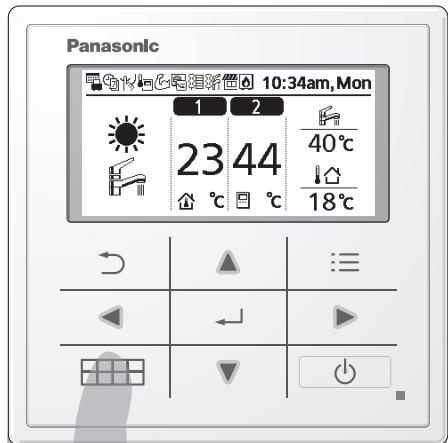

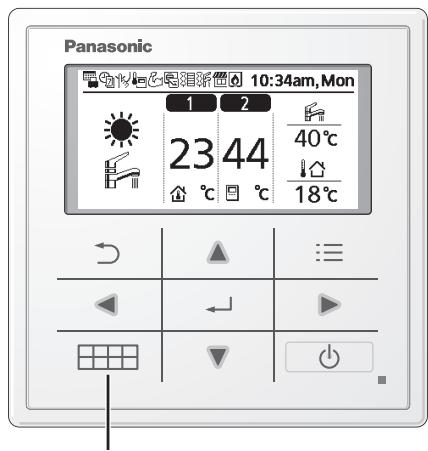

① Press .

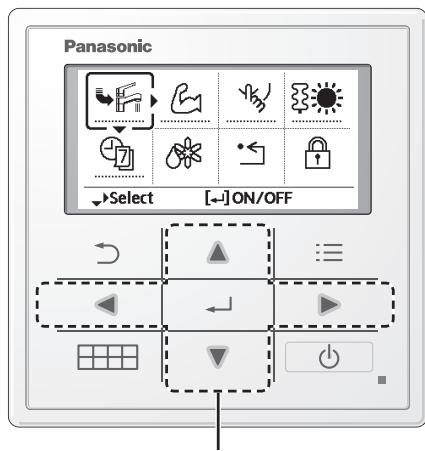

② Use ▲ ▼ ▶ ▷ to select menu.
③ Press to turn on/off the select menu.

To return to the Main Screen,

Press or

Note:

• If the system is not connected to the tank (Tank Connection is OFF), the Quick Menu screen will be displayed as right. Make sure the Tank Connection is ON.

Notes on operation icon

Example:

Operation icon indicate with "……" = OFF

Operation icon indicate with "——" = ON

Force DHW

Select this icon to turn the Tank DHW on or off.

Press to confirm your selection.

• Force DHW is turned off.
• Force DHW is turned on.

Note:

• Force DHW is disabled when Force Heater is turned on.
• When Force DHW is turned off, operation & mode should change back to the previous memorized status.

Powerful

Select this icon to operate the heating/cooling system powerfully.

Press to confirm your selection.

(The powerful operation starts approximately 1 minute after is pressed.)

Note:

• Powerful is disabled when operation is turned OFF.

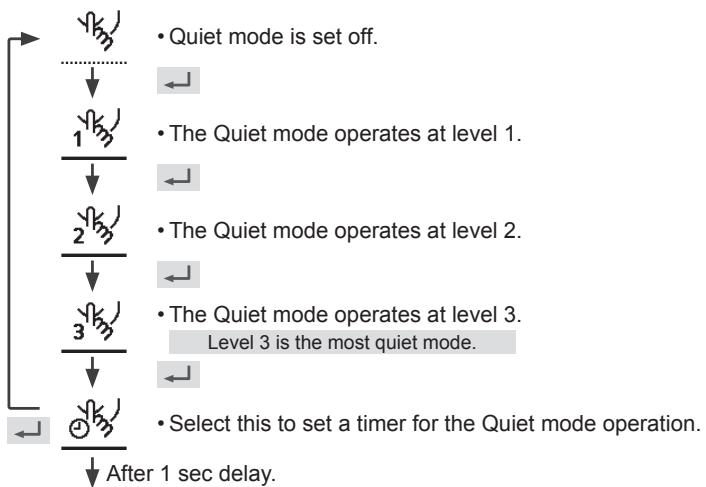

Quiet

Select this icon to operate quietly.

Press to confirm your selection.

(The quiet operation starts approximately 1 minute after is pressed.)

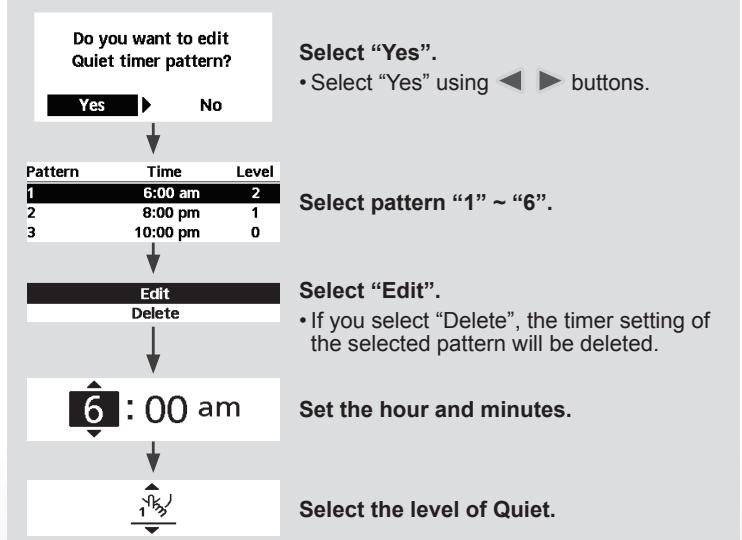

Note:

• If the time overlaps with another pattern, "Set time is overlapped!" will appear on the screen.

Force Heater

Select to force the Heater on.

Press to confirm your selection.

(The Force Heater mode starts approximately 1 minute after is pressed.)

• Force Heater is turned off.

• Force Heater is turned on.

Note:

• Force Heater is disabled whenever operation is already on and 'Disabled due to operation ON!' will be displayed.

Disabled due to operation ON!

[Close

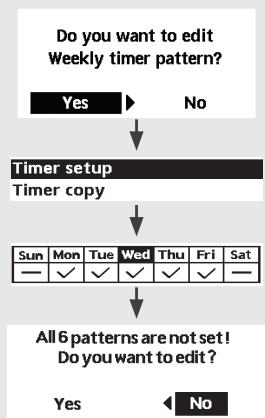

Weekly Timer

Select this icon to delete (cancel) or change the pre-set Weekly Timer.

Press to confirm your selection.

Select "Yes".

• If you select "No", the screen will return to the Main Screen.

• Timer setup: Select Timer setup to edit the Weekly Timer.
• Timer copy: Select to copy a timer setting.

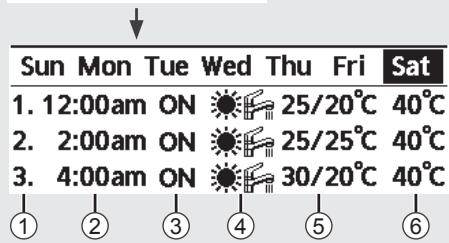

[Example of a Timer setup]

Select the day(s) which you wish to edit using buttons.

If all 6 patterns are not preset, this screen will be displayed.

① Select pattern “1” ~ “6”.
② Set the hour and minutes of the Timer.
③ Select ON/OFF of the Timer.
④ Select the operation mode.

A/A/ // // //

• Select mode using buttons.

⑤ Set the temperature for both Zone 1 and 2 (if your system has the 2-Zone setting).

Saturday: Pattern 1: Set Temp
Zone1		Zone2
ON	25°C	ON	25°C

⑥ Set the Tank temperature.

Note:

• Timer is disabled when Force Heater is turned on or Heat-Cool SW is enabled.
  If you have preset the Weekly Timer on 2 zones, you must repeat the same procedure with Zone 2.

Force Defrost

Select to defrost the frozen pipes.

Press to confirm your selection.

(When the mode is accepted, below screen will be displayed.)

Request accepted!

[ ] Close

Error Reset

Select to restore the previous settings when error has occurred.

Press to confirm your selection.

(When the mode has been accepted, below screen will be displayed.)

Request accepted!

[3] Close

• Make sure all units are turned off before selecting this mode which restores the whole system to the previous settings.

R/C Lock

Select to lock the Remote Controller.

Press to confirm your selection.

(When the mode has been accepted, below screen will be displayed.)

Do you want to lock remote control?

Yes No

Select "Yes".

(The Main Screen will be locked.)

• If "No" is selected, the screen will return to the Main Screen.

To unlock the Remote Controller

Press any key.

(When the mode has been accepted, below screen will be displayed.)

Enter any 4 digits of number (if the number is correct, the screen will be unlocked).

To reset forgotten password (under operation OFF screen)

Press , and continuously for 5 seconds.

(When the mode has been accepted, below screen will be displayed.)

Select "Reset".

1 Password is reset to 0000

2.Remote control is unlocked

(The screen will be off after 3 seconds.)

Set time is overlapped!

[Close

Selecteer "Yes".

Disabled due to operation ON!

[Close

Week-timer

Sun Mon Tue Wed Thu Fri Sat

1. 12:00am ON 25/20°C 40°C
2. 2:00am ON 25/25°C 40°C
3. 4:00am ON 30/20°C 40°C

① Selecteer schema "1" ~ "6".
② Stel de uren en Minutes van de timer in.
③ Selecteer AAN/UIT van de timer.
④ Selecteer de gewenste stand.

Do you want to lock remote control?

Yes

No

(HIOxUpH 5EIToupyia EKIVa TEPiTou 1 AOToPnOeIto

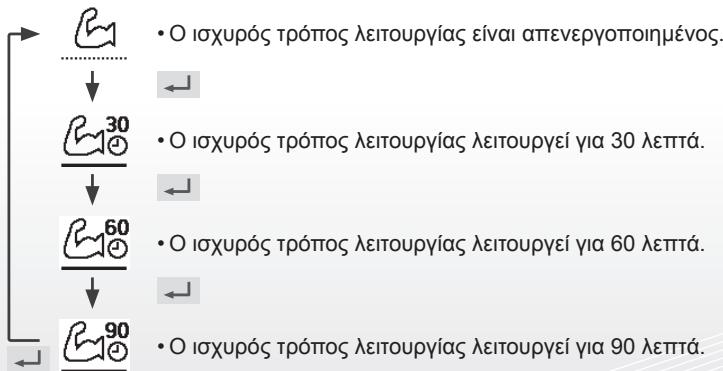

• O ioxupoc troptos eitoupyiaac attevepyoioi etai otav n eitoupyia evai ANENEPTOIOIHMENH.

Aθόρuβο

EπIεξTe auroTo Eikovidio yia αθópuβn λειToupyia.

PntnoTe yia va eTaebaiwote Tnv Etnioyn oC.

Disabled due to operation ON!

[Close

Saturday: Pattern 1: Set Temp
Zone1	Zone2
ON	25°C	ON	25°C

Do you want to lock remote control?

Yes No

ETIIAEETE "Yes".

1 Password is reset to 0000

2.Remote control is unlocked

Disabled due to operation ON!

[Close

Saturday: Pattern 1: Set Temp
Zone1		Zone2
ON	25°C	ON	25°C

⑥ Tank sicutligini ayarlayin.

Not:

Kraftfull inaktiveras nar driften stangs AV.

Tystläge

Väljennaikonforattdravystyst.

Disabled due to operation ON!

[Close

Viikkoajastin

Saturday: Pattern 1: Set Temp
Zone1		Zone2
ON	25°C	ON	25°C

⑥ Aseta saïlioni lampötila.

Huomautus:

Do you want to lock remote control?

Yes No

Vaelg dette ikon for at stille drift.
