Usage Age	From birth to 6 months
Maximum Baby Weight	9 kg
Product Weight	3.9 kg
Number of Adjustable Heights	4 levels
Reclining Positions	3 positions
Position Combinations	12 combinations
Harness Type	Adjustable 5-point harness
Padding	Microbeads and side padding
Newborn Reducer	Removable headrest included (0-3 months)
Non-slip Areas	Yes
Carry Handles	Yes, integrated
Cover Washing	Hand wash 40 °C or machine wash 30 °C delicate
Safety Standard	EN 12790
Package Dimensions	64 x 57.5 x 16 cm

Frequently Asked Questions - UP & DOWN BEABA

From what age can the BEABA Up & Down bouncer be used?

The BEABA Up & Down bouncer can be used from birth up to 6 months. The newborn reducer (headrest) is recommended from 0 to 3 months to keep the baby's head in the correct position.

What is the maximum weight supported by the bouncer?

The bouncer supports a maximum baby weight of 9 kg. Beyond this weight or 6 months, the bouncer should no longer be used, and a seat suitable for the child's age should be used instead.

How do you adjust the height and recline of the bouncer?

The bouncer has 4 height levels and 3 recline positions, offering 12 possible combinations. Height adjustment is done by simply pressing the side mechanisms, without any tools.

How to properly fasten the safety harness?

The bouncer is equipped with an adjustable 5-point harness. Pass the straps over the shoulders, attach the side straps, and close the crotch strap before clicking the central button. Ensure you can slip two fingers between the strap and the baby.

Can you let the baby sleep in the bouncer?

No. The bouncer is an activity seat, not a sleeping bed. Never leave the baby sleeping alone in the bouncer and do not place it on an elevated surface without supervision. For sleep, use a suitable crib or bassinet.

How to clean the bouncer cover?

The cover and newborn reducer are removable and washable. Hand wash at a maximum of 40 °C or machine wash on a delicate cycle at a maximum of 30 °C. Dry flat and in the open air, do not tumble dry.

Is the headrest included in the box?

Yes, the newborn reducer (headrest) is provided with the bouncer. It is removable and used from birth up to about 3 months, then removed when the baby's neck becomes strong enough.

Can a play arch be attached to the bouncer?

Yes, a play arch is available as an optional accessory for the Up & Down bouncer. Check the compatibility of the arch with your version of the bouncer with the retailer or on the BEABA website.

Is the bouncer compliant with European safety standards?

Yes, the BEABA Up & Down bouncer complies with the European standard EN 12790 for baby bouncers, which sets requirements for stability, mechanical strength, and harness safety.

How to easily transport the bouncer from one room to another?

The bouncer is equipped with integrated carrying handles that make it easy to move between rooms. Always ensure the baby is out of the bouncer before lifting it.

Why does the bouncer move on the floor?

If the bouncer slides, ensure the non-slip areas under the structure are clean and in contact with the floor. Avoid using it on very smooth surfaces like waxed parquet. Never place the bouncer on a table or elevated surface.

USER MANUAL UP & DOWN BEABA

INSTRUCTIONS DE MONTAGE

• Never leave a child unattended.
• Never use for a child able to sit up unassisted.
• This bouncer is not intended for long periods of sleep.
  This buncer does not replace a Moses basket or a cot. When baby needs to sleep, place him or her in a suitable Moses basket or cot.
• It is dangerous to place this bouncer on an elevated surface: a table for example.
  Always use the restraint system.
• This bouncer has been designed for a child of 9kg maximum.
• Do not use the bouncer if any of the parts are broken or missing
• Do not use any accessories or spare parts other than those approved by the manufacturer.
• Never carry the bouncer with your child in it.
• Always ensure that the locking mechanisms are fully secured.
  Always check the state of the product before use.
• Always keep the bouncer away from naked flames and other sources of heat (such as electric or gas heating devices), as well as any objects which the child may be able to reach.
• This product must be assembled and handled by an adult.
• Use only on a flat and stable surface.
• Never adjust the height of the bouncer with the child in it.

WASHING INSTRUCTIONS FOR THE COVER AND THE NEWBORN PILLOW

• Clean the plastic parts regularly with a damp cloth and a neutral cleaning product. Never use a solvent or any similar product.
• Always dry the product's metal parts in order to prevent the formation of rust.
• Protect the product from atmospheric agents (rain, snow, etc.).
• Store the product in a dry place.
• The cover must be hand washed and left to dry flat. The newborn pillow is machine washable at 30^ .

ASSEMBLY INSTRUCTIONS

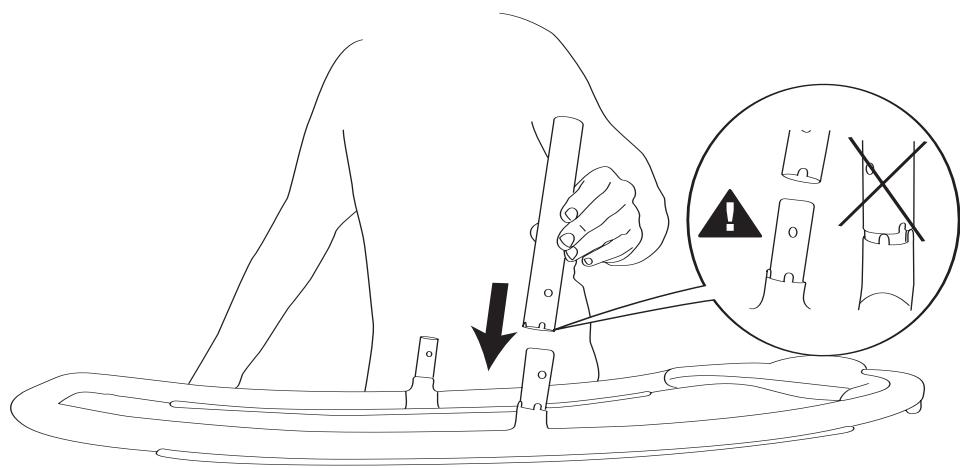

1

Place the small tubes (B) on the frame (F). In order to avoid assembling the product incorrectly, always ensure that the polarising slots are aligned correctly.

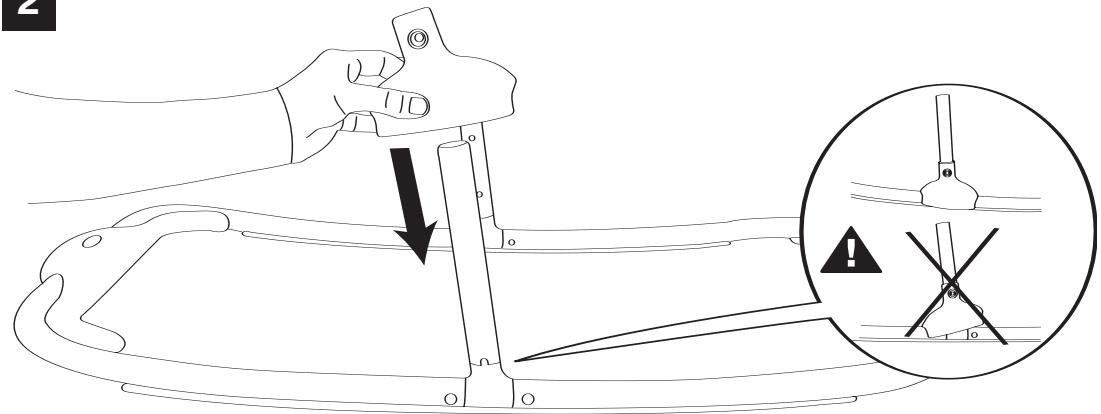

2

Position the knuckles (C). Always ensure that the knuckle is placed in the same direction as the tube and that the nut hole on the knuckle is facing towards the inside of the bouncer.
Fasten the knuckles (C) and the small tubes (B) to the frame with the screws (D). Place the nut in the hole designed for this purpose. Fasten the nut and screw in place with the assembly key (J). Before using, always ensure that the screws are tightened properly.

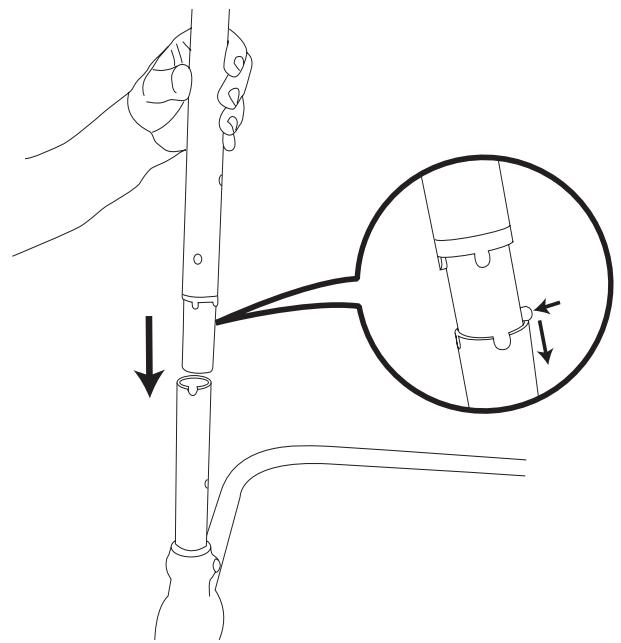

Position the large tubes (A) by pressing on the spring buttons and inserting them in the small tubes (B). The three holes on the large tube must be facing towards the inside of the bouncer.

4

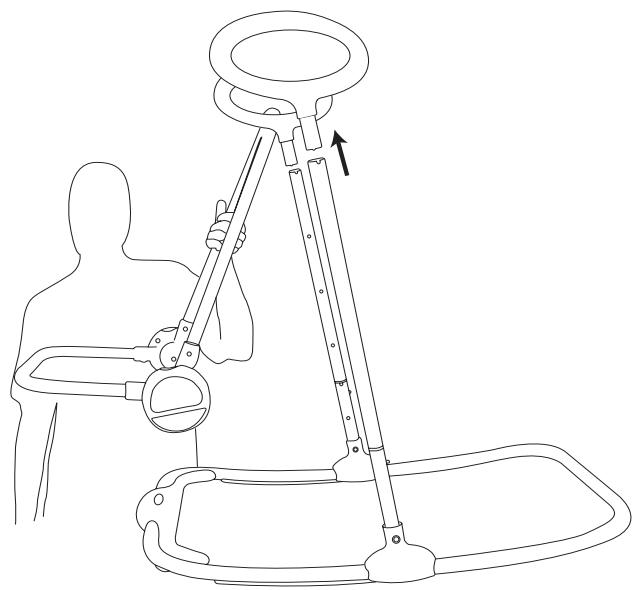

Remove the handles (E) by pressing on the spring button and unfold the seat structure (G) following the instructions for setting the incline.

Place the seat structure (G) on the tubes. Attention! Always ensure that the seat structure is facing the right way (seat on the same side as the stabiliser).

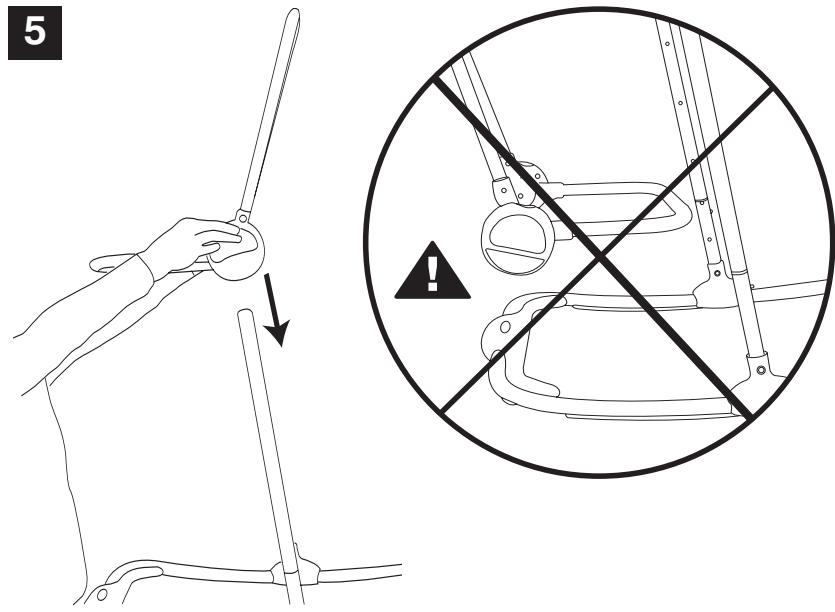

5

Press on the locking buttons on each side of the seat structure and release at the desired position.

6

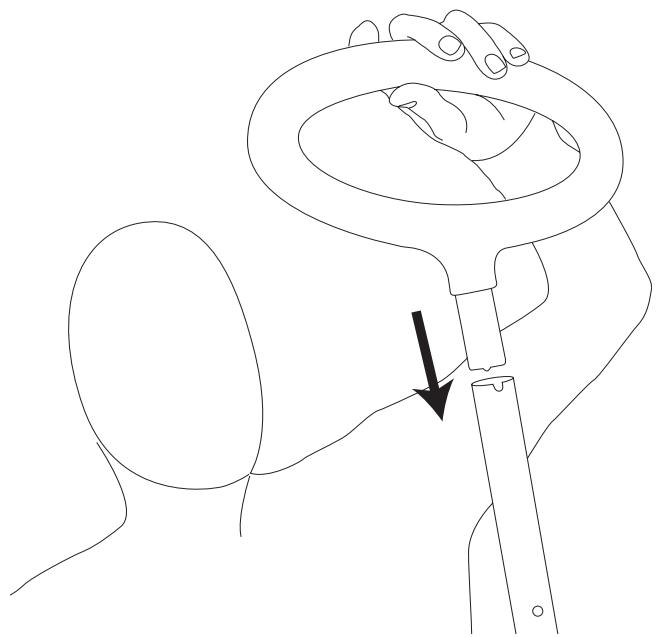

Position the handles (E) by pressing down on the spring buttons and inserting them in the large tubes (A).

Place the cover (H) on the seat structure (G). To do this, fold the seat structure, place over the back and then over the seat.

ASSEMBLY INSTRUCTIONS FOR LOW POSITION

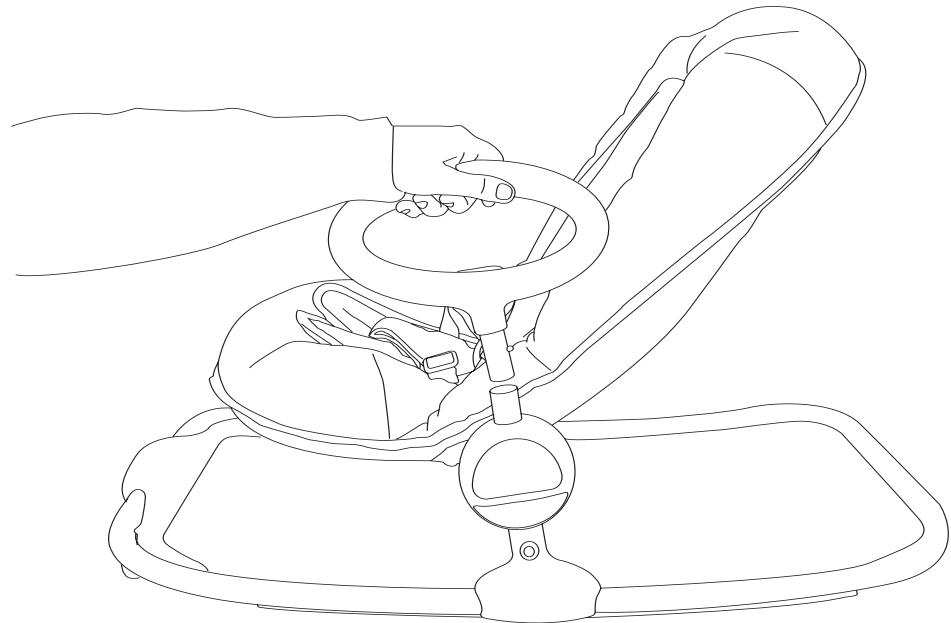

To use your bouncer in the low position, follow the assembly instructions above without inserting the large tubes (A). Then fasten the handles (E) to the small tubes (B).

INSTRUCTIONS FOR SETTING THE INCLINE AND FOLDING

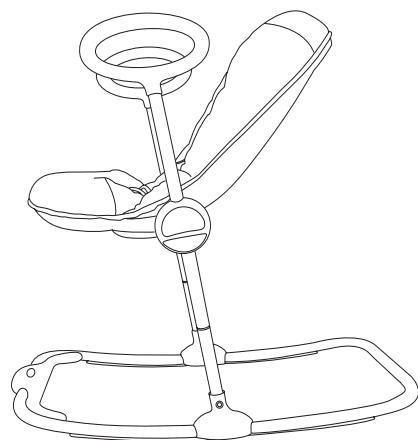

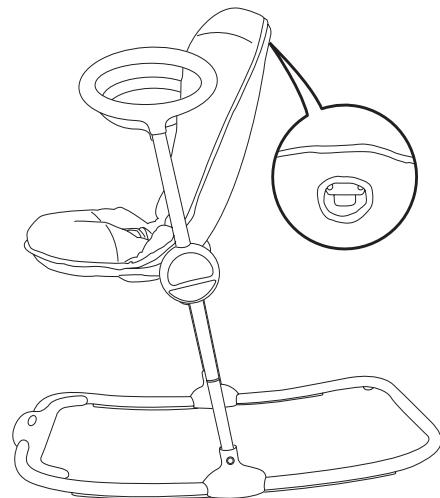

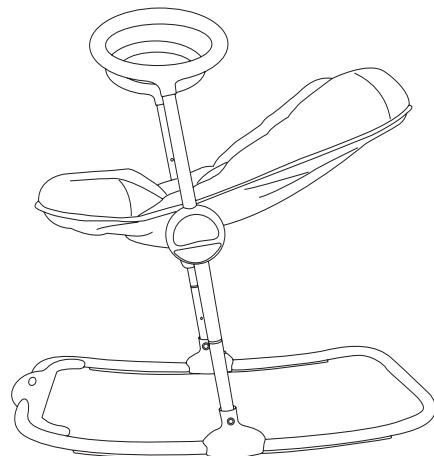

To set the incline of the bouncer seat, place your hand on the top of the seat back and press the button at the rear. Release the button at the desired position. Always hold the seat back when adjusting, especially if a child is in the bouncer.

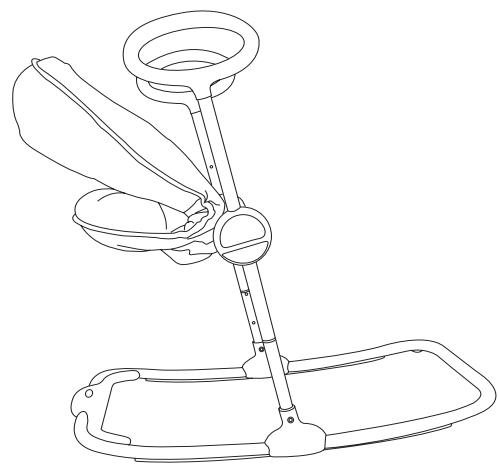

To fold the bouncer, press the button and fold the back over the seat.

INSTRUCTIONS FOR LOCKING THE SWING FUNCTION

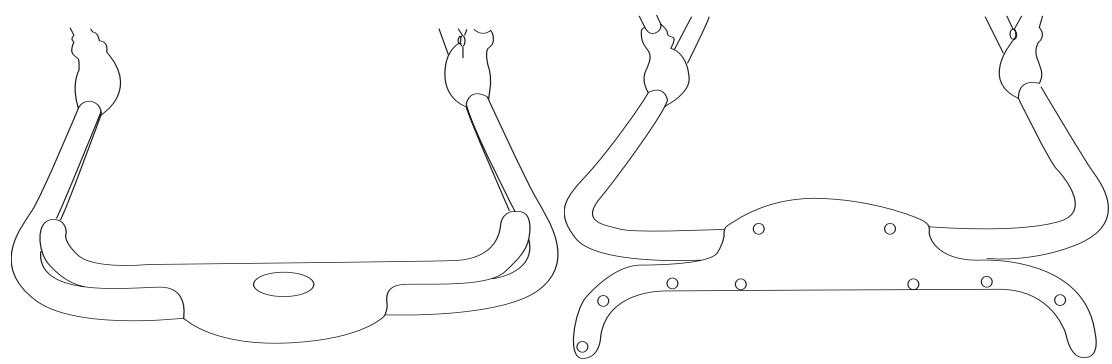

INSTRUCTIONS FOR SETTING THE HEIGHT

A swing function is available to enable you to rock the bouncer. To lock this position, pivot the stabiliser until it touches the ground.

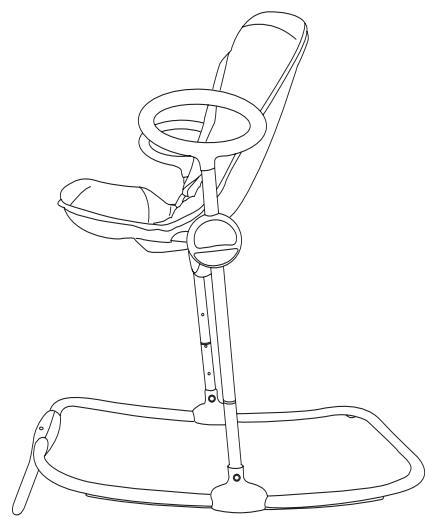

The Up & Down bouncer may be set to 4 predefined heights.

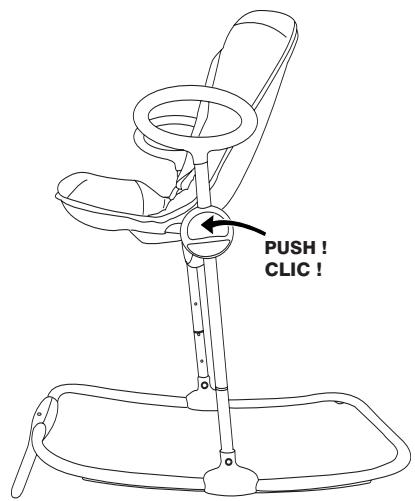

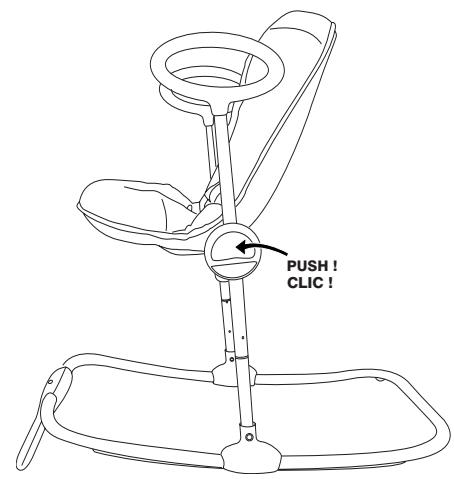

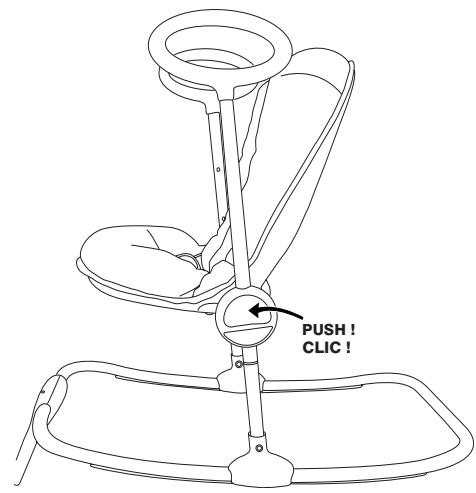

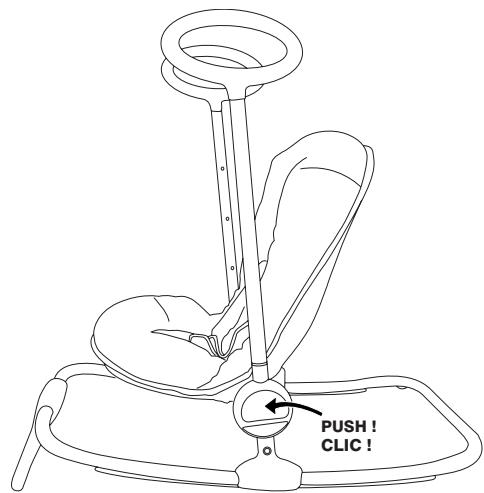

To set the height of the bouncer, press down simultaneously on the buttons of the seat structure (G) and adjust to the desired height. Release the two buttons ensuring that the seat structure (G) is locked properly on each of the tubes (A) or (B).
Attention! For reasons of security, never adjust the height when the child is in the bouncer.

In order to use the bouncer from birth, it is recommended to insert the newborn pillow (i).

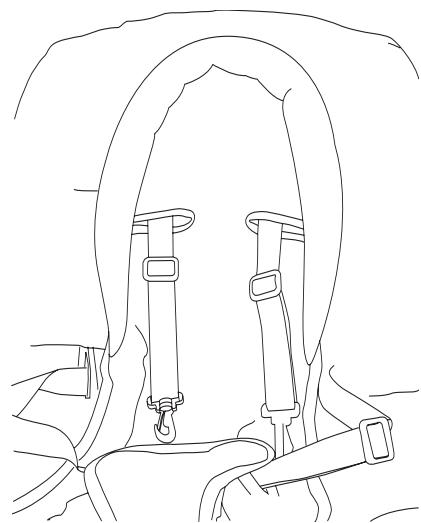

To insert the newborn pillow, remove the fabric protections from the harness straps. Pass the two straps on the harness through the two openings on the newborn pillow. Replace the fabric protections and close the harness strap clips.
The Up & Down bouncer uses a 5-point restraint system (crotch strap + belt + harness).
To install the child in the bouncer, unlock the 4 fastening points on the restraint system. Place the child in the centre of the seat ensuring that the crotch strap is in place. Close the two clips on the belt. Close the two clips on the harness.
Adjust the straps so that the restraint system fits the child.
