UPDOWN - Deck chair BEABA - Free user manual and instructions

Product type	Baby bouncer
Brand	BEABA
Model	UPDOWN
Category	Height-adjustable rocking bouncer
Usage	From birth (with reducer I) up to about 9 kg
Product weight	Approximately 5.5 kg
Dimensions (unfolded)	Approximately 75 × 55 × 65 cm (depending on height)
Dimensions (folded)	Approximately 75 × 55 × 20 cm
Materials	Metal frame, plastic shells, fabric cover
Power supply	None (manual operation)
Main functions	Rocking, height adjustable in 4 positions, adjustable backrest recline, foldable, low position possible
Restraint system	5-point harness (crotch, waist, shoulders)
Newborn reducer	Reducer cushion (I) included
Care and cleaning	Cover machine washable at 30°C, frame cleanable with damp cloth
Safety	Lockable stabilizer, 5-point harness, do not adjust height with child inside, always check screws
Spare parts	Available from the manufacturer upon request (not included)
Repairability	Repairable by a professional if necessary, replacement screws available
Warranty	2 years (compliant with regulations)

Frequently Asked Questions - UPDOWN BEABA

How to assemble the UPDOWN bouncer?

Follow the steps: 1) Fix the small tubes (B) onto the frame (F) by aligning the foolproofing pins. 2) Position the shells (C) and screw them with the screws (D) using the wrench (J). 3) Insert the large tubes (A) onto the small tubes (B) by pressing the spring buttons. 4) Unfold the seat structure (G) after removing the handles (E). 5) Place the structure onto the tubes and snap the handles into place. 6) Finally, put the cover (H) onto the structure.

How to adjust the height of the bouncer?

The UPDOWN bouncer offers 4 preset heights. To adjust, simultaneously press the adjustment buttons on the seat structure (G) and adjust to the desired height. Release both buttons while checking that the structure is properly locked. Never adjust the height with the child seated.

How to use the rocking function?

The rocking function allows you to rock the bouncer. To lock this position, rotate the stabilizer until it touches the ground. To unlock, raise the stabilizer.

How to clean the bouncer cover?

The cover (H) is removable and machine washable at 30°C. Use a delicate cycle and air dry. The frame and plastic parts can be cleaned with a damp cloth and mild soap.

What is the maximum weight supported by the bouncer?

The UPDOWN bouncer is designed for children up to approximately 9 kg. Use the reducer (I) from birth until the child can sit up unassisted.

How to install the newborn reducer?

Remove the fabric protectors from the harness straps, pass both straps through the openings of the reducer cushion (I), then replace the protectors and close the buckles. Then place the child in the reducer and adjust the 5-point harness.

How to fold the bouncer for storage?

To fold, press the recline adjustment button (at the back of the backrest) and fold the backrest onto the seat. Remove the large tubes for a more compact size. The bouncer folds flat.

How to adjust the backrest recline?

Grab the top of the backrest and press the adjustment button located at the back. Hold the backrest during adjustment, especially if the child is seated, and release the button once the desired position is reached.

What safety elements should be checked before each use?

Check that all screws are tightened, that the tubes are properly fitted (the spring buttons must pop out of the holes), that the 5-point harness is adjusted correctly, and that the stabilizer is locked if the rocking function is not in use.

Can I buy spare parts for the UPDOWN bouncer?

Yes, spare parts such as screws, shells, cover, or reducer are available upon request from BEABA customer service. Contact the manufacturer for references and prices.

USER MANUAL UPDOWN BEABA

INSTRUCTIONS DE MONTAGE

• Never leave a child unattended.
• Never use for a child able to sit up unassisted.
• This bouncer is not intended for long periods of sleep.
  This buncer does not replace a Moses basket or a cot. When baby needs to sleep, place him or her in a suitable Moses basket or cot.
• It is dangerous to place this bouncer on an elevated surface: a table for example.
  Always use the restraint system.
• This bouncer has been designed for a child of 9kg maximum.
• Do not use the bouncer if any of the parts are broken or missing.
• Do not use any accessories or spare parts other than those approved by the manufacturer.
• Never carry the bouncer with your child in it.
• Always ensure that the locking mechanisms are fully secured.
  Always check the state of the product before use.
• Always keep the bouncer away from naked flames and other sources of heat (such as electric or gas heating devices), as well as any objects which the child may be able to reach.
• This product must be assembled and handled by an adult.
• Use only on a flat and stable surface.
• Never adjust the height of the bouncer with the child in it.

WASHING INSTRUCTIONS FOR THE COVER AND THE NEWBORN PILLOW

• Clean the plastic parts regularly with a damp cloth and a neutral cleaning product. Never use a solvent or any similar product.
• Always dry the product's metal parts in order to prevent the formation of rust.
• Protect the product from atmospheric agents (rain, snow, etc.).
• Store the product in a dry place.
• The cover must be hand washed and left to dry flat. The newborn pillow is machine washable at 30° .

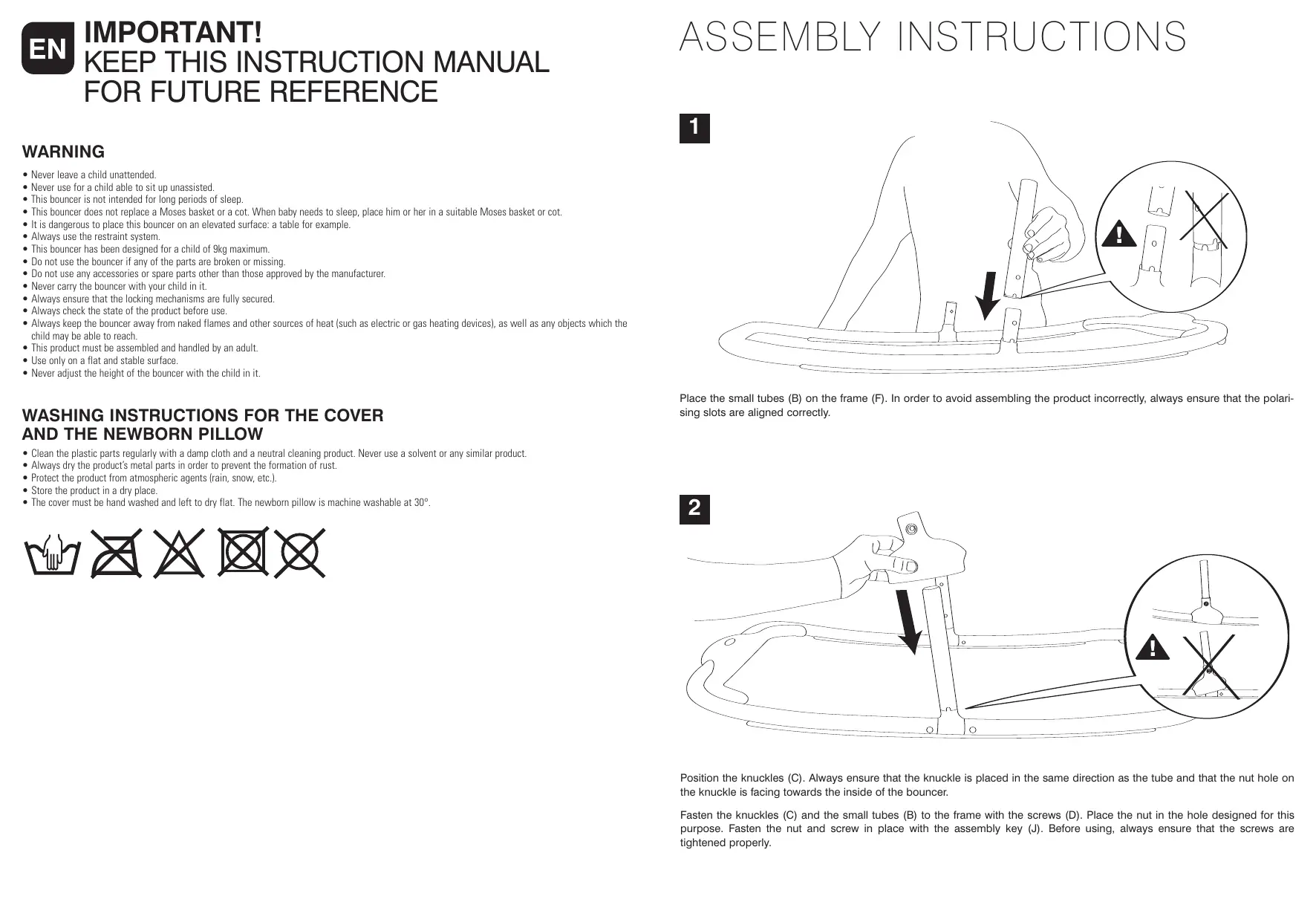

ASSEMBLY INSTRUCTIONS

1

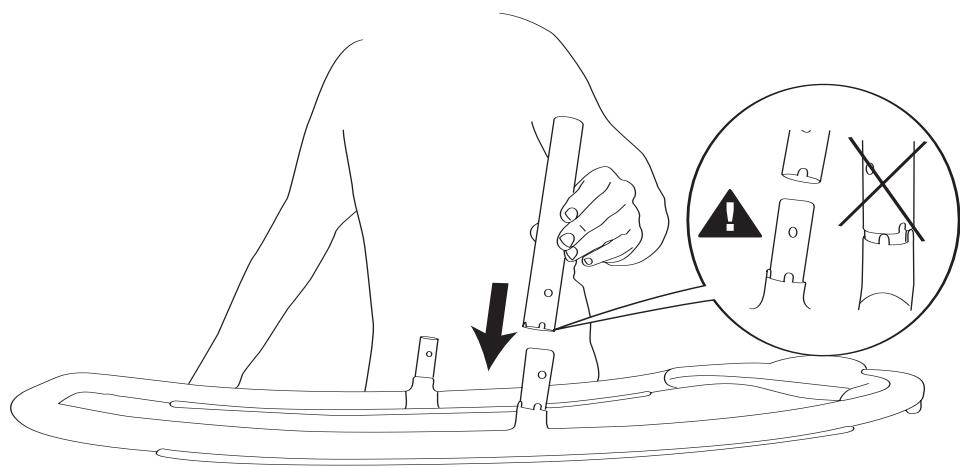

Place the small tubes (B) on the frame (F). In order to avoid assembling the product incorrectly, always ensure that the polarising slots are aligned correctly.

2

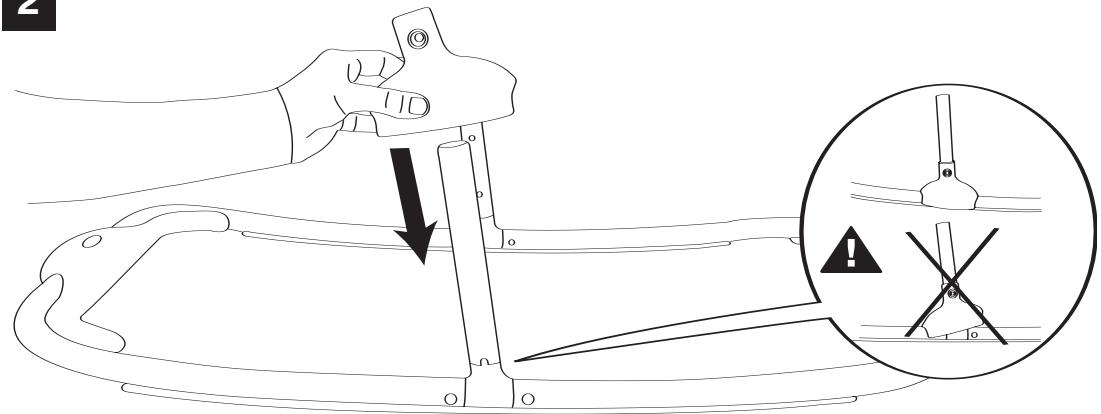

Position the knuckles (C). Always ensure that the knuckle is placed in the same direction as the tube and that the nut hole on the knuckle is facing towards the inside of the bouncer.
Fasten the knuckles (C) and the small tubes (B) to the frame with the screws (D). Place the nut in the hole designed for this purpose. Fasten the nut and screw in place with the assembly key (J). Before using, always ensure that the screws are tightened properly.

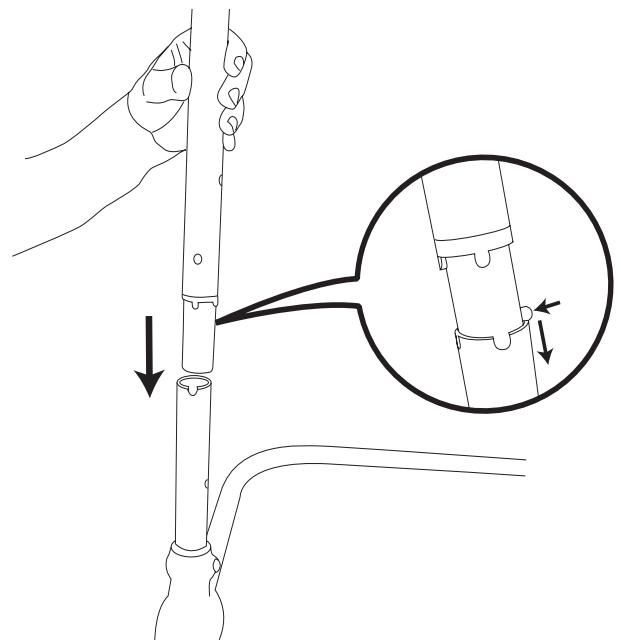

Position the large tubes (A) by pressing on the spring buttons and inserting them in the small tubes (B). The three holes on the large tube must be facing towards the inside of the bouncer.

4

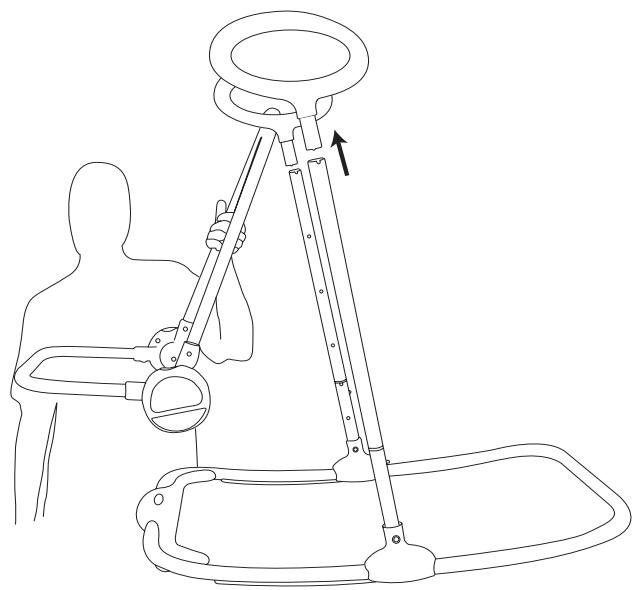

Remove the handles (E) by pressing on the spring button and unfold the seat structure (G) following the instructions for setting the incline.

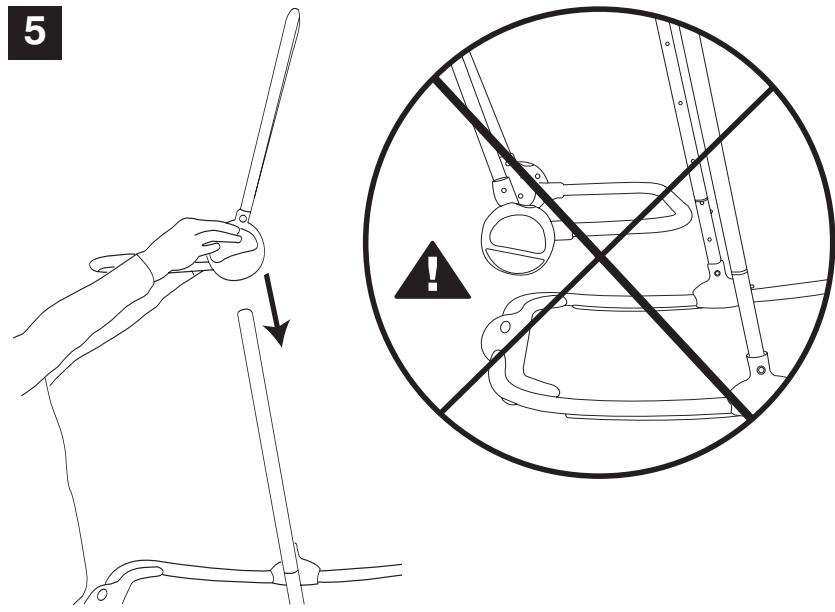

Place the seat structure (G) on the tubes. Attention! Always ensure that the seat structure is facing the right way (seat on the same side as the stabiliser).

5

Press on the locking buttons on each side of the seat structure and release at the desired position.

6

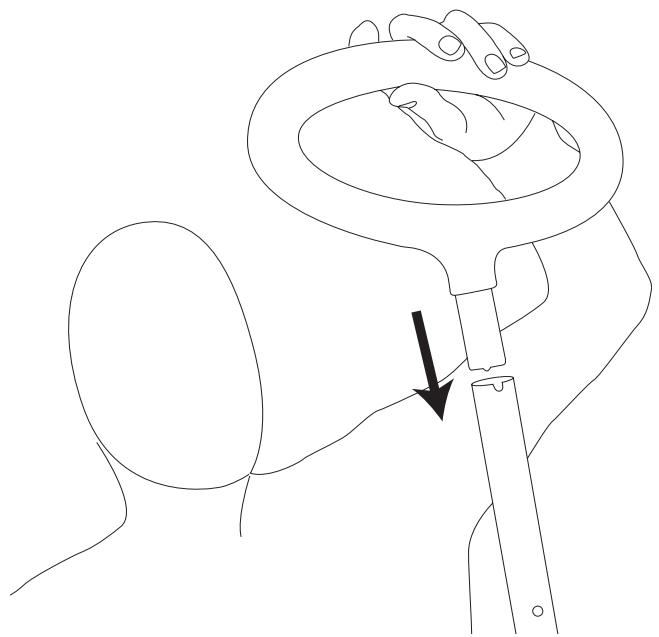

Position the handles (E) by pressing down on the spring buttons and inserting them in the large tubes (A).

Place the cover (H) on the seat structure (G). To do this, fold the seat structure, place over the back and then over the seat.

ASSEMBLY INSTRUCTIONS FOR LOW POSITION

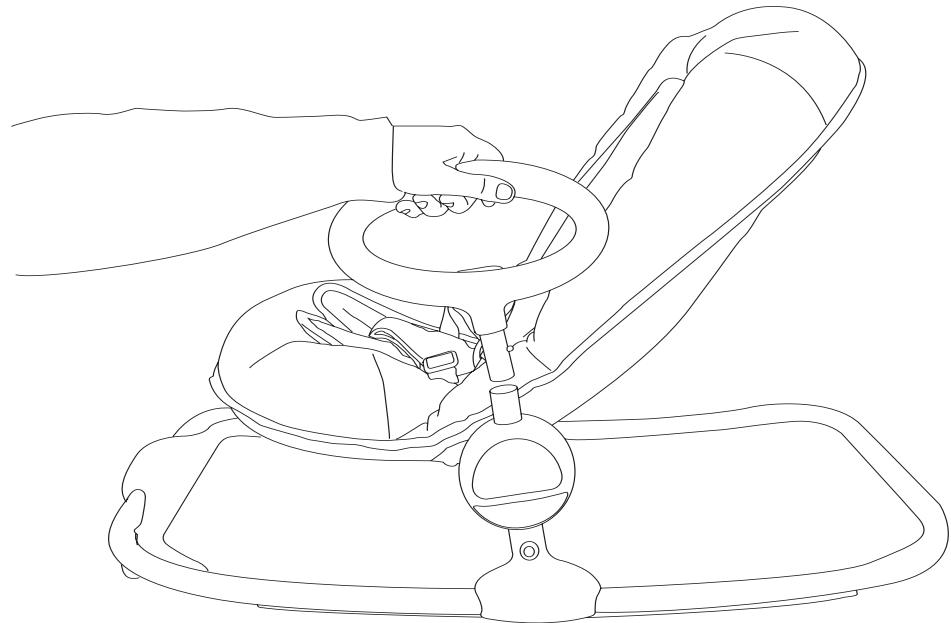

To use your bouncer in the low position, follow the assembly instructions above without inserting the large tubes (A). Then fasten the handles (E) to the small tubes (B).

INSTRUCTIONS FOR SETTING THE INCLINE AND FOLDING

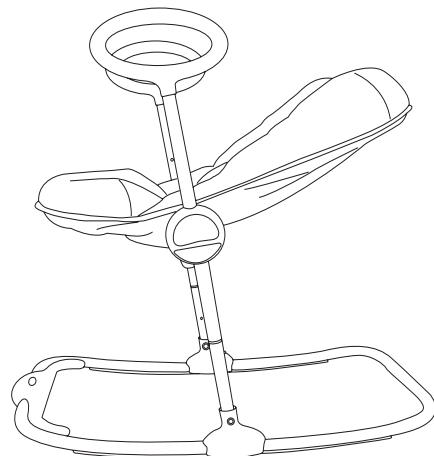

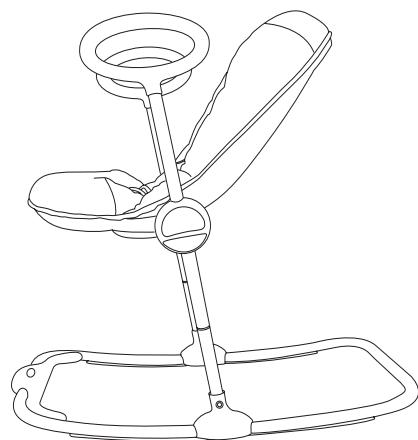

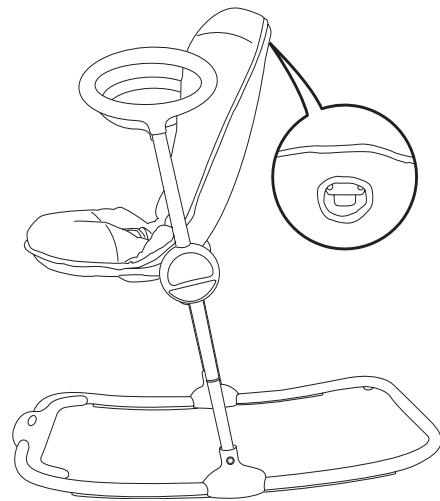

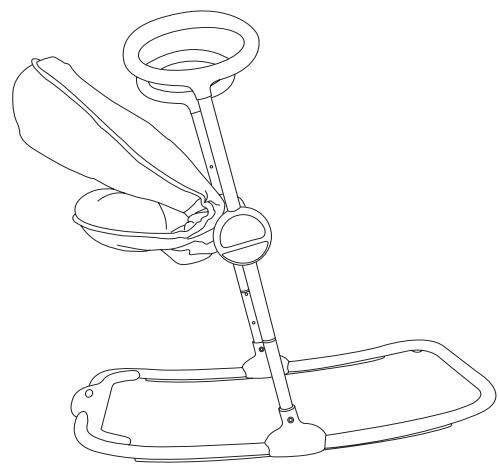

To set the incline of the bouncer seat, place your hand on the top of the seat back and press the button at the rear. Release the button at the desired position. Always hold the seat back when adjusting, especially if a child is in the bouncer.

To fold the bouncer, press the button and fold the back over the seat.

INSTRUCTIONS FOR LOCKING THE SWING FUNCTION

INSTRUCTIONS FOR SETTING THE HEIGHT

A swing function is available to enable you to rock the bouncer. To lock this position, pivot the stabiliser until it touches the ground.

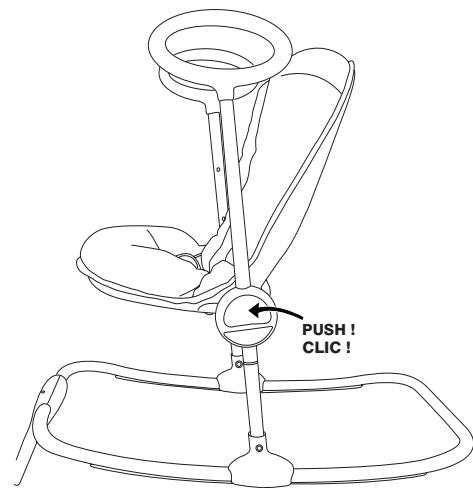

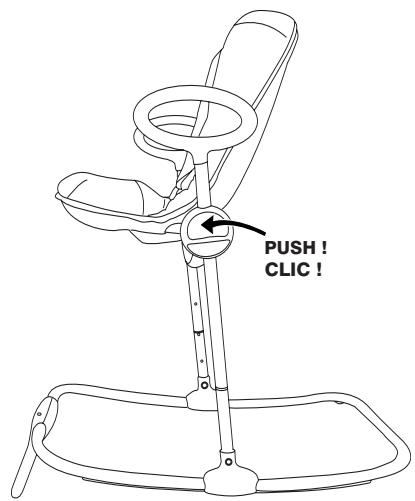

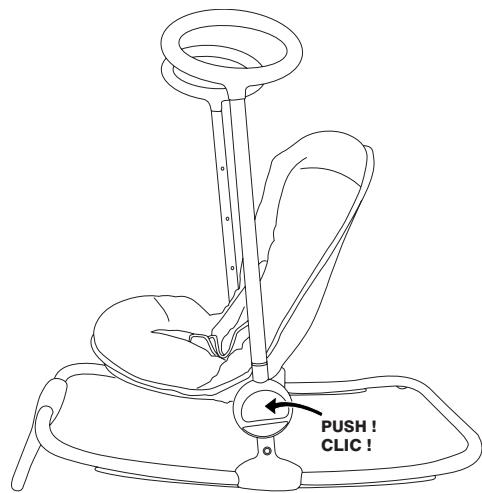

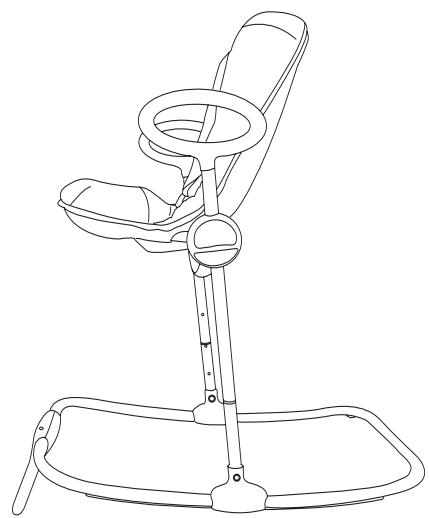

The Up & Down bouncer may be set to 4 predefined heights.

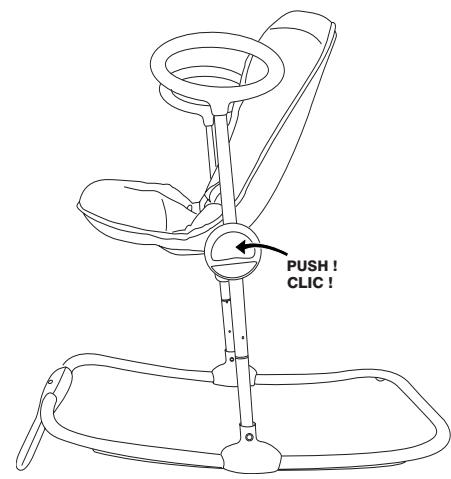

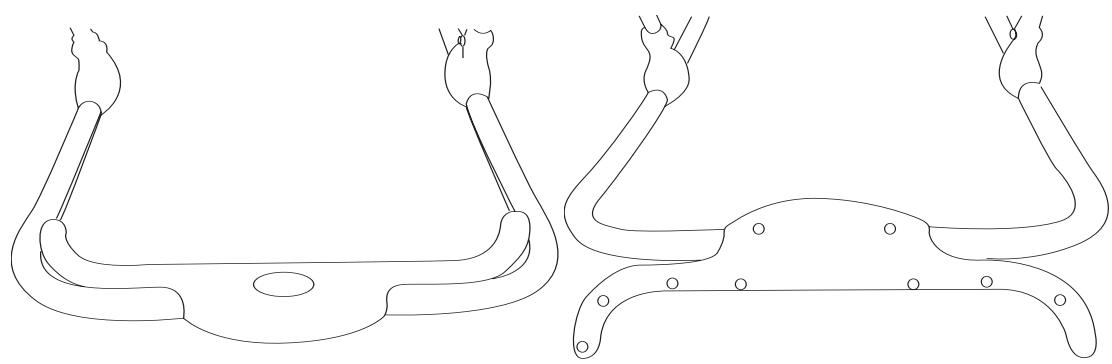

To set the height of the bouncer, press down simultaneously on the buttons of the seat structure (G) and adjust to the desired height. Release the two buttons ensuring that the seat structure (G) is locked properly on each of the tubes (A) or (B).
Attention! For reasons of security, never adjust the height when the child is in the bouncer.

In order to use the bouncer from birth, it is recommended to insert the newborn pillow (i).

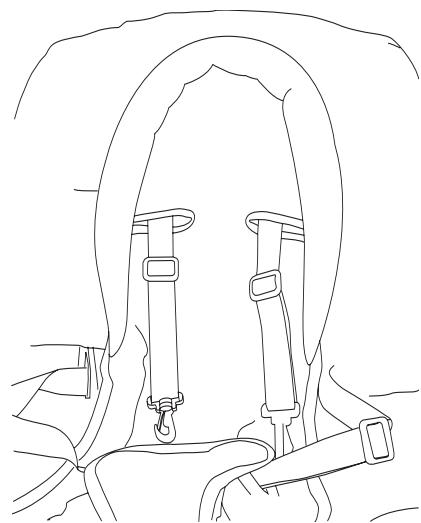

To insert the newborn pillow, remove the fabric protections from the harness straps. Pass the two straps on the harness through the two openings on the newborn pillow. Replace the fabric protections and close the harness strap clips.
The Up & Down bouncer uses a 5-point restraint system (crotch strap + belt + harness).
To install the child in the bouncer, unlock the 4 fastening points on the restraint system. Place the child in the centre of the seat ensuring that the crotch strap is in place. Close the two clips on the belt. Close the two clips on the harness.
Adjust the straps so that the restraint system fits the child.
