Product Type	Air-to-water heat pump
Brand	Panasonic
Model	WHUD07HE5
Main functions	Heating, Cooling, Domestic hot water production
Operating modes	Automatic, Manual, Weekly programming
Quick menu	Yes, access via remote control
Forced DHW backup	Yes, activates the backup resistance of the DHW tank
Turbo heating	Yes, reaches the set temperature faster
Silent mode	Yes, reduces operating noise
Forced backup heating	Yes, forces the start of the backup electric resistance
Forced defrosting	Yes, to defrost frozen pipes
Error code reset	Yes, restores previous settings in case of an error
Remote control lock	Yes, by 4-digit PIN code (default 0000)
Weekly timer	Up to 6 programs per day, adjustable by day of the week
2-zone management	Yes, possibility to set temperature for two zones (depending on configuration)
Display	LCD screen with operation icons
Remote control type	Wired, integrated into indoor unit
Maintenance and cleaning	Follow the instructions in the user manual for cleaning filters and components
Safety	Detailed instructions in the complete manual (stop before intervention, etc.)
General information	Manual available for free download at notice-facile.com

Frequently Asked Questions - WHUD07HE5 PANASONIC

How to access the quick menu of the Panasonic WHUD07HE5 heat pump?

To access the quick menu, press the dedicated button on the remote control. Then use the ▲, ▼, ▲ ▷ buttons to select the desired option and press ↓ to activate or deactivate the function. To return to the main screen, press the back button.

How to force domestic hot water backup production?

In the quick menu, select the 'Force DHW backup' icon. Press ↓ to activate or deactivate. When activated, the backup resistance of the DHW tank starts. Note that this function is deactivated if 'Force heating' is active.

How to activate silent mode?

In the quick menu, select the 'Silent mode' icon (represented by a crossed-out speaker symbol). Press ↓ to activate. The mode starts approximately 1 minute after activation. It reduces the operating noise of the heat pump.

How to program a weekly time schedule?

In the quick menu, select 'Weekly prog' then 'Yes'. Choose 'Clock programming' to modify the schedules. Select the desired day with ▲ ▼, then choose a program from 1 to 6. Set the start time, temperature, and mode (On/Off). Repeat for each day or copy a setting with 'Clock copy'.

How to lock the remote control to prevent tampering?

In the quick menu, select 'Remote lock'. Press ↓ then confirm with 'Yes'. The screen locks. To unlock, press any button, then enter the 4-digit PIN code (default 0000).

How to force defrosting of frozen pipes?

In the quick menu, select 'Force defrosting'. Press ↓ to confirm. The screen displays 'Request accepted'. Defrosting starts automatically.

How to reset error codes?

In the quick menu, select 'Error code reset'. Press ↓ to confirm. Ensure all units are stopped before. The screen displays 'Request accepted' and the system restores previous settings.

What should I do if I forgot the remote control lock code?

Under the operation stop screen, hold down the ▲, ▼ and ↓ buttons for 5 seconds. Select 'Reset'. The code is reset to 0000 and the screen unlocks.

How to activate turbo heating?

In the quick menu, select the 'Turbo heating' icon. Press ↓ to activate. Turbo mode starts approximately 1 minute after and allows reaching the set temperature faster. It deactivates if operation stops.

How to force electric backup heating?

In the quick menu, select 'Force backup heating'. Press ↓ to activate. The mode starts approximately 1 minute after. Note that it deactivates automatically when the system returns to normal operation mode.

USER MANUAL WHUD07HE5 PANASONIC

Air-to-Water Heatpump

Model No.

Indoor Unit

WH-SDC07H3E5

WH-SDC09H3E5

Outdoor Unit

WH-UD07HE5

WH-UD09HE5

Panasonic

Quick Menu Guide

Air-to-Water Heatpump

2-7

English

Please read the Operating Instructions thoroughly before using the Quick Menu.

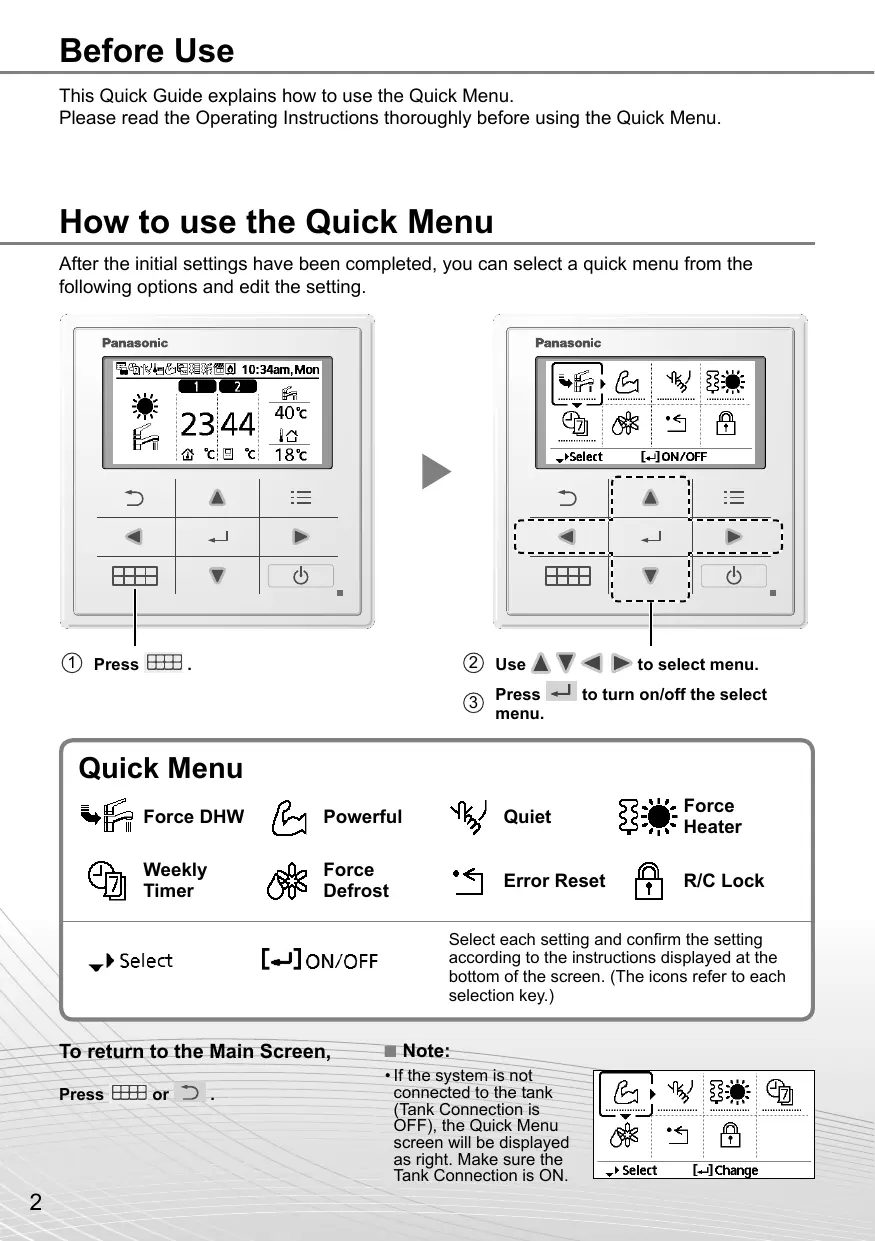

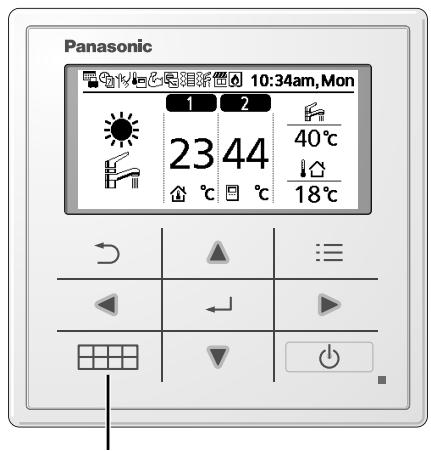

How to use the Quick Menu

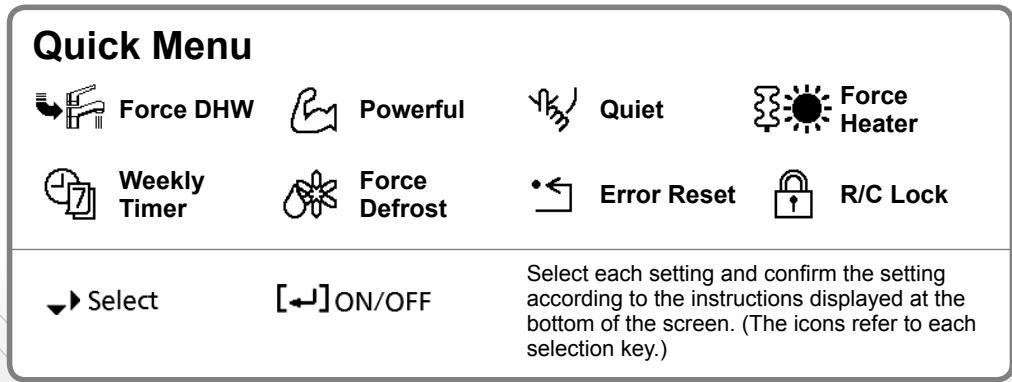

After the initial settings have been completed, you can select a quick menu from the following options and edit the setting.

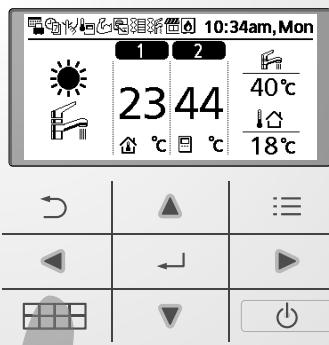

① Press .

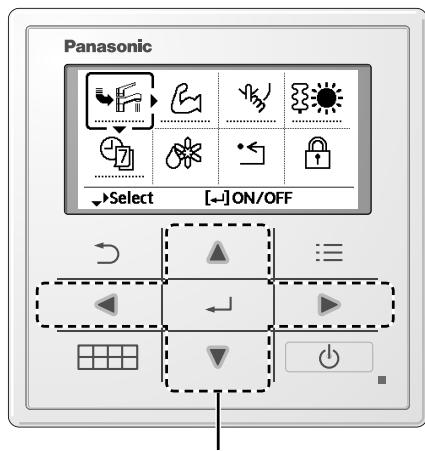

② Use ▲ ▼ ▶ ▷ to select menu. ③ Press ← to turn on/off the select menu.

To return to the Main Screen,

Press or

Note:

• If the system is not connected to the tank (Tank Connection is OFF), the Quick Menu screen will be displayed as right. Make sure the Tank Connection is ON.

Notes on operation icon

Example:

Operation icon indicate with "..........." = OFF

Operation icon indicate with “——” = ON

Force DHW

Select this icon to turn the Tank DHW on or off.

Press ↓ to confirm your selection.

• Force DHW is turned off.
• Force DHW is turned on.

Note:

• Force DHW is disabled when Force Heater is turned on.
• When Force DHW is turned off, operation & mode should change back to the previous memorized status.

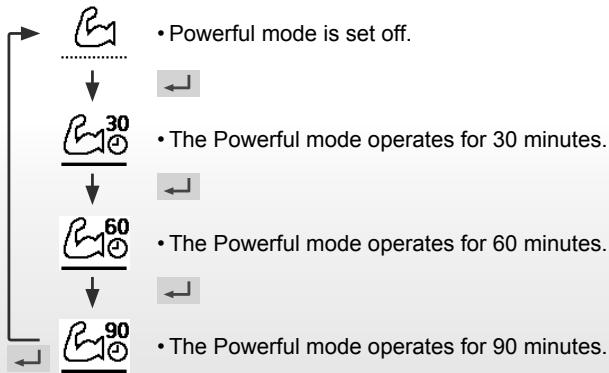

Powerful

Select this icon to operate the heating/cooling system powerfully.

Press ← to confirm your selection.

(The powerful operation starts approximately 1 minute after ← is pressed.)

Note:

• Powerful is disabled when operation is turned OFF.

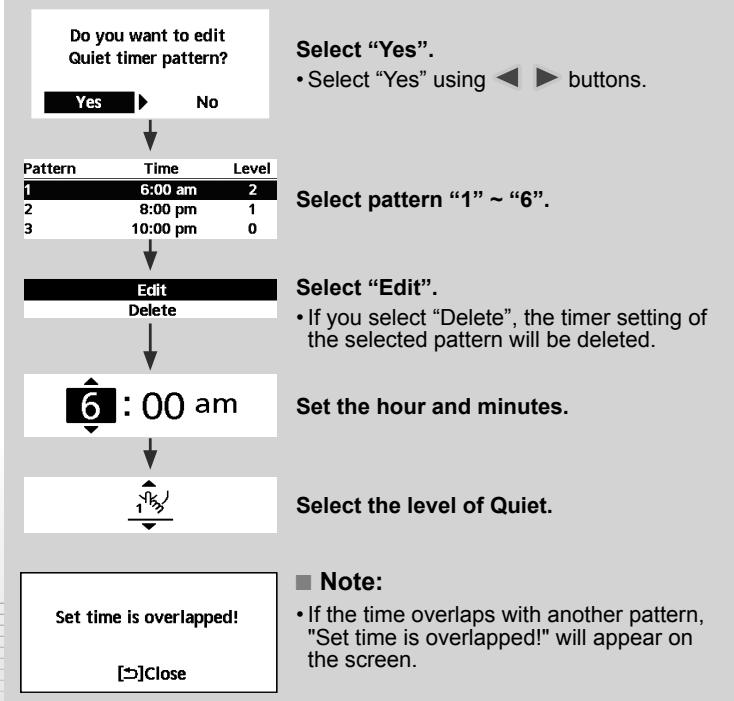

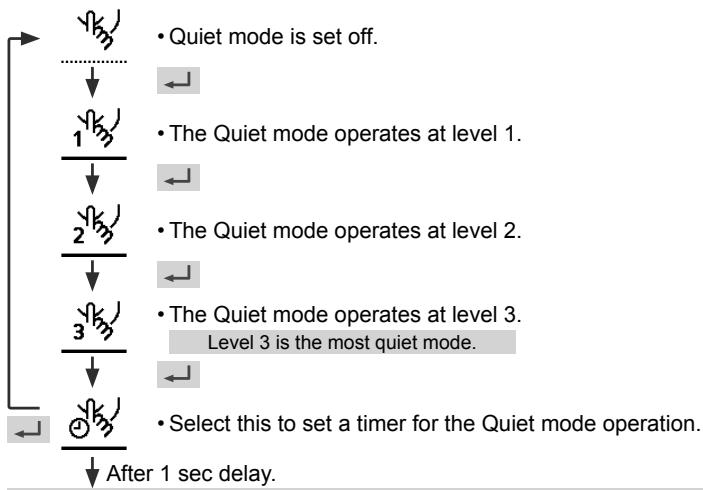

Quiet

Select this icon to operate quietly.

Press to confirm your selection.

(The quiet operation starts approximately 1 minute after ← is pressed.)

Force Heater

Select to force the Heater on.

Press the down arrow to confirm your selection.

(The Force Heater mode starts approximately 1 minute after the left arrow is pressed.)

Note:

• Force Heater is disabled whenever operation is already on and 'Disabled due to operation ON!' will be displayed.

Disabled due to

operation ON!

[Close

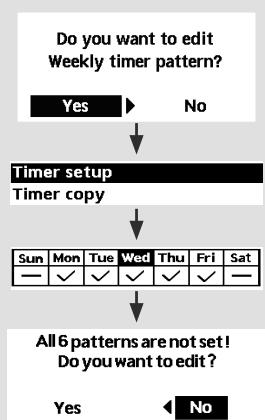

Weekly Timer

Select this icon to delete (cancel) or change the pre-set Weekly Timer.

Press the down arrow to confirm your selection.

Select "Yes".

• If you select "No", the screen will return to the Main Screen.
• Timer setup: Select Timer setup to edit the Weekly Timer.
• Timer copy: Select to copy a timer setting.

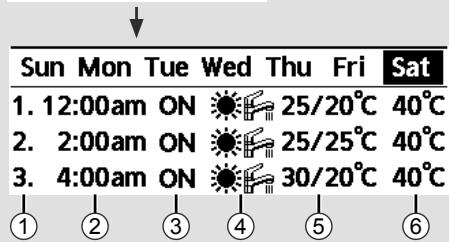

[Example of a Timer setup]

Select the day(s) which you wish to edit using the up/down buttons.

If all 6 patterns are not preset, this screen will be displayed.

④ Select the operation mode.

① Select pattern "1" ~ "6". ② Set the hour and minutes of the Timer. ③ Select ON/OFF of the Timer.

• Select mode using the up/down buttons.

⑤ Set the temperature for both Zone 1 and 2 (if your system has the 2-Zone setting).

Saturday: Pattern 1: Set Temp
Zone1		Zone2
ON	25°C	ON	25°C

⑥ Set the Tank temperature.

Note:

• Timer is disabled when Force Heater is turned on or Heat-Cool SW is enabled.
• If you have preset the Weekly Timer on 2 zones, you must repeat the same procedure with Zone 2.

Force Defrost

Select to defrost the frozen pipes.

Press ↓ to confirm your selection.

(When the mode is accepted, the following screen will be displayed.)

Request accepted!

[ ] Close

Error Reset

Select to restore the previous settings when an error has occurred.

Press ↓ to confirm your selection.

(When the mode has been accepted, the following screen will be displayed.)

Request accepted!

[ ] Close

• Make sure all units are turned off before selecting this mode, which restores the whole system to the previous settings.

R/C Lock

Select to lock the Remote Controller.

Press ↓ to confirm your selection.

(When the mode has been accepted, the following screen will be displayed.)

Do you want to lock remote control?

Yes

No

Select "Yes".

(The Main Screen will be locked.)

• If "No" is selected, the screen will return to the Main Screen.

To unlock the Remote Controller

Press any key.

(When the mode has been accepted, below screen will be displayed.)

Enter any 4 digits of number (if the number is correct, the screen will be unlocked).

To reset forgotten password (under operation OFF screen)

Press , and continuously for 5 seconds.

(When the mode has been accepted, below screen will be displayed.)

Select "Reset".

1. Password is reset to 0000
2. Remote control is unlocked

(The screen will be off after 3 seconds.)

Disabled due to operation ON!

[Close]

Week-timer

Sun Mon Tue Wed Thu Fri Sat

1. 12:00am ON 25/20°C 40°C
2. 2:00am ON 25/25°C 40°C
3. 4:00am ON 30/20°C 40°C

① Select schedule "1" ~ "6". ② Set the hours and minutes of the timer. ③ Select ON/OFF of the timer. ④ Select the desired mode.

Do you want to lock remote control?

Yes

No

Disabled due to operation ON!

[Close]

Saturday: Pattern 1: Set Temp
Zone1		Zone2
ON	25°C	ON	25°C	45°C

Do you want to lock remote control?

Yes No

Press "Yes".

1. Password is reset to 0000

2. Remote control is unlocked

Zone1		Zone2
ON	25°C	ON	25°C

Disabled due to operation ON!

[Close]

Saturday: Pattern 1: Set Temp
Zone1		Zone2
ON	25°C	ON	25°C

Set the tank switch.

Note:

Power is disabled when the operation is turned off.

Silent mode

Select the icon to activate silent mode.

Disabled due to operation ON!

[Close]

Weekly timer

Saturday: Pattern 1: Set Temp
Zone1		Zone2
ON	25 °C	ON	25 °C

⑥ Set the temperature of the container.

Note:

Do you want to lock remote control?

Yes No

© Panasonic Corporation 2015
