Product Type	Electric Kettle
Brand	Panasonic
Model	NCDK1CXC
Power Supply	220-240 V ~ 50-60 Hz
Power Consumption	2520-3000 W
Nominal Capacity	1.4 L
Dimensions (Body)	22.8 × 13.6 × 26.1 cm
Dimensions (with Base)	22.8 × 15.6 × 28.4 cm
Weight (Body)	1.6 kg
Weight (with Base)	1.9 kg
Power Cord Length	0.75 m
Automatic Shut-off	Yes, after boiling
Protection against dry heating	Yes, automatic shut-off
Power indicator	Yes, lights up during use
Removable filter	Yes, easy to clean
Usage	Household use only
Cleaning	Regular descaling required
Safety	Automatic shut-off, overheat protection, watertight base
Included accessories	Power base

Frequently Asked Questions - NCDK1CXC PANASONIC

How to clean the kettle filter?

Remove the filter by pushing it towards the spout then lifting it. Wash it thoroughly with a brush. If the spout is scaled, use a suitable descaler. Always replace the filter after cleaning.

Why does the water take a long time to boil?

Several possible causes: the lid is open (close it), a build-up of lime scale (clean with a descaler), or very cold water. Also check that the kettle is not overfilled.

What to do if there is loud noise during boiling?

The noise can increase due to lime scale build-up. Clean the kettle with a suitable descaler. If the noise persists, it is not abnormal.

How to descale the kettle?

Use a suitable descaler following the product's instructions. After descaling, boil water several times and discard it to remove residues. Regular cleaning prevents lime scale build-up.

Is it possible to use something other than water?

No, this kettle is designed only for boiling water. Never use milk, tea, alcohol or other liquids as this could cause burns or damage the appliance.

What to do if the kettle heats without water?

The dry heating protection activates automatically to prevent accidents. Let the appliance cool, remove it from the base, fill with water, then restart.

How to adjust the power cord length?

Wrap the cord under the power base to adjust the length. Route the cord through the open section. Never place the base on the cord.

Can I open the lid while the water is boiling?

Never open the lid while the water is boiling, as boiling water could splash and cause burns. Wait until the appliance shuts off automatically.

Can the appliance be used by children?

This appliance can be used by children aged 8 and above under supervision. Children under 8 should keep away from the appliance and cord. Cleaning should not be done by children without supervision.

What to do if the plug heats abnormally?

Unplug immediately and stop using the appliance. A hot plug may indicate a short circuit or overload. Contact a Panasonic service center for inspection.

USER MANUAL NCDK1CXC PANASONIC

Operating Instructions

Bedienungsanleitung

Gebruiksaanwijzing

Mode d'emploi

Kettle (Household Use)

Contents	Page
Safety Precautions	4
Electrical Requirement (For UK market only)	16
Important Information	18

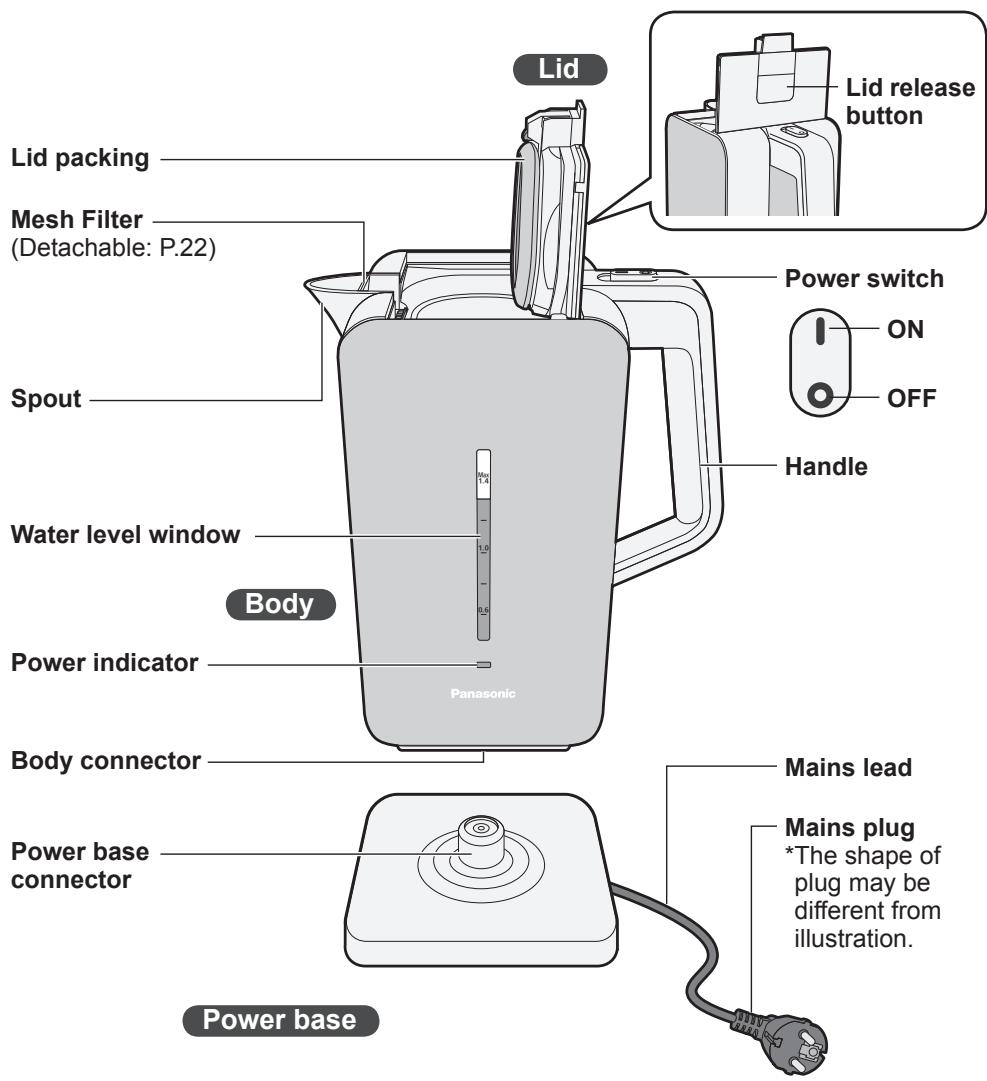

Parts Names and Handling Instructions	19

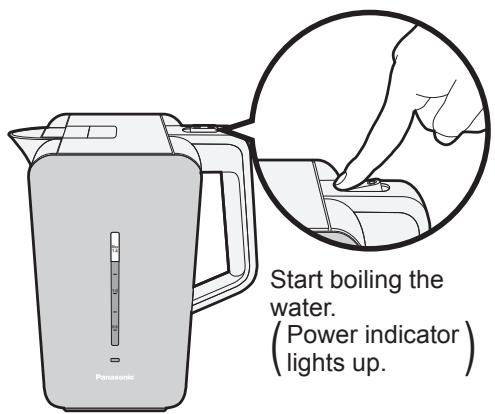

How to Use	20
How to Clean	22
Troubleshooting	23
Specifications	25

Thank you for purchasing the Panasonic product.

• This product is intended for household use only.
• Please read these instructions carefully to use the product correctly and safely.
• Before using this product please give your special attention to "Safety Precautions" (Page 4~15).
• Please keep this Operating Instructions for future use.

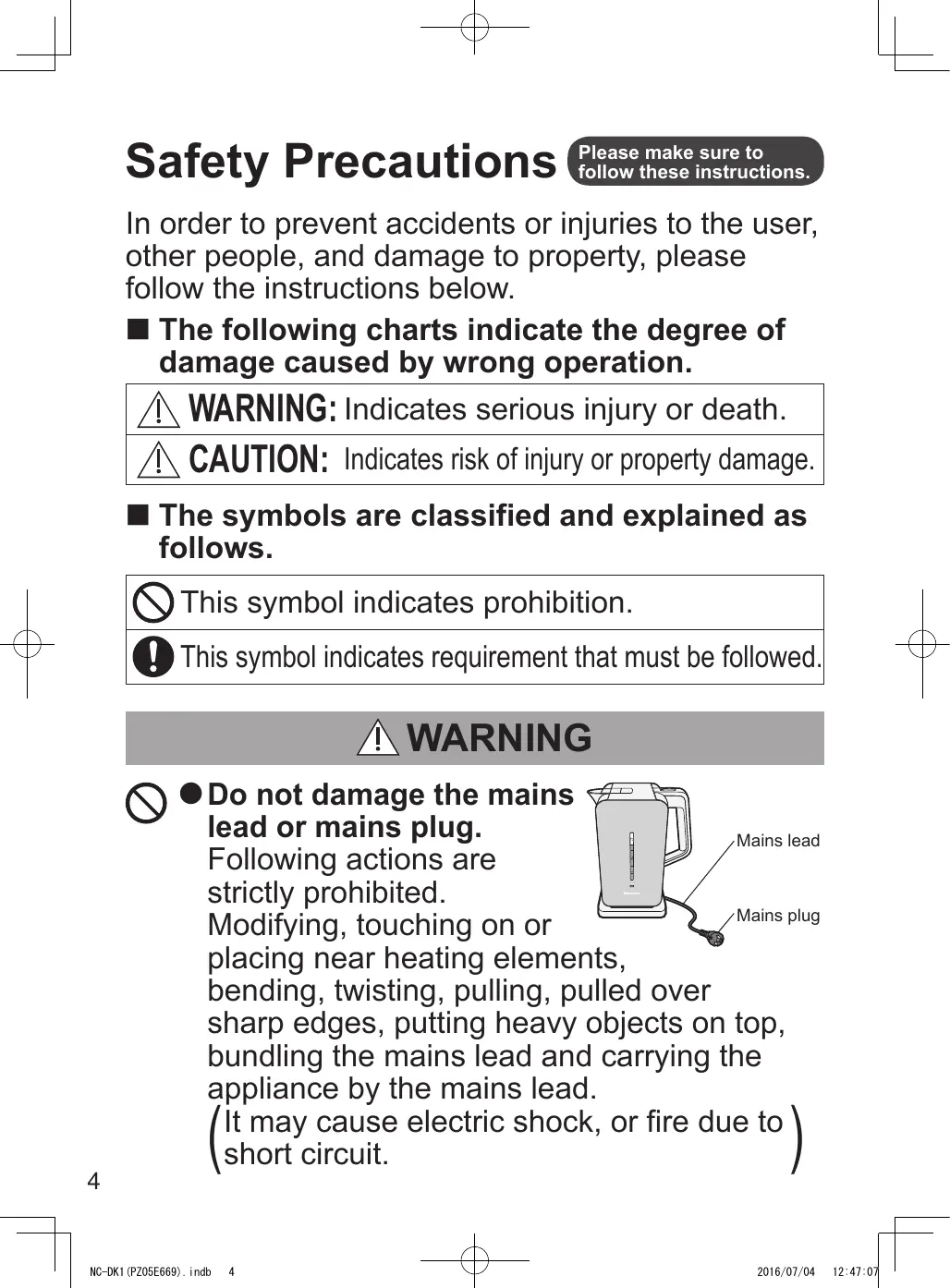

Please make sure to follow these instructions.

In order to prevent accidents or injuries to the user, other people, and damage to property, please follow the instructions below.

The following charts indicate the degree of damage caused by wrong operation.

WARNING: Indicates serious injury or death.
CAUTION: Indicates risk of injury or property damage.

The symbols are classified and explained as follows.

This symbol indicates prohibition.
This symbol indicates requirement that must be followed.

WARNING

• Do not damage the mains lead or mains plug.

Following actions are strictly prohibited.

Modifying, touching on or
placing near heating elements,
bending, twisting, pulling, pulled over
sharp edges, putting heavy objects on top,
bundling the mains lead and carrying the
appliance by the mains lead. (It may cause electric shock, or fire due to) short circuit.

WARNING

• Do not use the appliance if the mains lead or mains plug is damaged or the mains plug is loosely connected to the household mains socket.

It may cause electric shock, or fire due to short circuit.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person in order to avoid a hazard.

• Do not plug or unplug the mains plug with wet hands.

(It may cause electric shock.)

• Always ensure that hands are dry before handling the mains plug or switching on the appliance.

Make sure the voltage indicated on the label of the appliance is the same as your local supply.

(It may cause electric shock or fire.)

Also avoid plugging other devices into the same household mains socket to prevent electric over heating.

However, if you are connecting a number of mains plugs, make sure the total wattage does not exceed the rated wattage of the household mains socket.

Safety Precautions

Please make sure to follow these instructions.

WARNING

• Insert the mains plug firmly.

Otherwise it may cause electric shock and fire due to heat that may be generated around the mains plug.

Clean the mains plug regularly.

Dust and moisture build-up on the mains plug may cause insufficient insulation, which may cause a fire.

Unplug the mains plug, and wipe with a dry cloth.

• Keep the mains lead out of reach of children. Do not let the mains lead hang over the edge of the table or worktop.

(It may cause burns, injury or electric shock.)

• Do not immerse the appliance (include the power base) in water or splash it with water.

It may cause electric shock, or fire due to short circuit.

• Do not allow the bottom of the kettle to get wet when filling directly from the tap or placing it in the sink.

WARNING

• Do not disassemble, repair or modify this appliance.

(It may cause fire, electric shock or injury.)

Consult the place of purchase or a Panasonic service centre.

• Do not touch or put your face close to the spout during or after use.

(It may cause burns.)

• Especially keep the appliance out of reach of infants and children.

• Do not block the spout with a cloth etc. (Hot water may spill out, which may cause) burns.

• Do not close the lid vigorously. (Hot water may splash out, which may cause burns.)
• Do not fill with any substance other than water. This appliance is for boiling water only.

If you boil the appliance with tea bags, tea leaves, milk, alcohol, boil-in-the-bag products etc., bubbles may form, causing a discharge of liquid which may cause burns.

Safety Precautions

Please make sure to follow these instructions.

WARNING

• Do not shake or tip over the body.

Hot water may pour out, it may cause burns.

• Do not lick the power base connector.

(It may cause electric shock or injury.)

• Pay attention when infants and children are near the appliance.

• Do not allow foreign material (especially metal components such as pins and wires or dust) to adhere to the body connector or power base connector.

It may cause electric shock, or fire due to short circuit.

• Do not use the body as a cooler. (Do not put ice inside.)

This generates condensation, which may cause electric shock.

• Do not put the body on any heat source or in a microwave.

(It may cause fire.)

WARNING

• Do not open the lid while the water is boiling. (Hot water may splash out, which may cause burns.)

• This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

Keep the appliance and its cord out of reach of children aged less than 8 years. Children shall not play with the appliance. (It may cause burns, injury or electric shock.)

• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

(It may cause burns, injury or electric shock.)

Always keep the children away from the appliance.

(It may cause burns or injury.)

• Children do not realise dangers that are likely to occur because of improper use of appliances.

Safety Precautions

Please make sure to follow these instructions.

WARNING

- If the kettle is overfilled, boiling water may be ejected.

V MAX

Hot water may boil over, which may cause burns.

MIN

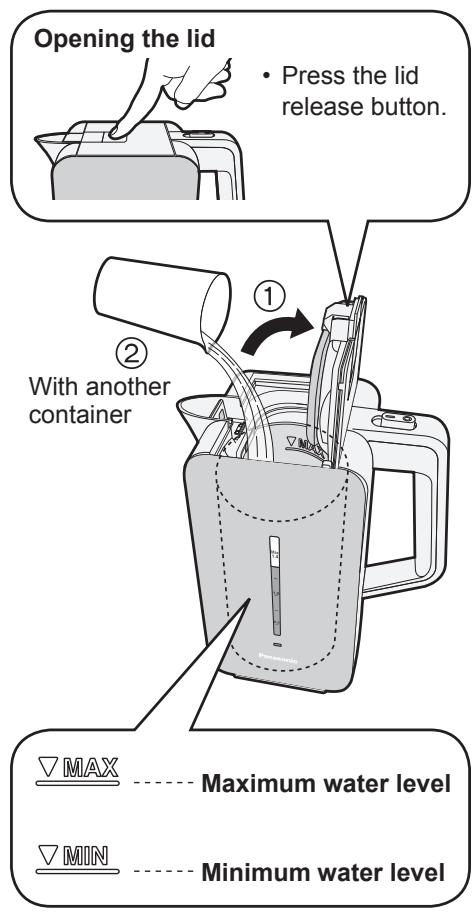

• Fill with water between the minimum water level and the maximum water level.

- Discontinue using the appliance immediately and unplug in the unlikely event that this appliance stops working properly.

It may cause smoking, fire, electric shock or burns.

e.g. for abnormal or breaking down

• The mains plug and the mains lead become abnormally hot.
• The mains lead is damaged or the appliance power fails.
• The main body is deformed, has visible damage or is abnormally hot.
• Water leaks from the body.
• The steam continues more than 3 minutes.
• There is another abnormality or failure.

Unplug the appliance immediately and consult the place of purchase or a Panasonic service centre for inspection or repair.

WARNING

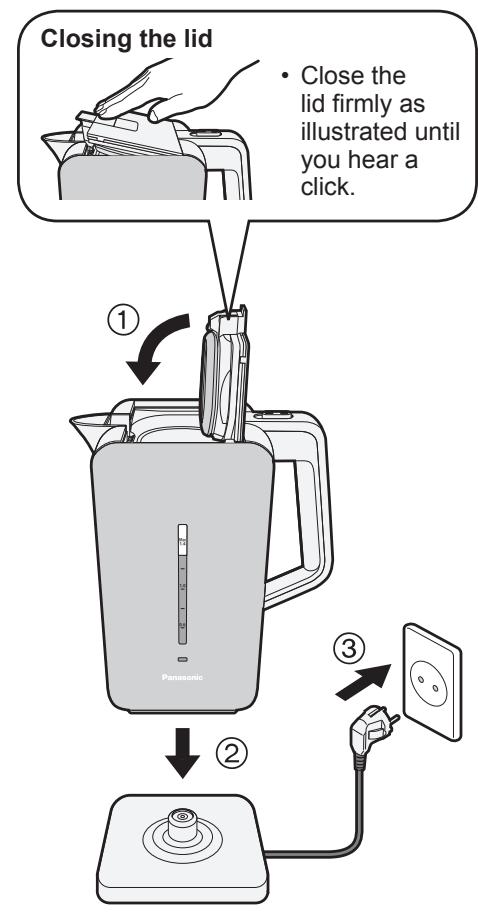

• Make sure the lid is fully closed before turning on the appliance.

If the appliance tips over, hot water may spill out, it may cause burns.

Otherwise the appliance will keep boiling until it gets empty.

• The appliance gets hot during use. When moving the body, turn off the power switch and pick up by the handle.

Hot water may spill out from the spout, which may cause burns.

• Do not tilt except when pouring.

• Do not allow infants and children to play with packaging material.

(It may cause suffocation.)

Safety Precautions

Please make sure to follow these instructions.

CAUTION

• Do not use the appliance for any purpose other than those described in these instructions.

(It may cause burns or injury.)

• Panasonic will not accept any liability if the appliance is subject to improper use, or failure to comply with these instructions.

• Do not touch the hot parts (Spout etc.) during or immediately after use.

• Be careful with the residual heat source especially after use. (It may cause burns.)

• Do not pour hot water or move the appliance while the water is boiling. (Hot water may splash out, which may cause burns.)

CAUTION

- Do not use the appliance on following places.

• On uneven surfaces, on non-heat-resistant carpet or table cloths etc. (It may cause fire or injury.)
• Place where it may be splashed with water or near a heat source.

It may cause electric shock or electrical leakage.

• Near any open water such as bathtubs, sinks, or other containers.
  It may cause electric shock or electrical leakage.
  Near a wall or furniture.
  (It may cause discolouration or deformation.)
• Place that could be damaged even by moderate heat.
  (It may cause discolouration or deformation.)

- Make sure to hold the mains plug when unplugging the mains plug. Never pull on the mains lead.

(Otherwise it may cause electric shock, or) fire due to short circuit.

Safety Precautions

Please make sure to follow these instructions.

CAUTION

Always ensure the appliance is switched off and unplug the mains plug when it is not in use, before moving and before cleaning.

Otherwise it may cause electric shock, or fire due to electrical leakage.

• Place the appliance on a firm, dry, clean flat heatproof worktop.

(Otherwise it may cause burns or injury.)

• Beware not to be tripped over or get caught in the mains lead while in use.

(Otherwise it may cause burns or injury.)

• When opening the lid, beware of steam and water drips.

(It may cause burns.)

• Replace the lid packing if it turns white, is scratched, or split.

If the appliance is tilted or tipped over, hot water may spill out, which may cause burns.

For replacement, consult the place of purchase or a Panasonic service centre.

CAUTION

• Pour out any remaining hot water from the spout.

Pouring out from another location may result in water splashing, it may cause malfunction or burns.

• The kettle is only to be used with the stand provided.

Do not use power source other than the dedicated power base, or use the power base with any other equipment.

(It may cause burns, malfunction or fire.)

• Unplug and allow the appliance to cool down fully before cleaning and storing away.

(It may cause burns.)

• Pay attention to the appliance when it is in use.

(It may cause fire.)

• When leaving it, turn the power switch off.

• Beware when pouring hot water. Pour slowly, and do not over-tilt the appliance.

(It may cause burns.)

• Remove the appliance from its stand before filling or pouring.

(It may cause burns.)

Electrical Requirement (For UK market only)

FOR YOUR SAFETY PLEASE READ THE FOLLOWING TEXT CAREFULLY.

This appliance is supplied with a moulded three pin mains plug for your safety and convenience. A 13- amp fuse is fitted in this plug.

Should the fuse need to be replaced please ensure that the replacement fuse has a rating of 13-amp and that it is approved by ASTA or BSI to BS1362.

Check for the ASTA mark or the BSI mark on the body of the fuse.

If the plug contains a removable fuse cover, you must ensure that it is refitted when the fuse is replaced.

If you lose the fuse cover, the plug must not be used until a replacement cover is obtained.

A replacement fuse cover can be purchased from your local Panasonic Dealer.

If the fitted moulded plug is unsuitable for the socket outlet in your home, then the fuse should be removed and the plug cut off and disposed of safely. There is a danger of severe electrical shock if the cut off plug is inserted into any 13-amp socket.

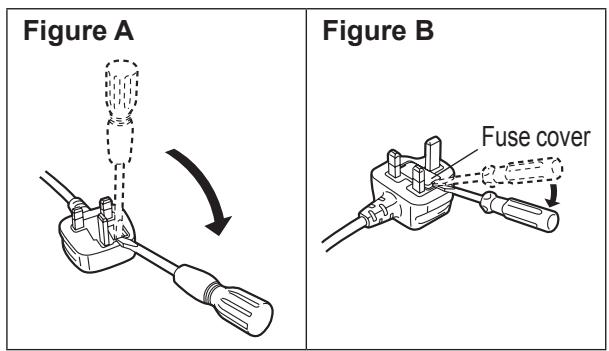

How to replace the fuse

The location of the fuse differs according to the type of AC mains plug (figures A and B). Confirm the AC mains plug fitted and follow the instructions below. Illustrations may differ from actual AC mains plug.

Open the fuse cover with a screwdriver and replace the fuse and close or attach the fuse cover.

Important Information

• Do not subject the body or power base to strong impacts by dropping, hitting etc. (It may cause malfunction or damage.)
• Do not move the body or power base by dragging. (It may scratch the table or work surface.)
• Do not turn the power switch on without water. (It may cause malfunction.)
• Do not use the appliance outdoors.
• Do not put anything on the appliance. (The power switch may be turned on.)
• Make sure the kettle is properly located on the stand and mesh filter is set before switching on.
• Make sure to clean the appliance after every use.

Parts Names and Handling Instructions

English

Before use

Clean the appliance by following the steps below for the first time or when you have not used it for a while.

① Fill water up to the maximum water level and boil. (P.20)
(2) Pour the water out from the spout. (P.21 After use, pour out any remaining water.)

How to Use

1 Open the lid and fill with water.

2 Close the lid, put the kettle on the power base and insert the mains plug.

Adjusting the length of the mains lead

• Wind the mains lead on the bottom of the power base to adjust the length.

• Pass the mains lead out through the cut out section.
• Do not put the power base on the mains lead.

3 Turn on the power switch. (Press “I”)

During use, the power indicator lights up.

When the water has boiled, the power switch turns off automatically.

• The kettle takes around 3 minutes to boil.
  Water temperature 23^ C , room temperature 23^ C , water to max level
• To stop boiling before the water has boiled, turn off the power switch.

Note

• Immediately after the water has boiled, do not force the kettle to continue heating the water by keep pressing the power switch. (It may cause malfunction.)

4 Remove from the power base and pour.

After use, pour out any remaining water.

*Keep the lid closed when pouring away the water.

Empty-use prevention function

When the power switch is on without water, an empty-use prevention function works to automatically turn off the power in order to prevent accidents and malfunction due to overheating.

① Allow the body to cool sufficiently.
(2) Remove the body from the power base and fill the water.
③ Place it on the power base and turn on the power switch again.

*If you boil the kettle without water, it may smell strange.

How to Clean

Clean the appliance after every use.
Before cleaning, unplug the mains plug, pour away the hot water, and cool the body.
- Do not use soap. (This may cause a residual odour.)
- Do not use benzine, thinner, alcohol, bleach, polishing powder, metal brush or nylon brush, otherwise the surface will be damaged.
- Do not wash in a dishwasher.

Mesh Filter

Wash carefully using a brush etc.

• If the spout is blocked by scale, hot water will pour less easily.
  After cleaning, always attach it to the body.

How to detach

• Push the filter towards to the spout and pull it upwards.

How to attach

• Align with the groove on the spout and press it firmly.

Lid

Wipe with a well-wrung cloth.

Power base

Wipe with a well-wrung cloth.

Body

(Outside)

Wipe with a well-wrung cloth.

(Inside)

Rub with a soft sponge and rinse.

Scale build-up

Minerals such as calcium carbonate contained in the water build up in the kettle.

Example of scale

• Floating shiny white or brown substance (Mineral crystals)
• Milky white roughness (Substance generated by minerals such as calcium carbonate in water.)
• Brown, grey or green colours (Due to the effects of metal ions)

Please remove the scale.

• Remove it regularly using a suitable scale remover.
• Follow the instructions supplied with the scale remover. After removal, repeat the following steps a few times: fill with water, boil, pour away.

To store

Dry thoroughly.
- Seal in a plastic bag to prevent insects etc. from entering.

Troubleshooting

Check the following before contacting the shop or asking for a repair.

Problem	Cause	How to correct
Water does not boil. (Power switch does) not turn on.	●Is the mains plug plugged in?	●Insert the mains plug into the household mains socket. (P.20)
	●Is the body set correctly on the power base?	●Ensure the body is set correctly.
	●Is the power switch turned off?	●Press “|”, and turn on the power switch. (P.21)
	●Is there a piece of metal or foreign material adhered to the power base connector or body connector?	●Remove the piece of metal or foreign material. (P.22)
	●Once the kettle has boiled, the power switch is automatically turned off and cannot be turned on for approximately 3 minutes.
	●Did you try to turn on the power switch without water in the kettle? (The Empty-use prevention function will work to turn off the power switch.)	●Fill with water and turn on the power switch. (P.20)
Hot water may burst out from the spout.	●Is the water level above the maximum water level?	●Reduce the water down to the maximum water level or lower. (P.20)
Water is dripping from the bottom of the body.	●Since the kettle is designed to sense steam and turn off the power switch, the steam can condense and drip from the bottom of the body as water droplets. This is not malfunction.

Troubleshooting

Problem	Cause	How to correct
The hot water has a strange smell.	Depending on the amount of chloride contained in the water supply, there may be a residual chalky smell.
	The first time of use, there may be plastic smell, but this will disappear as you continue to use the kettle.
Shiny white or brown substances are floating in the hot water.	This is scale. Scale is more likely to be generated when using water with a high mineral content. • Mineral water. • Water from ionic water purifiers.	Clean the kettle with a scale remover. (P.22)
Rough milky white substances are adhered to parts inside the body.
The sound of water boiling has become very loud.	The sound grows larger as scale adheres.
Hot water is difficult to pour.	Has the mesh filter been blocked by foreign matter or scale?	Detach and clean with a brush etc. (P.22) Clean the kettle with a scale remover. (P.22)
A clicking sound is heard a short time after use.	This sound is made when an internal heat component cools down. This is not malfunction.
The kettle is taking a long time to boil.	Did you boil with the lid open?	Close the lid. (P.20)
	Scale adhered.	Clean the kettle with a scale remover. (P.22)
	If the water is very cold, the kettle will take longer time to boil.

Specifications

		NC-DK1
Power supply		220 - 240 V ~ 50 - 60 Hz
Power consumption		2520 - 3000 W
Dimensions (W × D × H) (approx.)	Body	22.8 cm × 13.6 cm × 26.1 cm
	Body + Power base	22.8 cm × 15.6 cm × 28.4 cm
Weight (approx.)	Body	1.6 kg
	Body + Power base	1.9 kg
Rated capacity		1.4 L
Length of the mains lead (approx.)		0.75 m

• In certain regions (high altitude, very cold locations), it may not be possible to obtain the predetermined performance.

Disposal of Old Equipment

Only for European Union and countries with recycling systems

This symbol on the products, packaging, and/or accompanying documents means that used electrical and electronic products must not be mixed with general household waste.

For proper treatment, recovery and recycling of old products, please take them to applicable collection points in accordance with your national legislation.

By disposing of them correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment.

For more information about collection and recycling, please contact your local municipality.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

Panasonic Test and Development Kitchen

Panasonic Consumer Electronics U.K.

A Division of Panasonic U.K. Ltd

Willoughby Road, Bracknell, Berks, RG12 8FP

Web Site: www.panasonic.co.uk

Representative in EU :

Panasonic Marketing Europe GmbH

Panasonic Testing Centre

Winsbergring 15, 22525 Hamburg, Germany

Panasonic Taiwan Co., Ltd.

Web Site: http://www.panasonic.com

© Panasonic Taiwan Co., Ltd. 2016

Printed in China

PZ05E669

MD0916F0
