USER MANUAL NCEG3000 PANASONIC

1. Read all instructions.

2. Do not touch hot surfaces, especially the steam vent. Use handles or knobs.

3. To protect against fi re, electric shock and personal injury, do not immerse cord, plugs, or

main unit in water or other liquid. Do not splash water or other liquid over them.

• Do not pour water directly from the tap.

• Do not put the unit in a sink or allow it to get wet.

• Do not turn the unit upside down when the bottom is wet.

4. Close supervision is necessary when any appliance is used by or near children.

• Do not allow children and persons unfamiliar with the appliance to use it.

• Do not leave the unit within the reach of infants.

• You must pay special attention to prevent infants from putting the body plug into their mouths.

5. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or

taking off parts, and before cleaning the appliance.

• When unplugging, pull by the power plug - not the cord.

6. Do not operate any appliance with a damaged cord or plug or after the appliance

malfunctions, or has been damaged in any manner. Return appliance to the nearest authorized service center for examination, repair or adjustment.

• Never disassemble, repair, or modify the unit.

• If the supply cord becomes damaged, the cord must be replaced. Refer servicing to an authorized service center, as described in the warranty.

7. The use of accessory attachments not recommended by the appliance manufacturer may

result in fi re, electric shock or personal injury.

8. Do not use outdoors.

9. Do not let cord hang over edge of table or counter, or touch hot surfaces.

10. Do not place on or near a hot gas or electric burner, or in a heated oven.

Do not place on unstable surfaces or surfaces that can be affected by heat, or near walls or furniture.

11. Extreme caution must be used when moving an appliance containing hot liquids.

• When carrying the unit, do not touch the lid opening lever.

12. Always attach plug to appliance fi rst, then plug cord into the wall outlet.

• Make sure the power plug is correctly inserted in to the wall outlet when in use.

• Do not connect or disconnect the power plug or the body plug with wet hands.

13. Use a single outlet that matches the power rating of the unit.

14. To prevent electric shock and/or fi re, dust off power plug or body plug regularly.

Water-laden dust settled on the cable or plug may cause insuffi cient insulation.

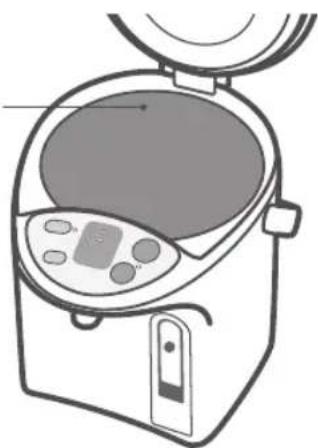

• Remove the plugs and clean them with a dry cloth. IMPORTANT SAFEGUARDS 06_USA_OM_NC-EG2200_3000_4000_EN.indd 406_USA_OM_NC-EG2200_3000_4000_EN.indd 4 12/14/2558 BE 15:5012/14/2558 BE 15:505 Power cord Power plug* Cord Body plug *The shape of plug differs according to region. Lid Dispensing spout Maximum water level Lid opening lever Steam vent

15. Do not allow small metal parts near the body plug.

16. Only use the power cord designed specifi cally for the

unit. Do not use a different cord and do not use this cord with any other device.

17. Do not let the unit fall over.

Do not lift, tilt, or shake the unit or carry it by the lid.

• Even when the dispense key is locked, hot water may leak through the dispensing spout and the steam vent, causing burns, if the unit falls over or is tilted.

18. Do not use this appliance without lid properly closed.

Close the lid securely, and not by force.

19. Do not throw away the remaining hot water while the

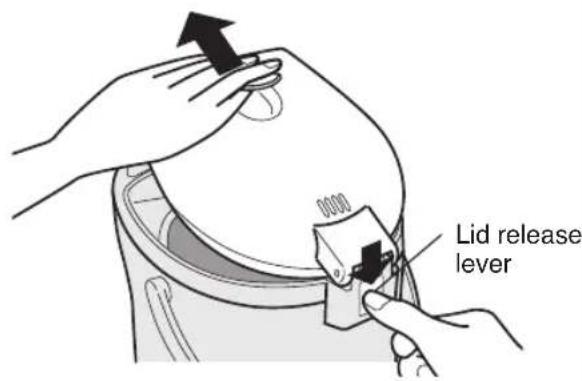

20. When opening the lid, keep hands away from the

21. Scalding may occur if the lid is removed during

heating cycles. Do not open the lid or dispense hot water while boiling.

22. Do not pour in water above the maximum water level.

23. Do not block the steam vent.

24. Do not rotate the unit while dispensing hot water.

25. Do not use appliance for other than intended use.

• Do not use to store ice. Condensation will occur, creating a potential source of electric shock and malfunction.

• Do not heat tea bags, tea leaves, milk, alcohol or anything other than water which may cause it to spurt out hot liquid or steam and cause burns. The water tube may also get clogged, the inner container may burn or corrode, and the fl uororesin insulating coating may peel off.

26. This appliance is designed for indoor household use

SAVE THESE INSTRUCTIONS

A. A short power-supply cord is provided to reduce the risk of entanglement or tripping over a longer cord. B. The use of extension cords is not recommended.

Electric dispense (See "Dispensing" on P.16-17)

Slow Drip made for making drip coffee (P.18-19)

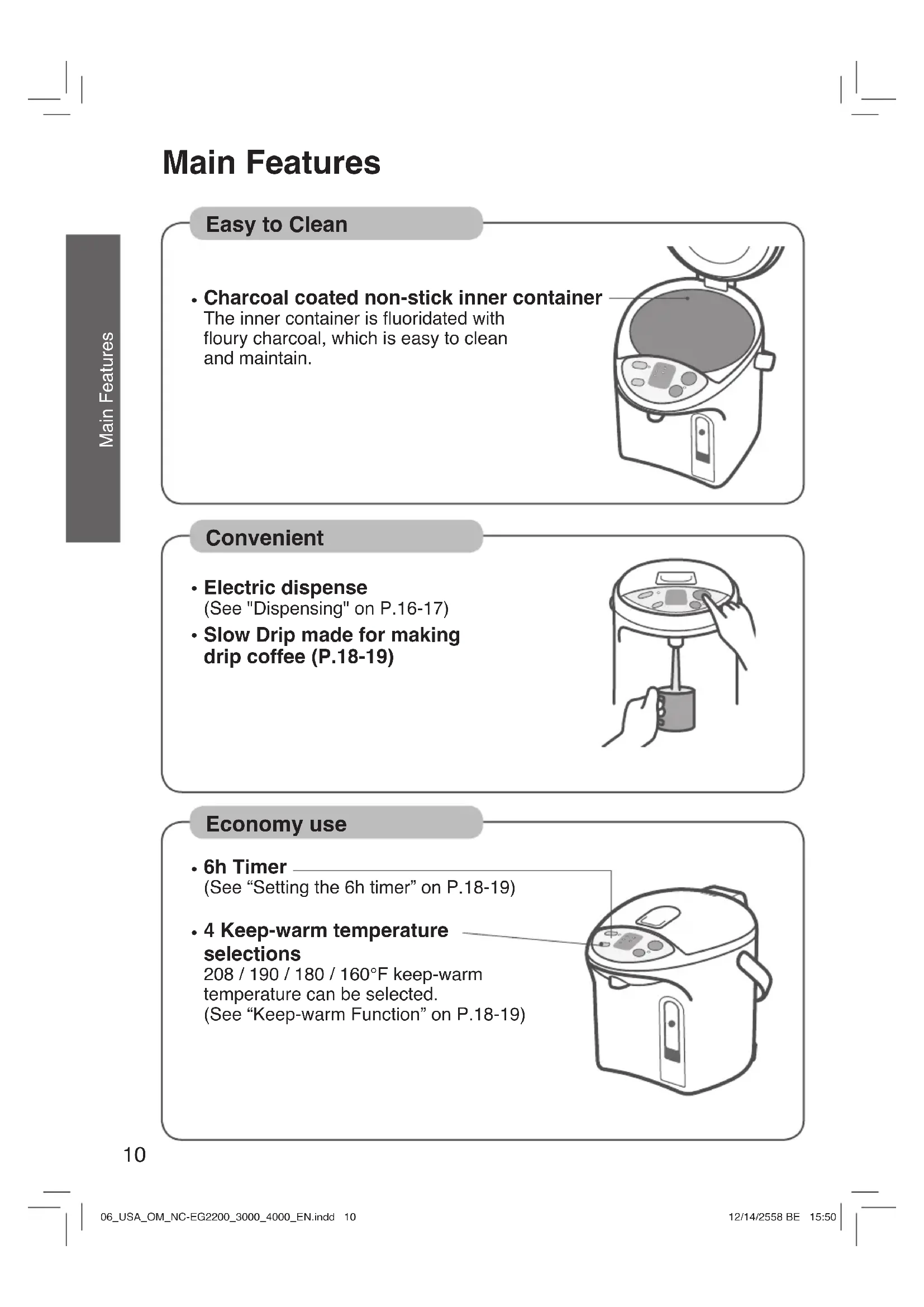

4 Keep-warm temperature selections 208 / 190 / 180 / 160°F keep-warm temperature can be selected. (See “Keep-warm Function” on P.18-19) Easy to Clean

Charcoal coated non-stick inner container The inner container is fluoridated with floury charcoal, which is easy to clean and maintain. Main Features 06_USA_OM_NC-EG2200_3000_4000_EN.indd 1006_USA_OM_NC-EG2200_3000_4000_EN.indd 10 12/14/2558 BE 15:5012/14/2558 BE 15:5011 Safety Precautions Please take these precautions strictly The symbols indicate specified items that must be followed. WARNING CAUTION WARNING To Prevent BurnsSteam ventLid opening lever Lid Maximum water levelDispensing spoutTo reduce the risk of personal injury, electric shock or fire, please observe the following: The signals indicate harm and damage when the product is used incorrectly.This symbol indicates an action that must be avoided.This symbol indicates an action that must be carried out.Indicates potential hazard that could result in serious injury or death.Indicates potential hazard that could result in minor injury or property damage.● Do not let the unit fall over. Do not lift, tilt or shake the unit or carry it by the lid.Even when the “Dispense” key is locked, hot water may leak through the dispensing spout and the steam vent, causing burns, if the unit falls over or is tilted.● Do not close the lid by force.Hot water can spill causing burns.● Do not pour in water above the maximum water level indication line.If the appliance is overfilled, boiling water may be ejected. Hot water can spill causing burns.● Do not boil anything other than water.Do not heat tea bags, tea leaves, milk, alcohol or anything other than water which may cause it to spurt out hot liquid or steam and cause burns.The water tube may also get clogged, the inner container may burn or corrode, and the fluororesin insulating coating may peel off.● Do not block the steam vent.Hot water can overflow causing burns.● Do not throw away the remaining hot water while the lid is attached.If the Iid comes off, hot water may splash causing burns.● Do not touch the steam vent.This may cause burns. Take special care to prevent infants from touching the steam vent.● This product is not intended for use by children, unless they have been given supervision or instructions concerning the use of this product by a person responsible for their safety.● Close the lid securely.If the unit topples, hot water may spill out causing burns.Safety Precautions 06_USA_OM_NC-EG2200_3000_4000_EN.indd 1106_USA_OM_NC-EG2200_3000_4000_EN.indd 11 12/14/2558 BE 15:5012/14/2558 BE 15:5012 Power Cord Power cord

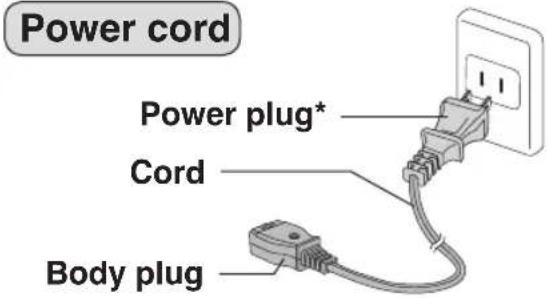

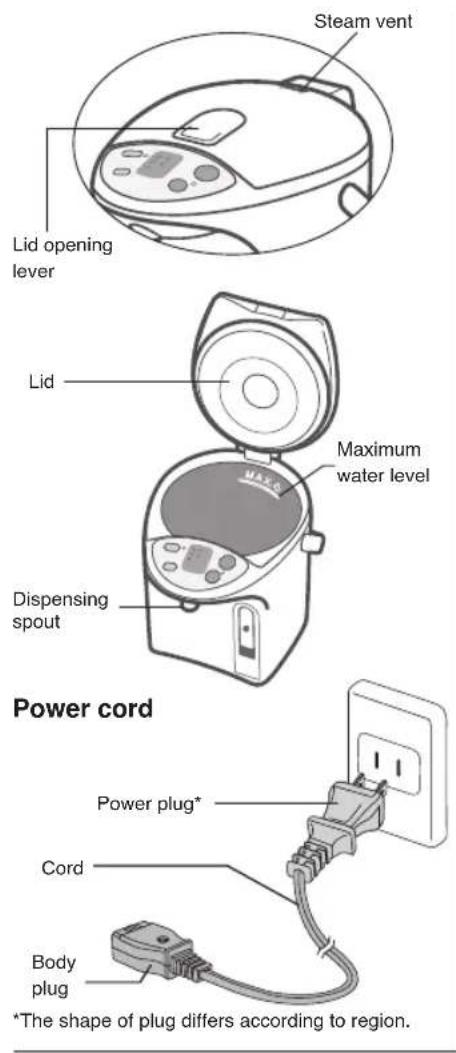

• The shape of plug differs according to region. Cord Body plug Power plug* Safety Precautions Please take these precautions strictly WARNING Never do anything that might cause damage to the cord, power plug or body plug. Do not damage them, modify them, place hot objects near to them, bend them, twist them, stretch them, place heavy objects on them, or bundle them together. If the unit is used when damaged, electrical short circuit or fire may cause. If the supply cord becomes damaged, the cord must be replaced. Refer servicing to an authorized service center, as described in the warranty. Do not connect or disconnect the power plug or the body plug with wet hands. This may cause electric shock. Do not allow infants access to the body plug. You must pay special attention to prevent infants from putting the body plug into their mouths. This may cause electric shock or injury. Do not allow small metal parts near the body plug. This may cause electric shock, electrical short circuit or fire. Make sure the power plug is fully inserted into the wall outlet. If the plug is inserted improperly it may cause electric shock or generate heat causing fire. Do not use a damaged plug or a connection in a loose outlet. To prevent electric shock and/or fire, dust off power plug or body plug regularly. Water-laden dust settled on the cable or plug may cause insufficient insulation. Remove the plugs and clean them with a dry cloth. Use a single outlet that matches the power rating of the unit. Plugging multiple appliance into one outlet may generate heat and cause fire. During use Do not immerse the unit, connector of power plug and body plug in water or splash water over them. Do not supply water directly from the tap or place the unit in a sink where the bottom may get wet. Do not turn the unit upside down when the bottom is wet. This may cause a short circuit and electric shock, due to water enters the electrical parts in the main unit. Never disassemble, repair or modify the unit. Any attempt to do so may cause the unit to operate abnormally and may cause fire or injury. Refer servicing to an authorized service center, as described in the warranty. Do not use to store ice. Condensation will occur, creating a potential source of electric shock and malfunction. Safety Precautions 06_USA_OM_NC-EG2200_3000_4000_EN.indd 1206_USA_OM_NC-EG2200_3000_4000_EN.indd 12 12/14/2558 BE 15:5012/14/2558 BE 15:5013 During use Power Cord To Prevent Burns

Do not use the unit on surfaces that can be affected by heat for a long time. The unit may get discolored or break up.

Do not place near walls or furniture. Steam and heat could damage walls and furniture, causing a change in color and shape.

Replace gasket if it discolors whitish. (P.23) Otherwise it may cause hot water to spill out when it is leaned or knocked down accidentally. CAUTION

Do not place the unit on unstable surfaces. The appliance may topple over causing burns.

Do not open the lid or dispense hot water while boiling. Splashing hot water or steam may cause burns.

Do not rotate the unit while dispensing hot water. Splashing hot water may cause burns.

Do not touch the hot parts of the unit during use or shortly after use. This may cause burns.

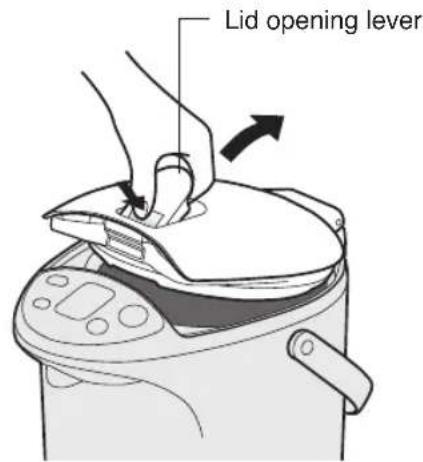

When opening or closing the lid, keep hands away from the steam. Steam can cause burns.

When carrying the unit, do not touch the lid opening lever. The lid may open causing burns and other injury.

Wait until the unit is cooled down before maintenance. A hot appliance may cause burns.

When disposing hot water, be careful not to get burned.

Do not use a different power cord and do not use this power cord with any other device. (Do not use a power cord other than the one designed specifically for the unit.) It may cause malfunction or fire.

When the unit is not in use, unplug the power plug from the wall outlet. Deteriorating insulation may cause electric shock and/or fire.

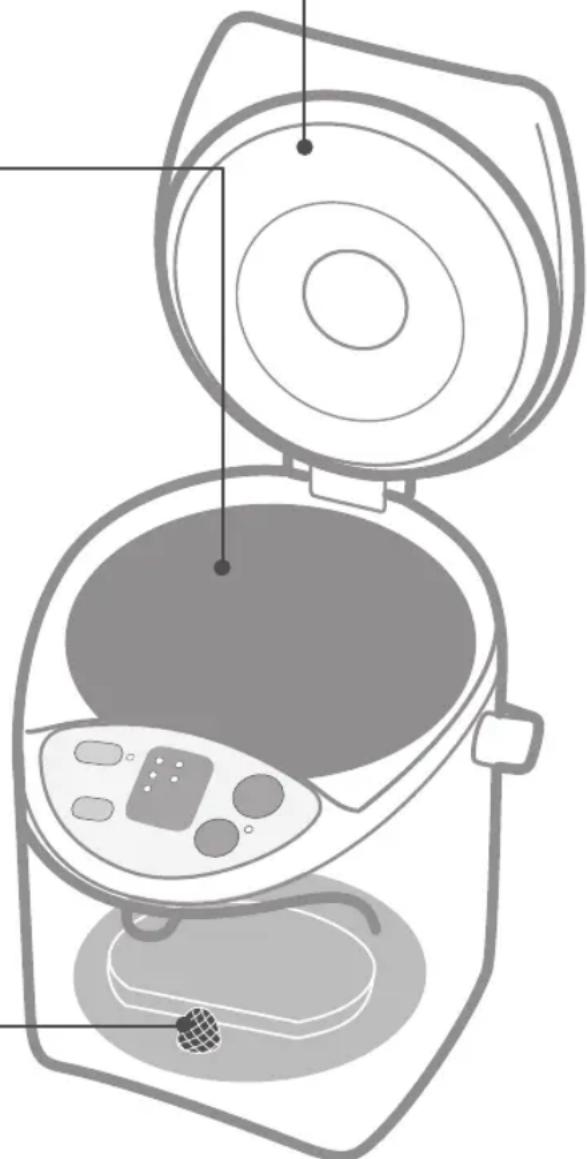

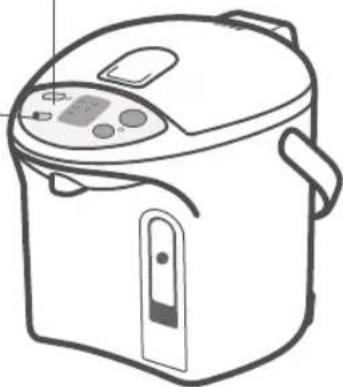

When unplugging the unit, pull by the power plug - not the cord. Electric shock and short circuit may cause fire. Safety Precautions 06_USA_OM_NC-EG2200_3000_4000_EN.indd 1306_USA_OM_NC-EG2200_3000_4000_EN.indd 13 12/14/2558 BE 15:5012/14/2558 BE 15:5014 Part Names and Handling Instructions Operation panel Lid opening lever Steam vent Lid Handle Inner container Minimum water level mark Window rim Red ball Water level indicator cannot be seen when water level is above the window rim. Rotating base (360 degrees) When rotating the unit, do not allow the cord to wind around the main unit. Dispensing spout Main unit Mesh filter Power cord Power plug* Cord Body plug *The shape of plug differs according to region. (Replaceable part) It may have been come off from the bottom of the inner container. Push it completely into the correct position. (See P.23)

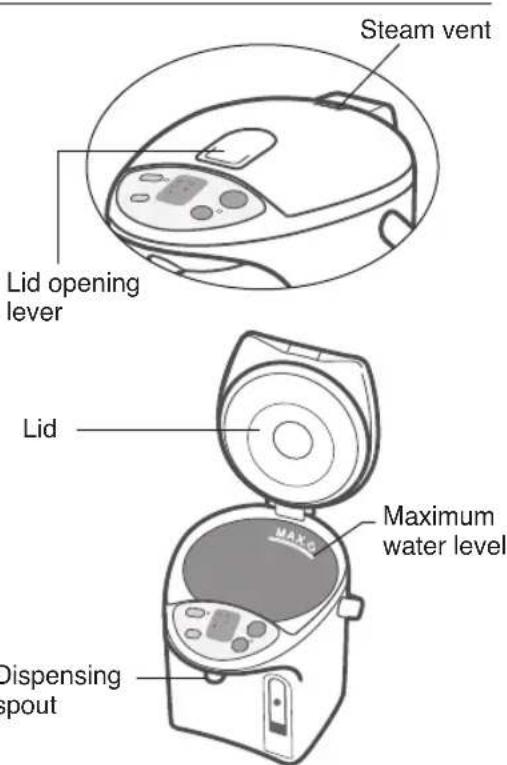

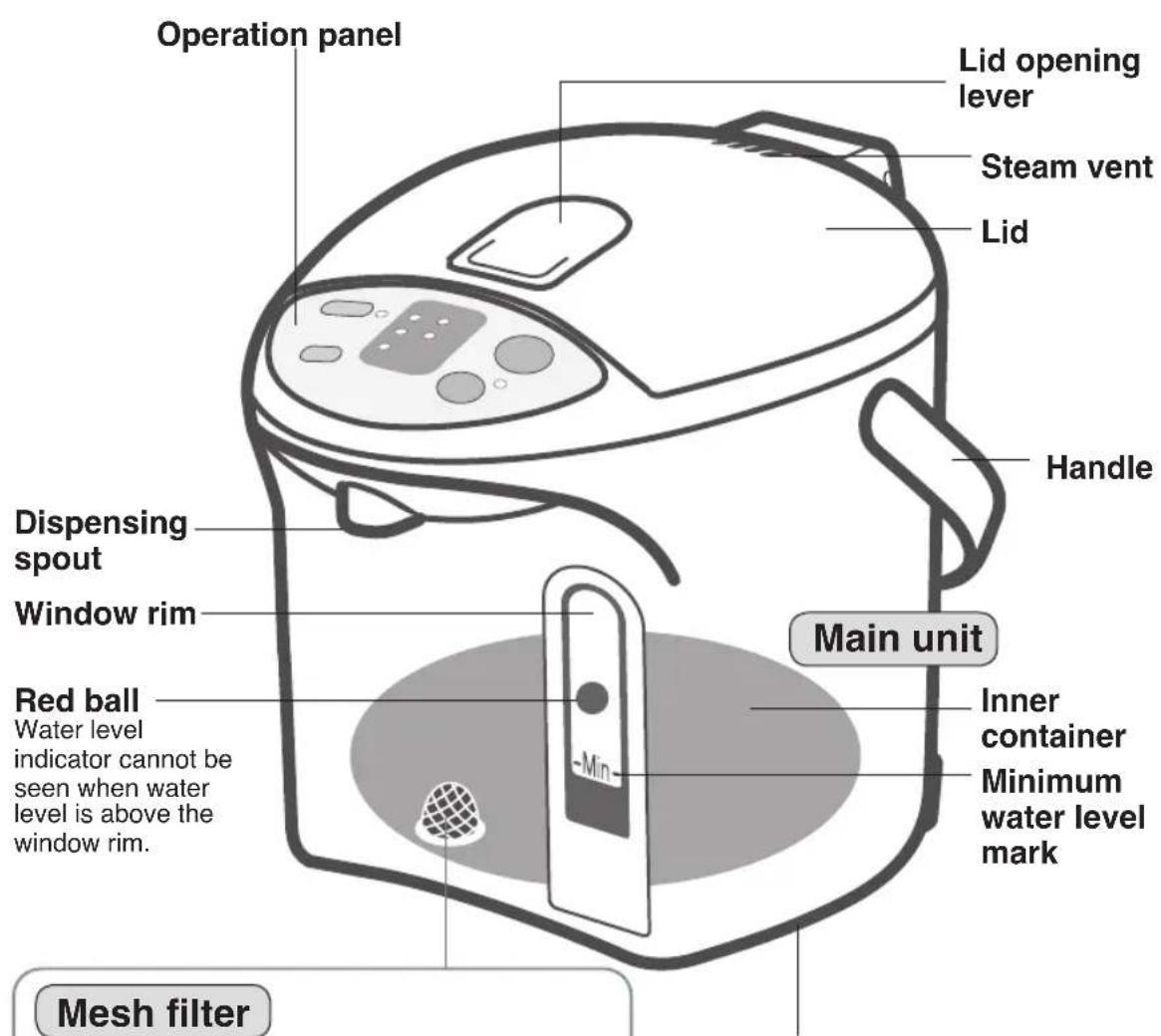

Part Names and Handling Instructions 06_USA_OM_NC-EG2200_3000_4000_EN.indd 1406_USA_OM_NC-EG2200_3000_4000_EN.indd 14 12/14/2558 BE 15:5012/14/2558 BE 15:5015 How to Remove the Lid Overheating Protection To close Press down until hearing “click” sound. To attach Insert the lid slantwise. How to cancel the display Supply water into the container, and press key.

Notice Lid opening leverLid release leverFlashing alternatelyIf an empty inner container is heated, the overheat safety function (which prevents an empty inner container from being overheated) will be activated. The power will be shut off automatically to prevent the problems that may occur due to overheating. This will be shown on the display as shown below.If an empty inner container is heated, an odor will be emitted and the container may be discolored. Causing ● Less than the minimum water level in the inner container was boiled. Press and lift the lid opening lever to open the lid. Pull it up slantwise while pressing the lid release lever. Part Names and Handling Instructions 06_USA_OM_NC-EG2200_3000_4000_EN.indd 1506_USA_OM_NC-EG2200_3000_4000_EN.indd 15 12/14/2558 BE 15:5012/14/2558 BE 15:50Dispense How to reduce the chlorine in the water How to Use Boiling water Dispensing (Electric dispense)Press key to make the indicator light flash. (Long Boil mode)Press one time while water is being boiled, and press twice while water is being kept warm.Extends the boiling time by about 6 minutes to reduce the chlorine by about 80% in the water.● Press key again to boil.Minimumwater levelFill the water higher than the minimum water level.Pour in water with another container!Before you use this unit for the first time Pour in water with another container to the maximum level. Close the lid securely. Boil the water until Reboil lightgoes out. Dispense the hot water. Unplug and remove the lid. Pour out any remaining hot water slowly via the DRAIN mark.Maximum water levelDo not fill water above maximum water level. How to Use 06_USA_OM_NC-EG2200_3000_4000_EN.indd 1606_USA_OM_NC-EG2200_3000_4000_EN.indd 16 12/14/2558 BE 15:5012/14/2558 BE 15:5017 When the unit is not in use

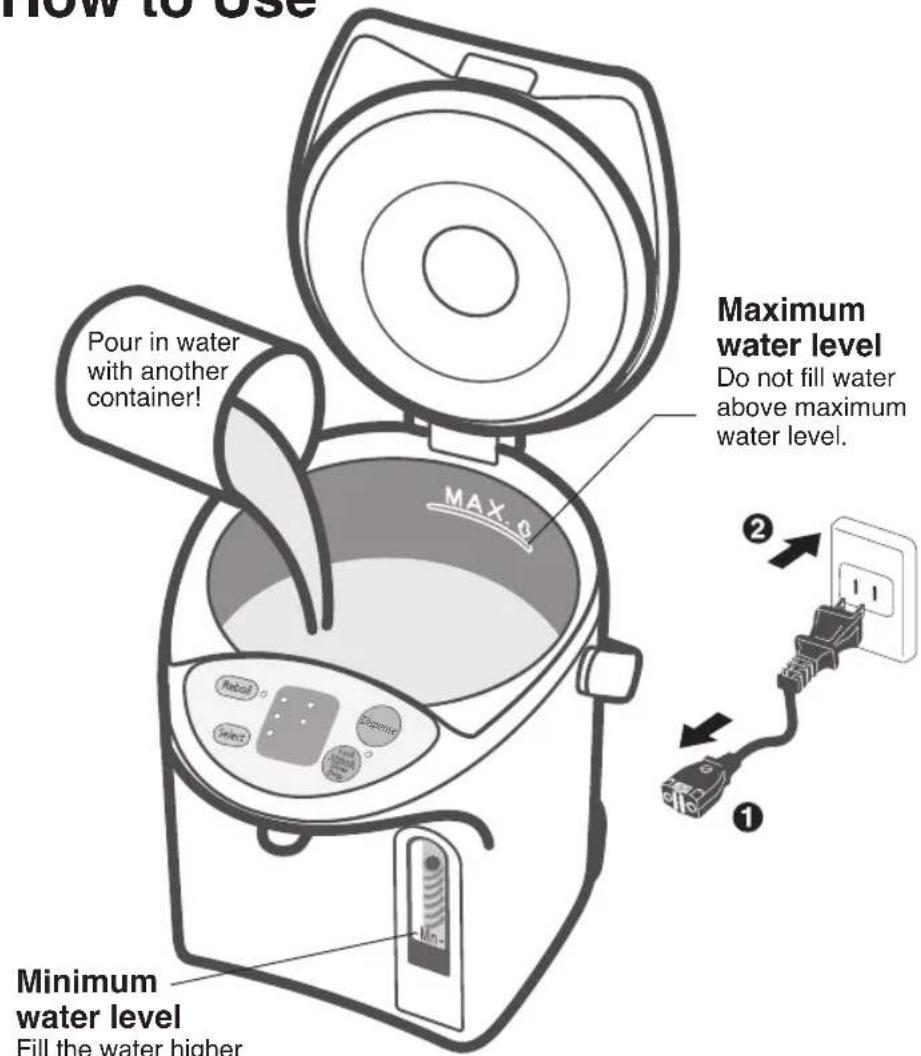

Pour in water with another container. Close the lid securely. Securely plug the body plug horizontally into the body. Plug into wall outlet. (P.16 1

Time required to boil water NC-EG4000: approx. 35 min / NC-EG3000: approx. 27 min / NC-EG2200: approx. 20 min (Amount of water: Maximum Water / Room temperature: 68°F (20°C)) Cautions ● Do not pour out water too swiftly.If water splashes over lid release part or operation panel, it may cause a malfunction.● Do not leave water in the inner container.(It may cause the container to corrode or smell.)Unplug, and remove the lid. Pour out any remaining hot water slowly via the DRAIN mark.Lid release partOperation panelLight onLight onFlashingFlashing Off Off

The Dispense key will automatically lock again 10 seconds after dispensing hot water.Press key twice for slow drip.The indicator light beside the key will flash. (See "slow drip" on P.18-19)FlashLight onStarts boiling automatically.Indicate as below when boiled.(Displayed temperature is indicative.)The temperature will drop to approximately 190°F and the unit switches to keep-warm function automatically. Press key to release lock. The indicator light beside the key will light up. Press Dispense key to dispense the hot water. How to Use 06_USA_OM_NC-EG2200_3000_4000_EN.indd 1706_USA_OM_NC-EG2200_3000_4000_EN.indd 17 12/14/2558 BE 15:5012/14/2558 BE 15:5018 Convenient use methods ● The keep-warm temperature or the timer can be set while the water is being boiled or being kept warm.● After power is restored in the event of a power failure, the keep-warm temperature will be automatically set to “190”, even if the timer or the “208”, “180” or “160” keep-warm function was previously selected. Notice Reboil ● It is ideal to use boiling water for making coffee / tea / instant cup noodle etc.● When the unit will not be used for a short time, such as when you go out for a day... Setting the 6h timer ● While setting the timer, the electrification of heater stops.Dispense Slow Drip mode for making drip coffee ● Dispense water slowly.● Right after boiling, it maybe difficultly dispensed or be dispensed unsteady. Keep-warm function ● “180 keep-warm” is an ideal mode for making green tea.● “160 keep-warm” is an ideal mode for making milk for a baby.Be sure to leave milk to cool down or mix it with cool boiled water before giving it to a baby. Convenient use methods 06_USA_OM_NC-EG2200_3000_4000_EN.indd 1806_USA_OM_NC-EG2200_3000_4000_EN.indd 18 12/14/2558 BE 15:5012/14/2558 BE 15:5019

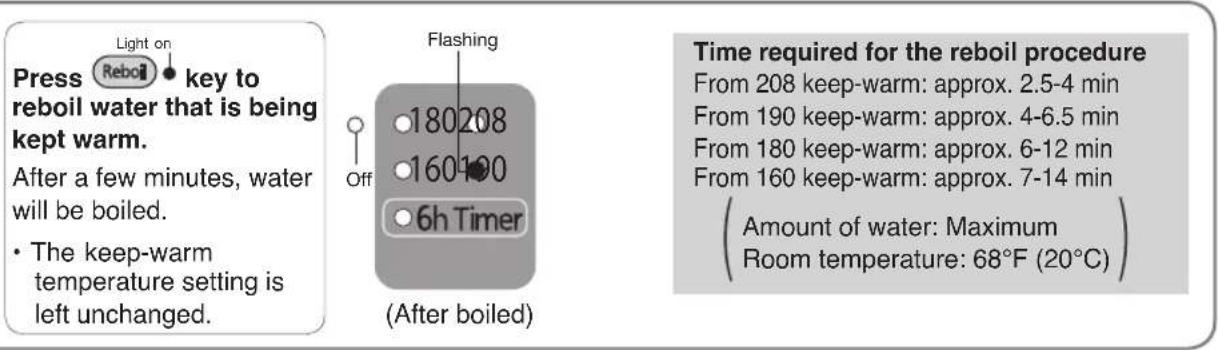

Time required to reach the settled keep-warm temperature keep-warm: approx. 2-4 min keep-warm: approx. 0.5-1 hour keep-warm: approx. 1.5-2.5 hoursAmount of water: MaximumRoom temperature: 68°F (20°C)Previous keep-warm setting: 190°FTime required for the reboil procedureFrom 208 keep-warm: approx. 2.5-4 minFrom 190 keep-warm: approx. 4-6.5 minFrom 180 keep-warm: approx. 6-12 minFrom 160 keep-warm: approx. 7-14 minAmount of water: MaximumRoom temperature: 68°F (20°C)

(When selecting 180 keep-warm)(After boiled) Off Flashing Light

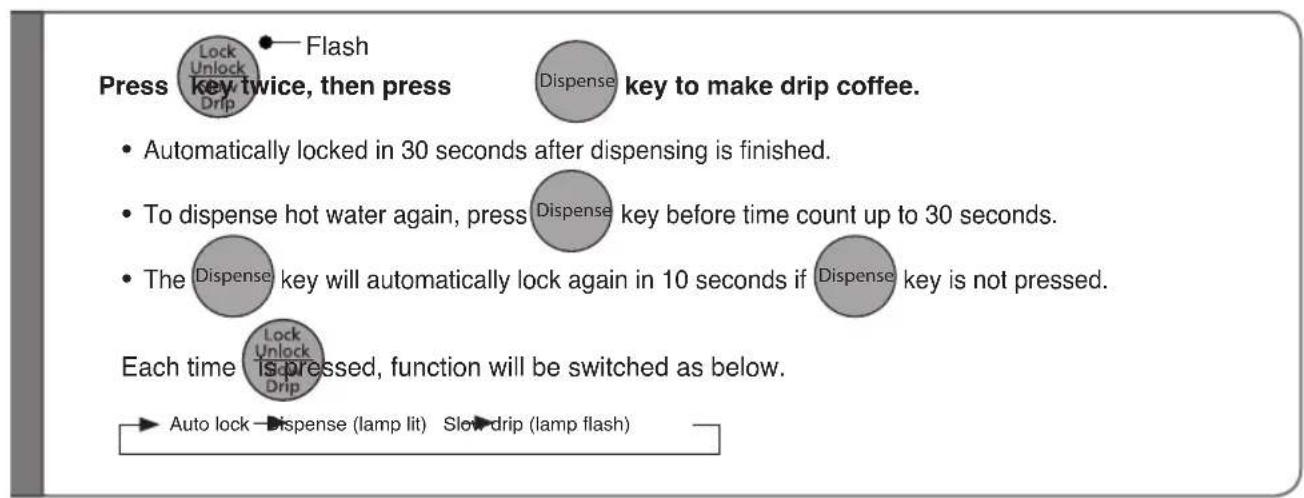

Flashing Press key twice, then press Dispense key to make drip coffee.Flash6 hours later, timer will turn off and water starts boilingWhen the water is brought up to boiling temperature, it will be kept warm at 190°F After a short time, water will be kept warm at approximately 180°F.● Automatically locked in 30 seconds after dispensing is finished.● To dispense hot water again, press Dispense key before time count up to 30 seconds.● The Dispense key will automatically lock again in 10 seconds if Dispense key is not pressed.Each time is pressed, function will be switched as below.Auto lock Dispense (lamp lit) Slow drip (lamp flash)Press Light on key to reboil water that is being kept warm.After a few minutes, water will be boiled.• The keep-warm temperature setting is left unchanged.

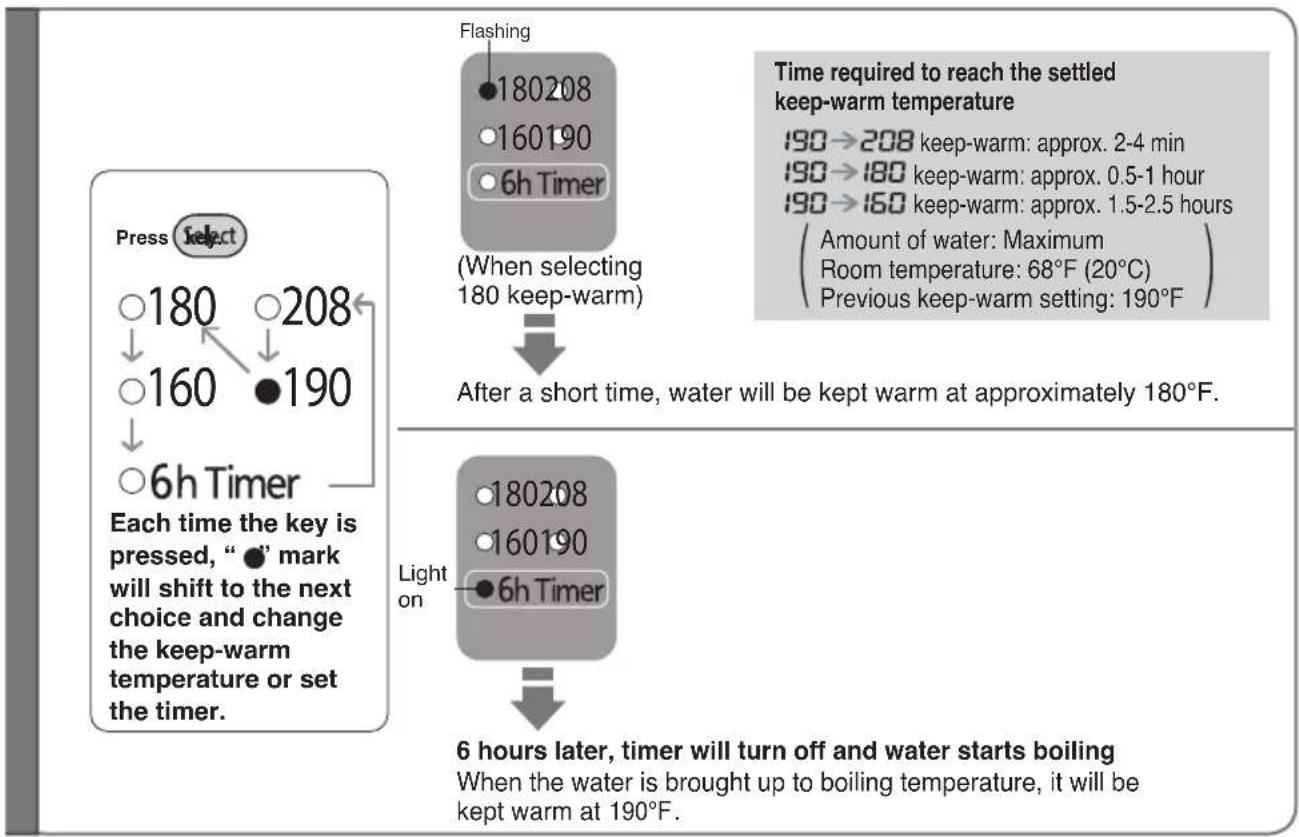

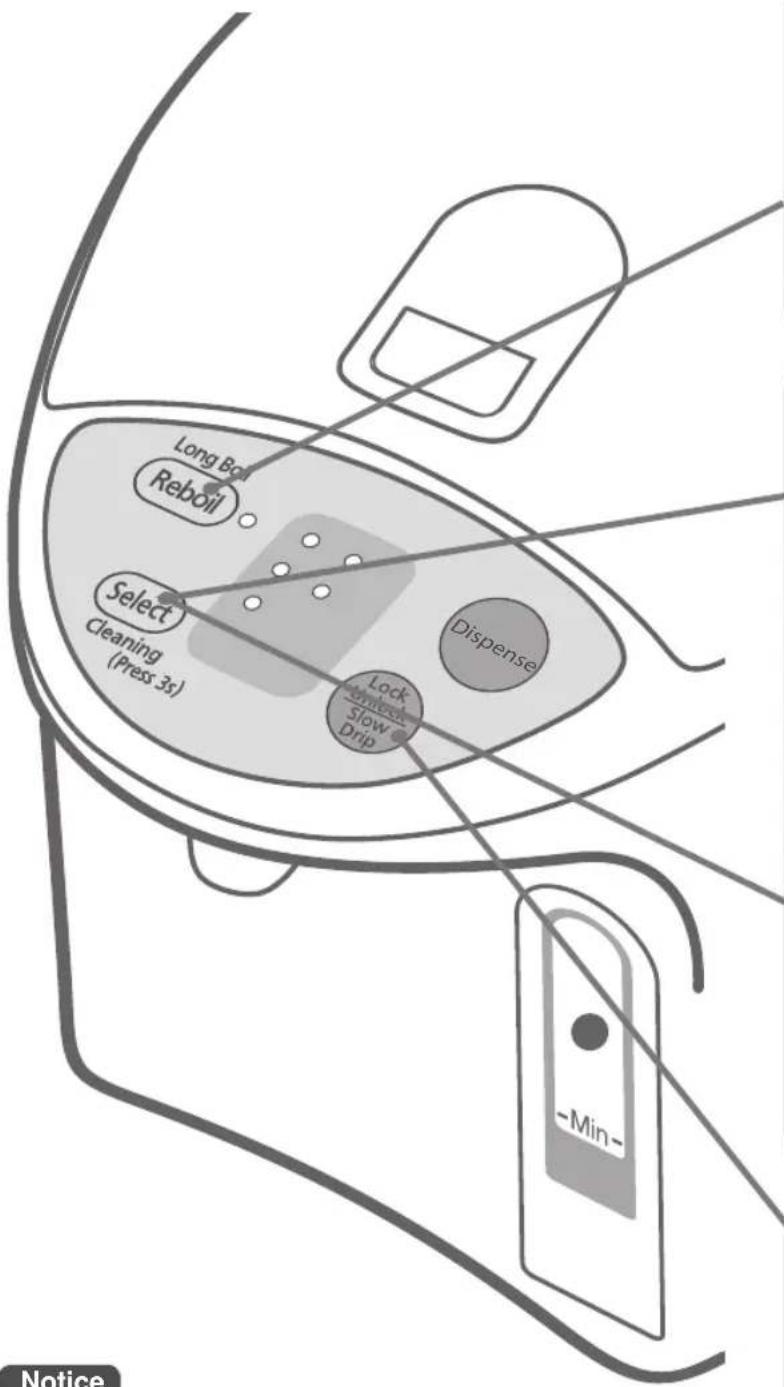

Press key.Each time the key is pressed, “ ” mark will shift to the next choice and change the keep-warm temperature or set the timer. Convenient use methods 06_USA_OM_NC-EG2200_3000_4000_EN.indd 1906_USA_OM_NC-EG2200_3000_4000_EN.indd 19 12/14/2558 BE 15:5012/14/2558 BE 15:5020 Daily Maintenance Clean with a damp, well-wrung cloth.

Do not wet or soak the main unit in water. If water enters the main unit from the bottom or from the dispensing spout, it can also get into the electrical components in the main unit and may cause a malfunction. Main unit and lid Clean the filter with a brush. When filter is clogged, water does not flow smoothly.

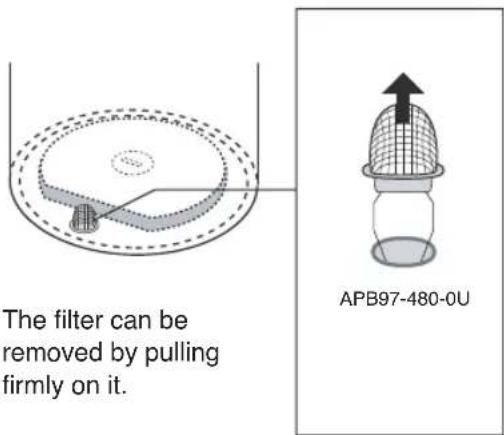

• After cleaning the filter, be sure to reattach it to the inner container. Mesh filter Clean with a wet soft sponge.

Do not use polishing powder, a scrub brush or a nylon brush. About "Scale" While you are using this unit, minerals contained in the water (like calcium) can get stuck on the inner container or on the mesh filter. This is called "scale", and it is harmless.

Milky-white gritty surface (caused by calcium)

White or glittering floating material (crystals of minerals)

Discoloration in the finish like dark brown, gray, or green areas (metallic ion made on the fluororesin covering) These are not discoloration or corrosion of the inner container itself, nor are they flakes from the fluororesin covering. Clean the inner container using citric acid. (See P.21) Inner container When storing the unit

Put it into a plastic bag and seal the bag to keep insects from getting in.

Do not use detergents. (They may leave an odor.)

Do not use benzine or thinner. (They may damage the surface.) Before cleaning, be sure to disconnect the power plug from outlet, dispense water and cool down the unit. They may damage the fluororesin finish of the inner container.

Make sure that the mesh filter is attached to the inner container.

Put citric acid in the inner container. ● Amount of citric acid to be used at one time:80 g (two packages) or seven level tablespoons In case that our citric acid is not available, place 1-2 sliced lemons wrapped with a thin cloth into the inner container instead.(The detergency of lemon is less effective than using the citric acid.)The citric acid is available from an authorized dealer (as described in the warranty). (Model No: SAN-80N)* Follow the directions for cleaning printed on the citric acid package.* Since the citric acid used for cleaning is a food additive, it is harmless to humans.

Add water to the maximum water level mark, and mix the citric acid and water well. Close the lid.

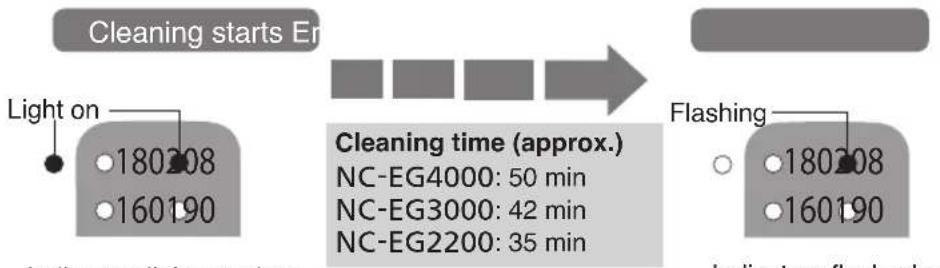

Connect the plug immediately after stirring and press key for more than 3 seconds. Indicators light up when cleaning cycle starts.Indicators flash when cleaning cycle ends.

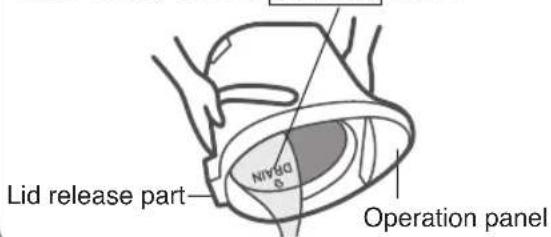

Dispense some water, then unplug, remove the lid and drain away the hot water via the ‘DRAIN’ mark.

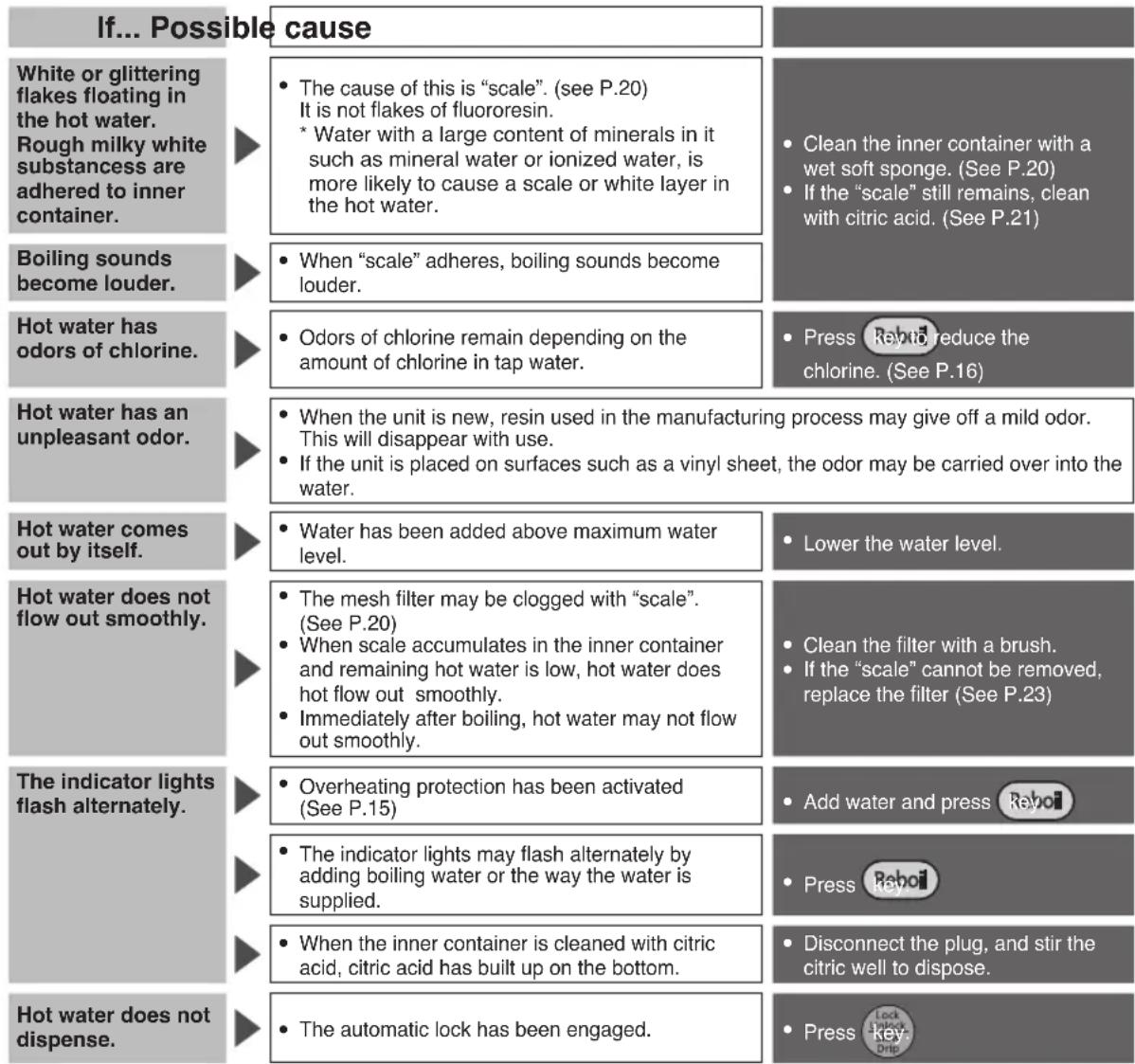

Refill with water and boil it to remove the smell of the citric acid or lemons. Then throw the hot water away as same as step 5. How to clean the inner container using citric acid. ● To remove any discoloration from the area above the maximum water level, rub the inside lightly with a wet soft sponge.● If the discoloration cannot be removed by rubbing, clean the inner container several times using citric acid or lemons.Cautions● Please use our citric acid to clean the inner container of this unit.● Do not fill with water above maximum water level.● Fill the inner container only with tap water (do not fill with hot water). Hot water may spout out causing burns. citric acid Daily Maintenance 06_USA_OM_NC-EG2200_3000_4000_EN.indd 2106_USA_OM_NC-EG2200_3000_4000_EN.indd 21 12/14/2558 BE 15:5012/14/2558 BE 15:5022 Troubleshooting Before calling a service supplier, please check the following possible causes. If... Possible cause How to fix White or glittering flakes floating in the hot water. Rough milky white substancess are adhered to inner container. The cause of this is “scale”. (see P.20) It is not flakes of fluororesin.

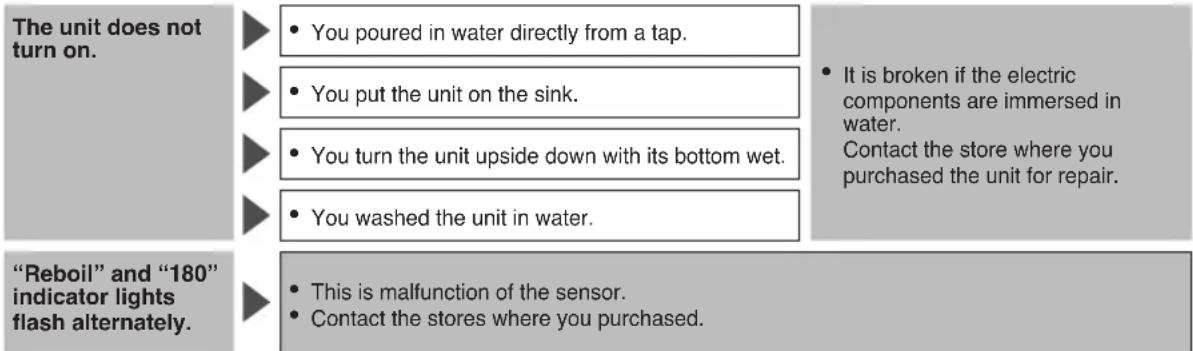

• Water with a large content of minerals in it such as mineral water or ionized water, is more likely to cause a scale or white layer in the hot water. Clean the inner container with a wet soft sponge. (See P.20) If the “scale” still remains, clean with citric acid. (See P.21) Boiling sounds become louder. When “scale” adheres, boiling sounds become louder. Hot water has odors of chlorine. Odors of chlorine remain depending on the amount of chlorine in tap water. Press key to reduce the chlorine. (See P.16) Hot water has an unpleasant odor. When the unit is new, resin used in the manufacturing process may give off a mild odor. This will disappear with use. If the unit is placed on surfaces such as a vinyl sheet, the odor may be carried over into the water. Hot water comes out by itself. Water has been added above maximum water level. Lower the water level. Hot water does not flow out smoothly. The mesh filter may be clogged with “scale”. (See P.20) When scale accumulates in the inner container and remaining hot water is low, hot water does hot flow out smoothly. Immediately after boiling, hot water may not flow out smoothly. Clean the filter with a brush. If the “scale” cannot be removed, replace the filter (See P.23) The indicator lights flash alternately. Overheating protection has been activated (See P.15) Add water and press key. The indicator lights may flash alternately by adding boiling water or the way the water is supplied. Press key. When the inner container is cleaned with citric acid, citric acid has built up on the bottom. Disconnect the plug, and stir the citric well to dispose. Hot water does not dispense. The automatic lock has been engaged. Press key. If the problem is not fixed after checking the above possible causes, or if you think something is strange, disconnect the body plug from the unit. Wait at least 10 seconds and then re-connect the plug. The semi-transparent inner part inside the lid may become yellowish. This does not affect operation of the unit. The rattling noise in the lid is made by small ball-shaped components which prevent water from flooding out if the unit topples over. If the room temperature is very high, the outside of the main unit may reach about 130°F (55°C). The unit does not turn on. You poured in water directly from a tap. It is broken if the electric components are immersed in water. Contact the store where you purchased the unit for repair. You put the unit on the sink. You turn the unit upside down with its bottom wet. You washed the unit in water. “Reboil” and “180” indicator lights flash alternately. This is malfunction of the sensor. Contact the stores where you purchased. Troubleshooting 06_USA_OM_NC-EG2200_3000_4000_EN.indd 2206_USA_OM_NC-EG2200_3000_4000_EN.indd 22 12/14/2558 BE 15:5012/14/2558 BE 15:5023 Model No. NC-EG4000 NC-EG3000 NC-EG2200 Power supply 120 V 60 Hz Power consumption 700 W Average power consumption in keeping warm (approx.) Amount of water: maximum Room temperature: 68°F (20°C) at 208 49 Wh 45 Wh 40 Wh at 190 43 Wh 39 Wh 33 Wh at 180 35 Wh 31 Wh 27 Wh at 160 30 Wh 26 Wh 23 Wh Dimensions (when the handle is tilted) Height (approx.)

10.8 in (27.5 cm) 9.4 in (23.8 cm)

8.5 in (21.7 cm) 8.5 in (21.7 cm)

Weight (including power cord) (approx.)

Rated capacity (approx.)

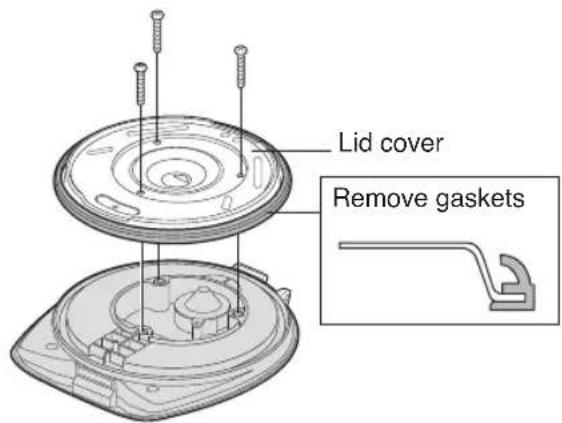

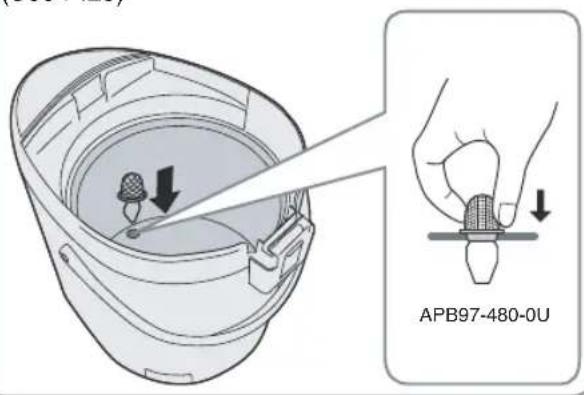

Rubber gasket set Replace gaskets if they crack, lose their pliability or, for any other reasons which allow steam to escape from between the container and the lid. Mesh filter Replace the filter, if foreign matter which clog the filter cannot be removed, even after you scrub with a cleaning brush, etc. The filter can be removed by pulling firmly on it.

Lid cover Remove gaskets For replacement parts, please contact an authorized service center (as described in the warranty). Part name Part No. Rubber gasket set APH65-480 Mesh filter APB97-480-0U Remove lid, unscrew 3 tapping screws and remove the lid cover. Exchange the gaskets and then place the lid cover back and secure with the tapping screws. Replacement of Parts Specifications

• Under certain conditions, such as at very high altitudes and in intense cold, the unit may not function properly. Please avoid using the unit in such conditions.

• If the unit is not used during cold conditions, make sure to empty it of water. The water left in the inner container may freeze causing damage. Raplacement of Parts / Specifications 06_USA_OM_NC-EG2200_3000_4000_EN.indd 2306_USA_OM_NC-EG2200_3000_4000_EN.indd 23 12/14/2558 BE 15:5012/14/2558 BE 15:50 ǂđž
