Product Type	Electric Kettle
Brand	Panasonic
Model	NC-K101
Capacity	1.0 Liters
Power Rating	1200 W
Voltage	220-240 V ~ 50/60 Hz
Weight	Approx. 0.8 kg
Dimensions (W x D x H)	Approx. 22 x 15 x 24 cm
Material	Stainless Steel / Plastic
Cordless Operation	Yes
Auto Shut-Off	Yes, when water boils
Boil-Dry Protection	Yes
Keep Warm Function	No
Water Level Indicator	Yes, transparent scale
Filter	Removable mesh filter
Cord Length	Approx. 0.7 m
Cleaning	Descaling with vinegar or citric acid
Maintenance	Wipe exterior with damp cloth; do not immerse
Safety Features	Auto shut-off, boil-dry protection
Spare Parts Availability	Contact Panasonic service center

Frequently Asked Questions - NC-K101 PANASONIC

What is the capacity of the Panasonic NC-K101 kettle?

The Panasonic NC-K101 has a capacity of 1.0 liters, suitable for boiling up to 4 cups of water.

Does the kettle have an automatic shut-off feature?

Yes, the kettle automatically shuts off once the water reaches a boil, ensuring energy efficiency and safety.

How do I descale the kettle?

Fill the kettle halfway with a mixture of equal parts water and white vinegar, boil, and let it sit for 15 minutes. Rinse thoroughly. Alternatively, use citric acid.

Is the kettle cordless?

Yes, the kettle is cordless and sits on a swivel base for easy pouring and handling.

What type of filter does it have?

It has a removable mesh filter to catch any scale particles, which can be cleaned under running water.

Can I boil milk or other liquids?

No, this kettle is designed for boiling water only. Boiling milk or other liquids may damage the appliance and pose a safety risk.

What is the power consumption?

The kettle operates at 1200 watts, which allows it to boil water quickly.

How do I clean the exterior?

Wipe the exterior with a soft damp cloth. Do not use abrasive cleaners or immerse the kettle in water.

Is there a keep warm function?

No, the NC-K101 does not have a keep warm function. It simply boils water and shuts off.

Where can I find spare parts?

Spare parts can be obtained through authorized Panasonic service centers. Refer to the user manual or contact Panasonic support.

USER MANUAL NC-K101 PANASONIC

Operating Instructions

Electric Kettle (Household Use)

English

Model No. NC - K101

NC - K301

Line drawing of a Panasonic water heater with labeled buttons and handle (no text or symbols beyond branding)

NC-K101 NC-K301

Illustration of a Panasonic water heater with labeled design (no text or symbols on the device itself)

Thank you for purchasing the Panasonic product.

• This product can only use for boiling water, it does not have thermal insulation function.
• Please read these instructions carefully to use the product correctly and safely.
• Before using this product please give your special attention to "Safety Precautions" and "Important Information" (P. EN3 - 8).
• Please keep this Operating Instructions for future use.
• Panasonic will not accept any liability if the appliance is subject to improper use, or failure to comply with these instructions.

Contents Page

Safety Precautions	EN3
Important Information EN8
Parts Names and Handling Instructions EN9
How to Use EN10
How to Clean EN12
Troubleshooting	EN13
Specifications EN15

Safety Precautions

Please make sure to follow these instructions.

In order to prevent accidents or injuries to the user, other people, and damage to property, please follow the instructions below.

■The following charts indicate the degree of damage caused by wrong operation.

WARNING:

Indicates potential hazard that could result in serious injury or death.

CAUTION:

Indicates potential hazard that could result in minor injury or property damage.

■The symbols are classified and explained as follows.

This symbol indicates an action that must be avoided.

This symbol indicates an action that must be carried out.

WARNING

To avoid risk of electric shock, fire due to short circuit, smoke, burn or injury.

• Do not disassemble, repair or modify this appliance. → Consult the place of purchase or a Panasonic service center.
• Do not damage the power cord or power plug.

Following actions are strictly prohibited. Modifying or placing near heating element, bending, twisting, pulling along, pulling over sharp edges, putting heavy objects on top, bundling the power cord and carrying the appliance by the power cord.

- Do not use the appliance if the power cord or power plug is damaged or the power plug is loosely connected to the outlet.

→ If the power cord is damaged, it must be replaced by the manufacturer, its service centre or similarly qualified person in order to avoid a hazard.

EN3

Safety Precautions

Please make sure to follow these instructions.

WARNING

To avoid risk of electric shock, fire due to short circuit, smoke, burn or injury.

• Do not plug or unplug the power plug with wet hands.
• Do not immerse the appliance (include the power base and power base connector), power cord and power plug in water or splash it with water and / or any liquid.

- Do not allow the bottom of the appliance to get wet when filling directly from the tap or placing it in the sink.

• Do not let the power cord hang over the edge of table or worktop, or touch hot surfaces.
• Do not allow infants and children to play with packaging material.

(It may cause suffocation.)

• Do not allow foreign material (especially metal components such as pins and wires or dust) to adhere to the body connector or power base connector.
• Do not touch or put your face close to the spout during or after use.

- Especially keep the appliance out of reach of infants and children.

• Do not block the spout with a cloth etc.
• Do not close the lid vigorously.
• Do not fill with any substance other than water. This appliance is for boiling water only.
• Do not shake or tip over the body.
• Do not use to store ice cubes.
• Do not put the body on any heat source or in a microwave.
• Do not lick the power base connector.

- Pay attention when infants and children are near the appliance.

● Make sure the lid is closed firmly when boiling water or pouring water.

EN4

WARNING

To avoid risk of electric shock, fire due to short circuit, smoke, burn or injury.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

● Always keep the infants and children away from the appliance including power cord.

- Insert the power plug firmly.

● Dust off the power plug regularly.

→ Unplug the power plug, and wipe with a dry cloth.

- Discontinue using the appliance immediately and unplug in the unlikely event that this appliance stops working properly.

e.g. for abnormal or breaking down:

• The power plug and the power cord become abnormally hot.
• The power cord is damaged or the appliance power fails.
• The main unit is deformed, has visible damage or is abnormally hot.

● Water leaks from the body.

- The steam continues more than 3 minutes.

- There is another abnormality or failure.

→Unplug the appliance immediately and contact to the service center for the check or the repair.

EN5

Safety Precautions

Please make sure to follow these instructions.

WARNING

To avoid risk of electric shock, fire due to short circuit, smoke, burn or injury.

● Make sure the voltage indicated on the label of the appliance is the same as your local supply. Also avoid plugging other devices into the same outlet to prevent electrical over heating. However, if you are connecting a number of power plugs, make sure the total wattage does not exceed the rated wattage of the outlet.
- Do not pour water above the maximum water level indication line. If the appliance is overfilled, boiling water may be ejected.

CAUTION

To avoid risk of electric shock, fire, burn, injury or property damage.

- Never leave the appliance unattended during operation. - Do not use the appliance for any purpose other than those described in these instructions.

- Do not touch the hot parts (such as the spout etc.) immediately while appliance is in use or after use.

- The accessible parts may become hot during use. Be careful with the residual heat source especially after use.

- Do not pour hot water or move the appliance while the water is boiling.

● Maker sure the power switch is turned off before removing the appliance from the power base (stand).

- Do not use the appliance on following places.

- On uneven surfaces, on carpet, non - water - resistant surface or tablecloths etc.

- Places where it may be splashed with water or near a heat source.

- Near any open water sources such as sinks, or the like.

EN6

CAUTION

To avoid risk of electric shock, fire due to short circuit, smoke, burn or injury.

- Do not use the appliance near a wall, furniture, or in enclosed spaces such as a built - in cupboard. (It may cause discoloration or deformation.)

● Make sure to hold the power plug when unplugging the power plug. Never pull on the power cord.

● Always ensure the appliance is switched off and unplug the power plug from outlet when the appliance is not in use, before moving and cleaning.

- Place the appliance on a firm dry, clean flat heatproof worktop.

● Beware not to tripped over or get caught in the power cord while in use.

- Do not open the lid while the water is boiling and immediately after use. When opening the lid, steam and hot liquid may spurt out or drop on your hand.

● Pour out any remaining hot water from the spout.

- The appliance is only to be used with the stand provided. Do not use power source other than the dedicated power base, or use the power base with any other equipment.

● Unplug and allow the appliance cool down before moving, cleaning and storing away.

● Beware when pouring hot water. Pour slowly, and do not over - tilt the appliance.

- Remove the appliance from its stand before filling or pouring.

- Do not touch the appliance with wet hands.

- Do no press down the power switch except boiling water.

- When carrying the appliance, make sure lid has been set firmly.

- Ensure to clean the appliance especially surfaces in contact with food after use. (P. EN12 "How to Clean")

● This product is intended for household use only.

EN7

Important Information

- Do not drop the body or power base to avoid damaging it.

- Do not move the body or power base by dragging. (It may scratch the table or work surface.)

- Do not turn the power switch on without water. (It may cause malfunction.)

- Do not use the appliance outdoors.

- Do not place a cloth on the lid. (It may cause malfunction or deformation.)

- Make sure the appliance is properly located on the stand before switching on.

- Beware of steam when the appliance is refill with water immediately after boiled.

- Do not move the appliance by holding the lid.

- Make sure to avoid direct sunlight or cleaning the appliance with detergent which contains hypochlorous acid (HClO).

This symbol on the products indicates "Hot surface and should not be touched without caution".

EN8

Parts Names and Handling Instructions

English

● Illustration of the product in this instructions are exemplified by NC - K101.

Before use

- Clean the appliance by following the steps below for the first time or when you have not used it for a while.

① Fill water up to the maximum water level and boil. (P. EN10)
② Pour the water out from the spout. (P. EN11 After use, pour out any remaining water.)

- Do not use a socket or extension cord.

EN9

How to Use

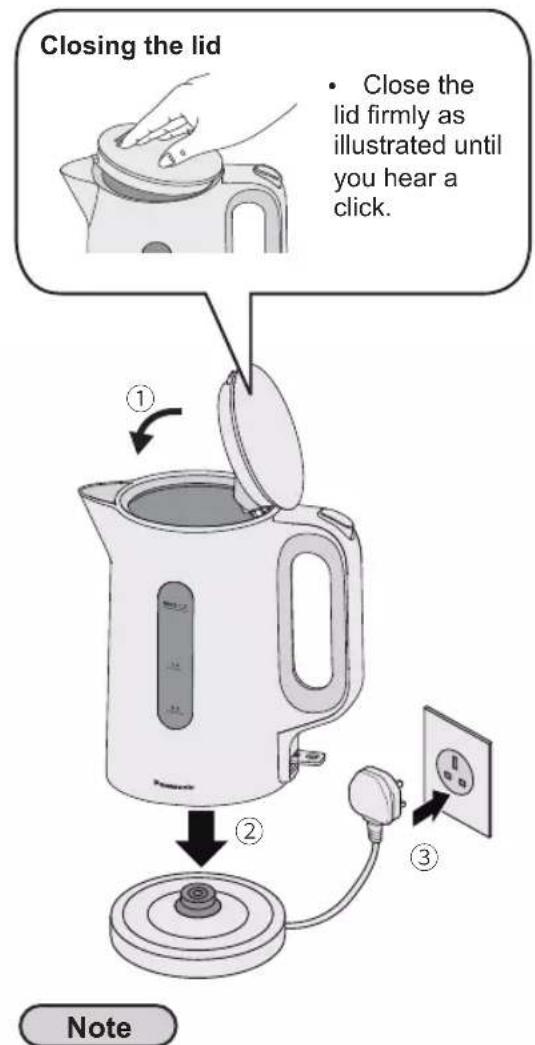

1 Open the lid and fill with water.

2 Close the lid, put the machine on the power base and insert the power plug.

- Do not insert the power plug before filling the water and closing the lid.

Adjusting the length of the power cord

Technical line drawing of a mechanical component with concentric rings and a cable (no text or symbols)

* Wind the power cord on the bottom of the power base to adjust the length.

Two circular devices with a central knob and connected wires, one marked with an 'O' and the other with a cross (no text or symbols on the devices themselves)

* Pass the power cord out through the position of opening. (Do not put the power base on the power cord.)

EN10

3 Turn on the power switch. (Press to “|”)

When the water has boiled, the power switch turns off automatically.

The machine takes around 6 minutes to boil. Water temperature 23^ , room temperature 23^ , water to max level, 220V .

• To stop boiling before the water has boiled, turn off the power switch.

Note

- Immediately after the water has boiled, do not force the machine to continue heating the water by keep pressing the power switch. (It may cause malfunction.)

4 Remove from the power base and pour.

Illustration of a hand holding a Panasonic water heater with a power cord, showing its internal components and a separate electrical socket (no text or symbols present)

■ After use, pour out any remaining water.

Illustration of a hand using a portable flash kit to lift water (no text or symbols)

* Keep the lid closed when pouring away the water.

Boil dry protection

When the power switch is on without water, an boil dry protection works to automatically turn off the power in order to prevent accidents and malfunction due to overheating.

① Allow the body to cool sufficiently.
② Remove the body from the power base and fill the water.
③ Place it on the power base and turn on the power switch again.
* If you switch on the appliance when there is no water in it, it may smell strange.

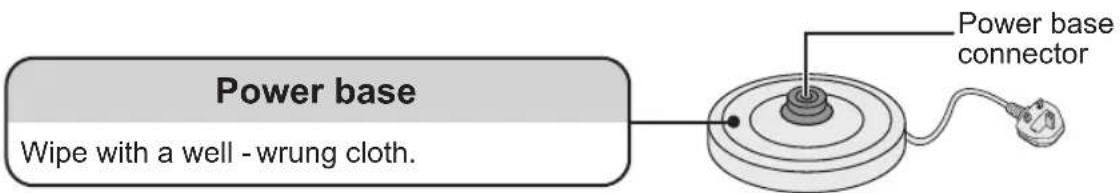

How to Clean

■ Clean the appliance after every use.
■ Before cleaning, be sure to disconnect the power plug from outlet, pour away the hot water, and cool down the body.

Note

• Do not use dish soap. (This may cause a residual odour.)
• Do not use benzine, thinner, alcohol, bleach, polishing powder, metal brush or nylon brush, otherwise the surface will be damaged.
  • Do not wash in a dishwasher.
• Do not clean the appliance with pointed object such as a toothpick or pin.

Body

(Outside)

Wipe with a well-wrung cloth.

(Inside)

Rub with a soft sponge and rinse.

Scale build-up

Minerals such as calcium carbonate contained in the water build up in the machine.

→ Please remove the scale.

① Remove it regularly using:

- Scale remover Follow the instructions supplied with the scale remover.

- Citric acid Fill the machine with water half way up and boiled it. After switch is off, put approx. 80 g of citric acid and stir it well. Let it still for approx. 30 min.

- Vinegar Fill the machine with water up to Max level and boiled it. After switch is off, put approx. 100 mL of vinegar and stir it well. Let it still for approx. 2 hours.

② After removal, repeat the following steps a few times: fill with water, boil, pour away.

EN12

To store

- Dry it thoroughly.

- Put in a plastic bag and seal the bag to prevent insects etc. from entering.

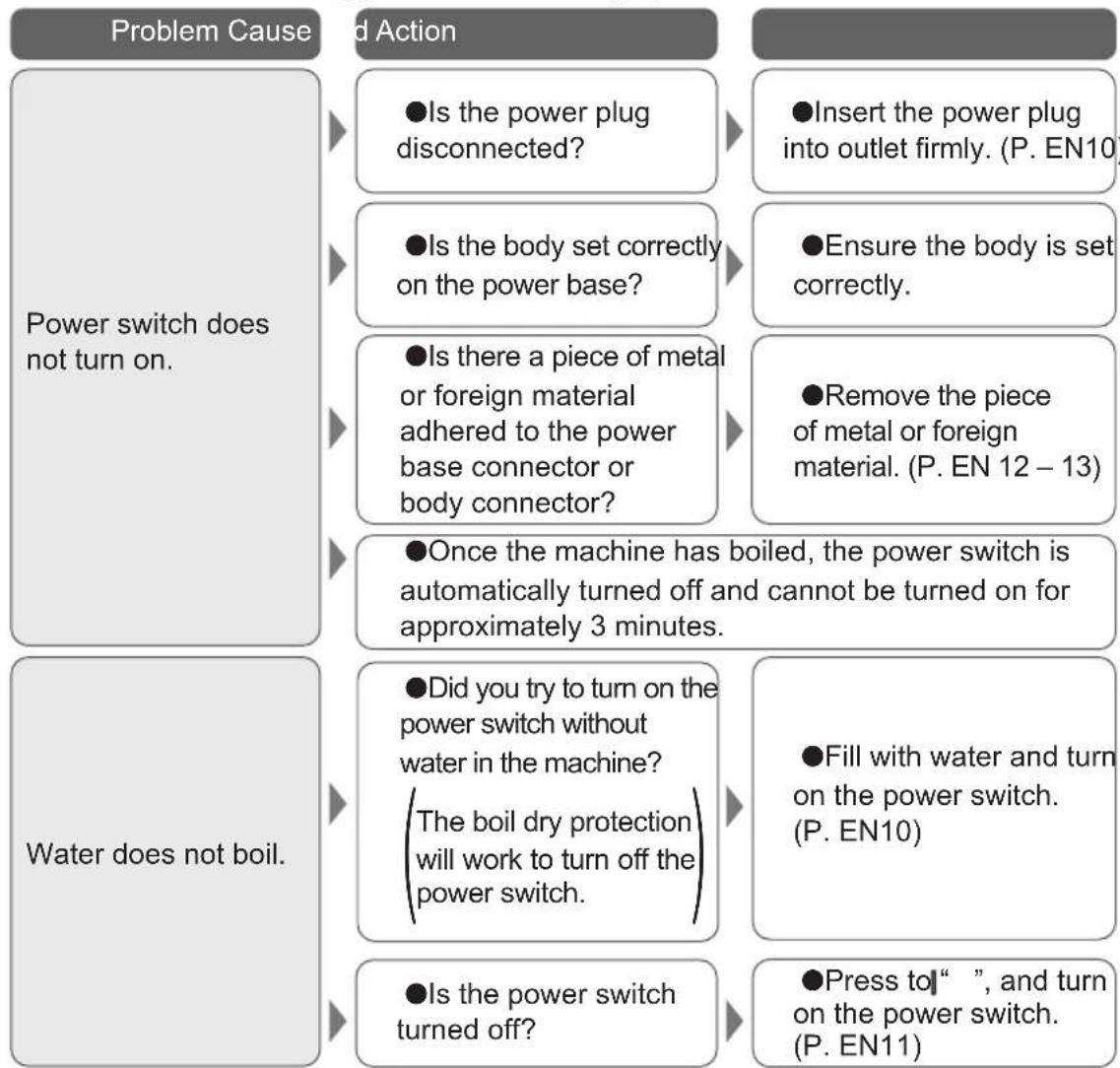

Troubleshooting

Please check the following points before arranging for service.

EN13

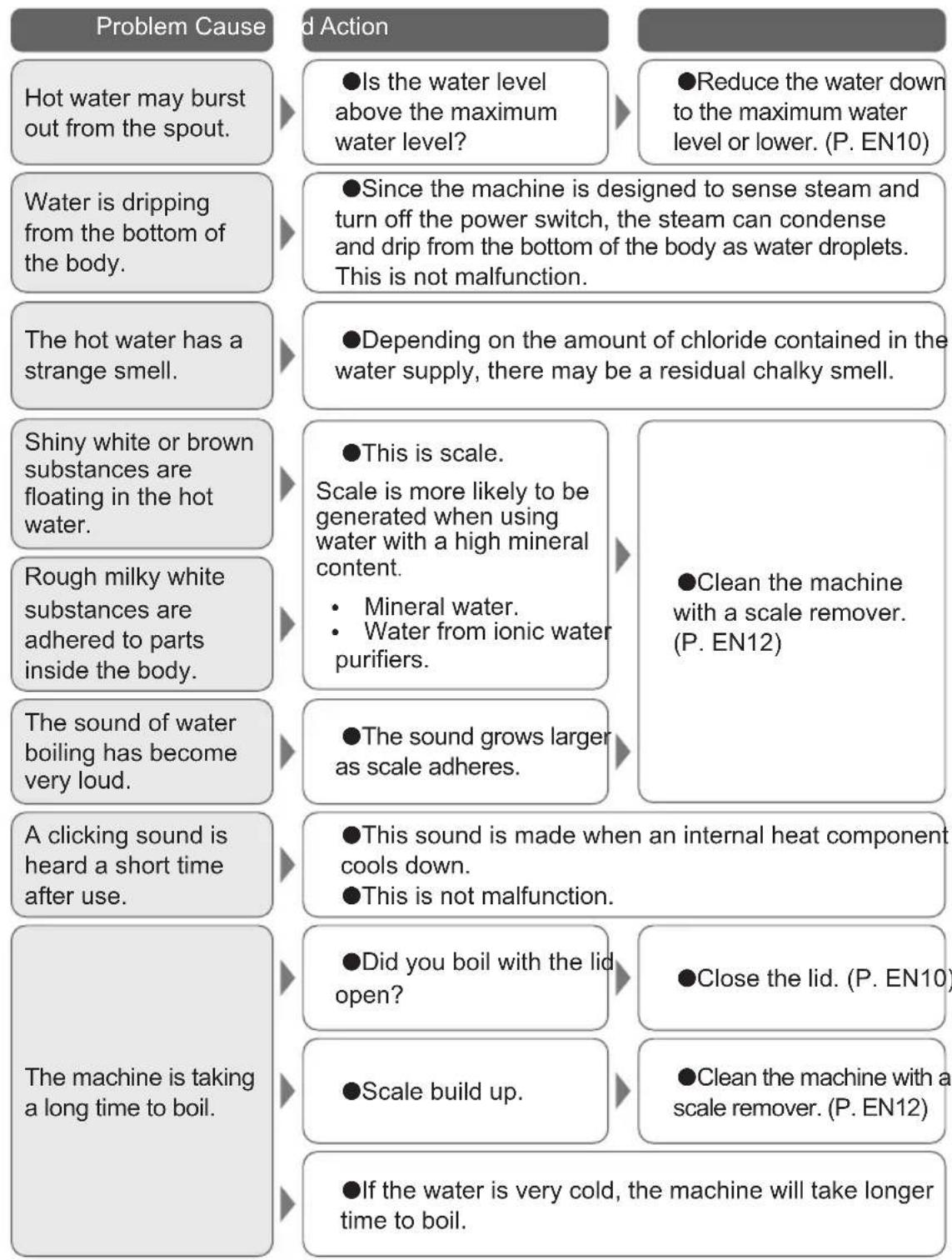

Troubleshooting

    J["d Action"] --> K["Is the water level above the maximum water level?"]
    J --> L["Since the machine is designed to sense steam and turn off the power switch, the steam can condense and drip from the bottom of the body as water droplets. This is not malfunction."]
    J --> M["Depending on the amount of chloride contained in the water supply, there may be a residual chalky smell."]
    J --> N["This is scale. Scale is more likely to be generated when using water with a high mineral content. Mineral water. Water from ionic water purifiers."]
    J --> O["The sound grows larger as scale adheres."]
    J --> P["This sound is made when an internal heat component cools down. This is not malfunction."]
    Q["Reduce the water down to the maximum water level or lower. (P. EN10)"] --> K
    R["Clean the machine with a scale remover. (P. EN12)"] --> O
    S["Close the lid. (P. EN10)"] --> P
    T["Clean the machine with a scale remover. (P. EN12)"] --> P
    U["If the water is very cold, the machine will take longer time to boil."] --> P

EN14

Specifications

		NC - K101 NC - K301
Power supply 220 - 240 V 50 ~		-60 Hz
Power consumption 1850 - 220 W		0 W
Dimensions (W × D × H) (approx.)	Body 225 × 23	2 × 144 (mm) 241 × 21	8 × 144 (mm)
	Body + Power base	225 × 255 × 144 (mm)	241 × 239 × 144 (mm)
Mass (approx.)	Body	0.73 kg	0.88 kg
	Body + Power base	0.98 kg	1.12 kg
Rated capacity (approx.)		1.7 L
Length of the power cord (approx.)		0.70 m

• In certain regions (high altitude, very cold locations), it may not be possible to obtain the predetermined performance.

مشخصات قى

Line drawing of a hand pouring liquid into a portable device (no text or symbols)

Illustration of a hand holding a Panasonic water heater with a close-up of its lid and plug (no text or symbols)

Line drawing of a hand pouring liquid into a portable device (no text or symbols)

Two identical white water heaters with handles and control knobs, shown from different angles (no text or symbols visible)

NC - K101 NC - K301

Manufacturer: Panasonic Taiwan Co., Ltd.

579, Yuan Shan Road, Chung-Ho

District, New Taipei City, Taiwan

Jebel Ali Dubai United Arab Emirates

* For GSO Member Countries
