USER MANUAL NCDK1BXC PANASONIC

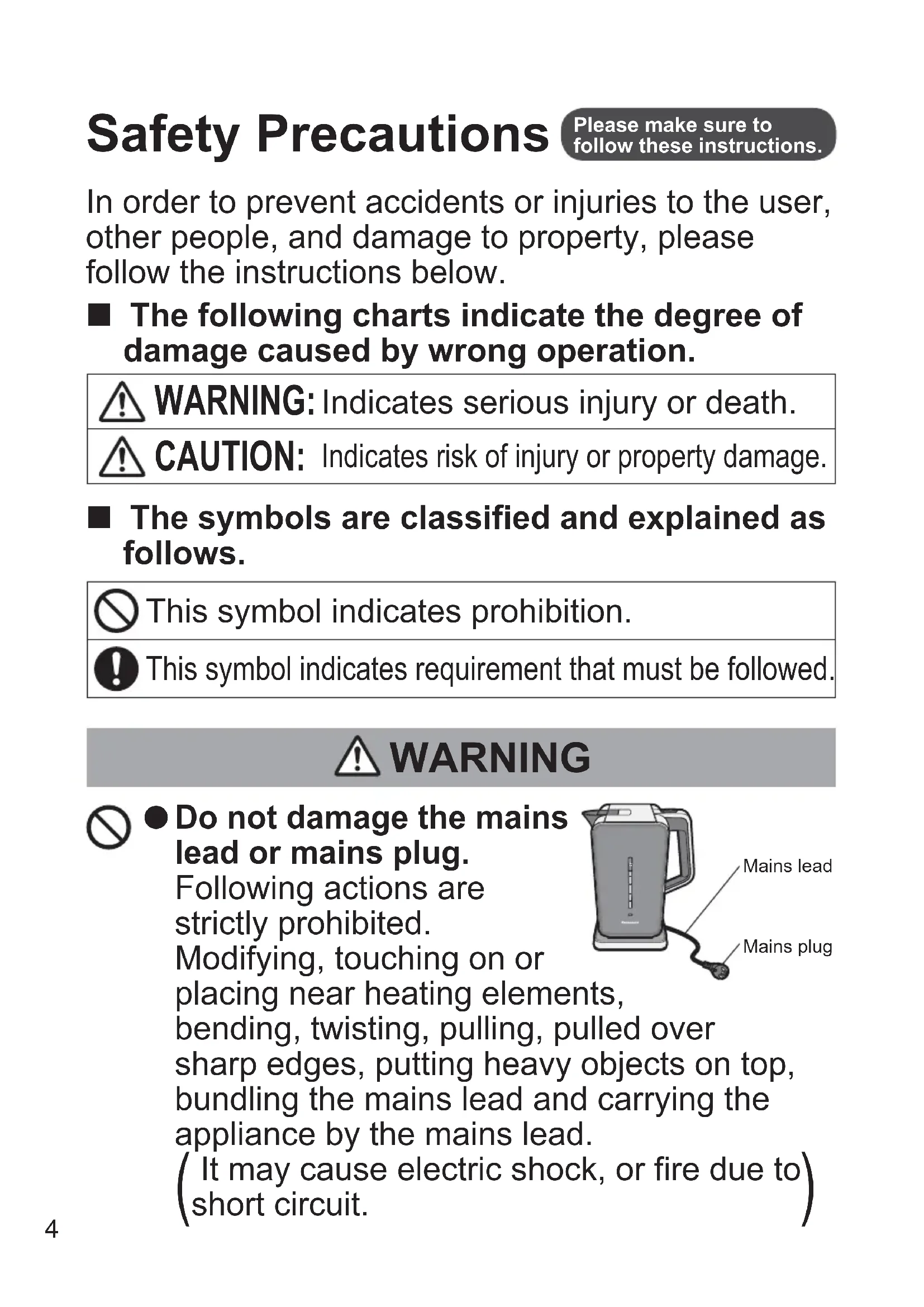

Indicates serious injury or death. CAUTION: Indicates risk of injury or property damage. The symbols are classified and explained as follows. This symbol indicates prohibition. This symbol indicates requirement that must be followed. WARNING Do not damage the mains

lead or mains plug. Following actions are strictly prohibited. Modifying, touching on or placing near heating elements, bending, twisting, pulling, pulled over sharp edges, putting heavy objects on top, bundling the mains lead and carrying the appliance by the mains lead.

It may cause electric shock, or fire due to short circuit.

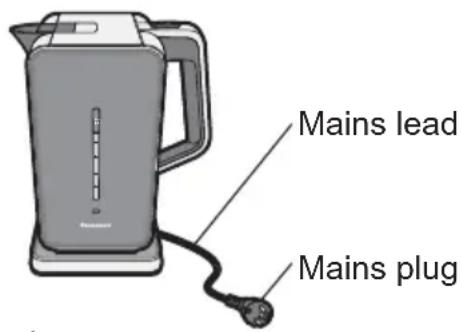

Mains leadMains plug

Safety Precautions Please make sure to follow these instructions.5 English WARNING Do not use the appliance if the mains

lead or mains plug is damaged or the mains plug is loosely connected to the household mains socket.

It may cause electric shock, or fire due to short circuit. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person in order to avoid a hazard. Do not plug or unplug the mains plug

with wet hands. (It may cause electric shock.) Always ensure that hands are dry before

handling the mains plug or switching on the appliance. Make sure the voltage indicated on the

label of the appliance is the same as your local supply. (It may cause electric shock or fire.) Also avoid plugging other devices into the same household mains socket to prevent electric over heating. However, if you are connecting a number of mains plugs, make sure the total wattage does not exceed the rated wattage of the household mains socket.

WARNING Insert the mains plug firmly.

Otherwise it may cause electric shock and fire due to heat that may be generated around the mains plug. Clean the mains plug regularly.

Dust and moisture build-up on the mains plug may cause insufficient insulation, which may cause a fire. Unplug the mains plug, and wipe with a dry cloth. Keep the mains lead out of reach of

children. Do not let the mains lead hang over the edge of the table or worktop. (It may cause burns, injury or electric shock.) Do not immerse the appliance (include

the power base) in water or splash it with water.

It may cause electric shock, or fire due to short circuit. Do not allow the bottom of the kettle to

get wet when filling directly from the tap or placing it in the sink.

Safety Precautions Please make sure to follow these instructions.7 English WARNING Do not disassemble, repair or modify this

appliance. (It may cause fire, electric shock or injury.) Consult the place of purchase or a Panasonic service centre. Do not touch or put your face close to the

spout during or after use. (It may cause burns.) Especially keep the appliance out of reach

of infants and children. Do not block the spout with a cloth etc.

Hot water may spill out, which may cause burns. Do not close the lid vigorously.

Hot water may splash out, which may cause burns. Do not fill with any substance other than

water. This appliance is for boiling water only.

If you boil the appliance with tea bags, tea leaves, milk, alcohol, boil-in-the-bag products etc., bubbles may form, causing a discharge of liquid which may cause burns.

WARNING Do not shake or tip over the body.

Hot water may pour out, it may cause burns. Do not lick the power base connector.

(It may cause electric shock or injury.) Pay attention when infants and children are

near the appliance. Do not allow foreign material (especially

metal components such as pins and wires or dust) to adhere to the body connector or power base connector.

It may cause electric shock, or fire due to short circuit. Do not use the body as a cooler.

(Do not put ice inside.)

This generates condensation, which may cause electric shock. Do not put the body on any heat source

or in a microwave. (It may cause fire.)

Safety Precautions Please make sure to follow these instructions.9 English WARNING Do not open the lid while the water is

Hot water may splash out, which may cause burns. This appliance is not intended for use

by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. (It may cause burns, injury or electric shock.) Always keep the children away from the

appliance. (It may cause burns or injury.) Children do not realise dangers that are

likely to occur because of improper use of appliances. )10 WARNING If the kettle is overfilled, boiling water

Hot water may boil over, which may cause burns. Fill with water between the minimum water

level and the maximum water level. Discontinue using the appliance

immediately and unplug in the unlikely event that this appliance stops working properly.

It may cause smoking, fire, electric shock or burns. e.g. for abnormal or breaking down The mains plug and the mains lead become

abnormally hot. The mains lead is damaged or the

appliance power fails. The main body is deformed, has visible

damage or is abnormally hot. Water leaks from the body.

The steam continues more than 3 minutes.

There is another abnormality or failure.

Unplug the appliance immediately and consult the place of purchase or a Panasonic service centre for inspection or repair.

Safety Precautions Please make sure to follow these instructions.11 English WARNING Make sure the lid is fully closed before

turning on the appliance.

If the appliance tips over, hot water may spill out, it may cause burns. Otherwise the appliance will keep boiling until it gets empty. The appliance gets hot during use. When

moving the body, turn off the power switch and pick up by the handle.

Hot water may spill out from the spout, which may cause burns. Do not tilt except when pouring.

)12 CAUTION Do not use the appliance for any purpose

other than those described in these instructions. (It may cause burns or injury.) Panasonic will not accept any liability if the

appliance is subject to improper use, or failure to comply with these instructions. Do not touch the hot parts (Spout etc.)

during or after use. (It may cause burns.) Do not pour hot water or move the

appliance while the water is boiling.

Hot water may splash out, which may cause burns.

Safety Precautions Please make sure to follow these instructions.13 English CAUTION Do not use the appliance on following

places. On uneven surfaces, on non-heat-resistant

carpet or table cloths etc. (It may cause fire or injury.) Place where it may be splashed with water

or near a heat source.

It may cause electric shock or electrical leakage. Near any open water such as bathtubs,

sinks, or other containers.

It may cause electric shock or electrical leakage. Near a wall or furniture.

(It may cause discolouration or deformation.) Place that could be damaged even by

moderate heat. (It may cause discolouration or deformation.) Make sure to hold the mains plug when

unplugging the mains plug. Never pull on the mains lead.

Otherwise it may cause electric shock, or fire due to short circuit.

)14 CAUTION Always ensure the appliance is switched

off and unplug the mains plug when it is not in use, before moving and before cleaning.

Otherwise it may cause electric shock, or fire due to electrical leakage. Place the appliance on a firm, dry, clean

flat heatproof worktop. (Otherwise it may cause burns or injury.) Beware not to be tripped over or get

caught in the mains lead while in use. (Otherwise it may cause burns or injury.) When opening the lid, beware of steam

and water drips. (It may cause burns.) Replace the lid packing if it turns white, is

scratched, or split.

If the appliance is tilted or tipped over, hot water may spill out, which may cause burns. For replacement, consult the place of purchase or a Panasonic service centre.

Safety Precautions Please make sure to follow these instructions.15 English CAUTION Pour out any remaining hot water from

Pouring out from another location may result in water splashing, it may cause malfunction or burns. The kettle is only to be used with the

stand provided. Do not use power source other than the dedicated power base, or use the power base with any other equipment. (It may cause burns, malfunction or fire.) Unplug and allow the appliance to cool

down fully before cleaning and storing away. (It may cause burns.) Pay attention to the appliance when it is

in use. (It may cause fire.) When leaving it, turn the power switch off.

slowly, and do not over-tilt the appliance. (It may cause burns.) Remove the appliance from its stand

before filling or pouring. (It may cause burns.) )16 Electrical Requirement (For UK market only)

FOR YOUR SAFETY PLEASE READ THE

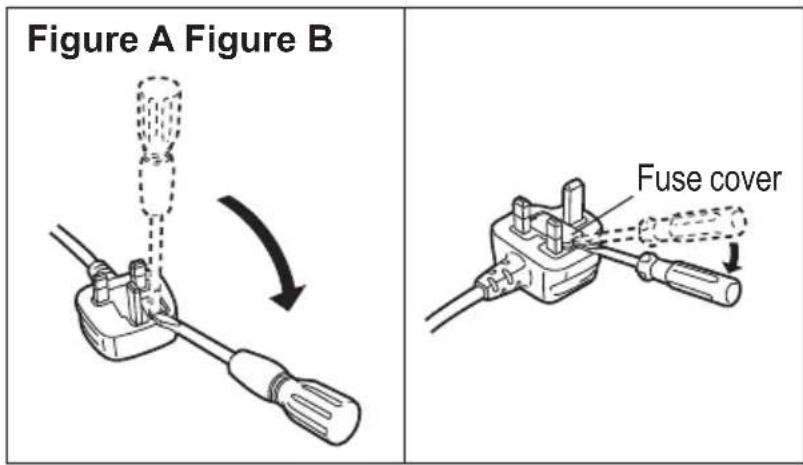

FOLLOWING TEXT CAREFULLY. This appliance is supplied with a moulded three pin mains plug for your safety and convenience. A 13- amp fuse is fitted in this plug. Should the fuse need to be replaced please ensure that the replacement fuse has a rating of 13-amp and that it is approved by ASTA or BSI to BS1362. Check for the ASTA mark or the BSI mark on the body of the fuse. If the plug contains a removable fuse cover, you must ensure that it is refitted when the fuse is replaced. If you lose the fuse cover, the plug must not be used until a replacement cover is obtained. A replacement fuse cover can be purchased from your local Panasonic Dealer. If the fitted moulded plug is unsuitable for the socket outlet in your home, then the fuse should be removed and the plug cut off and disposed of safely. There is a danger of severe electrical shock if the cut off plug is inserted into any 13-amp socket.17 English How to replace the fuse The location of the fuse differs according to the type of AC mains plug (figures A and B). Confirm the AC mains plug fitted and follow the instructions below. Illustrations may differ from actual AC mains plug. Open the fuse cover with a screwdriver and replace the fuse and close or attach the fuse cover. Figure A Figure B Fuse cover18 Important Information Do not subject the body or power base to strong

impacts by dropping, hitting etc. (It may cause malfunction or damage.) Do not move the body or power base by dragging.

(It may scratch the table or work surface.) Do not turn the power switch on without water.

(It may cause malfunction.) Do not use the appliance outdoors.

Do not put anything on the appliance.

(The power switch may be turned on.) Make sure the kettle is properly located on the

stand and mesh filter is set before switching on. Make sure to clean the appliance after every use. ●19 English Parts Names and Handling Instructions Clean the appliance by following the steps below for the first time or when you have not used it for a while.

Fill water up to the maximum water level and boil. (P.20)

Pour the water out from the spout. (P.21 After use, pour out any remaining water.) Before use

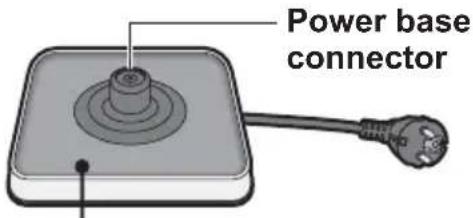

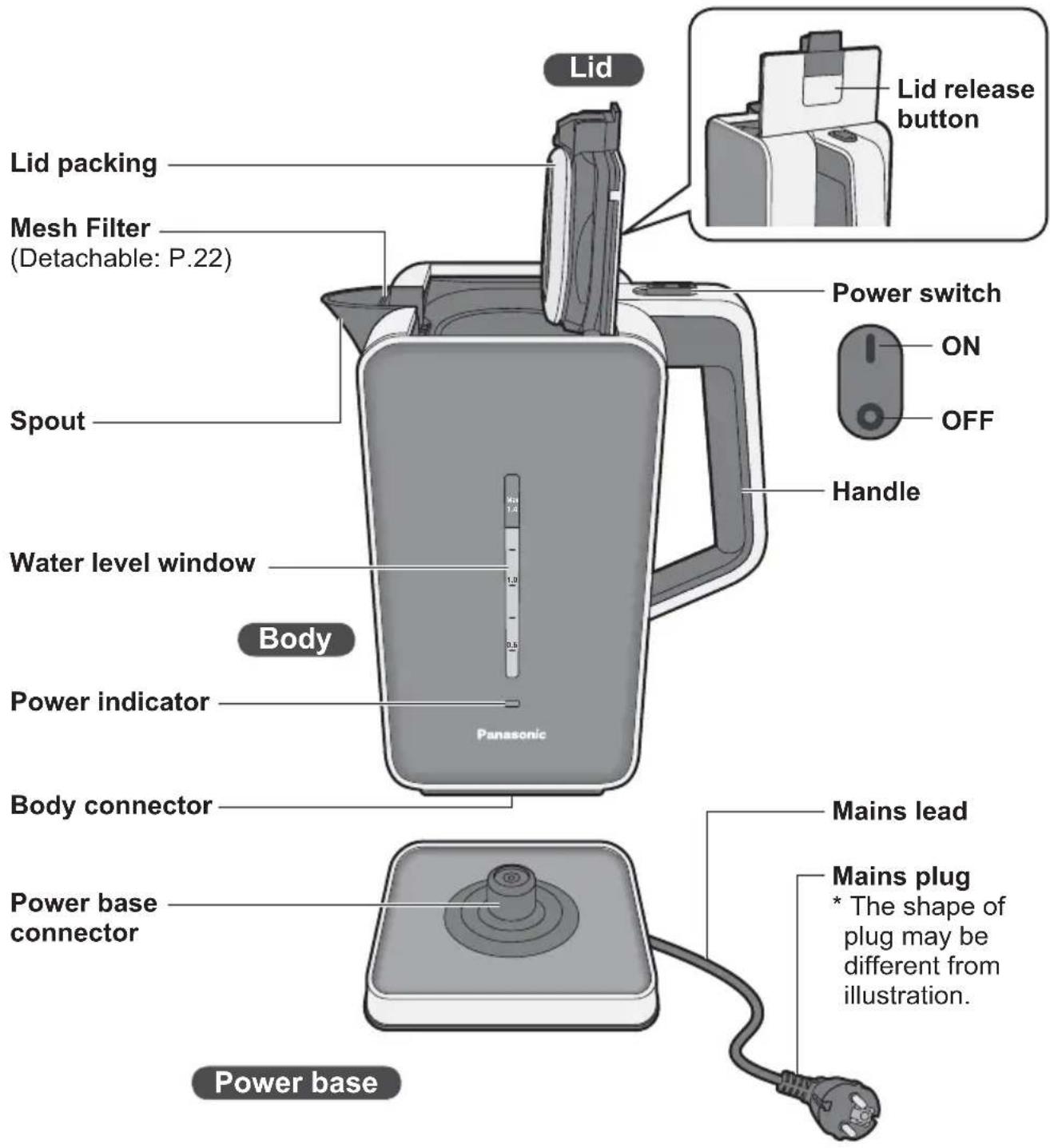

Lid Body Power base Spout Water level window

• The shape of plug may be different from illustration. Lid packing Body connector Mesh Filter (Detachable: P.22) Lid release button The illustrations inside mainly show model NC-ZK1. Mains lead20 How to Use

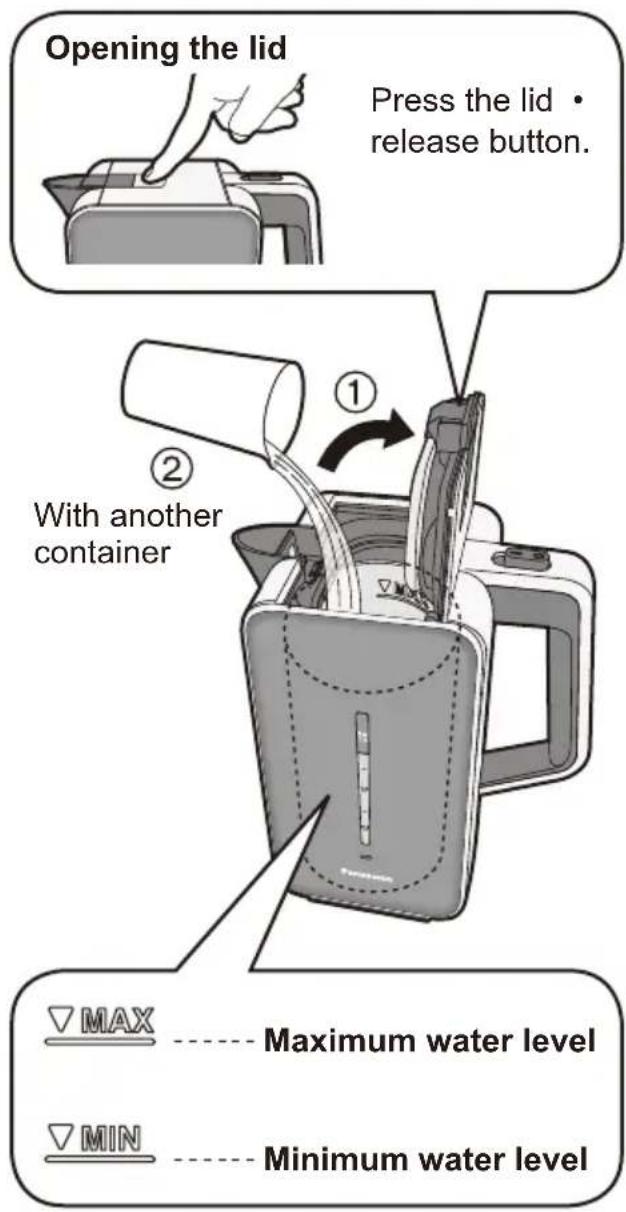

Open the lid and fill with water.

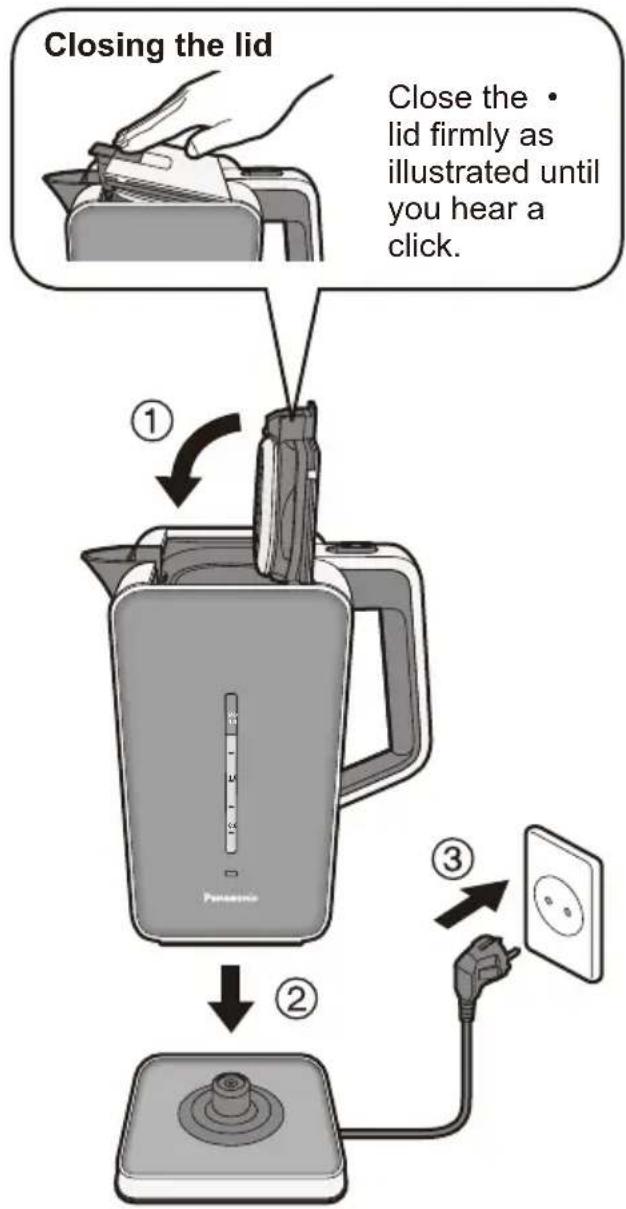

Close the lid, put the kettle on the power base and insert the mains plug. With another container Opening the lidPress the lid •release button. Minimum water levelMaximum water level

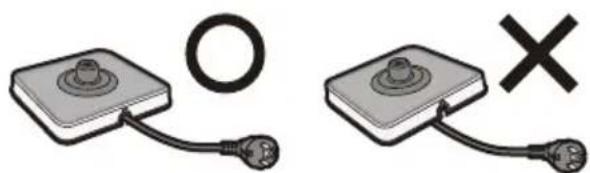

Closing the lidClose the •lid firmly as illustrated until you hear a click. Adjusting the length of the mains lead* Pass the mains lead out through the cut out section.

Do not put the power base on the mains lead.

• Wind the mains lead on the bottom of the power base to adjust the length.21 English

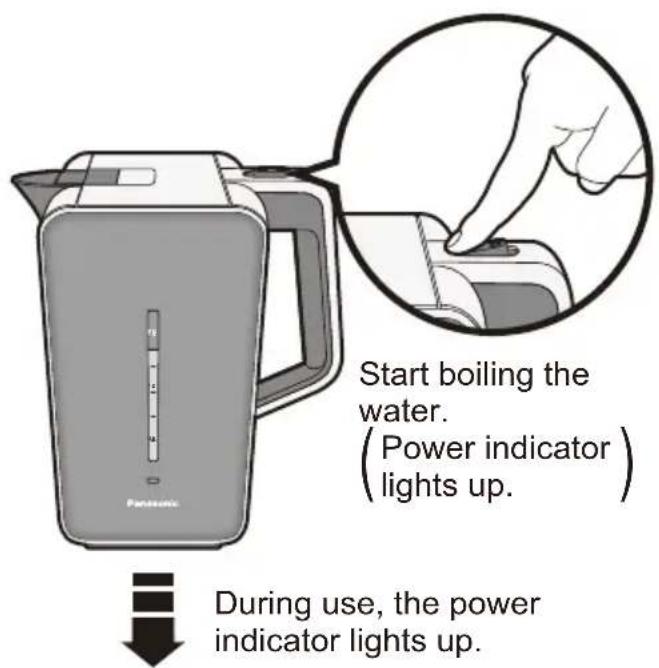

Turn on the power switch. (Press “

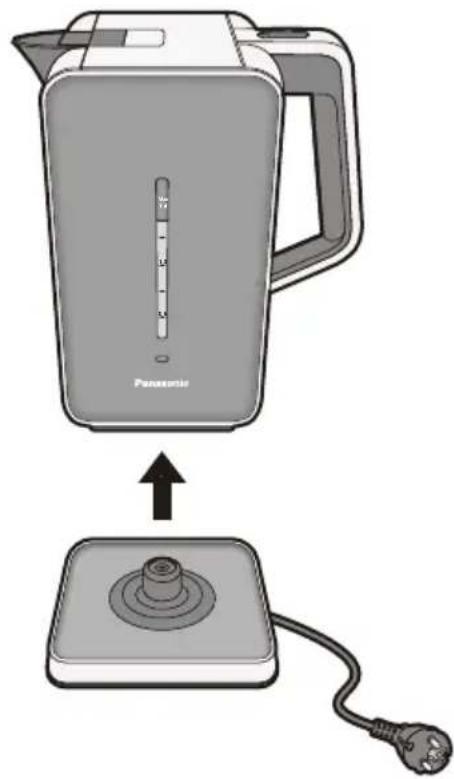

Remove from the power base and pour. Start boiling the water.

Power indicator lights up. When the water has boiled, the power switch turns off automatically.The kettle takes around 3 minutes to boil. •

Water temperature 23°C, room temperature 23°C, water to max levelTo stop boiling before the •water has boiled, turn off the power switch. Note Immediately after the water has boiled, •do not force the kettle to continue heating the water by keep pressing the power switch. (It may cause malfunction.) During use, the power indicator lights up.

• Keep the lid closed when pouring away the water.

Empty-use prevention functionWhen the power switch is on without water, an empty-use prevention function works to automatically turn off the power in order to prevent accidents and malfunction due to overheating. Allow the body to cool sufficiently. Remove the body from the power base and fill the water. Place it on the power base and turn on the power switch again.* If you boil the kettle without water, it may smell strange.22

Clean the appliance after every use. Before cleaning, unplug the mains plug, pour away the hot water, and cool the body. Do not use soap. (This may cause a residual odour.) • Do not use benzine, thinner, alcohol, bleach, polishing powder, metal brush or nylon • brush, otherwise the surface will be damaged. Do not wash in a dishwasher. • How to Clean Body (Outside) Wipe with a well-wrung cloth. (Inside) Rub with a soft sponge and rinse. Scale build-up Minerals such as calcium carbonate contained in the water build up in the kettle. Example of scale Floating shiny white or brown substance • (Mineral crystals) Milky white roughness •

Substance generated by minerals such as calcium carbonate in water. Brown, grey or green colours • (Due to the effects of metal ions) Please remove the scale. Remove it regularly using a suitable scale • remover. Follow the instructions supplied with the • scale remover. After removal, repeat the following steps a few times: fill with water, boil, pour away.

Mesh Filter Wash carefully using a brush etc. If the spout is blocked by scale, hot • water will pour less easily. After cleaning, always attach it to the

body. How to detach Push the filter towards to the • spout and pull it upwards. How to attach Align with the groove on the • spout and press it firmly. Lid Wipe with a well-wrung cloth. Power base Wipe with a well-wrung cloth. To store Dry thoroughly. • Seal in a plastic bag to prevent insects • etc. from entering. Body connector Power base connector23 English Check the following before contacting the shop or asking for a repair. Problem Cause How to correctWater does not boil.

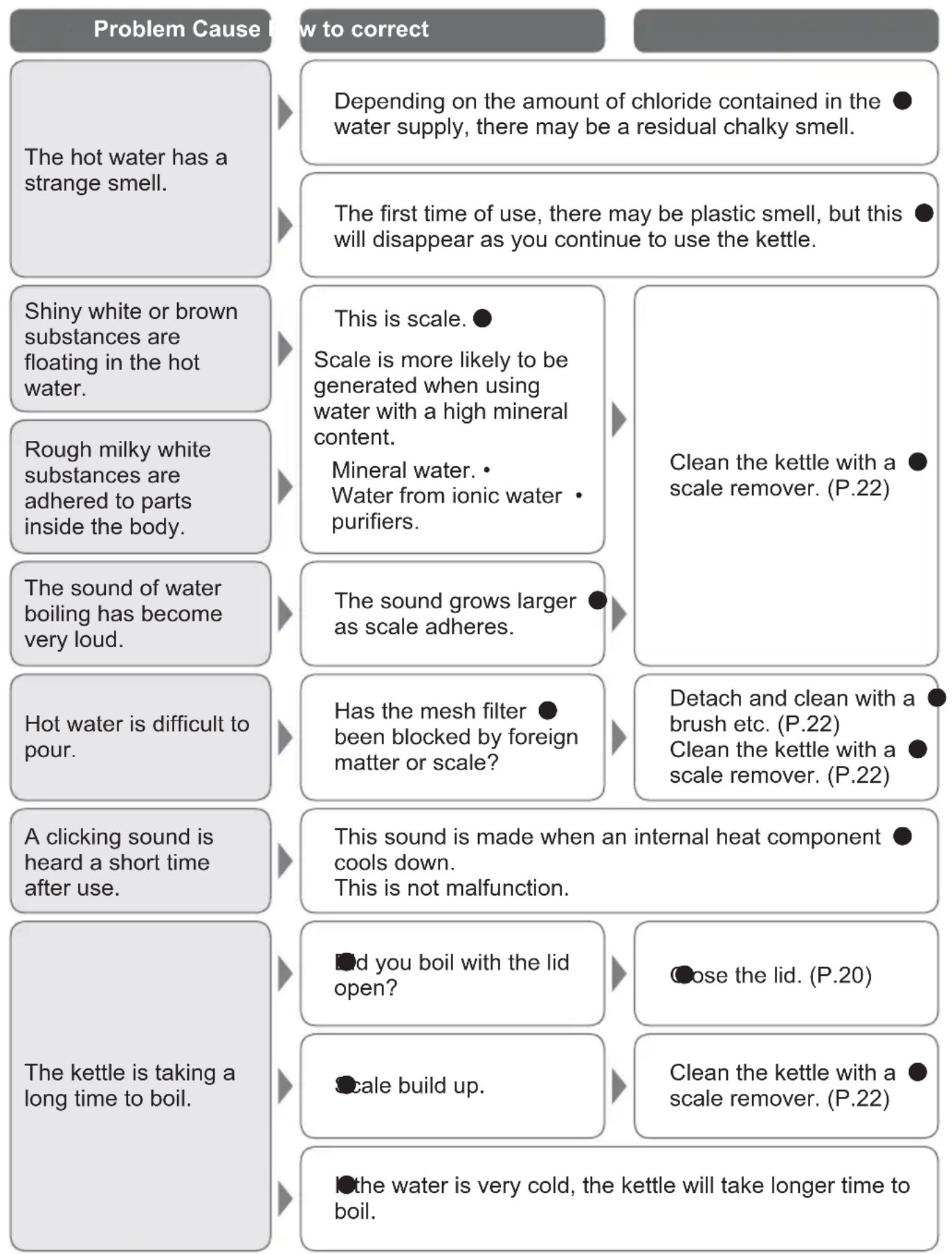

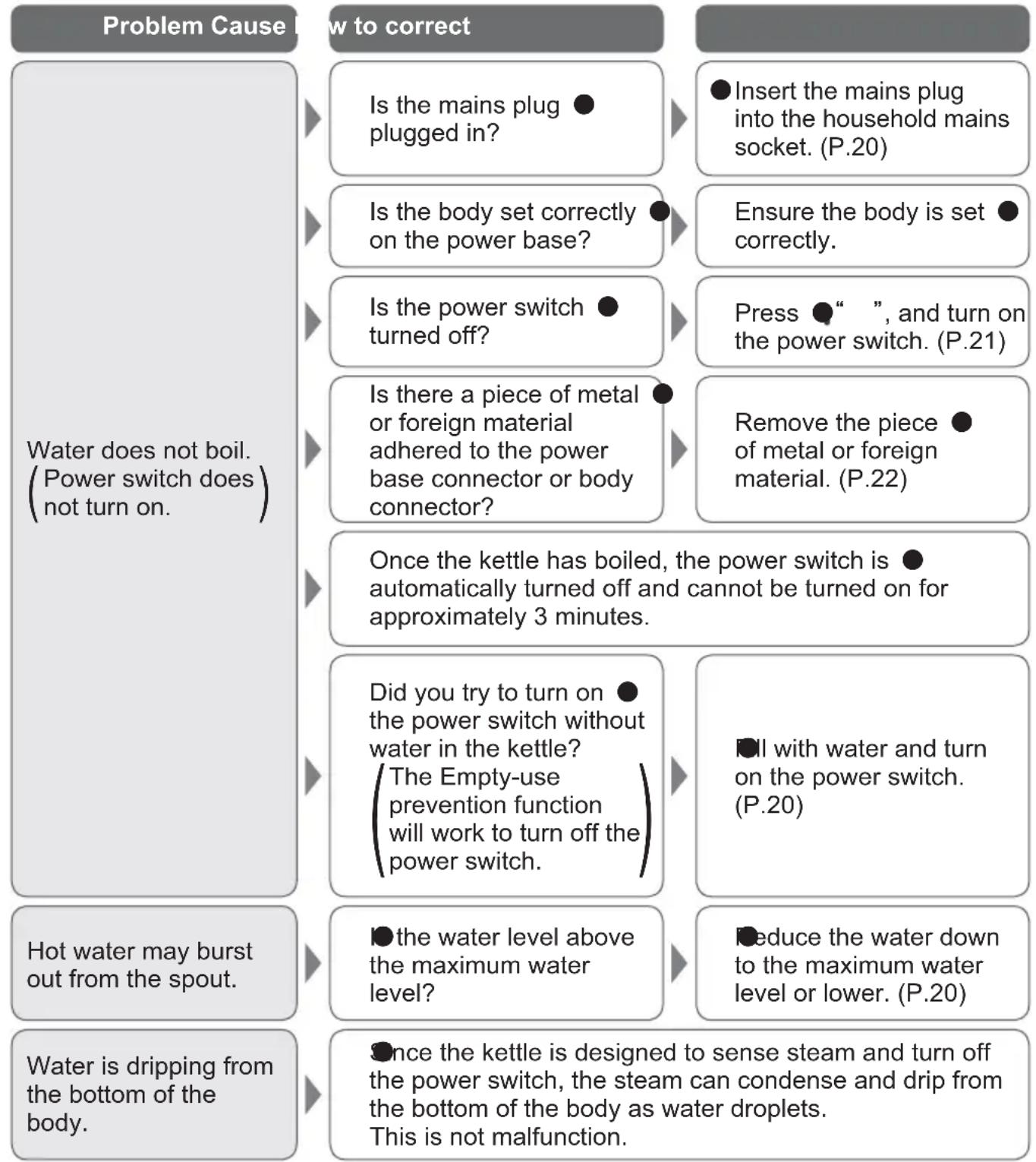

Power switch does not turn on. Is the mains plug plugged in?Insert the mains plug into the household mains socket. (P.20)Is the body set correctly on the power base?Ensure the body is set correctly.Is the power switch turned off?Press ", and turn on the power switch. (P.21)Is there a piece of metal or foreign material adhered to the power base connector or body connector?Remove the piece of metal or foreign material. (P.22)Once the kettle has boiled, the power switch is automatically turned off and cannot be turned on for approximately 3 minutes.Did you try to turn on the power switch without water in the kettle?

The Empty-use prevention function will work to turn off the power switch. Fill with water and turn on the power switch. (P.20)Hot water may burst out from the spout.Is the water level above the maximum water level?Reduce the water down to the maximum water level or lower. (P.20)Water is dripping from the bottom of the body.Since the kettle is designed to sense steam and turn off the power switch, the steam can condense and drip from the bottom of the body as water droplets. This is not malfunction. Troubleshooting24 Problem Cause How to correct The hot water has a strange smell. Depending on the amount of chloride contained in the water supply, there may be a residual chalky smell. The first time of use, there may be plastic smell, but this will disappear as you continue to use the kettle. Shiny white or brown substances are floating in the hot water. This is scale. Scale is more likely to be generated when using water with a high mineral content. Mineral water. • Water from ionic water • purifiers. Clean the kettle with a scale remover. (P.22) Rough milky white substances are adhered to parts inside the body. The sound of water boiling has become very loud. The sound grows larger as scale adheres. Hot water is difficult to pour. Has the mesh filter been blocked by foreign matter or scale? Detach and clean with a brush etc. (P.22) Clean the kettle with a scale remover. (P.22) A clicking sound is heard a short time after use. This sound is made when an internal heat component cools down. This is not malfunction. The kettle is taking a long time to boil. Did you boil with the lid open? Close the lid. (P.20) Scale build up. Clean the kettle with a scale remover. (P.22) If the water is very cold, the kettle will take longer time to boil. Troubleshooting25 English Specifications NC-ZK1 NC-DK1 Power supply

Power consumption 2520 - 3000 W Dimensions (W D H) (approx.) Body

Weight (approx.) Body 1.6 kg 1.6 kg Body + Power base 2.1 kg 1.9 kg Rated capacity 1.4 L Length of the mains lead (approx.) 0.75 m In certain regions (high altitude, very cold locations), it may not be possible to obtain the predetermined performance. Information on Disposal for Users of Waste Electrical & Electronic Equipment (private households) This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste. For proper treatment, recovery and recycling, please take these products to designated collection points, where they will be accepted on a free of charge basis. Alternatively, in some countries you may be able to return your products to your local retailer upon the purchase of an equivalent new product. Disposing of this product correctly will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling. Please contact your local authority for further details of your nearest designated collection point. Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation. For business users in the European Union If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information. Information on Disposal in other Countries outside the European Union This symbol is only valid in the European Union. If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.26 Um Unfälle oder Verletzungen des Benutzers und anderer Personen sowie Sachschäden zu vermeiden, befolgen Sie bitte die folgenden Anweisungen.

Panasonic Taiwan Co., Ltd. 2012 Panasonic Test and Development Kitchen Panasonic Consumer Electronics U.K. A Division of Panasonic U.K. Ltd Willoughby Road, Bracknell, Berks, RG12 8FP Representative in EU : Panasonic Marketing Europe GmbH Panasonic Testing Centre Winsbergring 15, 22525 Hamburg, Germany
