AC/Rechargeable Hair Clipper

Model No. ER-GC71/ER-GC51

Line drawing of a hand-operated hairbrush with textured grip and side panel (no text or symbols)

English	3	Dansk	99	Česky	195
Deutsch	19	Português	115	Slovensky	211
Français	35	Norsk	131	Magyar	227
Italiano	51	Svenska	147	Română	243
Nederlands	67	Suomi	163
Español	83	Polski	179

Panasonic

Operating Instructions

(Household) AC/Rechargeable Hair Clipper

Model No. ER-GC71/ER-GC51

Contents

Safety precautions......6

Intended use 9

Parts identification ......9

Preparation....10

Using the clipper ...... 10

Cleaning the clipper 14

Troubleshooting 15

Blade life....16

Battery life....16

Removing the built-in rechargeable battery....16

Specifications .... 17

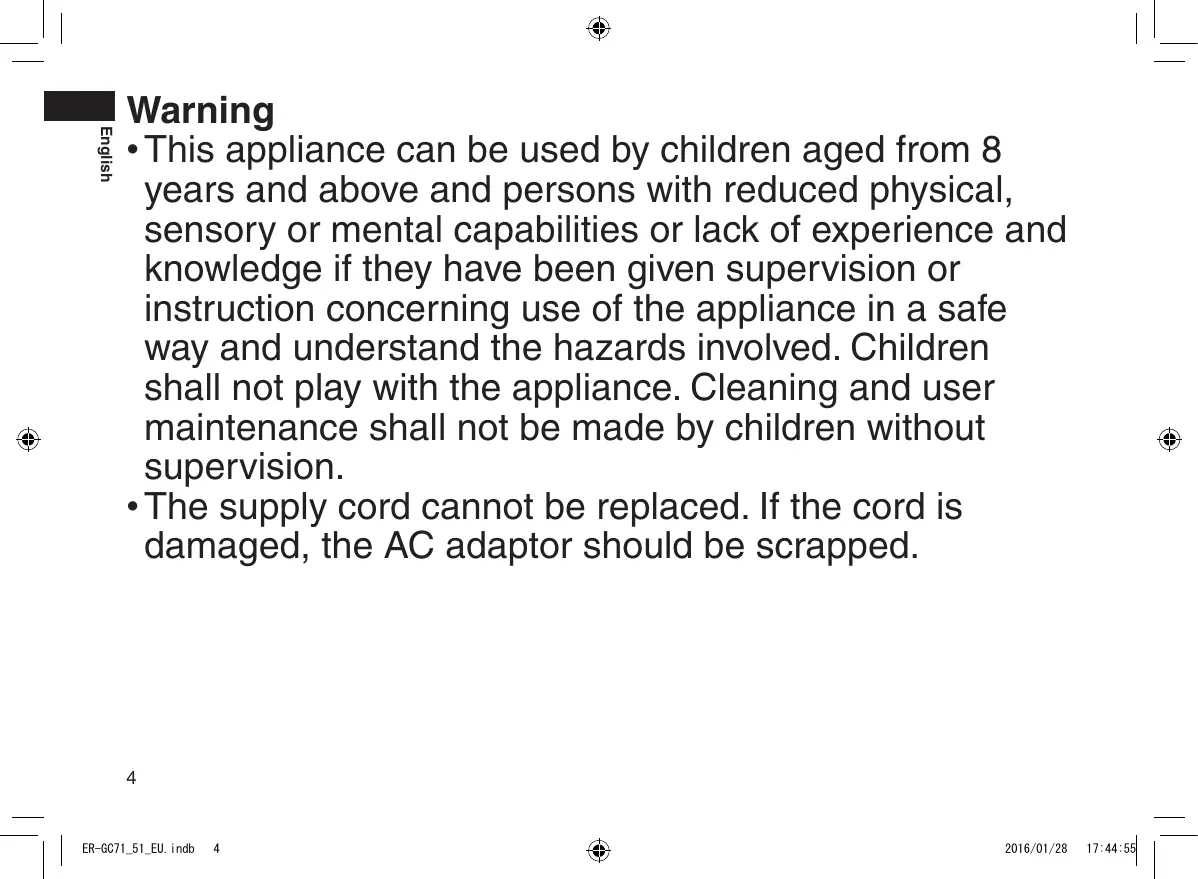

Warning

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• The supply cord cannot be replaced. If the cord is damaged, the AC adaptor should be scrapped.

- The following symbol means suitable for cleaning under an open water tap.

• Do not clean with water when the AC adaptor is attached.
• Do not use anything other than the supplied AC adaptor.
• The following symbol indicates that a specific detachable power supply unit is required for connecting the electrical appliance to the supply mains. The type reference of power supply unit is marked near the symbol.

Safety precautions

To reduce the risk of injury, loss of life, electric shock, fire, and damage to property, always observe the following safety precautions.

Explanation of symbols

The following symbols are used to classify and describe the level of hazard, injury, and property damage caused when the denotation is disregarded and improper use is performed.

DANGER

Denotes a potential hazard that will result in serious injury or death.

WARNING

Denotes a potential hazard that could result in serious injury or death.

CAUTION

Denotes a hazard that could result in minor injury or property damage.

The following symbols are used to classify and describe the type of instructions to be observed.

This symbol is used to alert users to a specific operating procedure that must not be performed.

This symbol is used to alert users to a specific operating procedure that must be followed in order to operate the unit safely.

WARNING

▶ Power supply

Do not connect or disconnect the adaptor to a household outlet with a wet hand.

- Doing so may cause electric shock or injury.

Do not immerse the AC adaptor in water or wash with water.

Do not place the AC adaptor over or near water filled sink or bathtub.

Never use the appliance if the AC adaptor is damaged or if the power plug fits loosely in a household outlet.

Do not damage or modify, or forcefully bend, pull, or twist the cord.

Also, do not place anything heavy on or pinch the cord.

- Doing so may cause electric shock or fire due to a short circuit.

Do not use in a way exceeding the rating of the household outlet or the wiring.

- Exceeding the rating by connecting too many plugs to one household outlet may cause fire due to overheating.

Always ensure the appliance is operated on an electric power source matched to the rated voltage indicated on the AC adaptor.

Fully insert the adaptor.

- Failure to do so may cause fire or electric shock.

Always unplug the adaptor from a household outlet when cleaning.

- Failure to do so may cause electric shock or injury.

WARNING

Regularly clean the power plug and the appliance plug to prevent dust from accumulating.

- Failure to do so may cause fire due to insulation failure caused by humidity. Disconnect the adaptor and wipe with a dry cloth.

▶ In case of an abnormality or malfunction Immediately stop using and remove the adaptor if there is an abnormality or malfunction.

• Failure to do so may cause fire, electric shock, or injury.

• The main unit or AC adaptor is deformed or abnormally hot.
• The main unit or AC adaptor smells of burning.
• There is abnormal sound during use or charging of the main unit or AC adaptor.
• Immediately request inspection or repair at an authorized service centre.

▶ This product

This product has a built-in rechargeable battery. Do not throw into flame or heat.

- Doing so may cause fluid leak, overheating, or explosion.

Never disassemble except when disposing of the product.

- Doing so may cause fire, electric shock, or injury.

Do not modify or repair.

- Doing so may cause fire, electric shock, or injury. Contact an authorized service centre for repair (battery change, etc.).

▶ Preventing accidents

Do not store within the reach of children or infants.

Do not let them use it.

- Putting the blade, the cleaning brush and/or oil container in the mouth may cause accidents and injury.

If the oil is consumed accidentally, do not induce vomiting, drink a large amount of water, and contact a physician.

If the oil comes into contact with eyes, immediately wash thoroughly with running water, and contact a physician.

- Failure to do so may result in physical problems.

CAUTION

▶ Protecting the skin

Do not press the blade against the skin.

Do not use this product for any purpose other than

trimming beard and hair.

Do not directly apply the blades on ears or rough skin (such as swellings, injuries or blemishes).

- Doing so may cause skin injury.

Check that the blades are not damaged or deformed before use.

- Failure to do so may cause skin injury.

CAUTION

▶ Note the following precautions

Do not allow metal objects or trash to adhere to the power plug or the appliance plug.

- Doing so may cause electric shock or fire due to a short circuit.

Do not drop or hit against other objects.

- Doing so may cause injury.

Do not wrap the cord around the adaptor when storing.

- Doing so may cause the wire in the cord to break with the load, and may cause fire due to short circuit.

Disconnect the adaptor from the household outlet when not using.

- Failure to do so may cause electric shock or fire due to electrical leakage resulting from insulation deterioration.

Disconnect the adaptor or the appliance plug by holding onto the adaptor or the appliance plug instead of the cord.

- Failure to do so may cause electric shock or injury.

Handling of the removed battery when disposing

DANGER

The rechargeable battery is exclusively for use with this clipper. Do not use the battery with other products.

Do not charge the battery after it has been removed from the product.

• Do not throw into fire or apply heat.
• Do not solder, disassemble, or modify the battery.
• Do not let the positive and negative terminals of the battery get in contact with each other through metallic objects.
• Do not carry or store the battery together with metallic jewellery such as necklaces and hairpins.
• Never peel off the tube.
• Doing so may cause fluid leak, overheating, or explosion.

WARNING

After removing the rechargeable battery, do not keep it within reach of children and infants.

- The battery will harm the body if accidentally swallowed. If this happens, consult a physician immediately.

WARNING

If the battery fluid leaks out, take the following procedures. Do not touch the battery with your bare hands.

- The battery fluid may cause blindness if it comes in contact with your eyes.

Do not rub your eyes. Wash immediately with clean water and consult a physician.

- The battery fluid may cause inflammation or injury if it comes in contact with the skin or clothes.

Wash it off thoroughly with clean water and consult a physician.

Intended use

• Before using an attachment, check that it has been installed correctly. Failure to do so may cause hair to be cut too short.
• The appliance should not be used on animals.

- Before and after each use, apply oil at the places marked with arrows. (See page 15.)

Failure to apply the oil may cause the following problems.

- The clipper has become blunt.

- Shorter operating time.

- Louder sound.

- Do not use thinner, benzine, alcohol or other chemicals. Doing so may cause failure, cracking or discoloration of the main body. Clean the main body only with a soft cloth slightly dampened with tap water or soapy tap water.

- Store the clipper in a place with low humidity after use. Failure to do so may cause malfunction due to condensation or rust.

Parts identification

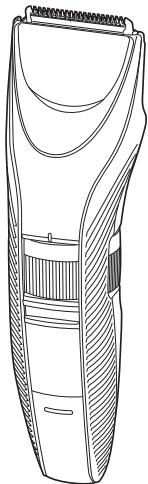

A ① ② ③ ④ ⑤ ⑥

ER-GC71

E ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑴ (RE9-49) (RE9-52)

A Main body

① Trimming height indication mark
② Dial (Height adjustment control)
③ Power switch [O/ I]
④ Charge indicator lamp (→)
⑤ Appliance socket
⑥ Water inlet

B Blade

⑦ Cleaning lever
⑧ Moving blade
⑨ Stationary blade
⑩ Mounting hook

© Comb attachment [A]

(1 mm to 10 mm)

D Comb attachment [B] ER-GC71
(11 mm to 20 mm)
E AC adaptor (RE9-49) (RE9-52 for the United Kingdom) (The shape of the AC adaptor differs depending on the area.)
⑪ Adaptor
⑫ Power plug
⑬ Cord
⑭ Appliance plug

Accessories

F Cleaning brush

G Oil

H Pouch ER-GC71

Preparation

Charging the clipper

- Make sure that the clipper is turned off.

1 Connect the appliance plug to the appliance socket.
2 Plug in the adaptor into a household outlet.

• Charging is completed after approx. 8 hours.
• Check that the charge indicator lamp (⇨) glows.

Diagram showing a hairbrush and cable connection with labeled parts 1 and 2

3 Disconnect the adaptor after charging is completed. (for safety and to reduce energy usage)

The charge indicator lamp (→) continues to glow after charging is complete. There is no indication to show that "charging is complete".

Notes

• If there is crackling noise on radios or other devices while charging, charge the clipper using a different household outlet.
• When the appliance is not used for 6 months or more, the battery will weaken (leak battery fluid, etc.). Fully charge the battery once every 6 months.
• When charging the clipper for the first time or when it has not been in use for more than 6 months, the charging time may change or the lamp on the main body may not glow for a few minutes. Please charge it for more than 16 hours in such cases.

• Recommended ambient temperature for charging is 0^ - 35^ . Battery performance may decrease outside of the recommended temperature.

• A full charge supplies enough power for approximately 40 minutes of use.
  The operating time may differ depending on the frequency of use, the operating method and the ambient temperature.

• You can charge the battery before it is completely discharged. However, it is recommended to charge when the battery is completely discharged. The battery life depends strongly on factors such as how it is used and stored.

Using the clipper

• Make sure that the clipper is turned off.
• Apply the oil to the clipper before and after each use. (See page 15.)
• The appliance may not operate in an ambient temperature approximately 0 °C or lower.

1 Mount the desired comb attachment and adjust the trimming height as needed. (See page 11.)

- It can also be used without the comb attachment. (Trimming height: approx. 0.5 mm)

2 Slide the power switch on the main body to the “ | ” position to turn on the power.

Trimming hair

(See page 12.)

Trimming beard

(See page 13.)

AC operation

If you connect the AC adaptor to the clipper in the same way as for charging, and turn on the power, you can use it.

• If the remaining battery is too low, the blades may move slowly or stop, even with the AC operation. In this case, charge the battery for 3 minutes or more.
• The battery will be discharged, even with the AC operation.

Removing and mounting the comb attachments

Mounting the comb attachment

Mount the comb attachment to the main body until it clicks.

- If the comb attachment is not attached correctly, it may shift and end up cutting too much during use.

Diagram of a hand holding a textured object with a downward arrow indicating force or movement (no text or symbols present)

Removing the comb attachment

Hold the main body securely and remove the comb attachment from the main body.

Illustration of a hand holding a curved object with internal parallel lines and an arrow indicating direction (no text or symbols)

How to adjust the trimming height

- Make sure that the clipper is turned off.

Turn the dial and adjust the trimming height indication mark (a) to the desired height.

Technical diagram showing a mechanical component with labeled parts and a magnified inset showing measurement markings.

▶ Comb attachment [A]

Trimming height (estimate): 1 mm to 10 mm

Indicator	1	•	2	•	3	•	4	•	5	•
Trimming height (mm) (estimate)	1	1.5	2	2.5	3	3.5	4	4.5	5	5.5

Indicator	6	•	7	•	8	•	9	•	10
Trimming height (mm) (estimate)	6	6.5	7	7.5	8	8.5	9	9.5	10

▶ Comb attachment [B]

ER-GC71

Trimming height (estimate): 11 mm to 20 mm

Indicator	11	•	12	•	13	•	14	•	15	•
Trimming height (mm) (estimate)	11	11.5	12	12.5	13	13.5	14	14.5	15	15.5

Indicator	16	•	17	•	18	•	19	•	20
Trimming height (mm) (estimate)	16	16.5	17	17.5	18	18.5	19	19.5	20

Notes

• Actual hair length will be a little longer than the height you set.
• Setting of 10.5 mm is unavailable.
• It can also be used without the comb attachment.

(Trimming height: approx. 0.5 mm)

Trimming hair

• Do not use when the hair is wet.
  A wet hair may stick to the skin or bunch up, making it difficult to trim.
• To maintain sharpness, remove hair trimmings between usages.
• Before trimming, comb your hair with a comb.

Adjusting the length around the ears and sides

Holding the clipper with the power switch facing outwards, trim around the ears and sides by lifting the tip of the comb attachment little by little from the hairline.

Illustration of a person applying a hair accessory to their face (no text or symbols present)

- Trim your hair while holding down your ear with one hand.

Illustration of a person receiving a neck massage or ear pressure technique (no text or symbols present)

How to align the length at the neckline and at the back of your head

Holding the clipper with the power switch facing outwards, trim from the neckline to the back of your head by lifting the tip of the comb attachment little by little from the hairline.

Illustration of a person's head and neck with a medical device attached to the ear (no text or symbols)

Shaping your sideburns

Without comb attachment

Holding the clipper with the power switch at the bottom, keep the blade at an angle of 90^ against the sideburns and move the clipper from top to bottom along the skin to trim the sideburns.

Illustration showing facial hair application technique with magnified detail and directional arrows indicating application direction.

Trimming the downy hair around the neckline

Without comb attachment

Holding the clipper with the power switch at the bottom, touching the blade perpendicular to the area of downy hair, and move the clipper downward along the skin.

90°

Trimming to an even length

Holding the clipper with the power switch facing outwards, trim slowly while crisscrossing from various directions to avoid missing any spots.

Illustration of a human head with a patterned hair grid on the forehead and a crosshatched head with arrows on the palm (no text or symbols)

Notes

• It is recommended to ask someone else to trim around your own ears and neckline.
• The desired results may not be achieved if hair is too long. In this case, trim the hair to a length of about 2 cm before using the clipper.

Trimming beard

• Do not use with shaving foam applied or when the beard is wet. A wet beard may stick to the skin or bunch up, making it difficult to trim.
• Before trimming, comb your moustache with a comb.

Trimming to an even length

Holding the clipper with the power switch facing outwards, trim by bringing the blade in contact with the skin and moving the clipper against the flow of the beard.

- Hair trimmings may collect inside the comb attachment when a large volume of beard is cut, so discard hair trimmings after each use.

Diagram of a mechanical component with an upward arrow indicating motion or force (no text or symbols present)

Trimming the downy hair

Without comb attachment

Holding the clipper with the power switch facing outwards, trim by bringing the blade in contact with the skin.

- The clipper cannot trim hair to lengths less than 0.5 mm.

Illustration of a person's face with a handheld device, showing facial features and a pointing arrow (no text or symbols)

Cleaning the clipper

• Clean the clipper and the blade after each use. (If not cleaned, the motion will become poor and the sharpness will worsen.)

• Make sure that the clipper is turned off.

• Remove the clipper from the AC adaptor.

To remove light dirt

1. Remove the comb attachment and turn the clipper on.
2. Run water down the water inlet at the front of the main body, rinse thoroughly for approximately 20 seconds, and then turn the clipper off.

Illustration of hands using a tool to clean or brush the pipe, with an inset showing a device (no text or symbols present)

- Rinse with water and shake up and down several times to remove the water.

To remove heavy dirt

1. Remove the comb attachment and blade.
2. Clean the clipper, the blade and the comb attachments with running water.

Illustration of three hands performing a manual tool manipulation (no text or symbols present)

- Rinse with water and shake up and down several times to remove the water.

1. Wipe off the water with a towel and let it dry naturally.

- It will dry faster with the blade removed.

1. Apply the oil to the blade after drying. (See page 15.)

Line drawing of a pair of cleaning tools, one with spray and the other with dust (no text or symbols)

Cleaning with the brush

• Remove the blade. (See page 15.)
• Brush off any hair trimmings from the main body and from around the blade.

Illustration of a hand holding a small mechanical component with a black clip (no text or symbols visible)

1. Brush off the hairs from the blade edge.
2. Brush any hair trimmings out from between the stationary blade and the moving blade while pressing down the cleaning lever (a) to raise the moving blade.
3. Apply the oil to the blade. (See page 15.)

Diagram showing a hand holding a small electronic component with a labeled section (a) and an arrow pointing to it.

Lubrication

• Apply the oil to the clipper before and after each use.
• Make sure that the clipper is turned off.

1 Remove the blade.
2 Apply a drop of the oil to each indicated point.
3 Attach the blade to the main body, turn on the power and allow to run for approximately 5 seconds.

Diagram illustrating mechanical assembly steps with labeled components and directional arrows indicating motion

Removing and mounting the blade

Removing the blade

Hold the clipper with the switch facing upward and push the blade with your thumb while catching the blade in your other hand.

Illustration of a hand holding a small object with a magnified inset showing a tool tip (no text or symbols)

Mounting the blade

Fit the mounting hook (B) into the blade mounting (A) on the clipper and then push in until you hear a click.

Technical diagram showing mechanical assembly with labeled parts A and B, likely illustrating a turning or disassembly process.

Illustration of a hand using a device to interact with a circular diagram showing a pile of grain or seeds (no text or symbols present)

Troubleshooting

Perform the following actions.

If the problems still cannot be solved, contact the store where you purchased the unit or a service centre authorized by Panasonic for repair.

Problem	Action
The blade has not been cleaned properly.	When the clipper is very dirty, remove the blade and wash with water. (See page 14.)
Makes a loud sound.	Confirm that the blade is properly attached.
The clipper has become blunt.	Replace the blade. (See this page.)
	Clean the blade and apply oil. (See pages 14 and 15.)
Clipper stopped functioning.	Charge the clipper. Or use with the AC operation. (See page 10.)
Operating time is short.	Charge the battery for approximately 16 hours continuously to rejuvenate it. If few uses remain even after charging, the battery has reached the end of its life. (Fluid may be leaking due to degradation at the end of battery life.) Contact an authorized service centre for repair.

Problem

The clipper cannot be charged.

Clipper can be used for only about 10 minutes even after charging.

Action

Push the appliance plug into the main body all the way and make sure the charge indicator lamp

(≡) glows.

Charge within the recommended charging temperature of 0 °C to 35 °C.

Have the battery replaced by an authorized service centre.

Blade life

Blade life varies according to the frequency and period of use of the clipper.

For example, the blade life is approximately 2 years when using the clipper for 20 minutes twice a month. Replace the blades if cutting efficiency reduces substantially despite proper maintenance.

Battery life

Battery life will vary according to the frequency and length of use. If the battery is charged once a month, the service life will be approximately 3 years.

If the operating time is significantly shorter even after a full charge, the battery has reached the end of its life.

Removing the built-in rechargeable battery

Remove the built-in rechargeable battery before disposing of the clipper.

Please make sure that the battery is disposed of at an officially designated location if there is one.

This figure must only be used when disposing of the clipper, and must not be used to repair it. If you dismantle the clipper yourself, it will no longer be waterproof, which may cause it to malfunction.

• Remove the clipper from the AC adaptor.
• Slide the power switch to turn on the power and then keep the power on until the battery is completely discharged.
• Perform steps ① to ⑭ and lift the battery, and then remove it.
• Take care not to short circuit the positive and negative terminals of the removed battery, and insulate the terminals by applying tape to them.

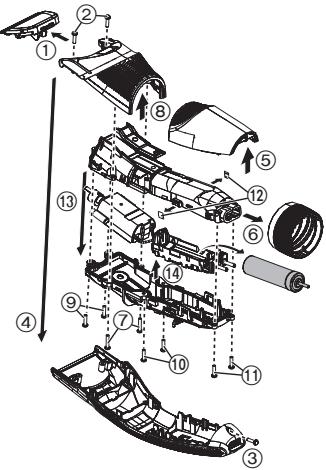

Exploded view diagram of a mechanical assembly with numbered components for identification

For environmental protection and recycling of materials

This clipper contains a Nickel-Metal Hydride battery.

Please make sure that the battery is disposed of at an officially assigned location, if there is one in your country.

Specifications

Power source	See the name plate on the AC adaptor. (Automatic voltage conversion)
Motor voltage	1.2 V---
Charging time	Approx. 8 hours
Airborne Acoustical Noise	60 (dB (A) re 1 pW)

This product is intended for household use only.

Disposal of Old Equipment and Batteries Only for European Union and countries with recycling systems

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries must not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and batteries, please take them to applicable collection points in accordance with your national legislation.

By disposing of them correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment.

For more information about collection and recycling, please contact your local municipality.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

Note for the battery symbol (bottom symbol)

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.

Panasonic

Bedienungsanleitung

A ① ② ③ ④ ⑤ ⑥

E ⑪ ⑫ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑴ (RE9-49) (RE9-52)

A Haarschneider

Diagram of a hairbrush with labeled parts and connection point

Diagram of a hand holding a textured object with a downward arrow indicating force or movement (no text or symbols present)

Illustration of a hand holding a curved object with internal parallel lines and an arrow indicating direction (no text or symbols)

Technical diagram showing a mechanical component with a magnified inset highlighting measurement points B11 and B12, labeled 'a'.

▶ Kammaufsatz [A]

Illustration of a person applying a hair accessory to their face (no text or symbols present)

Line drawing of a person receiving neck massage from a tool (no text or symbols)

Illustration of a person's head and ear with a device attached, showing a curved arrow indicating rotation (no text or symbols)

Illustration showing facial hair application technique with magnified detail of the head and eyelid

Illustration of a human head with a patterned hair grid on the forehead and a crosshatched head with arrows on the lower face (no text or symbols)

Hinweise

Diagram of a mechanical component with an upward arrow indicating motion or force (no text or symbols present)

Illustration of a person's face with a hand holding a tool, showing a pointing arrow (no text or symbols present)

Illustration of hands using a tool to cut or apply a piece of material, with an inset showing a magnified view of the same object (no text or symbols present)

Illustration of three hands performing a manual water treatment procedure (no text or symbols present)

Line drawing of a pair of cleaning tools, one with spray and the other with dust (no text or symbols)

Illustration of a hand inserting a plug into a socket (no text or symbols)

Diagram showing a hand holding a small electronic component with a labeled section (a) and an arrow pointing to it.

Diagram illustrating mechanical assembly steps with labeled components and directional arrows indicating motion or movement.

Illustration of hands holding a small object with a magnified inset showing a hand holding a small object (no text or symbols present)

Diagram showing mechanical assembly with labeled parts A and B, likely illustrating a turning or disassembly process.

Illustration of a hand using a smartphone to interact with a circular diagram showing a pile of grain or seeds, no text or symbols present.

Fehlersuche

Exploded view diagram of a mechanical assembly with numbered components for identification

▶ Prévention des accidents

A ① ② ③ ④ ⑤ ⑥

ER-GC71

E ⑪ ⑫ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑴ (RE9-49) (RE9-52)

A Corps principal

Diagram showing a hairbrush and cable connector with labeled parts 1 and 2

Illustration of a hand holding a mesh object with a downward arrow indicating force or movement (no text or symbols)

Illustration of a hand holding a curved object with a directional arrow indicating rotation (no text or symbols)

Technical diagram showing a mechanical component with a circular ring and a vertical bar, labeled with measurement points 11 and 12.

▶ Sabot [A]

Illustration of a person applying a hair accessory to their face (no text or symbols present)

Illustration of a person receiving neck massage or ear pressure technique (no text or symbols)

Illustration of a person's head and ear with a device attached, showing a curved arrow indicating rotation (no text or symbols)

Faire des pattes

Sans sabot

Illustration showing facial hair application technique with magnified detail of the head and jaw area

Side-by-side line drawings of a human head and neck with abstract cross patterns on the head (no text or symbols)

Notes

Diagram of a mechanical component with an upward arrow indicating motion or force (no text or symbols present)

Coupe du duvet

Sans sabot

Illustration of a person using a handheld device to apply facial hair (no text or symbols present)

Illustration of hands using a tool to clean or brush the pipe, with an inset showing a device (no text or symbols present)

Illustration of three hands performing a manual tool manipulation (no text or symbols present)

Line drawing of a pair of cleaning tools, one with spray and the other with dust (no text or symbols)

Illustration of a hand inserting a plug into a socket (no text or symbols)

Diagram showing a hand holding a small electronic component with a labeled section (a) and an arrow pointing to it.

Diagram illustrating mechanical assembly steps with labeled components and directional arrows indicating motion or movement.

Illustration of a hand holding a small object with a magnified inset showing a tool tip (no text or symbols)

Installation de la lame

Diagram showing mechanical assembly with labeled parts A and B, likely illustrating a turning or disassembly process.

Illustration of a hand using a device to interact with a circular diagram showing a pile of grain or material (no text or symbols present)

Dépannage

Exploded view diagram of a mechanical assembly with numbered components for identification

A ① ② ③ ④ ⑤ ⑥

ER-GC71

E ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑴ (RE9-49) (RE9-52)

A Corpo principale

Diagram showing a hairbrush with labeled parts and a cable, likely illustrating a hairpin or digital device connection.

Diagram of a hand holding a textured object with a downward arrow indicating force or movement (no text or symbols present)

Illustration of a hand holding a curved object with internal parallel lines and an arrow indicating direction (no text or symbols)

Technical diagram showing a mechanical component with labeled parts and a magnified inset showing measurement markings.

Illustration of a person applying a hair accessory to their face (no text or symbols present)

Illustration of a person receiving neck massage or ear pressure technique (no text or symbols)

Illustration of a person's head and ear with a device attached, showing a curved arrow indicating rotation (no text or symbols)

Illustration showing facial hair application technique with magnified detail of the head and jaw area

Side-by-side line drawings of a human head and neck with abstract cross patterns on the head (no text or symbols)

Nota

Diagram of a mechanical component with an upward arrow indicating motion or force (no text or symbols present)

Illustration of a person's face with a hand holding a tool, showing a pointing gesture (no text or symbols present)

Illustration of hands using a tool to clean or brush the pipe, with an inset showing a device (no text or symbols present)

Illustration of three hands performing a manual manual manipulation or cleaning procedure (no text or symbols present)

Line drawing of a pair of cleaning tools, one with spray and the other with dust (no text or symbols)

Illustration of a hand inserting a small mechanical component into a cylindrical tube (no text or symbols)

Diagram showing a hand holding a small electronic component with a labeled section (a) and a close-up of its tip.

Diagram illustrating mechanical assembly steps with labeled components and directional arrows indicating motion

Illustration of hands using a tool to cut a small object, with a magnified inset showing the tip detail (no text or symbols present)

Technical diagram showing mechanical assembly with labeled parts A and B, likely illustrating a component or assembly step.

Illustration of a hand using a device to interact with a circular diagram showing particle interaction (no text or symbols)

Exploded view diagram of a mechanical assembly with numbered components for identification

Specifications....81

Waarschuwing

A ① ② ③ ④ ⑤ ⑥

ER-GC71

E ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑴ (RE9-49) (RE9-52)

A Hoofdbehuizing

Diagram showing a hairbrush with labeled parts and connection point, likely illustrating a hairpin or digital device.

3 Koppel de adapter na het opladen los.

Diagram of a hand holding a textured object with a downward arrow indicating a force or movement (no text or symbols present)

Illustration of a hand holding a curved object with internal parallel lines and an arrow indicating direction (no text or symbols)

Technical diagram showing a mechanical component with a magnified inset highlighting measurement points B11 and B12, labeled 'a'.

▶ Kamhulpstuk [A]

Illustration of a person applying a hair accessory to their face (no text or symbols present)

Illustration of a person receiving neck massage from a tool (no text or symbols)

Illustration of a person's head and ear with a device attached, showing a curved arrow indicating rotation (no text or symbols)

Uw bakkebaarden in model brengen

Zonder kamhulpstuk

Illustration showing facial hair application technique with magnified detail of the head and eyelid

Side-by-side anatomical illustration of a human head and neck with a crosshatched pattern on the forehead (no text or symbols)

Opmerkingen

Diagram of a mechanical component with an upward arrow indicating motion or force (no text or symbols present)

Illustration of a person using a handheld device to apply facial features (no text or symbols present)

De trimmer reinigen

Illustration of hands using a tool to clean or brush the pipe, with an inset showing a device (no text or symbols present)

Illustration of three hands performing a manual manual manipulation or cleaning procedure (no text or symbols present)

Technical line drawing of a shoe with three views showing different angles and shading (no text or symbols)

Line drawing of a hand inserting a small component into a device (no text or symbols)

Diagram showing a hand holding an electronic component with a labeled section (a) and a close-up of the component being held.

Smering

Diagram illustrating mechanical assembly steps with labeled components and directional arrows indicating motion

Illustration of hands using a tool to cut a small object, with a magnified inset showing the tip detail (no text or symbols present)

Het mesje monteren

Technical diagram showing mechanical assembly with labeled parts A and B, likely illustrating a component or assembly step.

Illustration of a hand using a device to interact with a circular diagram showing particle interaction (no text or symbols)

Problemen oplossen

Doe het volgende.

Exploded view diagram of a mechanical assembly with numbered components for identification

A ① ② ③ ④ ⑤ ⑥

ER-GC71

E ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑴ (RE9-49) (RE9-52)

A Cuerpo principal

Diagram showing a hairbrush and cable connection with labeled parts 1 and 2

Illustration of a hand holding a mesh object with a downward arrow indicating force or movement (no text or symbols)

Illustration of a hand holding a curved object with internal parallel lines and an arrow indicating direction (no text or symbols)

Technical diagram showing a mechanical component with a magnified inset highlighting measurement points B11 and B12, labeled 'a'.

▶ Peine [A]

Illustration of a person applying a hair accessory to their face (no text or symbols present)

Illustration of a person receiving neck massage or pressure technique (no text or symbols)

Illustration of a person's head and ear with a device attached, showing a curved arrow indicating rotation (no text or symbols)

Illustration showing facial hair application technique with magnified detail and directional arrows indicating steps

Side-by-side illustration of a person's head with a patterned hair grid on the forehead and a crosshatched head diagram below (no text or symbols)

Notas

Diagram of a mechanical component with an upward arrow indicating motion or force (no text or symbols present)

Illustration of a person using a handheld device to interact with their face (no text or symbols present)

Illustration of a hand cleaning a pipe with a magnified inset showing the same pipe (no text or symbols present)

Illustration of three hands performing a manual manual manipulation or cleaning procedure (no text or symbols present)

Line drawing of a pair of cleaning tools, one with spray and the other with dust (no text or symbols)

Illustration of a hand inserting a plug into a socket (no text or symbols)

Diagram showing a hand holding an electronic device with a labeled component and a close-up of its tip, likely illustrating a process or assembly.

Lubricación

Diagram illustrating mechanical assembly steps with labeled components and directional arrows indicating motion

Illustration of hands using a tool to cut a small object, with a magnified inset showing the tip detail (no text or symbols present)

Diagram showing mechanical assembly with labeled parts A and B, likely illustrating a turning or disassembly process.

Illustration of a hand holding a device with a circular diagram showing particle movement (no text or symbols)

Exploded view diagram of a mechanical assembly with numbered components for identification

A ① ② ③ ④ ⑤ ⑥

E ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑴ (RE9-49) (RE9-52)

A Apparatets krop

Diagram showing a hairbrush and a cable with labeled parts 1 and 2, indicating a hairpin or brush tool.

Line drawing of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Illustration of a hand holding a curved object with internal parallel lines and an arrow indicating direction (no text or symbols)

Technical diagram showing a mechanical component with labeled parts and a magnified inset showing measurement markings.

▶ Kamaggregat [A]

Illustration of a person applying a hair accessory to their face (no text or symbols present)

Illustration of a person receiving neck massage from a tool (no text or symbols)

Illustration of a person's head and ear with a device attached to the ear (no text or symbols)

Afretning af dine bakkenbarter

Uden kamaggregat

Illustration showing facial hair application technique with magnified detail of the head and jaw area

Illustration of a human head with a patterned hair grid on the forehead and a back view showing hand positioning with arrows (no text or symbols)

Noter

Diagram of a mechanical component with an upward arrow indicating motion or force (no text or symbols present)

Illustration of a person using a handheld device to interact with their face (no text or symbols present)

For at fjerne let snavs

Illustration of a hand holding a tool with a magnified inset showing a device (no text or symbols present)

Illustration of three hands performing a manual manual manipulation or cleaning procedure (no text or symbols present)

Technical line drawing of a shoe with cutouts and spray patterns (no text or symbols)

Illustration of a hand holding a small mechanical component with a black clip (no text or symbols visible)

Diagram showing a hand holding an electronic component with a labeled section (a) and a close-up of the component being held.

Smøring

Diagram illustrating mechanical assembly steps with labeled components and directional arrows indicating motion

Sådan monteres og fjernes bladet

Illustration of hands using a tool to cut a piece, with a magnified inset showing the tip detail (no text or symbols)

Montering af bladet

Technical diagram showing mechanical assembly with labeled parts A and B, likely illustrating a component or assembly step.

Illustration of a hand using a device to interact with a circular diagram showing particle interaction (no text or symbols)

Fejlfinding

Exploded view diagram of a mechanical assembly with numbered components for identification

A ① ② ③ ④ ⑤ ⑥

ER-GC71

E ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑴ (RE9-49) (RE9-52)

A Corpo principal

Diagram showing a hairbrush with labeled parts and a cable, likely illustrating a hairpin or digital device connection.

Illustration of a hand holding a mesh object with a downward arrow indicating force or movement (no text or symbols)

Illustration of a hand holding a curved object with a directional arrow indicating rotation (no text or symbols)

Como ajustar a altura de corte

Technical diagram showing a mechanical component with a magnified inset highlighting measurement points B11 and B12, labeled 'a'.

Illustration of a person applying a hair accessory to their face (no text or symbols present)

Illustration of a person receiving neck massage or pressure technique (no text or symbols)

Illustration of a person's head and ear with a device attached, showing a curved arrow indicating rotation (no text or symbols)

Illustration showing facial hair application technique with magnified detail of the head and eyelid

Side-by-side line drawings of a human head and neck with abstract cross patterns on the head (no text or symbols)

Notas

Diagram of a mechanical component with an upward arrow indicating motion or force (no text or symbols present)

Illustration of a person using a handheld device to apply facial features (no text or symbols present)

Limpar o aparador

Illustration of hands using a tool to clean or brush the next to a device (no text or symbols present)

Illustration of three hands performing a manual manual manipulation or cleaning procedure (no text or symbols present)

Line drawing of a small electronic device with three views showing internal components and motion indicators (no text or symbols)

Limpeza com o pincel

Illustration of a hand inserting a plug into a socket (no text or symbols)

Diagram showing a hand holding a device with a labeled component and a close-up of the device's tip.

Lubrificação

Diagram illustrating mechanical assembly steps with labeled components and directional arrows indicating motion

Illustration of a hand holding a small object with a magnified inset showing a tool tip (no text or symbols)

Montagem da lâmina

Technical diagram showing mechanical assembly with labeled parts A and B, likely illustrating a component or assembly step.

Illustration of a hand using a device to interact with a circular diagram showing particle interaction (no text or symbols)

Exploded view diagram of a mechanical assembly with numbered components for identification

A ① ② ③ ④ ⑤ ⑥

B

©

D

ER-GC71

E

(RE9-49) (RE9-52)

F

G

H

ER-GC71

A Hoveddeksel

Diagram showing a hairbrush and cable connection with labeled parts 1 and 2

Line drawing of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Illustration of a hand holding a curved object with internal parallel lines and an arrow indicating direction (no text or symbols)

Technical diagram showing a mechanical component with a magnified inset highlighting measurement points labeled 1, 2, and 11, marked as (a).

▶ Kamtilbehør [A]

Illustration of a person applying a hair accessory to their face (no text or symbols present)

Illustration of a person receiving neck massage or ear pressure technique (no text or symbols)

Illustration of a person's head and ear with a device attached to the ear (no text or symbols)

Illustration showing facial hair application technique with magnified detail and directional arrows indicating application direction.

Illustration of a human head with a patterned hair grid on the forehead and a crosshatched head with arrows on the palm (no text or symbols)

Notater

Diagram of a mechanical component with an upward arrow indicating motion or force (no text or symbols present)

Illustration of a person using a handheld tool to apply facial features, with an upward arrow indicating motion (no text or symbols present)

Illustration of a hand holding a tool with splashing liquid, next to an inset image of a device (no text or symbols)

Illustration of three hands performing a manual manual manipulation or cleaning procedure (no text or symbols present)

Line drawing of a pair of cleaning tools, one with spray and the other with dust (no text or symbols)

Illustration of a hand holding a small mechanical component with a black clip (no text or symbols visible)

Diagram showing a hand holding a device with a labeled component and a close-up of the device's tip, likely illustrating a mechanical or electrical process.

Smøring

Diagram illustrating mechanical assembly steps with labeled components and directional arrows indicating motion

Illustration of a hand using scissors to cut or apply a tool, with a magnified inset showing the tip and handle (no text or symbols present)

Montere bladet

Technical diagram showing mechanical assembly with labeled parts A and B, likely illustrating a component or assembly step.

Illustration of a hand using a device to interact with a corn cob, showing a circular arrow and leaf cover (no text or symbols)

Problemløsning

Exploded view diagram of a mechanical assembly with numbered components for identification

A ① ② ③ ④ ⑤ ⑥

ER-GC71

E ⑪ ⑫ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑴ (RE9-49) (RE9-52)

A Huvuddel

Diagram showing a hairbrush and a cable with labeled parts 1 and 2, likely illustrating a hairpin or digital device.

Line drawing of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Illustration of a hand holding a curved object with internal parallel lines and an arrow indicating direction (no text or symbols)

Technical diagram showing a mechanical component with a magnified inset highlighting measurement points labeled 1, 2, and 11, marked as (a).

Kamtillbehör [A]

Illustration of a person applying a hair accessory to their face (no text or symbols present)

Line drawing of a person applying a medical or therapeutic tool to their head (no text or symbols present)

Illustration of a person's head and ear with a device attached, showing a curved arrow indicating rotation (no text or symbols)

Forma polisonger

Utan kamtillbehör

Illustration showing facial hair application technique with magnified detail of the head and jaw area

Illustration of a human head with a patterned hair grid on the forehead and a crosshatched head with arrows on the palm (no text or symbols)

OBS!

Diagram of a mechanical component with an upward arrow indicating motion or force (no text or symbols present)

Trimma mjukt hår

Utan kamtillbehör

Illustration of a person using a handheld device to interact with their face (no text or symbols present)

Illustration of a hand cleaning a pipe with a magnified inset showing the same pipe (no text or symbols present)

Illustration of three hands performing a manual manual manipulation or cleaning procedure (no text or symbols present)

Line drawing of a pair of cleaning tools, one with spray and the other with dust (no text or symbols)

Illustration of a hand holding a small mechanical component with a black clip (no text or symbols visible)

Diagram showing a hand holding a device with a labeled component and a close-up of the device's tip, likely illustrating a mechanical or electrical process.

Smörjning

Diagram illustrating mechanical assembly steps with labeled components and directional arrows indicating motion

Illustration of hands using a tool to cut a piece, with a magnified inset showing the tip detail (no text or symbols)

Att sätta på bladet

Technical diagram showing mechanical assembly with labeled parts A and B, likely illustrating a component or assembly step.

Illustration of a hand using a device to interact with a circular diagram showing particle interaction (no text or symbols)

Felsökning

Exploded view diagram of a mechanical assembly with numbered components for identification

A ① ② ③ ④ ⑤ ⑥

E ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑴ (RE9-49) (RE9-52)

A Runko

© Kampaosa [A] (1–10 mm)

D Kampaosa [B] ER-GC71 (11–20 mm)

Diagram showing a hairbrush and cable connector with labeled parts 1 and 2

Line drawing of a hand holding a textured object with a downward arrow indicating a specific point (no text or symbols present)

Illustration of a hand holding a curved object with internal parallel lines and an arrow indicating direction (no text or symbols)

Technical diagram showing a mechanical component with labeled parts and a magnified inset showing measurement markings.

▶ Kampaosa [A]

Illustration of a person applying a hair accessory to their face (no text or symbols present)

Line drawing of a person applying a medical or therapeutic tool to their head (no text or symbols present)

Illustration of a person's head and neck with a device attached, showing a curved arrow indicating motion (no text or symbols)

Diagram illustrating facial hair application technique with magnified views of the head and jaw area

Illustration of a human head with a patterned hair grid on the forehead, shown in two views (front and side), no text or symbols present.

Huomautuksia

Diagram of a mechanical component with an upward arrow indicating motion or force (no text or symbols present)

Untuvaisen karvan trimmaaminen

Ilman kampaosaa

Illustration of a person using a handheld device to interact with their face (no text or symbols present)

Illustration of a hand cleaning a pipe with a magnified inset showing the same pipe (no text or symbols present)

Three-step illustration showing hand positioning of a tool or device with motion lines indicating movement (no text or symbols)

Line drawing of a pair of cleaning tools, one with spray and the other with dust (no text or symbols)

Puhdistus harjalla

Illustration of a hand inserting a plug into a small electronic component (no text or symbols)

Diagram showing a hand holding a device with a labeled component and a close-up of the device's tip, likely illustrating a mechanical or electrical process.

Diagram illustrating mechanical assembly steps with labeled components and directional arrows indicating motion

Illustration of hands using a tool to cut a piece, with a magnified inset showing the tip detail (no text or symbols)

Terän asentaminen

Technical diagram showing mechanical assembly with labeled parts A and B, likely illustrating a component or assembly step.

Illustration of a hand using a device to interact with a circular diagram showing a pile of seeds, no text or symbols present.

Vianetsintä

Exploded view diagram of a mechanical assembly with numbered components for identification

A ① ② ③ ④ ⑤ ⑥

B

©

D

ER-GC71

E

(RE9-49) (RE9-52)

F

G

H

ER-GC71

A Korpus

Diagram showing a hairbrush with labeled parts and connection point, likely illustrating a hairpin or digital device.

Line drawing of a hand holding a textured object with a downward arrow indicating a specific point (no text or symbols present)

Illustration of a hand holding a curved object with internal parallel lines and an arrow indicating direction (no text or symbols)

Technical diagram showing a mechanical component with a magnified inset highlighting measurement points labeled 1, 2, and 11, marked as (a).

Illustration of a person applying a hair accessory to their face (no text or symbols present)

Illustration of a person receiving neck massage or ear pressure technique (no text or symbols)

Illustration of a person's head and neck with a device attached, showing a curved arrow indicating rotation (no text or symbols)

Formowanie baków

Illustration showing facial hair application technique with magnified detail of the head and jaw area

Side-by-side line drawing of a human head with a patterned hair grid on the forehead and a crosshatched head with arrows on the palm (no text or symbols)

Uwagi

Diagram of a mechanical component with an upward arrow indicating motion or force (no text or symbols present)

Przycinanie meszku

Illustration of a person's face with a hand holding a tool, showing a pointing gesture (no text or symbols present)

Illustration of hands using a tool to clean or brush the next to a device (no text or symbols visible)

Three-step illustration showing hand positioning of a tool on a surface, with no text or symbols present.

Technical line drawing of a handheld device with motion blur effect (no text or symbols)

Illustration of a hand holding a small mechanical component with a black clip (no text or symbols visible)

Diagram showing a hand holding a device with a labeled component and a close-up of the device's tip, likely illustrating a mechanical or electrical process.

Smarowanie

Diagram illustrating mechanical assembly steps with labeled components and directional arrows indicating motion

Illustration of a hand holding a small object with a magnified inset showing a tool tip (no text or symbols)

Mocowanie ostrza

Technical diagram showing mechanical assembly with labeled parts A and B, likely illustrating a turning or disassembly process.

Illustration of a hand using a device to interact with a circular diagram showing particle interaction (no text or symbols)

Exploded view diagram of a mechanical assembly with numbered components for identification

A ① ② ③ ④ ⑤ ⑥

E ⑪ ⑫ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑴ (RE9-49) (RE9-52)

A Hlavní část

Diagram showing a hairbrush and cable connector with labeled parts 1 and 2

Line drawing of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Illustration of a hand holding a curved object with internal parallel lines and an arrow indicating direction (no text or symbols)

Technical diagram showing a mechanical component with a magnified inset highlighting measurement points labeled 1, 2, and 11, marked as (a).

Illustration of a person applying a hair accessory to their face (no text or symbols present)

Illustration of a person receiving neck massage or pressure technique (no text or symbols)

Illustration of a person's head and neck with a device attached, showing a curved arrow indicating rotation (no text or symbols)

Illustration showing facial hair application technique with magnified detail and directional arrows indicating application direction.

Illustration of a human head with hair patterns on the forehead and a back view showing hand positioning with arrows (no text or symbols)

Poznámky

Diagram of a mechanical component with an upward arrow indicating motion or force (no text or symbols present)

Zastřihávaní vlasové podsady

Illustration of a person using a handheld tool to apply facial features, with an upward arrow indicating motion (no text or symbols present)

Illustration of hands using a tool to clean or brush the pipe, with an inset showing a device (no text or symbols present)

Illustration of three hands performing a manual manual manipulation or cleaning procedure (no text or symbols present)

Technical line drawing of a mechanical component with three views (top, front, side) showing internal structure and motion indicators (no text or symbols)

Illustration of hands inserting a small component into a device (no text or symbols visible)

Diagram showing a hand holding a small electronic component with a labeled section (a) and a close-up of its tip.

Mazání

Diagram illustrating mechanical assembly steps with labeled components and directional arrows indicating motion

Illustration of a hand holding scissors with a magnified inset showing the tip of the blade (no text or symbols)

Připevnění čepele

Technical diagram showing mechanical assembly with labeled parts A and B, likely illustrating a turning or disassembly process.

Illustration of a hand using a device to interact with a circular diagram showing particle interaction (no text or symbols)

Řešení potíží

Exploded view diagram of a mechanical assembly with numbered components for identification

A ① ② ③ ④ ⑤ ⑥

E ⑪ ⑫ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑴ (RE9-49) (RE9-52)

A Hlavná čast'

Diagram showing a hairbrush with labeled parts and connection point, likely illustrating a hairpin or digital device.

Line drawing of a hand holding a textured object with a downward arrow indicating a specific point (no text or symbols present)

Illustration of a hand holding a curved object with internal parallel lines and an arrow indicating direction (no text or symbols)

Technical diagram showing a mechanical component with a magnified inset highlighting measurement points labeled 1, 2, and 11, marked as (a).

Illustration of a person applying a hair accessory to their face (no text or symbols present)

- Ucho si pridržte jednou rukou a vlasy ostrihajte.

Illustration of a person receiving neck massage from a tool (no text or symbols)

Illustration of a person's head and ear with a magnifying glass, showing a hand holding the device (no text or symbols present)

Úprava bokombrady

Illustration showing facial hair application technique with magnified detail of the head and jaw area

Illustration of a human head with a patterned hair grid on the forehead and a back view showing hand positioning with arrows (no text or symbols)

Poznámky

Diagram of a mechanical component with an upward arrow indicating motion or force (no text or symbols present)

Illustration of a person using a handheld device to interact with their face (no text or symbols present)

Čistenie zastrihávača

Illustration of hands using a tool to clean or brush the pipe, with an inset showing a device (no text or symbols present)

- Opláchnite vodou a zvyšnú vodu vytraste.

Illustration of three hands performing a manual manual manipulation or cleaning procedure (no text or symbols present)

- Opláchnite vodou a zvyšnú vodu vytraste.

Line drawing of a small electronic device with three views showing internal components and motion indicators (no text or symbols)

Čistenie kefkou

Illustration of a hand inserting a plug into a socket (no text or symbols)

Diagram showing a hand holding a device with a labeled component and a close-up of the device's tip, likely illustrating a mechanical or electrical process.

1. Na čepele naneste olej. (Pozrite stranu 223.)

Mazanie

Diagram illustrating mechanical assembly steps with labeled components and directional arrows indicating motion

Vyberanie a nasadzovanie čepele

Vyberanie čepele

Strihač držte tak, aby prepínač smeroval nahor a palcom vysuňte čepel', pričom druhou rukou ju zachytíte.

Illustration of a hand holding a small object with a magnified inset showing a tool tip (no text or symbols)

Nasadzovanie čepele

Technical diagram showing mechanical assembly with labeled parts A and B, likely illustrating a turning or disassembly process.

Illustration of a hand using a device to interact with a corn ear (no text or symbols present)

Riešenie problémov

Exploded view diagram of a mechanical assembly with numbered components for identification

A ① ② ③ ④ ⑤ ⑥

ER-GC71

E ⑪ ⑫ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑴ (RE9-49) (RE9-52)

A Készüléktest

Diagram showing a hairbrush and cable connection with labeled parts 1 and 2

Line drawing of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Illustration of a hand holding a curved object with internal parallel lines and an arrow indicating direction (no text or symbols)

Technical diagram showing a mechanical component with a magnified inset highlighting measurement points 11 and 12, labeled 'a'.

▶ Fésütoldalék [A]

Illustration of a person applying a hair accessory to their face (no text or symbols present)

Illustration of a person receiving neck massage from a tool (no text or symbols)

Illustration of a person's head and neck with a device attached, showing a curved arrow indicating rotation (no text or symbols)

Illustration showing facial hair application technique with magnified detail and directional arrows indicating application direction

Side-by-side line drawing of a human head with a patterned hair grid on the forehead and a crosshatched head with arrows on the palm (no text or symbols)

Megjegyzések

Diagram of a mechanical component with an upward arrow indicating motion or force (no text or symbols present)

A pelyhek nyírása

Fésütoldalék nélkül

Illustration of a person applying a hair pencil to their face, showing the correct eye and mouth (no text or symbols present)

Illustration of hands using a tool to cut or spread material, with an inset showing a magnified view of the same tool (no text or symbols present)

Illustration of three hands performing a manual manual manipulation or cleaning procedure (no text or symbols present)

Technical line drawing of a shoe with cutouts and spray patterns (no text or symbols)

Tisztítás a kefével

Illustration of a hand inserting a plug into a socket (no text or symbols)

Diagram showing a hand holding a small electronic component with a labeled section (a) and a close-up of its tip.

Kenés

Diagram illustrating mechanical assembly steps with labeled components and directional arrows indicating motion

Illustration of hands using a tool to cut a small object, with a magnified inset showing the tip detail (no text or symbols present)

Technical diagram showing mechanical assembly with labeled parts A and B, likely illustrating a component or assembly step.

Illustration of a hand holding a device with arrows indicating process flow (no text or symbols)

Hibaelhárítás

Exploded view diagram of a mechanical assembly with numbered components for identification

Nr. model ER-GC71/ER-GC51

Cuprins

A ① ② ③ ④ ⑤ ⑥

ER-GC71

E ⑪ ⑫ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑴ (RE9-49) (RE9-52)

A Corpul principal

Diagram showing a hairbrush and cable connection with labeled parts 1 and 2

Line drawing of a hand holding a textured object with a downward arrow indicating a specific point (no text or symbols present)

Illustration of a hand holding a curved object with internal parallel lines and an arrow indicating direction (no text or symbols)

Technical diagram showing a mechanical component with a magnified inset highlighting measurement points labeled 1, 2, and 11, marked as (a).

Illustration of a person applying a hair accessory to their face (no text or symbols present)

Illustration of a person receiving a neck massage or ear pressure technique (no text or symbols present)

Illustration of a person's head and ear with a device attached, showing a hand gesture (no text or symbols)

Illustration showing facial hair application technique with magnified detail of the head and jaw area

Illustration of a human head with a patterned hair grid on the forehead and a back view showing hand positioning with arrows (no text or symbols)

Note

Diagram of a mechanical component with an upward arrow indicating motion (no text or symbols present)

Tunderea pufului

Fără accesoriiul pieptene

Illustration of a person using a handheld device to interact with their face (no text or symbols present)

Illustration of a hand cleaning a pipe with a magnified inset showing the same pipe (no text or symbols present)

Illustration of three hands performing a manual manual manipulation or cleaning procedure (no text or symbols present)

Line drawing of a small electronic device with three views showing internal components and motion indicators (no text or symbols)

Curățarea cu peria

Illustration of a hand holding a small mechanical component with a black clip (no text or symbols visible)

Diagram showing a hand holding a device with a labeled component and a close-up of the device's tip, likely illustrating a mechanical or electrical process.

Lubrifiere

Diagram illustrating mechanical assembly steps with labeled components and directional arrows indicating motion

Illustration of a hand holding a small object with a magnified inset showing a tool tip (no text or symbols)

Montarea lamei

Technical diagram showing mechanical assembly with labeled parts A and B, likely illustrating a component or assembly step.

Illustration of a hand using a device to interact with a tray, showing a circular arrow and downward arrows indicating interaction (no text or symbols present)

Depanare

Exploded view diagram of a mechanical assembly with numbered components for identification

© Panasonic Corporation 2016
