RWM120

Smoke alarm devices

ABUS

Security Tech Germany

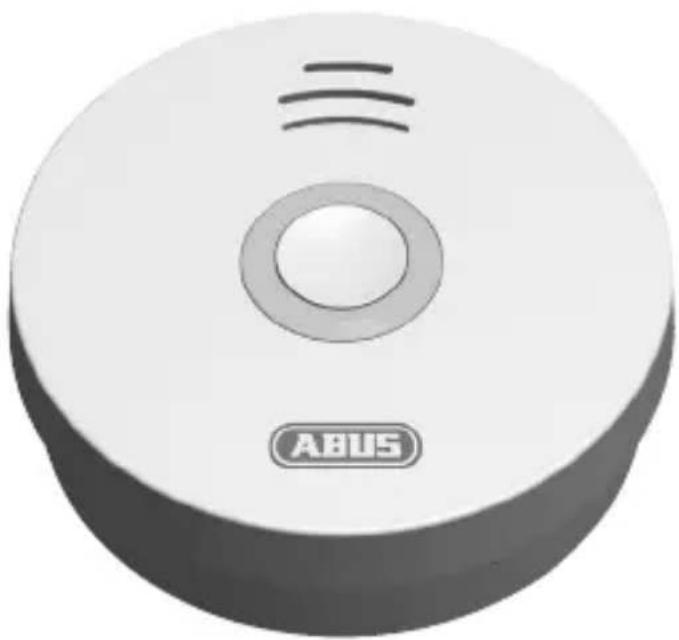

3D rendering of a white USB flash drive with a circular button and ventilation grille (no text or symbols on the device itself)

User manual

Smoke alarm devices

GB

Version 3.0

0786-CPR-21425

EN 14604:2005/AC:2008

G215007

Please read carefully through this instruction for use before starting up! Smoke detectors help save lives! Please keep save this instruction for use!

Contents

Contents

Introduction ......22

Safety instructions....23

Delivery contents 24

Technical data 25

Functions and technical features ......25

Emergency procedure when alarm sounds 26

Location selection 26

Installation and operation 27

Display and functions 29

Care and maintenance 31

Warranty 32

Disposal 33

Declaration of Performance 34

Declaration of Conformity.... 34

Introduction

Notes to accompany user manual

Dear customers, we thank you for choosing our product and thank you for trusting in us! You have made a good choice.

This smoke alarm has been developed and manufactured with great care in order to help draw your attention to any fire risk in good time. Please read this user manual thoroughly and observe all the instructions provided, as this will enable best use of the device.

This manual serves as the fitting and maintenance instructions.

Intended use

The device should only be used for its originally intended purpose! The product is not intended for any other use!

This device may only be used for the following purpose(s):

- Fire or smoke detection in private households

- This smoke alarm is approved for installation in habitable recreational vehicles.

Limitation of liability

Your rights are limited to the repair or replacement of this product in the same condition that it was delivered. ABUS accepts no liability for any special, incidentally arising or consequential damage, including, but not limited to, loss of revenue, loss of profit, restrictions in use of the software, loss or recovery of data, costs for replacement facilities, down times, damage to property and claims by third parties, including those arising from contractual or legal claims for recovery or those arising under damage legislation, notwithstanding other restricted or legally implicit warranty provisions or in cases where the limited warranty is not valid, the scope of liability of ABUS is limited to the purchase price of the product.

The contents of these instructions may be altered without prior notice.

© ABUS August Bremicker Söhne KG, 01/2015

Safety instructions

Definition of symbols

The following symbols are used in this manual and on your device:

Battery recommendations

Symbol	Signal word	Note
	Warning	Warning message regarding risk of injury or health risk.
	Warning	Warning message regarding risk of injury or health risk due to electrical voltage.
	Important	Safety advice concerning possible damage to device/ accessories.
	Note Note regarding important information.

The device is powered by a built-in 3 V lithium battery with 3 V DC.

Battery is non-replaceable and non-rechargeable!

Packaging

- Keep packaging materials and components away from children – risk of suffocation!

- Remove all packaging before using device.

Functions

To ensure correct operation of device, please observe the following points:

• Do not cover the device!
  • Do not paint or cover device with wallpaper!
  Do not open or attempt to repair the device under any circumstances. Non-observance of the above points will render the guarantee void.
• The device is rendered unsuitable for use once it has been dropped or any other damage has been suffered.

Delivery contents

• ABUS smoke alarm including built-in battery
- User manual
- Installation equipment

Technical data

Power supply DC 3 V Lithium Battery (built-in)

Smoke detection photoelectric reflection

Visual alarm LED will flash every 40 sec

Electric consumption >8 μA (∅ standby) || >50 mA (∅ alarm)

Operating temperature 0° to 45°C

Air humidity 10 % to 90 % (non-condensing)

Sound pressure >85 dB (A)@3 m

Alarm mute ca. 10 Minuten

Erfassungsbereich approx. 10 minutes duration

Mounting location ceiling (internal rooms only)

GB

Functions and technical features

• The smoke alarm does not recognise gases, vapours, heat and fire/flames!
• It is possible that people with limited hearing may not hear the alarm! For such cases there is an alarm with additional visual signals!
• Especially high electromagnetic radiation may affect unit operation. Therefore, do not install the alarm near devices which emit electromagnetic radiation or close to magnets.
• This smoke alarm works according to the principles of optics (photoelectric reflection) and contains a measuring chamber in which penetrating smoke particles are measured.
• If the alarm threshold is exceeded, a loud, audible alarm will sound.
• The alarm will switch itself off as soon as the measuring chamber becomes smoke-free again.

Functions and technical features | Emergency procedure when alarm sounds | Location selection

Emergency procedure when alarm sounds

(1) Alert all co-residents
(2) offer assistance to children, disabled and elderly people and invalids.
(3) Close all windows and doors behind you.
(4) Leave the building immediately.
(5) Do not use the elevators.
(6) Alert the fire service: Tel. 112.

Location selection

Smoke alarms should be installed as a minimum level RM of equipment in all bedrooms, children's rooms and corridors that are used as escape routes; one alarm should be fitted in the centre of each room and only on the ceiling (no wall mounting)(Fig. 2).

Fig. 2 Bedroom Children's room Living room Kitchen Boiler/ utility room Work room/ workshop

Select the highest point in the room for mounting with a minimum distance of 50 cm from any wall, furniture or lamps. You can achieve optimal performance by also installing smoke alarms in all other rooms and on all landings

- A smoke alarm is not normally required in washrooms (bathroom, WC etc.) owing to the low fire risk in these rooms.

Please observe the illustrations in this manual!

The smoke alarm should not be installed in the following areas

outside (use only in enclosed spaces);

in areas in which the alarm can be triggered by disturbances (steam, condensation, 'normal' smoke, fumes, dust, dirt or grease);

• next to ventilation or similar air inlets (draughts);
• in areas where temperatures may fall below 0 °C or exceed 45 °C

Installation and operation

In order to mount the alarm on the ceiling follow the steps in the order listed below:

1. Remove smoke alarm by turning anti-clockwise from the alarm base.
2. Mark the holes through the alarm base.
3. Fit the required rawlplug into the drill hole and tightly screw in the alarm base.

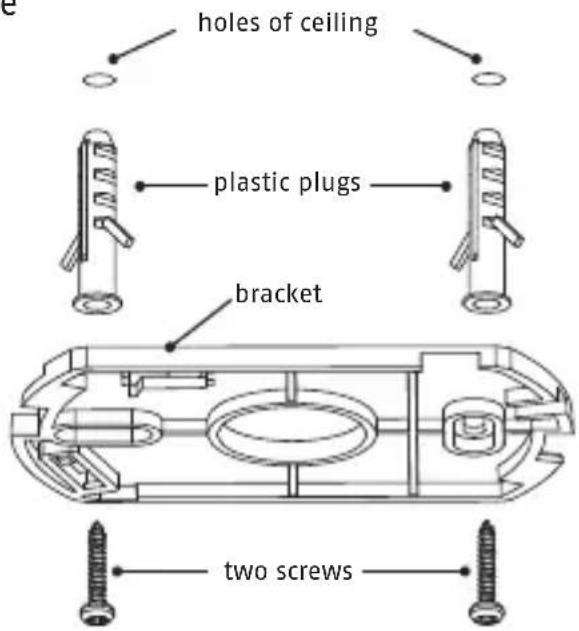

holes of ceiling plastic plugs bracket two screws

marking out your drill holes, ensure that no electrical wires/cables, pipes or other installation components are located behind the installation point!

1. Then enter the current date (installation date) on the label on the reverse side of the alarm with a water and abrasion resistant pen (see illustration opposite).
2. Attach smoke alarm by turning clockwise at the unit base.

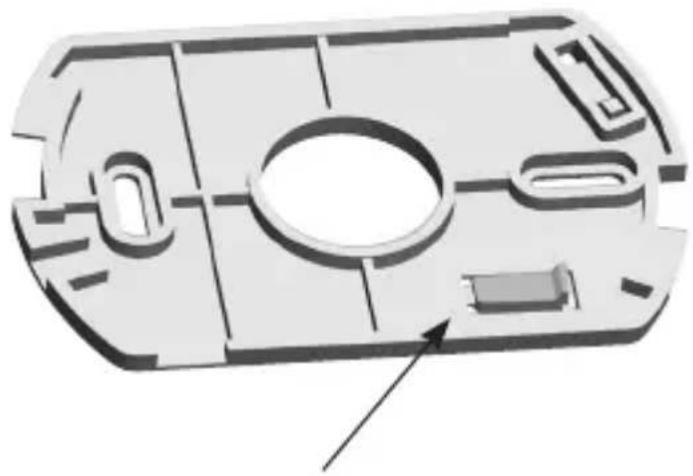

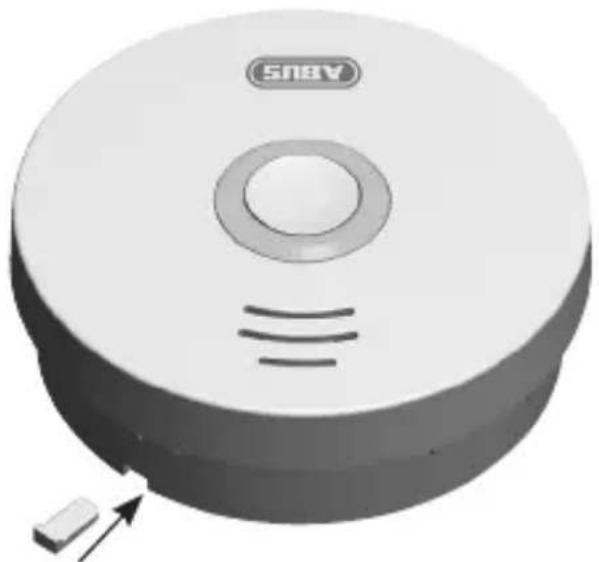

3. Remove the locking pin located in the mounting socket and insert it into the designated side opening to prevent the alarm from turning (see illustration below).
   Installationsdatum | Installation date | Date dinstallation: ____ DD|MM|YYYY
   z.B.: 09/05/2014

3D technical diagram of a mechanical component with cutouts and internal features (no text or symbols)

3D rendering of a white circular device with ventilation slots and a small rectangular component at the bottom (no text or symbols visible)

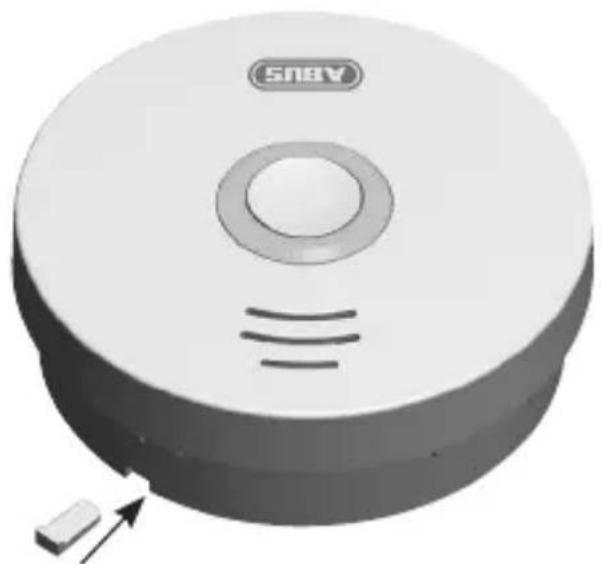

Insert fixing plugRemove the fixing plug with screwdriver

Display and functions Commissioning

Press test/reset button and hold it for above 3 seconds until LED lights

red, and release it within 2 seconds, the unit will generate a "beep" indicates that it is activated and goes into work status.

Normal operating mode

The red LED light under the cover will flash every 40 seconds in normal operating mode signalling that the alarm is ready for use.

Electronic test

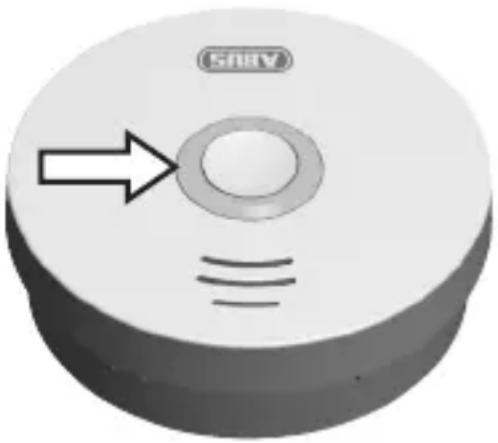

Perform regular functional tests on your smoke alarm, press the test/reset button. The warning tone will sound and the red 'ALARM' LED light will flash.

This does not signal that there is smoke present in the room but it is confirmation that the smoke alarm is functioning correctly.

Always test the functioning of the smoke alarm after installation. Additionally, a regular inspection is recommended.

Ensure your hearing is protected by maintaining an arm's length distance between yourself and the device!

3D rendering of a circular device with a central button and an arrow pointing to it, labeled 'SREV' (no additional text or symbols)

Low battery

Whenever the battery falls below a certain voltage level, the alarm will bleep and the LED light will flash every 40 seconds. By pressing the test button you can switch off the signal for 10 seconds, then it will restart automatically.

Whenever the warning signal sounds the alarm must be immediately replaced with a new one! The alarm has a built-in battery that cannot be replaced!

the moment of the first battery warning, the alarm will still operate at full capability for at least another 30 days!

Self-test with automatic error message

The smoke alarm will perform a periodic self-test and it is able to recalibrate the sensitivity of the smoke measure chamber automatically through contamination.

If the alarm's sensitivity trigger fails under the minimum required threshold level (e.g. due to excessive contamination of the smoke measure chamber), the unit will bleep once every 40 seconds.

error message does not clear upon cleaning of the alarm then the alarm should be immediately replaced (see chapter entitled 'Care and maintenance')!

Alarm mode

Upon detection of smoke, a loud, pulsating alarm tone will sound and the red LED light will flash simultaneously at short intervals. In this case, proceed as described under the chapter entitled ‘Emergency procedure when alarm sounds’.

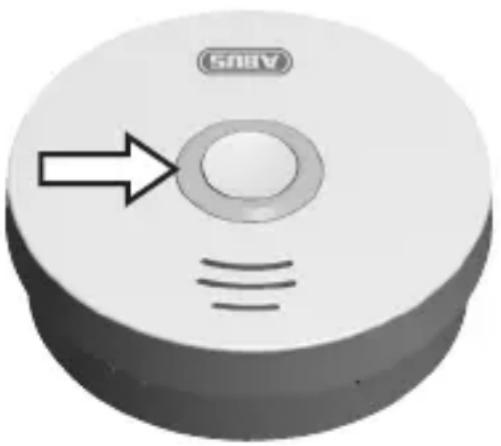

Alarm silent mode

Once the device is in alarm mode, the alarm sound can be deactivated for approx. 10 minutes by pressing the test/reset button.

When the device is in silent mode, the red LED light will continue to flash every 8 seconds to show that the alarm is still in active mode.

If smoke is still detected in the smoke measure chamber once the approx. 10 minute silent period has ended, the audible alarm will sound again.

3D rendering of a circular device with a central button and an arrow pointing to it, labeled 'SNEV' (no text or symbols on the device itself)

Care and maintenance

What to do in case of false alarm?

GB

Possible causes of false alarm include: Welding and cutting, soldering and other hot work, sawing and grinding, dust created from building work, e.g. cleaning, extreme electromagnetic effects, changes in temperature which lead to condensation in the alarm as well as household dust and small insects.

If a false alarm is being caused by work close to the device, it should

be temporarily covered up or removed. Upon completion of the work, it is imperative, however, that the device be returned to its original operating state and be checked!

Cleaning

The operation of every installed smoke alarm must be regularly checked and kept safe through maintenance measures in accordance with German DIN 14676 application standards.

This includes an inspection at least once every 12 months ± 3 months, including maintenance and checking the performance of the warning signals.

The results and measures taken should be documented accordingly.

Dust covered alarms must be cleaned. Dust deposits in the alarm's air vents can be sucked up or blown out.

Dust can be removed with a brush if required.

• The surface area can be cleaned with a slightly damp and soapy cloth.
  • Take care that no liquids get into the apparatus! Do not clean device in a dishwasher!
• Do not use any sharp, pointed, abrasive or caustic cleaning products, chemicals or hard brushes!

Maintenance

electronic components of each smoke alarm are subject to ageing. In addition, smoke measure chambers will inevitably become contaminated over time.

• To guarantee full functionality for your smoke alarm, it should be replaced no more than 10 years from the date that it is first used!

Warranty

• ABUS products are designed and manufactured with great care and tested in accordance with applicable regulations.
• The warranty extends solely to defects that can be attributed to faulty materials or manufacturing at the time of purchase. If it can be proved that materials or manufacturing are faulty, the warranty provider agrees to repair or replace the smoke alarm at their own discretion.

• In such cases the warranty will end upon expiry of the original warranty period of 2 years. Any further claims are expressly excluded.

• The included batteries are not covered by the warranty.

• ABUS accepts no liability for defects or damage arising from external influences (e.g. through transport, excessive force, incorrect operation), improper use, normal wear and tear or non-observance of this manual.
• When making a warranty claim, the faulty smoke alarm should be accompanied by the original proof of purchase including purchase date and a short written description of the fault.
• If you discover a fault in the smoke alarm that was present at the time of purchase, please contact your dealer directly within the first two years.

Disposal

Your device should be disposed of according to WEEE EU Directive 2002/96/EC – WEEE (Waste Electrical and Electronic Equipment).

In case of any queries, contact your local authority responsible for waste disposal. For information regarding collection points for used devices, contact your local city council, waste disposal company or dealer.

Declaration of Performance

This smoke alarm has been tested and certified as a construction product in accordance with EU Regulation 305/2011. It has been manufactured subject to monitoring by regular and independent inspections for changes in compliance with legal and normative requirements.

The 2015RWM120 Declaration of Performance can be found at www.abus.com

Please enter smoke alarm type (RWM120) in the above right field (RWM120), then go to downloads. Double-click here to view the Declaration of Performance. In addition, you will find here the datasheet and the user manual for the smoke alarm.

Conformity to VdS 3131 (Q)

This product is certified to VdS (Q)

0786-CPR-21425 EN 14604:2005/AC:2008

G215007

Declaration of Conformity

ABUS August Bremicker Söhne KG, Altenhofer Weg 25, 58300 Wetter hereby declares that the RWM120 complies with the essential requirements and the relevant provisions of EU Directive 2004/108/EG. For further information regarding the EU Declaration or to view the EU Declaration, please contact ABUS August Bremicker Söhne KG, Customer Service Centre, Altenhofer Weg 25, 58300 Wetter.

GB

Subject to technical alterations.

No liability for mistakes and printing errors.

© ABUS | D-58292 Wetter (Germany)

RWM120

Security Tech Germany

3D rendering of a white CD or DVD with a circular center and ventilation grille, labeled 'ABUS' (no additional text or symbols)

Cher cliente, Cher client,

© ABUS August Bremicker Söhne KG, 01/2015

3D cutaway diagram of a vehicle's internal components, showing no text or symbols

3D rendering of a circular device with a black button and ventilation grille, emitting smoke or heat (no text or symbols visible)

3D rendering of a white circular device with a circular button and indicator lights, no visible text or symbols.

3D rendering of a circular device with a central button and an arrow pointing to it, no visible text or symbols.

© ABUS | D-58292 Wetter (Germany)

www.abus.com

RWM120

Rookmelder

ABUS

Security Tech Germany

3D rendering of a white USB flash drive with a circular button and ventilation grille (no text or symbols on the device itself)

© ABUS August Bremicker Söhne KG, 01/2015

3D cutaway diagram of a vehicle's internal components, showing no text or symbols

3D rendering of a circular fire extinguisher device with no visible text or symbols on the body (excluding 'SN5' logo)

3D rendering of a circular device with a central button and an arrow pointing to it, labeled 'SREV' (no additional text or symbols)

NL

3D rendering of a circular device with a central button and an arrow pointing to it, no visible text or symbols.

Onderhoud

© ABUS | D-58292 Wetter (Germany)

www.abus.com

RWM120

Rilevatore di Fumo

ABUS

Security Tech Germany

3D rendering of a white CD or DVD with a circular center and ventilation grille, labeled 'ABUS' (no additional text or symbols)

© ABUS August Bremicker Söhne KG, 01/2015

3D technical diagram of a mechanical component with cutouts and internal features (no text or symbols)

3D rendering of a white circular device with ventilation grille and a small rectangular component at the bottom (no text or symbols visible)

3D rendering of a circular device with a circular button and indicator lights, no visible text or symbols.

Batteria debole

3D rendering of a circular device with a central button and directional arrow, no visible text or symbols.

Cura e manutenzione
