GZ-21S - Wine cellar Guzzanti - Free user manual and instructions

Product Type	Wine Cellar
Brand	Guzzanti
Model	GZ-21S
Bottle Capacity	21 bottles (approx.)
Dimensions (H x W x D)	85 x 55 x 58 cm
Net Weight	35 kg
Power Supply	220-240 V / 50 Hz
Power Consumption	100 kWh/year (approx.)
Temperature Control	Digital thermostat, adjustable range 5-18°C
Interior Lighting	LED light with on/off switch
Shelves	3 wooden shelves, adjustable height
Air Circulation	Silent ventilation system
Door Type	Glass door with UV protection
Lock	Key lock for security
Noise Level	≤ 42 dB
Climate Class	N (16°C - 32°C)
Refrigerant	R600a
Maintenance	Clean with soft cloth and mild detergent; defrost when ice layer exceeds 5 mm
Safety Features	Stability braces, grounding plug, overload protection
Spare Parts Availability	Contact authorized service center for shelves, thermostat, fan, etc.

Frequently Asked Questions - GZ-21S Guzzanti

How do I set the temperature on my Guzzanti GZ-21S?

Press the SET button on the control panel, then use + or - to adjust the desired temperature. Wait 5 seconds to confirm.

Why is my wine cellar not cooling?

Check that the power cord is plugged in and the door is fully closed. Ensure the interior temperature setting is lower than ambient. If the issue persists, clean the condenser coils and verify the ventilation slots are not blocked.

How many bottles can the GZ-21S hold?

The GZ-21S can hold up to 21 standard Bordeaux bottles (75 cl) when arranged properly on the three adjustable shelves.

Can I use the wine cellar in a garage or outside?

No, the wine cellar is designed for indoor use only. It should be placed in a dry, well-ventilated area with ambient temperatures between 16°C and 32°C (climate class N).

How do I defrost the wine cellar?

Turn off the unit and allow the ice to melt naturally. Place towels to absorb water. Never use sharp objects to remove ice. Restart the appliance once the interior is dry.

The wine cellar is making unusual noise. Is this normal?

Some noise is normal, such as a faint hum from the compressor or click from the thermostat. If you hear loud rattling, check that the unit is level and shelves are secure. Unusual sounds may indicate a loose part or malfunction.

What does the lock do and how do I use it?

The door is equipped with a lock to prevent unauthorized access. Use the provided key to lock or unlock the door. Keep the key away from children.

How often should I clean the interior?

Clean the interior every 3-6 months with a soft cloth and a solution of warm water and mild detergent. Avoid abrasive cleaners or solvents. Rinse and dry thoroughly.

Can I store red and white wine together?

Yes, the GZ-21S has a single temperature zone. For optimal aging, set a compromise temperature around 12°C. For service temperature, white wines can be chilled separately before serving.

What should I do if the power cord is damaged?

Stop using the appliance immediately. Replace the cord with an original part from the manufacturer or an authorized service center. Do not attempt to repair it yourself.

USER MANUAL GZ-21S Guzzanti

Front view of a white stainless steel refrigerator with three side monitors and four diagonally striped windows (no text or symbols visible)

GZ-18S GZ-21S

Line drawing of a refrigerator with front panel and side-mounted appliances (no text or symbols)

OBSAH

DŮLEŽITÉ BEZPEČNOSTNÍ POKYNY....3

TECHNICKÉ ÚDAJE....5

POPIS SPOTŘEBIČE......6

Simple diagram with a blank square, three directional arrows and a lightbulb icon (no text or labels)

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

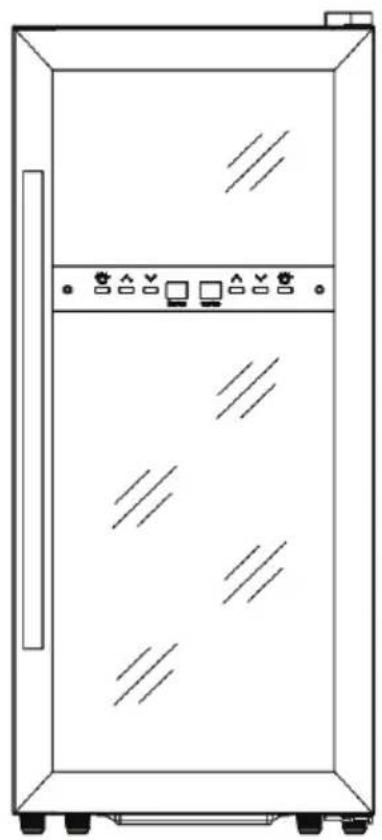

Front view of a white stainless steel refrigerator with three side monitors and four diagonally striped windows (no text or symbols visible)

GZ-18S GZ-21S

Line drawing of a refrigerator with front panel and side-mounted appliances (no text or symbols)

OBSAH

DÔLEŽITÉ BEZPEČNOSTNÉ POKYNY....3

TECHNICKÉ ÚDAJE......5

POPIS SPOTREBIČA 6

ELEKTRICKÁ SCHÉMA 8

INŠTALÁCIA TERMOELEKTRICKEJ VINOTÉKY 10

PRIPOJENIE K ELEKTRICKEJ SIETI 10

POUŽÍVANIE TERMOELEKTRICKEJ VINOTÉKY 11

ČISTENIE A ÚDRŽBA 12

ODSTRAŇOVANIE MOŽNÝCH PROBLÉMOV 13

DÔLEŽITÉ BEZPEČNOSTNÉ POKYNY

1. Horný záves
2. Kryt osvetlenia
3. Plášť spotrebiča
4. Polica
5. Mriežka ventilátora
6. Nastavitelná nožička

7. Odtoková vaňa

8. Sklenené dvierka

9. Tesnenie dvierok
10. Dolný záves
11. Tlačidlo na zapnutie/vypnutie osvetlenia
12. Tlačidlo na zníženie teploty
13. Tlačidlo na zvýšenie teploty
14. Displej

GZ-21S

1. Horný záves
2. LED osvetlenie
3. Mriežka ventilátora
4. Polica
5. Nastavitelná nožička

6. Odtoková vaňa

7. Tesnenie dvierok

8. Dolný záves
9. Displej
10. Tlačidlo na zníženie teploty
11. Tlačidlo na zvýšenie teploty
12. Tlačidlo na zapnutie/vypnutie osvetlenia

GZ-18S

GZ-21S

INŠTALÁCIA TERMOELEKTRICKEJ VINOTÉKY

Simple diagram with a blank rectangle, three directional icons (arrow, down-right, lightbulb) arranged horizontally (no text or labels)

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

Front view of a white stainless steel refrigerator with three side monitors and four diagonally placed dish patterns (no text or symbols visible)

GZ-18S GZ-21S

Line drawing of a refrigerator with front panel and side-mounted appliances (no text or symbols)

SPIS TREŚCI

WAŻNE WSKAZÓWKI DOTYCZĄCE BEZPIECZEŃSTWA....3

DANE TECHNICZNE....5

OPIS URZĄDZENIA....6

SCHEMAT ELEKTRYCZNY 8

INSTALACJA TERMOELEKTRYCZNEJ CHŁODZIARKI DO WINA.... 10

PODŁĄCZENIE DO SIECI ELEKTRYCZNEJ 10

UŻYWANIE TERMOELEKTRYCZNEJ CHŁODZIARKI DO WINA 11

CZYSZCZENIE I KONSERWACJA....12

ROZWIAZYWANIE EVENTUALNYCH PROBLEMÓW 13

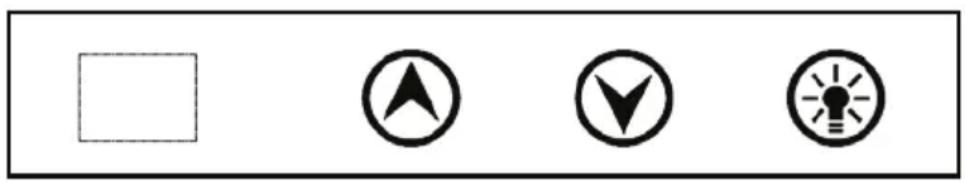

Simple diagram with a blank rectangle, three directional arrows and a lightbulb icon (no text or labels)

Symbol of a trash bin crossed with no text or numbers, representing environmental protection (no text present)

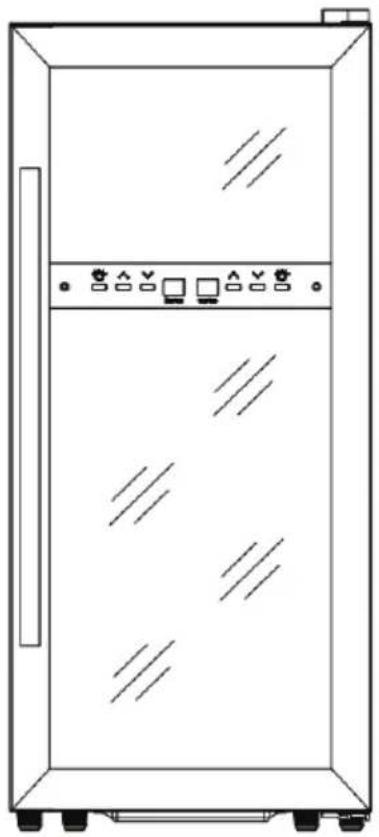

Front view of a white stainless steel refrigerator with three side monitors and four diagonally striped windows (no text or symbols visible)

GZ-18S GZ-21S

Line drawing of a double-door refrigerator with front panel and side-mounted appliances (no text or symbols)

TARTALOM

FONTOS BIZTONSÁGI TUDNIVALÓK....3

MÜSZAKI ADATOK....5

Simple diagram with a blank rectangle, three directional icons (arrow, down-right, lightbulb) arranged horizontally (no text or labels)

Symbol of a trash bin crossed with no text or numbers, representing environmental hazard (no text present)

Front view of a white stainless steel refrigerator with three side monitors and four diagonally placed dish patterns (no text or symbols visible)

GZ-18S GZ-21S

Line drawing of a double-door refrigerator with front panel and side-mounted appliances (no text or symbols)

VSEBINA

POMEMBNI VARNOSTNI NAPOTKI....3

TEHNIČNI PODATKI....5

OPIS APARATA....6

ELEKTRIČNA SHEMA....8

NAMESTITEV TERMOELEKTRIČNE VINSKE VITRINE....10

PRIKLJUČITEV NA ELEKTRIČNO OMREŽJE 10

UPORABA TERMOELEKTRIČNE VINSKE VITRINE....11

ČIŠČENJE IN VZDRŽEVANJE 12

ODPRAVLJANJE TEŽAV 13

Symbol of a trash bin crossed with no text or numbers, representing environmental protection (no text present)

Front view of a white stainless steel refrigerator with three side monitors and four diagonally striped windows (no text or symbols visible)

GZ-18S GZ-21S

Line drawing of a double-door refrigerator with front panel and side-mounted appliances (no text or symbols)

INHALT

Simple diagram with a blank rectangle, three directional arrows and a lightbulb icon (no text or labels)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Front view of a white stainless steel refrigerator with three side monitors and four diagonally placed dish patterns (no text or symbols visible)

GZ-18S GZ-21S

Line drawing of a refrigerator with front panel and side-mounted appliances (no text or symbols)

CONTENTS

IMPORTANT SAFETY INSTRUCTIONS ....3

TECHNICAL DATA 5

LOCATION OF PARTS....6

ELECTRIC DIAGRAM 8

INSTALLATION YOUR THERMOELECTRIC COOLER.... 10

ELECTRIC CONNECTION 10

USING YOUR THERMOELECTRIC COOLER 11

CLEANING AND MAINTENANCE....12

TROUBLE SHOOTING 13

Please read this manual before using your appliance.

Keep it for future reference

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of fire, electrical shock, or injury when using your appliance, follows these basic precautions.

DANGER or WARNING: risk of child entrapment.

Junked or abandoned appliances are dangerous ...even if they just sit in the garage a few days.

Before you throw away your old thermoelectric cooler: take of the door, leave the shelves in place so that children may not easily climb inside.

Children should be supervised to ensure that they do not play with the appliance.

Never clean appliance parts with flammable fluids. The fumes can create a fire hazard or explosion.

Do not store or use gasoline or any other flammable vapors and liquids in the vicinity of this or any other appliance.

Do not store food in thermoelectric cooler, as interior temperature may not get cool enough to prevent spoilage.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children should not play with the appliance.

Cleaning and user maintenance should not be made by children without supervision.

- If the supply cord is damaged it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- Disposing of the appliance

To avoid damage to the environment or human health caused by the uncontrolled disposal of electrical waste, recycle appliance responsibly to promote the reuse of material resources. Disposal must be done safely in public collection points provided for this purpose.

- Installation and commissioning:

The device must be installed on the ground, on a level surface, making sure that the vents are properly identified.

Never attempt to replace or repair part or component of the appliance by yourself, ask the aid of a professional and qualified staff if necessary.

- Handling

Always handle the appliance with care to avoid damaging it.

- This appliance is intended to be used in household and similar applications such as:

• the corners reserved for staff kitchens of shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
  • bed and breakfast type environments;
  • catering and similar non-retail applications.

- Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

- Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

- If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

- Clean regularly surfaces that can come in contact with food and accessible drainage systems.

- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

- Do not use with a programmer, timer, separate remote-control system or any other device that switches on.

- WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.

- WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

- For installation and cleaning, please refer to the chapters on „INSTALLATION YOUR THERMOELECTRIC COOLER“ and „CLEANING AND MAINTENANCE“.

TECHNICAL DATA

Model NO GZ-18S GZ-21S
Category of household refrigerating appliances:	Category 10 Category 10
Energy class B C
Temperature range 11-18°C		Upper: 7-18°C; Lower: 11-18°C
Daily energy consumption 0.51 kWh/24h 0.647 kWh/24h
Annual energy consumption	187 kWh/an 236 kWh/an
Gross capacity 55L 62L
Net capacity 54L 58L
Defrosting Automatic Automatic
Airborne acoustical noise emissions	42dB(A)	46dB(A)
Supply	220V-240V / 50Hz 70W	220V-240V / 50Hz 140W
Storage capacity	18 bottles (75cl standard Bordeaux-type)	21 bottles (75cl standard Bordeaux-type)
Dimension (W x D x H)	345 × 507 × 636 (mm)	345 × 514 × 803 (mm)
Net Weight	13.5kg	19.77kg
Gross Weight	15.3kg	21.8kg
Installation type	Freestanding	Freestanding

LOCATION OF PARTS

GZ-18S

1. Upper hinge
2. Light cover
3. Cabinet
4. Shelf
5. Cold fan mask
6. Foot

7. Water tray

8. Glass door

9. Door seal
10. Lower hinge
11. Light
12. Temperature down key
13. Temperature up key
14. Display window

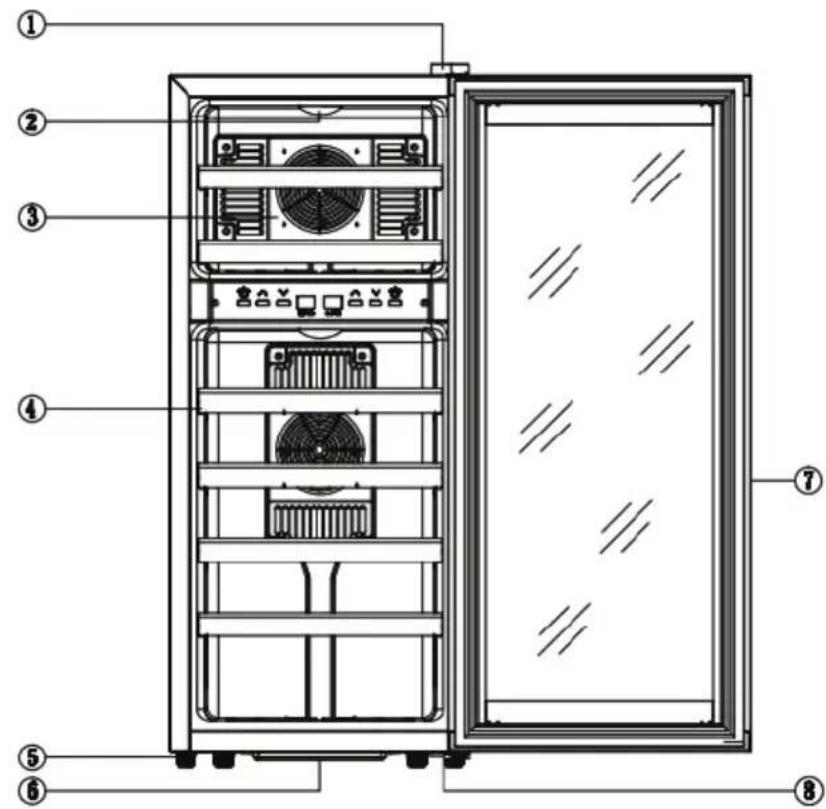

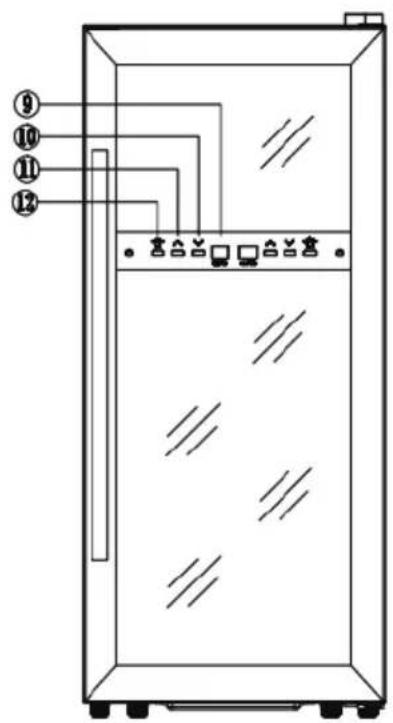

GZ-21S

1. Upper hinge
2. LED Light
3. Cold fan mask
4. Shelf
5. Adjustable feet

6. Water tray

7. Door seal

8. Lower hinge
9. Display window
10. Temperature down key
11. Temperature up key
12. Light key

GZ-18S


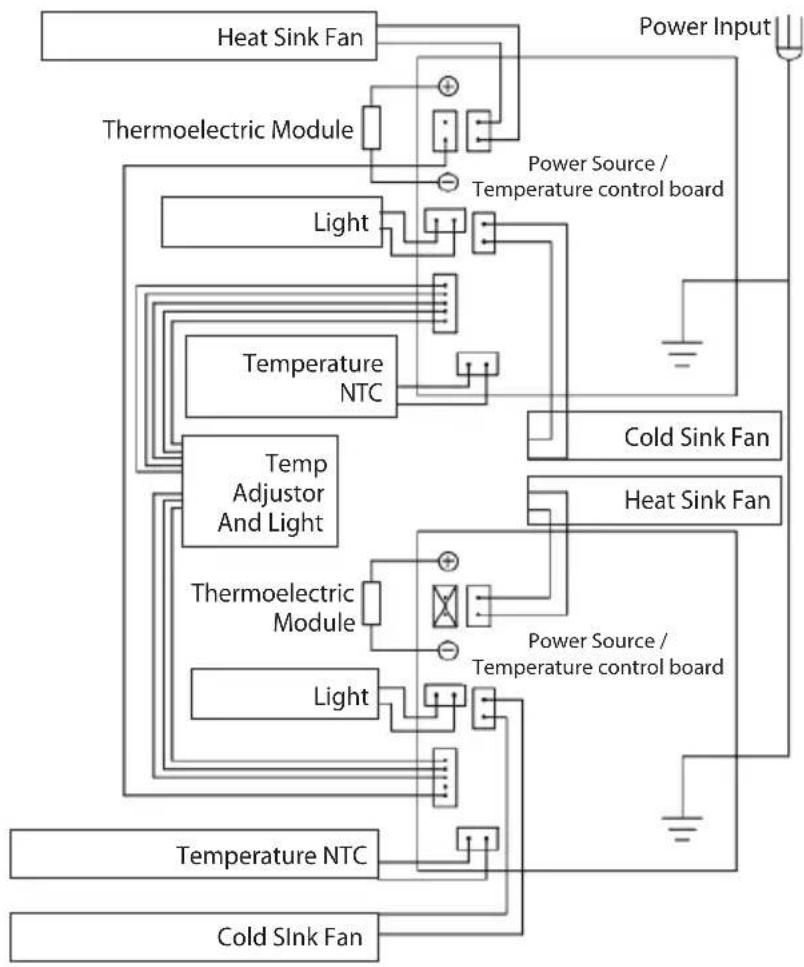

GZ-21S

INSTALLATION YOUR THERMOELECTRIC COOLER

Before using your thermoelectric cooler:

• Remove the exterior and interior packing
• Before connecting the appliance to the power source, let it stand upright for approximately 2 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.
• Clean the interior surface with lukewarm water using a soft cloth.
• Place your appliance on a floor that is strong enough to support the appliance when it is fully loaded. To level your appliance, adjust the front legs at the bottom of the appliance.
• For recedes installation away from direct sunlight and sources of heat (stove, heater, radiator, etc.) Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption.
• Extreme cold or hot ambient temperatures may also cause the appliances not to perform properly. The unit must be placed in a room where the temperature is between 10-32°C.
• The appliance is for indoor use only. Not designed for placement in garage or basement.
• Caution: Please keep the appliance away from substance, which can cause ignition.

ELECTRIC CONNECTION

WARNING: Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced by an authorized Products service center.

This unit should be properly grounded for your safety. The power cord of this unit is equipped with a 2-pin plug which mates with 2-pin wall outlets to minimize the possibility of electrical shock. Do not cut or remove the ground wire from the power cord supplied under any circumstances.

Use of extension cords is not recommended.

This unit requires a standard 220-240V/50HZ electrical outlet with 2-pin plug.

The cord should be secured behind the thermoelectric cellar and not let exposed or dangling to prevent accidental injury.

Inside LED light can only be replaced by manufacturer.

USING YOUR THERMOELECTRIC COOLER

The thermoelectric cooler is built for operating under climate class N (16-32°C). However, for an optimal function as well as energy consumption, it is recommended to install the appliance in a place where the ambient temperature is between 16-25°C.

HOW TO SET TEMPERATURE

CONTROL PANEL FOR GZ-18S

There are three touch buttons on the control panel:

• Press ⬆ and ⬇ to increase or decrease the setting temperature by 1°C (temperature range is 11-18°C).
• Press button turns on or off the interior light.
• Press ⚠ and ⚡ together and hold for 3 seconds to change temperature display from Celsius to Fahrenheit.

Note:

• This product is designed for maximum cooling of 14^ C below ambient temperature.
- When the ambient temperature is around 25^ C or less, unit can maintain a temperature range between 11-18^ C.

There are six buttons on the control panel. When facing the control panel, buttons on the left side is to control upper zone, buttons on the right side is to control lower zone.

• Press and to increase or decrease the setting temperature by 1^ C (temperature range for upper zone is 7 - 18^ C , and for lower zone is 11 - 18^ C ).
• Press 🖼 button turns on or off the interior light.
• Press and together and hold for 3 seconds to change temperature display from Celsius to Fahrenheit.

Note:

• This product is designed for maximum cooling of 14^ C below ambient temperature.
- When the ambient temperature is around 25^ C or less, unit can maintain a temperature range between 11-18^ C.

CLEANING AND MAINTENANCE

Cleaning your thermoelectric cooler

Unplug the thermoelectric cooler and remove your products inside.

Wash the inside with a warm water and baking soda solution. The solution should be about 2 tablespoons of baking soda to a quart of water.

The outside of thermoelectric cooler should be cleaned with mild detergent and warm water.

Moving your thermoelectric cooler

Remove all the items inside. Securely tape down all loose items inside your thermoelectric cooler. Turn the leveling legs up to the base to avoid damage. Tape the door. Be sure the thermoelectric cooler stays in the upright position during transportation.

TROUBLE SHOOTING

You can solve many common thermoelectric cellar problems easily, saving you the cost of a possible service call.

PROBLEM POSSIBLE CAUSE
Thermoelectric cooler do not operate. Not	plugged in using different voltage.The circuit breaker tripped or a blown fuse.
Thermoelectric cooler is not cold enough.	Check the temperature control setting.External environment may require a higher setting.The door is open too often or not closed completely.The door seal does not seal properly.
Vibrations. Check to assure that the thermoelectric cooler is level.
The thermoelectric cooler seems to make too much noise	The thermoelectric cooler is not level.Check the fan.
The door will not close properly. The thermoelectric cooler is not level.The doors were reversed and not properly installed.The seal is weak.The shelves out of position.
LED could not display. Main control board	does not work or there is some problem with the plug.
Control buttons are not functional. Temperature controller panel is damaged.

IMPORTANT

1. This machine is designed to be only used in N climate class (temperature range from 16 to 32°C)
2. Upon receipt and inspection of the unit, If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
   For any additional information or questions, please contact the service center.

WARNING: please do not uses where children can touch the unit, nor let children use the unit by themselves.

DISPOSAL

1. Please remove the door before you dispose your thermoelectric cooler.
2. Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.
3. Information regarding disposal of the appliance
   Flammable insulation blowing gases should be disposed appropriately. Take the cabinet to a recycling plant for flammable insulation blowing gases.

REMOVAL OF APPLIANCES

The European Directive 2012/19 / EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household appliances uses are not thrown in the normal municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain and reduce the impact on human health and the environment.

The symbol of the crossed out dustbin is marked on all products indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

CE

DISPOSAL OF USED ELECTRICAL AND ELECTRONIC EQUIPMENT

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

This symbol on products or original documents means that used electric or electronic products must not be added to ordinary municipal waste. For proper disposal, renewal and recycling hand over these appliances to determined collection points. Alternatively, in some European Union states or other European countries you may return your appliances to the local retailer when buying an equivalent new appliance. Correct disposal of this product helps save valuable natural resources and prevents potential negative effects on the environment and human health, which could result from improper waste disposal. Ask your local authorities or collection facility for more details. In accordance with national regulations penalties may be imposed for the incorrect disposal of this type of waste.

For business entities in European Union states

If you want to dispose of electric or electronic appliances, ask your retailer or supplier for the necessary information.

Disposal in other countries outside the European Union.

This symbol is valid in the European Union. If you wish to dispose of this product, request the necessary information about the correct disposal method from the local council or from your retailer.
