USER MANUAL TFVGS60X20A TELEFUNKEN

Simple line drawing of a rectangular box with a horizontal bar at the top (no text or symbols)

R-Nummer:1017003800

S-Nummer:10280041

TFVGS60X20A++

INHALTSANGABE

Illustration of a hand holding a faucet with a valve, showing a curved arrow indicating rotation (no text or symbols)

Two technical illustrations of a faucet and a switch assembly (no text or symbols)

DE-11

Mechanical assembly diagram showing a lever and gear mechanism (no text or symbols)

Illustration of a hand pouring liquid into a container with a small object nearby (no text or symbols)

Mechanical assembly diagram showing a lever and gear mechanism (no text or symbols)

Diagram of a door handle with a curved arrow indicating rotation or movement (no text or symbols)

Hand turning a knob with a curved arrow indicating rotation (no text or symbols)

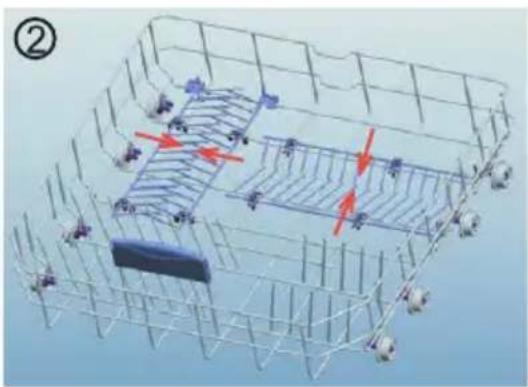

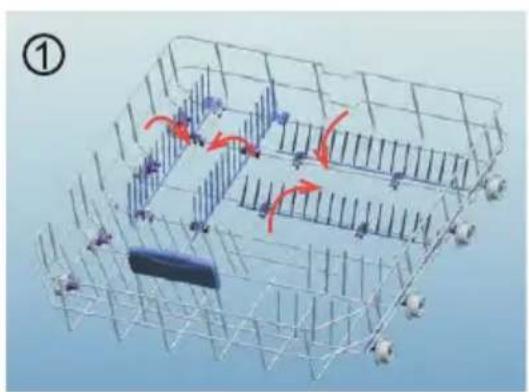

Klappbare Ständer

3D wireframe model of a grid structure with directional arrows indicating flow or movement (no text or symbols)

3D wireframe diagram of a warehouse or storage facility with conveyor belts and staircases, showing directional arrows (no text or symbols)

3D rendering of a red mechanical component with wheels, mounted on a metal frame structure (no text or symbols visible)

3D rendering of a red mechanical component mounted on a metal frame structure (no text or symbols visible)

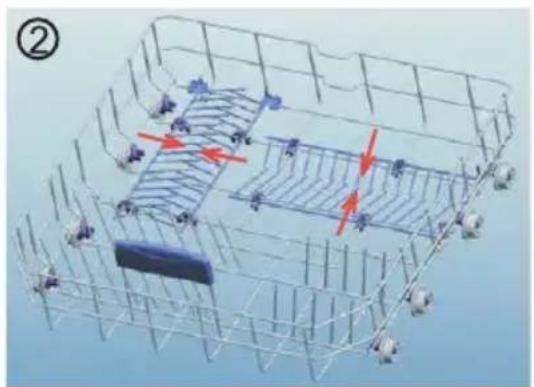

Unterkorb

3D wireframe diagram of a warehouse or storage facility with vertical supports and internal components, marked with red arrows indicating flow or movement (no text or symbols present)

3D wireframe diagram of a mechanical or structural assembly with no visible text, numbers, or symbols.

Oberer Besteckkorb

3D rendering of a mechanical device with multiple white cylindrical components and meshed surfaces (no visible text or symbols)

3D cutaway view of a mechanical assembly with layered components and mounting brackets (no visible text or symbols)

Interior view of a kitchen appliance showing internal compartments and fixtures (no text or symbols visible)

Three-panel illustration of kitchen utensils in a grid, showing various kitchenware and fixtures (no text or symbols)

Oberer Korb

Two-panel image showing a washing machine rack with plastic components and a 3D rendered model of industrial equipment (no text or symbols visible)

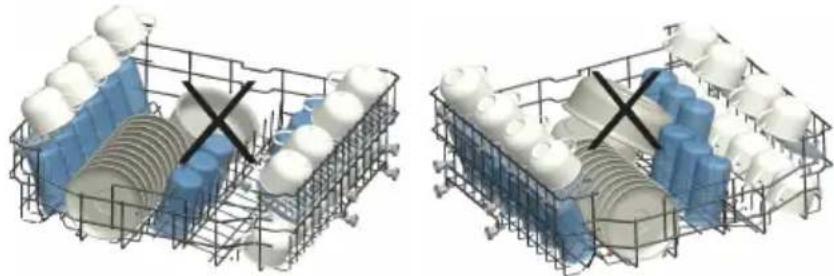

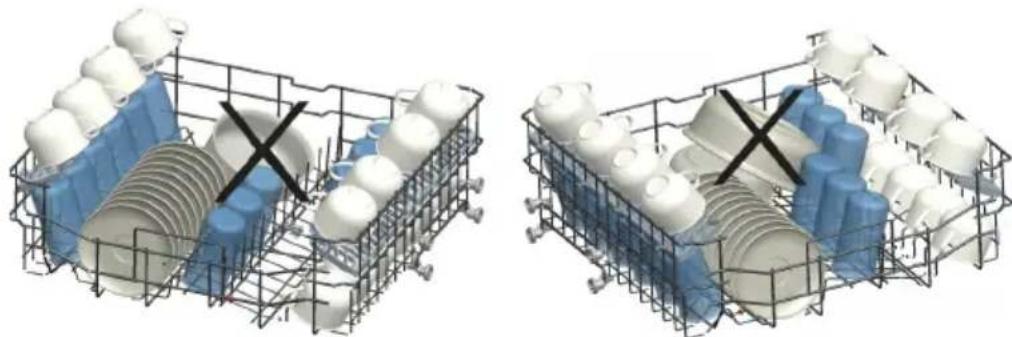

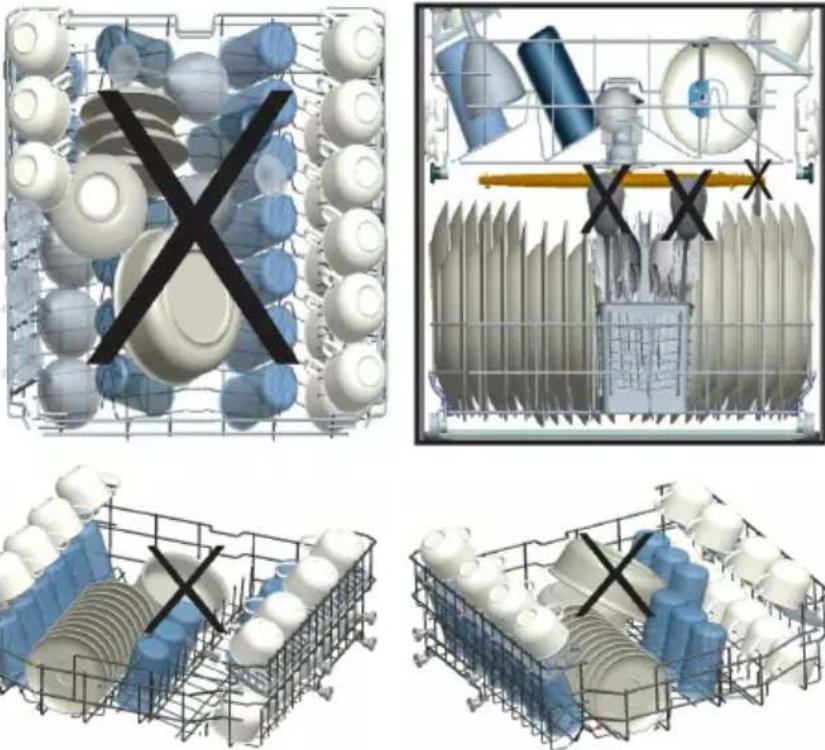

Falsche Beladung

3D wireframe models of industrial components in a grid, showing blue and white components with no visible text or symbols

Sprüharme

3D rendering of a kitchen sink with a green bottle and mechanical component (no text or symbols visible)

Schlauchfilter

PRODUKTDATENBLATT (Spect)

- Conformity with the standards and Test data .... 4

Safety information and Recommendations.... 5

• Recycling 5
• Safety information .... 5
• Recommendations ...... 7
• Items not suitable for dishwashing 8

Installing the machine 9

• Positioning the machine 9
  • Water connections .... 10
• Water inlet hose 10
• Water outlet hose ....11
• Electrical connection.... 12
• Prior to using the machine 13

Preparing the machine for use ....13

• The importance of water decalcification 13

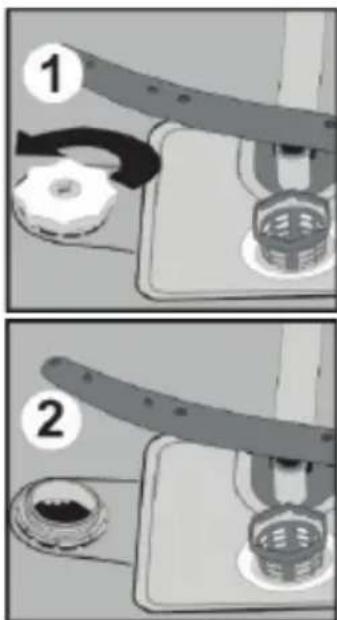

• Filling with salt 13
• Testing strip.... 14
• Adjusting salt consumption.... 14
• Detergent usage ....15

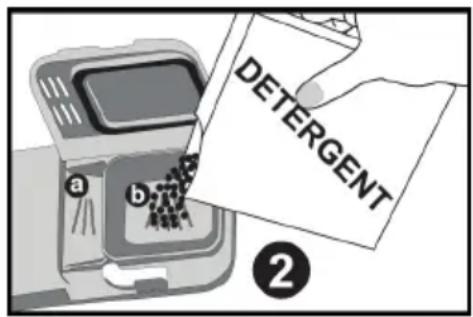

• Filling the detergent compartment...... 16
• Combined detergent.... 16

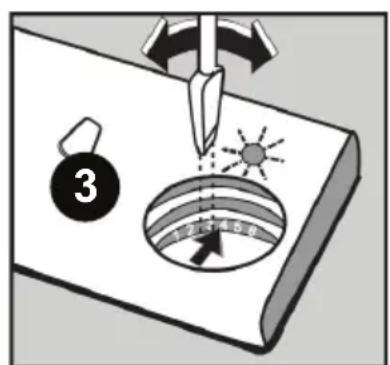

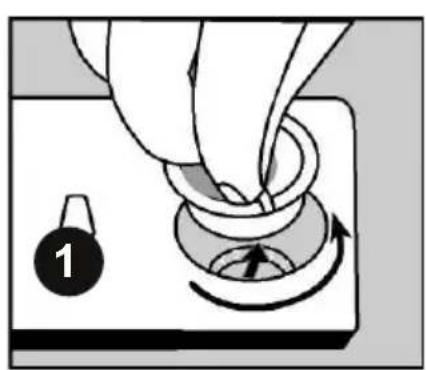

• Filling with rinse aid and making the setting.... 17

Loading your dishwasher ....18

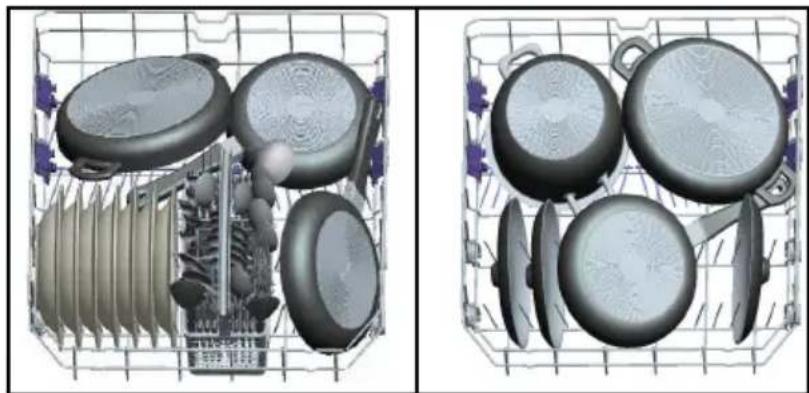

• Alternative basket loads 22

Programme descriptions ...... 23

- Programme items 23

Switching on the machine and selecting a programme ..... 25

• Switching on the machine.... 25
• Programme follow-up 27
• Changing a programme 28
• Changing a programme with resetting 28
• Switching the machine off 28

Maintenance and Cleaning 31

• Filters 31
• Spray arms 32
• Hose filter 32

Failure codes and what to do in case of failure 33

Practical and useful information.... 36

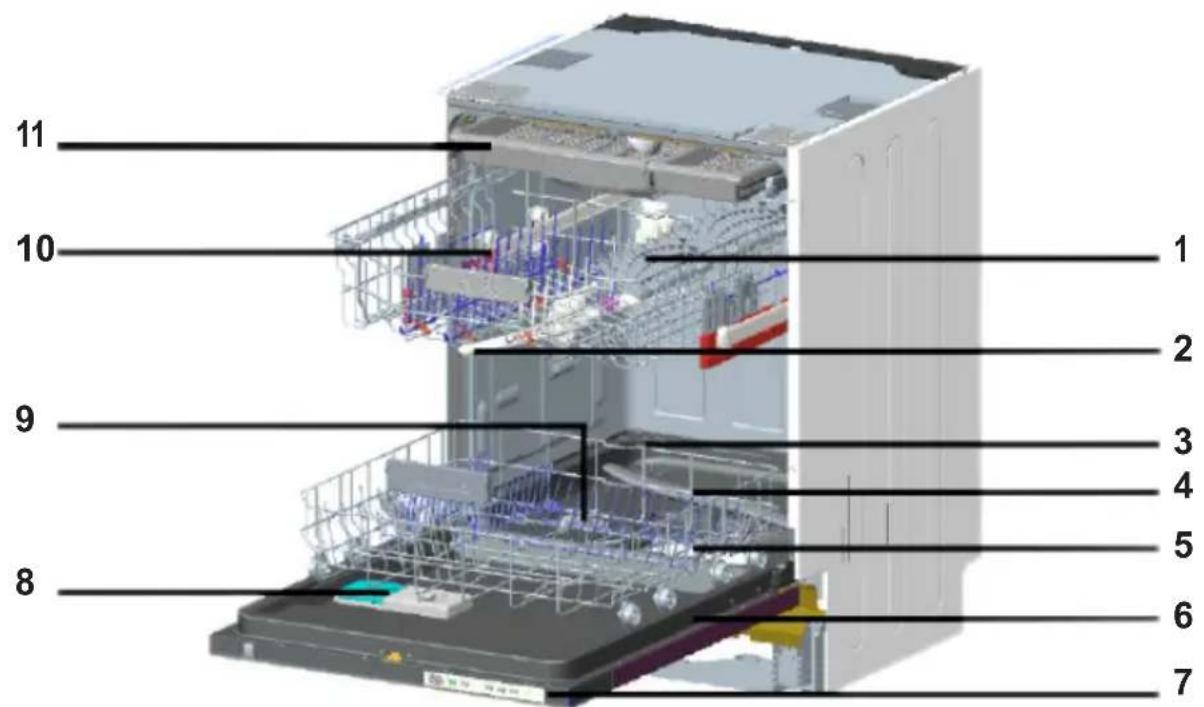

1. Upper basket with racks
2. Upper spray arm
3. Lower basket
4. Lower spray arm
5. Filters
6. Rating plate
7. Control Panel
8. Detergent and rinse-aid dispenser
9. Salt dispenser

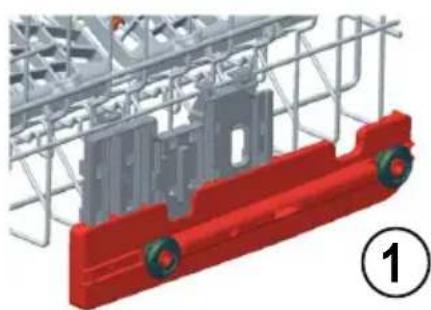

10. Upper basket track latch

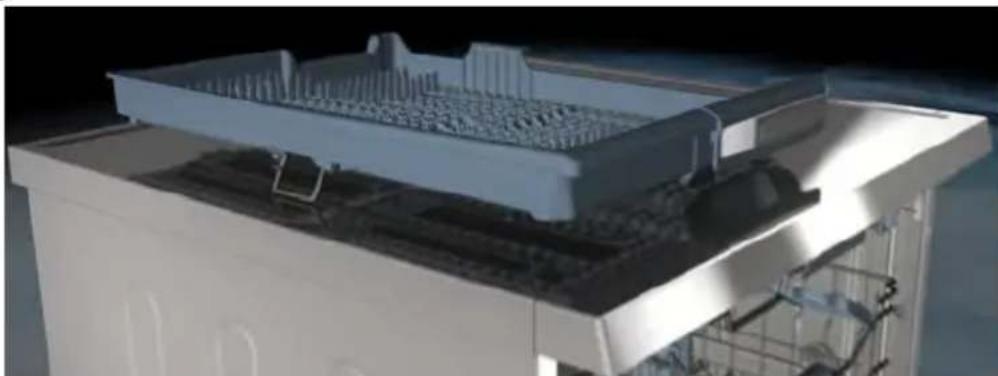

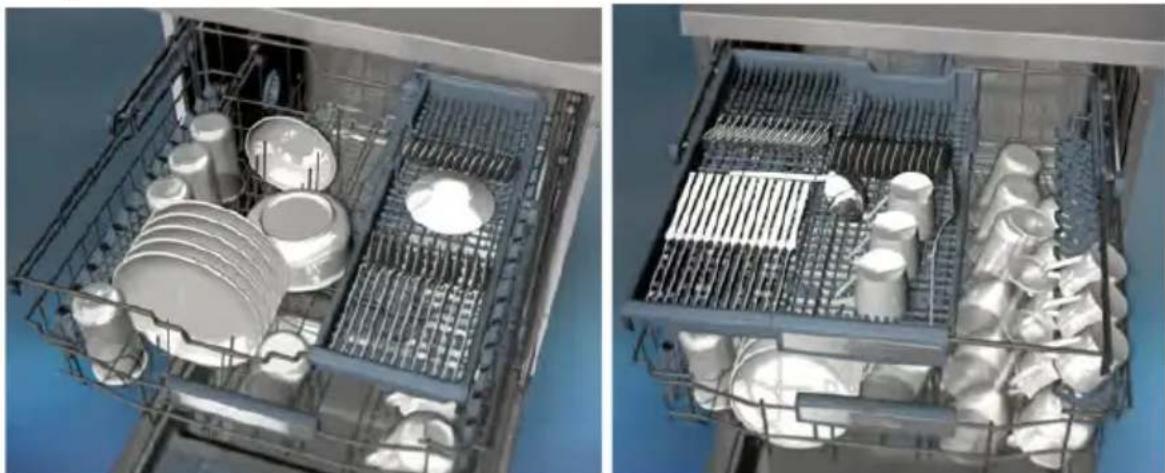

11. Upper Cutlery Basket

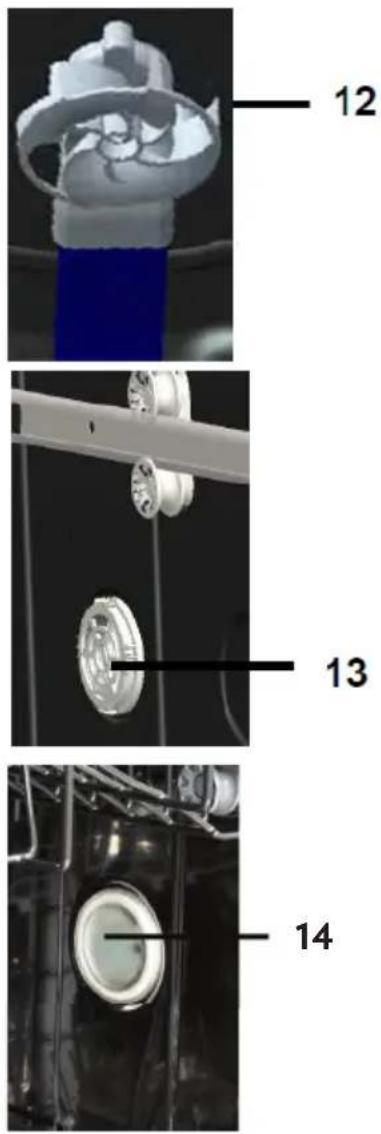

12. Ceiling Spray Arm: It provides a better wash for the dishes in the upper basket.
13. Turbo Drying Unit: This system provides a better drying performance for the dishes.
14. Interior light: It provides you to place your dishes beter.

Technical specifications

Capacity 15 place settings
Height 820 mm - 870 mm
Width 598 mm
Depth 550 mm
Net Weight 38 kg
Electricity input 220-240	V, 50 Hz
Total Power 1900 W
Heating Power 1800 W
Pump Power 100 W
Drain Pump Power 30 W
Water supply pressure 0.03 MPa (0,3 bar)-1 MPa (10 bar)
Current 10 A

Conformity with the standards and Test data / EU Declaration of Conformity

This product meets the requirements of all applicable EU directives with the corresponding harmonised standards, which provide for CE marking.

Important Note for User: For a softcopy of this user manual, please contact the following address:

"[e-mail]". In your e-mail, please provide the model name and serial number (20 digits) which you can find on the appliance door.

SAFETY INFORMATION AND RECOMMENDATIONS Recycling

• Recyclable materials are used in certain components and packaging.
- Plastic parts are marked with international abbreviations: (>PE<, >PS<, >POM<, >PP<,)
- Cardboard parts have been produced from recycled paper which should be disposed of into waste paper collection containers for recycling.
- Such materials are not suitable for garbage bins. They should be delivered to recycling centres instead.
- Contact the relevant centre in order to obtain information on methods and points of disposal.

Safety Information

When you take delivery of your machine

• If you see any damage on your machine’s packaging, please notify your retailer.
• Unwrap the packaging materials as indicated and dispose of them in accordance with the rules.

Points to pay attention to during machine installation

• Choose a suitable, safe and level place to install your machine.
• Carry out the installation and connection of your machine by following the instructions.
• We recommend that the machine is installed by an authorised installer, and should only be serviced by an approved technician.

- Only original spare parts should be used with the machine.

- Before installing, be sure that the machine is unplugged.

- Check whether the indoor electrical fuse system is connected according to regulations.

- All electrical connections must match values on the rating

plate.

• Be sure that the machine does not stand on the electricity supply cable.
• Never use an extension cord or a multiple socket for making a connection. The plug should be comfortably accessible after installation.
  • After installation, run it unloaded for the first time.

In daily use

• This machine is for household use; do not use it for any other purpose. Commercial usage of the dishwasher will void the guarantee.
• Do not use detergents and rinse aids that are not specifically designed for dishwashers. Improper of such items may invalidate the warranty.
• Due to risk of explosion, do not put into the machine's washing section any chemical dissolving agents such as solvents.
• Check whether plastic items are heat-resistant before washing.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should not play with the appliance.Cleaning and user maintenance shall not be made by children without supervision.
• Do not put unsuitable and heavy items above the basket capacity into your machine. Our company will not be responsible for any damage on the inner parts.
• Your dishwasher should not be opened whilst it is operating. A safety device will ensure that the machine stops if opened.
• Do not leave the door open to avoid accidents.

- Place knives and other sharp-ended objects in the cutlery basket in blade-down position.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- This appliance is not intended for use by persons (including -children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- If EnergySave option is selected as “Yes”, The door will be opened at the end of the program. Do not force the door closed to avoid harm to the auto door mechanism for one minute. The door must be open for 30 minutes to get effective drying.(in models with auto door opening system)

Warning: Do not stand in front of the door after the auto-open signal sounds.

For your children's safety

- After removing the machine’s packaging, make sure that the packaging material is out of reach of children.

- Do not allow children to play with or start the machine.

- Keep children away from detergents and rinse aids.

- Keep children away from the machine while it is open because there may still be residues of cleaning substances inside the machine.

- Be sure that your old machine does not pose any threat to your children. Children have been known to get themselves locked in old machines. To prevent such a situation, break your machine’s door lock and tear off the electrical cables.

In case of malfunctioning

- Any repairing performed by anyone other than authorized service personnel will invalidate your warranty.

- Prior to any repair work on the machine, be sure that the

machine is isolated from the mains. Switch off the fuse or unplug the machine. Do not pull by the cable when unplugging. Make sure to turn off the water tap.

Recommendations

• For energy and water saving, remove coarse residues on your dishes before placing the dishes into the machine. Start your machine after having fully loaded it.
• Use the pre-wash programme only when necessary.
• Place such hollow items as bowls, glasses and pots into the machine in such a way that they will face down.
• You are not recommended to overload your machine or load it in a way other than that which is indicated.

Items not suitable for dishwashing:

• Cigarette ashes, candle leftovers, polish, paint, chemical substances, iron-alloy materials;
• Forks, spoons and knives with wooden or bone, or ivory or nacre-coated handles; glued items, items soiled with abrasive, acidic or base chemicals.
• Plastic items that are not heat-resistant, copper or tin-coated containers.
• Aluminium and silver objects (they may discolour, become dull).
• Certain delicate glass types, porcelains with ornamental printed patterns as they fade even after the first wash; certain crystal items as they lose their transparency over time, adhered cutlery that is not heat-resistant, lead crystal glasses, cutting boards, items manufactured with synthetic fibre;
• Absorbent items as sponges or kitchen rags are not suitable for dishwashing.

Warning: Take care to buy dishwasher-proof sets in your future purchases.

INSTALLING THE MACHINE

Positioning the machine

When determining the installation place, choose an accessible place for easy loading and unloading of the dishes.

Do not put your machine in any location where there is the probability for the room temperature to fall below 0^ C.

Before positioning, take the machine out of its packaging by following the warnings located on the package.

Position the machine close to a water tap or drain. You need to site your machine, taking into consideration that its connections will not be altered once they are made.

Do not grip the machine by its door or panel in order to move it.

Take care to leave a certain clearance from all sides of the machine for moving comfortably back and forth during cleaning.

Make sure that the water inlet and outlet hoses do not get squeezed while positioning the machine. Also, make sure that the machine does not stand on the electrical cable.

Adjust the machine's adjustable feet so that it can stand level and balanced. Proper positioning of the machine ensures problem-free opening and closing of the door.

If the door of machine does not close properly, check if the machine is stable on the floor; if not, adjust the feet and ensure its stable position.

Water connection

Indoor plumbing must be suitable for installing a dishwasher. Also, we recommend that you fit a filter at the entrance of your place or apartment so as to avoid any damage to your machine because of any contamination (sand, clay, rust etc.) that might be occasionally carried in through the mains water supply or the indoor plumbing, and to prevent such complaints as yellowing and formation of deposits after washing.

Water inlet hose

Illustration of a hand holding a faucet with a valve, showing a curved arrow indicating rotation (no text or symbols)

Do not use the water inlet hose of your old machine. Use the new one supplied with your machine instead. If you will connect a new or long - unused water inlet hose to your machine ,run water through it for a while before making the connection. Connect the water inlet hose directly to the water inlet tap. The pressure supplied by the tap should be at a minimum of 0.03 Mpa and and at a maximum of 1 Mpa.If the water pressure is above 1 Mpa,a pressure-relief valve should be fitted inbetween.

After making connections, the tap should be turned on fully and checked for water tightness. For the safety of machine, turn off the water inlet tap after finishing each wash programme.

NOTE: Aquastop water etc. spout is used in some models. In case of using Aquastop, a dangerous tension exists. Do not cut the Aquastop water spout. Do not let it get folded or twisted.

Water outlet hose

The water drain hose can be connected either directly to the water drain hole or to the sink outlet spigot. Using a special bent pipe (if available), the water can be drained directly into the sink via hooking the bent pipe over the edge of the sink. This connection should be between 50 and 110 cm from the floor plane.

Warning: When a drain hose longer than 4 m is used, the dishes might remain dirty. In that case, our company will not accept responsibility.

Abstract diagram with a curved line and shaded X shape, no text or symbols present

Electrical connection

The earthed plug of your machine should be connected to an earthed outlet supplied by suitable voltage and current. If there is no earthing installation, have a competent electrician to carry out it. In case of usage without earthing installed, our company will not be responsible for any loss of usage that might occur.

The indoor fuse current value should be 10-16 A.

Your machine is set according to 220-240 V. If the mains voltage in your location is 110 V, connect a transformer of 110/220 V and 3000 W in between.

The machine should not be plugged in during positioning.

Always use the coated plug supplied with your machine.

Running in low voltage will cause a decline in washing quality. The machine's electrical cable should be replaced by an authorised service or an authorised electrician only. Failure to do so may lead to accidents.

For safety purposes, always make sure to disconnect the plug when a wash In order not to cause an electric shock, do not unplug when your hands are wet.

When disconnecting your machine from the mains supply, always pull from the plug. Never pull the cord itself.

Prior to using the machine for the first time

• Check whether the electricity and supply water specifications match the values indicated by the installation instructions for the machine.
• Remove all packaging materials inside the machine.
• Set the water softener.
• Add 1 kg salt into the salt compartment and fill with water up to a level at which it will almost overflow.
• Fill the rinse aid compartment.

PREPARING THE MACHINE FOR USE

The importance of water decalcification

For a good washing function, the dishwasher needs soft, i.e. less calcareous water. Otherwise, white lime residues will remain on the dishes and the interior equipment. This will negatively affect your machine's washing, drying and shining performance. For this reason, a softener is system used on dishwashers. The softener system has to be refreshed so that it operates with the same performance also during the next wash. For this purpose, dishwasher salt is used.

Filling with salt

Use softener salt specifically produced for use in dishwashers. To put softener salt, first remove the lower basket and then open the salt compartment cap by turning it counter clockwise.1 2 At first use fill the compartment with 1kg salt and water 3 at overflowing level If available, using the funnel 4 provided will make filling easier. refit the cap and close it After every 20th-30th wash, add salt into your machine until it

fills up (approx. 1kg) Fill the salt compartment with water at first use only. We recommend to use smallgrained or powder softener salt. Do not put table salt into your machine. Otherwise, the function of the softener compartment may decrease over time. When you start machine, the salt compartment gets filled with water. Therefore, put the softener salt prior to starting your machine. This way, overflowing salt gets immediately cleaned up through the wash operation. If you will not wash any dishes immediately after putting salt, then run

a short washing program with an empty machine in order to avoid corrosion on your machine due to the salt overflow while filling in the salt container. In order to understand whether or not the amount of softener salt in machine is sufficient, check the transparent section on the salt compartment cap. There is sufficient salt if the transparent section is green. Salt has to be added if it is not green.

Testing strip

The washing effectiveness of your machine depends on the softness of the tap water. For this reason, your machine is equipped with a system that reduces the hardness in mains water supply. The washing effectiveness will increase when the system is correctly set. To find out the water hardness level of water in your area, contact your local water board or determine water hardness level by using the test strip(if available).

Open the testing strip	Run water through your tap for 1 min.	Keep the testing strip in water for 1.sec.	Shake the testing strip after taking it out of water	Water for 1 min.	Make your machine's water hardness setting according to the result obtained through the testing strip.
					Level 1		No Lime
					Level 2		Very low lime content
					Level 3		Low lime content
					Level 4		Medium lime content
					Level 5		Lime content
					Level 6		High lime content

Adjusting salt consumption

Water hardness level	German hardness level dH	French hardness level dF	British hardness level dE	Hardness Level Indicator
1 0-5 0-9 0-6 L1 is seen	on display.
2 6-11 10-20 7-14 L2 is	seen on display.
3 12-17 21-30 15-21 L3	is seen on display.
4 18-22 31-40 22-28 L4	is seen on display.
5 23-31 41-55 29-39 L5	is seen on display.
6 32-50 56-90 40-63 L6	is seen on display.

If the hardness of the water is above 90 dF (French hardness) or if you are using well water; you are recommended to use filter and water refinement devices.

NOTE: Hardness level is adjusted to level 3 as a factory setting.

After restting the machine, with the door open;

While touching the program button 2 turn on the machine with the power button. 1

Continue to touch the program button until "SL" appears on the display. 3

Release the program touch button when "SL" disappears from the display. 3

The current water hardness setting will appear on the display. 3

Press the program touch button 2 to select the desired level according to Table of Water Hardness Level Settings.

At any pressure on the program touch button 2 will increment the hardness level.

The level changes from Level 6 to Level 1 when the program button 2 is pressed.

To save the setting to memory, power off the machine. 1

NOTE: The first time the hardness level is set, the default setting is level 3.

Detergent usage

Use a detergent specifically designed for use in domestic dishwashers.

You can find powder, gel, and tablet detergents that have been designed for household dishwashers.

Detergent should be put into the compartment prior to starting the machine. Keep your detergents in cool, dry places out of reach of your children.

Do not fill detergent into the detergent compartment more than required; otherwise it may cause scratches on your glasses as well as lead to a poorly dissolved detergent.

Should you need more information concerning the detergent you will use, contact detergent manufacturers directly.

Filling the detergent compartment

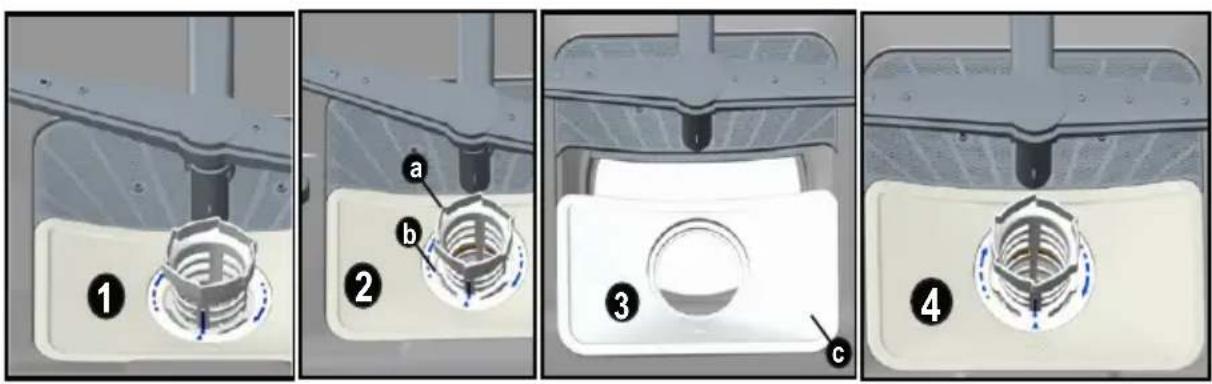

Push the latch to open the detergent container as shown in the image. 1 The detergent pod has level lines inside. The detergent pod can take totally 40 cm3 detergent. Open the dishwasher detergent and pour into the larger compartment b 25 cm3 if dishes are heavily soiled or less 15 cm3.2 If dishes have been kept dirty for a very long time, dried food wastes on them or overly loaded the dishwasher, pour a 5cm3 detergent into the prewash compartment and start machine. You may have to add more detergent into your machine, depending on the degree of soil and on the water hardness level in your area.

Diagram of a mechanical component with a curved base and a circular arrow indicating rotation (no text or symbols)

Combined detergents

Combined detergents may include various properties. Before using the detergent, read the instructions carefully. Generally combined detergents produce sufficient results under certain conditions only.

Points to consider when using this type of products:

• Check the specifications of the product whether it is combined or not.
• Check if the detergent used is appropriate for the hardness of mains water.
• Observe the instructions of products on packagings.
  • Always put the tablets into the detergent compartment in the detergent dispenser.
• You need to contact the manufacturers and find out about the suitable conditions of use.
• If you use appropriate products, they ensure savings in salt and/or rinse aid consumption.
• The scope of warranty for your machine does not cover any complaints caused by the use of these types of detergents.

Recommended usage: If you want to obtain better results while using combined detergents, add salt and rinse aid into your machine and adjust the water hardness setting and the rinse aid setting to the lowest position.

Solubility of the tablet detergents produced by different companies can vary depending on the temperature and time. Therefore, it is not recommended to use such detergents in short programs. It is more suitable to use powder detergents in such programs.

Warning: Should any problem, which you have not encountered before arise with the use of this type of detergents, contact the detergent manufacturers directly.

When you stop using combined detergents

• Fill the salt and rinse aid compartments.
• Adjust the water hardness setting to the highest position and run an empty-wash.
• Adjust the water hardness level.
  • Make the suitable rinse aid setting.

Filling with rinse aid and making the setting

Adequate amount of rinse aid prevents white water drops, lime stains, white film stripshaped. It also increases drying performance. To put rinse aid, remove the rinse aid compartment cap by turning it.1 Fill the rinse aid compartment with rinse to add rinse aid level indicator becomes dark;2 refit the cap and close it by turning it in a way that the nails, correspond to one another. By checking the rinse aid level indicator on the detergent dispenser, you can understand whether or not your machine needs rinse aid. A dark indicator b means that there is rinse aid in the compartment, while a light indicator a shows that you need to fill the compartment with rinse aid.

The rinse aid level adjuster can be set to a position between 1 and 6. Factory setting for rinse aid is the position 3.

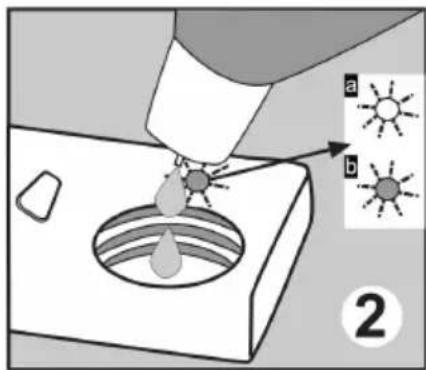

Hand turning a knob on a control knob with an arrow indicating rotation (no text or symbols)

You need to increase the degree of the adjuster if water stains form on your dishes after a wash, whereas you need to decrease the degree if a blue stain is left when wiped by hand. 3

Warning: Use only those rinse aid materials which are allowed for use in the machine. As rinse aid residues left as a result of overflowing will create extremely high amounts of foam and thus reduce the washing performance, remove the excess amount of rinse aid by wiping it with a rag.

LOADING YOUR DISHWASHER

If you properly place your dishes into the machine, you will be using it in the best way in terms of energy consumption, washing and drying performance.

There are two separate baskets for you to load your dishes into your machine. You can load into the lower basket such round and deep items as pots with long handles, pot lids, plates, salad plates, cutlery sets.

The upper basket has been designed for tea plates, dessert plates, salad bowls, cups and glasses. When placing long-stem glasses and goblets, lean them against the basket edge, rack or glass supporter wire and not against other items. Do not lean long glasses against one another or they cannot remain steady and may receive damage.

It is more appropriate to locate the thin narrow parts into the middle sections of baskets.

You can place spoons among the other cutlery sets in order to prevent them from sticking to one another. You are recommended to use the cutlery grid in order to obtain the best result.

To avoid any possible injuries, always place such long-handle and sharp-pointed dishes as serving fork, bread knife etc. with their sharp points facing down or horizontally on the baskets.

Warning: Place your dishes into your machine in a way that they will not prevent the upper and lower spray arms from spinning.

Top basket

Height Adjustable Rack

These racks are designed to increase the capacity of the top basket. You can place your glasses and cups on the racks. You can adjust the height of these racks 1 2. Thanks to this feature, you can place different sizes of glasses under these racks. Thanks to height adjustment plastics mounted on the basket, you can use your racks in 2 different heights. In addition, you can place long forks, knives and spoons on these racks laterally, so that they do not block the revolution of propeller.

Foldable racks on the upper basket are designed in order to let you place big items easier such as pots, pans, etc. If requested, each part can be folded separately, or all of them can be folded and larger spaces can be obtained. You can use foldable racks by raising them upwards, or by folding down.

3D wireframe model of a structural grid with rebar framework and directional arrows (no text or symbols)

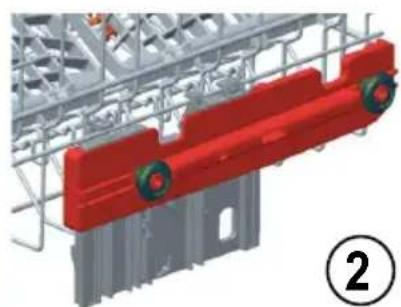

Top basket height adjustment while it is full

Basket height adjustment mechanism on the top basket of your machine is designed to let you adjust the height of your top basket upwards or downwards, without removing it from your machine when it is full, and create large spaces at the top or bottom area of your machine as needed 1 2. The basket of your machine is set to upper position in factory settings.

In order to raise your basket, hold it from both sides and pull it upwards. In order to lower it, hold it from both sides again, and leave it.

In loaded basket adjustment mechanism, make sure that both sides are in the same position (up or down).

3D architectural or engineering diagram showing structural elements and directional arrows, no readable text or symbols present.

3D model of a red and gray mechanical component with wheels, enclosed in a wire cage (no text or symbols visible)

3D rendering of a red industrial conveyor system mounted on a metal frame structure (no text or symbols visible)

Lower Basket Folding Racks

Folding racks consisting of four parts that are located on the lower basket of your machine are designed in order to let you place big items easier such as pots, pans, etc. If requested, each part can be folded separately, or all of them can be folded and larger spaces can be obtained.

You can use folding racks by raising them upwards, or by folding.

3D architectural or mechanical structure diagram with grid lines and directional arrows, no visible text or symbols

3D wireframe model of a mechanical or structural assembly with no visible text, numbers, or symbols.

Upper Cutlery Basket

The upper cutlery basket is designed for you to place forks, spoons and knives, long dippers and small items.

Interior view of a multi-level appliance with plastic cups and grilles (no visible text or symbols)

Because it can easily be taken out of the machine, it allows your dishes to be taken out of the machine along with the basket after washing.

3D cutaway view of a kitchen appliance showing internal components and structural details (no text or symbols visible)

The Upper Cutlery Basket is composed of two pieces; if you need to make space for the dishes in the upper basket, you can take out the left or right part of the upper cutlery basket in order to obtain more space.

Interior view of a kitchen appliance showing internal compartments and fixtures (no visible text or symbols)

Warning: Knives and other sharp objects must be placed horizontally in the cutlery basket.

Alternative basket loads Lower Basket

Two 3D wireframe models of kitchen utensils, one open showing internal components and the other filled with six panes (no text or symbols)

Top basket

3D technical illustration of industrial components arranged in a grid layout (no text or symbols)

Faulty loads

Four-panel technical illustration showing a 3D assembly of mechanical components and a wire cage with cross marks, no visible text or symbols.

Important Note for Test Laboratories

For detailed information on performance tests, please contact following address: “[e-mail]”. In your email, please provide the model name and serial number (20 digits) which you can find on the appliance door.

Program items

Programme No
Programme names and temperatures	Mini 18' - (P1) Quick 30'40°C(P2)		Eco(reference)50°C (P3)
Type of food waste	Pre-wash to rinse and loosen residue awaiting full load then select a programme	Coffee, milk, tea, cold meats, vegetables, not kept for long	Coffee, milk, tea, cold meats, vegetables, not kept for long
Level of soil light medium
Detergent amountB: 25 cm3/15 cm3A: 5 cm3		A+B A+B
	30°C Wash 40°C	Wash Prewash
	Hot rinse Cold Rinse 50°C Wash
	End Hot rinse Hot rinse
		End Dry
			End
Programme duration(min.)	18 30 171
Electricity consumption(kW hours)	0,57 0,88 0,94
Water consumption(liters)	7,7 10,9 9

Warning: Short programs do not include a drying step.

The values declared above are the values obtained under laboratory conditions according to relevant standards. These values can change depending on conditions of product's use and environment (network tension, water pressure, water input temperature and environment temperature).

Program items

Programme No
Programme names and temperatures	Super 50'65°C (P5)	Hygiene 60°C (P6)	Autu Delicate30-50°C	Auto Normal50-60°C	Auto intensive60-70°C
Type of food waste	Soups, sauces,pasta, eggs,pilaf, potato and oven dishes, fried foods	Dishes with dense dirt waiting for a long time or requiring hygienic washing	Old soups,sauces pastries egg,ricepatato and owen foods, fried foods
Level of soil medium	heavy High High High
Detergent amountB: 25 cm3/15 cm3A: 5 cm3	A+B A+B A+B A+B	A+B
	65°C Wash 60°C Wash		Washing step are determined automatically according to the amount of contamination.
	Warmish Rinse 65°C Wash
	Hot rinse Cold Rinse
	End 50°C Wash
		Hot rinse
		Dry
		End
Programme duration(min.)	50 154 64-91 100-1	32 111-179
Electricity consumption(kW hours)	1,29 1,75	0,80-0,90	1,13-1,46	1,30-1,95
Water consumption(liters)	10,7	18,5 10,6-17,7	10,9-18,6	12,3-24,6

SWITCHINGONTHEMACHINEANDSELECTINGAPROGRAMME

1.) Power On/Off Touch Button

After the Power On/Off touch is pressed, two dashes appear in the program display, until touching any button. Touch the “On/Off touch button” with your fingertip for 1 sec to turn the machin on or off.

2.) Program Touch Button

Use the Program touch button to select a suitable program for your dishes.

3.) Program Display

The program display indicates the length of the programs and the remaining time during the program flow. You can also follow-up the selected programs by this display.

4.) Delayed Start Touch Button

You can delay the start time of a selected program from 1 to 19 hours by pressing the Delayed start touch button of the machine. When the Delayed start touch button is pressed, "1h" appears on the program display. If you continue pressing the delay timer touch button, the time will increment from 1 to 19 shown on the display. The delayed start can be activated by selecting the delay time and the desired washing program with the Program touch button. It is also possible to select the program first and the delayed start afterwards, depending on the last value entered. To cancel Delayed start, either select the delay timer as "0h", or hold the program touch button for 3 seconds. The display will inform you how many seconds you need to hold the button by "3-2-1.." to cancel the delay Note: If the delay touch button is pressed and held, the delay timer starts changing faster (the rate of change is proportional to the hold pressing time). When the Delayed start touch button is pressed for a long period of time, the counter stops at "h:00".

5.)Extra Rinse

Once you press the Start/Pause button, the programme you selected with the programme selector button will start running and the status indicator lamp "wash" will light up. In the stop condition while wash led is On, the Start/Pause led will blink.

6.) ^1/2 Half Load Touch Button

Using the function 12 , three sorts of washing up can be done those being lower basket, upper basket and both baskets.

If you have a small quantity of dishes in the machine and if you have to wash them, you can activate the semi-filling function available for some of the programs. If you have dishes in both baskets, press the 12 key and select both lamps are lit.

If you only have dishes in the upper basket, press the 12 key and select the upper lamp illuminated. As this will only wash items in the upper basket, make sure that there are no items in the lower basket.

If you only have dishes in the lower basket, press the 12 key and select the lower lamp illuminated. As this will only wash items in the lower basket, make sure that there are no items in the upper basket.

Note: If you have used an extra feature on the latest washing program, this feature will remain active on the next washing program until the machine is switched off and on again. If you do not want to use this feature on the newly selected washing program, press the selected feature button again, and check that the lamp on the button goes off.

Note: When a program that is incompatible with the Extra silent & fast option is selected, when the button is pressed a buzzer sound is heard which indicates that the selected option is not available.

7.) Tablet Detergent Touch Button (3 in 1 button)

Press the Tablet detergent touch button when you use combined detergents that include salt and rinse aid.

8.) Salt Warning Indicator

To determine whether there is sufficient softening salt in the machine, check to see if the Salt

warning light on the display is lit. When Salt warning light starts coming on, add salt to the salt compartment.

Rinse aid Warning Indicator

To determine if there is sufficient rinse aid in the machine check the rinse aid warning light on the

display. When the rinse aid warning light starts coming on, add rinse aid to the rinse aid compartment.

End of Program

The machine makes a buzzer sound 5 times when the program is completed. When the door is opened after the selected washing

program is completed, the buzzer activation will end and a '0' character is showed on display.

Note: Each time the machine is switched on, the Eco program and Energy save option are set to as default and previously chosen options are cancelled. When selecting programs other than Eco, the Energy save icon will go out.

Operating your machine

Switching on the machine

1- Touch the power On/Off key.
When the machine is powered on, when the On/Off touch button (1) is pressed, two dashes appear in the program display.
2- When selecting a program with the program touch button (2), the program selected (P1, P2, etc) appears on the program display, from (P1 to P8) and the duration of the program are displayed alternately for 3 sec. for the program and then 1 sec. for the duration time.
3- "If desired, you can choose additional functions. (4-7)
4- Close door. The program starts automatically.

Note: If you decide not to start to machine after selecting the program, press the on/off touch button (1). The machine will be ready for the new program selection when you press on/off touch button (1) again. Select the new program by pressing the program touch button (2).

Program follow-up

• If you have a "InfoLED" function in your dishwasher model, you can follow the program via InfoLED. During machine is working you can see the light from InfoLED, when program is completed InfoLED turns off.
• When the door is opened after the selected washing program is completed, the buzzer activation will end and a '0' character is showed on display (3).
• If the door is opened during washing cycle, the remaining time of

the selected program is shown on the display (3).

- The machine makes a buzzer sound 5 times when the program is completed.

Changing a program

To change the program while a wash program is going.

1- Open the door and select a new program by pressing the Program touch button (2).
2- After closing the door, the newly selected new program start from the point where the original program reached, but with the new parameters (temperature, cycles) of the new program.

Note: When opening the door of the machine in order to stop the washing program before it has completed, first carefully open the door slightly in order to avoid water spillage.

Cancelling and resetting a program

To cancel a program currently in progress or in a standby position.

1- Open the door of the machine. The last selected program will appear on the display (3).

2- Press and hold the program touch button (2) for 3 seconds. The display (3) will count from "3 to 1" and then show "0:01" to indicate that cancelling is ready.

Cancelling and resetting a program

To cancel a program currently in progress or in a standby position.

1- Open the door of the machine. The last selected program will appear on the display (3).

2- Press and hold the program touch button (2) for 3 seconds. The display (3) will count from "3 to 1" and then show "0:01" to indicate that cancelling is ready.

3- After the door is closed, the discharge process starts. The machine will empty the water in it for about 30 seconds. When the program is cancelled, the machine will make a buzzer sound 5 times.

Note: When the door of the machine is opened in order to stop the washing program before it has completed, first carefully open the door slightly in order to avoid water spillage.

Switching the machine off

After the program has finished, switch the machine off by using the Power On/Off touch button (1).

Note: To improve the drying performance, after the buzzer sound indicating the end of the wash program stops, leave the door of the

machine ajar in order to hasten the drying or select an energy save option before starting a program to speed up the drying performance. Note: If the machine door is opened during washing or the power is cut off, the machine will restart the program when the door is closed or the power is restored.

PROGRAMS\OPTIONS	Delayed Start	Half load (modes)	Tablet Extra rinse
Mini 18'	----
Quick 30'40°C	X	X	-
Eco 50°C	XXX	X
Super 50'65°C	XXX	X
Hygiene60°C	----
Autodelicate30°-50°C	XXX	X
AutoNormal50°-60°C	XXX	X
AutoIntensive60°-70°C	XXX	X

“-” Function cannot be selected “x” function can be selected. Extra fast and Extra silent can’t be selected at the same time.

Buzzer sound set up

Setting up the buzzer.

1- Press the Power On/Off touch button".(1) (if it is in OFF position).

2- Press and hold the "Delay" (4) and "Half load" (6) touch buttons for 3 seconds at the same time to set the volume level.

3- While pressing the "Delay" (4) and "Half load" (6) touch buttons, the display shows a of count down from 3 to 1.

- The first time the volume is adjusted, at the end of 3 seconds, "S03" is shown on the display.

- If the volume has been adjusted before, at the end of 5 seconds the previously selected level is shown on the display (from "S00" to "S03").

The volume level is increased or decreased using the "delay" and "half load".

- To increase the buzzer volume.

1) Press the "half load" touch button (6).

2) The display (3) changes from "S00" to "S03.

- To decrease the buzzer volume

1) Press the "delay" touch button (4).

2) The display (3) changes from "S03" to "S00". "S00" means that all buzzers are off

4- To exit volume adjustment mode, switch off the machine.

The last volume level selected will be stored in memory.

Note: From level sound "3" to "1", loudness level is reduced by stages depending on level sound.

MAINTENANCE AND CLEANING

Cleaning the machine in regular intervals prolongs the machine's service life.

Oil and lime may accumulate in the machine's washing section. In case of such accumulation;

-Fill the detergent compartment without loading any dishes into the machine, run the machine at high temperature. If this is not sufficient, use special cleansing materials.

Cleaning the seals in the machine door,

-Wipe the seals regularly by using a dampened cloth.

Cleaning machine,

Clean the filters and spray arms at least once a week.

Unplug your machine and turn off its tap before starting the cleaning. Wipe with a fine cleaning material and a dampened cloth.

Filters

If any food wastes have remained on the coarse and fine filters, remove the filters and clean them thoroughly under the water tap.

a. Micro Filter

b. Coarse Filter

c. Metal/Plastic Filter

To remove and clean the filter combination, turn it counter clockwise and take it out by lifting upwards 1.

Pull and remove the metal/plastic filter 3. Then pull the coarse filter out of the micro filter 2. Rinse it with lots of water under the tap. Refit the metal/plastic filter. Insert the coarse filter into the micro filter in a way that the marks will correspond to one another. Attach micro filter into the metal/plastic filter and turn to the direction of arrow and it is locked when the arrow on micro filter can be seen from across 4.

• Never use your dishwasher without any filter.
• Incorrect fitting of the filter will reduce the washing effectiveness.
• Clean filters are very important in terms of the proper running of the machine.

Spray arms

Check the holes for the upper and lower spray arms. If there is any clogging, remove the spray arms and clean them under water. You can remove the lower spray arm by pulling it upwards, while the upper spray arm nut can be removed by turning the nut to the left. Be sure that the nut is perfectly tightened when refitting the upper spray arm.

3D rendering of a kitchen sink with a green tool and a metal bowl (no text or symbols visible)

Hose filter

Check the filter and the hose from time to time and clean them to prevent yellowing and formation of deposits after washing. To clean the filter, first turn off your tap and then remove the hose. After removing the filter from the hose, clean it under the tap. Insert the cleaned filter back into its place inside the hose. Refit the hose.

FAILURE CODES AND WHAT TO DO IN CASE OF FAILURE

ERROR CODE	ERROR DESCRIPTION	CONTROL
F5	Inadequate water supply	Make sure the water input tap is totally open and that there is no water cut.Close the water input tap, separate the water input hose from the tap and clean the filter at the connection end of the hose.Restart your machine, contact the service if the error resumes.
F3	Error of continuous water input	Close the tap.Contact the service company.
F2	The waste water in the machine cannot be discharged.	Water discharge hose is clogged.The filters of your machine might be clogged.Power off-on your machine and activate the program cancellation command.If the error continues, contact the service.
F8	Heater error • Contact the service company.
F1	Alarm is active against water overflow	Power off your machine and close the tap.Contact the service company.
FE	Faulty electronic card	Contact the service company.
F7	Overheating error (temperature in the machine is too high)	Contact the service company.
F9	Divisor position error	Contact the service company.
F6	Faulty heater sensor	Contact the service company.

If one of program monitor lights is on and start/Pause light is on and off,

Your machine's door is open, shut the door.

If the programme won't start

• Check if the plug is connected.
• Check your indoor fuses.
• Be sure that the water inlet tap is turned on.
• Be sure that you have closed the machine door.
• Be sure that you switched off the machine by pressing the Power On / Off button.
• Be sure that the water inlet filter and the machine filters are not clogged.

If the control lamps won't go out after a wash operation

The Power On/Off button is released yet.

If detergent residues are left in the detergent compartment

Detergent has been added when the detergent compartment was wet.

If water is left inside the machine at the end of the programme

- The water drain hose is clogged or twisted.

- The filters are clogged.

- The programme is not finished yet.

If the machine stops during a wash operation

• Power failure.
• Water inlet failure.
• Program can be on standby mode.

If shaking and hitting noises are heard during a wash operation

• Dishes placed incorrectly.
• Spray arm hitting the dishes.

If there are partial food wastes left on the dishes

- Dishes placed incorrectly into the machine, sprayed water did not reach related places.

- Basket overly loaded.

- Dishes leaning against one another.

• Very small amount of detergent added.

- An unsuitable, rather weak wash programme selected.

- Spray arm clogged with food wastes.

- Filters clogged.

- Filters incorrectly fitted.

• Water drain pump clogged.

If there are whitish stains on the dishes

• A very small amount of detergent is being used.
• Rinse aid dosage setting at a very low level.
• No special salt is being used despite the high degree of water hardness.
  • Water softener system setting is at a very low level.
• Salt compartment cap not closed well.

If the dishes won't dry up

• A programme without a dry operation selected.
• Rinse aid dosage set too low
• Dishes unloaded too fast.

If there are rust stains on the dishes

• Stainless-steel quality of the dishes washed is insufficient.
  • High rate of salt in the wash water.
• Salt compartment cap not closed well.
• Too much salt spilt into the sides and into the machine while filling it with salt.
• Unhealthy mains grounding.

Call an authorised service if the problem still persists after the controls or in case of any malfunction not described above.

PRACTICAL AND USEFUL INFORMATION

1. Whenever you will not be operating your machine
2. Unplug the machine and then turn the water off.
3. Leave the door slightly ajar in order to prevent the formation of unpleasant smells.

4. Keep the machine interior clean.

5. Eliminating water droplets

- Wash the dishes with the intensive programme.

• Take all of the metal containers in the machine out.

- Do not add detergent.

1. If you properly place your dishes into the machine, you will be using it in the best way in terms

of energy consumption, washing and drying performance.

1. Clean all rough waste before you place dirty dishes to the machine.

2. Operate the machine after it is completely full.

3. Use pre-washing program only when necessary.

4. Observe program information and average consumption values table when selecting a program.

5. If the appliance is located in a place where the risk of freezing exists, you must completely drain the water that has remained in the machine. Turn off the water tap, disconnect the water inlet hose from the tap and allow the interior water to drain.

THE PRODUCT FICHE (Spect)

Supplier's trade mark TELEFUNKEN
Supplier's model TFVGS60X20A++
Capacity of dishwasher 15
The energy efficiency class A++
Annual energy consumption in kWh per year (AEC) (280 Cycle)*	267
Energy consumption (Et) (kWh per cycle) 0,94
Off-mode power consumption (W) (Po) 0,50
Left-on mode power consumption (W) (PI) 1,00
Annual water consumption in litres per year (AWC) (280 Cycle)**	2520
Drying efficiency class*** A
Standard programme name**** Eco
Programme time for standard cycle (min) 171
Noise dB(A) 47
Freestanding/Built-in Built-in

* Energy consumption 267 kwh per year, based on 280 standard cleaning cycles using cold water fill and the consumption of low power modes. Actual energy consumption will depend on how the appliance is used.
** Water consumption 2520 liters per year based on 280 standard cleaning cycles. Actual water consumption will depend on how appliance is used.
*** Drying efficiency class A on a scale from G(least efficient) to A (most efficient).
**** The “Eco” is the standard cleaning cycle to which the information in the label and the fiche relates. This programme is suitable to clean normally soiled tableware and it is the most efficient programme in terms of combined energy and water consumption.

CONTENU

EXPLICATION DU PRODUIT 4

Illustration of a hand holding a faucet with a valve, showing a curved arrow indicating rotation (no text or symbols)

Diagram showing two different pipe fittings: one with a valve and the other with a valve and a switch, both without any text or symbols.

Abstract diagram with a curved path and shaded X shape, no text or symbols present

Diagram of a mechanical component with a curved housing and a curved base, showing a directional arrow (no text or symbols)

Hand turning a knob with a curved arrow indicating rotation (no text or symbols)

Casiers pliants

3D wireframe model of a structural framework with grid lines and directional arrows (no text or symbols)

3D architectural or engineering diagram showing structural framework with red arrows indicating upward motion (no text or symbols)

3D rendering of a red and gray industrial vehicle chassis with wheels, enclosed within a metal cage structure (no text or symbols visible)

3D rendering of a red industrial conveyor system mounted on a metal frame structure (no text or symbols visible)

Panier inférieur

3D architectural or mechanical structure diagram with grid lines and directional arrows, no visible text or symbols

3D wireframe diagram of a grid structure with red arrows indicating movement or force, no visible text or symbols

Close-up of a mechanical component with a grid-like structure and several white cylindrical components (no visible text or symbols)

3D rendering of a mechanical assembly with internal components and mounting brackets (no visible text or symbols)

Interior view of a kitchen appliance showing internal compartments and storage racks (no text or symbols visible)

Two 3D-rendered kitchenware baskets with cutlery and cooking utensils, no text or symbols visible

Exploded view diagram of a mechanical assembly with multiple components and grid lines (no text or labels)

Panier supérieur

Two technical diagrams showing a grid of circular components and a mechanical assembly with cross marks (no text or symbols present)

Chargements incorrects

Two 3D wireframe models of a mechanical or electronic component grid, showing internal components and cross marks (no text or symbols)

3D rendering of a stainless steel kitchen sink with a green piping bag and a circular component (no text or symbols visible)

Filtre de tuyau

FICHE PRODUIT (Spécifications)
