DMW-MS1PP - Photo Accessories PANASONIC - Free user manual and instructions

Product type	Stereo electret condenser microphone
Brand	PANASONIC
Model	DMW-MS1PP
Compatibility	Panasonic digital cameras with microphone jack and accessory shoe
Directivity	Unidirectional (stereo) / Omnidirectional (monaural)
Frequency response	100 Hz to 20,000 Hz
Sensitivity	-47 dB (0 dB=1 V/Pa, 1 kHz)
Output impedance	600 Ω
Signal-to-noise ratio	67 dB or more
Power supply	1 AAA battery (R03 or LR03) 1.5 V DC
Battery life	Approx. 500 h (manganese), 1000 h (alkaline)
Dimensions	47.0 mm (W) × 55.0 mm (H) × 158.0 mm (D)
Weight	67.5 g (main unit), 76.5 g (with battery)
Cable	2.5 mm L-shaped stereo mini plug, length 140 mm
Selectors	OFF/MONO/STEREO mode switch, WIND CUT OFF/ON switch
Indicator	BATTERY remaining battery indicator
Supplied accessories	AAA battery, Windscreen (condenser microphone)
Maintenance	Soft dry cloth, no solvents
Operating temperature	0 °C to 40 °C
Operating humidity	35% to 80%

Frequently Asked Questions - DMW-MS1PP PANASONIC

How to install the battery in the microphone?

Make sure the mode selector is set to OFF. Open the battery compartment cover by pressing the mark and sliding. Insert the AAA battery respecting the polarity, then close the cover.

How to mount the microphone on the camera?

Make sure the microphone and camera are turned off. Loosen the lock ring, slide the microphone into the accessory shoe, then tighten the ring. Connect the stereo mini plug to the [MIC] jack on the camera.

How to choose between mono and stereo modes?

Use the [OFF/MONO/STEREO] mode switch. [MONO] position to record a sound source in front of the microphone in monaural. [STEREO] position to record ambient sounds in stereo.

How to reduce wind noise during recording?

The microphone is equipped with a built-in windscreen. If the wind is strong, set the [WIND CUT OFF/ON] switch to [ON] to further reduce wind noise.

What to do if the BATTERY indicator does not light up?

When you change the mode selector from [OFF] to [MONO] or [STEREO], the [BATTERY] indicator lights up temporarily if the battery is sufficient. If it does not light up, replace the battery with a new one.

What types of batteries are recommended?

Use AAA manganese dry batteries (R03) or AAA alkaline batteries (LR03). Panasonic EVOLTA/EVOIA batteries are also compatible. Do not use Ni-Cd, lithium, etc., as Panasonic does not guarantee operation.

How to clean the microphone?

Remove the battery before cleaning. Wipe the microphone with a soft dry cloth. If very dirty, use a damp cloth then wipe with a dry cloth. Do not use benzene, solvent, or alcohol.

Is the microphone waterproof?

No, the microphone is not waterproof. Protect it from rain and splashes. If water droplets fall, wipe them off with a dry cloth immediately.

Can the microphone be used with an external flash or remote shutter release?

No, this microphone cannot be used with an external flash or remote shutter release.

What is the battery life?

With a AAA manganese dry battery (R03), the battery life is approximately 500 hours. With a AAA alkaline battery (LR03), it is approximately 1000 hours. These durations vary according to usage conditions.

USER MANUAL DMW-MS1PP PANASONIC

Operating Instructions

Before connecting, operating or adjusting this product, please read the instructions completely.

Information for Your Safety 2

Precautions 4

Supplied accessories 4

Names of the Components 5

About the batteries 5

Inserting and Removing the Unit's Battery. 7

Mounting the Unit onto the Digital Camera, and Removing it 8

Using the Microphone 10

Frequency Response and Directionality Pattern Diagrams ...11

Cautions for Use 11

Specifications 13

Information for Your Safety

• This stereo microphone is exclusively for Panasonic digital cameras.

It is designed for use with a digital camera equipped with a microphone socket and a hot shoe.

• This stereo microphone can be switched to record sound in either stereo or monaural.

WARNING:

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT DAMAGE,

DO NOT EXPOSE THIS APPARATUS TO RAIN, MOISTURE, DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS. - USE ONLY THE RECOMMENDED ACCESSORIES. - DO NOT REMOVE THE COVER (OR BACK); THERE ARE NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

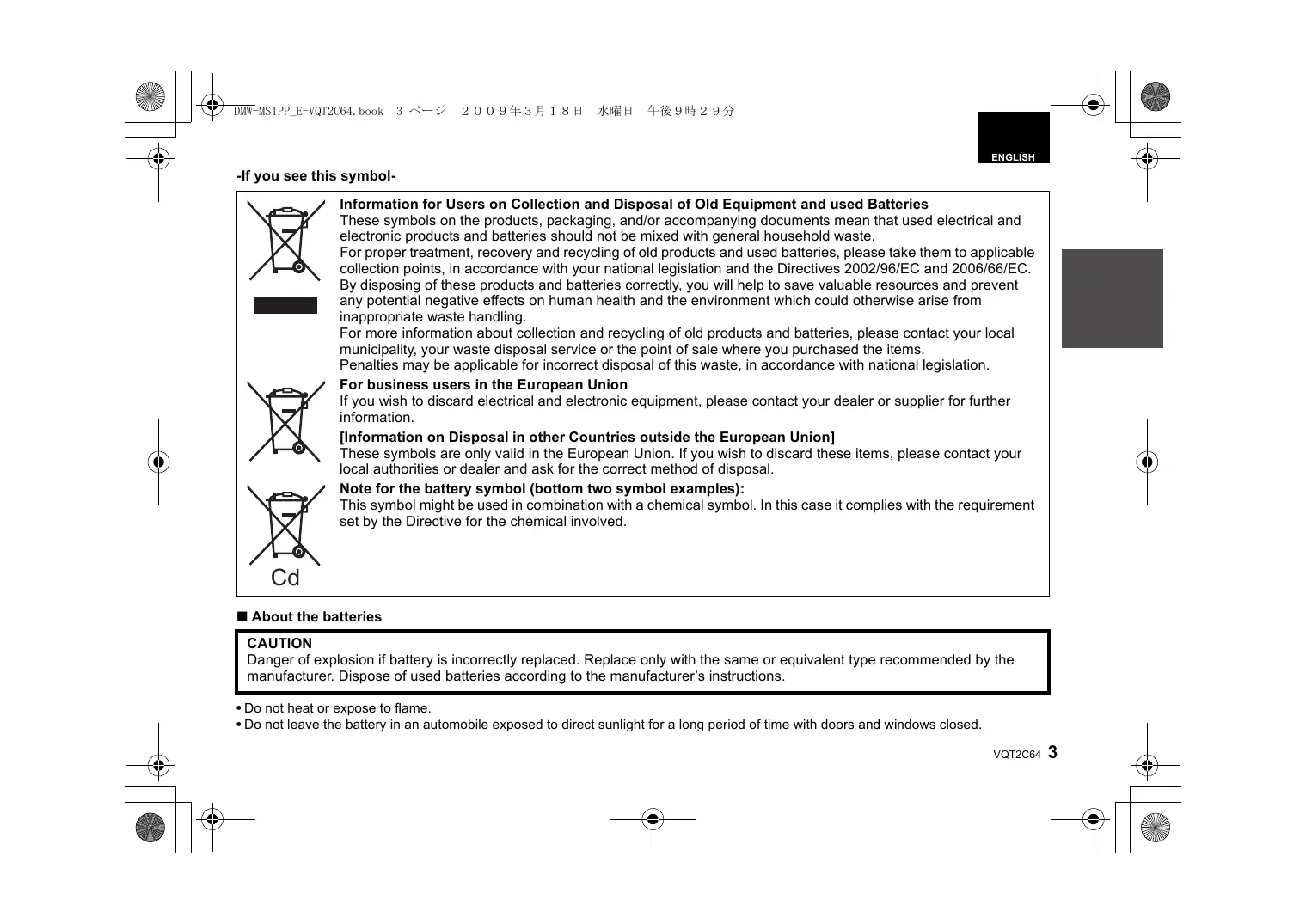

-If you see this symbol

Cd

Information for Users on Collection and Disposal of Old Equipment and used Batteries

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC and 2006/66/EC.

By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

[Information on Disposal in other Countries outside the European Union]

These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

Note for the battery symbol (bottom two symbol examples):

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.

About the batteries

CAUTION

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Disposal of used batteries according to the manufacturer's instructions.

• Do not heat or expose to flame.
• Do not leave the battery in an automobile exposed to direct sunlight for a long period of time with doors and windows closed.

Precautions

■ Handling the unit

• Do not subject the unit to strong vibration or impact. Doing so may not only cause the unit to malfunction but also cause the stereo microphone to break.
• Sand and dirt may cause the unit to malfunction. When using the unit in an environment such as a beach, take steps to protect it from sand and dirt.
• When using the unit on rainy days or on a beach, take care to keep the unit dry.
• The unit is not waterproof. If rain or drops of water splash onto the unit, wipe off the water with a dry cloth. If the unit does not operate normally, consult the dealer or your nearest servicenter.
• Read the operating instructions for your digital camera.

■ When the unit is not going to be used for a prolonged period

• Be absolutely sure to remove the battery from the unit.
• If the battery is left inside the unit, a faint current will flow continuously, even when the unit's power is off, gradually discharging the battery.
• Store the batteries in a cool, moisture-free location where the temperature is kept as constant as possible.

[Recommended temperature range: 15°C to 25°C (59°F to 77°F); recommended humidity range: 40% to 60%]

• If you plan to store the unit and/or its batteries inside a closet or cupboard, it is recommended that you put a desiccant (silica gel) in with them.

Supplied accessories

[Inspection to be performed when you unpack the unit] When removing the unit from its packing box, check that the main unit and its supplied accessory are there and also check their external appearance and functions to verify that they have not sustained any damage during distribution and transportation.

If you discover any trouble, contact your vendor before using the product.

Manganese dry battery AAA, R03

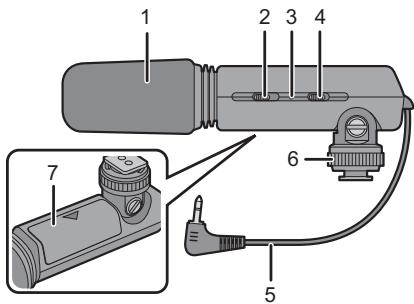

1 Wind Shield (Microphone condenser) 2 Off/On Mode Selector Switch [OFF/MONO/STEREO] (P10) 3 Battery Check Lamp [BATTERY] (P10) 4 [WIND CUT OFF/ON] Switch (P10) 5 φ2.5mm L shaped stereo mini plug cord (P9) 6 Lock ring (P8) 7 Battery cover (P7)

About the batteries

Types of batteries that can be used

AAA Manganese dry batteries (R03)

AAA Alkaline dry batteries (LR03)

• AAA EVOLTA/AAA EVOIA batteries (new Panasonic battery) can be used, too.
• The performance of the batteries used may significantly differ depending on which battery brand is used, how long the batteries have been stored since they were manufactured and how they have been stored.
• The performance of the batteries decreases temporarily at low temperatures [below 10°C ( 50°F )], but will be restored when the temperature returns to room temperature.
• Malfunctioning may occur under certain ambient temperatures and operating conditions. However, this is not indicative of trouble.
• In order to ensure that the batteries will function for as long as possible, it is recommended that you turn off the unit's power during the intervals between using the unit.
• Once depleted, batteries may recover their performance when left standing for a while, but they will quickly become unusable again. For this reason, always make a point of replacing depleted batteries with fresh ones.

Types of batteries with which operation is not guaranteed

Ni-Cd batteries

Nickel-manganese batteries

Nickel Hydrogen batteries

Lithium batteries

Oxyride (oxy-nickel-hydroxide) dry batteries

• Panasonic offers no guarantees that the unit will operate properly when any of the batteries listed above are used. Furthermore, use of these batteries may result in electrolyte leakage, power failure, risk of explosion etc.

Batteries with shapes that cannot be used

• Installing batteries with irregular shapes in the unit may cause electrolyte leakage, heat generation and even rupturing of the batteries themselves.
• Some batteries sold on the market have part or all of their jackets missing: Under no circumstances should such batteries be used. (Refer to the figure below.)
• Batteries (bare batteries) with no external jackets or batteries with parts of their jackets missing

• Batteries whose electrode is flat

Handling the batteries

Mishandling of batteries may cause electrolyte leakage, heat generation and even rupturing of the batteries themselves. Note the following cautions:

• Do not expose batteries to water or seawater or allow their terminal areas to become wet.
• Do not remove their external jackets or damage them in any way.
• Do not drop the batteries, knock them into other objects or subject them to any other kind of strong impact.
• Stop using the batteries as soon as you notice any electrolyte leakage, deformation, discoloration or any other such trouble.
• Do not store batteries in locations where the temperature and/or humidity levels are high.
• Keep batteries out of the reach of infants and small children.
• Remove the battery from the unit when you do not intend to use the unit for a prolonged period.
• The battery may be hot immediately after the unit has been used. Before removing it from the unit, turn off the unit's power and wait until the temperature of the battery has dropped.
• At low temperatures [under 10°C ( 50°F )], the performance of the battery will deteriorate and the operating time of the unit will be sharply reduced. The operating duration of batteries tends to be shorter particularly when alkaline/manganese dry batteries are used so warm them in your pocket before use. When warming batteries in your pocket, avoid direct contact with cigarette lighters and other metal objects as well as with pocket/ body warmers.
• The operating time of the unit may also be sharply reduced if the and electrodes of the battery are exposed to oils from the skin or other forms of dirt. Before installing the battery, wipe the and electrodes carefully using a soft, dry cloth.

If electrolytes should leak from the battery, wipe away all traces of the electrolyte in the battery compartment, and then insert a fresh battery.

If you should get electrolyte on your hands or clothes, rinse it off thoroughly with water. If you should get electrolyte in your eyes, you risk losing your sight. In such a case, do not rub your eyes but immediately wash them with clean water, and then seek medical advice.

Service life of batteries

Batteries used	Operating time
AAA Manganese dry batteries (R03)	Approx. 500 h
AAA Alkaline dry batteries (LR03)	Approx. 1,000 h

Operating conditions

• Temperature: 23 °C (73.4 °F)

Note

• The operating time differs slightly depending on the storage status of the batteries and the operating conditions.

Inserting and Removing the Unit's Battery

• Check that the unit's power is off. (Make sure the Off/On Mode Selector Switch is set to [OFF].)

1. Open the battery cover.

• Press the [ ] mark on the cover in the direction of arrow 1 and slide the cover in the direction of arrow 2.

2. When inserting the battery, ensure that the ⊕ and ⊖ poles of the battery are aligned correctly.

3. Close the battery cover.

Note

After using the unit, take out the battery. - Keep the AAA battery out of reach of children to prevent swallowing. - Keep the battery cover out of reach of children to prevent swallowing.

Mounting the Unit onto the Digital Camera, and Removing it

• Check that the power of the digital camera and unit is off. (Mounting the unit onto, or disengaging it from, the camera while the power is on may cause trouble and is not recommended.)

Mounting the unit

1 Loosen the lock ring.

• Do not apply more force than is necessary to the lock ring.

2 Slide the unit into the hot shoe of the digital camera, ensuring that it is fully inserted.

3 Rotate the lock ring in the direction of the arrow until it stops.

4 Securely connect the Stereo Mini-Plug Cord to the [MIC] socket of the digital camera.

• You can adjust the microphone angle within the range shown in the figure.
• Take care that the stereo microphone connection does not become loose while in use.

Removing the unit

Completely loosen the lock ring, and slide the unit off from the hot shoe.

Note

• Hold the lock ring portion when attaching and removing the microphone.

Using the Microphone

Changing the Off/On Mode Selector Switch

Off/On Mode Selector Switch [OFF/MONO/STEREO]

[OFF]	Turn off the microphone power.
[MONO]	Records sound in front of the digital camera in monaural.
[STEREO]	Records sound in a wide area in stereo.

Battery Check Lamp [BATTERY] ⑧

• When the Off/On Mode Selector Switch is changed from [OFF] to [MONO] or [STEREO], the Battery Check Lamp [BATTERY] will light temporarily if there is still plenty of power in the battery. If the Battery Check Lamp [BATTERY] does not light temporarily, replace the battery with a new one.

Changing the [WIND CUT OFF/ON] Switch

This microphone is equipped with a wind shield that is designed to cut down wind noise, but when the wind is so strong that even the wind shield is not adequate to keep down the noise, set the [WIND CUT OFF/ON] switch to [ON] to further reduce the wind noise.

[WIND CUT OFF/ON] Switch

[OFF]	The microphone should usually be used with this position.
[ON]	Set the [WIND CUT OFF/ON] switch to this position to reduce wind noise.

Note

• Although you can change the setting of the Off/On Mode Selector Switch or the [WIND CUT OFF/ON] switch while recording, the sound of the switch being changed may be recorded.
• When this unit is connected, [WIND CUT] cannot be set on the digital camera. Set with this unit.

Frequency Response and Directionality Pattern Diagrams

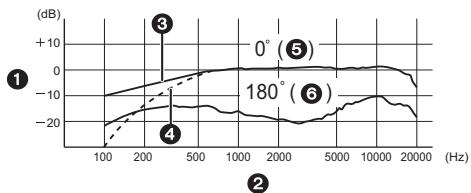

Frequency Response (WIND CUT OFF/ON)

1 Response 3 Wind Cut Off 5 Front

Frequency 4 Wind Cut On Rear

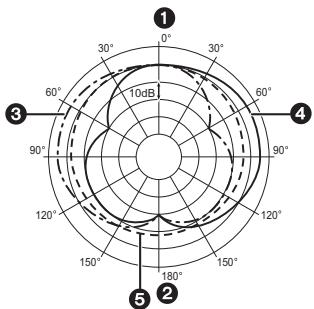

Directionality Pattern

0 Front 3 Stereo (left) 5 Monaural

Rear 4 Stereo (Right)

Cautions for Use

About the unit

Do not use the unit near radio transmitters or high-voltage lines.

• If you record near radio transmitters or high-voltage lines, the recorded pictures and sound may be adversely affected.

Keep the unit away from insecticide sprays and other volatile substances.

• If the unit is exposed to these sprays or substances, its external case may deteriorate and/or its paint may peel off.
• Do not leave the unit in contact with any items made of rubber or PVC for prolonged periods of time.

Do not carry the unit when it is still attached to the camera body.

• Under no circumstances should the unit be stored in any of the following locations since doing so may cause trouble in operation or malfunctioning.
• In direct sunlight or on a beach in summer
• In locations with high temperatures and humidity levels or where the changes in temperature and humidity are acute
• In locations with high concentrations of sand, dust or dirt
• Where there is fire
• Near heaters, air conditioners or humidifiers
• Where water may make the unit wet
• Where there is vibration
• Inside a vehicle
• The unit cannot be used with an external flash.
• The unit cannot be used with a remote shutter.
• Do not drop the unit, knock it into other objects or subject it to any other kind of strong impact or shock.
• A dirty plug may result in faulty contact. Be sure to wipe the plug with a dry soft cloth before connecting the microphone.
• Do not connect or disconnect the stereo mini-plug with the digital camera turned on.
• When the unit is not going to be used for a prolonged period, mold and other problems may cause failure of the unit. It is recommended that you check the unit's operation prior to use.
• Take care to not apply excessive force to the wind shield. It may cause malfunction.

Cleaning

Before cleaning the unit, remove the battery. Then wipe the unit with a dry soft cloth.

• When the unit is soiled badly, it can be cleaned by wiping the dirt off with a wrung wet cloth, and then with a dry cloth.
• Do not use solvents such as benzine, thinner, alcohol, kitchen detergents, etc., to clean the unit, since it may deteriorate the external case or the coating may peel off.
• When using a chemical cloth, be sure to follow the accompanying instructions.

About the batteries

Be sure to remove the battery when you will not be using the unit for a long period of time.

• If the temperature is too high or low, the terminals may rust causing a malfunction.

If you drop the battery accidentally, check to see if the body of the battery or the terminals are damaged.

• Inserting a damaged battery in the unit will damage the unit.

Bring charged spare batteries when going out.

• Be aware that the operating time of the batteries becomes shorter in low temperature conditions such as at a ski resort.

Dispose of unusable batteries.

• Batteries have a limited life.
• Do not throw batteries into fire because they may cause an explosion.

Do not allow battery terminals to come into contact with metal objects (such as necklaces, hairpins, etc.).

• This can cause short circuiting or heat generation and you may be badly burned if you touch the batteries.

Do not attempt to recharge dry batteries.

Do not throw batteries into a fire or expose to excessive heat such as sunlight.

Power requirements: DC 1.5 V

Batteries recommended for use	AAA Manganese dry batteries (R03)×1/ AAA Alkaline dry batteries (LR03)×1
Model	Electret condenser type microphone
Directionality characteristics	Unidirectional (stereo) Nondirectional (monaural)
Frequency response	100 Hz to 20,000 Hz
Sensitivity	-47 dB (0 dB=1 V/Pa, 1 kHz)
Output impedance	600 Ω
S/N ratio	67 dB or more
Cord	φ 2.5 mm L shaped stereo mini plug cord (length 140 mm)
Switch	Off/On Mode Selector Switch [OFF/MONO/STEREO][WIND CUT OFF/ON] Switch
Dimensions	Approx. 47.0 mm (W)×55.0 mm (H)×158.0 mm (D)[1 7/8" (W)×2 3/16" (H)×6 3/4"(D)] (excluding the cord portion)
Mass (weight)	Approx. 67.5 g/2.381 oz (main unit) Approx. 76.5 g/2.698 oz (including battery)
Operating temperature	0 °C to 40 °C (32 °F to 104 °F)
Operating humidity	35% to 80%

Panasonic Consumer Electronics Company, Division of Panasonic Corporation of North America One Panasonic Way, Secaucus, NJ 07094

Panasonic Canada Inc. 5770 Ambler Drive, Mississauga, Ontario, L4W 2T3

© Panasonic Corporation 2009

Printed in Japan

Table of contents

Panasonic Canada Inc.

5770 Ambler Drive,

Mississauga, Ontario

L4W 2T3

[phone]

www.panasonic.ca

© Panasonic Corporation 2009

Printed in Japan

Table of Contents

Battery types that can be used

Manganese dry batteries (R03) AAA size

Alkaline dry batteries AAA (LR03)

- You can also use Panasonic AAA EVOLTA/EVOIA batteries (new type of Panasonic batteries). - Battery performance depends significantly on the brand, how much time has passed since manufacture, and also on storage conditions. - The discharge rate of batteries temporarily increases at low temperatures (below 10°C), but it decreases again when the temperature returns to room temperature. - Under certain ambient temperatures and operating conditions, the device may malfunction. However, this is not considered a defect. - To maximize battery life, it is recommended to turn off the microphone power during periods when it is not in use. - After discharge, batteries can recover their capacity to some extent if left for a while, but after that they will quickly lose it again. For this reason, you should always carry new batteries with you so that you can replace the discharged ones with new ones at any time.

Battery types for which operation is not guaranteed

Precautions for use

Regarding the flash, do not use the microphone near radio transmitters or high-voltage lines.

• If you record near radio transmitters or high-voltage lines, the quality of recorded images and sound may deteriorate.

Do not spray insecticides or other volatile substances near the device.

- If they get on the device, its appearance may deteriorate or the paint may peel. Do not leave rubber or plastic products in contact with the device.

Do not carry the device attached to the camera body.

The device is not intended for use by children or by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the device.

Do not expose the device to direct sunlight or leave it on a beach in summer in areas with high humidity and high temperatures, or to sudden temperature and humidity changes, or in areas with high concentrations of sand, dust, or dirt. Do not operate the device near heaters, condensers, or humidifiers. Do not allow the device to get wet. Do not use it in places where vibration is present, such as in a car.

The microphone cannot be used with an external flash. The microphone cannot be used with the lens cap attached. Do not drop the device, hit it against other objects, or subject it to strong impacts. A dirty connector may result in no contact. Be sure to wipe the connector with a dry, soft cloth before connecting the microphone. Do not connect or disconnect the stereo mini plug while the digital camera is turned on. If the device is not used for a long period of time, dust and other problems may damage it. Before using it again, it is recommended to check the device's functionality after such long storage. Be careful not to apply excessive force to the acoustic screen. This may cause malfunction.

Error

Before cleaning the microphone, remove the battery from it. Then wipe the device with a dry, soft cloth.

In case of heavy soiling, the device can be cleaned with a cloth slightly dampened with water, then wiped dry with a dry cloth. For cleaning, do not use solvents such as benzene, paint thinner, alcohol, or abrasive cleaners, as they may damage the outer casing or cause the coating to peel off. When using a cloth with chemical treatment, be sure to follow the instructions for that cloth.

Regarding batteries

If you will not be using the device for a long period of time, remove the batteries from it.

• If the temperature is too high or too low, the contacts may corrode, which will cause malfunction. If you accidentally drop a battery, check whether the battery case or contacts are deformed. Inserting a deformed battery into the device may damage it.

Always carry spare batteries with you when shooting.

• Note that the operating time of the battery is reduced at low temperatures, for example, on mountain trails.

Disposal of used batteries.

Batteries have a limited service life. Do not throw batteries into fire, as they may explode.

Do not allow the battery terminals to come into contact with metal objects (such as necklaces, hairpins, etc.).

• This may cause a short circuit or overheating of the batteries, and you may get a severe burn if you touch them.

Do not recharge dry batteries.

Do not throw batteries into fire or expose them to strong heat, for example from sunlight.

Technical specifications

Specifications

Pursuant to Directive 2004/108/EC, Article 9(2)

Panasonic Testing Centre

Panasonic Marketing Europe GmbH

Winsberging 15, 22525 Hamburg, Germany
