HSB-T1000SS - Blender Heinner - Free user manual and instructions

Type de produit	Blender
Marque	Heinner
Modèle	HSB-T1000SS
Puissance	1000 W
Capacité du bol	1,5 L
Matériau du bol	Verre résistant aux chocs
Matériau du socle	Acier inoxydable
Nombre de vitesses	5 vitesses + pulse
Fonction pulse	Oui
Lames	4 lames en acier inoxydable
Système de verrouillage	Verrouillage de sécurité
Pieds antidérapants	Oui
Dimensions (L x P x H)	18 x 20 x 38 cm
Poids	2,5 kg
Longueur du câble	1,2 m
Tension nominale	220-240 V, 50/60 Hz
Nettoyage	Bol et couvercle lavables au lave-vaisselle
Entretien	Essuyer le socle avec un chiffon humide
Pièces détachées	Disponibles sur demande
Garantie	2 ans

Frequently Asked Questions - HSB-T1000SS Heinner

Comment utiliser le blender Heinner HSB-T1000SS ?

Assurez-vous que le bol est bien verrouillé sur le socle. Ajoutez les ingrédients, puis sélectionnez la vitesse souhaitée. Utilisez la fonction pulse pour des impulsions courtes.

Puis-je mixer des ingrédients chauds ?

Non, le bol en verre n'est pas conçu pour les liquides chauds. Laissez refroidir les ingrédients à température ambiante avant de les mixer.

Comment nettoyer le blender ?

Débranchez l'appareil. Le bol, le couvercle et les lames peuvent être lavés au lave-vaisselle ou à la main avec de l'eau savonneuse. Essuyez le socle avec un chiffon humide.

Le blender ne démarre pas, que faire ?

Vérifiez que le bol est correctement verrouillé sur le socle. Assurez-vous que l'appareil est branché et que le bouton de sécurité est enfoncé. Si le problème persiste, contactez le service client.

Quelle est la capacité maximale du bol ?

La capacité est de 1,5 litre. Ne remplissez pas au-delà de la ligne de remplissage maximum indiquée sur le bol.

Puis-je broyer de la glace ?

Oui, utilisez la fonction pulse pour broyer de la glace. Ajoutez les glaçons progressivement et ne faites pas fonctionner l'appareil en continu.

Les lames sont-elles amovibles ?

Oui, les lames peuvent être démontées pour un nettoyage en profondeur. Faites attention lors de la manipulation, elles sont très tranchantes.

Le blender fait du bruit, est-ce normal ?

Un certain bruit est normal pour un blender de 1000 W. Assurez-vous que l'appareil est placé sur une surface stable et que les pieds antidérapants sont en contact.

Où trouver des pièces détachées ?

Les pièces détachées (bol, couvercle, lames) sont disponibles auprès du service client Heinner ou sur le site web officiel.

Quelle est la durée de garantie ?

L'appareil est garanti 2 ans à compter de la date d'achat. Conservez la facture comme preuve.

USER MANUAL HSB-T1000SS Heinner

Product photo of a black and silver blender with fruit topping, showing kitchen utensils and packaging (no text or symbols visible)

• Sport Blender
• 1000W

Thank you for choosing this product!

I. INTRODUCTION

Please read this instruction manual carefully before using it and kee it for later information. This manual is conceived for offering you all of the necessary info regarding installation, using and maintenance of the machine. For a correctly and safely use of the machine, please, read this manual before installation and using.

II. PACKAGE CONTENTS

Sport blender
Instruction Manual
Warranty card
Accessories: 1 container, 2 stay fresh lids, flip-top lid, grinder

III. SAFETY REGULATIONS

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual. In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. There is a potential risk of injuries from misuse.
2. Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
3. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
4. Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
5. Children shall not play with the appliance.
6. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
7. Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.
8. Care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning.
9. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.
10. If an extension cord is used it must be suited to the power consumption of the appliance, otherwise overheating of the extension cord and/or plug may occur.
11. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.
12. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.
13. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!
14. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.
15. Do not touch the appliance if it falls into water. Remove the plug from its socket, turn off the appliance and send it to an authorized service center for repair.
16. Do not plug or unplug the appliance from the electrical outlet with a wet hand.
17. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.

18. Children are unable to recognize the hazards associated with incorrect handling of electrical appliances. Therefore, children should never use electric household appliances unsupervised.

19. Never leave the appliance unattended during use.

20. This appliance is not designed for commercial use. Domestic use only.
21. Do not use the appliance for other than intended use.
22. Do not wind the cord around the appliance and do not bend it.
23. The use of accessory attachment not recommended by the appliance manufacturer may cause injuries.
24. Do not allow children to use the blender without supervision.
25. Blade is sharp. Please be careful when you wash it.
26. Assemble the blade base with the blending cup tightly, otherwise it will leak.
27. Never put the blade on the motor base directly when use.
28. Never put the hot ingredients (above 65°C) into the cups.
29. Please remove all hard kernels from the fruit before blending.
30. There is overheat protection system in the motor, it will work if the motor is overheated. You should turn off the power at this time and wait the machine to cool down completely.
31. Regarding the instructions for cleaning the surfaces which come in contact with food, speed settings and operating time, please refer to the below paragraph of the manual.

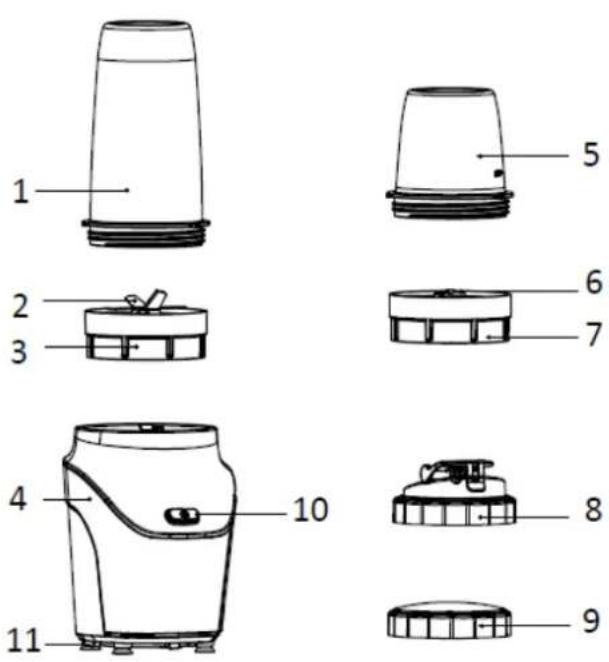

IV. GENERAL DESCRIPTION

PARTS DESCRIPTION

1. Blending cup

2. Cross blade

3. Blade base

4. Motor base

5. Grinding cup

6. Flat blade

7. Blade base

8. Flip-top lid

9. Storage lid

10. ON/OFF Button

11. Foot

NOTE: Before using your appliance for the first time, clean all of the accessories (except for the motor base) in warm soapy water. Rinse and dry thoroughly.

V. USING INSTRUCTIONS

Caution: Make sure the motor base is unplugged from the power source.

1. Place the motor base on a firm, flat, level surface.
2. Fill the blending cup with your ingredients and connect with the cross blade for blending purpose.
   Alternatively, fill the grinding cup with your ingredients and connect with the flat blade for grinding purpose.
   Rotate the blade base on to the cup tightly in clockwise direction. Do not exceed the "MAX" level on the cup.
3. Rotate the cup into the motor base in clockwise direction. Make sure the cup is locked firmly.
4. Plug in the appliance.
5. Press "ON/OFF" button to turn on the unit. Press "LOW-HIGH" button once, the appliance starts working at low speed. Press it again, the appliance will work at high speed.
   If you want to use pulse function during operation, press "PULSE" button once to let the appliance stop first, and then press "PULSE" button again to run the appliance with full speed for 2 seconds. Repeat if needed.
6. After use, press "ON/OFF" button to turn off the appliance and then unplug it.

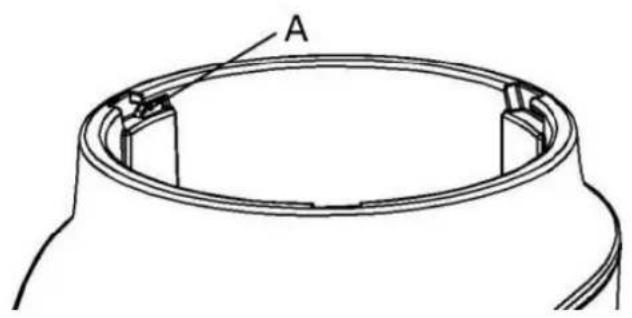

NOTE: This product is equipped with 1 safety switch (A) on the motor base. If the blade base is not assembled correctly, the safety switch will not be activated and the machine will not work when switched on. Do not use any tools to press the safety switch in order not to cause any damage.

Technical line drawing of a mechanical component with labeled section A (no text or symbols beyond label)

Important!

1. For blending purpose, please cut ingredients into pieces if the food is solid. Assemble the blade base with the cup tightly, otherwise it will leak. Do not stir dry solid ingredients only.
   After 1 minute continuously operation of the appliance for blending, it is required to be stopped for 5 minutes to prevent overheating. After 5 cycles, let the appliance have a rest to cool down.
2. Please make sure never to put any hard objects in the blender as they could damage the blade or the cup.
   Please remove all hard kernels from the fruit before blending.
3. The maximum weight of ingredients in the grinding cup cannot exceed 120g.
   After 0.5 minute continuously operation of the appliance for grinding, it is required to be stopped for 5 minutes to prevent overheating. After 5 cycles, let the appliance have a rest to cool down.
4. Pulse function can be used for ice crushing and for help with cleaning purpose. When crushing ice cubes, please remember to add some water into the cup.

VI. RECIPES

GREEN HEALTHY SMOOTHY

100 gr. Spinach

1 Avocado

2 bananas

300ml yoghurt

1. Add all the ingredients to the tall mixing cup and twist on the extractor blade.
2. Lock on and mix until smooth.

HUMMUS

60ml chicken or vegetable stock

14oz can chickpeas (drained)

3 cloves of garlic

2tbs lemon juice

3tbs tahini (sesame paste)

1. Add all the ingredients into the tall mixing cup.
2. Twist on the extractor blade and blend until smooth.
3. Add salt and pepper to taste.
4. Serve with warm pitta bread.

STRAWBERRY DAIQUIRI

Ice

4oz daiquiri mix

2oz light rum

Handful of fresh or frozen strawberries

1. Fill the tall mixing cup and twist on the extractor blade.
2. Pour all the ingredients and blend until smooth.

MARGARITA

Ice

1 ½ oz tequila

1oz fresh lime juice

12 oz triple sec or Cointreau

1tsp sugar

1. Fill the tall mixing cup and twist on the extractor blade.
2. Pour all the ingredients and blend until smooth.

CLASSIC MILKSHAKE

Splash of milk

Few scoops of vanilla ice cream

1. Add all the ingredients into the tall mixing cup and twist on the extractor blade.
2. Blend until smooth.

3. Add more milk if you want the milk shake to be thinner.

4. To create different flavours, add different ingredients to the classic recipe, for example chocolate syrup, blueberry, strawberry, banana, peanut butter into the appliance and blend until smooth.

STRAWBERRY BANANA SMOOTHIE

Handful of fresh or frozen strawberries

1 banana

1 cup of ice

Splash of orange juice

1. Add all the ingredients to the tall mixing cup and twist on the extractor blade.
2. Lock on and mix until smooth.

VII. CLEANING AND MAINTENANCE

1. Always unplug the appliance before cleaning.
2. Do not immerse the motor base in water or any other liquids. Clean it with a damp cloth and dry thoroughly.
3. Disassemble the other parts after each use and wash them in soapy water. Then rinse with clean water and dry thoroughly.
4. Only the motor base cannot be cleaned in a dishwasher. The other parts are dishwasher safe as long as the temperature is not above 60^ C. You can also use the pulse function for quick cleaning if needed.
5. Do not use any parts in a microwave.

Environment friendly disposal

You can help protect the environment!

Please remember to respect the local regulations: hand in the non-working electrical equipment's to an appropriate waste disposal center.

HEINNER is a registered trademark of Network One Distribution SRL. Other brands and product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from NETWORK ONE DISTRIBUTION.

Copyright © 2013 Network One Distribution. All rights reserved.

www.heinner.com, http://www.nod.ro

http://www.heinner.com, http://www.nod.ro

This product is in conformity with norms and standards of European Community.

Importer: Network One Distribution

Marcel Iancu Street, 3-5, Bucharest, Romania

Tel: [phone], www.heinner.com, www.nod.ro

HEINNER

BLENDER SPORT

Model: HSB-T1000SS

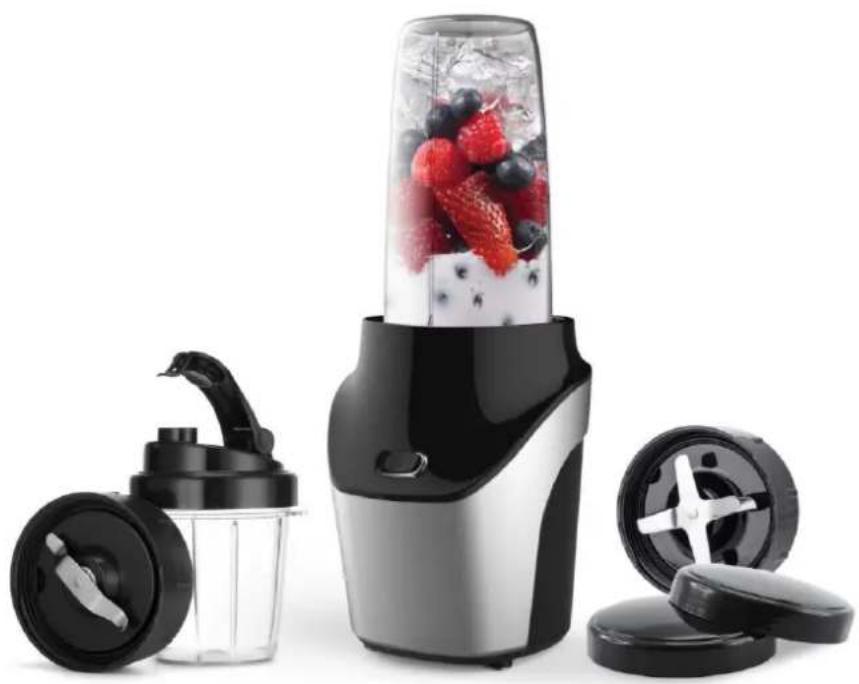

Product photo of a black and silver blender with strawberries inside, accompanied by a plastic blender and lid (no text or symbols visible)

• BLENDER SPORT
• 1000W

Technical line drawing of a mechanical component with labeled section A (no text or symbols beyond label)

Important!

Product photo of a black and silver blender with fresh strawberries, featuring a side panel and lid (no text or symbols visible)

Technical line drawing of a mechanical component with labeled section A (no text or symbols beyond label)

Важно!

Copyright © 2013 Network One Distribution. All rights reserved.

www.heinner.com, http://www.nod.ro

http://www.heinner.com, http://www.nod.ro

Product photo of a black and silver blender with fresh strawberries, accompanied by a side view of its blender and lid (no text or symbols visible)

• Sport turmixgép
• 1000W

Technical line drawing of a mechanical component with labeled section A (no text or symbols beyond label)

Fontos!

Copyright © 2013 Network One Distribution. All rights reserved

www.heinner.com, http://www.nod.ro

http://www.heinner.com, http://www.nod.ro

CE
