Bimbo HM3 - Juicer IMETEC - Free user manual and instructions

Product Type	Centrifugal Juicer
Brand	Imetec
Model	Bimbo HM3
Power	800 W
Voltage	220-240 V, 50/60 Hz
Juice Jug Capacity	1 L
Pulp Container Capacity	1.5 L
Feeding Tube Diameter	60 mm (whole fruits)
Speed Settings	2 speeds (low/high)
Filter Material	Stainless steel micro-mesh
Housing Material	BPA-free plastic
Safety Features	Safety lock arm, non-slip feet, overload protection
Cleaning	Dishwasher-safe parts, cleaning brush included
Dimensions (L x W x H)	30 x 25 x 40 cm
Weight	3.5 kg
Cord Length	1.2 m
Warranty	2 years
Additional Accessories	Recipe book, cleaning brush

Frequently Asked Questions - Bimbo HM3 IMETEC

How do I assemble the juicer?

Place the motor unit on a flat surface. Insert the filter basket into the juicer body, then attach the pulp container. Place the lid on top and lock it using the safety arm until you hear a click.

Can I juice whole fruits without cutting?

Yes, the feeding tube has a 60 mm diameter, allowing you to juice whole apples, pears, and similar-sized fruits. For larger fruits, cut them into pieces.

How do I clean the juicer?

Unplug the device and disassemble all removable parts. Rinse them immediately under running water. Most parts are dishwasher-safe (top rack). Use the included brush to clean the filter mesh thoroughly.

What is the best speed for different fruits?

Use low speed for soft fruits like berries and tomatoes. Use high speed for hard fruits and vegetables like apples, carrots, and beets.

Is the juicer suitable for leafy greens?

Yes, but it works best when you roll the leaves into a ball or combine them with harder ingredients like apples for better extraction.

Why does the juicer stop during operation?

The juicer has an overload protection feature. If it stops, turn it off and unplug it. Remove some pulp or reduce the amount of produce. Wait a few minutes before restarting.

Can I juice frozen or very hard ingredients?

No, do not juice frozen fruits or ice cubes as they can damage the filter. For hard ingredients like ginger or turmeric, cut them into small pieces and use high speed.

How do I store the juicer?

Clean and dry all parts thoroughly. Store the juicer in a cool, dry place. You can place the juice jug and pulp container inside the main unit to save space.

Does the juicer come with a recipe book?

Yes, a recipe book is included with the Bimbo HM3. It contains various juice recipes for different health benefits.

What is the warranty period?

The Imetec Bimbo HM3 juicer comes with a 2-year warranty against manufacturing defects. Keep your receipt for warranty claims.

USER MANUAL Bimbo HM3 IMETEC

Operating instructions

Bedienungsanleitung

IT ISTRUZIONI OPERATIVE DEL MINI TRITATUTTO

Gentile cliente,

IMETEC would like to thank you for purchasing this product. We are convinced that you will appreciate the quality and reliability of this appliance, which was developed and manufactured with customer satisfaction always in mind.

These operating instructions were created based on the European standard EN 62079.

IMPORTANT!

Instructions and information for safe use

Please read these instructions completely and in particular the safety instructions before using your appliance and follow these instructions carefully. Keep these instructions and the associated image section in a convenient location for reference over the entire service life of the mini chopper and be sure to include it if you pass the appliance on to another user.

TABLE OF CONTENTS

Page

Page

Safety Instructions 5 Disposal 8

General Instructions 6 Service and Warranty 8

User Instructions 7 Image section I-III

SAFETY INSTRUCTIONS

1. After unpacking, make sure that the appliance is intact with no visible signs of damage caused by transport. Should you have any doubts, do not use the appliance and take it to an authorised IMETEC Service Centre.
2. Before connecting the appliance, check that the rating plate specifications correspond to the electrical mains supply. The plate is on the bottom of the motor unit.
3. Do not use adaptors, multiple sockets and/or extension cords. If the plug and socket are not compatible, have a qualified technician replace the plug with a suitable model.

4. This device must only be used for the purpose for which it was designed, that is, as a mini-chopper for domestic use. Any other use is to be considered improper and therefore dangerous. The manufacturer cannot be held responsible for any damage due to improper or incorrect use.

5. The use of any electric appliance implies the observance of some fundamental rules. Specifically:

6. never touch the appliance with hands or feet that are wet or damp.

7. do not tug the power cord or the appliance to pull the plug out of the socket.
8. do not expose the appliance to the elements (rain, sun, etc.).
9. do not let children or incapable persons use the appliance without supervision.
10. always disconnect the appliance when left unattended.
11. never use the appliance with an external timer or a remote control system or similar devices.

GB

1. Remove the protection cover from the cutting blades before using them. Handle the cutting blades with care. Be particularly careful when taking the blade out of the bowl or when emptying or cleaning it. Never dip the appliance in water or place it under a running tap.
2. Before cleaning or servicing the appliance, disconnect it from the mains by removing the plug.
3. Should the appliance break down and/or fail to work properly, turn it off and do not tamper with it. If it needs repairing, take it to an authorised IMETEC Service Centre.
4. Do not attempt to replace the power cord. If it is damaged or needs replacing, contact an authorised IMETEC Service Centre.
5. Should you decide not to use the appliance any more, make it inoperative by cutting the power cord after removing the plug from the socket. We also recommend making all potentially dangerous parts of the appliance harmless, particularly for children who might be tempted to play with it.
6. This appliance should not be used by children or persons with partially reduced physical, sensorial or mental faculties, and in any case not without specific knowledge and experience, or without the supervision or instructions for use provided by a responsible person.
7. Children must not be allowed to play with the appliance.

GENERAL INSTRUCTIONS

DESCRIPTION OF THE APPLIANCE AND ACCESSORIES [Fig. Z]

Please consult Figure [Z] in the image section to check the content of the packaging.

All figures can be found on the inside pages of the cover.

1 Motor unit 4 Blade pin

2 Protection cover 5 Container

3 Stainless steel blade 6 Power cord

ON AND OFF CONTROL

The mini chopper can be used in two ways.

FUNCTION	USE
Pulse action (press and release)	Ideal for mincing.
Continuous action (keep pressed for the required time)	Ideal for high-speed processing.

SAFETY SYSTEM FOR IMMEDIATE MOTOR SHUTDOWN

A safety system stops the appliance from functioning if the following accessory is not properly assembled: - protection cover (2).

MAXIMUM WORKING QUANTITIES AND TIMES

When using, make sure you do not put in more than 50g of raw meat or solid foods.

In particular, for very hard food, put smaller quantities of food in the container (5) and carry out the operation several times.

After 30 seconds of pulse action or continuous processing, leave the appliance to cool down for at least 2 minutes. After 5 continuous processing cycles, leave it to cool down for at least 30 minutes.

USER INSTRUCTIONS

MINI CHOPPER

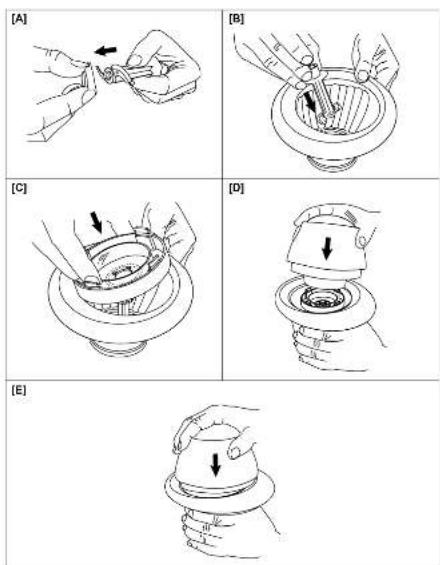

• Remove the protective cover from the blade (3) [Fig. A].
• Fit the blade (3) onto the container's pin (4) [Fig.B].
• Put the solid ingredients cut into small pieces in the container, distribute them evenly and make sure you don't go over the maximum level indicated.
• Put the plug in the socket.
• Fit the protection cover (2) in its seat inside the container (5) [Fig. C].
• Place the motor unit (1) on the container (5) [Fig. D].
• Operate the appliance at continuous or pulse action pressing down the motor unit (1), depending on the processing that you wish to carry out [Fig. E].
• Release the motor unit (1) to turn off the appliance and wait until the blade (3) stops before lifting the motor unit (1) and the protection cover (2).

Please note:

- For safety reasons, you cannot use the appliance without correctly fitting the protection cover.

CLEANING

• Disconnect the appliance plug from the socket.
• Clean the motor unit and the cord with a damp and well-wrung sponge.

• All the accessories can be washed:

• By hand: wash with water and detergent. Handle the stainless steel blades (3) with care to avoid getting cut or damaging the blades. After washing, rinse and dry them thoroughly.

• In the dishwasher: make sure that the water does not exceed the maximum temperature of 60^ C.

- All the parts intended to come in contact with food during the use or conservation must be well cleaned before use.

- Do not leave food inside or in contact with the appliance for a time longer than what is necessary for its preparation.

GB

DISMANTLING

- Disconnect the appliance plug from the socket and follow the assembly sequence in exactly the opposite order, removing one piece at a time.

Please note:

- Never immerse the motor unit (1), cord (6) or plug in water.

- Do not use this appliance for processing frozen meat, candied fruit, gummy sweets, cheese rinds or non-edible parts of food (e.g. bone, fish bone, fruit stones and pips, etc.)

- Do not use the appliance with liquid food.

DISPOSAL

The product packaging consists of recyclable materials. Dispose of these in an environmentally appropriate manner.

In accordance with EU directive 2002/96/EC, the appliance must be disposed of properly at the end of its service life. This involves the recycling of valuable substances contained within the appliance and reduces the impact on the environment. For more information, contact your local disposal company or the store where you purchased the appliance.

SERVICE AND WARRANTY

If repairs are required, contact a customer service centre authorised by IMETEC (see enclosed After Sales Service sheet), indicating the product model.

A manufacturer warranty is provided for the appliance. Details can be found on the enclosed warranty sheet.
