SJ 700 - Juicer IMETEC - Free user manual and instructions

Type	Electric Juicer
Brand	Imetec
Model	SJ 700
Dimensions (approx.)	25 x 20 x 40 cm
Weight (approx.)	3 kg
Power consumption	500 W
Voltage	220-240 V ~ 50/60 Hz
Speed settings	2 speeds
Capacity (juice jug)	1 L
Pulp container capacity	1.5 L
Feeding chute diameter	3.5 cm
Material	Stainless steel filter, BPA-free plastic
Cord length	1 m
Safety features	Locking arm safety switch, non-slip feet
Cleaning	Dishwasher-safe removable parts (excluding motor base)
Warranty	2 years

Frequently Asked Questions - SJ 700 IMETEC

How do I assemble the Imetec SJ 700 juicer?

Place the motor base on a flat surface. Insert the filter basket into the bowl, then lock the bowl onto the base. Place the lid on top and secure it with the locking arm. Finally, position the juice jug and pulp container.
Refer to the user manual for detailed assembly instructions.

Can I clean the parts in the dishwasher?

Yes, the juice jug, pulp container, filter basket, lid, and pusher are dishwasher safe. However, the motor base and locking arm should only be wiped with a damp cloth. Do not immerse the base in water.

What is the best way to prevent clogging?

Cut fruits and vegetables into pieces that fit the feeding chute (max 3.5 cm). Alternate between hard and soft produce. Use the reverse function if available (model dependent) to clear blockages. Do not overload the juicer.

How do I extract maximum juice?

Feed ingredients slowly and use the pusher gently. For leafy greens, roll them into balls before feeding. Re-juice the pulp for extra yield. Use the lower speed for soft fruits and higher speed for hard vegetables.

The juicer stops working during use. What should I do?

Check if the locking arm is properly engaged. The safety switch will prevent operation if not locked. Also, check if the motor has overheated; let it cool down for 15 minutes before restarting. Some models have a thermal cut-off.

Is the pulp container sufficient for large batches?

The pulp container has a capacity of 1.5 L. For larger batches, you may need to empty it periodically. The juice jug holds 1 L. Consider preparing ingredients in stages.

Can I juice whole fruits like apples or oranges?

For apples, remove seeds and cut to fit the chute. Oranges should be peeled to avoid bitter residue. Citrus fruits can be juiced with or without rind, but peeling yields better taste.

How do I store fresh juice?

Fresh juice is best consumed immediately. If storing, pour into an airtight container and refrigerate for up to 24 hours. Add a squeeze of lemon to reduce oxidation. Do not store in metal containers.

What should I do if the filter basket gets damaged?

Use the juicer only if the filter basket is intact. Contact Imetec customer service or an authorized dealer to order a replacement part. Do not attempt to repair the basket yourself.

Does the SJ 700 model have a reverse function?

The Imetec SJ 700 may or may not have a reverse function. Check the control panel: if present, use the reverse button to clear clogs. If not, turn off and unplug, then manually remove blockage.

USER MANUAL SJ 700 IMETEC

Operating instructions

[A]

DATI TECNICI / TECHNICAL DATA / DATOS TÉCNICOS / TEXNIKA ΣTOIXEIA

IMETEC

TYPE N5901

220-240 V

50 Hz 150 W

TENACTA GROUP S.p.A.

VIA PIEMONTE 5

IT - 24052 AZZANO S. P.

INTRODUZIONE

IT

Dear customer, thank you for choosing our product. We are certain you will appreciate its quality and reliability, as it's been designed and manufactured with customer satisfaction in mind. These instructions for use comply with European Standard EN 82079.

ATTENTION! Instructions and warnings for a safe use.

Before using this appliance, carefully read the instructions for use and in particular the safety notes, warnings and instructions, which must be complied with. Store this manual together with the relevant illustrative guide for future reference. Should you pass the appliance on to another user, make sure to also include the entire documentation.

NOTE: should certain parts of this manual be difficult to understand or should doubts arise, contact the company before using the product, at the address indicated on the last page.
NOTE: visually impaired people may refer to the digital version of these instructions for use at www.tenactagroup.com

CONTENTS

Introduction ...... Page 10

Safety notes ...... Page 10

Precautions ...... Page 12

Symbols ...... Page 13

Description of the appliance and its accessories....Page 13

Cleaning before first use ...... Page 13

Operation ...... Page 14

Maximum quantities ...... Page 14

Assembly Page 15

Use....Page 16

Cleaning and maintenance....Page 16

Troubleshooting....Page 17

Disposal Page 17

Assistance and warranty ...... Page 18

Illustrative guide ....I-II-III

Technical data ....III

SAFETY NOTES

- After having removed the appliance from its packaging, verify its integrity based on the drawing and any presence of damage caused by transport. If in doubt, do not use the appliance and contact an 10

authorised service centre.

• Do not let children play with the packaging! Keep the plastic bag out of the reach of children - risk of suffocation!
• Before connecting the appliance, check that the technical data (16) match the mains supply. The identification technical data (16) is found on the appliance.
• This appliance must be used only for the purpose for which it was designed, namely as a juice extractor for home use. Any other use is considered not compliant and therefore dangerous.
• The appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children must not use the appliance. Keep the appliance and its cord out of reach of children.
  • Children must not play with the appliance.
• The product must be supervised during use.
• DO NOT use the appliance with wet hands, damp feet or barefoot.
• DO NOT pull the power cable or the appliance itself to remove the plug from the socket.
• DO NOT expose the appliance to humidity or weather conditions (rain, sun, etc.).
• Always disconnect the appliance from the mains supply before cleaning or performing maintenance or when changing the accessories and when the appliance is not in use.
• If the appliance is faulty or malfunctions, switch it off and do not tamper with it. Any repairs must only be carried out by an authorised technical assistance centre.
• If the power cable is damaged it must be replaced by an authorised technical service centre, so as to prevent all risks.
• The appliance is designed exclusively for indoor domestic use.
• ✅ NEVER immerse the appliance in water and never place it under running water.

• The appliance is not intended to be used with an external timer or through a separate remote control or similar systems.

• DO NOT use the appliance near a washbasin full of water. During use, the appliance must be placed in such a way that it cannot fall in the washbasin.

• NOT use near a hob. Pay attention that the cable does not come into contact with hot, incandescent surfaces, open flames, pots and other utensils.
  • NEVER touch the moving parts.
• Wash the parts that come in contact with the food before using them.
• NOT leave any food residue in the container (6) and in the juice container (17) for more time than is required for the preparation.

PRECAUTIONS

• If the appliance should stop during operation press the CONTRAST key (12). If the appliance should still remain blocked, turn it off and remove the plug (15) from the socket. Open the inlet and remove the excess food to resume the process.
• Use dried fruit only if previously left to soak for at least 8 hours and always add water to extract it.
  • Alternate fruit and vegetables when filling it.
• Carrots that have a diameter greater than 35 mm must be cut into two before inserting them into the inlet. Only the high speeds should be selected for hard and fibrous vegetables such as carrots, by pressing speed selector (11) 2 or 3.
• Insert one piece of food at a time into the inlet (2).
• When the last piece of food is inserted, continue for another 30 seconds before turning the appliance off.
• Introduce fruit with small seeds, such as grapes or watermelon, little by little.
  • Always peel pomegranates and only introduce the seeds.
• Always cut fibrous vegetables into small pieces. After extracting 500 g of food it is recommended to clean the filter (4) and the auger (3) before continuing.
• If the leaves of vegetables should wrap around the auger (3), stop the appliance and wash the auger before continuing.

ATTENTION!

NEVER use the appliance with ice, thick peels, seeds, ice, Sesame, coffee beans, pepper, lemons, walnuts and coconut pulp, sugar cane, fruit soaked in brandy or alcohol, oil or vegetable fat.
NEVER extract juice using only carrots, but always alternate extraction with soft vegetables or fruit.
Do NOT press the fruit or vegetables with your fingers or other objects - always use the presser (1).

DO NOT place too much food inside the appliance as the motor might be damaged.
DO NOT exert too much pressure on the presser (1) when making the juice as it might damage the motor.
The appliance must NOT be used for more than 20 minutes. Let the appliance cool down for at least 3 hours before re-using it.
DO NOT operate the appliance without any food.

SYMBOLS

Warning

Prohibited

DESCRIPTION OF THE APPLIANCE AND ITS ACCESSORIES

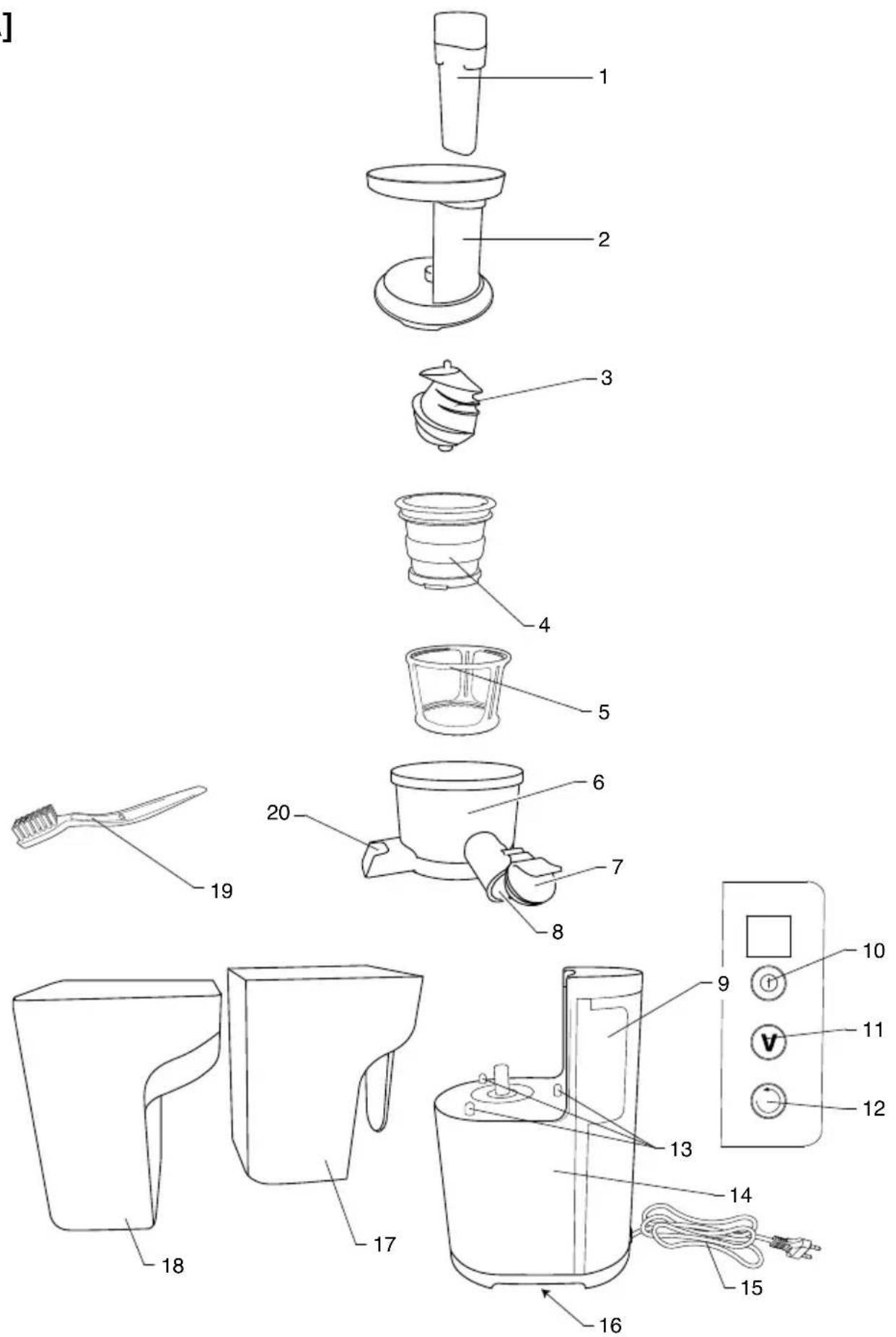

Look at Figure [A] in the illustration section to check the content of the packaging. All figures are found in the inside pages.

For the appliance features, refer to the external packaging.

1. Presser
2. Inlet
3. Auger
4. Stainless steel filter
5. Mixer drum
6. Container
7. Drip cap
8. Dispensing nozzle
9. Display
10. ON/OFF button
11. Speed selector button
12. CONTRAST button
13. Container hooks
14. Motor casing
15. Plug
16. Technical data
17. Container for the juice
18. Container for the waste
19. Cleaning brush
20. Waste outlet

CLEANING BEFORE FIRST USE

Unpack the appliance and remove any inserts or adhesive labels from the product.

ATTENTION!

NEVER wash the removable parts in a dishwasher.

• Wash the removable parts: the presser (1), the inlet (2), the auger (3), the stainless steel filter (4), the mixer drum (5), the container (6) and the juice and waste juice containers (17-18) by hand.
• Never immerse the washable parts in water hotter than 60°C.
  • Dry with a dry cloth.

OPERATION

The control panel consists of the following buttons:

	ON/OFF	To confirm the speed and operate the appliance.To stop the appliance.
	SPEED	To select the desired speed between 1-2-3 and the self-cleaning.
	CONTRAST	To invert the direction of rotation and free the auger from food.

The ON/OFF button (10) allows you to operate and stop the operation of the appliance.

The CONTRAST button (12) allows you to stop the process and restart it in the inverse direction.

The V key (11) allows the following speeds:

1 Low speed Suitable to extract juice from soft fruit.
2 Average speed Suitable to extract juice from fruit and vegetables.
3 High speed		Suitable to extract juice from fruit and fibrous veg-etables.
[] Self-cleaning		5 seconds clockwise and 5 seconds anti-clockwise for 3 cycles.

MAXIMUM QUANTITIES

	Maximum quantities at speed 1	Maximum quantities at speed 2	Maximum quantities at speed 3
Cored pineapple	1.5 kg
Cored and sliced pineapple	500 g
Peeled orange	5 kg
Orange with peel	3 kg
Banana	800 g
Raw, peeled beetroot	-- 800 g
Cooked beetroot	-- 4 kg
Basil	800 g
Raw broccoli	- 1 kg
Carrots cut in half vertically	-- 1.5 kg
Cauliflower	1.5 kg
Cabbage	1 kg
Red raw cabbage	700 g
Peeled cucumber	4 kg
Fennel	800 g
Strawberries	2 kg
Kiwi	3 kg
Lettuce	900 g
Steamed corn	1.6 kg
Almonds with water	-- 300 g
Mango	2 kg
Apple	4 kg
Pomegranate seeds	300 g
Peppers	2.5 kg
Pears	800 g
Peach	1.5 kg
Tomatoes	2 kg
Grapefruit	3 kg
Plums	3 kg
Radish	2 kg
Celery	500 g
Soybeans boiled with water	1 kg
Spinach	500 g
Seedless grapes	500 g
Grapes with seeds	1 kg
Savoy cabbage leaves	500 g
Ginger	600 g
Sliced pumpkin	1 kg

ASSEMBLY

ATTENTION!

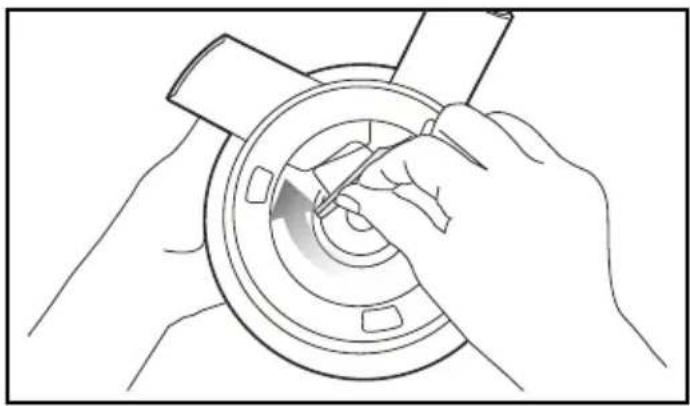

Before using the appliance make sure that the rubber lever under the container (6) is always inserted so as to prevent juice from leaking [Fig. B].

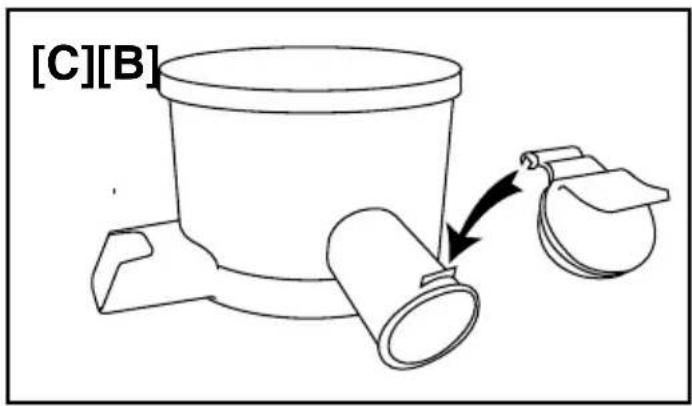

• Insert the drip cap (7) on the dispensing nozzle (8) [Fig. C].

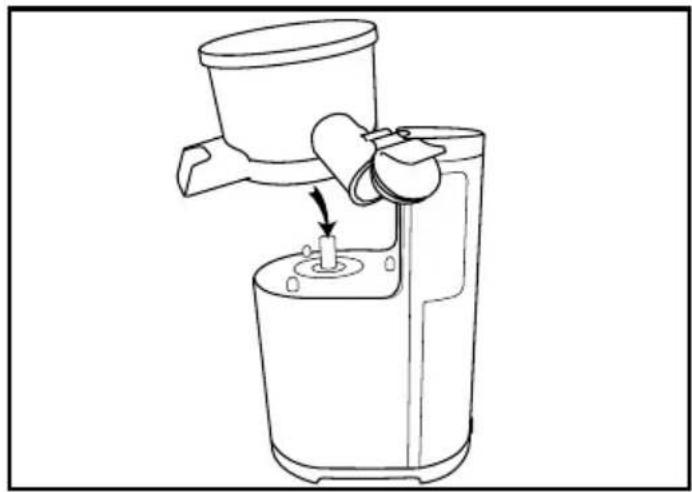

• Insert the container (6) onto the hooks (13) [Fig. D].
• Rotate the container (6) clockwise until it clicks into place [Fig E].
• Insert the stainless steel filter (4) inside the mixer drum (5) [Fig. F].

• Insert the filter (4) with the drum (5) inside the container (6) while aligning the notch on the filter with the triangle (▲) on the container (6) [Fig. G].

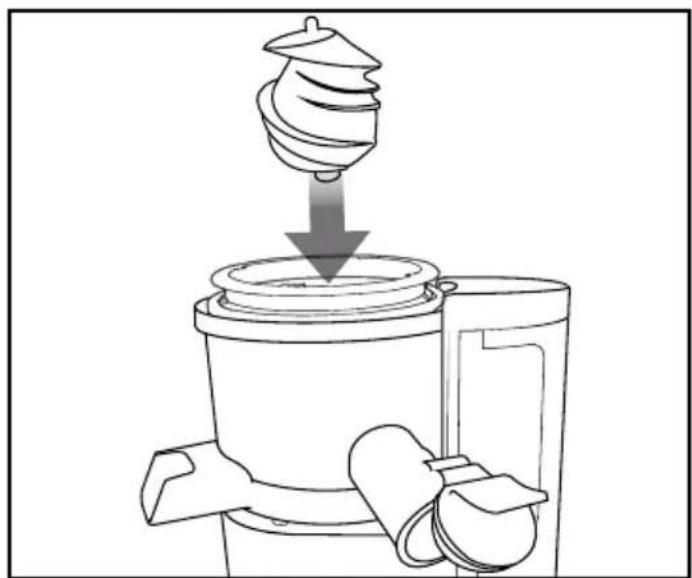

• Insert the auger (3) into the stainless steel filter (4) by pressing tightly until a click is heard [Fig. H].

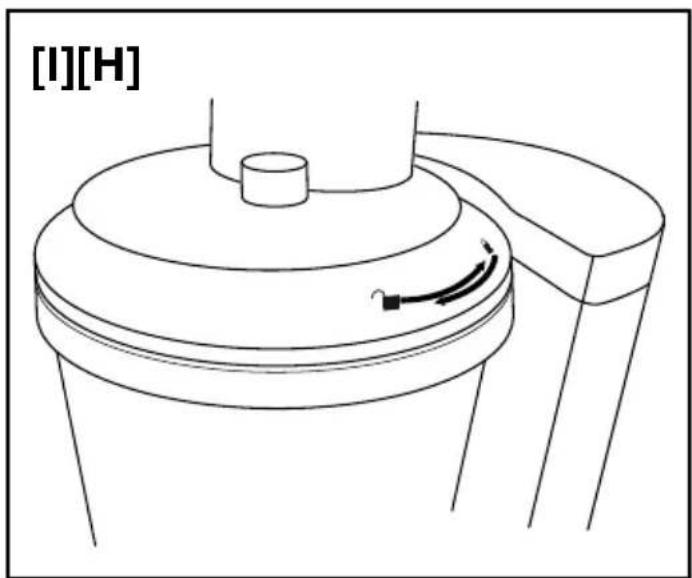

• Insert the inlet (2) on the container (6) by aligning the open padlock (☐) with the arrow on the container (▲) [Fig I] and rotate the inlet (2) clockwise to align the closed padlock (☐) with the arrow on the container (▲) [Fig L].
• Place the container for the juice (17) in front of the dispensing nozzle (8) and the container for the waste (18) in front of the waste outlet (20).

USE

Proceed as follows after having assembled the appliance:

• Insert the plug (15) in the socket.
  • The display (9) indicates speed 3.
• Select the desired speed (1-2-3) by pressing the speed button (11).
• Start the appliance by pressing the ON/OFF button (10).
• Place the food inside the inlet (2).
  • If the food should stop in the inlet press it gently with the presser (1).
• Once the juice is extracted, stop the appliance by pressing the ON/OFF button (10).
• Disconnect the plug (15) from the socket.
• Immediately clean the parts that have come into contact with food as described in the CLEANING AND MAINTENANCE chapter.

CLEANING AND MAINTENANCE

After using the appliance, clean it immediately to prevent the food from clogging the stainless steel filter (4) when it dries.

ATTENTION!

NEVER wash the removable parts in a dishwasher.

• Place the container for the juice (17) in front of the dispensing nozz container for the waste (18) in front of the waste outlet (20).
• Select the self-cleaning function by pressing the speed button (11) until the display shows the symbol [] moving.
• Start the appliance by pressing the ON/OFF button (10).
  • Pour water inside the inlet (2).
• The self-cleaning function will last about 30 seconds after which the appliance will stop automatically.
• Disconnect the plug (15) from the socket.

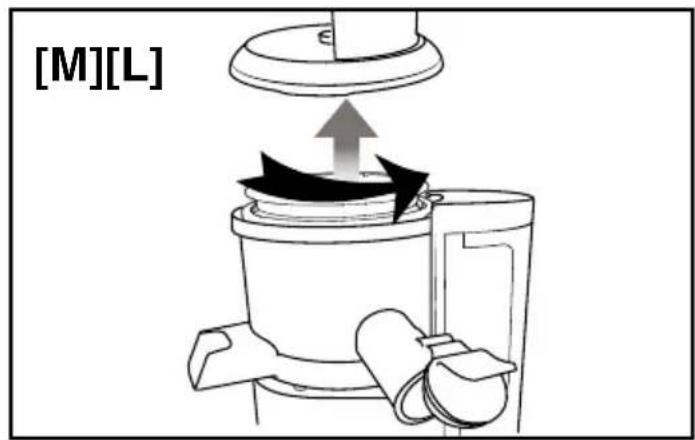

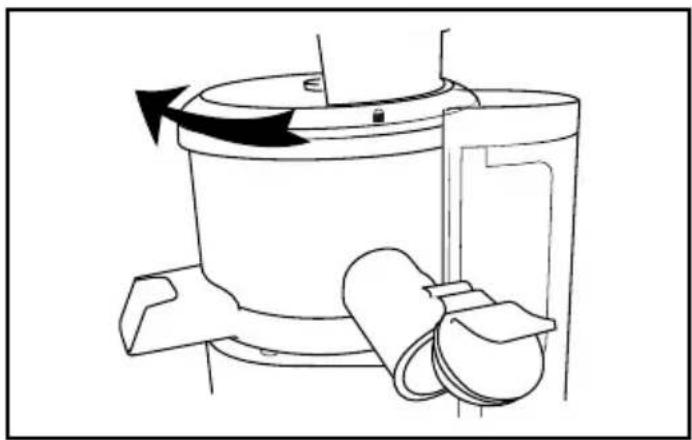

• Release the inlet (2) from the container (6) by rotating it anti-clockwise.
• Remove the container (6) from the motor casing (14) by rotating it anti-clockwise.
• Remove the filter (4) with the auger (3) inserted.
• Tilt the filter (4) and remove the auger (3) and then the mixer drum (5) [Fig N].

• Clean the dry dispensing nozzle under a jet of water by opening the silicone flap [Fig O].

• Wash the removable parts: the presser (1), the inlet (2), the auger (3), the stainless steel filter (4), the mixer drum (5), the container (6) and the juice and waste juice containers (17-18) by hand.

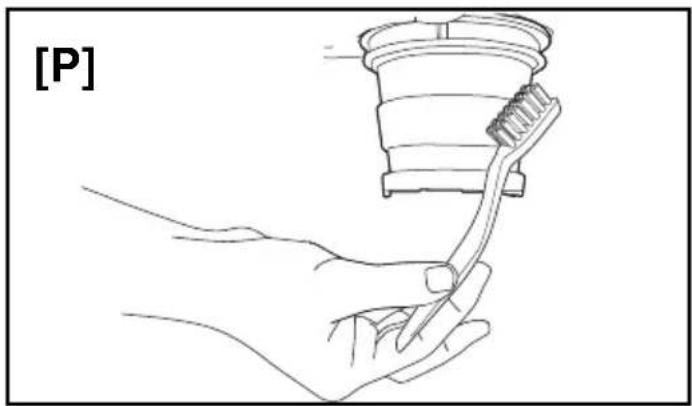

• Clean the stainless steel filter (4) from the outside and inside with the brush supplied (19) [Fig. P].
• Never immerse the washable parts in water hotter than 60°C .
• Clean the motor casing (14) with a damp, well-wrung sponge.
  • Dry with a dry cloth.

TROUBLESHOOTING

Should one of the problems indicated occur, adopt the proposed solution:

Problem Solution
The food continues to turn in the filter (4) and is not extracted.	Press the CONTRAST button to invert the direction of rotation and free the auger from food.
Excessive pulp is accumulated in the filter (4).	Disassemble the filter (4) and auger (3) between one juice extraction and another and clean them from residue. Resume the process.
	Alternate fibrous vegetables such as carrots with softer food.
The appliance does not work. Close the inlet (2) tightly.
Juice comes out from the bottom of the container (6)	Fully close the silicone lever at the rear of the container.
The inlet (2) does not close.	Check the assembly of all the parts: container (6), filter (4) and auger (3).
The appliance stops during extraction.	Press the CONTRAST button to invert the direction of rotation and free the auger from food and then resume the process.
	Extract at high speed 2 or 3.
The plastic parts stain with vegetables, such as carrots.	Clean the plastic parts with a cloth dipped in vegetable oil.

DISPOSAL

The product is packaged in recyclable materials. Dispose of packaging in accordance with the environmental protection regulations.

Pursuant to art. 26 of Legislative Decree 14 March 2014, No. 49 "Implementation of Directive 2012/19/EU on waste electrical and electronic equipment (WEEE)", the crossed bin symbol on the appliance or its packaging indicates that the product must be disposed of separately from other waste at the end of its useful life.

The user must therefore take the appliance to an appropriate recycling centre for electrical and electronic equipment. Alternatively, instead of handling the disposal, the appliance can be handed over to the retailer when a new, equivalent appliance is purchased.

Retailers of electronic products having a sales area of at least 400 m2 can also be handed electronic products that are to be disposed of measuring less than 25 cm, free of charge and with no obligation to buy.

Appropriate separate collection for the subsequent procedure for the decommissioned appliance for recycling, which includes treatment and environmentally friendly disposal helps prevent adverse effects on the environment and health and promotes reusing and/or recycling materials that the appliance consists of.

ASSISTANCE AND WARRANTY

The appliance is guaranteed for a period of 2 years from the date of purchase. Evidence shall be taken as the date indicated on the receipt/invoice (provided it is legible), unless the buyer can prove that the delivery occurred later.

In the case of a defect in the product which existed prior to the date of delivery, IMETEC guarantees to repair or replace the appliance at no cost, unless one of the two solutions is disproportionate to the other. The buyer has the obligation to notify an IMETEC Service Centre of the non-conformity within two months from discovering the defect.

The warranty does not cover any part that may be defective due to:

a. transport damage or accidental drops,
b. incorrect installation or an inadequate electrical system,
c. repairs or alterations made by unauthorised personnel,
d. poor or incorrect maintenance and cleaning,
e. product and/or product parts subject to wear and/or consumables,
f. failure to comply with the operating instructions and/or negligent or careless use.

The list above is purely indicative and not exhaustive and in any case, this warranty shall not cover all circumstances that cannot be attributed to manufacturing defects of the appliance.

In addition, the warranty does not cover any case of improper use of the appliance and professional use.

IMETEC declines all responsibility for any damage that may directly or indirectly be caused to persons, property and animals as a result of failure to comply with the instructions provided in the Instructions and Warnings Manual regarding appliance installation, use and maintenance.

This is without prejudice to any contractual warranty claims against the seller.

Methods of support

Appliance repair must be carried out by an IMETEC Service Centre. If the faulty appliance is under warranty, it must be sent to the Service Centre together with a fiscal document that attests the date of sale or delivery.

INTRODUCCIÓN
