USER MANUAL MCG25 HITACHI

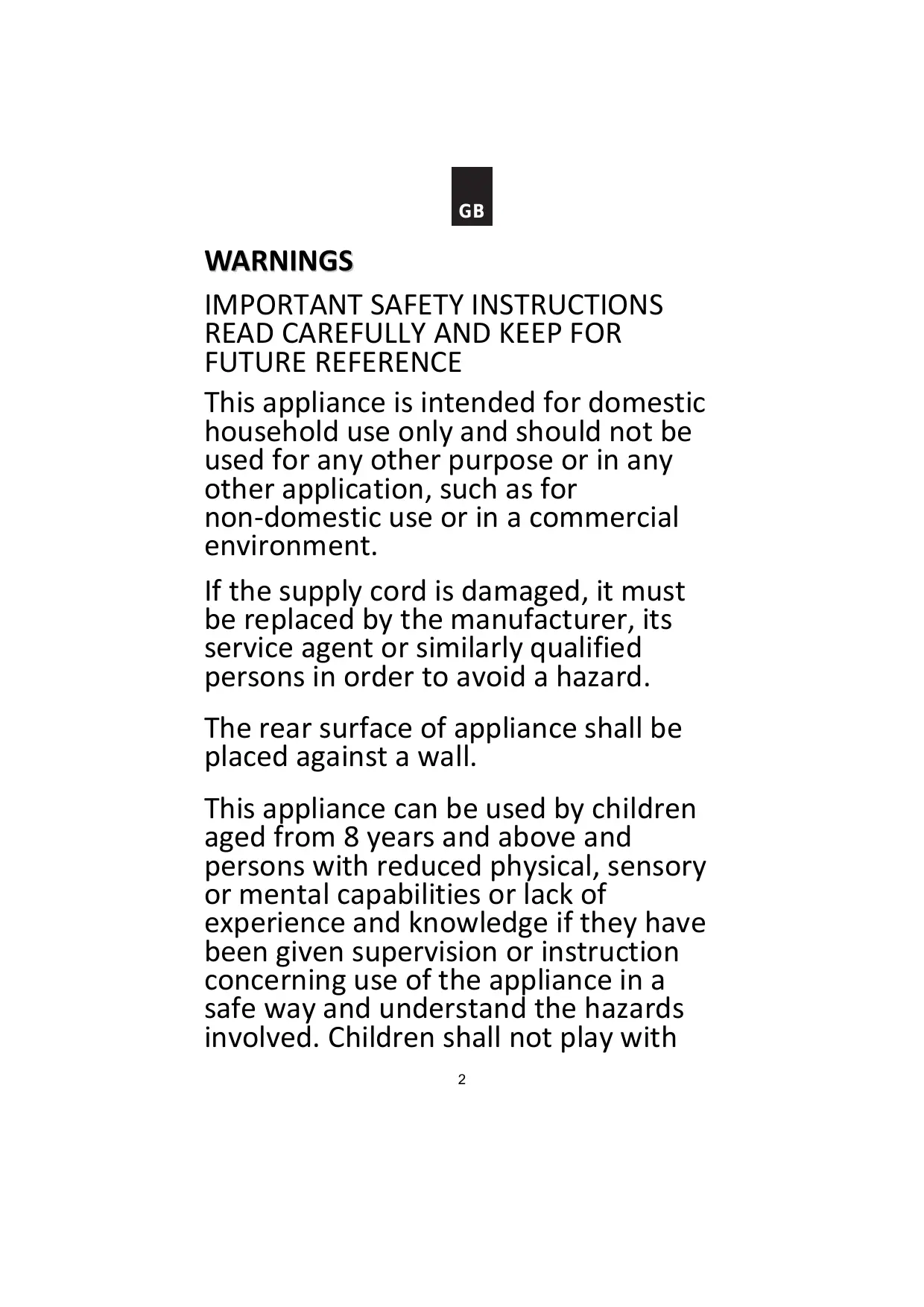

IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

This appliance is intended for domestic household use only and should not be used for any other purpose or in any other application, such as for non-domestic use or in a commercial environment.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

The rear surface of appliance shall be placed against a wall.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with

the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

Keep the appliance and its cord out of reach of children less than 8 years.

The appliance is not intended to be operated by means of an external timer or separate remote-control system.

The temperature of accessible surfaces may be high when the appliance is operating.

Do not place the appliance in or near hot gas or electric burner, or permit to touch a heated oven or mini oven.

WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode.

Keep a minimum free space 30~cm above the top surface of the oven.

Only use utensils that are suitable for use in microwave ovens.

When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.

The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.

The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.

For the details for cleaning door seals, cavities and adjacent parts, please see section "Cleaning and Maintenance" on pages 20 & 21.

The oven should be cleaned regularly and any food deposits removed.

Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

The microwave oven is intended to be used freestanding.

The appliance must not be placed in a cabinet.

Group 2, Class B equipment
This equipment is Group 2 equipment as it intentionally generates radio-frequency energy for treating material and is designed to be used in domestic premises or an establishment directly connected to the low voltage electricity distribution network supplying buildings used for domestic purposes (Class B).

These surfaces can get hot.

Caution: If the device operates in combination mode, it is recommended that children use the oven only under the supervision of adults because the temperature may be high.

WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.

WARNING: Accessible parts may become hot during use. Young children should be kept away.

Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface which may result in shattering of the glass.

A steam cleaner is not to be used.

The door should preferably be closed in all cooking modes.

After each cooking cycle, the cooling fan will continue to run for a while to ensure quick cooling and safe operation of the oven.

Do not hang any cloth or garment to the handle of the oven.

Do not line the oven's cavity with aluminium foil for easier cleaning: The oven may overheat and the enamel coating of the cavity may be damaged.

IMPORTANT SAFETY INSTRUCTIONS

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

The oven cannot be operated with the door open due to the safety interlocks built in the door mechanism which switch off cooking functions when the door is opened.

Operating the oven with the door open could result in harmful exposure to microwave energy. It is important not to tamper with the door mechanism.

Do not let water or any other liquid enter the oven through the ventilation slots.

Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.

Do not operate the oven if it does not work as expected or the mains lead is damaged or the unit is damaged in any way.

It is particularly important that the oven door closes properly and that there is no damage to the door (bent), or hinges and latches (broken or loosened), or the door seals and sealing surfaces.

The oven should not be adjusted or repaired by anyone except qualified personnel. This product is intended to be used free standing.

Avoid using straight-sided containers with narrow necks.

Stir the liquid before placing the container in the oven and again halfway through the heating time.

After heating, allow to stand in the oven for a short time. Stir or shake the contents (especially feeding bottles and baby foods) and carefully check the temperature before use.

WARNING: MICROWAVE ENERGY. DO NOT REMOVE THIS COVER.

Install or locate this oven only in the accordance with the installation instructions provided.

Do not store or use this appliance outdoors.

COOKING UTENSILS

Utensils should be checked to ensure that they are suitable for use in the microwave oven.

Materials you can use in microwave oven

Utensils	Remarks
Aluminium foil	Shielding only. Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 2.5 cm away from oven walls.
Browning dish	Follow manufacturer's instructions. The bottom of browning dish must be at least 5mm above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware	Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars	Always remove lid. Use only to heat food until it is warm. Most glass jars are not heat resistant and may break.
Glassware	Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags	Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels	Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper	Use as a cover to prevent splattering or a wrap for steaming.
Plastic	Microwave-safe only. Follow the manufacturer's instructions. Should be labelled “Microwave Safe”. Some plastic containers soften, as the food inside gets hot. “Boiling bags” and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap	Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers	Microwave-safe only (meat and candy thermometers).
Wax paper	Use as a cover to prevent splattering and retain moisture.

Materials to be avoided in microwave oven

Utensils	Remarks
Aluminium tray	May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties	May cause arcing and could cause a fire in the oven.
Paper bags	May cause a fire in the oven.
Plastic foam	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood	Wood will dry out when used in the microwave oven and may split or crack.

NOTES:

• Care should be taken when removing utensils or the glass turntable, as they may become hot during cooking.
• Ensure the turntable is in place when you operate the oven.

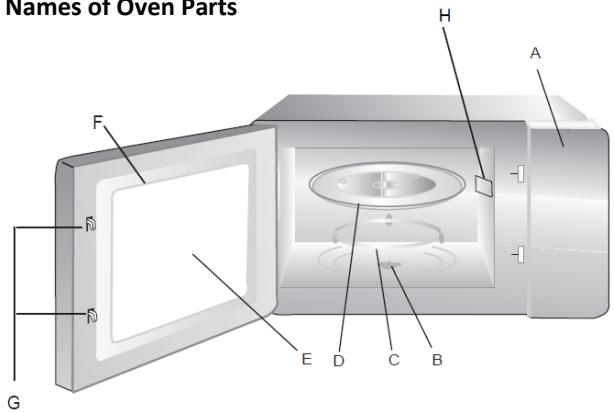

OVEN OVERVIEW

Names of Oven Parts

A. Control panel
B. Turntable shaft
C. Turntable ring
D. Glass tray
E. Oven window

F. Door assembly
G. Safety interlock system
H. Mica waveguide cover (do not remove)
I. Grill rack

TURNTABLE INSTALLATION

a. Never place the glass tray upside down. The glass tray should never be restricted.
b. Both glass tray and turntable ring must always be used during cooking.
c. All food and containers of food are always placed on the glass tray for cooking.
d. If glass tray or turntable ring cracks or breaks, contact your nearest authorised service centre.

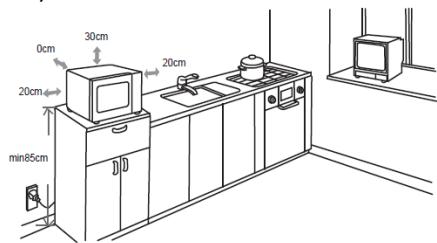

COUNTERTOP INSTALLATION

Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if the oven is damaged.

Cabinet: Remove any protective film found on the microwave oven cabinet surface.

Do not remove the light brown Mica cover that is attached to the inside of the oven cavity to protect the magnetron.

1. Select a level surface that provides enough open space for the intake and/or outlet vents.

(1) The microwave oven must be placed on a surface with height more than 850 ~mm above the floor.
(2) A minimum clearance of 20~cm is required on both sides of the oven.

(3) The minimum height of free space above the top surface on the oven is 30~cm .
(4) Do not remove the feet from the bottom of the oven.
(5) Blocking the intake and/or outlet openings can damage the oven.
(6) Place the oven as far away from radios and TV as possible. Operation of microwave oven m cause interference to your radio TV reception.

1. Plug your oven into a standard household outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label.

WARNING: Do not install the oven over a range cooktop or other heat-producing appliance. If installed near or over a heat source, the oven could be damaged and the warranty would be void.

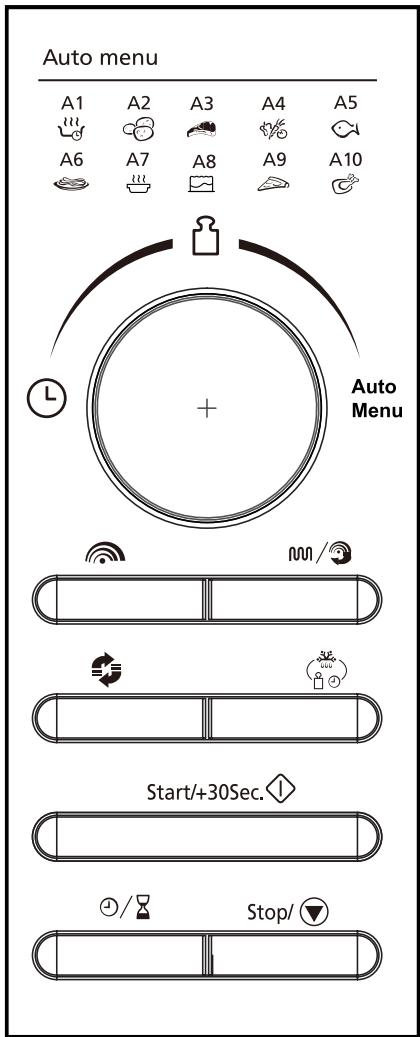

CONTROL PANEL

L / Auto Menu (Dial)

Rotate to select auto cook menus or enter time or weight.

Microwave cooking

Press to set microwave power level.

n /Grill/Combination

Repeatedly press to set a grill cooking programme or select one of four combination cooking settings.

Convection cooking

Press to set a convection cooking programme.

Defrosting by weight or time

Press to defrost food by weight or time.

Start/+30Sec. Start/+30Sec./Confirm

• Press to start a cooking programme or set speed cooking programme.
• Press to confirm the setting.

Clock/Kitchen timer

Press to set the clock time or kitchen timer.

Stop/

Stop/Clear

• Press to cancel setting or reset the oven before setting a cooking programme.
• Press once to temporarily stop cooking or press twice to cancel cooking.
• It is also used for setting child lock.

OPERATION

When the oven is plugged in, the display will show "0:00" and a beep will be heard.

General

1. Press Stop/ once to temporarily stop cooking and you can start the cooking again by pressing Stop/ , or press Stop/ twice to cancel the cooking program.
2. After the cooking time has elapsed, the oven will beep five times and return to the standby state.

Setting the Clock

1. Press 12 to set the clock in 24-hour cycle.

The hour digits will flash.
2. Turn to adjust the hour digits, the input hour should be a 24-hour time value.
3. Press 1 / 2 , the minute digits will flash.
4. Turn to adjust the minute digits.
5. Press to confirm the setting. ":" will flash on the display.

NOTE:

• If the clock is not set, the oven will not function when powered on.
• During clock setting, if you press Stop/ , the oven will return to the previous state.

Kitchen Timer

1. Press ( ) / twice. The display will show "00:00".
2. Turn to enter the correct time. The maximum cooking time is 95 minutes.
3. Press Start/+30Sec. to confirm setting. The clock indicator light will flash.
4. When the kitchen time has been reached, the clock indicator light will go out. The buzzer will sound 5 times.

Microwave Cooking

The maximum cooking time is 95 minutes. You can select a power level by pressing.

Press	Display	Cooking Power
once	P100	100%
twice	P80	80%
3 times	P50	50%
4 times	P30	30%
5 times	P10	10%

Example: Choose 80% power for cooking 20 minutes.

1. Press once. "P100" will be shown on the display.
2. Press again or turn to choose 80% microwave power. "P80" will be shown on the display.
3. Press Start/+30Sec. to confirm.
4. Turn to set the cooking time until “20:00” is shown on the display.
5. Press Start/+30Sec. to start cooking.

NOTE:

• You can check the cooking power during cooking by pressing
• During microwave cooking, each press of Start/+30Sec. can increase 30 seconds of cooking time.

Grill Cooking

The maximum cooking time is 95 minutes.

Example: Choose 100% power for cooking 10 minutes.

1. Press / once.

2. "G-1" will flash on the display.

3. Press Start/+30Sec. to confirm.
4. Turn to set the cooking time until "10:00" shows on the display.
5. Press Start/+30Sec. to start cooking.

NOTE: If half the grill time passes, the oven will beep twice, and this is normal. In order to have a better effect of grilling food, you should turn the food over, close the oven door then press Start/+30Sec. to continue cooking. If no operation, it will continue working.

Convection Cooking

The convection cooking can let you cook the food as a traditional oven. Microwave is not used. It is recommended that you should preheat the oven to the appropriate temperature before placing the food in the oven.

During convection cooking, hot air is circulated throughout the oven cavity to brown and make crisp foods quickly and evenly. This oven can be programmed for ten different cooking temperatures (150°C~240°C).

1. Press “150°C” will flash on the display.

2. Repeatedly press or turn to set the desired temperature.

3. Press Start/+30Sec. to confirm the temperature.

4. Press Start/+30Sec. to start preheating.

5. When the oven temperature is reached, the buzzer will sound twice to remind you of putting food into the oven. The preheating temperature will flash on the display.

6. Turn to set the cooking time. The maximum cooking time is 95 minutes.
7. Press Start/+30Sec. to start cooking.
   NOTE: If you do not want to preheat the oven before cooking, skip step 4.

Combination Cooking

This feature allows you to combine microwave, grill or convection cooking on four different settings. The maximum cooking time is 95 minutes.

1. Press /
2. Turn to select the desired combination mode from C-1, C-2, C-3 or C-4.
3. Press Start/+30Sec. to confirm.
4. Turn to set the desired cooking time.
5. Press Start/+30Sec. to start cooking.

Display	Microwave	Grill	Convection
C-1	●		●
C-2	●	●
C-3		●	●
C-4	●	●	●

Speed Cooking

• In standby state, press Start/+30Sec. to cook with 100% power level for 30 seconds. Each press of the button will increase the cooking time by 30 seconds. The maximum cooking time is 95 minutes.
  In standby state, turn anticlockwise to choose cooking time then press Start/+30Sec. ① to cook with 100% microwave power.
  During microwave, grill, convection and combination cooking, press Start/+30Sec. to cook with 100% power level for 30 seconds. Each press of the button will increase the cooking time by 30 seconds.

NOTE: The function cannot work during defrost and auto menu cooking.

Defrosting by Weight

The oven could be used to defrost food based on the weight selected. The defrosting time and power level are automatically set once the weight is programmed. The frozen food weight ranges from 100g to 2000g.

1. Press once. "d-1" will be shown on the display.
2. Turn to select the desired food weight.
3. Press Start/+30Sec. to start defrosting.

Defrosting by Time

1. Press twice."d-2" will be shown on the display.

2. Turn to select the desired defrosting time. The maximum defrosting time is 95 minutes.

3. Press Start/+30Sec. to start defrosting.

After about half of the defrosting time has elapsed, the oven will beep twice to remind you to turn over the food and pause until you press Start/+30Sec. ① to enter into the next defrosting stage, and the oven will resume.

Multi-Stage Cooking

Your oven can be programmed for up to 2 automatic cooking sequences.

NOTE:

• Auto menu cooking and preheating with convection cannot be selected in the
  multi-stage cooking programme.
  Defrosting can only be set in the first stage.

Suppose you want to set the following cooking program:

Defrost (for 5 minutes)

Microwave cooking (80% power level for 7 minutes)

1. Press twice. "d-2" will be shown on the display.
2. Turn to select the defrosting time until "5:00" is shown on the display.

3. Press once.

4. Repeatedly press or turn to select the microwave power level until "P80" is displayed.

5. Press Start/+30Sec. to confirm.
6. Turn to select the cooking time until "7:00" displays.
7. Press Start/+30Sec. to start cooking.

NOTE: After one cooking stage is finished, a beep sound will be heard, indicating the next cooking stage has begun.

Auto Menu

For the food in the following table, it is not necessary to program the cooking power and time. Take the following steps:

1. In standby state, turn clockwise to select the desired menu from the table below.
2. Press Start/+30Sec. to confirm.
3. Turn to select the food weight.
4. Press Start/+30Sec. to start cooking.

Menu	Weight	Power
A1 Auto Reheat	150 g	100%
	250 g
	350 g
	450 g
	600 g
A2 Potato	1 (about 230 g)	100%
	2 (about 460 g)
	3 (about 690 g)
A3 Meat	150 g	100%
	300 g
	450 g
	600 g
A4 Vegetable	150 g	100%
	350 g
	500 g
A5 Fish	150 g	80%
	250 g
	350 g
	450 g
	650 g
A6 Pasta	50 g	80%
	100 g
	150 g
A7 Soup	200 g	100%
	400 g
	600 g
A8 Cake	475 g	Preheat at 180 °C
A9 Pizza	200 g	C-4
	300 g
	400 g
A10 Chicken	500 g	C-4
	750 g
	1000 g
	1200 g

NOTE: Peel the potatoes and cut them into 2 or 3 equal pieces before cooking.

Child Lock

The child lock prevents unsupervised operation by children.

• To set the child lock, press and hold Stop/ until a beep sounds and the lock indicator light will be shown on the display. In the lock state, all buttons are disabled.
• To cancel the child lock, press and hold Stop/ until a beep sounds and the lock indicator light will disappear.

CLEANING AND MAINTENANCE

Disconnect the electrical supply to the oven before cleaning.

General Advice

Frequent cleaning prevents smoke and bad odours during cooking and also sparking in the oven cavity and around the door seal.

Do not let food deposits or grease accumulate inside the oven cavity or on the door seal.

If your microwave oven is fitted with a waveguide cover (usually located inside the oven cavity on the right side wall) it must be kept clean at all times, should food deposits or grease be allowed to accumulate on the cover, sparking will occur and may damage your oven invalidating the warranty.

Before any maintenance or cleaning, disconnect the oven from the mains supply and wait for it to cool to room temperature.

Oven Door

Remove any food deposits and grease between the door seal and oven cavity using a damp cloth, it is important to keep this area clean at all times.

Interior Walls

Remove any grease splashes from the oven cavity walls with soap and water, then rinse and dry.

The door seal and oven cavity have to be particularly well cleaned to ensure the door will close properly and to avoid sparking between the oven cavity and door assembly.

Do not use abrasive products such as scouring pads which will damage the surfaces of the oven cavity and door.

Only warm soapy water must be used to clean stainless steels surfaces.

Outer Surfaces

To clean the outside surface, use a damp cloth.

Avoid using abrasive products such as scouring pads that may damage the cosmetic surfaces. Make sure water does not seep into the ventilation slots.

Accessories should be washed in warm soapy water by hand.

CAUTION

Some waveguide covers can be easily damaged take care when cleaning.

Do not wash accessories in a dishwasher.

WARNING:

If the inside of the oven cavity and door seal are not kept scrupulously clean there is a danger of damage due to sparking inside the oven cavity invalidating the warranty.

Never scrape the oven cavity walls with sharp objects.

Never immerse the appliance, its cord or plug in water or any other liquid.

Never clean this product with a steam cleaner.

SPECIFICATIONS

Power Consumption:	230V~, 50Hz
Rated input power (Microwave):	1450W
Rated output power (Microwave):	900W
Microwave Frequency:	2450MHz
Rated input power (Grill):	1100W
Rated input power (Convection):	2500W

TROUBLESHOOTING

Normal
Microwave oven interfering TV reception	Radio and TV reception may be affected when the microwave oven is operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner and electric fan. It is normal.
Dim oven light	During low power microwave cooking, the oven light may become dim. It is normal.
Steam accumulating on door, hot air out of vents	During cooking, steam may come out of food. Most steam will escape from the vents. But some steam may accumulate on a cool place like the oven door. It is normal.
Oven started accidentally with no food in.	It is forbidden to run the appliance without any food inside. It is very dangerous.

Trouble	Possible Cause	Remedy
Oven cannot be started.	(1) Power cord not plugged in tightly.	Unplug. Then plug in again after 10 seconds.
	(2) Fuse blowing or circuit breaker works.	Replace fuse or reset circuit breaker (repaired by professional personnel of authorised agent).
	(3) Trouble with outlet.	Test outlet with other electrical appliances.
Oven does not heat.	Door not closed well.	Close door well.
Glass turntable makes noise when microwave oven operates.	Dirty roller rest and oven bottom.	Refer to ‘CLEANING AND MAINTENANCE’ to clean dirty parts.

Information for Users in European Union Countries

The above mark is in compliance with the Waste Electrical and Electronic Equipment Directive 2002/96/EC (WEEE). The mark indicates the requirement NOT to dispose the equipment including any spent or discarded batteries as unsorted municipal waste, but use the return and collection systems available. If this equipment display the chemical of more than 0.0005% Mercury, or than, 0.004% Lead, batteries or

accumulators included with symbol Hg, Cd, or Pb, then it means that the battery has a heavy metal content more than 0.002% Cadmium or more.

We apologise for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of product improvement and development. This instruction book is also available at http://www.hitiserviceeu.com/support/guides/userguides.htm

Kesa Electricals © UK: EC1N 6TE 09/10/2013

Table des matieres

AVERTISSEMENTS 2
CONSIGNES DE SECURITE IMPORTANTES 9
USTENSILES DE CUISSON 10
DESCRIPTION DU FOUR 11
INSTALLATION DU PLATEAU ROTATIF 12
INSTALLATION DU PLAN DE TRAVAIL 12
INSTALLATION DU FOUR À MICRO-ONDES 12
PANNEAU DE CONTROLLE 13
UTILISATION 14
NETTOYAGE ET ENTRETIEN 22
SPECIFICATIONS 23
DEPANNAGE 24
INFORMATIONS POUR LES UTILISATEURS DES PAYS DE L'UNION EUROPÉENNE.... 25

AVERTISSEMENTS

INSTRUCTIONS DE SECURITÉ IMPORTANTES LIRE AVEC ATTENTION ET GARDER POUR DE FUTURES UTILISATIONS

Démarrer/+30Sec./Confirmer

Cuisson a convection

Affichage	Micro-ondes	Grill	Convection
C-1	●		●
C-2	●	●
C-3		●	●
C-4	●	●	●

Cuisson express

Kesa Electricals © UK: EC1N 6TE 09/10/2013

French

Hotline Darty France

Weergave	Magnetron	Grill	Convectie
C-1	●		●
C-2	●	●
C-3		●	●
C-4	●	●	●

Snelkoken

Kesa Electricals © UK: EC1N 6TE 09/ 10 / 2013

Dutch

Hulplijn Nederland

Kesa Electricals © UK: EC1N 6TE 09/ 10 / 2013

ES

INSTALACE MIKROVLNNE TROUBY

Hodiny/Kuchynsky Cesovač

Kesa Electricals © UK: EC1N 6TE 09/10/2013

CZ

Pomoc císlo Datat Czech Republic: 810 328 278.

Datart International a.s.

Pernerova 35

186 00, Praha 8 - Karlin

Czech Republic

Obsah

VAROVANIA 2
DOLEZITE BEZPECNOSTNE POKNY 8
RIAD DO MIKROVLNNEJ RURY 9
PREHLAD RURY 10
MONTAZ OTOCNHO TANIERA 11
MONTAZ NA VOLNO. 11
INSTALÁCIA MIKROVLNNEJ RÜRY 11
OVLADACI PANEL 12
OBSLUHA 13
CISTENIE A UDRZBA 20
TECHNICÉ UDAJE 21
ODSTRAÑOVANIE PROBLEMOV 22
Informácie pre spotrebite'ov v krajinach Európskej unie 23

VAROVANIA

DÔLEŽITÉ BEZPEČNOSTNÉ POKNY
PREČÍTAJTE SI TIETO POKNY A
USCHOVAJTE ICH NA BUDÜCE POUŽITIE

Kesa Electricals © UK: EC1N 6TE 09/10/2013

SK
