USER MANUAL PLAY Dally Babysitter Beemoo

Line drawing of a baby car seat with arms and legs, no text or symbols present

IMPORTANT!VIKTIGT!ADVARSEL!

READ CAREFULLY AND

KEEP FOR FUTURE

REFERENCE.

Model: Beemoo PLAY Dally

Babysitter, SG111

LÄS NOGA OCH

BEHÅLL FÖR FRAMTIDA

REFERENS.

Modell: Beemoo PLAY Dally

Babysitter, SG111

LES N∅YE OG BEHOLD

FOR FREMTIDIG

REFERANSE.

Modell: Beemoo PLAY Dally

Vippestol, SG111

ADVARSEL!TÄRKEÄÄ!

LÆS OMHYGGELIGT

OG GEM TIL

FREMTIDIG

REFERENCE.

Model: Beemoo PLAY Dally

Skråstol, SG111

LUE OHJEET

HUOLELLISESTI JA

SÄILYTÄ NE TULEVAA

TARVETTA VARTEN.

Malli: Beemoo PLAY Dally

Sitteri, SG111

WICHTIG!

LESEN SIE DIESE HINWEISE

AUFMERKSAM UND

BEWAHREN SIE SIE FÜR

ZUKÜNFTIGE FRAGEN AUF.

Modell: Beemoo PLAY Dally

Babywippe, SG111

WARNING

IMPORTANT – KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.

• Product does not recharge batteries. When AC adapter is in use, batteries will automatically shut off.
• DO NOT use the AC adapter if it has been exposed to liquids, has been dropped, or is damaged.
• Protect the power cord. Place it so it is not walked on or pinched by furniture or other items.
• Keep this cord out of the reach of children.

Prevent serious injury or death

from falls or strangling in the restraint system:

• Never leave child unattended.
• Do not use this product once your child can sit up unaided or weighs more than 9kg.
  • This product is not intended for prolonged periods of sleeping.
• Never use this product on an elevated surface (e.g. a table)
  • Always use the restraint system.

- To avoid injury ensure that children are kept away when unfolding and folding this product.

- Do not let children play with this product.

- Do not move or lift this product with the baby inside it.

- This product does not replace a cot or a bed. Should your child need to sleep, then it should be placed in a suitable cot or bed.

- Do not use the product if any components are broken or missing.

- Do not use accessories or replacement parts other than those approved by the manufacturer.

- Do not use when the child attempts to climb out.

- Adult assembly is required.

- Tools needed for assembly: Screwdriver (not included).

- Requires four AA(LR6-1.5V) ALKALINE batteries for operation (not included).

• Always use the swing where there is adequate ventilation. To prevent overheating, keep the swing away from heat sources such as radiators, heat registers, direct sun light, stoves, amplifiers, or other appliances which produce heat.

- Never use the swing near water (i.e.: bathtub, sink, laundry tub or wet basement, etc.).

- Do not connect to more than the recommended number of power supplies.

• Always use on a flat, level floor.

- SUFFOCATION HAZARD: Young infants have limited head and neck control.

- If the seat is too upright, infant's head can drop forward and compress the airway.

PARTS

A

B

Line drawing of a mechanical component or housing with no visible text or symbols

C

D

E

F

●

●

*4pcs

1

A. Left Seat Frame
B. Right Seat Frame
C. Seat Cover
D. Toy Bar

E. Left Driving Part Group
F. Right Driving Part Group
G. Foot Stand
H. USB power cable (adapter not included)

I. Screw*4pcs

ASSEMBLY

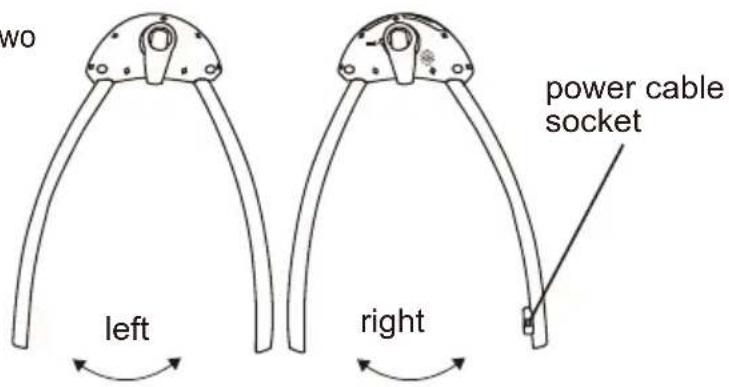

1. As below picture, take out the left and right driving part groups and open the two legs until a "click" is heard.

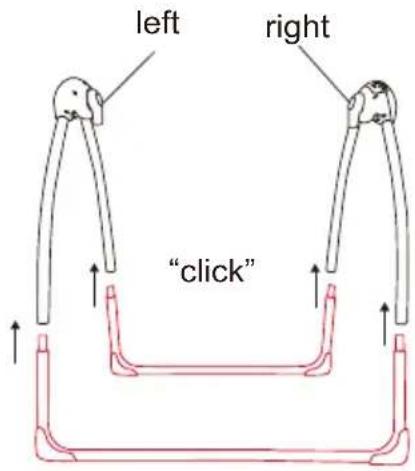

1. Install the foot stand by inserting the 2 foot stand into the housing & leg tube until a "click" is heard. Pay attention to the direction of the left and right driving part groups.

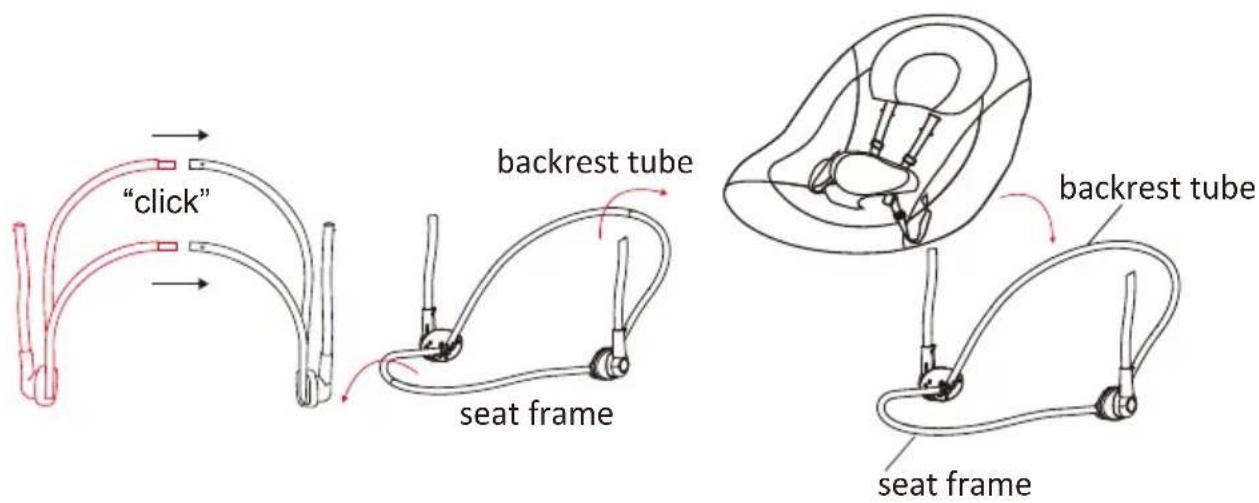

1. Assemble left & right seat frame when a "click" is heard. Unfold the backrest and seat tube. Then put on the fabric seat cover over the frame and make it fit tidily.

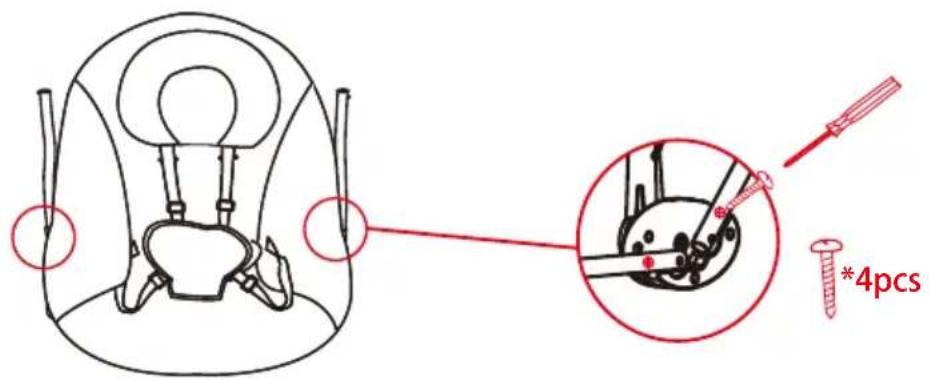

1. Fix the screws on both sides of the seat, tighten two screws on each side using a screwdriver. (total 4 screws)

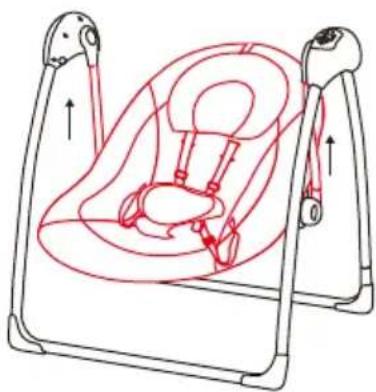

1. Install the hanging tubes: Insert the 2 hanging tubes into the plastic part holes until a "click" is heard. (5.1)

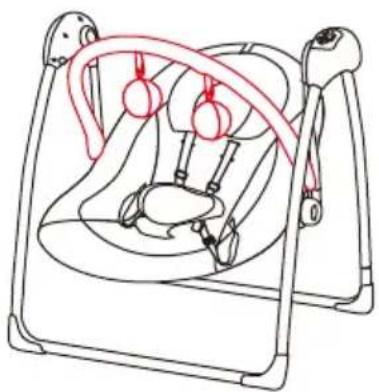

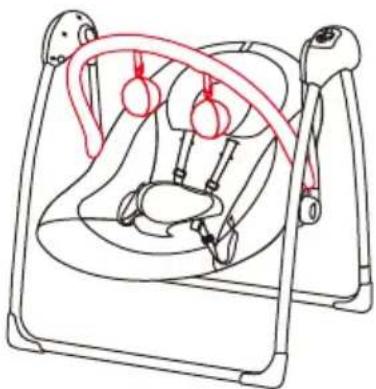

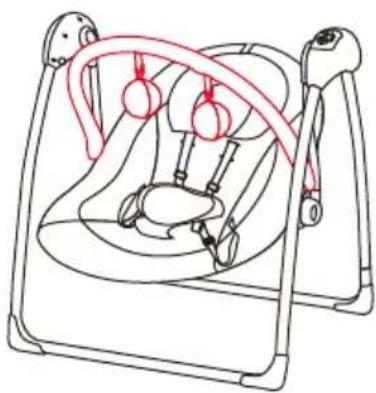

2. Install toy bar and toys: Insert the 2 ends of the toy bar into the support hole at each side, and hang up the toys, you can also release the toy bar by pressing the 2 plastic spring buttons at the end of toy bar. (6.1)

Line drawing of a baby car seat with directional arrows indicating movement (no text or symbols)

(5.1)

Line drawing of a baby baby seat with a tube and rings, no text or symbols present

(6.1)

FUNCTIONS

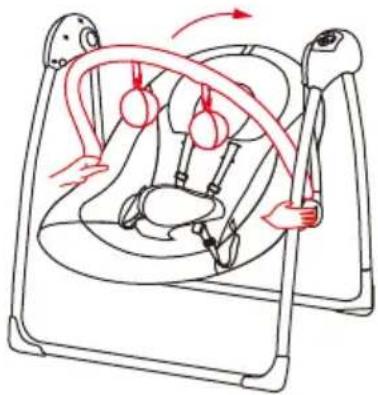

1. Press the two buttons at two sides at the same time to adjust the seat position. There are two positions available.

Line drawing of a baby seat with arrows indicating motion, no text or symbols present

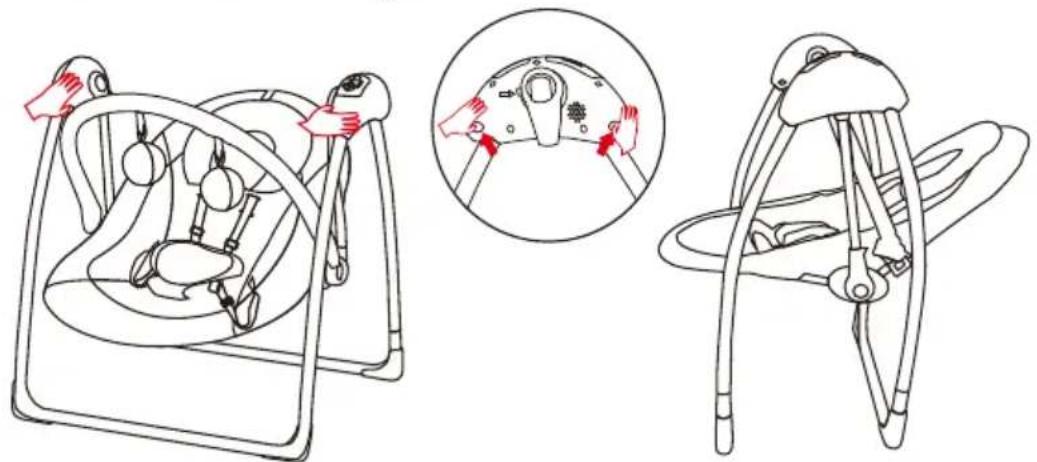

1. Folding: Folding the swing frame by pressing the 2 buttons in the front and back side on the 2 sides of the swing frame.

Line drawings of a baby seat with hand positioning and close-up detail (no text or symbols)

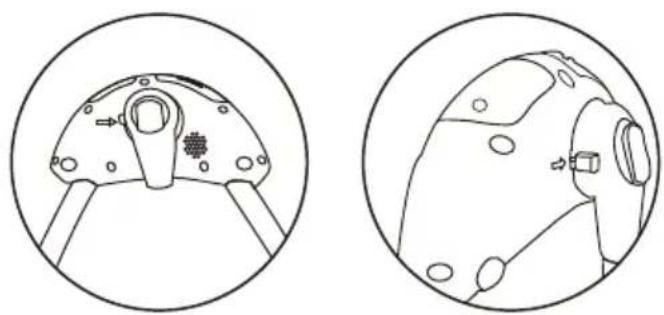

1. Press the lock buatton to stop the swing, and if you want to resume to swing, just release the lock button.

Technical line drawing of a mechanical component with cross-sectional views (no text or symbols)

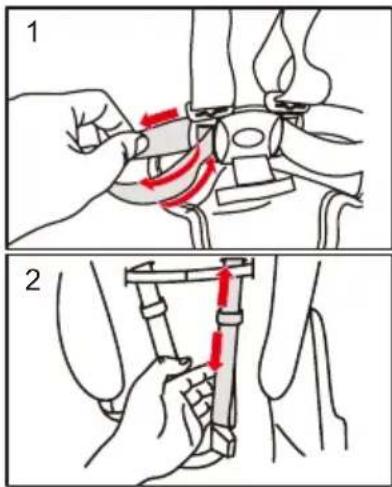

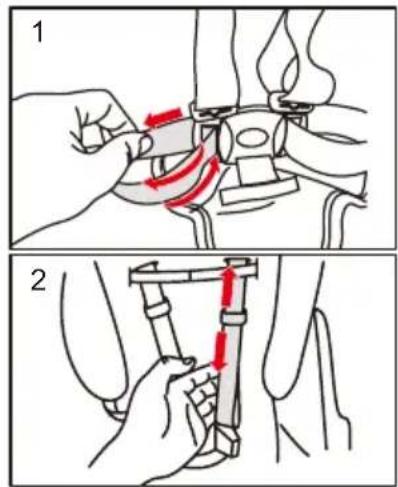

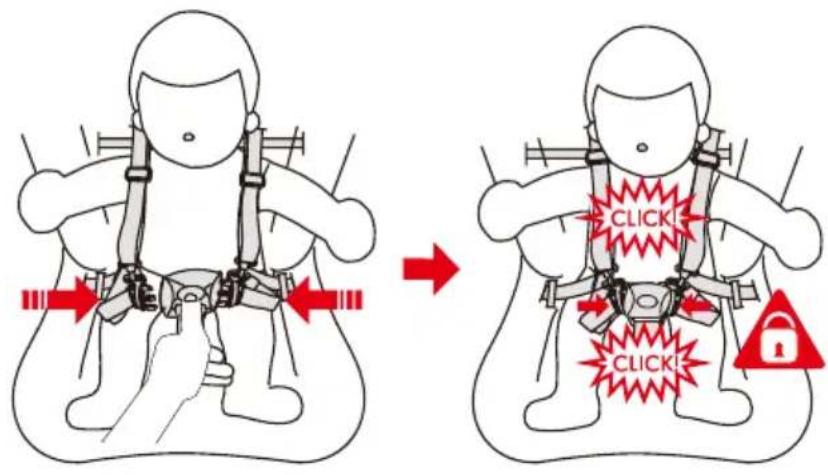

1. Tighten the safety harness belts and adjust to proper position for the child as below pictures. Warning! Ensure the child's fingers are kept away when fastening the buckles. Always use the restraint system.

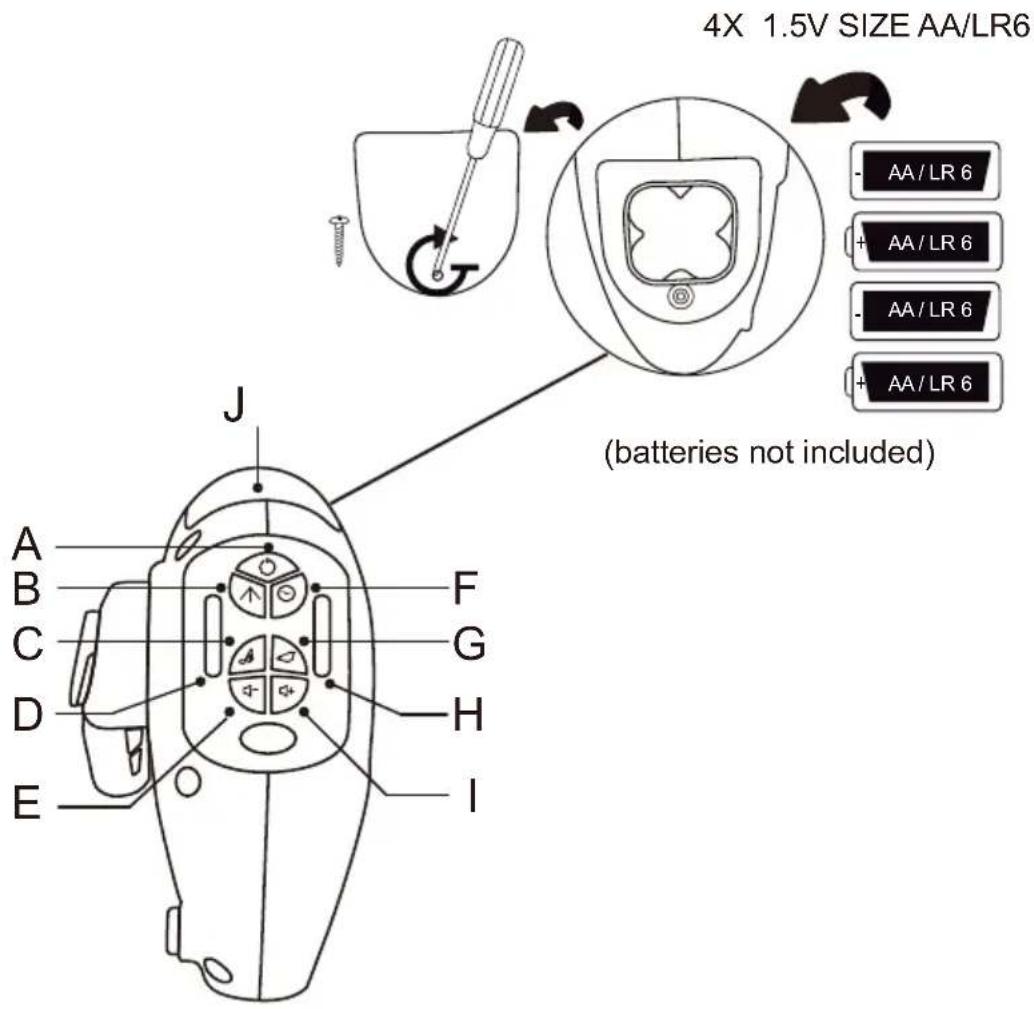

A. Power on/off
B. Speed button. Total five speeds, from slow to fast (press 5th speed and press again to stop)
C. Music button, 12 melodies. (press to start from 1st melody, press again to move to next one, keeping pressing for 3-5 seconds to stop.)
D. Speed indication light
E. Volume down button
F. Timer (15mins, 30mins, 60mins)
G. Nature song button
H. Timer indication light
I. Volume up button
J. Battery door (need 4 SIZE AA battery)

FOR SAFE BATTERY USE

- Keep the batteries out of children's reach.

- Only the recommended batteries or equivalent are to be used.

- Remove exhausted batteries from the product.

- Recommended type batteries-alkaline disposables, size AA(LR6-1.5V).

- The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.

- No naked flame sources, such as lighted candles, should be placed on the apparatus.

- Don't use the appliance in tropical climates.

- The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

- Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

- The product complies with the applicable European directives and an evaluation method of conformity for these directives was done.

• Non-rechargeable batteries are not to be recharged.

- Different types of batteries or new and used batteries are not to be mixed.

- Batteries are to be inserted with the correct polarity.

• Transformers used with the infant swing are to be regularly examined for damage to the cord, plug, enclosure and other parts, and in the event of such damage, they shall not be used.

Waste Disposal and Environmental Protection!

- Be environmentally friendly.

- Return the tool, accessories and packaging to a recycling centre when you have finished with them.

• Electrical machines do not belong in domestic waste.

• Take the equipment to a waste disposal site.

- The plastic and metal parts that are used can be separated out into pure grade, which allows recycling.

CE

CARE AND MAINTENANCE

- Remove the pad from the seat frame.

- Swing cover and head hugger are machine washable at 30^ C . Do not use bleach. Dry naturally.

• To clean the seat, restraint system, and motorized frame, use a mild cleaning agent and damp cloth. Rinse with clean water to remove residue.

- Please clean, maintain and check this product regularly.

• Periodically check the swing for loose fasteners or broken parts and tighten as needed

- Remove batteries before storing the swing. Store in dry area. Store away from children.

WARNING!

VIKTIGT - BEHÅLL DESSA INSTRUKTIONER FÖR FRAMTIDIGA REFERENS.

DELAR

Line drawing of a baby in a baby seat with red outline and arrows indicating movement or force (no text or symbols)

(5.1)

Line drawing of a baby baby seat with red tubing and mechanical components (no text or symbols)

(6.1)

FUNKTIONER

Diagram of a baby car seat with red arrows indicating motion or movement, no text or symbols present

Line drawings of a baby seat with hand gestures and a close-up inset showing the interior component (no text or symbols)

Technical line drawing of a mechanical component with cross-sectional and top views (no text or symbols)

BRUKSANVISNING MANÖVRERINGSDON

DELER

A

B

Line drawing of a mechanical component or housing with no visible text or symbols

C

D

E

F

●

●
*4st

1

Line drawing of a baby in a baby boom seat with directional arrows indicating movement (no text or symbols)

(5.1)

Line drawing of a baby car seat with handrails and seatbelt (no text or symbols)

(6.1)

FUNKSJONER

Line drawing of a baby seat with arrows indicating motion or movement (no text or symbols)

Line drawings of a baby seat with hand gestures and a close-up inset showing the interior components (no text or symbols)

Technical line drawing of a mechanical component with cross-sectional views (no text or symbols)

INSTRUKSJONER FOR KONTROLLPANELET

Line drawing of a car seat with no text or symbols

C

D

E

F

●

●

*4st

1

Line drawing of a baby in a baby seat with arrows indicating movement or force (no text or symbols)

(5.1)

Line drawing of a baby car seat with pump and seatbelt components (no text or symbols)

(6.1)

FUNKTIONER

Line drawing of a baby car seat with red arrows indicating motion or movement (no text or symbols)

Technical line drawing of a baby seat with hand positioning and close-up detail (no text or symbols)

Technical line drawing of a mechanical component with cross-sectional views (no text or symbols)

BRUG AF KONTROLPANEL

Line drawing of a mechanical component or bracket (no text or symbols)

C

D

E

F

●

●
*4st
1

Line drawing of a baby car seat with red contour lines indicating seating contours (no text or symbols)

(5.1)

Line drawing of a baby baby seat with a coiled tube and two rings (no text or symbols)

(6.1)

TOIMINNOT

Line drawing of a baby seat with arrows indicating motion, no text or symbols present

Technical line drawing of a baby seat with hand positioning and close-up detail (no text or symbols)

Technical line drawing of a mechanical component with cross-sectional views (no text or symbols)

OHJAIMEN KÄYTTÖ

Produced by: Jollyroom AB
