Product Type	High Chair
Brand	Beemoo
Model	CARE Nordic Highchair
Recommended Age	6 months to 3 years
Maximum Weight Capacity	15 kg (33 lbs)
Chair Dimensions (H x W x D)	90 x 60 x 80 cm
Seat Height	Adjustable from 50 to 75 cm
Seat Width	35 cm
Seat Depth	30 cm
Weight of Chair	8 kg
Material	Beech wood frame, fabric seat
Tray	Removable, dishwasher safe
Tray Dimensions	40 x 30 cm
Recline Positions	3 positions (upright, semi-recline, full recline)
Harness Type	5-point safety harness
Footrest	Adjustable
Assembly Required	Yes
Cleaning Instructions	Wipe frame with damp cloth; fabric seat cover machine washable at 30°C
Safety Standards	EN 14988:2017
Warranty	2 years
Spare Parts Available	Tray, harness, seat pad, footrest
Country of Origin	China

Frequently Asked Questions - CARE Nordic Highchair Beemoo

What is the weight limit for the CARE Nordic Highchair?

The maximum weight capacity is 15 kg (33 lbs).

Can the tray be removed and cleaned?

Yes, the tray is removable and dishwasher safe for easy cleaning.

How should I clean the high chair?

Wipe the wood frame with a damp cloth. The fabric seat cover is machine washable at 30°C.

Is the seat height adjustable?

Yes, the seat height adjusts from 50 to 75 cm to fit different table heights.

Does the chair recline?

Yes, it has 3 recline positions including upright, semi-recline, and full recline for nap time.

Is assembly required?

Yes, assembly is required but all tools are included. The manual provides step-by-step instructions.

What safety features are included?

It comes with a 5-point harness and a stable, wide base to prevent tipping.

Are spare parts available?

Yes, spare parts such as the tray, harness, seat pad, and footrest are available from Beemoo.

What is the recommended age range?

The high chair is recommended for children from 6 months to 3 years.

What material is the frame made of?

The frame is made of beech wood for durability and a natural look.

USER MANUAL CARE Nordic Highchair Beemoo

Line drawing of a baby boom chair with seat, legs, and backrest (no text or symbols)

IMPORTANT!VIKTIGT!ADVARSEL!

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

Model: Beemoo CARE Nordic Highchair

LÄS NOGA OCH BEHÅLL FÖR FRAMTIDA REFERENS.

Modell: Beemoo CARE Nordic Matstol

LES N∅YE OG BEHOLD FOR FREMTIDIG REFERANSE.

Modell: Beemoo CARE Nordic Matstol

ADVARSEL!TÄRKEÄÄ!

LÆS OMHYGGELIGT

OG GEM TIL

FREMTIDIG

REFERENCE.

Model: Beemoo CARE Nordic Højstol

LUE OHJEET

HUOLELLISESTI JA

SÄILYTÄ NE TULEVAA

TARVETTA VARTEN.

Malli: Beemoo CARE

Nordic Syöttötuoli

WICHTIG!

LESEN SIE DIESE HINWEISE

AUFMERKSAM UND

BEWAHREN SIE SIE FÜR

ZUKÜNFTIGE FRAGEN AUF.

Modell: Beemoo CARE Nordic

Hochstuhl

WARNING!

• Please read this manual carefully before use and keep it for future reference. Failure to follow these instructions may affect the safety of children.
• Never leave the child unattended.
  • Always use the restraint system.
• Falling hazard: Prevent your child from climbing on the product.
• Do not use the product unless all components are correctly fitted and adjusted.
• Be aware of the risk of open fires and other sources of strong heat in the vicinity of the product.
• Be aware of the risk of tilting when your child can push its feet against a table or any other structure.
• Do not use this product if any parts are broken, torn, or missing.
• Do not use this product until the child can sit up unaided.
• The product is intended for children able to sit up unaided and up to 3 years or a maximum weight of 15kg .
• Before using the highchair, please check carefully that all parts are installed correctly.
• Do not disassemble or adjust any part of the highchair while your baby is sitting in the chair.
• Do not use this product on roads, pool sides, stairs, etc. where it is dangerous.
• Keep the accessories out of reach of children. Plastic bags and small parts pose a choking hazard to children.
  • This product is tested and approved according to: EN 14988:2017+A1:2020

PARTS LIST

Line drawing of a symmetrical mechanical or architectural component with four legs and central shafts (no text or symbols)

A

Ex4

B

Fx4

C Dx8

G

Hx2

(A) Seat with harness and seat pad
(B) Food Tray
(C) Footrest

(D) Screws M6 (8 pcs)
(E) Upper section Legs (4 pcs)
(F) Lower section Legs (4 pcs)

(G) Hex wrench
(H) Self-tapping screws M5 (2 pcs)

ASSEMBLING

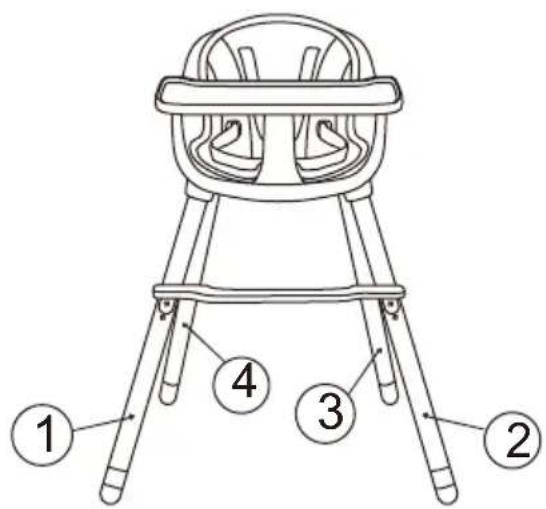

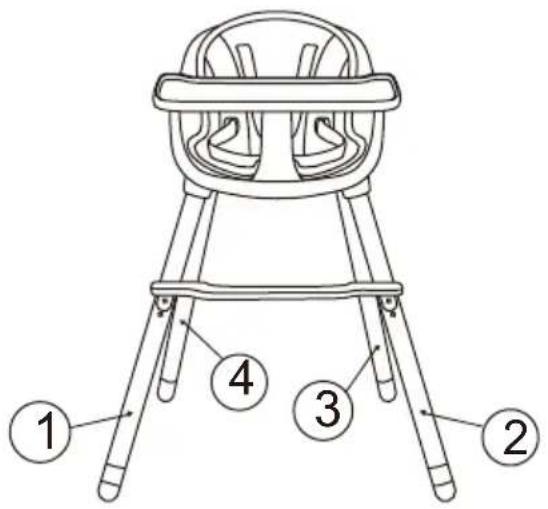

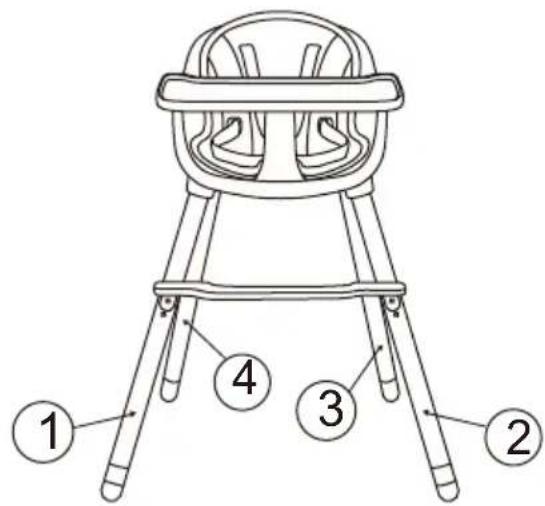

1. Connect the top and bottom of each of the four legs according to the corresponding number.

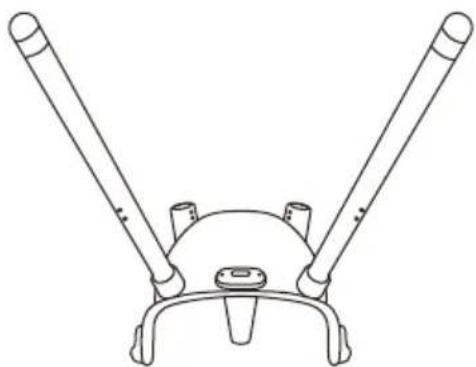

1. Place the seat upside down on a clean surface. Insert the legs into holes located at the bottom of the seat and make sure the legs are properly aligned with the mounting holes to fit the screws. Install the front legs using M6 screws and hex wrench, two screws on each leg. Note! Make sure the front legs have the holes for the footrest facing forward.

Line drawing of a mechanical component with two vertical rods and a central hub (no text or symbols)

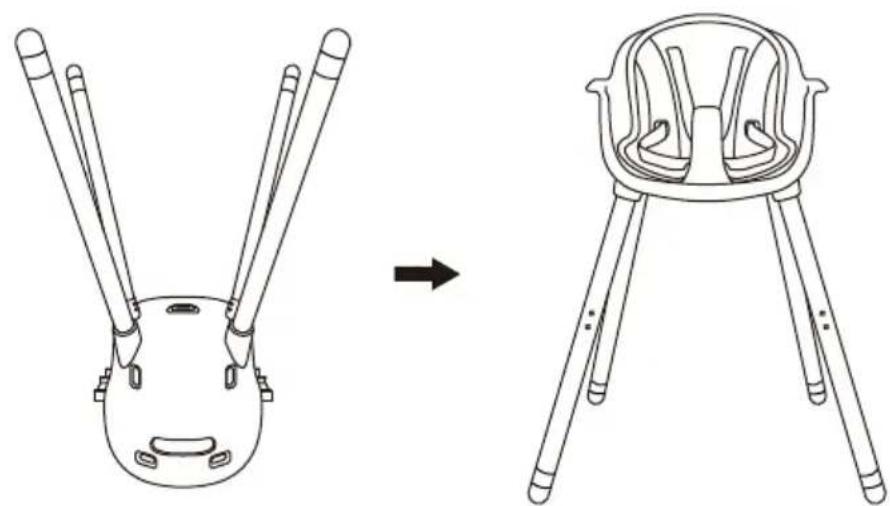

1. Install the two rear legs in the rear fixing holes using M6 screws and included hex wrench, two screws on each leg.

Line drawing showing a device before and after assembly, with no text or symbols present.

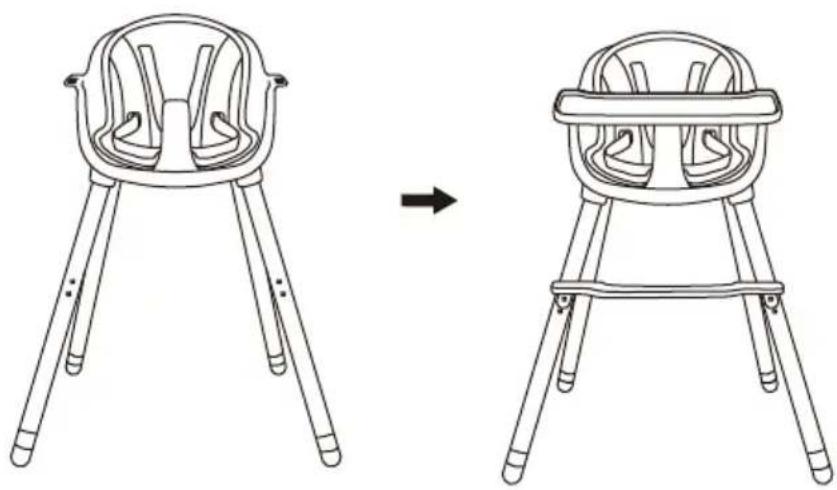

1. Attach the footrest to the front legs using the M5 screws according to your required height (the footrest has two possible height levels).

2. Put on the tray and gently press down until you heard "snap" on both sides, make sure the tray is locked in place.

At this point, the highchair is assembled!

Line drawing of a two-legged stool with a seatbelt, showing the change from before to after (no text or symbols)

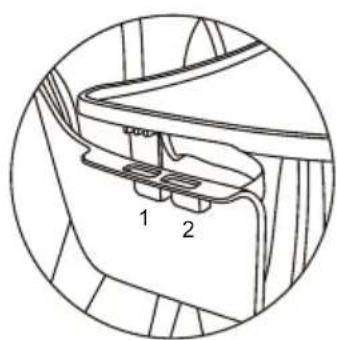

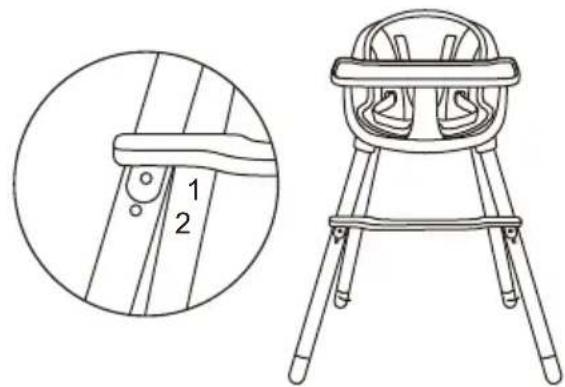

The food tray can be adjusted in two steps.

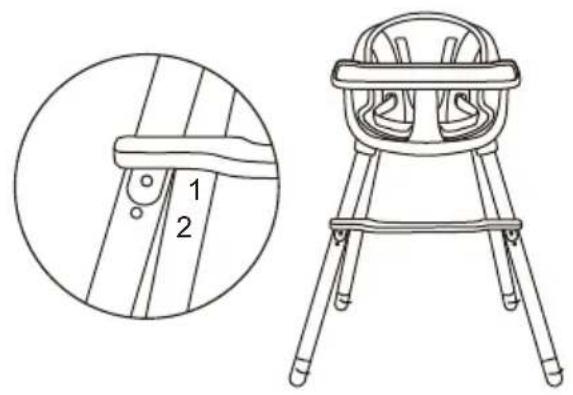

The footrest can be adjusted in two steps.

Technical line drawing of a baby seat with two views: top shows side view, bottom shows front view (no text or symbols)

MAINTENANCE

• Wipe the plastic parts of the highchair with a rag with mild soap water. Do not soak in water or wash in the washing machine.
• Do not expose the highchair to direct sun for a long period of time.
  • After washing, place this highchair in a clean and ventilated place.
• Check the attachments of all parts of the highchair regularly for potential looseness or damage. If there is damage to any part, immediately stop using the product.

WARNING!

Line drawing of a symmetrical mechanical or ergonomic device with four legs and a central hub (no text or symbols)

A

Ex4

B

Fx4

C

G

Dx8

Hx2

Line drawing of a mechanical component with two vertical rods and a central base (no text or symbols)

Line drawing of a mechanical component before and after assembly, showing a pin-like structure (no text or symbols)

Line drawing of a two-legged stool with a seatbelt, showing the change from before to after (no text or symbols)

Technical line drawing of a small mechanical device with two views: top shows a cable and ring, bottom shows a circular component (no text or symbols)

UNDERHÅLL

Line drawing of a mechanical component with two vertical rods and a central hub (no text or symbols)

Line drawing showing a device before and after assembly, with no text or symbols present.

Line drawing of a two-part mechanical device before and after assembly, showing structural changes (no text or symbols)

Technical line drawing of a baby seat with two views: top shows side view, bottom shows front view (no text or symbols)

VEDLIKEHOLD

Line drawing of a symmetrical mechanical or architectural component with no text or symbols

A

Ex4

B

Fx4

C

G

Dx8

Hx2

Line drawing of a mechanical component with two vertical rods and a central hub (no text or symbols)

Line drawing of a mechanical component before and after assembly (no text or symbols)

Line drawing of a two-legged stool with a seatbelt, showing the change from before to after (no text or symbols)

Technical diagram of a car seatbelt component with labeled parts (no text or symbols beyond labels)

Technical line drawing of a mechanical device with two views: top shows a cable and ring, bottom shows a tripod base with a helmet (no text or symbols)

VEDLIGEHOLDELSE

Line drawing of a mechanical component with two vertical rods and a central base (no text or symbols)

Line drawing showing a device before and after assembly, with no text or symbols present.

Line drawing of a two-legged stool with a seatbelt, showing the change from before to after (no text or symbols)

Technical line drawing of a mechanical device with two views: top shows a cable and plate, bottom shows a tripod base (no text or symbols)

HUOLTO

Line drawing of a mechanical or anatomical structure resembling a foot or seat (no text or symbols)

A

Ex4

B

Fx4

C

G

Dx8

Hx2

Line drawing of a mechanical component with two vertical rods and a central hub (no text or symbols)

Line drawing of a mechanical component before and after assembly, showing a cross-section view (no text or symbols)

Line drawing of a two-legged stool with a seatbelt, showing the change from before to after (no text or symbols)

Technical diagram of a mechanical component with labeled parts (1 and 2), no readable text or symbols beyond labels

Technical line drawing of a mechanical device with two views: top shows a cable and ring, bottom shows a circular component with labeled parts (no text or symbols present)

WARTUNG

Produced by: Jollyroom AB

Sörredsvägen 111 SE-418 78 Göteborg SWEDEN Consumer contact: [phone]

Fremstillet af: Jollyroom AB
