USER MANUAL PLAY Rocker Babysitter Beemoo

Line drawing of a baby car with a star-shaped head and decorative elements (no text or symbols)

IMPORTANT!

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

Model: Beemoo PLAY Rocker Babysitter,402

ADVARSEL!

LÆS OMHYGGELIGT OG GEM TIL FREMTIDIG REFERENCE.

Model: Beemoo PLAY Rocker Skråstol,402

VIKTIGT!

LÄS NOGA OCH BEHÅLL FÖR FRAMTIDA REFERENS.

Model: Beemoo PLAY Rocker Babysitter,402

TÄRKEÄÄ!

LUE OHJEET HUOLELLISESTI JA SÄILYTÄ NE TULEVAA TARVETTA VARTEN

Model: Beemoo PLAY Rocker Sitteri,402

ADVARSEL!

LES N∅YE OG BEHOLD FOR FREMTIDIG REFERANSE.

Model: Beemoo PLAY Rocker Vippestol,402

WICHTIG!

IMPORTANT – READ CAREFULY ABD KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.

Prevent serious injury or death from falls or strangling in the restraint system

- Never leave the child unattended.

- Stop using the product when the child starts trying to sit up.

- Never use this product on an elevated surface (e.g. table).

• Always use the restraint system.

- Never use the toy bar to carry the product.

- Do not move or lift this product with the baby inside it.

- This product is not intended for prolonged periods of sleeping. This product does not replace a cot or a crib. Should your child need to sleep, then it should be placed in a suitable crib, bed or approved sleeping area based on your child's requirements.

- Do not use the product if any components are broken or missing.

- Do not use accessories or replacement parts other than those approved by the manufacturer.

- Use for babies aged 0-6 months with maximum weight 9kg.

- Do not use this product once your child can sit up unaided or weights more than 9kg.

- Maintenance of the product and for cleaning or washing.

- To avoid injury ensure that children are kept away when unfolding and folding this product.

- Be aware of the risk of open fire and other sources of strong heat, such as electric bar fires, gas fires, etc. In the vicinity of the product.

- Adaptor used with the product are to be regularly examined for damage to the cord, plug, enclosure and other parts, and in the event of such damage, they shall not be used.

- The product shall only be used with the recommended adaptor.

FOR SAFE BATTERY USE

• Non-rechargeable batteries are not to be recharged.
- Different types of batteries or new and used batteries are not to be mixed.
- Batteries are to be inserted with the correct polarity.
- Exhausted batteries are to be removed from the product.
- Do not short-circuit the battery terminals.
- Adaptor used with the product are to be regularly examined for damage to the cord, plug enclosure and other parts, and in the event of such damage, they shall not be used.
• The product shall only be used with the recommended adaptor.
- Keep the batteries out of children's reach.
- The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
- Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.
- The product complies with the applicable European directives and an evaluation method of conformity for these directives was done.

Waste Disposal and Environmental Protection!

• Be environmentally friendly.
• Return the tool, accessories and packaging to a recycling centre when you have finished with them.
  • Electrical machines do not belong in domestic waste.
  • Take the equipment to a waste disposal site.
• The plastic and metal parts that are used can be separated out into pure grade, which allows recycling.

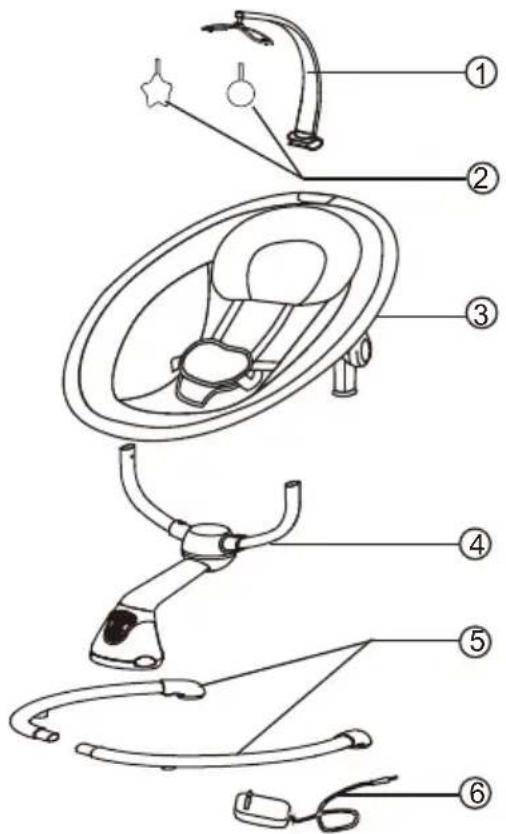

PARTS LIST

1. Toy Bar
2. Toys
3. Seatpad
4. Seat Tube
5. Bottom Frame
6. Adaptor

ASSEMBLY AND USE

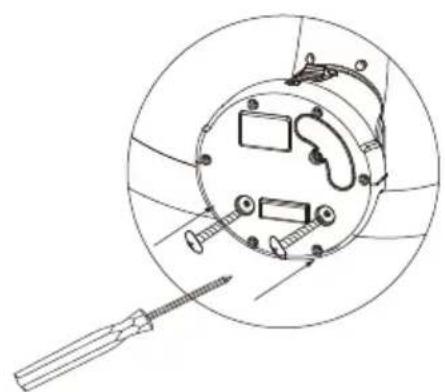

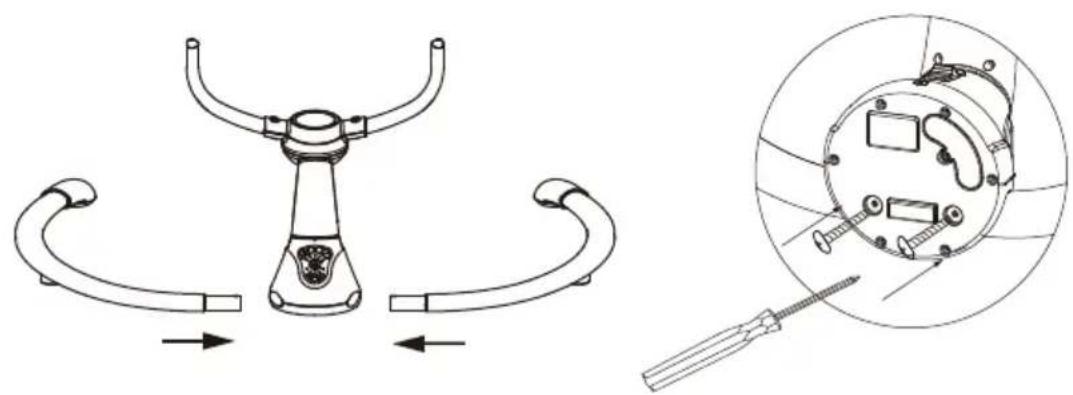

1. Install the Bottom Frame. As below picture, take the screw out of tube, then make the left and right tubes insert hole, make the hole position on the tube and the support assembly, and then tighten the screw with a screwdriver

Technical line drawing of a mechanical device with curved arms and a close-up inset showing internal components (no text or symbols)

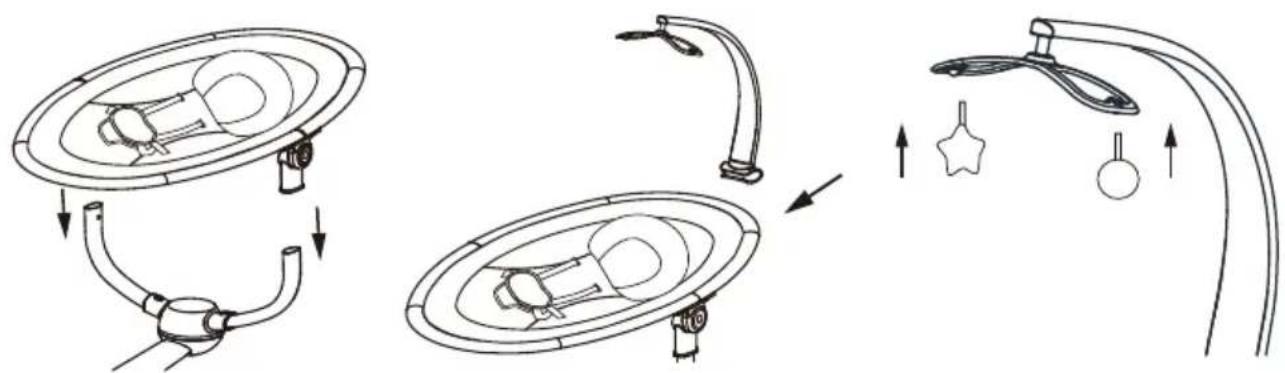

1. Install the seat, as below picture, insert the seat into the bracket until a "click".

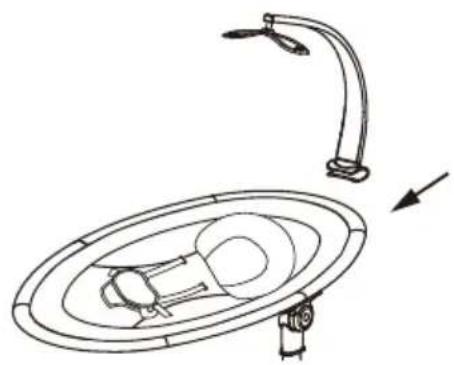

2. Install the toy bar, as below picture, insert the toy bar into the seat.
   4.put the toys into the hole of toy bar, can adjust toys to fix it.


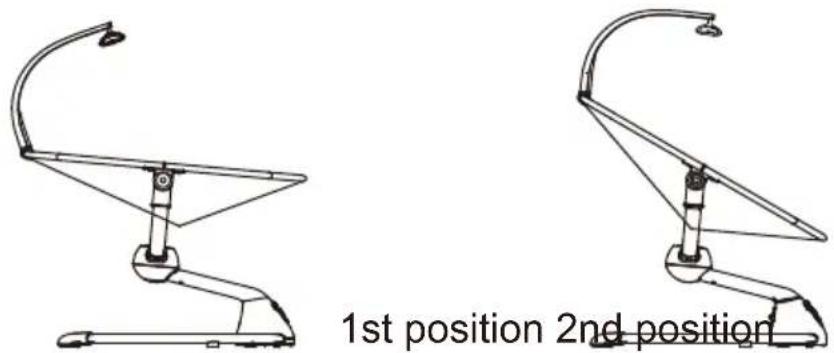

5.2 positions of backrest adjustment

6.360 degree rotation of seat

Four identical line drawings of a curved, symmetric device with adjustable legs and support structures (no text or symbols)

front back left right

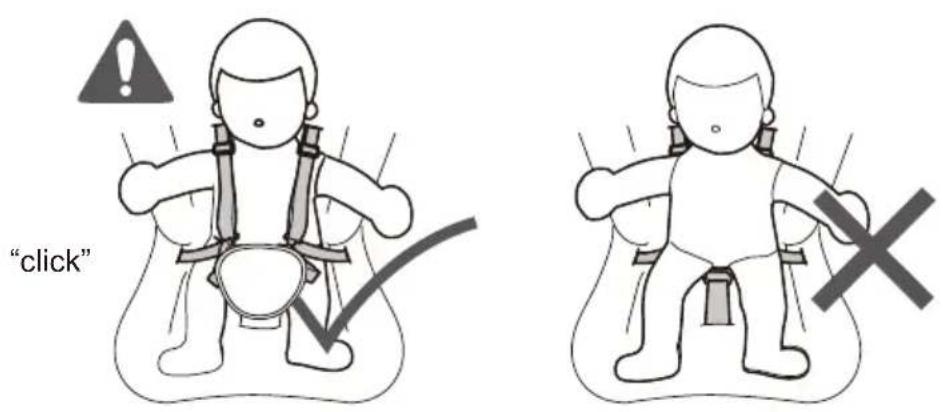

1. to avoid serious injury from falling or sliding out, always use seat belt when using swing.

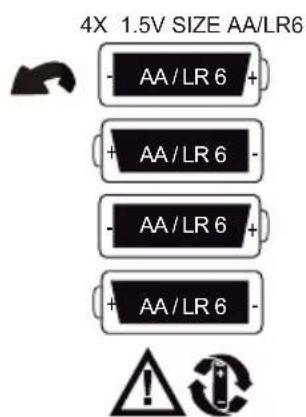

BATTERY ASSEMBLY

Battery Size: 1.5v 4\*aa/Ir6 (Not Included)

• Install batteries if you need to use this swing away from an outlet.
• We recommend using Alkaline batteries for longer battery life.

Top-down schematic of a circular device with labeled components including a rectangular box, curved cable, and control buttons (no text or symbols)

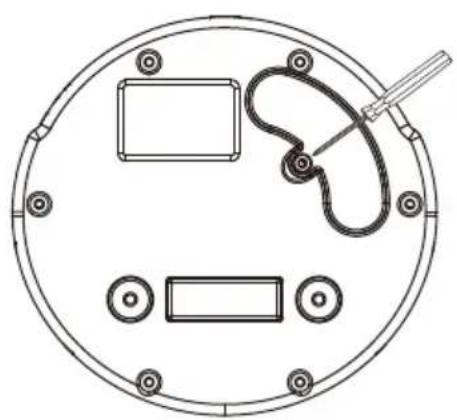

• Loosen the screw in the battery compartment door with a screwdriver (not included) and remove the battery compartment door.

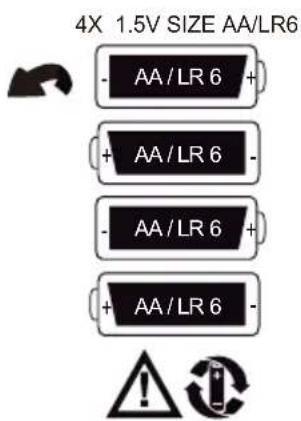

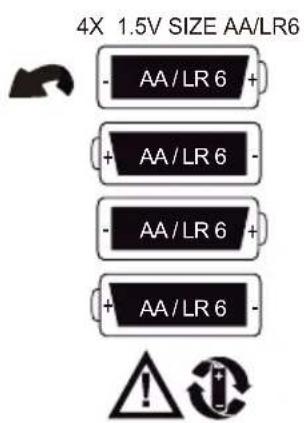

• Insert four AA(LR6) alkaline batteries into the battery compartment.
• Replace the battery compartment door and tighten the screws.

Note: Low battery power may cause product movement to slow, sound and lights to become faint or product to turn off all together. If this should happen, use the AC adaptor as a power source or replace the batteries. Replace the batteries with four alkline AA (LR6) batteries.

- If this product begins to operate erratically, you may need to reset the electronics. Turn the power off and then back on.

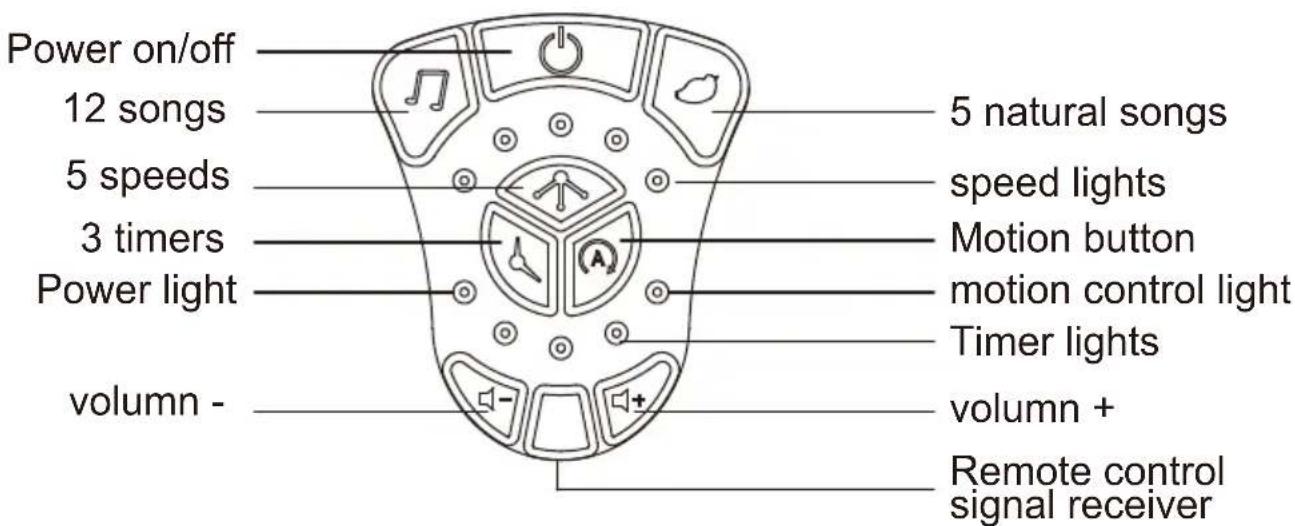

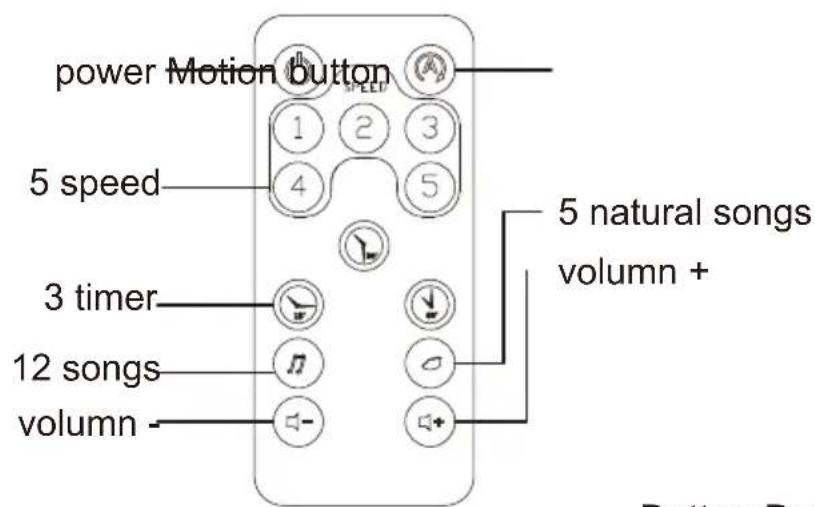

SWING CONTROL PLATE INSTRUCTIONS

• Power on/off: Press button, the swing connects with power, and power light turns red.
• Natural song button :5 natural songs, press the button to start from one song, press again to move to next one.

• Speed button: 5 speeds, each speed has a speed light. press the button to start from 1st speed, press again for 2nd speed.

• Timer button:3 timers, 15 mins,30 mins, and 60mins. press button to move to the next timer. each timer has a timer light.

• Song button: 12 songs totally, press button to start from one melody, press again to move to next one.
• Volumn +/-, press this buttons to adjust the volume of songs.
• Motion button: After baby fall asleep. can select this function, motion detector starts swinging when the baby shakes from crying.
• Motion button lights: Press the motion button and the motion indicator lights up. When the baby wakes up and flips in the swing, the swing function starts automatically.

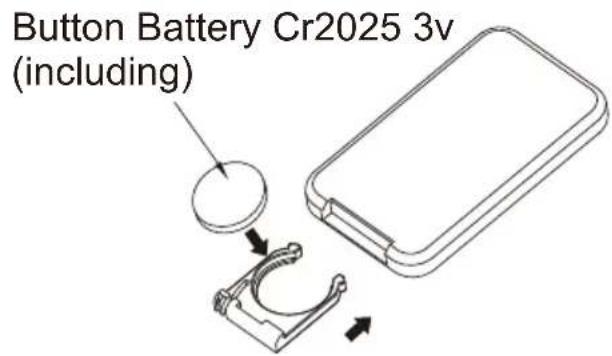

REMOTE CONTROL FUNCTION(SELECTIVE)

CARE AND MAINTENANCE

• Remove the cushion from the seat frame.
• Head hugger is machine washable at 30°C. Do not use bleach. Dry naturally.
• Clean the seat, restraint system and motorized frame with a mild cleaning agent and a damp cloth. Remove any residue with second damp cloth and clean water.
• Please clean, maintain and check this product regularly.
• Periodically check the swing for loose fasteners or broken parts and tighten as needed.
• Remove batteries and store the swing in a dry area away from children.
  • Adult assembly is required.
• Tools needed for assembly: Screwdriver (not included).

WARNING!

VIKTIGT – LÄS NOGGRANT OCH SPARA DESSA INSTRUKTIONER FÖR FRAMTIDA REFERENS.

MOTERING OCH ANVÄNDNING

Diagram of a mechanical device with two curved arms and directional arrows indicating movement or force (no text or symbols)

Technical line drawing of a mechanical device with a magnified circular view showing internal components (no text or symbols)

Four identical line drawings of a curved, fan-shaped device with adjustable arms and legs, shown from different angles (no text or symbols)

Technical line drawing of a circular mechanical or electrical component with mounting holes and a central curved wire (no text or symbols)

MONTERING OG BRUK

Technical line drawing of a mechanical device with curved arms and a close-up inset showing internal components (no text or symbols)

Line drawing of a curved mechanical device with a handle and base (no text or symbols)

Line drawing of a mechanical device with curved arm and base (no text or symbols)

Line drawing of a simple mechanical device with curved arm and base (no text or symbols)

Line drawing of a simple lamp stand with curved arm and base (no text or symbols)

Line drawing of a simple mechanical device with a curved top and base (no text or symbols)

Line drawing of a simple lamp or stand with a curved arm and base (no text or symbols)

Circular diagram with labeled components including a rectangular box, curved line, and circular elements (no text or symbols)

MONTERING OG BRUG

Technical line drawing of a mechanical device with curved arms and a close-up inset showing internal components (no text or symbols)

Line drawing of a simple lamp with adjustable arm and base (no text or symbols)

Første position Anden position.

Line drawing of a satellite dish antenna with a curved base and attached dish (no text or symbols)

Line drawing of a simple lamp stand with adjustable arm and base (no text or symbols)

Line drawing of a desk lamp with adjustable arm and base (no text or symbols)

Line drawing of a simple pendulum device with curved arm and base (no text or symbols)

Simple line drawing of a laboratory apparatus with a curved arm and base (no text or symbols)

Circular diagram with labeled components including a rectangular box, curved line, and circular elements (no text or symbols)

Diagram showing a device with a magnified view of its internal structure, no text or symbols present

PLEJE OG VEDLIGEHOLDELSE

KOKOAMINEN JA KÄYTTÖ

Technical line drawing of a mechanical device with curved arms and a close-up inset showing internal components (no text or symbols)

Diagram of a car interior with curved arms and directional arrows indicating motion (no text or symbols)

Diagram of a lampshade with an open circular base and a curved arm, showing no text or symbols.

Diagram of a curved mechanical component with star and circle symbols, no text or labels present

5.Selkänojan säätö

Line drawing of a simple lamp with a curved screen and base mount (no text or symbols)

Ensimmäinen asento

Line drawing of a mechanical device with curved arm and base (no text or symbols)

Toinen asento

Line drawing of a mechanical device with a curved arm and base (no text or symbols)

Simple line drawing of a lamp stand with adjustable arm and base (no text or symbols)

Simple line drawing of a satellite dish antenna with a curved top and base (no text or symbols)

Line drawing of a simple lamp with adjustable arm and base (no text or symbols)

Simple line drawing of a person in a seated position with a cross symbol indicating no text or labels

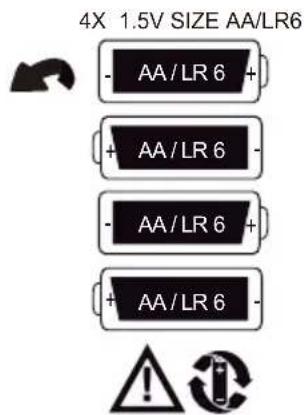

PARISTOJEN ASENTAMINEN

Technical diagram of a circular mechanical or electrical component with mounting holes and internal components (no text or symbols)

Produced by: Jollyroom AB
