USER MANUAL Raise Beemoo

Line drawing of a stylized hat with a curved handle and clasp (no text or symbols)

IMPORTANT!

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

Model: Beemoo Raise i-Size

Booster Cushion

E4*129R03/04*0144*01

VIKTIGT!

LÄS NOGA OCHBEHÅLL FÖR FRAMTIDA REFERENS.

Modell: Beemoo Raise i-Size

Bälteskudde

E4*129R03/04*0144*01

ADVARSEL!

LES N∅YE OG BEHOLD FOR FREMTIDIG REFERANSE.

Modell: Beemoo Raise i-Size

Beltepute

E4*129R03/04*0144*01

ADVARSEL!

LÆS OMHYGGELIGT OG GEM TIL FREMTIDIG REFERENCE.

Model: Beemoo Raise i-Size

Selepude

E4*129R03/04*0144*01

TÄRKEÄÄ!

LUE OHJEET HUOLELLISESTI JA SÄILYTÄ NE TULEVAA TARVETTA VARTEN.

Modell: Beemoo Raise i-Size Bälteskudde

E4*129R03/04*0144*01

WICHTIG!

Read and follow these instructions carefully before using this child car seat.

Suitable for children:

135-150cm

NOTICE

This is a Universal booster cushion Enhanced Child Restraint System. It is approved according to UN Regulation No.129, for use in i-Size compatible and universal vehicle seating positions as indicated by vehicle manufacturer in the vehicle user's manual. If in doubt, consult the Enhanced Child Restraint System manufacturer or the retailer.

READ CAREFULLY AND KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE

• The rigid items and plastic parts of an Enhanced Child Restraint System shall be located and installed in a way they are not liable, during everyday use of the vehicle, to become trapped by a movable seat or in a door of the vehicle.
• Any straps holding the restraint to the vehicle should be tight, any support-leg should be in contact with the vehicle floor, any straps or impact shields restraining the child should be adjusted to the child's body, and straps should not be twisted.
• It is important to ensure that any lap strap is worn low down (on the child's pelvis).
• It is dangerous to make any alterations or additions to the device without the approval of the Type Approval Authority. Not following the provided installation instructions closely can result in danger.
• Be sure that children are not left in their Enhanced Child Restraint System unattended. Be sure that any luggage or other objects liable to cause injuries in the event of a collision shall be properly secured.
• Be sure that the Enhanced Child Restraint System shall not be used without the cover.
• Be sure that the Enhanced Child Restraint System cover should not be replaced with any other than the one recommended by the manufacturer, because the cover constitutes an integral part of the restraint performance.

Beemoo

Direction Size Range Installation Method Type
Forward facing 135-150 cm ISOFIX + 3-point belt Universal booster seat
Forward facing 135-150 cm 3-point belt	Universal booster seat

WARNING

Only suitable if the approved vehicles are fitted with 3-point safety belts, approved to UN/ECE Regulations No. 16 or other equivalent standards.

1. Diagonal belt
2. Lap belt

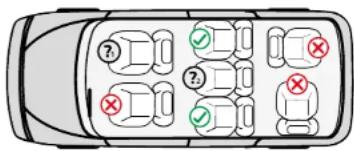

The vehicle rear seat is the safest position for children under 12 years. This car seat must be installed in a forward-facing direction. Rearward facing and sideward facing is strictly prohibited. Do not install the car seat at the front of the car due to the airbag.

Approved position.

Not recommended position.

Do not install the car seat at the passenger front seat due to the airbag.

Only suitable for three-point seat belt.

WARNING!

Please read the instruction manual carefully before use. Incorrect installation could cause serious injury, if in this case, the manufacturer shall not be responsible for any kind of responsibility.

UK UK

SAFETYNOTICE

Check whether the car

seat is installed correctly.

Proper installation is crucial to ensure the safety of

children. The fixing of the child seat must follow the

instructions on the belting sticker located on the sea and/or the instructions in

and/or the instructions in the manual.

Move the front seat as

far forward as possible

to ensure that the child's legs have a comfortable

space for movement.

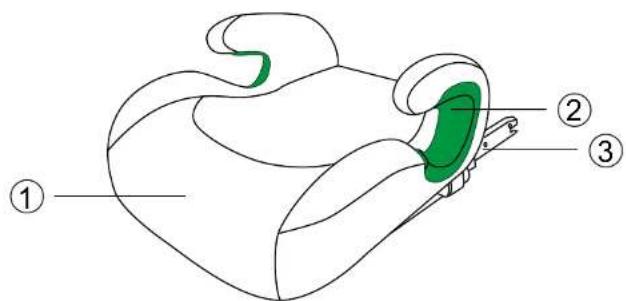

PARTS

1. Base
2. ISOFIX connector2. Belt guidance

Beemoo

INSTALLATIONISOFIX+3-POINTSAFETYBELT

Illustration of a person in a seated posture with green and red markings, no text or symbols present

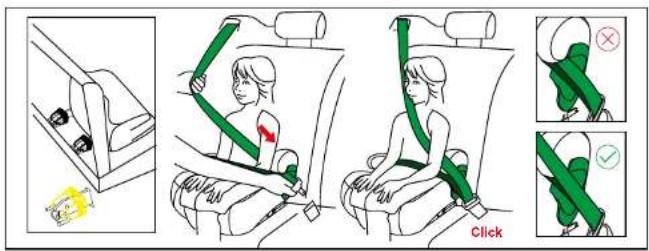

1. Find the ISOFIX fixed anchorage point on the car and clip the two guide sleeves to the two ISOFIX fixed anchorage points of the car to facilitate subsequent installation.
2. Press and hold the ISOFIX unlock button while sliding outwards to adjust the ISO FIX connectors on both sides of the anchorage seat to the longest state.
3. Connect the ISOFIX connector of the anchorage seat to the ISOFIX anchorage point of the car until you hear a "click" sound.

Tip: For the location of the ISOFIX fixed anchorage point, please check your car's user manual or contact your car manufacturer or local dealer.

UK UK

BUCKLE UP WITH ISOFIX + 3-POINT SAFETY BELT

1. Adjust the length of the safety belt guide hook. The shoulder belt of the car safety belt must pass through the guide hook and the top of the armrest, and the waist belt must pass through the guide groove.
2. Let the child sit in the car seat and adjust the length of the safety belt guide hook according to the child's height.
3. Pull out the car three-point safety belt, the shoulder belt of the safety belt passes through the guide hook and the top of the armrest, the abdominal belt of the safety belt passes through the guide grooves on both sides of the car seat, and is fixed to the car buckle, and you hear "Click" sound to ensure that the buckle is firmly locked.
4. Recycle and tighten the car seat belt and adjust the tightness of the car seat belt according to the size of the child, and it must not be turned over or twisted. Please make sure that the position of the seat belt waistband is as low as possible, so that the child's pelvis can be better fixed.

Beemoo

INSTALLATION3-POINTSAFETYBELT

Applicable to vehicles equipped with ISOFIX system that meets the requirements of ECE R14.

1. Ensure that the ISOFIX connector of the car seat is retracted into the base and place the car seat on both sides of the rear row.

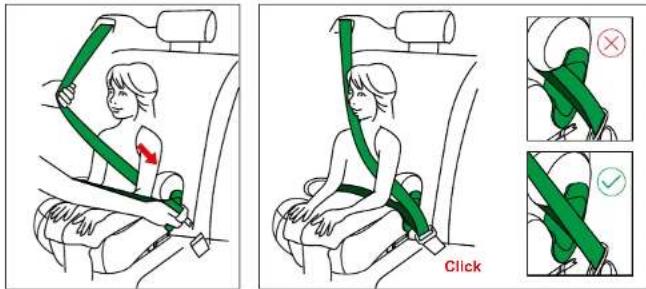

2. Let the child sit on the car seat and adjust the length of the safety belt guide hook according to the child's height.
3. Pull out the car three-point safety belt, the shoulder belt of the safety belt passes through the guide hook and the top of the armrest, the abdominal belt of the safety belt passes through the guide grooves on both sides of the car seat, and is fixed to the car buckle, and you hear "Click" sound to ensure that the buckle is firmly locked.
4. Recycle and tighten the car seal belt and adjust the tightness of the car seal belt according to the size of the child, and it must not be turned over or twisted. Please make sure that the position of the seat belt waistband is as low as possible, so that the child's pelvis can be better fixed.

DETACHISOFIXFROMCARSEAT

Illustration of a green C-shaped object inserted into a mechanical component with a yellow connector and red directional arrow (no text or symbols)

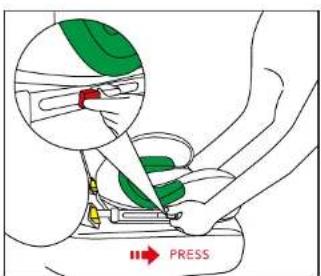

1. Press and hold the ISOFIX unlock switch on both sides at the same time. At this time, the ISOFIX lock indicator turns red, which means it is unlocked.
2. Pull the car seat outwards to remove it.

MAINTENANCE

1. In daily use, check the car seat regularly. NOTE! The car seat must be replaced if involved in an accident.
2. Please keep the car seat in a dry and ventilated place to avoid humidity and mold.
3. Clean the seat belt and the plastic parts by swiping them with a damp sponge or cloth and leave it to dry.
4. To remove drink- and food stains on the seat belt and buckle, disassemble the seat belt from the car seat and rinse it gently with warm water, and leave it to dry.
5. For cleaning the clothing of the car seat, please see below:

Beemoo

WASHING INSTRUCTIONS

ATTENTION! Never use any solvent, chemical detergent, or lubricant on any part of your child seat.

• Hand wash, water temperature below 30 °C.
• Do not bleach.
  • Dry clean, any solvent except trichloroethylene
• Do not tumble dry.
• Do not iron.

REMOVE & ASSEMBLE THE CAR SEAT CLOTHING

1. First remove the crotch pad and the buckle of the car seat, then remove the shoulder straps and cushion. Remove the clothing of the car seat.
2. To reassemble the clothing, operate by follow above instructions in reverse order.

SE

BRUKSANVISNING

VIKTIGT!

WARNING

Godkänd position.

Ej rekommenderad position.

Illustration of a person sitting on the floor with red markers indicating points of interest (no text or symbols present)

ADVARSEL

Godkjent stilling.

1. Base

2. ISOFIX-kontakt2. Belteføring

18 19

Beemoo

INSTALLASJON ISOFIX + 3-PUNKTS SIKKERHETSBELTE

Illustration of a person sitting on the floor with red markers indicating points of interest (no text or symbols present)

Illustration of a green C-shaped object inserted into a mechanical component with a yellow connector and red directional arrow (no text or symbols)

ADVARSEL

Godkendt position.

Ikke-anbefalet position.

1. Bund

2. ISOFIX-beslag2. Seleguide (selehorn)

Beemoo

MONTERING MED ISOFIX + TREPUNKTSSELE

Illustration of a person in a seated posture with green and red markings, no text or symbols present

Illustration of a person wearing a car seatbelt, holding a green belt with a red arrow indicating a shoulder detail (no text or symbols present)

Illustration of a person sitting on a chair wearing a green safety belt, with a lamp above (no text or symbols)

Diagram of a mechanical device with a green letter C and directional arrow, no readable text or symbols present

Suitable for children:

135-150cm

HUOMIOI

VAROITUS

Hyväksytty paikka.

Illustration of a person in a seated posture with green and red markings, no text or symbols present

! ACHTUNG

Illustration of a person sitting with a green helmet and red arrows indicating movement or pressure points (no text or symbols)

Diagram of a mechanical device with a green letter C and directional arrow, no readable text or symbols present
