Product Type	Toy
Brand	Nordic Play
Model	805-410
Recommended Age	3+ years
Dimensions (L x W x H)	30 x 20 x 15 cm
Weight	0.5 kg
Material	Plastic, non-toxic
Power Source	2 x AA batteries (not included)
Functions	Interactive play, sound effects, moving parts
Assembly Required	Yes, simple assembly
Safety Warnings	Choking hazard - small parts; not for children under 3 years
Cleaning Instructions	Wipe with a damp cloth and mild soap; do not immerse in water
Battery Replacement	Replace with alkaline batteries of same type
Included Items	1 toy, instruction manual
Certification	EN71 compliant
Country of Origin	China

Frequently Asked Questions - 805-410 Nordic Play

What type of batteries does the Nordic Play 805-410 require?

The Nordic Play 805-410 requires 2 AA batteries. Batteries are not included in the package.

Is assembly required for this toy?

Yes, simple assembly is required. Please refer to the instruction manual for easy steps.

What is the recommended age for this toy?

The recommended age is 3 years and older due to small parts that could pose a choking hazard.

How do I clean the Nordic Play 805-410?

Clean the toy with a damp cloth and mild soap. Do not immerse in water or use harsh chemicals.

What should I do if the toy stops working?

First, check the batteries and replace them if needed. If the issue persists, consult the troubleshooting section in the manual.

Are there any safety warnings I should know?

Yes, the toy contains small parts and is a choking hazard. It is not suitable for children under 3 years. Adult supervision is recommended during play.

Can I buy replacement parts?

Replacement parts are available through Nordic Play customer service. Contact them with your model number (805-410) for assistance.

Does the toy make sounds?

Yes, the Nordic Play 805-410 features sound effects and interactive sounds that enhance playtime.

What is the warranty period?

The toy comes with a standard 12-month warranty against manufacturing defects. Keep your purchase receipt for warranty claims.

How do I download the user manual?

You can download the user manual in PDF format from notice-facile.com by searching for Nordic Play 805-410.

USER MANUAL 805-410 Nordic Play

Black fabric hanging from a simple net, suspended by three vertical rods (no text or symbols visible)

Art. no. 805-410

NSH NORDIC A/S

Virkefeltet 4

DK-8740 Braedstrup

Made in PRC

CE

GB Canoe swing

DK Kanogynge

SE Kanotgunga

NO Kanoswing

FI Kanoottikeinu

Content:

Illustration of a brown fabric wrapped in black cables with two curved black connectors below (no text or symbols)

Assembling - WARNING! Adult assembling required!

Illustration of a brown fabric bag with black straps and a small insect, enclosed in an oval frame (no text or symbols)

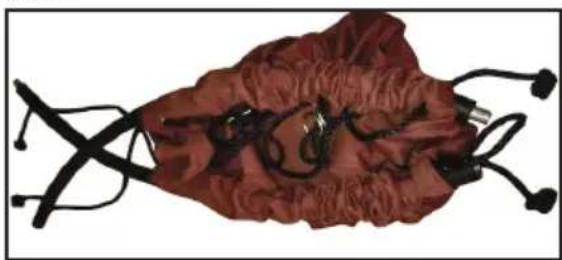

1. Place the main body and the 2 triangle corners at the right position. The opening in both ends must turn down.

Close-up of hands holding a tool interacting with a brown fabric or jacket, no visible text or symbols

1. Put the metal tube through the fabric sleeves one by one.

Close-up of a hand holding a black mechanical device attached to a brown leather piece (no visible text or symbols)

1. Connect the tubes in the middle on both sides.

Close-up of hands holding a black cylindrical object with a metal bracket (no visible text or symbols)

1. Tight it by screw with washer.

Close-up of a textured, reddish-brown object with black connectors and small metallic pins (no visible text or symbols)

1. Main frame must now look as shown on picture.

Person holding a brown backpack with black straps and straps, no visible text or symbols

1. Make the 2 fabric sleeves smoothly after the metal tube assemble as shown on picture.

Close-up of hands using a tool to apply black material on a brown fabric (no visible text or symbols)

1. Pull the hanging rope ends to the metal tube.

Close-up of a hand adjusting a small mechanical component with a cylindrical part inserted (no visible text or symbols)

1. Repeat step 7 for alle 4 corners.

A maroon fabric bag with black straps and a coiled cord, suspended by strings (no text or symbols visible)

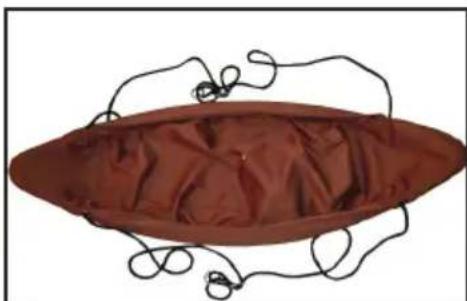

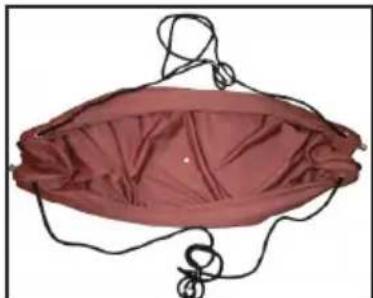

1. After the 4 rope ends are pulled, make the swing body smooth again before the triangle ends assembly.

Close-up of a black U-shaped pipe fitting with small metal fittings and a hand holding a brown object (no text or symbols visible)

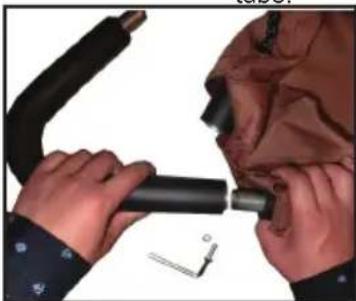

1. Assemble the 2 triangle ends as shown on the picture.

Close-up of hands performing a manual task with a tool, no visible text or symbols

1. Lock and tight the screws one by one and repeat the same step on the other triangle end.

Close-up of hands installing a black cable with a metal clamp (no text or symbols visible)

1. Tight and lock the screws.

Close-up of hands holding a brown leather strap and black rubber ring (no text or symbols visible)

1. Put the 2 ends fabric cover over the triangle ends.

Close-up of a brown fabric or leather piece with dark stitching and visible seams (no text or symbols)

1. 2 ends cover finished. 15.

Close-up of hands stitching a brown garment with visible stitching details (no text or symbols)

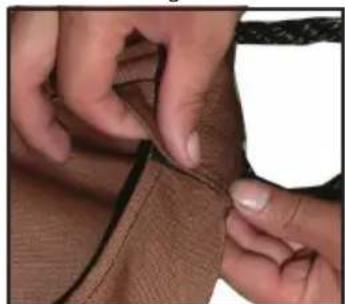

Fix the 4 velcros close to the hanging rope

Illustration of a brown oval-shaped object with black cordages and loops, no text or symbols present

1. Assembly is finished. Keep the wrench and the manual for future reference.

Installation

Install the swing to the swing clamp of the swing set.1.

Adjust the rope.2.

The distance between the swing and the ground should be at least 35 cm.3.

The distance between an accessory and the frame, should be at least 30 cm.4.

The distance between the swing clamps should be 45 cm.5.

The distance between swinging accessories, should be 45 cm.6.

Check the swing has been installed correctly by hanging in the rope few seconds.7.

Follow the manual for inspection and maintenance.8.

Warnings!

Only for domestic use.

Only for outdoor use.

Maximum user weight is 100 kg.

Suitable for children from 3-10 years.

Maximum number of users is 2.

To be assembled by an adult.

The cross beam must not be higher than 250 cm.

Warning!

The swing may only be used by children sitting or lying.

General safety instructions:

• The safe play area refers to a zone extending 200 cm beyond the play set on all sides. The safe play zone in front of and behind a swinging accessory is 200 cm.
- The safe play area must be free of all structures, fences, garage, house, overhanging branches, laundry lines, electrical wires and other obstacles to ensure safe play.
Do not situate your play set in the directions of walks or gangways.
- The ground surface must be level. Installing your play set on sloping ground can cause it to lean or "rack". This leaning puts additional stress on all connections and joints and in time will cause those connections to loosen and fail.
- Do not install your play set over concrete, gravel asphalt, packed earth, or any other hard surface. A fall onto a hard surface can result in serious injury.

The following is a list of recommended ground covers.

Double shredded bark mulch 50 cm•

Uniform wood chips 50 cm•

Fine gravel 50 cm•

Fine sand 50 cm•

Save these instructions for future reference.

Safe play:

On site adult supervision must be provided for children of all ages and at all times.

• Teach the children to play safe.
- Dress children appropriately. Avoid accessories, clothing with drawstrings, loose fitting clothes and stringed items placed around the neck, which could become entangled or snagged on equipment. Also bike helmets should be taken off before playing on playground equipment.
- Last but not at least: use common sense to avoid any possible unsafe situations.
• Equipment should not be played upon in wet weather conditions because of potentially slippery surfaces and in periods of frost, even the softest pavement can change into a very hard surface.
• Accessories should be removed and taken indoors when temperatures drop below 0^ C
- Using the playground or the accessories in any other manner than the way intended could lead to damage or injury. Do not twist or wrap swings, chains ropes or any other accessories. Twisting will reduce the strength of the accessories and may cause entrapment.

• Caution children no to:

• Jump off swings while they are in motion.
- Swing empty seats or other empty accessories.
- Swing at an angle.
• Hang upside down from any part of the gym set.
• Grasp or stop another child on any moving equipment.
• Walk close to, in front of, between, or behind moving accessories.

- Caution children to sit in centre of the swings with their full weight on the seats. Only one child per each planned occupant seat should be allowed.

• Climbing or hanging on the frame of the play set must not be permitted. Serious injuries can be result from fails.

Inspection and maintenance:

• To ensure the safety of the users of the play set, the play set has to be subjected to the safety inspections mentioned below once at the beginning of each season and further twice monthly during the usage season.
- Check all hardware to be sure it is tight. Caution: overtightened hardware crushes the fibres of the wood resulting in split boards.
- Check the remaining hardware, brackets and swing clamps also for rust, which can have effect on the strength. Replace when necessary.
• Check the ground anchors to be sure that they are secured. If necessary, reposition or replace.
- Check all coverings for bolts and sharp edges and replace when required.
- Check swing seats and bars for integrity and check swing ropes for fraying or extreme creation of fibre. To examine the rope, open the strands of the rope there where the fraying occurred and securely check whether the filaments are broken.
• All accessories can be cleaned with warm water and a mild detergent.
• Check the play sets stability.
• Check the environment for direct danger like overhanging branches, laundry lines and loose materials.

Customer responsibilities:

It is the customer's responsibility to perform regular inspections and maintenance to ensure that the product is not prematurely ageing. These inspections and maintenance are mentioned in this manual.

• The customer has to take all precautions to safeguard the safety of the children.

Indhold:

Illustration of a medical device with attached tubing and a wrapped object, accompanied by two curved connectors (no text or symbols)

Illustration of a stylized human head with black straps and earphones, no text or symbols present

Close-up of a hand holding a brown fabric with black decorative elements (no text or symbols visible)

Close-up of a hand holding a black mechanical device with a textured grip, partially enclosed in brown leather (no visible text or symbols)

1. Forbind metalrørene i midten i begge sider.

Close-up of hands using a hair roller or clamp to adjust a black cylindrical object (no visible text or symbols)

Close-up of a red fabric bag with black straps and earphones (no text or symbols visible)

Person holding a brown patterned bag with black straps and earphones (no text or symbols visible)

1. Glat stoffet ud langs begge sider.

Close-up of hands applying a black tool to a brown fabric or material (no visible text or symbols)

Close-up of a hand adjusting a small mechanical component with a cylindrical part inserted (no visible text or symbols)

1. Gentag trin 7 for de resterende 3 hjørner.

A maroon fabric hanging from a rope with black straps, no text or symbols visible.

Close-up of a black U-shaped mechanical component with small bolts and a brown fabric sample (no text or symbols visible)

Close-up of hands using a tool to adjust or install a mechanical component (no visible text or symbols)

Close-up of hands installing a black cable using a metal clamp (no text or symbols visible)

Close-up of hands holding a brown leather cushion with a black circular object underneath (no text or symbols visible)

Close-up of a brown fabric or leather garment with black straps (no text or symbols visible)

Close-up of hands stitching a brown garment with visible stitching details (no text or symbols)

Illustration of a brown fabric bag with black straps and handles, no text or symbols present

Medical illustration of a patient inside a medical device with attached tubing (no text or symbols)

Montering - WARNING! Gungan skall monteras av en vuxen!

Illustration of a brown fabric bag with black straps and a small insect, enclosed in an oval frame (no text or symbols)

Close-up of a person holding a tool with wires and a green object, no visible text or symbols

Close-up of a hand holding a black mechanical component attached to a brown leather piece (no visible text or symbols)

Close-up of hands holding a black cylindrical object with a metal bracket (no visible text or symbols)

Close-up of a textured, reddish-brown fabric with black connectors and earments (no visible text or symbols)

Person holding a brown fabric bag with black straps and straps, no visible text or symbols

Close-up of a hand holding a small object with a dark object inserted, possibly a tool or device (no visible text or symbols)

Close-up of a hand adjusting a small mechanical component on a brown fabric (no visible text or symbols)

A red fabric hanging from a rope with coiled straps, no text or symbols visible.

Close-up of a black U-shaped mechanical component with small circular features and a hand holding a brown object (no visible text or symbols)

Close-up of hands using a tool to adjust or install a mechanical component, no visible text or symbols

Close-up of hands adjusting a black cable with a metal clamp (no text or symbols visible)

Close-up of hands holding a brown fabric with a black circular object underneath (no text or symbols visible)

Close-up of a brown leather jacket with black straps (no text or symbols visible)

Close-up of hands stitching a brown fabric piece (no visible text or symbols)

Illustration of a brown fabric or cushion with black straps and coiled loops, no text or symbols present.

Illustration of a medical device with attached tubing and a reddish-brown mass, accompanied by two curved connectors (no text or symbols)

Montering - ADVARSEL! Skal monteres av en voksen!

Illustration of a stylized human head with a black outline and ear loops, no text or symbols present.

Close-up of a brown jacket with black wires and ropes, held by hands (no visible text or symbols)

Close-up of a hand holding a black mechanical device with a curved handle, no visible text or symbols

1. Koble rørene sammen i midten på begge sider.

Close-up of hands holding a cylindrical object with a metal clamp (no visible text or symbols)

1. Stram med skrue og skive

Close-up of a red fabric with black earbuds and connectors (no text or symbols visible)

Person holding a brown backpack with black straps and accessories, no visible text or symbols

1. Fordel stoffet over rørene på begge sider, i enlighet med bildet.

Close-up of hands using a tool to apply black ink on a brown surface (no text or symbols visible)

1. Trekk repens ender til metallrøret i enlighet med bildet.

Close-up of a hand adjusting a brown fabric with a black plastic clip (no text or symbols visible)

A maroon fabric bag with rope and clasp, suspended by a string (no text or symbols visible)

Close-up of a U-shaped mechanical component with small pins and a hand holding a brown object (no visible text or symbols)

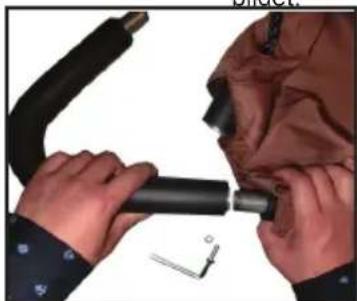

1. Monter første trekantröre i enlighet med bildet.

Person using a tool to adjust or install a mechanical component, no visible text or symbols

1. Forbered med skiven og skruen.

Close-up of hands adjusting a black hair roller with metal clasp (no text or symbols visible)

Close-up of hands holding a brown fabric or leather item with a black ring (no visible text or symbols)

1. Trekk stoffet over trekant rør på begge sider.

Close-up of a brown fabric garment with black straps and pleated texture (no text or symbols visible)

Close-up of hands tying a knot on a fabric garment (no text or symbols visible)

1. Fest alle fire borrelåser over hengende tau.

A brown oval-shaped object with a dark interior, surrounded by black cord-like loops and black strings (no text or symbols visible)

Medical illustration of a patient's abdomen with attached medical tubing and two curved connectors (no text or symbols)

Illustration of a brown fabric bag with black straps and a small insect, no text or symbols present

Close-up of hands holding a brown coat with black straps and wires, no visible text or symbols

Close-up of a hand holding a black mechanical tool with a textured grip, partially enclosed in a brown leather jacket (no visible text or symbols)

Close-up of hands holding a cylindrical object with a metal clamp (no visible text or symbols)

Close-up of a textured, reddish-brown object with black earbuds and black straps (no visible text or symbols)

Person holding a brown fabric bag with black straps and accessories (no text or symbols visible)

Close-up of hands applying a black braided tool to a brown leather or wool material (no text or symbols visible)

Close-up of a hand adjusting a brown fabric with a black plastic component (no visible text or symbols)

A red fabric bag with black straps and coiled cord, suspended by a string (no text or symbols visible)

Close-up of a black U-shaped pipe fitting with small metal fittings and a hand holding a brown object (no text or symbols visible)

Close-up of hands using a tool to adjust or install a mechanical component (no visible text or symbols)

Close-up of hands installing a black cable with a metal hook (no text or symbols visible)

1. Kiristä ruuvit..

Close-up of hands holding a brown leather strap and black rubber ring (no text or symbols visible)

Close-up of a brown fabric or cushion with black straps (no text or symbols visible)

Close-up of hands adjusting a brown garment with a zipper (no visible text or symbols)

Illustration of a brown fabric bag with black straps and loose straps, no text or symbols present
