USER MANUAL 805-772 Nordic Play

Red Range Rover toy car with black handle and silver wheels, no visible text or symbols on the vehicle itself

Size 69,7 x 36 x 39,5 cm

Art. no. 805-772

EAN 5705858711669

Imported by / Importeret af

NSH NORDIC A/S

Virkefeltet 4

DK-8740 Braedstrup

Made in China / produceret i Kina

General safety rules for NORDIC PLAY products

Warning:

• The vehicle may not be used on roads, sidewalks, in hills or sand.
• The vehicle should only be used on flat surfaces.
• Do not overload the vehicle. Pay attention to the maximum weight limits. Typical maximum total weight is 20 - 30 kg. Please check for your specific model.
• Children using the vehicle should always be supervised by a responsible adult.
• Push/foot-to-floor vehicles without a battery can be used from 1 year of age.
  • Declaration of conformity: This product is in accordance with EU directive 2009/48/EC on the safety of toys

Warning:

For your child's safety, pay attention to the following:

• Only adults may assemble the product.
  • Small parts and plastic parts should be kept away from the child to avoid risk of suffocation.
  • Adult supervision is required.
• Push/foot-to-floor vehicles without battery can be used from 1 year of age.
• Use the vehicle with caution, since driving skills are required to avoid falls or crashes that can result in injuries to the user or third party.
• Instructions on how the vehicle is used should be given to the child before use – especially for the braking system.
• May not be used in traffic. Only use the vehicle on private property.
• Only drive on flat surfaces away from other vehicles and obstacles.
• Avoid sharp bumps and sudden changes of the surface.
• Avoid roads and surfaces with water, sand, gravel, dirt, leaves and other debris.
• Wet weather can reduce the traction, brake effect and visibility.
• Do not drive when it is dark.
• Avoid excessive speed in conjunction with downhill driving.
• Watch out for pedestrians.
• Check and tighten all screws before every drive. Do not allow two or more children to use the vehicle at once.
• Do not use the vehicle if it has damages.
• Change damaged parts immediately.

To protect the environment, batteries and electrical equipment must be disposed separately from household waste. Contact the municipality for the nearest collection point.

Installation and Operating Instructions

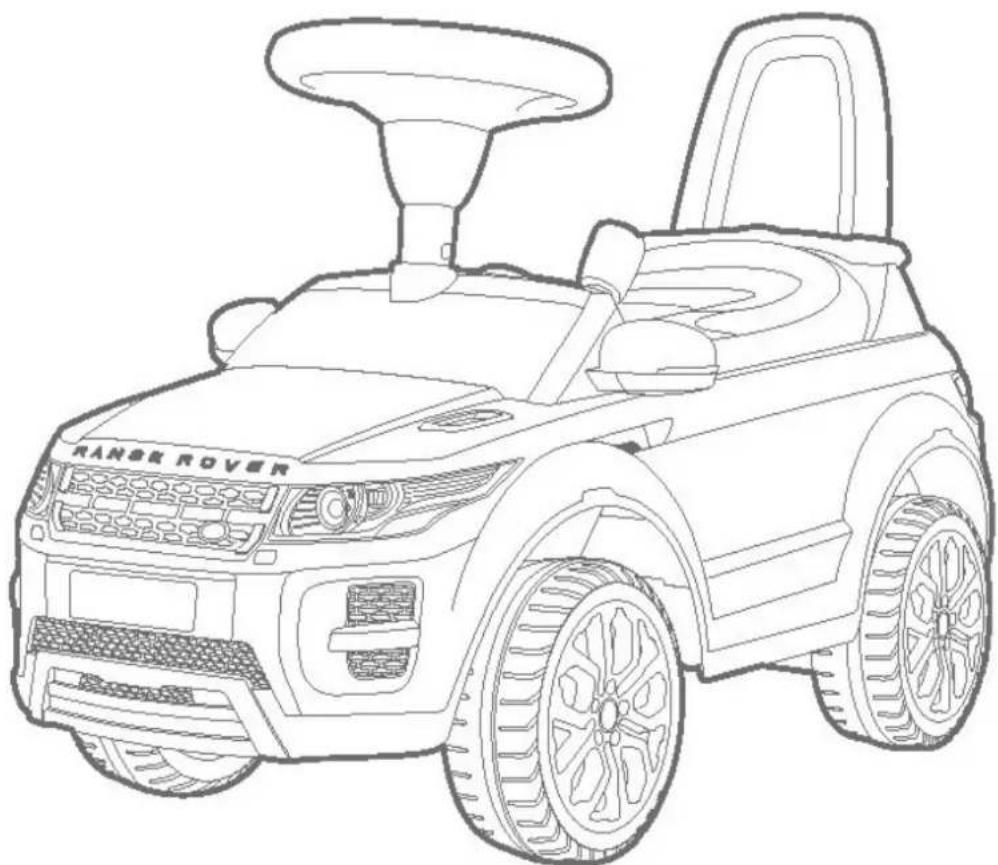

Line drawing of a Range Rover toy car with steering wheel and dashboard (no text or symbols on the vehicle itself)

Please read the installation instructions carefully before installation

Contents

Product Specifications and Parameters

Components List

Assembly Diagram

Installation and replacement of steering wheel batteries

Function and Operation

Dimensions of entire car

Product Specifications and Parameters

This product is suitable for the children of 2-6 years old, and shall be used under adult supervision!

Product dimensions: 69.7×36×39.5CM Product maximum load weight: 23 kg

Product operating ambient temperature: 0-40°C

Steering wheel power supply: 2×1.5V AA battery (excluded in this product)

Components list

NO PICTURE NO PICTURE
1	Car body	2	Steering wheel
3	Front and rearhandmade handles	4	J-shaped stick
5	Backrest	6	Steering wheel screw(5 x 23 PM)
7	Steering wheel locknut(M5)

Assembly Diagram

Mechanical diagram showing a cam mechanism with pulleys and a hook, no text or symbols present

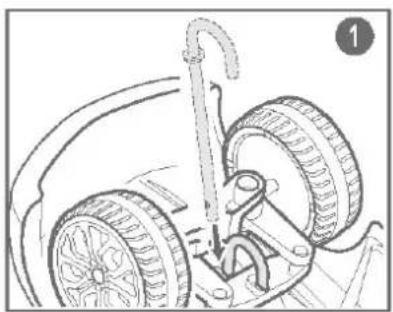

Install the J-shaped stick at the assigned location

Medical procedure diagram showing surgical tool installation and insertion into a patient's bed, with magnified detail view.

Insert the steering wheel into the J-shaped stick and fix it with screws and locknuts; insert the front and rear handmade handles into the assigned location; insert the back-rest into the corresponding groove.

Conversion Open

Folding rear-view mirror

Line drawing of a toy car with steering wheel and dashboard (no text or symbols)

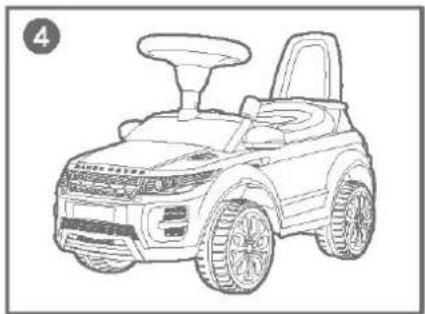

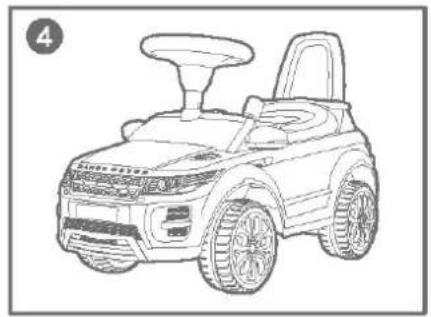

Finished

Installation and replacement of steering wheel batteries

Diagram of a car steering wheel with a hand operating the steering wheel (no text or symbols)

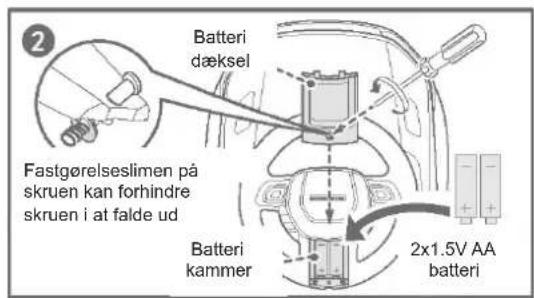

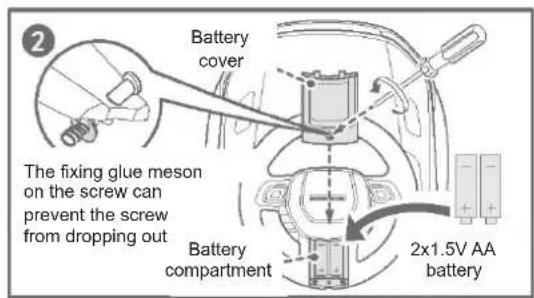

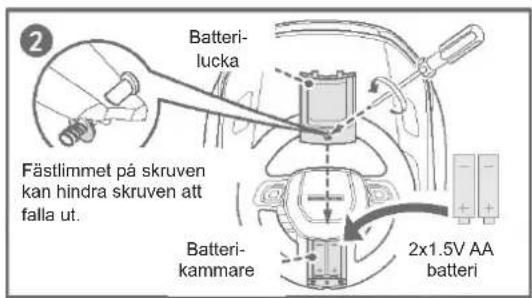

Battery cover The fixing glue meson on the screw can prevent the screw from dropping out Battery compartment 2x1.5V AA battery

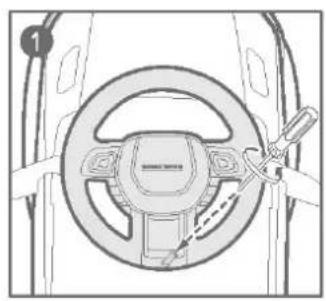

Open the battery cover of steering wheel, find the positive pole and negative pole, and put 2 AA batteries into the compartment, then close the battery cover and fix it with screw.

Function and Operation

(1) This toy car is "Land Rover" emulation riding car:

1. Children can sit on the car, grip the steering wheel with both hands and kick backwards with both feet so as to make the car randomly and freely slide.

2. When making the car slide at a certain speed, children can leave the ground with both feet to slide forwards through inertia, which not only is interesting but also can train children's balance force (certainly, these actions shall be carried out under adult supervision).

(2) Steering wheel music function:

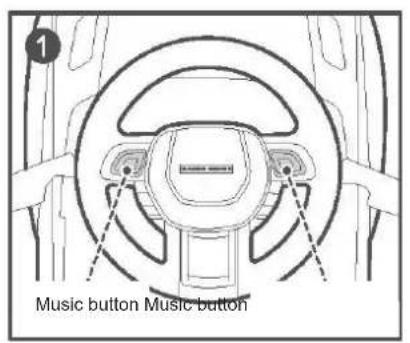

1. Left music button on the steering wheel: There are three kinds of music; every time you press the music button once, a song will start for some time; the rest can be done in the same manner so as to continuously press the button to circularly play these three kinds of music.

2. Right music button on the steering wheel: It has the same operating function as the left music button on the steering wheel, but the contents of three cyclic songs are different.

(3) Storage function:

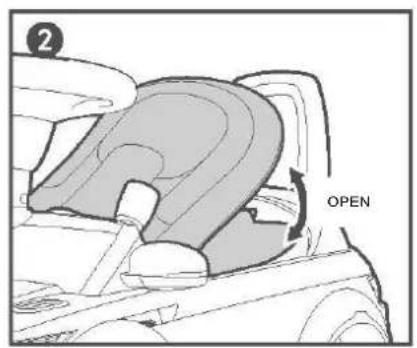

When lifting up the seat, you will find that there a larger space in which other toys and sundries of children can be placed so as to train children's sorting and storage abilities.

Music button Music button

2 OPEN

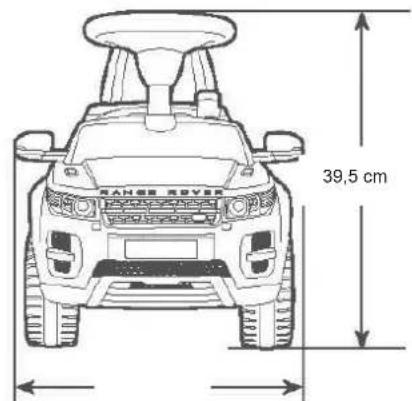

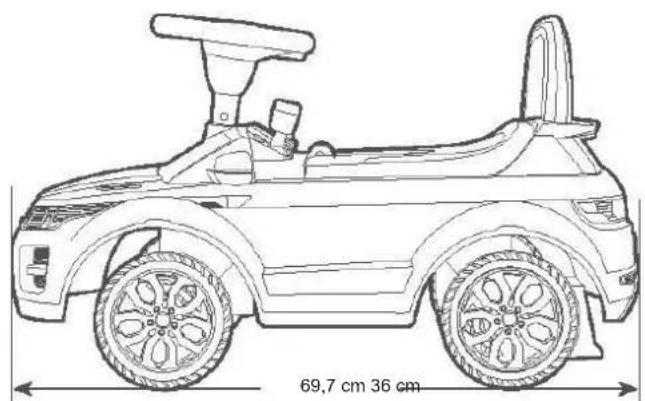

Dimensions of entire car

Line drawing of a car with front wheel and side-mounted sensor, showing dimensions (69.7 cm width, 36 cm height) — no text or symbols present.

39,5 cm

Land Rover and the Land Rover Logo are trademarks owned and licensed by Jaguar Land Rover Limited.
