Product type	Baby monitor (DECT)
Brand	Philips
Model	SCD488
Technology	DECT (Digital Enhanced Cordless Telecommunication)
Baby unit power supply	Mains: 9 V / 300 mA DC adapter (supplied); batteries: 4 x 1.5 V AA alkaline batteries (not supplied)
Parent unit power supply	Charger: 9 V / 300 mA DC adapter (supplied); batteries: 2 x 1.2 V AAA NiMH rechargeable batteries (supplied)
Range	Up to 300 m outdoors (ideal conditions); up to 50 m indoors (depending on obstacles)
Main features	Two-way audio monitoring, built-in nightlight, volume control (baby and parent unit), microphone sensitivity adjustment (5 levels), Talk function (parent to baby communication), Page function (locate parent unit), silent monitoring
Visual indicators	LINK indicator (green/red), battery level indicator, sound level indicators (5 levels), power indicator (charger)
Parent unit battery life (on batteries)	At least 8 hours after full charge (normal use, moderate volume and sensitivity)
Parent unit charging time	At least 16 hours for a full charge
Safety	Baby unit out of child's reach (minimum distance 1 m); do not place in bed or playpen; do not cover the device; use away from damp rooms
Care and cleaning	Clean with a damp cloth; check batteries every six months if using on mains power
Operating temperature	0 °C to 40 °C
Warranty	Standard Philips warranty (see warranty leaflet)
Package contents	Baby unit, parent unit, 2 mains adapters, 1 charger, 2 AAA rechargeable batteries, 1 belt clip, 1 strap, user manual

Frequently Asked Questions - SCD488 PHILIPS

What is the range of the Philips SCD488 baby monitor?

The range can reach 300 meters outdoors in ideal conditions (open air). Indoors, it is limited to about 50 meters depending on walls and obstacles (concrete, metal significantly reduce the range).

What to do if the connection between the units is interrupted or the sound is choppy?

You are probably at the edge of the range. Bring the two units closer and wait about 30 seconds for the connection to re-establish. Also check that the batteries are not low.

How does the baby monitor work in case of a power outage?

If batteries are installed in both units, they automatically switch to battery power in case of a mains failure. The baby unit uses 4 AA batteries (not supplied), the parent unit uses the supplied NiMH rechargeable batteries.

Is the DECT baby monitor protected against eavesdropping?

Yes, DECT technology uses 120 channels and digital encryption that protects against interference and eavesdropping. Your communication is private.

Why is the parent unit battery life less than 8 hours?

The 8-hour battery life is achieved after at least 4 complete charge/discharge cycles. An initial charge may give less battery life. Additionally, high volume or maximum microphone sensitivity increase consumption.

How to adjust the microphone sensitivity of the baby unit?

Briefly press the SENSITIVITY button on the parent unit, then use the +/- buttons to choose from 5 levels (1 = low, 5 = maximum). Sensitivity affects power consumption.

Can I use the baby monitor without batteries in the parent unit?

Yes, the parent unit can operate on mains power only when placed in the charger. However, for mobile use, rechargeable batteries are needed.

How to reset the baby monitor to factory settings?

Turn on both units. As soon as the LINK indicator lights up, press and hold the volume - button for 1 second. Settings return to default values (parent unit volume: 1, sensitivity: 3, baby unit volume: 3, nightlight off).

Does the nightlight consume a lot of battery?

Yes, if the baby unit is running on batteries, it is recommended to turn off the nightlight to save batteries. It can be turned on/off by briefly pressing the nightlight button (symbol ).

What to do if I cannot establish the connection between the two units?

Make sure both units are turned on (press and hold the power button for 2 seconds). Check the batteries or mains power. If the problem persists even when close, perform a factory reset (see previous question).

USER MANUAL SCD488 PHILIPS

Woman holding a baby, both facing each other (no text or symbols visible)

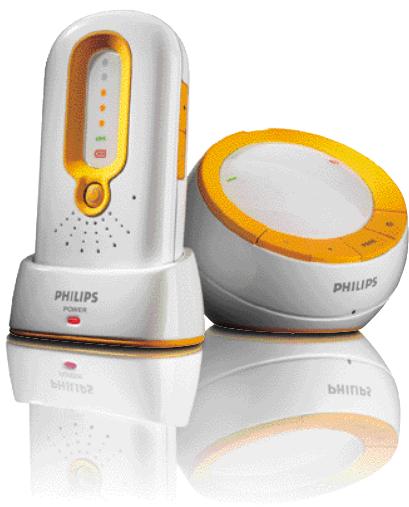

White Philips power ear device with orange and yellow buttons, shown against a reflective surface (no text or symbols visible on the device body beyond branding)

PHILIPS

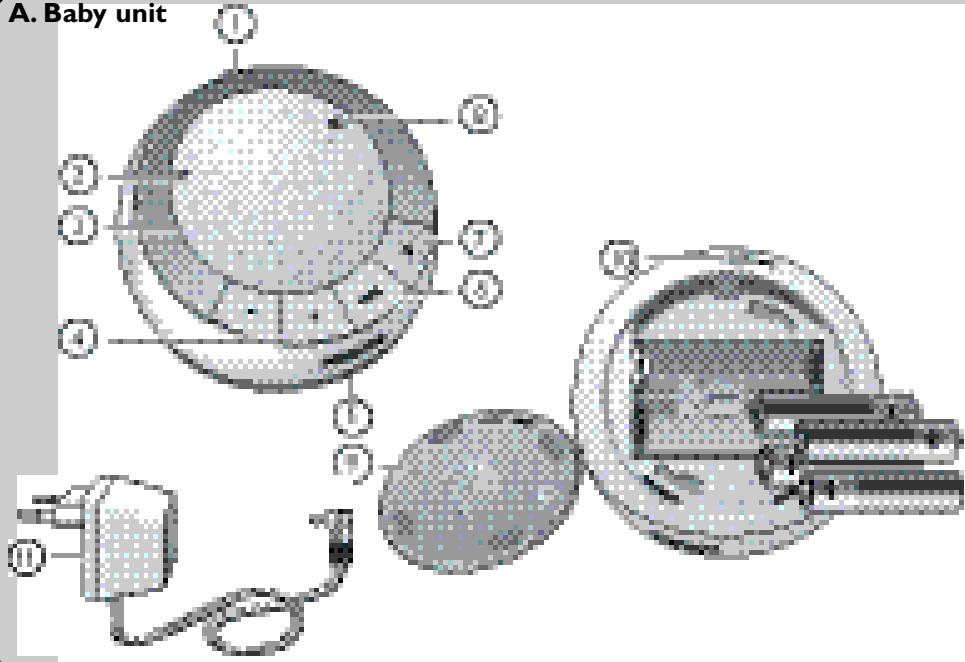

A. Baby unit

A. Baby unit

A-1 On/Off button (⏻)
A-2 LINK light
A-3 Night light
A-4 Volume - / + buttons
A-5 Microphone
A-6 PAGE button
A-7 Night light button (💡)
A-8 Battery check light (☐)
A-9 Battery compartment cover
A-10 DC 9V / 300mA power supply jack
A-II AC power adapter

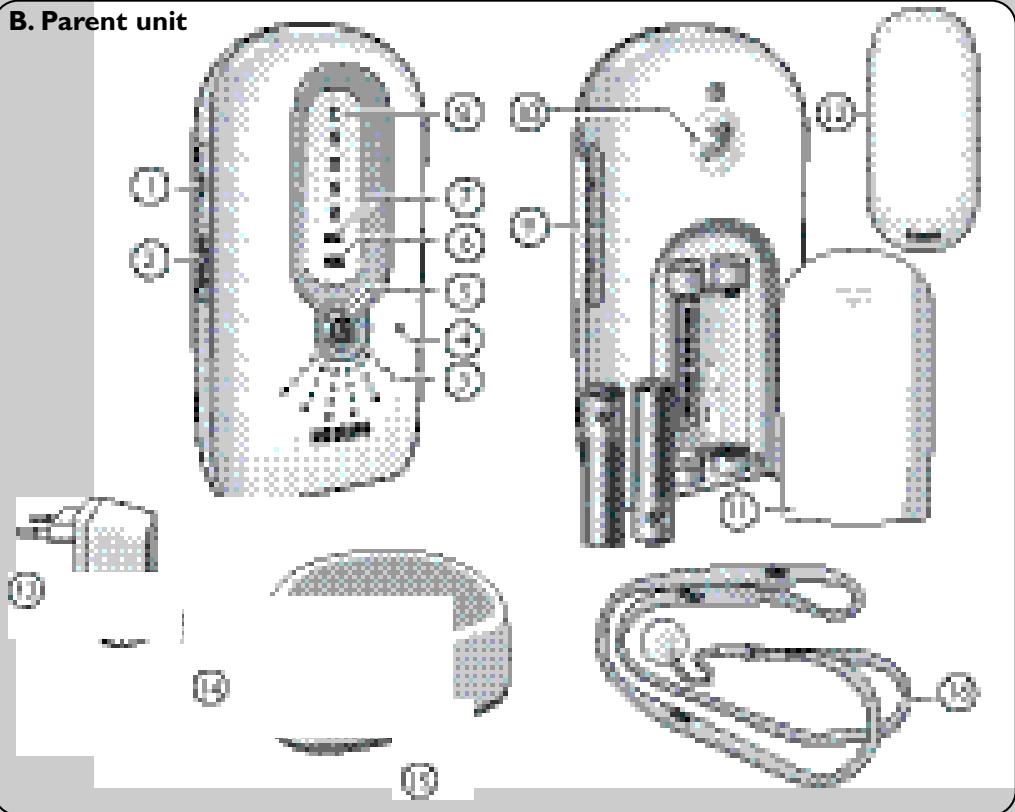

B. Parent unit

B-I TALK button
B-2 SENSITIVITY button
B-3 Loudspeaker
B-4 Microphone
B-5 On/Off button (⏻)
B-6 Battery check light (☐)
B-7 LINK light
B-8 Sound-level lights
B-9 Volume - / + buttons
B-10 Recess for the belt clip
B-11 Battery compartment cover
B-12 Belt clip
B-13 AC power adapter
B-14 Charging base
B-15 POWER light
B-16 Neck strap

C.What else you need

Both units can be mains or battery operated.

For battery-operated use you will need:

• 4 x 1.5V AA Alkaline batteries for baby unit (not supplied);
• 2 x 1.2V AAA size Ni-MH rechargeable batteries for parent unit (supplied).

Contents

EN

3 Illustrations

4 Legend of functions

4 Baby unit

4 Parent unit

4 What else you need

5 Contents

6 Welcome

6 Important safety information

6 Getting your baby monitor ready for use

6 Baby unit

7 Parent unit

8 Using your baby monitor

9 Other features

9 Adjusting loudspeaker volume

10 Talking to your baby

10 Adjusting microphone sensitivity

II Monitoring baby silently

II Switching night light on / off

12 Connecting / disconnecting belt clip and neck strap

12 Paging parent unit

13 Troubleshooting

15 Frequently asked questions

16 Important information

16 Technical specifications

16 Maintenance

17 Environmental information

17 Factory initialization mode

18 Guarantee and service

Philips is dedicated to producing caring, reliable products to give parents the reassurance they need. You can trust this Philips baby monitor to provide round-the-clock support by ensuring you can always hear your baby clearly without any distracting noise. Your SCD488NC uses DECT technology which guarantees zero interference from other wireless appliances and a clear signal between the parent unit and baby unit.

Philips Baby Care, taking care together

Safety information

Please read this user manual carefully before using your baby monitor and keep it for future reference. This baby monitor is intended as an aid. It is not a substitute for responsible and proper adult supervision and should not be used as such.

• Make sure the baby unit and adapter cable are always out of reach of the baby (at least 1 meter / 3 feet away).
• Never place the baby unit inside the baby's bed or playpen.
• Never cover the baby monitor (with a towel, blanket, etc.).
• Never use the baby monitor in moist places or close to water.
• Check if the voltage indicated on the type plate of the adapters (A-II, B13) corresponds to the local power voltage before connecting to the AC power supply.
• Do not expose the baby monitor to extreme cold, heat or light (e.g. direct sunlight).
• To prevent electric shock, do not open the case of the baby unit and parent unit (except battery compartment covers).
• Risk of explosion if batteries are replaced by an incorrect type. For the parent unit, always use rechargeable batteries.

Getting your baby monitor ready for use

Baby unit

The baby unit can be mains or battery operated.

When batteries are inserted, you will have an automatic back-up in case of mains failure.

Illustration of a hand holding a device connected to a spherical object, with no visible text or symbols.

Mains operated use

Connect the power adapter cord (A-11) to the power supply jack (DC 9V / 300mA - A-10) of the baby unit.
2 Connect the AC power adapter (A-II) to a wall outlet.

→ The baby unit is now ready for mains operated use!

Getting your baby monitor ready for use

EN

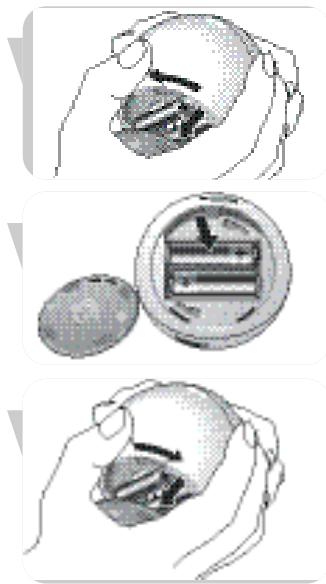

Battery operated use

Open the battery compartment by turning the cover (A-9) to the left (◀ OPEN), using the palm of your hand. Take off the cover.
2 Insert four 1.5V AA batteries, noting the + and - configuration inside the battery compartment (batteries are not supplied; we recommend Philips Alkaline batteries).
3 Put the battery compartment cover (A-9) back in place. Close the compartment by turning the cover (A-9) to the right (CLOSE▶), using the palm of your hand.
→ The baby unit is now ready for battery operated use!

Parent unit

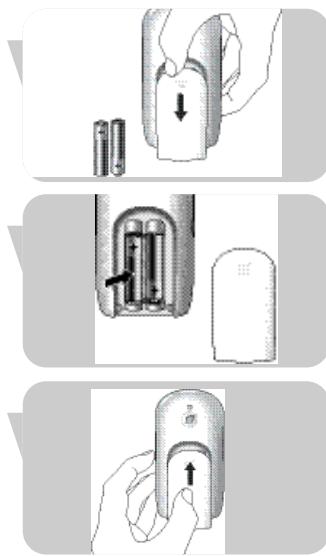

I Open the battery compartment by sliding the cover (B-11) downwards.
2 Insert the two 1.2V AAA size Ni-MH rechargeable batteries (supplied), noting the + and - configuration inside the battery compartment.
3 Put the battery compartment cover (B-11) back in place. Close the compartment by sliding the cover (B-11) upward until it clicks in position.

Three-step illustration showing a hand holding a small object, a close-up of a device inside a container, and a hand holding a partially open object (no text or symbols)

Illustration of a portable electronic device with a power outlet connected to its base (no text or symbols visible)

4 Connect the AC power adapter (B-13) of the charging base (B-14) to a wall outlet.
5 Place the parent unit in the charging base (B-14).

The POWER light (B-15) lights up red.

6 Leave the parent unit in the charging base until the batteries are fully charged (at least 16 hours).

The POWER light (B-15) will stay red, even when batteries are fully charged.
When the batteries are fully charged, the parent unit can be taken out of the charging base and used cordlessly for at least 8 hours.

Notes:

• Operation time will be 8 hours based on the assumption that the baby unit will be transmitting 25% of the time and is in standby mode for the rest of the time (baby does not any make sound).
• When the parent unit batteries are charged for the first time, operating time will be less than 8 hours. The batteries will use their maximum capacity after at least four times charging and discharging.
• Charging will take longer than 16 hours when the parent unit is switched on during charging. To shorten the charging time, the parent unit should be switched off.

→ The parent unit is now ready for use!

General notes:

• When the units are switched off, in case of battery operated use, the batteries still discharge slowly.
• When the batteries are almost empty, the battery check light of the parent unit (B-6) starts blinking red; the battery check light of the baby unit (A-8) lights up red continuously.

Place the parent unit in the charging base (B-14) to recharge the batteries and/or replace the batteries in the baby unit.

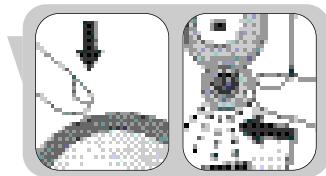

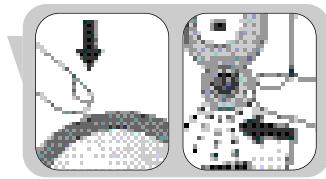

Place both units in the same room to test the connection. Make sure the baby unit is at least 1 meter / 3 feet away from the parent unit.

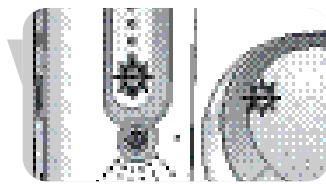

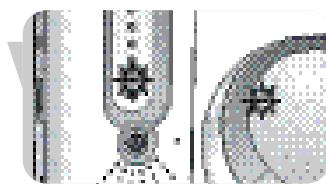

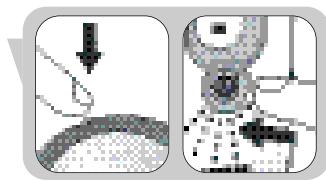

2 Press and hold the On/Off (⏻) button (A-I) on the baby unit for 2 seconds.

The night light (A-3) lights up briefly.
The LINK light (A-2) lights up red briefly then starts blinking green as it seeks connection with the parent unit.

3 Press and hold the On/Off button (☐) (B-5) on the parent unit for 2 seconds.

The sound level lights (B-8) light up orange briefly.
The battery check light (☐ - B-6) lights up red briefly.
The LINK light (B-7) lights up red briefly then starts blinking green as it seeks connection with the baby unit.

The LINK lights (A-2, B-7) on both units blink green until connection has been established. This will take up to approximately 30 seconds. Both LINK lights (A-2, B-7) will then light green continuously.

If, after 30 seconds, no link is established both LINK lights (A-2, B-7) will light up red and the parent unit will emit a beep from time to time.

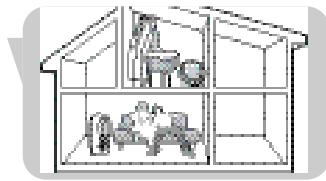

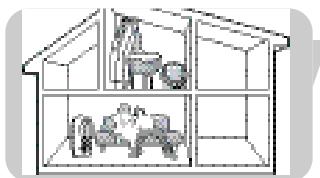

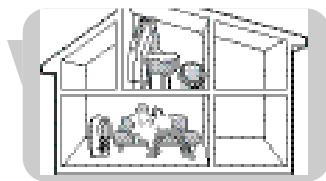

4 Position the baby unit at least 1 meter / 3 feet away from your baby.

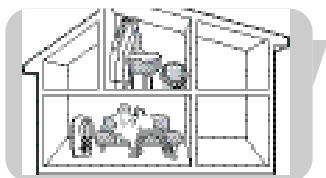

5 Position the parent unit at the desired place within the operating range of the baby unit but at least 1 meter / 3 feet away from the baby unit. For more information on the operating range see ‘Technical specifications’.

→You can now monitor your baby!

Abstract diagram showing a curved line and a downward arrow above a shaded circular area (no text or symbols)

Pixelated illustration of a robot-like figure with limbs and torso, no visible text or symbols

Illustration of a glass tube and a spherical object with star patterns (no text or symbols)

Architectural cross-section diagram of a two-story building with internal furniture and structural elements (no text or labels)

Diagram showing a curved structure with a black arrow pointing downward, no visible text or symbols

Diagram showing a hand inserting a component into a vertical panel, with no visible text or symbols.

Adjusting loudspeaker volume

• Briefly press the volume + and – buttons (A-4) on the baby unit repeatedly until the desired loudspeaker volume for the baby unit has been reached.
• Briefly press the volume + and – buttons (B-9) on the parent unit repeatedly until the desired loudspeaker volume for the parent unit has been reached.

Notes:

• If you press the Volume + and - buttons (A-4, B-9) too long, the volume will not be adjusted.
• If the volume is set to a high level, the units consume more power.

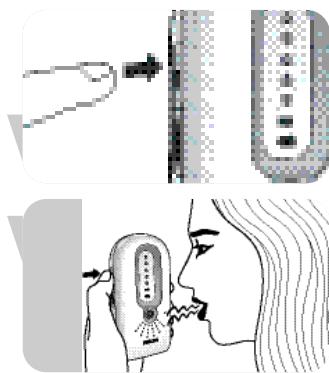

Talking to your baby

While using the TALK button (B-I) on the parent unit you can talk to your baby (e.g to comfort your baby).

Diagram showing a tool interacting with a vertical panel and a U-shaped container (no text or symbols)

Illustration of a person using a thermometer to address teeth (no text or symbols present)

• Press and hold the TALK button (B-1) and talk clearly into the microphone (B-4).
• Release TALK button (B-I) when finished talking.

Note: When the TALK button (B-1) is pressed, you can no longer hear your baby.

Illustration of a hand holding a tool next to a vertical panel and a close-up of a device (no text or symbols visible)

Adjusting microphone sensitivity

You can set the sound sensitivity of the baby unit, to the desired level. When set to the maximum sensitivity level all sounds (including your baby's breathing, when loud enough) can be heard on the parent unit. You can only change the microphone sensitivity if the connection between the baby unit and the parent unit is established (when LINK lights (A-2, B-7) light continuously green).

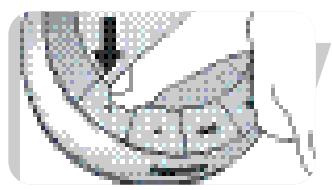

Briefly press the SENSITIVITY button (B-2) on the parent unit.

The sound-level lights (B-8) give visual feedback on the current sensitivity level for approximately 2 seconds.

2 Briefly press the Volume + and – buttons (B-9) on the parent unit repeatedly until the desired microphone sensitivity for the baby unit has been reached.

Note: If you press the SENSITIVITY button (B-2) and/or the Volume + and – buttons (B-9) too long, the microphone sensitivity will not be adjusted.

The sound-level lights (B-8) give visual feedback on the new setting for approximately 2 seconds:

• I light (I x orange) = minimum level / lowest sensitivity;
• all lights (5 x orange) = maximum level (continuous transmission) / highest sensitivity.

Note: When the sensitivity level of the baby unit is set to a high level, the unit will consume more power because it is in continuous transmission mode.

Monitoring baby silently

- Briefly press the Volume – button (B-9) on the parent unit repeatedly until the volume is switched off completely.

All sound-level lights (B-8) will now be off.

When no sound is detected all sound-level lights (B-8) will be off.

When a sound is detected the sound-level lights (B-8) light up orange.

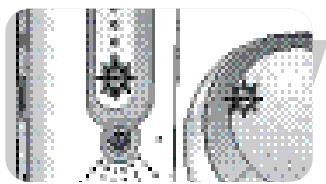

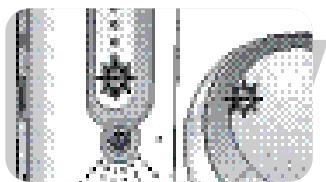

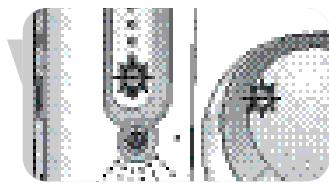

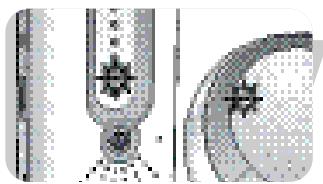

Switching night light on/off

Briefly press the night light button (☐) (A-7) on the baby unit to switch on the night light (A-3).

2 Briefly press the night light button (☐) (A-7) again to switch off the night light (A-3).

The night light dims and gradually switches off.

- Switch off the night light when operating the baby unit with batteries. This saves power!

Diagram showing a device with a button and a hand inserting a component (no text or symbols present)

Architectural elevation diagram showing arched structure with a central vertical column (no text or symbols)

Diagram showing a hand inserting a component into a cylindrical device (no text or symbols present)

Architectural structure diagram showing a curved arch and vertical column (no text or symbols)

Architectural elevation diagram showing arched structure with a vertical column (no text or symbols)

Pixelated illustration of a smiling face with a small object attached (no text or symbols)

Note: If you press the night light button (☐) (A-7) too long, the night light (A-3) will not switch on/off.

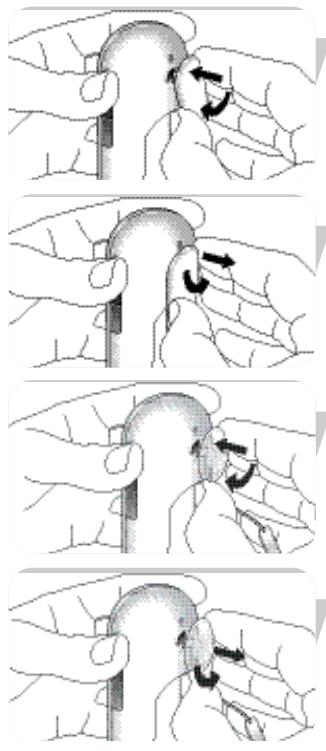

Connecting / disconnecting belt clip and neck strap

If the parent unit is operated using batteries, you can carry it in and around your house, allowing you freedom of movement while still monitoring your baby.

Connect

- Insert the little spindle on the rear of the belt clip into the recess (B-10) on the rear of the parent unit. Turn the belt clip to the left until it clicks in position.

Disconnect

- Turn the belt clip to the right (TURN▶) and take it off.

Connecting the neck strap

- Insert the little spindle at the end of the neck strap into the recess (B-10) on the rear of the parent unit. Turn the spindle to the left until it clicks in position.

Disconnecting the neck strap

- Turn the spindle to the right (TURN▶) and take it off.

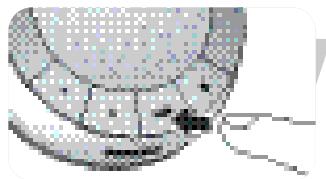

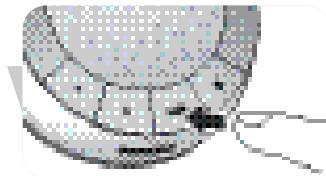

Paging parent unit

When the parent unit is misplaced and the volume is switched off, you can use the PAGE button (A-6) on the baby unit to locate the parent unit.

Pixelated illustration of a cartoon character's face with no visible text or symbols

I Briefly press the PAGE button (A-6) on the baby unit.

A paging alert will sound on the parent unit.
2 To stop the paging alert, briefly press the page button (A-6) again or any button on the parent unit.

Note: If you press the PAGE button (A-6) too long, the paging alert will not sound.

Problem	Possible cause	Solution
LINK light (A-2, B-7) does not light at all.	Parent unit:Power adapter (B-13) not plugged in.	Connect power adapter (B-13) to parent unit.Connect power adapter (B-13) to wall outlet.
	Unit not turned on.	Press and hold On/Off button (➊)(B-5) for two seconds.
	Batteries are low.	Recharge batteries (B-11).
	Batteries are empty.	Replace batteries (B-11).
	Baby unit:Power adapter (A-11) not plugged in.	Connect power adapter (A-11) to baby unit.Connect power adapter (A-11) to wall outlet.
	Batteries incorrectly inserted.	Insert batteries correctly.
	Unit not turned on.	Press and hold On/Off button (➊)(A-1) for two seconds.
	Batteries are low.	Replace batteries (A-9).
LINK light (A2, B-7) flashing red/alarm beeping on parent unit.	Units out of range.	Decrease distance between units (see ‘Technical specifications).
	Baby unit batteries are low.	Replace batteries (A-9.).
	Parent unit batteries are low.	Recharge batteries (B-11).
	Parent unit batteries are empty.	Replace batteries (B-11).
	Units cannot establish connection, even when close to each other.	Try solving the problem by using the factory initialization mode.See chapter ‘Factory initialization mode’.
	No power on one of the units.	Press On/Off button (A-1, B-5) for two seconds.

Troubleshooting

Problem	Possible cause	Solution
High pitched noise.	Units are too close to each other.	Move parent unit away from baby unit (at least 1 meter / 3 feet).
	Volume on parent unit set too high.	Decrease volume (B-9) on parent unit.
No sound/baby's crying cannot be heard.	Volume on parent unit is set too low or switched off.	Increase volume on parent unit (B-9).
	Microphone sensitivity level set too low on parent unit.	Adjust microphone sensitivity level (B-2) on parent unit. to a higher level.
	Units are out of range	Move parent unit closer to baby unit.
Parent unit reacts too fast to other ambient sounds.	Ambient sounds trigger transmission.	Move baby unit closer to baby (keep minimal distance of 1 meter / 3 feet).
	Microphone sensitivity set too high.	Decrease microphone sensitivity level (B-2) on parent unit.
Parent unit reacts slowly/late to baby's crying.	Microphone sensitivity is set too low.	Increase microphone sensitivity level (B-2) on parent unit and/or move baby unit closer to baby (keep minimal distance of 1 meter / 3 feet).
Battery check light (☐) is lit.	Batteries are low or almost empty.	Replace batteries (A-9, B-11).
Baby unit battery power diminishes rapidly.	Microphone sensitivity is set too high. Unit consumes more power.	Set microphone sensitivity to a lower level (B-2).
	Volume setting too high.	Set volume to a lower level (A-4).
Charging time of parent unit batteries exceeds 16 hours.	Parent unit switched on during charging.	Switch off parent unit (B-5).

Question

The technical specifications show an operating range of 300 meters / 900 feet outdoors. How come my baby monitor manages much less than that?

The link is lost every now and then, sound interruptions etc.

What happens during a mains failure?

Is my DECT baby monitor secure from eavesdropping and interference?

Some buttons do not seem to work when I press them. What do I do wrong?

Operating time of the parent unit batteries is supposed to be at least 8 hours. How come the battery operating time of my parent unit is less?

Answer

The specified range is only valid outdoors in open air. Inside your house the workable range is limited by the amount and type of walls and/or ceilings in between. Inside the house the operating range will be up to 50 meters / 150 feet.

You are probably approaching the outer limits of the practical range. Try a different location or decrease the distance slightly. Please note that it takes about 30 seconds each time before a new link between the units is established.

When batteries are installed in the both units, the units will automatically switch over to battery use in case of mains failure.

The 120 channels guarantee no interference from other equipment.

Except for the On/Off buttons and TALK button (A-1, B-5), only press the buttons briefly.

When the parent unit batteries are charged for the first time, operating time will be less than 8 hours. The batteries will use their maximum capacity after at least four times charging and discharging.

Maybe the volume setting is too high. When the volume is set to a high level, the unit consumes more power. Set the volume to a lower level (B-9).

Maybe the microphone sensitivity setting is too high. When the sensitivity is set to a high level, the units consume more power. Set the sensitivity to a lower level (B-2).

	Technical specifications
Power supply	- 1 x AC power adapter DC 9V / 300mA for baby unit (supplied). - 1 x charging base DC 9V / 300mA for parent unit (supplied). - 4 x AA 1.5V Alkaline batteries for baby unit (not supplied). - 2 x AAA 1.2V Ni-MH rechargeable batteries for parent unit (supplied).
Operating range	Up to 300 meters / 900 feet in ideal condition. Walls, doors, etc will affect range. Indoors the range is up to 50 meters / 150 feet.

Dry materials	Material thickness	Loss of range
Wood, plaster, plaster cardboard, glass (without metal or wires, no lead)	< 30cm / 12"	0 - 10%
Brick, plywood	< 30cm / 12"	5 - 35%
Reinforced concrete	< 30cm / 12"	30 - 100%
Metal grids, bars	< 1cm / 0.4"	90 - 100%
Metal, Aluminium sheets	< 1cm / 0.4"	100%

Operating temperature

$$ + 0 ^ {\circ} \mathrm{C} - + 4 0 ^ {\circ} \mathrm{C} $$

Standard

Digital Enhanced Cordless Telecommunication (DECT) The DECT standard makes use of advanced digital radio techniques to achieve efficient use of the radio spectrum. It delivers high speech quality and security and low power technology. It makes it possible to hear your baby at a range of up to 300 meters / 900 feet in open air.

Maintenance

• Clean the baby monitor with a damp cloth.
• Dispose of used batteries in an environmentally friendly manner.
• When batteries are inserted in case of mains operated use, check the batteries every six months on possible leakage.
• If the batteries are left in the unit when it is powered from the mains, check them for leakage every six months.

Environmental information

Disposal of your old product

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC.

Please inform yourself about the local separate collection system for electrical and electronic products.

Please act according to your local rules and do not dispose of your old products with your normal household waste. The correct disposal of your old product will help prevent potential negative consequences for the environment and human health.

Factory initialization mode

In this mode both units can be reset to the default factory settings. Factory initialization can be used if problems occur which can not be solved by following the suggestions in the chapter ‘Troubleshooting’. Resetting must be done separately for each unit.

I Press and hold the On/Off (⏻) button (A-1, B-5) for 2 seconds to switch on the units.

2 When the LINK lights (A-2, B-7) on the units light up, immediately press and hold the volume – button (A-4, B-9) for 1 second.

The units have now been reset to the default factory settings.

Default factory settings

Parent unit

– Loudspeaker volume: I
– Microphone sensitivity: 3

Baby unit

– Loudspeaker volume: 3
- Night light: off

Two-panel illustration showing a pixelated abstract shape with arrows, no text or symbols present.

Two-panel image showing a pixelated abstract shape with arrows, next to a vertical line and a separate arrow labeled 'e' (no text or symbols in the main visual content)

Guarantee & service

If you need information or if you have a problem, please visit the Philips website at www.philips.com or contact the Philips Customer Care Centre in your country (you will find its phone number in the worldwide guarantee leaflet). If there is no Customer Care Centre in your country, turn to your local Philips dealer or contact the Service Department of Philips Domestic Appliances and Personal Care BV.

Illustration of a hand holding a device with a bulb, connected to a wall socket (no text or symbols visible)

Illustration of a hand holding an insect, showing segmented body structure (no text or symbols)

Illustration of a closed notebook with a clock face showing three blades (no text or symbols)

Illustration of hands holding a small object with an arrow indicating rotation (no text or symbols)

Illustration of a battery being inserted into a cylindrical component with a downward arrow indicating insertion (no text or symbols present)

Diagram of a battery internal structure with two components, one open and one closed, showing internal wiring (no text or symbols)

Illustration of a hand holding a mobile phone with an upward arrow (no text or symbols)

Illustration of a handheld electronic device with power outlet and cable (no text or symbols)

Remarques:

Diagram showing a hand pressing down on a curved surface with a downward arrow (no text or symbols)

Pixelated illustration of a robot-like figure with a small human head and abstract body, no visible text or symbols

Illustration of a glass with decorative elements and a close-up of a bottle (no text or symbols)

Architectural cross-section diagram of a two-story building showing internal furniture and structural elements (no text or labels)

Diagram showing a tool interacting with a cylindrical device and a vertical panel (no text or symbols)

Illustration of a person using a thermometer to address teeth (no text or symbols present)

Two-panel image showing a rocket launch and a mechanical component with a hammer (no visible text or symbols)

Diagram showing a hand inserting a component into a device panel (no text or symbols visible)

Abstract geometric pattern with curved arches and a central dot (no text or symbols)

Diagram showing a hand inserting a small object into a vertical panel, with no visible text or symbols.

Abstract geometric pattern with curved arch and vertical lines (no text or symbols)

Pixelated grayscale illustration of an arched structure with a vertical column (no text or symbols)

Pixelated illustration of a cartoon character's face with a small object on the head (no text or symbols)

Activation/désactivation de la veilleuse

Pixelated illustration of a globe with continents and landmasses, no text or symbols present

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Pixelated illustration of a hand pouring liquid into a bowl (no text or symbols)

Pixelated illustration of a robot head and torso (no text or symbols)

Pixelated grayscale image of a curved object with a black arrow pointing downward (no text or symbols)

Simple diagram showing a vertical line with a left-pointing arrow and a curved line inside, no text or symbols present.

Philips Baby Care, taking care together

Illustration of a hand holding a device connected to a spherical object with arrows indicating motion (no text or symbols)

Three-step illustration showing a hand holding a small object, a close-up of a container with internal components, and a hand holding a bowl (no text or symbols)

Illustration of a handheld electronic device connected to a power outlet (no text or symbols visible)

Abstract diagram showing a curved line and a shaded circular region with a downward arrow (no text or symbols)

Pixelated illustration of a robot-like figure with a head and limbs, no visible text or symbols

Illustration of a glass with star-shaped patterns and a close-up of a bottle (no text or symbols)

Cross-sectional diagram of a two-story building with internal furniture and equipment (no text or symbols)

Diagram showing a curved structure with a black arrow pointing downward, no visible text or symbols

Diagram showing a hand inserting a component into a vertical panel, with no visible text or symbols.

Diagram showing a tool interacting with a vertical panel and a cylindrical device (no text or symbols present)

Side profile illustration of a person using an inhaler (no text or symbols present)

Illustration of a hand holding a tool next to a vertical panel and a close-up of a device (no text or symbols visible)

Diagram showing a device with a grid and a hand inserting a plug into a wall (no text or symbols)

Architectural elevation diagram showing arched structure with a central vertical column (no text or symbols)

Diagram showing a hand inserting a component into a cylindrical device (no text or symbols present)

Architectural structure diagram showing a curved arch and vertical column (no text or symbols)

Abstract geometric pattern with curved arches and a vertical dot (no text or symbols)

Pixelated illustration of a cartoon character's face with a small object attached (no text or symbols)

Pixelated grayscale illustration of a stylized globe or spacecraft with no visible text or symbols

Digital Enhanced Cordless Telecommunication (DECT)

Two pixelated diagrams showing a mouse and its head, with no visible text or symbols.

Two-panel image showing a pixelated abstract shape with arrows, no visible text or symbols

Philips Baby Care, taking care together

Illustration of a hand holding a device with a bulb, connected to a wall socket (no text or symbols visible)

Batteriebetrieb

Illustration of a hand holding an insect, showing anatomical details without any text or symbols

Close-up of a metallic object with a circular frame and internal striped pattern (no visible text or symbols)

Illustration of hands holding a small object with an arrow indicating rotation (no text or symbols)

Illustration of a battery being inserted into a cylindrical component with a downward arrow indicating insertion (no text or symbols present)

Elterneinheit

Diagram of a battery internal structure with two components, one open and one closed, showing internal wiring (no text or symbols)

Illustration of a hand holding a mobile phone with an upward arrow (no text or symbols)

Illustration of a handheld electronic device with a power outlet connected to its side (no text or symbols visible)

Hinweise:

Diagram showing a hand pressing down on a curved surface with a downward arrow (no text or symbols)

Pixelated illustration of a mechanical device with no visible text or symbols

Illustration of a glass with star-shaped patterns and a small object, alongside a close-up of a textured surface (no text or symbols)

Architectural cross-section diagram of a two-story building showing internal components (no text or labels)

Illustration showing a hand pressing down on a curved object with a control panel, no text or symbols present

Two pixelated diagrams showing a hand holding a tool and a vertical panel with a handle, both without any text or symbols.

Diagram showing a hand inserting a component into a device panel (no text or symbols visible)

Abstract geometric pattern with curved arches and dot textures (no text or symbols)

Diagram showing a hand inserting a plug into a vertical panel (no text or symbols present)

Abstract geometric pattern with curved arch and vertical lines (no text or symbols)

Pixelated grayscale illustration of an arch structure with no visible text or symbols

Pixelated illustration of a cartoon character's face with a small object on the head (no text or symbols)

Pixelated 3D rendering of a bowl with internal compartments and a hand pointing to the side (no text or symbols)

Pixelated illustration of a hand pouring liquid into a bowl (no text or symbols)

Pixelated illustration of a robot head and torso (no text or symbols)

Close-up of a mechanical component with a black arrow pointing downward (no visible text or symbols)

Simple diagram showing a vertical line with a left-pointing arrow and a curved line (no text or symbols)

B. Ouder-unit (ontvanger)

64 Ouder-unit (ontvanger)

67 Ouder-unit (ontvanger)

Philips Baby Care, taking care together

Illustration of a hand holding a device connected to a spherical object with arrows indicating motion (no text or symbols)

Ouder-unit (ontvanger)

Three-step illustration showing a hand holding a small object, a close-up of a container with internal components, and a hand holding a bowl (no text or symbols)

Illustration of a handheld electronic device connected to a power outlet (no text or symbols visible)

Architectural cross-section diagram of a two-story building with internal furniture (no text or labels)

Diagram showing a curved structure with a black arrow pointing downward, no visible text or symbols

Diagram showing a hand inserting a component into a vertical panel, with no visible text or symbols.

Diagram showing a tool interacting with a vertical panel and a U-shaped container (no text or symbols)

Side profile illustration of a person using a handheld device to address teeth (no text or symbols present)

Diagram showing a hand holding a tool next to a vertical panel and a mechanical component with a base (no text or symbols)

Diagram showing a device with a button and a hand inserting a component (no text or symbols present)

Architectural elevation diagram showing arched structure with a central vertical column (no text or symbols)

Diagram showing a device with a vertical panel and a hand holding a small object (no text or symbols present)

Architectural structure diagram showing arched roof and vertical column (no text or symbols)

Abstract geometric pattern with curved arches and vertical lines (no text or symbols)

Pixelated illustration of a smiling face with a small object attached (no text or symbols)

Diagram of a globe with marked points and a small inset map, no readable text or symbols present

Ouder-unit (ontvanger)

Two-panel illustration showing a pixelated robot head and its motion trajectory, with no visible text or symbols.

Two-panel image showing a pixelated abstract shape with arrows, no visible text or symbols

Garantie en service

Philips Baby Care, taking care together

Illustration of a hand holding a device with a bulb, connected to a wall socket (no text or symbols visible)

Illustration of a hand holding an insect, showing segmented body structure (no text or symbols)

Illustration of a closed notebook with a clock face showing three blades (no text or symbols)

Illustration of hands holding a small object with a curved arrow indicating rotation (no text or symbols)

Illustration of a battery being inserted into a cylindrical component with a downward arrow indicating insertion (no text or symbols present)

Unità del genitore

Diagram of a battery with internal components and an external casing (no text or symbols)

Hand holding a mobile phone with an upward arrow on the screen (no text or symbols visible)

Illustration of a handheld electronic device with a power outlet connected to its side (no text or symbols visible)

Note:

Diagram showing a curved line intersecting a shaded dome-shaped object with a downward arrow (no text or symbols)

Pixelated illustration of a mechanical device with no visible text or symbols

Illustration of a glass with star-shaped patterns and a small object, alongside a close-up of a textured surface (no text or symbols)

Architectural cross-section diagram of a two-story building showing internal components (no text or labels)

Abstract diagram with curved shapes and a black arrow, no visible text or symbols

Diagram showing a device with a black arrow pointing to a vertical panel, no text or symbols present

Diagram showing a tool interacting with a vertical panel and a cylindrical container (no text or symbols)

Illustration of a person using a thermometer to address nasal and oral pressure point (no text or symbols present)

Two-panel image showing a rocket launch and a mechanical component with a hammer and base (no visible text or symbols)

Diagram showing a hand inserting a component into a device panel (no text or symbols visible)

Abstract geometric pattern with curved arches and dot textures (no text or symbols)

Diagram showing a hand inserting a plug into a vertical component (no text or symbols present)

Architectural elevation diagram showing a vertical structure with circular elements (no text or labels)

Pixelated architectural arch structure with no visible text or symbols

Pixelated illustration of a cartoon character's face with a small object on the head (no text or symbols)

Pixelated grayscale illustration of a globe with continents and landmasses, no visible text or symbols

Digital Enhanced Cordless Telecommunication (DECT)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Pixelated illustration of a hand pouring liquid into a bowl (no text or symbols)

Pixelated illustration of a person wearing a helmet and glasses (no text or symbols visible)

Close-up of a textured surface with indistinct shapes and no visible text or symbols

Simple diagram showing a vertical line with a left-pointing arrow and a curved line (no text or symbols)

Philips Baby Care, taking care together

Illustration of a hand holding a device connected to a spherical object with arrows indicating motion (no text or symbols)

Three-step illustration showing hand positioning of a shell, with close-up of internal components (no text or symbols)

Illustration of a handheld electronic device connected to a power outlet (no text or symbols visible)

Abstract diagram showing a curved line and a downward arrow above a shaded circular area (no text or symbols)

Pixelated illustration of a robot-like figure with a small human head and limbs, no visible text or symbols

Illustration of a glass tube and a bulb with star-shaped patterns (no text or symbols)

Architectural cross-section diagram of a two-story building with internal furniture (no text or labels)

Diagram showing a curved structure with a black arrow pointing downward, no visible text or symbols

Diagram showing a hand inserting a component into a vertical panel with a grid of pins (no text or symbols present)

Diagram showing a wire being inserted into a cylindrical device with a separate view (no text or symbols)

Side profile illustration of a person using a thermometer to address teeth (no text or symbols present)

Falar com o bebé

Illustration of a hand holding a tool next to a vertical panel and a close-up of a device (no text or symbols visible)

Diagram showing a device with a grid and a hand inserting a plug into a wall (no text or symbols)

Architectural elevation diagram showing arched structure with a central column (no text or symbols)

Diagram showing a device with a black arrow pointing to a vertical line, no text or symbols present

Pure architectural arch structure without any text, numbers, or symbols

Abstract geometric pattern with curved arches and vertical lines (no text or symbols)

Pixelated illustration of a cartoon character's face with a small object attached (no text or symbols)

Pixelated globe with continents and a small airplane icon, no visible text or symbols

Two-panel illustration showing a pixelated abstract shape with arrows, no text or symbols present.

Two-panel image showing a pixelated abstract shape with arrows, next to a vertical line and a separate arrow labeled 'e' (no text or symbols in the main visual content)

Illustration of a hand holding a device with a bulb, connected to a wall socket (no text or symbols visible)

Illustration of a hand holding a small object, possibly a tool or device, with no visible text or symbols.

Χρήση με μπαταρίες

Illustration of a clock with an hour and minute hands, showing no text or symbols

Illustration of hands holding a small object with a curved arrow indicating rotation (no text or symbols)

Illustration of a hand holding a battery with a downward arrow indicating compression or disassembly (no text or symbols present)

Μονάδα γονέα

Diagram of a battery cell with internal components and a separate storage unit (no text or symbols)

Illustration of a hand holding a mobile phone with an upward arrow (no text or symbols)

Illustration of a handheld electronic device with a power outlet connected to its side (no text or symbols visible)

Σημειώσεις:

Diagram showing a hand pressing down on a curved surface with a downward arrow (no text or symbols)

Pixelated grayscale illustration of a mechanical device with no visible text or symbols

Illustration of a toothpaste tube and its corresponding toothpaste bulb (no text or symbols)

Architectural cross-section diagram of a two-story building showing internal components (no text or labels)

Illustration of a curved mechanical component with a downward arrow indicating force or direction (no text or symbols)

Diagram showing a device with a black arrow pointing to a vertical panel, no text or symbols present

Diagram showing a tool interacting with a device, alongside a close-up of its internal components (no text or symbols visible)

Illustration of a person using a thermometer to address teeth (no text or symbols present)

Two-panel image showing a rocket launch and a mechanical component with a hammer and base (no visible text or symbols)

Diagram showing a hand inserting a component into a device panel (no text or symbols visible)

Abstract pixelated arch structure with no visible text or symbols

Diagram showing a hand inserting a plug into a vertical component (no text or symbols present)

Pixelated illustration of a globe with continents and landmasses, no text or symbols present

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Close-up of a hand holding a tool with a downward arrow, partially covered by a textured surface (no text or symbols visible)

Pixelated illustration of a robot head and torso (no text or symbols)

Pixelated abstract graphic with no discernible text or symbols

Simple diagram showing a vertical bar with an arrow pointing to a circular shape (no text or symbols)

Philips Baby Care, taking care together

Säkerhetsinformation

Illustration of hands using a tool to connect a device to a helmet (no text or symbols visible)

Illustration of a hand holding an insect, showing internal anatomy with arrows indicating movement (no text or symbols)

Illustration of a closed circular object with internal layered structure, possibly a device or container (no text or symbols visible)

Illustration of a hand holding a small object with a curved arrow indicating rotation (no text or symbols)

Föräldraenhet

Illustration of a hand holding a battery with a downward arrow indicating compression or disassembly (no text or symbols present)

Cross-sectional diagram of a battery cell with internal components and an external housing (no text or symbols)

Illustration of a hand holding a mobile phone with an upward arrow on the screen (no text or symbols)

Illustration of a dental stand with a power outlet connected to a wall-mounted device (no text or symbols visible)

Abstract diagram showing a curved line and a downward arrow emerging from a textured circular shape (no text or symbols)

Pixelated illustration of a robot-like figure with a head and limbs, no visible text or symbols

Illustration of a glass with star-shaped patterns and a close-up of a bottle (no text or symbols)

Architectural cross-section diagram of a two-story building showing internal furniture and structural elements (no text or labels)

Diagram showing a curved structure with a black arrow pointing downward, no visible text or symbols

Diagram showing a hand inserting a component into a vertical panel with a grid of buttons (no text or symbols)

Diagram showing a cable being inserted into a cylindrical device, with no visible text or symbols

Side profile illustration of a person using a handheld device to address teeth (no text or symbols present)

Illustration of a hand holding a tool next to a vertical panel and a close-up of a device (no text or symbols visible)

Diagram showing a device with a grid and a hand inserting a plug into a wall (no text or symbols)

Architectural elevation diagram showing arched structure with a central vertical column (no text or symbols)

Diagram showing a hand inserting a component into a cylindrical device (no text or symbols present)

Architectural structure diagram showing a curved arch and vertical column (no text or symbols)

Architectural elevation diagram showing arched structure with a vertical column (no text or symbols)

Pixelated illustration of a smiling face with a small object attached (no text or symbols)

Illustration of a hand holding a small object with an arrow indicating rotation (no text or symbols)

Illustration of hands performing a curved mechanical or tool operation with directional arrows (no text or symbols)

Ta bort

Illustration of hands performing a medical procedure on a curved object, showing motion arrows (no text or symbols)

Illustration of hands performing a manual task on a curved object, no text or symbols visible

Ta bort halsremmen

Close-up of a textured spherical object with internal geometric patterns and no visible text or symbols

Two-panel illustration showing a pixelated object interacting with a textured surface, one pointing downward (no text or symbols)

Two-panel image showing a pixelated abstract shape with arrow and arrowhead, no readable text or symbols present.

Garanti och service

Philips Baby Care, taking care together

Illustration of a hand holding a device with a bulb, connected to an electrical outlet (no text or symbols visible)

Brug med batterier

Illustration of a hand holding an insect, showing anatomical details (no text or labels)

Close-up of a metallic object with a circular frame and internal striped pattern (no visible text or symbols)

Illustration of hands holding a small object with an arrow indicating rotation (no text or symbols)

Illustration of a battery being inserted into a cylindrical component with a downward arrow indicating insertion (no text or symbols present)

Diagram of a battery internal structure with two components, one open and one closed, showing internal battery cells (no text or symbols)

Illustration of a hand holding a mobile phone with an upward arrow (no text or symbols)

Illustration of a handheld electronic device with a power outlet and cable (no text or symbols visible)

Bemærkninger:

Diagram showing a curved line intersecting a shaded dome-shaped object with an arrow pointing downward (no text or symbols)

Pixelated illustration of a mechanical device with no visible text or symbols

Illustration of a glass with decorative patterns and a close-up of a rose, no text or symbols present.

Architectural cross-section diagram of a two-story building showing internal components and structural elements (no text or labels)

Abstract diagram with curved shapes and a black arrow, no visible text or symbols

Diagram showing a hand inserting a component into a device (no text or symbols present)

Diagram showing a tool interacting with a vertical panel and a cylindrical container (no text or symbols)

Illustration of a person using a thermometer to address teeth (no text or symbols present)

Diagram showing a spray bottle tip interacting with a vertical barrier and a droplet on the right (no text or symbols)

Diagram showing a hand inserting a component into a device panel (no text or symbols visible)

2 Trykk kort på volumknappene + og – (B-9) på foreldreenheten flere ganger til mikrofonen på babyenheten er passe følsom.

Pixelated grayscale illustration of an arched structure with a central vertical element (no text or symbols)

Diagram showing a hand inserting a plug into a vertical component (no text or symbols visible)

Architectural elevation diagram showing a vertical structure with circular elements (no text or labels)

Pixelated grayscale illustration of an arched structure with no visible text or symbols

Pixelated illustration of a helmet with a small object attached (no text or symbols)

Pixelated grayscale illustration of a helmet with no visible text or symbols

Digital Enhanced Cordless Telecommunication (DECT)

Close-up of a hand holding a tool with a downward arrow, partially covered by a textured surface (no text or symbols visible)

Pixelated illustration of a person wearing a helmet and glasses (no text or symbols visible)

Pixelated grayscale image of a person's face with abstract shapes and motion lines (no text or symbols)

Simple diagram showing a vertical line with a left-pointing arrow and a curved line (no text or symbols)

Illustration of a hand holding a device connected to a spherical object with arrows indicating motion (no text or symbols)

Bruke nettstrøm

I Kople strømadapterledningen (A-11) til jack for strøm (DC 9V / 300mA - A-10) på babyenheten.
2 Kople AC strømadapter (A-11) til en veggkontak.

Illustration of a hand holding an insect, showing internal anatomy with arrows indicating movement (no text or symbols)

Illustration of a closed circular object with internal layered structure, possibly a device or container (no text or symbols visible)

Illustration of a hand holding a small object with a curved arrow indicating rotation (no text or symbols)

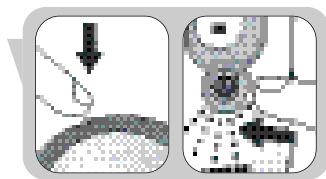

Foreldreenheten

Illustration of a hand holding a battery with a downward arrow indicating compression or disassembly (no text or symbols present)

Cross-sectional diagram of a battery cell with internal components and an external housing (no text or symbols)

Illustration of a hand holding a mobile phone with an upward arrow (no text or symbols)

Illustration of a portable electronic device with a power outlet connected to its base (no text or symbols visible)

4 Kople AC strømadapter (B-14) for ladebasen (B-15) til en veggkontakt.
5 Sett foreldreenheten på ladebasen (B-14). > POWER strømlampen (B-15) lyser rødt.
6 La foreldreenheten stå på ladebasen til batteriene er fullt ladet (minst 16 timer).

Abstract diagram showing a curved line and a downward arrow emerging from a textured circular shape (no text or symbols)

Pixelated illustration of a robot-like figure with a head and limbs, next to a vertical panel (no text or symbols)

Illustration of a glass tube with a star-shaped label and a circular object with stars (no text or symbols)

Cross-sectional diagram of a two-story building with internal furniture and equipment (no text or symbols)

Diagram showing a curved structure with a black arrow pointing downward, no visible text or symbols

Illustration of a hand inserting a cable into a wall, with no visible text or symbols

Diagram showing a tool interacting with a vertical panel and a cylindrical device (no text or symbols present)

Side profile illustration of a person using a thermometer (no text or symbols present)

• Trykk og hold TALK taleknappen (B-1) og snakk klart inn i mikrofonen (B-4).
• Slipp TALK taleknappen (B-I) när du er ferdig med å snakke.

Illustration of a hand holding a tool next to a vertical panel and a close-up of a device (no text or symbols visible)

I Trykk kort på SENSITIVITY følsomhetsknappen (B-2) på foreldreenheten.

Diagram showing a device with a button and a hand inserting a component into a wall (no text or symbols)

Architectural elevation diagram showing arched structure with a central vertical column (no text or symbols)

Diagram showing a bottle and a vertical tube with an arrow pointing to it, no text or symbols present.

Pure architectural arch structure without any text, numbers, or symbols

Abstract geometric pattern with curved arches and vertical lines (no text or symbols)

Pixelated illustration of a smiling face with a small object attached (no text or symbols)

Illustration of hands performing a manual task on a curved object, with an arrow indicating rotation (no text or symbols present)

Illustration of hands performing a curved mechanical or tool operation with directional arrows (no text or symbols)

Illustration of hands performing a manual task with a tool, no text or symbols visible

Illustration of hands performing a manual task on a curved object (no text or symbols visible)

Diagram of a spherical object with internal geometric patterns and no visible text or symbols

Two-panel illustration showing a mechanical or biological process with arrows and pixelated textures (no text or symbols)

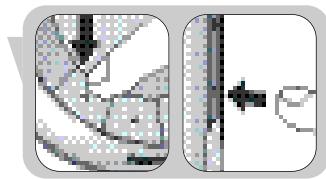

Two-panel image showing a pixelated abstract shape with arrows and a small arrow pointing to a vertical line, no text or symbols present.

Garanti og service

Illustration of a hand holding a device with a bulb, no text or symbols present

Käyttö paristoilla

Illustration of a hand holding an insect, showing anatomical details (no text or labels)

Close-up of a metallic object with a circular frame and internal striped pattern (no visible text or symbols)

Illustration of hands holding a small object with an arrow indicating rotation (no text or symbols)

Illustration of a battery being inserted into a cylindrical component with a downward arrow indicating insertion (no text or symbols present)

Vanhempien yksikkö

Diagram of a battery internal structure with two components, one open and one closed, showing internal wiring (no text or symbols)

Illustration of a hand holding a device with an upward arrow (no text or symbols)

Illustration of a handheld electronic device with a power outlet connected to its side (no text or symbols visible)

Diagram showing a hand pressing down on a curved surface with a downward arrow (no text or symbols)

Pixelated illustration of a mechanical device with no visible text or symbols

Illustration of a toothpaste tube and its decorative mask (no text or symbols)

Architectural cross-section diagram of a two-story building showing internal components and structural elements (no text or labels)

Diagram of a curved pipe with a downward arrow indicating direction (no text or symbols)

Diagram showing a device with a black arrow pointing to a vertical panel, no text or symbols present

Diagram showing a mechanical component with a curved arrow and two vertical views of a cylindrical object (no text or symbols)

Illustration of a person using a thermometer to address teeth (no text or symbols present)

Diagram showing a tool interacting with a vertical panel and a mechanical component (no text or symbols)

Diagram showing a hand inserting a component into a device panel (no text or symbols visible)

Abstract geometric pattern with curved arches and a central dot (no text or symbols)

Close-up of a hand inserting a small black object into a cylindrical component (no text or symbols visible)

Abstract geometric pattern with curved arch and vertical lines (no text or symbols)

Pixelated grayscale architectural arch structure with no visible text or symbols

Pixelated illustration of a stylized face with a small object near the mouth (no text or symbols)

Sequence of five hand-drawn diagrams showing finger manipulation or massage technique (no text or symbols)

Pixelated grayscale illustration of a helmet with no visible text or symbols

Pixelated illustration of a hand pouring liquid into a bowl (no text or symbols)

Pixelated illustration of a robot head and torso (no text or symbols)

Pixelated grayscale image of a person's face and hand, no visible text or symbols

Simple diagram showing a vertical line with a left-pointing arrow and a circular symbol (no text or labels)

Specifications are subject to change without notice.

Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.

2005 © Koninklijke Philips Electronics N.V. All rights reserved.

www.philips.com
