| Brand | Philips |
| Model | SCD589 |
| Category | Baby monitor |
| Transmission technology | DECT |
| Power supply baby unit | Mains adapter 9 V DC / 300 mA or 4 AA 1.5 V batteries (not included) |
| Power supply parent unit | Adapter via charger 9 V DC / 300 mA or 2 rechargeable AAA Ni-MH 1.2 V batteries (included) |
| Maximum outdoor range | Up to 300 meters |
| Typical indoor range | Up to 50 meters (depending on obstacles) |
| Nightlight function | Yes, on/off from baby unit or parent menu |
| Lullaby function | 5 built-in lullabies, play/stop from both units |
| Two-way communication | Yes, via TALK button on parent unit |
| Silent monitoring | Yes, volume mute with visual sound indicators |
| Temperature alarm | Adjustable minimum and maximum thresholds, audible alert |
| Sound level alarm | Beeps if volume is muted and sound is detected |
| Microphone sensitivity | Adjustable (6 levels) via menu |
| Temperature display | °C or °F, HI/LO indicators |
| Battery type baby unit | 4 x AA 1.5 V alkaline (not included) |
| Battery type parent unit | 2 x AAA Ni-MH 1.2 V rechargeable (included) |
| Battery life of parent unit (after charge) | At least 8 hours |
| Charging time of parent unit | At least 16 hours (unit off) |
| Warranty | 2 years |
| Included accessories | Adapters, charger, belt clip, lanyard, carry case, rechargeable batteries |
| Maintenance | Clean with a damp cloth, do not use liquid cleaners |
Frequently Asked Questions - SCD589 PHILIPS
User questions about SCD589 PHILIPS
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Baby monitor in PDF format for free! Find your manual SCD589 - PHILIPS and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. SCD589 by PHILIPS.
USER MANUAL SCD589 PHILIPS
A. Baby unit
Philips is dedicated to producing caring, reliable products to give parents the reassurance they need. You can trust this Philips baby monitor to provide round-the-clock support by ensuring you can always hear your baby clearly without any disturbing noise. Your SCD589 uses DECT technology which guarantees zero interference from other wireless appliances and a clear signal between the parent unit and baby unit.
Philips Baby Care, taking care together
IMPORTANT SAFETY INSTRUCTIONS
This baby monitor is intended as an aid. It is not a substitute for responsible and proper adult supervision and should not be used as such.
Some of the following information may not apply to your particular product; however, when using baby monitor equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following:
Read this user manual carefully before using the product and keep it for future reference.
2 Follow all warnings and instructions marked on the product.
3 Use this product for its intended household use as described in this manual. Do not use attachments not recommended by Philips Electronics North America Corporation.
4 Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
5 Products should not be used while you are in a bathtub, shower or pool. Immersion of the product in water could cause an electrical shock.
6 Slots and openings in the cabinet back or bottom are provided for ventilation, to protect it from overheating. These openings should not be blocked or covered. The openings should never be blocked by placing the product on the bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation unless proper ventilation is provided.
7 This product should be operated only from the type of power source indicated on the type plate of the adapters (A-14, B14). If you are not sure of the type of power supply to your home, consult your dealer or local power company.
8 Do not allow anything to rest on the power cord. Do not locate this product where the cord will be abused by persons walking on it.
9 Do not overload wall outlets and extension cords as this can result in the risk of fire or electric shock.
10 Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a risk of fire or electric shock. Never spill liquid of any kind on the product.
II To reduce the risk of electric shock, do not disassemble this product, but take it to a qualified service personnel when service or repair work is required. Opening or removing covers (except battery compartment covers) may expose you to dangerous voltage or other risks. Incorrect reassembly can cause electric shock when the appliance is subsequently used.
12 Do not expose the product to extreme temperatures such as areas near a hot radiator or stove or in a hot car.
13 Do not place lighted candles, cigarettes, cigars, etc., on the product.
14 Unplug this product from the wall outlet, discontinue use and return the product to the Philips Service Location for examination and repair under the following conditions:
A. When the power supply cord or plug is damaged or frayed.
B. If the product has been exposed to rain or water.
C. If the product does not operate normally by following the operating instructions.
D. If the product's cabinet has been damaged.
E. If the product exhibits a distinct change in performance.
15 Do not place this product on an unstable cart, stand or table. The product may fall, causing serious damage to the product.
16 Make sure the baby unit and adapter cable are always out of reach of the baby (at least 1 meter / 3 feet away).
17 Never place the baby unit inside the baby's bed or playpen.
18 Never cover the baby monitor (with a towel, blanket, etc.).
If your product utilizes batteries, the following additional precautions should be observed:
I Use only the type and size of the battery(ies) specified in the user manual.
2 Do not dispose of the battery(ies) in fire. They may explode. Check with local regulations for possible special disposal instructions.
3 Exercise care in handling battery(ies) in order not to short out the battery(ies) with conducting materials such as rings, bracelets and keys. Overcharging, short circuiting, reverse charging, mutilation, or incineration of the cells and the batteries must be avoided to prevent one or more of the following occurrences: release of toxic materials, release of hydrogen and/or oxygen gas, rise in surface temperature.
4 Do not attempt to recharge the battery(ies) provided with or identified for use with this product that are not intended to be charged. The battery(ies) may leak corrosive electrolyte or explode.
5 Do not attempt to rejuvenate the battery(ies) provided with or identified for use with this product by heating them. Sudden release of the battery(ies) electrolyte may occur causing burns or irritation to eyes or skin.
6 If and when necessary, these cells or batteries must be replaced with identical new ones from the same manufacturer. If a cell or a battery to be replaced is connected with other cells or batteries in series, it is recommended that the other cells or batteries be replaced with new ones at the same time.
7 Reverse polarity installation of the cell or the battery(ies) in the end product must be avoided. Reverse insertion of battery(ies) can cause charging, and that may result in leakage or explosion.
8 Remove battery(ies) from this product if storing over 30 days because the battery(ies) could leak and damage the product.
9 Discard 'dead' battery(ies) as soon as possible since 'dead' batteries are more likely to leak in a product. If a cell or a battery has leaked or vented, it should be replaced immediately using protective gloves.
10 Do not store this product, or the battery(ies) provided with or identified for use with this product, in high-temperature areas. Batteries that are stored in a freezer or refrigerator for the purpose of extending shelf life should be protected from condensation during storage and defrosting. Batteries should be stabilized at room temperature prior to use after cold storage.
If your product use rechargeable battery(ies), charge the battery(ies) only in accordance with the instructions and limitation specified in the user manual.
12 Risk of explosion if batteries are replaced by an incorrect type. For the parent unit, always use rechargeable batteries.
SAVE THESE INSTRUCTIONS
CAUTION: Unplug power cord before replacing batteries.
Use only the adapter supplied with this baby monitor. Incorrect adapter polarity or voltage can seriously damage the baby monitor.
Adapters for baby unit and charger:
Input: 120 VAC 60 Hz
Output: 9 VDC 300 mA
CAUTION: THERE IS A RISK OF EXPLOSION IF THE BATTERIES ARE REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
Use 1.5V AA size alkaline batteries only for baby unit (batteries not supplied).
Use 1.2V AAA size Ni-MH rechargeable batteries only for parent unit (batteries supplied).
Legend of functions

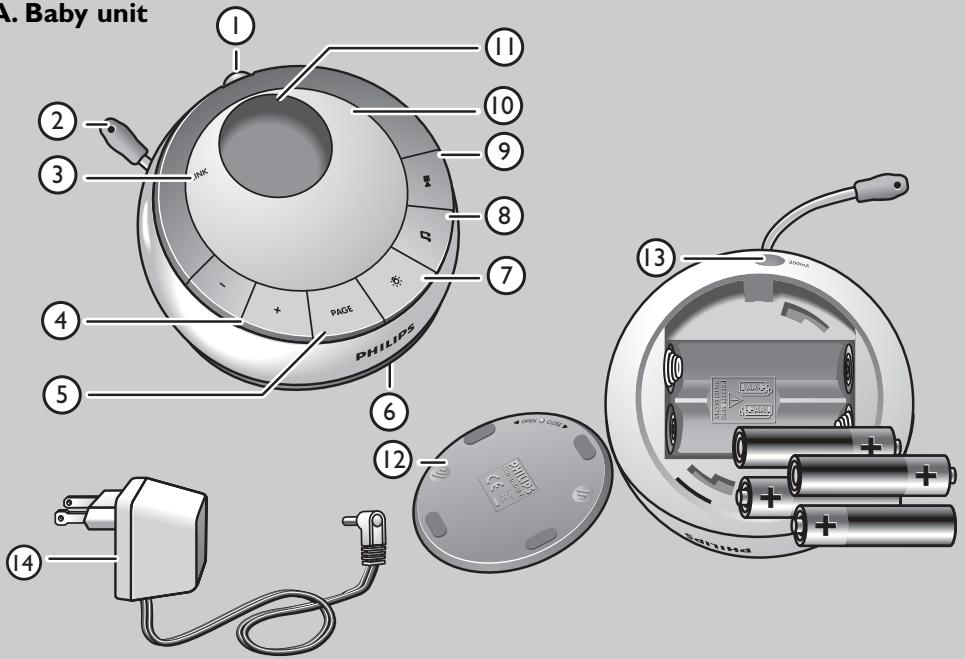

A. Baby unit
A-1 On/Off button (⏻)
A-2 Temperature sensor
A-3 LINK light
A-4 Volume - / + buttons
A-5 PAGE button
A-6 Microphone
A-7 Night light button (☀️)
A-8 Lullaby button (♪)
A-9 Play/stop button (▶■)
A-10 Night light
A-11 Display
A-12 Battery compartment cover
A-13 DC 9V / 300mA power supply jack
A-14 AC power adapter

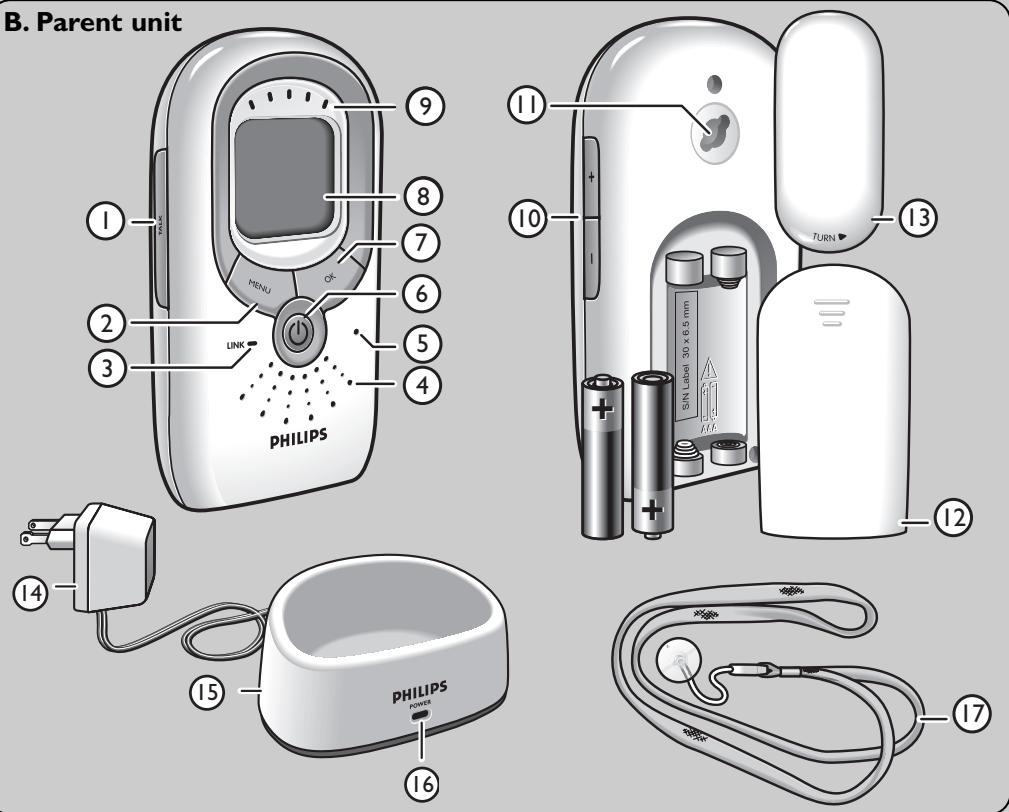

B. Parent unit
B-1 TALK button
B-2 MENU button
B-3 LINK light
B-4 Loudspeaker
B-5 Microphone
B-6 On/Off button (⏻)
B-7 OK button
B-8 Display
B-9 Sound level lights
B-10 Volume - / + buttons
B-11 Recess for the belt clip or neck strap
B-12 Battery compartment cover
B-13 Belt clip
B-14 AC power adapter
B-15 Charging base
B-16 POWER light
B-17 Neck strap
B-18 Travel bag
Both units can be battery operated.
For battery-operated use you'll need:
- 4 x 1.5V AA non-rechargeable batteries for baby unit.
Not supplied. - 2 x 1.2V AAA Ni-MH rechargeable batteries for parent unit.
Supplied.
Legend of functions
D. Display
88° Room temperature indicator
Battery indicator
Volume indicators
Night light indicator
Lullaby indicator
^111 Microphone sensitivity indicator
H 194 - Room temperature above temperature set in menu
Low - Room temperature below temperature set in menu
Not L inKEd - No connection between units
Volume ■ ■ ■ - Volume indication
Paused - Playback of lullaby interrupted
Contents
3 Illustrations
4 Welcome
4 Important safety instructions
6 Legend of functions
6 Baby unit
7 Parent unit
7 What else you need
8 Display
8 Contents
9 Preparing your baby monitor
9 Baby unit
10 Parent unit
II Using your baby monitor
12 Other features
12 Adjusting loudspeaker volume

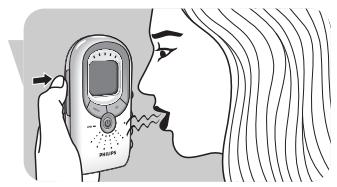

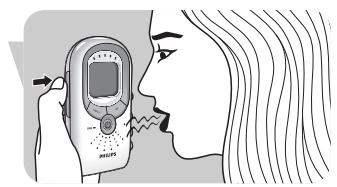

13 Talking to your baby
13 Monitoring baby silently
13 Switching night light on / off
14 Paging the parent unit
14 Playing lullabies
15 Connecting / disconnecting belt clip and neck strap
16 Menu options

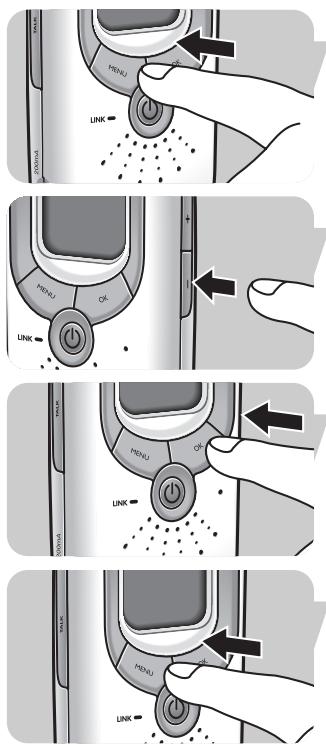

16 Menu operation - General explanation
16 Switching nightlight on / off
17 Playing lullabies
17 Adjusting microphone sensitivity
17 Switching sound alert on / off
18 Setting room temperature range
18 Setting temperature alert
18 Setting display temperature indication
19 Troubleshooting
21 Frequently asked questions
22 Important information
22 Technical specifications
22 Maintenance
23 Environmental information

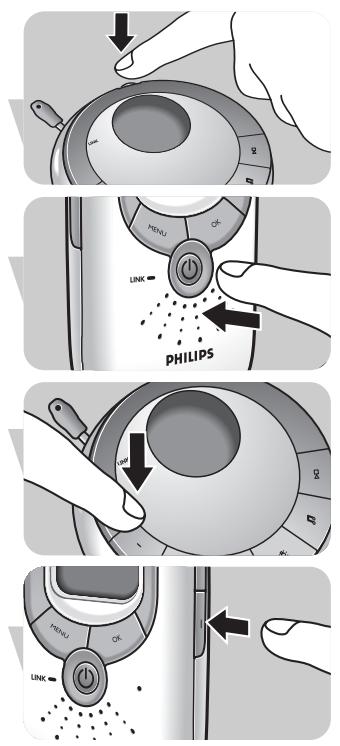

23 Factory initialization mode
24 Compliance information
24 Radio Interference
25 FCC RF Radiation Exposure Statement
25 Assistance
26 Warranty
Preparing your baby monitor
Baby unit
The baby unit can be operated by power supply or batteries.
When batteries are inserted, you will have an automatic back-up in case of power supply failure.
Cord operated use
Connect the power adapter cord (A-14) to the power supply jack (DC 9V / 300mA - A-13) of the baby unit.
2 Connect the AC power adapter (A-14) to a wall outlet.
→ The baby unit is now ready for cord operated use!
Battery operated use
Open the battery compartment by turning the cover (A-12) to the left (◀ OPEN), using the palm of your hand. Take the cover off.
2 Insert four 1.5V AA batteries, noting the + and - configuration inside the battery compartment (batteries are not supplied; we recommend Philips Alkaline batteries).
Note: When the units are switched off, in case of battery operated use, the batteries will still discharge slowly.
→The baby unit is now ready for battery operated use!
Parent unit
5 Place the parent unit in the charging base (B-15).
The POWER light (B-16) lights up red.
6 Leave the parent unit in the charging base until the batteries are fully charged (at least 16 hours).
The POWER light (B-16) will stay red, even when batteries are fully charged.
When the batteries are fully charged, the parent unit can be taken out of the charging base and used cordlessly for at least 8 hours.
When the battery indicator ( ☐ ) in the display (B-8) is empty and the parent unit beeps, battery power is low. Place the parent unit in the charging base (B-16) to recharge the batteries.
Preparing your baby monitor
EN
Notes:
- Operation time will be 8 hours based on the assumption that the baby unit will be transmitting 25% of the time and is in standby mode for the rest of the time (baby does not any make sound).
- When the parent unit batteries are charged for the first time, operating time will be less than 8 hours. The batteries will use their maximum capacity after at least four times charging and discharging.
- Charging will take longer than 16 hours when the parent unit is switched on during charging. To shorten the charging time, the parent unit should be switched off.
→ The parent unit is now ready for use!
Using your baby monitor
Use this baby monitor for its intended household use as described in this manual.
Place both units in the same room to test the connection. Make sure the baby unit is at least 1 meter / 3 feet away from the parent unit.
2 Press and hold the On/Off (⏻) button (A-1) on the baby unit for 2 seconds.
The night light (A-10) lights up briefly.
The display light (A-11) lights up indicating the current room temperature.

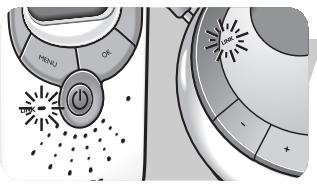

The LINK light (A-3) lights up red briefly then starts blinking green as it seeks connection with the parent unit. If, after 30 seconds, no link is established, Not Linked will appear on the display and the LINK light starts blinking red as it seeks connection with the parent unit.

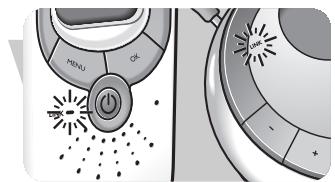

3 Press and hold the On/Off button (⏻) (B-6) on the parent unit for 2 seconds.
The sound level lights (B-9) briefly light up orange.
The display (B-8) lights up. The battery indicator (☐) and the room temperature light up in the display.
The LINK light (B-3) lights up red briefly then starts blinking green as it seeks connection with the baby unit.
The LINK light (B-3) on the parent unit blinks green and the LINK light (A-3) on the baby unit blinks red until connection has been established. This will take up to 30 seconds. Both LINK lights (A-3, B-3) then light continuously green and the message Not L inkEd will disappear from the baby unit display (A-11).
4 Position the baby unit at least 1 meter / 3 feet away from your baby.
→You can now monitor your baby!
Other features
- Briefly press the volume + and – buttons (A-4) on the baby unit repeatedly until the desired loudspeaker volume for the baby unit has been reached.
- Briefly press the volume + and – buttons (B-10) on the parent unit repeatedly until the desired loudspeaker volume for the parent unit has been reached.
The displays (A-11, B-8) provide visual feedback on the volume settings of the units:
- Volume OFF: parent unit volume switched off / monitoring baby silently;
- Volume ■ : minimum volume (parent unit and baby unit);
- Volume ■ ■ ■ ■ ■ : maximum volume (parent unit and baby unit).
Notes:
- If you press the Volume + and - buttons (A-4, B-10) too long, the volume will not be adjusted.
- You only need to adjust the baby unit volume when using the talk function (see below).
- If the volume is set to a high level, the units consume more power.
Talking to your baby (Talk function)
While using the TALK button (B-I) on the parent unit you can talk to your baby (e.g to comfort your baby).
- Press and hold the TALK button (B-1) and talk clearly into the microphone (B-5).
- Release the TALK button (B-I) when finished talking.
Note: When the TALK button (B-1) is pressed, you can no longer hear your baby.
- Briefly press the Volume – button (B-10) on the parent unit repeatedly until the volume is switched off completely.
When no sound is detected all sound-level lights (B-9) will be off.
When sound is detected the sound-level lights (B-9) light up orange.
Briefly press the night light button (☐), A-7) on the baby unit to switch on the night light (A-10).
lights up on both displays.
2 Press the night light button (☐), A-7) again briefly to switch off the night light (A-10).
The night light dims and gradually switches off.
⚙️ goes out on both displays.
- Switch off the night light when operating the baby unit on batteries. This saves power!
Note: If you press the night light button (☐), A-7) too long, the night light (A-10) will not switch on/off.
Paging the parent unit
When the parent unit is misplaced and the volume is switched off, you can use the PAGE button (A-5) on the baby unit to locate the parent unit.
I Briefly press the PAGE button (A-5) on the baby unit
P39 in9 appears on both displays (A-11, B-8).
The parent unit will automatically reset to medium volume level and a paging alert will sound.
2 To stop the paging alert, press the PAGE button (A-5) again briefly or any button on the parent unit
Note: If you press the PAGE button (A-5) too long, the paging alert will not sound.
Briefly press the lullaby button (♩, A-8) on the baby unit repeatedly to select one of five available lullabies
- Briefly press the OK button (B-7) on the parent unit to interrupt playback of the lullaby. Press the OK button (B-7) on the parent unit again to restart playback of the lullaby.
If the lullaby is not restarted within 60 seconds, the lullaby function will switch off automatically.
- Briefly press the play/stop button (▶■, A-9) on the baby unit again to stop playback of the lullaby
Connecting / disconnecting belt clip and neck strap
If the parent unit is operated using batteries, you can carry it in and around your house, allowing you freedom of movement while still monitoring your baby.
Connecting the belt clip
- Insert the little spindle on the rear of the belt clip into the recess (B-11) on the rear of the parent unit. Twist the belt clip to the left until it clicks in position.
Disconnecting the belt clip
- Turn the belt clip to the right (TURN ▶) and take it off.
- Insert the little spindle at the end of the neck strap into the recess (B-11) on the rear of the parent unit. Turn the spindle to the left until it clicks in position.
- Twist the spindle to the right (TURN ▶) and remove it.
Note: All buttons mentioned are located on the parent unit.
Menu operation - General explanation
I Press the MENU button (B-2) to open the menu.
The first menu option appears on the display.
2 Use the - and + buttons (B-10) to select the desired menu option.
3 Press the OK button (B-7) to confirm your selection.
saved appears on the display.
4 Press the MENU button (B-2) again to exit the menu.
Note: Always press the buttons MENU (B-2), – and + (B-10) and OK (B-7) briefly.
Switching night light on/off
- Select L ight on? or L ight off?, using – and + (B-10). Confirm by pressing OK (B-7).
Playing lullabies
To play or stop a lullaby:
- Select Lull abT? ♩, using - and + (B-10).
Confirm by pressing OK (B-7). - Select PLAY to replay the last played lullaby or Stop
Lull abY? to stop playback. Confirm with OK (B-7).
To select a different lullaby:
- Select Lull abT? ♩, using - and + (B-10).
Confirm by pressing OK (B-7). - Select SET EET new, using - and + (B-10).
Confirm by pressing OK (B-7). - Select the desired lullaby, using - and + (B-10).
Confirm by pressing OK (B-7).
Adjusting microphone sensitivity
You can set the sound sensitivity of the baby unit to the desired level. When set to the maximum sensitivity level all sounds (including your baby's breathing, when loud enough) can be heard on the parent unit. You can only change the microphone sensitivity if the connection between the baby unit and the parent unit is established (when LINK lights (A-3, B-3) light continuously green).
- Select sens it if it? using - and + (B-10).
Confirm by pressing OK (B-7). - Select the desired sensitivity level for the baby unit microphone, using – and + (B-10). Confirm with OK (B-7).
sens it iv itY ■ = minimum level / lowest sensitivity;
sens it iv itY ■ ■ ■ ■ = maximum level / highest
sensitivity
Note: When the sensitivity level of the baby unit is set to a high level, the unit will consume power because it is in continuous transmission mode.
Switching sound alert on and off
If sound alert is switched on, the parent unit beeps as soon as the fifth sound level light (B-9) lights orange while the volume is switched off.
- Select Sound Alert, using - and + (B-10).
Confirm with OK (B-7).
- Alert on? or Alert on/off.
Confirm with OK (B-7).
Setting room temperature range
You can set the temperature range (minimum and maximum temperature) for your baby's room.
- Select TEMPERATURE -- °, using - and + (B-10).
Confirm with OK (B-7).Range appears on the display. Confirm with OK (B-7).
- Set the desired minimum temperature, using – and + (B-10). Confirm with OK (B-7).
- Set the desired maximum temperature, using – and + (B-10). Confirm with OK (B-7).
Note: When the set maximum temperature is lower than the room temperature, the unit consumes more power because the display is continuously lit. This is also the case when the set minimum temperature is higher than the room temperature.
Setting temperature alert
Temperature alert will sound from the parent unit if the actual room temperature exceeds the set minimum or maximum temperature or if the room temperature drops below 45^ F or rises above 91^ F.
- Select TEMPERATURE—°, using—and + (B-10). Confirm with OK (B-7).
- Select Alert on/off, using - and + (B-10).
Confirm with OK (B-7). - Select AIErt on?or AIErt off?
Confirm with OK (B-7).
Setting display temperature indication
You can choose degree Celsius (°C) or degree Fahrenheit (°F) for temperature display.
- Select TEMPERATURE --°, using - and + (B-10).
Confirm with OK (B-7). - Select Unit, using – and + (B-10).
Confirm with OK (B-7). - Select Fahrenheit or Celsius.
Confirm with OK (B-7).
Whenever the temperature unit is changed (e.g. from C to F), the previously set low and high temperature levels for the alert (i.e. in C) will be reset to defaults (i.e. in F). It needs to re-adjust them if desired.
| Problem | Possible cause | Solution |
| LINK light (A-3, B-3) does not light at all. | Parent unit:Power adapter (B-14) not plugged in. | Connect power adapter (B-14) to wall outlet. |
| Unit not turned on. | Press and hold On/Off button (⏻) (B-6) for two seconds. | |
| Batteries are low. | Recharge batteries (B-12). | |
| Batteries are empty. | Replace batteries (B-12). | |
| Baby unit:Power adapter (A-14) not plugged in. | Connect power adapter (A-14) to baby unit.Connect power adapter (A-14) to wall outlet. | |
| Unit not turned on. | Press and hold On/Off button (⏻) (A-1) for two seconds. | |
| Batteries are low. | Replace batteries (A-12). | |
| LINK light (A3, B-3) flashing red/alarm beeping on parent unit. | Units out of range. | Decrease distance between units (see ‘Technical specifications). |
| Baby unit batteries are low. | Replace batteries (A-12). | |
| Parent unit batteries are low. | Recharge batteries (B-12). | |
| Parent unit batteries are empty. | Replace batteries (B-12). | |
| Units cannot establish connection, Try solving the problem by using even when close to each other. See chapter ‘Factory initialization mode’ | ||
| No power on one of the units. | Press On/Off button (A-1, B-6) for two seconds. | |
| Charging time of parent unit batteries exceeds 16 hours. | Parent unit switched on during charging. | Switched off parent unit (B-6). |
| High pitched noise. | Units are too close to each other. | Move parent unit away from baby unit (at least 1 meter / 3 feet). |
| Volume on parent unit set too high. | Decrease volume (B-10) on parent unit. | |
| No sound/baby's crying cannot be heard. | Volume on parent unit is set too low or switched off. | Increase volume on parent unit (B-10). |
| Microphone sensitivity level set too low on parent unit. | Increase microphone sensitivity level in parent unit menu. | |
| Units are out of range | Move parent unit closer to baby unit. | |
| Parent unit reacts too fast to other ambient sounds. | Ambient sounds trigger transmission. | Move baby unit closer to baby (keep minimal distance of 1 meter / 3 feet). |
| Microphone sensitivity level set too high. | Decrease microphone sensitivity level in parent unit menu. | |
| Battery check light ( ) lights up on the display (A-11, B8). | Batteries are low or empty. | Replace / recharge batteries (A-12, B-12). |
| Parent unit reacts slow/late to baby's crying. | Microphone sensitivity is set too low. | Increase microphone sensitivity level in parent unit menu and/or move baby unit closer to baby (keep minimal distance of 1 meter/3 feet). |
| Baby unit battery power diminishes rapidly. | Microphone sensitivity is set too high. | Set microphone sensitivity to a lower level. |
| The selected minimum/maximum temperature higher/lower than room temperature. | Select a lower/higher minimum/maximum temperature. | |
| Volume setting too high. | Set volume to a lower level (A-4). | |
Question
The technical specifications show an operating range of 300 meters / 900 feet outdoors. How come my baby monitor manages much less than that?
The link is lost every now and then, sound interruptions etc.
What happens during a power supply failure?
Is my DECT baby monitor secure from eavesdropping and interference?
Some buttons do not seem to work when I press them. What do I do wrong?
I place the parent unit in the charging base (B-15) but the unit doesn't function.
Operating time of the parent unit batteries is supposed to be at least 8 hours. How come the battery operating time of my parent unit is less?
Answer
The specified range is only valid outdoors in open air. Inside your house the workable range is limited by the amount and type of walls and/or ceilings in between. Inside the house the operating range will be up to 50 meters / 150 feet.
You are probably approaching the outer limits of the practical range. Try a different location or decrease the distance between the units slightly. Please note that it takes about 30 seconds each time before a new link between the units is established.
When batteries are installed in the both units, the units will automatically switch over to battery use in case of power supply failure.
The 60 (for NA FCC / IC) channels guarantee no interference from other equipment.
Except for the On/Off buttons (A-1, B-6), only press the buttons briefly.
When the batteries of the parent unit are low, you have to wait for up to 20 minutes after placing the unit in the charger before the unit starts functioning.
When the parent unit batteries are charged for the first time, operating time will be less than 8 hours. The batteries will use their maximum capacity after at least four times charging and discharging.
Maybe the volume setting is too high. When the volume is set to a high level, the unit consumes more power. Set the volume to a lower level (B-10).
Maybe the microphone sensitivity setting is too high. When the sensitivity is set to a high level, the units consume more power. Set the sensitivity to a lower level (B-10).
When the set maximum temperature is lower than the room temperature, the unit consumes more power because the display is continuously lit. This is also the case when the set minimum temperature is higher than the room temperature.
| Power supply | Technical specifications- 1 x AC power adapter DC 9V / 300mA for baby unit (supplied).- 1 x charging base DC 9V / 300mA for parent unit (supplied).- 4 x AA 1.5V Alkaline batteries for baby unit. (not supplied).- 2 x AAA Ni-MH 1.2V rechargeable batteries for parent unit (supplied). | ||
| Operating range | Up to 300 meters / 900 feet in ideal conditions.Walls, doors, etc will affect range. Indoors the range is up to 50 meters (150 feet). | ||
| Dry materials | Material thickness | Loss of range | |
| Wood, plaster, plaster cardboard, glass (without metal or wires, no lead) | < 30cm / 12" | 0 - 10% | |
| Brick, plywood | < 30cm / 12" | 5 - 35% | |
| Reinforced concrete | < 30cm / 12" | 30 - 100% | |
| Metal grids, bars | < 1cm / 0.4" | 90 - 100% | |
| Metal, aluminium sheets | < 1cm / 0.4" | 100% | |
| Operating temperature | + 32°F – + 104°F | ||
| Standard | Digital Enhanced Cordless Telecommunication (DECT)The DECT standard makes use of advanced digital radio techniques to achieve efficient use of the radio spectrum. It delivers high speech quality and security and low power technology. It makes it possible to hear your baby at a range of up to 300 meters / 900 feet in open air. | ||
| MaintenanceClean the baby monitor with a damp clothDispose of used batteries in an environmentally friendly manner.If the batteries are left in the unit when it is powered from the power supply, check them for leakage every six months. | |||
Environmental information
Disposal of your old product
Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.
Please inform yourself about the local separate collection system for electrical and electronic products.
Please act according to your local rules and do not dispose of your old products with your normal household waste. The correct disposal of your old product will help prevent potential negative consequences for the environment and human health.
Factory initialization mode
In this mode both units can be reset to the default factory settings. Factory initialization can be used if problems occur which can not be solved by following the suggestions in the chapter ‘Troubleshooting’. Resetting must be done separately for each unit.
I Press and hold the On/Off ( ⏻ ) button (A-1, B-6) for 2 seconds to switch on the unit.
2 When the LINK light (A-3, B-3) on the unit lights up, immediately press and hold the volume – button (A-4, B-10). >The unit has now been reset to the default factory settings.
Default factory settings
Parent unit
– Loudspeaker volume: I
– Microphone sensitivity: 3
- Sound alert: on
– Temperature alert: on
Baby unit
– Loudspeaker volume: 3
- Nightlight: off
- Lullaby: I
– Temperature alert low: 58^ F
– Temperature alert high: 87^ F
Compliance information
The FCC ID number is located on the cabinet bottom of Parent Unit and in battery compartment of Baby Unit.
The term ‘IC:’ before the certification number signifies that Industry Canada technical specifications were met. This certification means that the equipment meets certain radio communications and operational requirements.
This device complies with Part 15 of the FCC Rules and ICES-003 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device complies also with RSS-213 of Industry Canada.
Radio Interference
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules and applicable Industry Canada specifications. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
RF Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. For hand held operation, this equipment has been tested and meets the FCC RF exposure guidelines. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. For body worn operation, this product has been tested and meets the FCC RF exposure guideline when used with the belt clip or neck strap supplied with this product. User must maintain a separation distance of 3mm between the back of the unit and the body to ensure compliance. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment complies also with Industry Canada RSS-102 with respect to Canada's Health Code 6 for Exposure of Humans to RF Fields.
Do not attempt to repair or modify this equipment
Any repairs or alterations made by the user to the equipment may cause the equipment void in product warranty and compliance. Refer servicing to authorized or designated service centers.
Assistance
For assistance, call toll free:
1-800-243-7884
Or visit our website:
www.philips.com
Information is available 24 hours a day, 7 days a week.
FULL TWO YEAR WARRANTY
Philips Electronics North America Corporation warrants each new Philips Babycare Product against defects in materials or workmanship for a period of two years from the date of purchase, and agrees to repair or replace any defective product without charge.
IMPORTANT: This warranty does not cover damage resulting from accident, misuse or abuse, lack of reasonable care, the affixing of any attachment not provided with the product or loss of parts or subjecting the product to any but the specified voltage.* Use of unauthorized replacement parts will void this warranty.
PHILIPS ELECTRONICS NORTH AMERICA CORPORATION WILL NOT PAY FOR WARRANTY SERVICE PERFORMED BY A NON-AUTHORIZED REPAIR SERVICE AND WILL NOT REIMBURSE THE CONSUMER FOR DAMAGE RESULTING FROM WARRANTY SERVICE PERFORMED BY A NON-AUTHORIZED REPAIR SERVICE. NO RESPONSIBILITY IS ASSUMED FOR ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES.
In order to obtain warranty service, simply ship the product postage prepaid to the Philips Norelco Service Location (information available online at www.philips.com or at 1-800-243-7884). It is suggested that for your protection you return shipments of product by insured mail, insurance prepaid. Damage occurring during shipment is not covered by this warranty.
NOTE: No other warranty, written or oral, is authorized by Philips Electronics North America Corporation.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above exclusion and limitations may not apply to you.
* Read enclosed instructions carefully.
Manufactured for:
Philips Domestic Appliances and Personal Care Company
A Division of Philips Electronics North America Corporation
1010 Washington Blvd., Stamford, CT 06912-0015
This symbol on the product's nameplate means it is
listed by Underwriters' Laboratories, Inc.
PHILIPS is a Registered Trademark of Koninklijke Philips Electronics N.V.
©2006 Philips Electronics North America Corporation. All Rights Reserved.
Illustration of hands connecting a cable to a device with an outlet (no text or symbols visible)
Illustration of hands holding a transparent bulb with a curved handle and internal components (no text or symbols)natural_image
Illustration of a hand holding a battery with a downward arrow, next to two cylindrical batteries (no text or symbols)natural_image
Diagram showing two batteries inside a cylindrical housing, one with a black arrow indicating the battery's direction (no text or symbols present)natural_image
Illustration of a hand holding a remote control device with an upward arrow (no text or symbols)natural_image
Illustration of a Philips mobile phone with a power outlet connected to its base (no text or symbols on device)natural_image
Close-up of a hand adjusting a circular object with a downward arrow, no visible text or symbols
Diagram of a house interior showing living room, furniture, and a person (no text or symbols)natural_image
Illustration of a hand holding a circular object with a downward arrow, no text or symbols presentnatural_image
Illustration of a person using a handheld phone to interact with their face, showing sound waves and earphones (no text or symbols)
Activation/désactivation de la veilleuse
Philips Domestic Appliances and Personal Care Company
Une division de Philips Electronics North America Corporation
1010 Washington Blvd., Stamford, CT 06912-0015
Philips Baby Care, taking care together
Illustration of hands connecting a cable to a device with a power outlet (no text or symbols)
Illustration of hands holding a computer mouse with a curved arrow indicating rotation (no text or symbols)natural_image
Illustration of a hand holding a battery with a downward arrow, next to two small batteries (no text or symbols)natural_image
Diagram of two batteries inside a cylindrical housing, one with a positive charge and the other empty (no text or symbols)natural_image
Hand holding a remote control device with an upward arrow (no text or symbols visible)natural_image
Illustration of a Philips phone connected to a power outlet (no text or symbols on device)
Diagram of a house interior showing living room, furniture, and a person (no text or symbols)natural_image
Illustration of a hand pressing down on a circular object with a downward arrow (no text or symbols)
Illustration of hands holding a small object with an arrow indicating rotation (no text or symbols)
A Division of Philips Electronics North America Corporation
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.
2006 © Koninklijke Philips Electronics N.V. All rights reserved.
www.philips.com
