Product type	Tower fan
Brand	Emerio
Model	TFN-114569.1
Power supply	220–240 V~, 50 Hz
Power consumption	50 W
Max airflow	3.4 m³/min
Service value	0.1 (m³/min)/W
Standby power consumption	0.7 W
Fan sound power level	65 dB(A)
Max air velocity	11.8 m/s
Speed settings	Low, Medium, High
Modes	Normal, Natural, Sleep
Timer	1–12 hours
Oscillation	Yes (swing function)
Remote control	Yes (CR2025 battery included)
LED lamp	Yes, can be turned on/off
Filter	Washable, detachable from air outlet
Cleaning	Wipe with damp cloth; do not immerse
Safety	For ages 8+; do not operate without guards
Warranty	2 years from date of sale
Weight	Approximately 4.5 kg
Dimensions (H × W × D)	Approx. 90 × 30 × 30 cm

Frequently Asked Questions - TFN-114569.1 Emerio

How do I assemble the fan?

Assemble the base by attaching two pieces and securing them with the provided screws. Align the base with the turnplate and fasten with 4 screws. Refer to the assembly images in the manual.

How do I clean the fan?

Unplug the fan. Wipe the exterior with a damp cloth and dry carefully. The air outlet filter is washable: remove it, wash under running water, dry completely, and reattach. Do not immerse the fan in water.

How do I set the timer?

Press the Timer button repeatedly to set the desired working time from 1h up to 12h. The fan will automatically turn off after the set time.

What are the different modes?

There are three modes: Normal (constant speed you can adjust), Natural (simulates natural wind patterns, speed cannot be changed), and Sleep (automatically reduces speed over time to prevent catching cold).

How do I replace the remote control battery?

The remote uses a CR2025 battery. Open the battery compartment, insert the battery with correct polarity, and close securely. If not using for a long time, remove the battery to prevent leakage.

Why is my fan not turning on?

Check that the power cord is plugged into a working outlet and the fan is switched on. Ensure the voltage matches the rating label. If still not working, contact customer service.

Is the fan safe to use around children?

Children aged 8 years and above can use the fan under supervision. Never allow children to play with the appliance or insert objects through the fan guards while it is running.

Can I use the fan outdoors?

No, the fan is designed for indoor use only. It must be kept away from damp and not operated in open air.

What is the warranty period?

Emerio offers a 2-year warranty from the date of purchase. Keep your receipt. Damage from improper use or unauthorized repairs will void the warranty.

How do I dispose of the fan at end of life?

Do not dispose with household waste. Follow local recycling guidelines for electronic equipment. The battery must be removed and recycled separately.

USER MANUAL TFN-114569.1 Emerio

Black vertical tower with digital display and control panel, next to a remote (no text or symbols visible)

Tower Fan (EN)

Turmventilator (DE)

Tornfläkt (SE)

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by children without supervision.
4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
5. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.
6. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.
7. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.

8. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!

9. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.

10. Do not touch the appliance if it falls into water. Remove the plug from its socket, turn off the appliance and send it to an authorized service center for repair.
11. Do not plug or unplug the appliance from the electrical outlet with a wet hand.
12. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.
13. Never leave the appliance unattended during use.
14. This appliance is not designed for commercial use.
15. Do not use the appliance for other than intended use.
16. Do not wind the cord around the appliance and do not bend it.
17. Keep the appliance away from damp, and protect from splashes.
18. Use the appliance on a flat, dry and heat resistance surface.
19. Do not store or operate the appliance in the open air.
20. Keep the appliance in a dry place for storage, inaccessible to children (in its packaging).
21. Never put fingers or any other objects through the fan guards when the fan is running.
22. Never operate the product without the fan guards in place, as serious personal injury may result.
23. The appliance must be assembled completely before use.
24. Watch out for long hair! It can be caught in the fan owing to the air turbulence.
25. Do not point the air flow at people for a long time.
26. The rotor guard shall not be disassembled/ opened to clean the rotor blades.

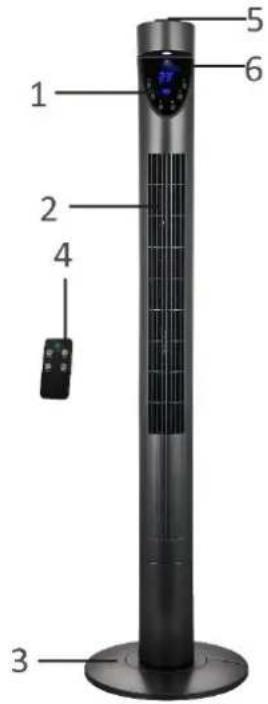

PARTS OF DESCRIPTION

1. Control panel and display panel
2. Air outlet
3. Base
4. Remote control
5. Small slot for storing the remote control
6. Handle

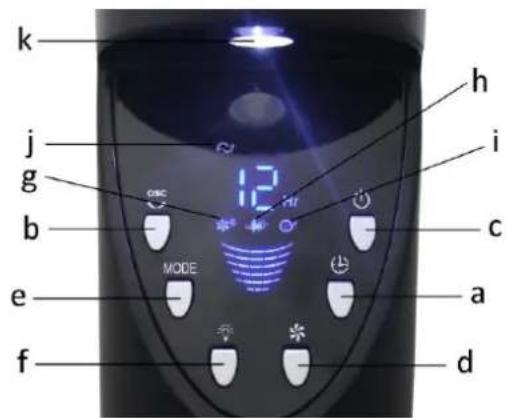

CONTROL PANEL AND DISPLAY PANEL

(1) Control panel

a. Timer button
b. Swing function button
c. On/off button
d. Speed button
e. Mode button

f. LED lamp button

(2) Display panel

g. Normal mode

h. Natural mode

i. Sleep mode

j. Swing indicator

k. LED lamp

REMOTE CONTROL

This unit has a remote control. Please use one piece of CR2025 battery for this remote control. Please insert the battery to the remote control tightly (Refer to the instruction behind the remote control). If it is not in use for a long time, please take the battery out of the remote control. The functions of the remote control buttons are the same as the functions of the buttons on the control panel.

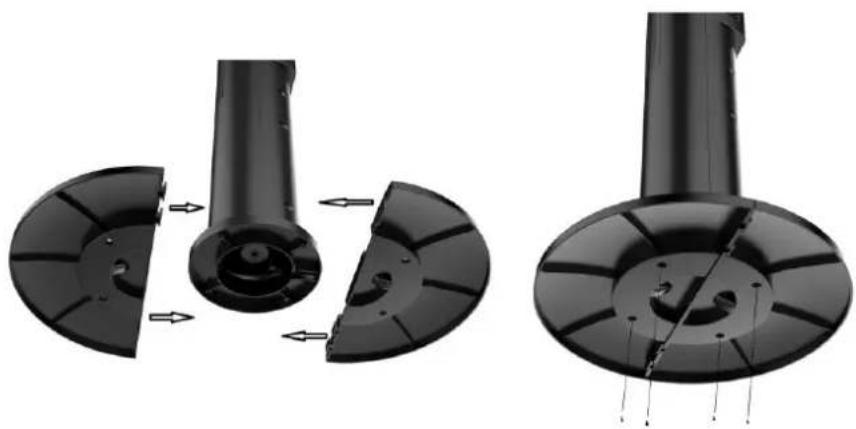

ASSEMBLY

Two black mechanical components with arrows indicating movement or assembly, showing internal parts and mounting features (no text or symbols)

1. Spin 4 screws out from the turnplate.
2. Fasten two pieces of base together.
3. Align the base with the turnplate and then spin 4 screws back to fasten them up.

OPERATION

Connect the appliance to a suitable power source. Then press the control panel or the remote control to choose your desired functions.

1. ON/off: Press “⏻” to turn the appliance on. It will work with the following presetting: Speed: low / Mode: normal / Timer: off / Swing: off

Press “” again to turn off the appliance. The appliance will be in standby mode.

1. SPEED: Press “✿” to adjust the speed: low wind; Medium wind; high wind

2. MODE: Press "MODE" to choose the mode functions from Normal → Natural → Sleeping → ... (Repeating).

1) Normal: under this mode, the motor works with the preset speed. You can press the speed button to choose speed Low/Mid/High.

2) Natural: under this mode, the display of “” is on. The appliance runs according to the natural mode program. The speed will follow the rules: Low, Mid, High, Mid, Low, Mid, High, Mid, Low, Mid, High, ... generating softer and more comfort air volume, you feel like the wind from the nature. The speed button will not work in this mode.

3) Sleep: under this mode, the display of “💡” is on. The appliance runs according to the sleeping mode program. Air volume will weaken with the decrease of body temperature when you fall asleep, which will protect you from catching cold. You can press the speed button to choose Low/Mid/High sleeping wind.

High sleeping wind mode: the appliance will work in high speed for half an hour, then work in mid speed for half an hour, then work in low speed all the time;

Mid sleeping wind mode, the appliance will work in mid speed for half an hour, then work in low speed all the time;

Low sleeping wind moe, the appliance will work in low speed all the time.

1. TIMER: Press “💡” to set your desired working time from 1h →2h →3h ... →12h →off. When the set time has elapsed, the fan will be off and under standby condition.

2. SWING: Press "OSC" to control the oscillation function on or off.

3. LED lamp: press " 🔍 " to turn on/off the LED lamp.

CLEANING

1. Before servicing the fan and after each occasion of use, switch off the appliance and unplug the mains cable from the socket.

2. Never immerse the appliance in water (danger of short-circuit). To clean the appliance, only wipe it down with a damp cloth and dry it carefully. Always take out the mains plug first.

3. Take care that excessive dust does not build up in the air-intake and air-outlet grille, and clean it occasionally using a dry brush or vacuum cleaner.

4. Filter of air outlet can be detached to clean. Wash the filter directly under the running water and then dry it completely. After cleaning, spin 2 screws back to the position. (see below picture)

Technical line drawing of a mechanical component with no visible text or symbols

TECHNICAL DATA

Operating voltage: 220-240V \~ 50Hz

Power consumption: 50W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device,

please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

BATTERY MUST BE RECYCLED OR DISPOSED OF PROPERLY. DO NOT OPEN. DO NOT DISPOSE

OR IN FIRE OR SHORT CIRCUIT.

ERP information (EN)

Supplier: Emerio International AB

Smedjegatan 6

131 54 Nacka

Sweden

Declare that the product detailed below:

Information requirements

Information to identify the TFN-114569.1 to which the information relates to [Tower Fan]
Description	Symbol	Value	Unit
Maximum fan flow rate	F	3.4	m^3/min
Fan power input	P	40.0	W
Service value	SV	0.1	(m^3/min)/W
Standby power consumption	P_SB	0.7	W
Fan sound power level	L_WA	65	dB(A)
Maximum air velocity	c	11.8	meters/sec
Measurement standard for service value	2009/125/EC(EU) No 206/2012 + (EU) No 2016/2282EN ISO 5801:2017EN 60704-1:2010+A11:2012EN 60704-2-7:1998
Contact details for obtaining more information	Emerio International ABSmedjegatan 6131 54 NackaSweden

Satisfies the requirement of the Council Directives:

COMMISSION REGULATION (EU) No 206/2012 of 6 March 2012 and Amending COMMISSION REGULATION (EU) 2016/2282 implementing Directive 2009/125/EC of the European Parliament and of the Council with regard to ecodesign requirements for air conditioners and comfort fans

"Regarding information for consumers on how to install, use and maintain the product, WEEE information, please check the instruction manual provided with packaging."
