USER MANUAL 60 Fusion IF EICO

Two gray geometric shapes (rectangles and circles) on black background, with a red digital display showing time:00:00 and a numeric scale at bottom (no text or symbols on shapes)

Max Power : 7.4 kW

Eico 60 Fusion IF

Fig. 2

Fig. 3

Fig. 4

Fig. 5

A

Three identical illustrations of a cooking pot with handles and a curved handle, placed on a base (no text or symbols)

B

Three schematic diagrams showing cross-sectional views of a cooking pot with handles, no text or symbols present.

Fig. 6

Four identical circular objects with a diagonal line inside, each mounted on a rectangular base, against a black background (no text or symbols)

≤ ∅ 90 mm
≥ ∅ 110 mm

Fig. 7


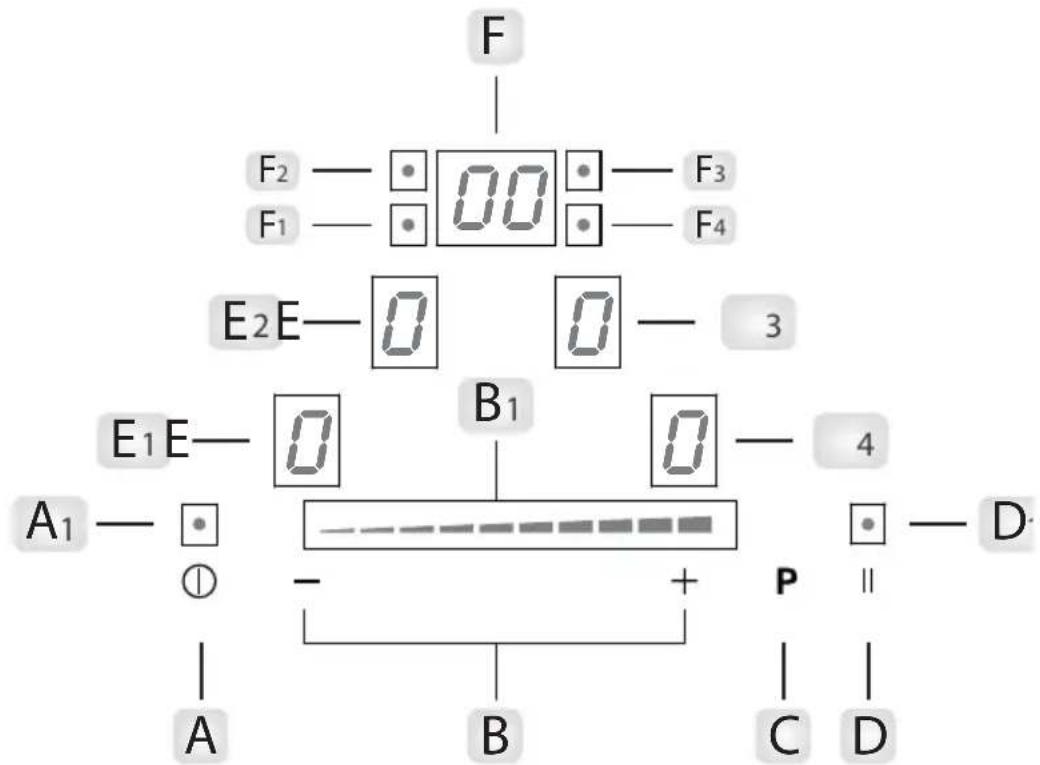

EN\_Command

A_Power on Key
B_Power level-and Timer setting range with Bar graph (B1)
C_Booster key
D_Pause key with LED (D1)
E_Cooking zone selection and power level display (E1 - E2 - E3 - E4)
F_Timer select key and timer display with LED assign to cooking zone (F1 - F2 - F3 - F4)

DK\_Command

Illustration of a hand using a power tool to clean or store items on a dark surface (no text or symbols)

4 Zones
Land Mains Connection Cable diameter Cable Protection calibre
DK S FI	400V~50/60 Hz	2 Ph + N	4 x 1.5 mm ^2	H 05 VV - FH 05 RR - F	16 A*
NO	230V~50/60 Hz	2 Ph	3 x 2.5 mm ^2	H 05 VV - FH 05 RR - F	25 A*
DK S FI	230V~50/60 Hz	1 Ph + N	3 x 2.5 mm ^2	H 05 VV - FH 05 RR - F	25 A*

(* ) calculated with the simultaneous factor following the standard EN 60 335-2-6/1990

Fig. 9

GENERAL INFORMATION

Carefully read this use and maintenance manual, where important information about installation, use and maintenance safety is provided. Keep this manual for future reference. Any installation operation (electric connections) shall be performed by specialized personnel, in compliance with all standards and regulations in force.

SAFETY WARNING

The use of flat-bottomed pots, with a diameter equal to or slightly bigger than the heated area, is recommended. (Fig.5). Do not use pots that have a rough base, in order to prevent the hob thermal surface from being scratched. This appliance is not intended for use by children or infirm people without supervision.

IMPORTANT

• Avoid the overflow of liquids by reducing the heat supply when boiling or warming liquids.
• Do not leave any heating element switched on, if there are no pots, or if the pots are empty.
• Once cooking is completed, turn the concerned heating element off, by using the control shown below.
• This appliance is not intended for use by people (children included) with limited physical, sensorial or mental abilities, or lacking of experience and knowledge, unless they are supervised or well instructed about the use of the appliance, by a person who is responsible for their safety.
• Children should be supervised to assure that they do not play with the appliance.
• If the hob surface is cracked, turn the appliance off and disconnect it from the electric network, so as to avoid the possibility of electric shock.

INSTALLATION INSTRUCTIONS

These installation instructions are intended for a specialized installer and are meant as guidelines for the hob installation, adjustment and maintenance, in compliance with any regulations and standards in force. If a built-in oven or any other appliance generating heat is to be mounted directly under the vitro-ceramic hob, IT IS NECESSARY THAT SUCH AN APPLIANCE (the oven) AND THE VITRO-CERAMIC HOB ARE PROPERLY INSULATED. Failure to comply with this precaution might result in the incorrect operation of the TOUCH CONTROL system.

- Positioning:

This household appliance has been designed for built-in installation onto a worktop, as shown in the figure (Fig. 1- Cut dimensions). Use sealing material along the whole perimeter (Fig.2). This operation is necessary in order to prevent any liquid from entering inside the hob, being that the flatness of the top, the glass and their coupling cannot be assured. Gently push the appliance into the built-in hole (Fig.4). If, after installation, the lower part of the appliance is accessible from the lower part of the

cabinet, it will be necessary to mount a spacing panel at the distances given (Fig.3).

• Electric connections (Fig.9):

• The installation of this appliance and the connection to the electrical network should be entrusted only to an electrician perfectly to the fact of the normative regulations and which respects them scrupulously.
• Protection against the parts under tension must be ensured after the building-in.
• The data of connection necessary are on the stickers place on the hob casing near the connection box.
• The connection to the main must be made using an earthed plug or via an omnipolar circuit breaking device with a contact opening of at least 3 mm.
• The electrical circuit must be separated from the network by adapted devices, for example: circuit breakers, fuses or contactors.
• If the appliance is not fitted with an accessible plug, disconnecting means must be incorporated in the fixed installation, in accordance with the installation regulations.
• The inlet hose must be positioned so that it does not touch any of the hot parts of the hob or even.

Caution!

This appliance has only to be connected to a network 230 V\~50/60 Hz.

Connect always the earth wire.

Respect the connection diagram.

The connection box is located underneath at the back of the hob casing. To open the cover use a medium screwdriver. Place it in the slits and open the cover.

Caution!

Be careful that the cables are correctly engaged and tightenet.

We cannot be held responsible for any incident resulting from incorrect connection or which could arise from the use of an appliance which has not been earthed or has been equipped with a faulty earth connection.

USE AND MAINTENANCE

- Maintenance (Fig.8):

Remove any food residue and grease drops from the cooking surface, by using the special scraper provided on request.

Clean the heated area in the best way possible, using suitable products and a paper towel, then rinse with water and wipe away with a clean cloth.

Through the use of the special scraper (optional), promptly remove any pieces of aluminum foil and plastic material, which might have accidentally melted, or sugar or food remains, and/or remains of sugary foods, from the heated surface. In this way, any possible damage to the surface is prevented.

The use of abrasive sponges or irritating chemical cleaners, such as sprays for ovens or cleaning agents is not allowed under any circumstance.

• Use:

Use the touch control system in the corresponding position according to individual cooking needs. Keep in mind that the higher the number, the more heat is produced. The command offer a convenient handling as selections are performed by touching directly on the display:

• the acitive selection is displayed with high intensity;
• available selections are displayed with a low intensity;
• unavailable selections are not lighted.

- Function (Fig.7):

A_Power on Key
B_Power level-and Timer setting range with Bar graph (B1)
C_Booster key
D_Pause key with LED (D1)
E_Cooking zone selection and power level display
F_Timer select key and timer display with LED assign to cooking zone (F1 - F2 - F3 - F4)

- Switching the cooking top ON/OFF:

The Touch Control may be switched on by pressing the ON/OFF key [A key], then the displays [E area] shows a static . If a cooking zone is still hot, the display alternates between and H , and the display blinks. The hob remains activated for 20 sec., if there is no selection of cooking zone or timer during this time (20 sec.), automatically the command resets into the standby mode and the hob will emit a signal beep.

If the Child Lock function is activated at switching on, all cooking zones display will show L

By pressing ON/OFF [A key] the hob can be switched off at any time. This is also applicable when the Touch Control has been locked.

- Switching the cooking area ON/OFF:

The user can select a cooking zone, pressing the cooking zone select [E area], and the respective display light will show . A cooking level is switched on and then adjusted by pressing on the slider field [B area].

By moving the finger on the slider field to the right (increasing the heat) or left (decrease the heat) or by direct selection of the required cooking level on the slider the desired cooking level can be adjusted.

A single cooking zone may be switched off by selecting and setting cooking level to ; ten seconds later the display cooking zone [E area] will go off.

In case of cooking zone is still hot there will be a warning letter H displayed, in alternation with .

After switching off the display is off and only if a cooking zone is still hot a static H is displayed as a warning.

Immediately switching off all cooking zones is always possible by using the ON/OFF [A key].

During the stand-by mode H appears on all still hot cooking zones; the other cooking zones displays remains off.

- Pot detection:

This hob has the pot detection function, that enables to communicate at the user that the pot is not in the selected cooking zone.

To activate this function the user have to select a cooking zone [E area], and a cooking level value greater [B area].

In case of no cookware has been identified by the hob, a “missing pot” figure is showed on the cooking zone display [E area]. Unlike, if a pot is placed, the display of the cooking zone will show .

- Boost function:

The Booster is an additional cooking level, offers a higher powel level for a limited time (5 minutes). This function allows the user to heat the pot very quickly, for example to save time during boiling water.

To activate the Booster the user have to select the desired cooking zone [E area], and then press Booster function [C key].

To deactivate this function the user have to change the power level [B area].

- Heat up automatic:

Heat-up automatic is a feature which enables heating up a cold pot with full heating power and returning automatically to the desired cooking level. The time during the cooking zone is heated with full power is depending on the selected cooking level.

To activate this function the user have to select a cooking zone [E area], and then hold continuous cooking level on the slider [B area] for at least 3 sec.

After activation, the symbol R is displayed immediately and appears alternating with the cooking level value.

Below is indicated the Heat up automatic time for every power level:

Cooking level	Heat-up Automatic time (sec)
1	48
2 144
3 230
4 312
5 408
6 120
7 168
8 216
9 not available
P not available

To deactivate this function the user can change the cooking level.

- Bridge function:

Bridging of 2 cooking zones is the connection of 2 single cooking zones, so they can be controlled and will behave as one large cooking zone. This enables using cookware which has a larger bottom surface than a single cooking zone. In this hob the user can connect the first and the second cooking zone. (See the figure below)

If the user connect these two cooking zones, he/she should follow these indications for the pot size:

If bridge function is activated the Boost mode is not possible.

To activate and disable this function, the user have to select simultaneously both cooking elements [E1-E2 area].

(See the figure below)

Now, one display will show U and another one N.

•Warming function:

This function is used to keep cooked food warm. The warming level is between 0 and 1. To activate the warming level you have to select the zone [E area], and choose the power between 0 and 1 with the slider [B area]. The display will show:

To deactivate this function you have to change the power cooking level of that cooking zone.

In order to assure the food quality and for microbiological reasons the warm keeping time shall be as short as possible. The time limit for this function is two hours. The touch control switches automatically for this reason in stand-by mode after this time.

•Residual heat:

If the temperature of the cooking zone is still high (over 65^ ) after it has been switched off, the relative display will indicate the H symbol (residual heat). The symbol will only switch off when the burn risk is no longer present.

-Child Lock:

The keys could be locked to suppress unintended actions, by childrens or to cleaning the hob.

The switching off using ON/OFF key is also possible in locked state.

To activate this function the user have to press the E1 display [E1 area] and the Booster key [C area] simultaneously, then release and press E1 display [E1 area] again. This procedure must take place within 10 sec., otherwise the input will not be valid. If the operations is ok, all displays show L for locked (against unintentional activation). If a cooking zone is still hot L and H is displayed alternately as a warning.

The hob remains in a lock state until its release, even if the user turned it off, or disconnect the power supply. To deactivate the lock function, the hob must be switching on. The user have to press the E1 display [E1 area] and the Booster key [C area] simultaneously, followed by pressing only E1 display [E1 area] again. If all steps were performed in the correct order and within 10 sec. the locking is cancelled, and the hob is in stand-by mode. Otherwise, only the ON/OFF key can be pressed for switching off and the procedure must be repeated. The hob is switched on again by pressing the ON/OFF key and is displayed, now the user can start cooking.

- Timer:

The timer is available in two options:

• Stand alone timer
  • Cooking zone timers

One timer is available for each cooking zone, and one for stand alone timer. The timers can be used parallel. The maximum time value can be set to 99 min. Value less than 1 min. is indicated in seconds.

The Stand alone timer has the behavior of an egg timer. To active this function, ensure that no cooking zone has been selected, then press Timer select key [F area], now the user can set timer value on the slider [B area].

To deactivate this function, the user can set timer value to 0 or press the ON/OFF key [A area] twice.

The Cooking zone Timers can be used to switch off a cooking zone automatically after the set time has run out. To activate this function, the user can select the corresponding cooking zone, using E1 - E2 - E3 - E4 key [E area]; after that set a power level (greater than 0), and then press the Timer select key [F area], after that the user can set timer value on the slider [B area]. In case the timer is set and no cooking zone is activated within 10 sec., the displays [E area] are switched off.

To deactivate this function, the user can set time value to or switch off corresponding cooking zone (select the cooking zone, using E area, and move the slider, B area to ). If a timer runs out the alarm mode starts. The alarm can be stopped by any key operation.

- Pause function:

During active pause function no power will be emitted and cooking process is interrupted.

When at least one cooking zone is active, the heating elements may be switched off by pressing the Pause key [D area] for at least 1 sec, and in the display will show this symbol: //.

The programmed timers (also the stand alone timer) are stopped and not continued during the pause. Automatic Heat-up and Booster functions are also switched off on all cooking zones during pause activation. Unlike the Residual heat and Operating time limitation continue and are not stopped.

This function may be activated also if cooking zone specific errors occur, unlike if a general error occurs during the Pause the hob switches off.

The Pause mode can continue for max. 10 minutes, after which the hob turns off automatically.

In this 10 minutes (max time) the coooktop may be switched off at any time by the user with the ON/OFF key [A area].

To deactivate the Pause mode press the Pause key [D area], thereafter any other key (not the same again) has to be actuated for 10 sec. This recovers the conditions before the pause mode.

The led of the Pause mode [D1 area] is illuminated when the pause function is active, and blinking in two cases: during the waiting time for a second key be activated for ending the pause; and with recall function is possible after switching on again.

- Recall function:

By using the recall function the settings can be recovered quickly when the hob was switched off using the ON/OFF key [A area] accidentally.

The restorable informations are:

• Cooking levels of all cooking zones
- Minutes and seconds of active cooking zone related timers
• Heat-Up Automatic and Booster functions
- Child-lock
- Bridged zones

•Operation Time Limitation [Automatic Switch Off]:

The Operation Time Limitation is an additional safety feature to turn OFF cooking zone after certain time with no operation to the corresponding cooking zone by the user. The time after which the cooking zone is turned OFF is mentioned in the table below. Each user operation related to the cooking zone will reset this time limit.

Cooking level	Max. Operation time (h)
Warming level 2
1	6
2	6
3	5
4	5
5	4
6 1.5
7 1.5
8 1.5
9 1.5
P 5 min.

Information for household electric hobsIn acc. with regulation (EU) No. 66/2014
Model name/ identifier Eico 60 Fusion IF
Type of induction hob built-in
Number of cooking zones and/or areas 4
Heating technologyInduction cooking zones and cooking areas, radiant cooking zones.	1. = Induction2. = Induction3. = Induction4. = Induction
For circular cooking zones:diameter of useful surface area/mm cooking zoneFor non-circular cooking zones or areas: lenght and width of useful surface areaper electric cooking zone or areamm	1. = Octa2. = Octa3. = ∅ 1604. = ∅ 200
Energy consumption per cooking zone or area calculated per Kg (ECelectric cooking)Wh/Kg	1. = 189,72. = 189,73. = 1794. = 193,3
Energy consumption for the hob calculated per kg (ECelectric cooking) 187,9Wh/Kg

Eico 60 Fusion IF

Energy Saving Advice

For hobsAs far as possible, always prepare the food in pots and pans with lids to avoid unnecessary heat consumption.Choose a small pot for small quantities. A small pot uses less energy than a larger, underfilled pot.Cook with as little water as possible.Lower the heat level as soon as possible after boiling or browning.Use a pressure cooker to reduce the cooking time.

The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected

separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment.

The crossed-out dustbin symbol on the product reminds you of your obligation regarding separated waste collection. Consumers should contact their local public service or their local dealer for more information on the correct disposal of exhausted household appliances.

THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR EVENTUAL DAMAGES CAUSED BY BREAKING THE ABOVE WARNINGS. THE WARRANTY IS NOT VALID IN THE CASE OF DAMAGE CAUSED BY FAILURE TO COMPLY WITH THE ABOVE-MENTIONED WARNINGS.

ERROR CODE:

GENERAL TOUCH CONTROL ERROR

Error code	Description Remedy
ER03	Permanent use of keys; Touch Control switched off after 10 sec.	Water or cooking utensils on the glass; Clean the surface
ER20	Internal error in touch control Replace touch control
ER21	Over temperature	Let cooktop cool down Check heat partitioning for TC
ER22	Internal error in touch control Replace touch control
ER31	Variant detection error Download correct configuration
ER36	Internal error in touch control Replace touch control
ER40	Power supply voltage too low on secondary side	Check connected components for overload Replace touch control
ER47	LIN communication error Check	LIN cabling
EA	Communication error	Check cabling between touch control and power boardReplace touch controlReplace power board
U400	Overvoltage due to wrong connection	Turn off power supply voltage and connect cooktop properly

COOKING ZONE SPECIFIC ERRORS

Error code	Description Remedy
E2	Over temperature of cooking zone Allow cooking zone to cool down
E3	Inapplicable pot Use suitable pot
E4	Cooking zone does not exist, configuration data is incompatible
E5, E6	Error on filter board/generator Replace filter board/generator
E7	Unknown failure (master is not able to assign the failure code)
E8	Fan defective Replace far
E9	Temperature sensor defective Replace temperature sensor

YLEISIÄ TIETOJA

The timer is available in two options:

• Stand alone timer
• Konesone-timere

Det finnes en timer for hver kokesone, og en stand alone-timer. Timerne kan brukes samtidig. Den maksimale tidsverdien kan stilles inn til 99 min. Verdier lavere enn 1 min. er angitt i sekunder.
