Product Type	Freestanding Cooker
Brand	EICO
Model	80 IP
Width	80 cm
Depth	60 cm
Height	85-90 cm
Weight	Approx. 50 kg
Energy Source	Electric
Hob Type	Induction (4 cooking zones)
Oven Type	Electric fan-assisted
Oven Capacity	70 liters
Temperature Range	50°C - 250°C
Timer	Yes, with automatic shut-off
Child Lock	Yes
Cleaning	Enamel interior, easy-clean hob surface
Safety Features	Automatic shut-off, residual heat indicators, overheating protection
Warranty	2 years

Frequently Asked Questions - 80 IP EICO

How do I clean the induction hob?

Use a soft cloth and a mild cleaner designed for induction hobs. Avoid abrasive pads. Wipe spills immediately to prevent burning.

What cookware is compatible with induction hobs?

Only cookware with a magnetic base (e.g., cast iron, stainless steel). Test with a magnet; if it sticks, it works.

How do I set the oven timer?

Press the timer button, set the desired time using +/- controls, and confirm. The oven will shut off automatically when time expires.

Why is the oven not heating?

Check the power supply and ensure the oven is properly plugged in. Verify that the timer is set and the temperature is selected. If it still doesn't heat, contact support.

Can I use the oven and hob at the same time?

Yes, the hob and oven operate independently, so you can use both simultaneously without issues.

How do I activate the child lock?

Press and hold the child lock button for 3 seconds until an indicator appears. To unlock, repeat the process.

What should I do if the hob displays an error code?

Refer to the manual for error code meanings. Common fixes include resetting the appliance or ensuring cookware is properly placed.

How often should I clean the oven?

Clean the oven after every few uses to prevent buildup. Use the self-cleaning function if available, or wipe with warm soapy water.

What is the recommended installation clearance?

A minimum gap of 50 mm at the rear and 15 mm on each side is recommended for proper ventilation. Ensure the cooker is placed on a level surface.

How do I replace the oven light bulb?

Disconnect the power, remove the glass cover, and replace with a compatible bulb (e.g., 25W, 300°C rated). Reattach the cover and restore power.

USER MANUAL 80 IP EICO

induction eicoli'')nk

DK	INDUKTIONSKOGEPLADE Brugsanvisning
NO	INDUKSJONSKOKEPLATE Bruksveiledning
SE	INDUKTIONSHÄLL Betjäningsmanual
EN	INDUCTION GLASSCERAMIC COOKTOP User instructions
FI	INDUKTIOLIESITASO Käyttöohjeet

Eico 80 IP - LINK

Eico 80 IF - LINK

EIFW 80 - LINK

Four gray circles on a black background with a small scale bar at the bottom (no text or symbols)

Eico 80 IP - LINK

Eico 80 IF - LINK

EIFW 80 - LINK

Fig. 1

Eico 80 IP - LINK
Eico 80 IF - LINK
EIFW 80 - LINK

Fig. 7

4 Zone
Land Mains Connection Cable diameter Cable Protection calibre
DK S	400V~50/60 Hz	2 Ph + N	4 x 1.5 mm ^2	H 05 VV - FH 05 RR - F	16 A*
NO	230V~50/60 Hz	2 Ph	3 x 2.5 mm ^2	H 05 VV - FH 05 RR - F	25 A*
DK S	230V~50/60 Hz	1 Ph + N	3 x 2.5 mm ^2	H 05 VV - FH 05 RR - F	25 A*

(* ) calculated with the simultaneous factor following the standard EN 60 335-2-6/1990

KORT FÖRKLARING AV MONO-STYRNING MED IL- LUSTRATION

Mono-styrning

• Vertical 80 N Matt – Link

Induction Hob user instructions

EN

GENERAL INFORMATION

Carefully read this use and maintenance manual, where important information about installation, use and maintenance safety is provided. Keep this manual for future reference. Any installation operation (electric connections) shall be performed by specialized personnel, in compliance with all standards and regulations in force.

SAFETY WARNING

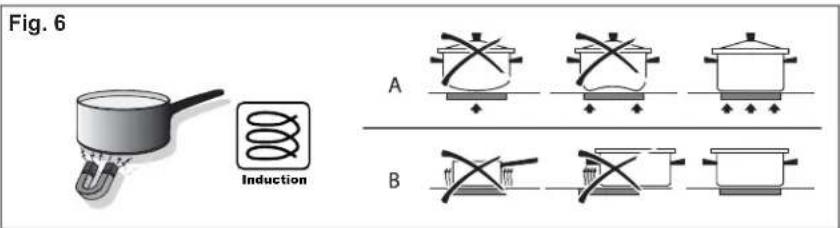

The use of flat-bottomed pots, with a diameter equal to or slightly bigger than the heated area, is recommended. (Fig.6). Do not use pots that have a rough base, in order to prevent the hob thermal surface from being scratched. This appliance is not intended for use by children or infirm people without supervision.

IMPORTANT

• Avoid the overflow of liquids by reducing the heat supply when boiling or warming liquids.
• Do not leave any heating element switched on, if there are no pots, or if the pots are empty.
• Once cooking is completed, turn the concerned heating element off, by using the control shown below.
• This appliance is not intended for use by people (children included) with limited physical, sensorial or mental abilities, or lacking of experience and knowledge, unless they are supervised or well instructed about the use of the appliance, by a person who is responsible for their safety.
• Children should be supervised to assure that they do not play with the appliance.
• If the hob surface is cracked, turn the appliance off and disconnect it from the electric network, so as to avoid the possibility of electric shock.

INSTALLATION INSTRUCTIONS

These installation instructions are intended for a specialized installer and are meant as guidelines for the hob installation, adjustment and maintenance, in compliance with any regulations and standards in force. If a built-in oven or any other appliance generating heat is to be mounted directly under the vitro-ceramic hob, IT IS NECESSARY THAT SUCH AN APPLIANCE (the oven) AND THE VITRO-CERAMIC HOB ARE PROPERLY INSULATED. Failure to comply with this precaution might result in the incorrect operation of the TOUCH CONTROL system.

- Positioning:

This household appliance has been designed for built-in installation onto a worktop, as shown in the figure (Fig.1). Use sealing material along the whole perimeter (Fig.2) (Cut dimensions- Fig.1). This operation is necessary in order to prevent any liquid from entering inside the hob, being that the flatness of the top, the glass and their coupling cannot be assured. Fix the appliance on the worktop by using the 4 supports, taking the work top thickness into account (Fig.4). If, after installation, the lower part of the appliance is accessible from the lower part of the cabinet, it will be necessary to mount a spacing panel at the distances given (Fig.3). If the appliance is installed under an oven, this step will not be necessary.

• Electric connections (Fig.5):

• The installation of this appliance and the connection to the electrical network should be entrusted only to an electrician perfectly to the fact of the normative regulations and which respects them scrupulously.
• Protection against the parts under tension must be ensured after the building-in.
• The data of connection necessary are on the stickers place on the hob casing near the connection box.
• The connection to the main must be made using an earthed plug or via an omnipolar circuit breaking device with a contact opening of at least 3 mm.
• The electrical circuit must be separated from the network by adapted devices, for example: circuit breakers, fuses or contactors.
• If the appliance is not fitted with an accessible plug, disconnecting means must be incorporated in the fixed installation, in accordance with the installation regulations.
• The cord must be positioned so that it does not touch any of the hot parts of the hob or even.

Caution!

This appliance has only to be connected to a network 230 V\~50/60 Hz.

Connect always the earth wire.

Respect the connection diagram.

The connection box is located underneath at the back of the hob casing. To open the cover use a medium screwdriver. Place it in the slits and open the cover.

Caution!

Be careful that the cables are correctly engaged and tightenet.

We cannot be held responsible for any incident resulting from incorrect connection or which could arise from the use of an appliance which has not been earthed or has been equipped with a faulty earth connection.

USE AND MAINTENANCE

- Maintenance (Fig.8):

Remove any food residue and grease drops from the cooking surface, by using the special scraper provided on request.

Clean the heated area in the best way possible, using suitable products and a paper towel, then wipe with water and a clean cloth.

Through the use of the special scraper (optional), promptly remove any pieces of aluminum foil and plastic material, which might have accidentally melted, or sugar or food remains, and/or remains of sugary foods, from the heated surface. In this way, any possible damage to the surface is prevented.

The use of abrasive sponges or irritating chemical cleaners, such as sprays for ovens or cleaning agents is not allowed under any circumstance.

- Use:

Use the touch control system in the corresponding position according to individual cooking needs. Keep in mind that the higher the number, the more heat is produced.

• Function (Fig.7):

A - On/Off key

B - Cooking zone selection key and display

C - Slider key (increase and decrease power level)

D - Keep warm key

E - Booster key

F - Timer key

- Switching the cooking top on:

Press key A (ON/OFF) to switch the top on and on all the display will show the symbol , with a led point blinking. The control unit remains active for 10 seconds. If no cooking zone is selected within this time, the cooking top switches off automatically.

- Pan detection:

The pan detection ensures a perfect safety, this induction doesn't work if no cookware is the cooking zone. cookware is removed, the display shows the symbol and disappear when the cookware is repositioned on the cooking zone, continuing with the previous settings. After use, always bring power to 0 (do not leave the active symbol). If the symbol should appear on one of the cooking area displays, it means that:

1) The recipient being used is not suitable for induction cooking.

2) The diameter of the recipient used is inferior to that allowed by the appliance.

3) No recipient is present.

MODEL	POSITION	DIAMETER	MINIMUM DIAMETER DETECTION
Eico 60 IF EIFW 60	Front left	180 mm	100 mm
	Rear left	210 mm	110 mm
	Rear right	210 mm	110 mm
	Front right	180 mm	100 mm
Eico 70 IF EIFW 70	Front left	210 mm	110 mm
	Rear left	210 mm	110 mm
	Rear right	210 mm	110 mm
	Front right	210 mm	110 mm
Eico 80 IF EIFW 80	Front left	260 mm	120 mm
	Rear left	180 mm	100 mm
	Rear right	180 mm	100 mm
	Front right	210 mm	110 mm

- Switching the cooking area on:

Press key B (select zone) for select the desired cooking, on the activate zone the display will indicating the activation of the plate and will be given a ☐ with the led point fixt.

To select the power with the slider E, slide your finger on the slider zone. You can already have a direct access if you put your finger directly on the chosen level.

The power of the single cooking zone can be adjusted in 9 different positions and will be shown on the relative luminous display with a number from "1 to 9".

- Control panel lock:

You can lock the controls to prevent the risk of unintentional changes (cleaning, etc.). Switch on the cook top with A key.

Press simultaneously the display B in the lower right corner and the E key, after the beep, press again the display B in the lower right corner. All displays B will show the symbol I.

To temporarily unlock, press simultaneously the dispaly B in the lower right corner and press E key for 3 seconds, wait for the beep, you can now use the hob, turned off and restart the next block will be restored.

To unlock the touch control, press simultaneously the display B in the lower right corner and the E key, after the beep, press the E key again. All displays will show the letter and the hob will switch off.

- Residual heat:

If the temperature of the cooking zone is still high (over 50°) after it has been switched off, the relative display B will indicate the H signal (residual heat).

The signal will only switch off when the burn risk in no longer present.

- Switching the cooking area off:

To switch a cooking zone off, press simultaneously the C (-) and key D (+) of the relative zone, or press the key C (-) until reaching position .

- Switching off the hob:

To turn off the appliance entirely hold down the A (On/Off) key.

- Keep warm function:

The hob has two programs with pre-set temperatures for Maten food warm, the first program has a temperature of 42 degrees while the second has a temperature of 70 degrees.

To set this function, select the desired cooking zone with the B button then press D. Setting the program on the display 42 degrees, which is above the D key, the symbol will appear in the display and below a line ,while pressing the D key will be set to 70 degrees and the program will be displayed and a line below

- Booster function:

The booster function grants a boost of booster to the select cooking zone. Booster is foreseen for example to heat up rapidly big quantities of water and work during 10 minutes.

To activate it select the cooking zone and slide your finger to increase the power level that press the E key and the display will show the symbol P.

• Automatic cooking function:

All the cooking zone are equipped with an automatic Go & Stop cooking device. The cooking zone starts at full power during a certain time, than reduces automatically its power on the preselected level.

Select the required cooking zone and act on the slider

until you get to level 9, by pressing the + button will appear in the letter R. Once inserted the function by acting on the slider you can reduce the evel of power, then you will see alternating on the display of the cooking zone letter R and its set power level.

- Stop & Go function:

This function enables to temporarily stop cooking on each cooking zone and reactivate it with the same amount of power previously selected.

To enable this feature, when you select a cooking zone and set the power level, press the B button on the top left and top right, you will see two symbols. To disable this feature, press the same buttons again.

- Recall function:

If, during operation, you accidentally turn off the cooker, you can recall the last setting. To enable this feature (move quickly), turn the hob using the A button On / Off and then simultaneously press the rear cooking zones.

- Timer :

This feature allows you to set the time (from 1 to 99 minutes) to automatically turn off the cooking zone selected. Activate a cooking area and adjust the power. Enable the timer on the display by pressing F. The display will show the symbol ☐ and the LED on the selected zone set on one corner of the F display will flash. Scroll bar slider CIF set the desired value (eg 3 min.), Press display which will display the scroll bar slider back and set the desired value (eg, 23min.) On the display and confirm by pressing F If you wish to confirm a time less than 10min timer. (eg 3 min.) Confirm by pressing twice on the display F. The timer will automatically turn off the cooking area and you will hear a beep that can be turned off by pressing any of the commands

- Egg Timer / Reminder:

This feature allows you to set a reminder sound.

To access this feature none of the cooking areas shall be in operation. Turn on the stove using the A button, activate the timer by pressing the display area F and adjust any time between 1 to 99 minutes as described in the previous paragraph TIMER. After confirmation of the memorandum, the LED will remain active on the F key and the display with the time previously set. At this point you can turn back the hob with the A button and adjust the cooking zones. When the timer expires you will hear a beep that can be turned off by pressing any of the commands. With the reminder you can not access the active timer.

- Safety switch:

The appliance has a safety switch that automatically switches off the cooking zones when they have been operating for a certain amount of time at a given power level.

POWER LEVEL	OPERATING TIME LIMIT (hours)
1	10
2 - 3	5
4	4
5	3
6 - 7 - 8	2
9	1

IMPORTANT INFORMATION REGARDING EICOLINK WITH MONO-CONTROL ON THE HOB

Generally

1) A small delay of reaction on the hood can occur, compared with the users commandoes at the hood control on the hob
2) The hood control will first react on the command, when the finger leaves the hood control key on the hob
(3) Very long press on the hood control key on the hob ( ) for about 4 sec., turns the hood's motor ON and OFF
4) Short press on the hood control key on the hob ( ) switches the light in the hood ON and OFF
5) Longer press on the hood control key on the hob ( ), where the LED above the control illuminates, after which the finger is removed immediately, the speed level of the hood's motor will change
6) The motor speed is operated in loop, when the hood control key on the hob ( ) is used, ie. speed level 1 - 2 - 3 - 4 - 3 - 2 - 1 - 2 - 3 - 4 etc.
7) The hoods own control or remote control, if connected with the hood, will always be the MASTER, in relation to the hood control on the hob (

This means that if you first use the hood control on the hob ( ), for starting the hood on for example level 2 or to switch off the hood, and then use the hood's own control or remote control to change the speed up or down, or to turn the hood ON or OFF, the hood control on the hob will not detect this, and will therefore remain unchanged registration of the speed level or if the hood's motor is switched ON or OFF.

Specific regarding Ceiling Panel

1) The dimmer function of the light in the hood, can only be operated from the enclosed remote control

SHORT EXPLANATION OF THE MONO-CONTROL WITH ILLUSTRATION

Mono-control

A ON / OFF key > Very long press for about 4 sec., turns the hood's motor ON and OFF

A - Light key > Short press switches the light in the hood ON or OFF
A - Speed selection > Longer press, where the LED (B) above the A-key illuminates, after which the finger is removed immediately, the speed level of the hood's motor will change
B – LED > Only figures as point of guide lighting regarding the control of the hood from the hob

EICOLINK INSTALLATION FOR HOB WITH MONO-CONTROL CONTROLLING THE HOOD

For following hood models • Ceiling Stripe

• Distante
  • ElcoE22

• Skyframe

• Unplug the power supply from the hob, wait 2 minutes

• Switch power to the hob back on, and 🎨 icon is activated at the control panel
• Press on/off 🎯 on the hob control panel. The diode at the cooker hood must flash twice. If it flashes 3 times, press the 🔺 icon again until it only flashes twice. Let the light in the control panel turn off
• Unplug the power supply from the hood, wait 3-5 minutes, switch power to the hood back on and wait 5-10 seconds
• Press and hold the on/off button on the hood for 4-6 sec. Release and the LED on the hood flashes
• When flashing, press on/off 📋 icon on the hob control panel
• Now Eicolink is active, and the hood can be operated from the hob

Please note, in case of failure or lack of the power supply to the hob, repeat the above described connection between the hob and the hood.

You have also the opportunity to visit our website www.eico.eu and watch the video guide.

For following hood models

- Iris

1. Unplug the power supply from the hob, wait 2 minutes

2. Switch power to the hob back on, and 📞 icon is activated at the control panel

3. Press on/off 🎨 on the hob control panel. The diode at the cooker hood must flash twice. If it flashes 3 times, press the 🔊 icon again until it only flashes twice. Let the light in the control panel turn off
4. Unplug the power supply from the hood, wait 3-5 minutes, switch power to the hood back on and wait 5-10 seconds
5. Press and hold the on/off button on the hood until the light ring around the button flashes. Then release the button
6. When the light ring flashes, press the on/off icon on the hob control panel
7. Now Eicolink is active, and the hood can be operated from the hob

Please note, in case of failure or lack of the power supply to the hob, repeat the above described connection between the hob and the hood.

You have also the opportunity to visit our website www.eico.eu and watch the video guide.

For following hood models

•Romeo

•Hamlet

1. Unplug the power supply from the hob, wait 2 minutes

2. Switch power to the hob back on, and 📤 icon is activated at the control panel

3. Press on/off 🎨 on the hob control panel. The diode at the cooker hood must flash twice. If it flashes 3 times, press the 🔺 icon again until it only flashes twice. Let the light in the control panel turn off

4. Unplug the power supply from the hood, wait 3-5 minutes, switch power to the hood back on and wait 5-10 seconds

5. Press and hold the + button on the cooker hood until the led E flashes on the cooker hood, then release the button

6. When the symbol flashes in the cooker hood display, press the on/off icon on the hob control panel

7. Now Eicolink is active and the hood can be operated from the hob

Please note, in case of failure or lack of the power supply to the hob, repeat the above described connection between the hob and the hood.

You have also the opportunity to visit our website www.eico.eu and watch the video guide.

For following hood models

• Aida
- Modena
1. Unplug the power supply from the hob, wait 2 minutes
2. Switch power to the hob back on, and 📤 icon is activated at the control panel

1. Press on/off 🎨 on the hob control panel. The diode at the cooker hood must flash twice. If it flashes 3 times, press the 🔊 icon again until it only flashes twice. Let the light in the control panel turn off
2. Unplug the power supply from the hood, wait 3-5 minutes, switch power to the hood back on and wait 5-10 seconds
3. Press and hold the + button on the cooker hood until the led flashes on the cooker hood, then release the button
4. When the LED on the cooker hood flashes, press the on/off icon on the hob control panel
5. Now Eicolink is active and the hood can be operated from the hob

Please note, in case of failure or lack of the power supply to the hob, repeat the above described connection between the hob and the hood.

You have also the opportunity to visit our website www.eico.eu and watch the video guide.

For following hood models

• Cloud 100
  • EicoE19
  • EicoE20
  • EicoE24
  • EicoE27
  • EicoE30
  • EicoE35
• Eclipse
  • Luna
• PVH8060LINK
  • PVH8080LINK
  • Q-BIC

• Square
  • Vertical 80 N Matt – Link

• Unplug the power supply from the hob, wait 2 minutes

• Switch the power to the hob back on, and 📞 icon is activated at the control panel
• Press on/off 📋 on the hob control panel. The diode at the cooker hood must flash twice. If it flashes 3 times, press the 🔊 icon again until it only flashes twice. Let the light in the control panel turn off
• Unplug the power supply from the hood, wait 3-5 minutes, switch on the power supply again
• Within 5 sec. press and hold light button - on the remote, until the light on the hood turns on, release the button and press the engine ▲ button once
• Wait 10 seconds and the remote control is connected
• Unplug the power supply from the hob, wait 2 minutes
• Switch the power to the hob back on, and 📤 icon is activated at the control panel

• Press on/off ☐ on the hob, the control panel must flash 3 times, if it flashes twice, then press the ☐ button again, until it flashes 3 times

• Before the light turns off, grab the remote control, press and hold the light button the control panel for the cooker hood now flashes on the hob. When the control panel stops flashing, release the light button on the remote control (Note: the hood lightning will flash during this process, which is correct)

• Wait 10 seconds now Eicolink is active and the hood can be operated from the hob

Please note, in case of failure or lack of the power supply to the hob, repeat the above described connection between the hob and the hood.

You have also the opportunity to visit our website www.eico.eu and watch the video guide.

For following hood models

• Como
  • EicoE31

• Frame
  • Mat

• Unplug the power supply from the hob, wait 2 minutes

• Switch power to the hob back on 🎨 icon is activated at the control panel

• Press on/off ☐ on the hob control panel, the control panel must flash twice. If it flashes 3 times, then press the 🔊 icon again until it only flashes twice. Let the light in the control panel turn off
• When the light 📷 on the hob control panel turns off, the power supply must be switch on the hood
• Connect the power supply to the hood and wait 5 seconds
• Within 60 seconds press and hold 1 and 2 on the hood control panel for 3-5 seconds. When released, 1 and 2 will flash on the hood control panel
• Press on/off 📤 icon on the hob control panel
• Now Eicolink is active and the hood can be operated from the hob

Please note, in case of failure or lack of the power supply to the hob, repeat the above described connection between the hob and the hood.

You have also the opportunity to visit our website www.eico.eu and watch the video guide.

For following hood models

• ElcoE29

1. Unplug the power supply from the hob, wait 2 minutes
2. Switch power to the hob back on 🎨 icon is activated at the control panel
3. Press on/off ☐ on the hob control panel, the control panel must flash twice. If it flashes 3 times, then press the 🔊 icon again until it only flashes twice. Let the light in the control panel turn off

4. When the light 📷 on the hob control panel turns off, the power supply must be switch on the hood

5. Connect the power supply to the hood and wait 5 seconds

6. Within 60 seconds press on/off Ⓘ on the hood control panel
7. Press "T" with the LED flashes above on the hood control panel
8. Press on/off 📤 icon on the hob control panel
9. Now Eicolink is active and the hood can be operated from the hob

Please note, in case of failure or lack of the power supply to the hob, repeat the above described connection between the hob and the hood.

You have also the opportunity to visit our website www.eico.eu and watch the video guide.

For following hood models

• EicoE32

1. Unplug the power supply from the hob, wait 2 minutes

2. Switch power to the hob back on 📋 icon is activated at the control panel

3. Press on/off ☐ on the hob control panel, the control panel must flash twice. If it flashes 3 times, then press the 🔊 icon again until it only flashes twice. Let the light in the control panel turn off

4. When the light on the hob control panel turns off, the power supply must be switch on the hood

5. Connect the power supply to the hood and wait 5 seconds

6. Within 60 seconds, press the < button on the remote control 4 times

7. The light on the hood "flashes" twice within 3 seconds

8. Press on/off icon on the hob control panel

9. Now Eicolink is active and the hood can be operated from the hob

Please note, in case of failure or lack of the power supply to the hob, repeat the above described connection between the hob and the hood.

You have also the opportunity to visit our website www.eico.eu and watch the video guide.

For following hood models

• EicoE33

1. Unplug the power supply from the hob, wait 2 minutes
2. Switch power to the hob back on 📤 icon is activated at the control panel
3. Press on/off ● on the hob control panel, the control panel must flash twice. If it flashes 3 times, then press the ● icon again until it only flashes twice. Let the light in the control panel turn off
4. When the light 📤 on the hob control panel turns off, the

power supply must be switch on the hood

1. Connect the power supply to the hood and wait 5 seconds
2. Press + on the hood control panel until the symbol flashes in the display on the hood control panel
3. Press on/off 📤 icon on the hob control panel
4. Now Eicolink is active and the hood can be operated from the hob

Please note, in case of failure or lack of the power supply to the hob, repeat the above described connection between the hob and the hood.

You have also the opportunity to visit our website www.eico.eu and watch the video guide.

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected

separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment.

The crossed-out dustbin symbol on the product reminds you of your obligation regarding separated waste collection. Consumers should contact their local public service or their local dealer for more information on the correct disposal of exhausted household appliances.

THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR EVENTUAL DAMAGES CAUSED BY BREAKING THE ABOVE WARNINGS. THE WARRANTY IS NOT VALID IN THE CASE OF DAMAGE CAUSED BY FAILURE TO COMPLY WITH THE ABOVE-MENTIONED WARNINGS.

Information for household electric hobsIn acc. with regulation (EU) No. 66/2014
Model name/ identifier	EICO 80 IP-LINKEICO 80 FUSION IQWP - LINKEICO 80 FUSION EIQWF - LINK
Type of hob built in
Number of cooking zones and/or areas	4
Heating technologyInduction cooking zones and cooking areas, radiant cooking zones.	1. = Induction2. = Induction3. = Induction4. = Induction
For circular cooking zones:diameter of useful surface area/mm cooking zoneFor non-circular cooking zones or areas: lenght and width of useful surface area per electric cooking zone or areamm	1. = ∅ 2602. = ∅ 1803. = ∅ 1804. = ∅ 210
Energy consumption per cooking zone or area calculated per Kg (ECelectric cooking)Wh/Kg	1. = 191,002. = 171,003. = 171,004. = 171,00
Energy consumption for the hob calculated per kg(ECelectric cooking)Wh/Kg	176,00

EICO 80 IP - LINK

EICO 80 IF - LINK

EIFW 80 - LINK

Energy Saving Advice

For hobsAs far as possible, always prepare the food in pots and pans with lids to avoid unnecessary heat consumption.Choose a small pot for small quantities. A small pot uses less energy than a larger, underfilled pot.Cook with as little water as possible.Lower the heat level as soon as possible after boiling or browning.Use a pressure cooker to reduce the cooking time.
