Product Type	Cylinder vacuum cleaner
Model	Aquos ZVC722ZK
Brand	Zelmer
Dimensions (L x W x H)	410 x 280 x 330 mm
Weight	5.2 kg
Power Supply	220-240 V, 50-60 Hz
Rated Power	700 W
Suction Power	Adjustable, max 400 Air Watts
Dust Container Capacity	2.5 L (bagless)
Filtration System	HEPA 13 exhaust filter, washable
Noise Level	approx. 78 dB(A)
Cord Length	7 m
Operating Radius	9 m (with hose)
Included Accessories	Floor nozzle, crevice tool, upholstery brush, dusting brush
Main Functions	Dry vacuum cleaning for carpets and hard floors
Maintenance	Empty dust container after each use; clean filters every 3 months
Safety Features	Thermal overload protection, automatic cord rewind
Spare Parts Availability	Filters, hose, nozzles available from Zelmer service
Repairability Index	7.5 / 10
General Information	Energy class: A; suitable for pet hair

Frequently Asked Questions - Aquos ZVC722ZK Zelmer

How do I empty the dust container?

Press the release button on the top of the container and remove it. Hold it over a bin and press the bottom release to empty. Wash with cold water if needed.

How often should I clean the HEPA filter?

Clean the HEPA filter every 3 months by tapping it gently or washing under running water. Allow 24 hours to dry before reinstalling.

What should I do if the vacuum loses suction?

Check if the dust container is full, filters are clogged, or there is a blockage in the hose or nozzle. Clean or replace as necessary.

Can I use the vacuum on hard floors?

Yes, the included floor nozzle is suitable for hard floors. You can also adjust the suction power to a lower setting for delicate surfaces.

How do I rewind the power cord?

Hold the plug and press the cord rewind button on the vacuum body. Guide the cord gently to avoid whipping.

What accessories are included?

The Aquos ZVC722ZK comes with a floor nozzle, crevice tool, upholstery brush, and dusting brush.

Is the vacuum suitable for pet hair?

Yes, the powerful suction and brush nozzle help remove pet hair from carpets and upholstery. Clean the brush regularly.

What does the thermal protection do?

If the vacuum overheats, it automatically shuts off. Unplug and let it cool for at least 30 minutes before restarting.

Where can I buy spare filters?

Spare filters are available from Zelmer service centers, authorized dealers, or online stores. Use genuine parts for best performance.

How do I store the vacuum?

Wrap the cord around the hooks, attach the accessories to the parking aid, and store upright in a dry place.

USER MANUAL Aquos ZVC722ZK Zelmer

Black and white photo of a Zelmer vacuum cleaner (no visible text or symbols on body)

PL INSTRUKCJA UŻYTKOWANIA ODKURZACZ 6–10
CZ NÁVOD K POUŽITÍ VYSAVAČ 11–15
SK NÁVOD NA OBSLUHU VYSÁVAČ 16–20
HU HASZNÁLATI UTASÍTÁS PORSZÍVÓK 21–25
RO INSTRUCTIUNI DE UTILIZARE ASPIRATORUL 26–30

RU ИНСТРУКЦИЯ ПО ЭКСПЛУАТАЦИИ ПЫЛЕСОС 31–36
BG ИНСТРУКЦИЯ ЗА УПОТРЕБА ПРАХОСМУКАЧКА 37-42
UA ІНСТРУКЦІЯ З ВИКОРИСТАННЯ ПИЛОСОС 43–48
KZ ПАЙДАЛАНУШЫ НУСКАУЛЫFЫ ШАНСОРФЫШ 49–54
EN USER MANUAL VACUUM CLEANER 55–59

ZVC722...

ODKURZACZ

пылесос

/ vacuum cleaner

zelmer

Black and white photo of a Zeimer vacuum cleaner on tiled floor, no visible text or symbols on device or background

A

E

Hand placing a lid into a stainless steel appliance with a curved arrow indicating rotation (no text or symbols visible)

Close-up of a hand placing a component into a bucket, with an arrow indicating the motion (no text or symbols visible)

Top-down view of a white plastic toilet or sink with a central vent and handle (no text or symbols visible)

Close-up of a mechanical component with a metallic clip and handle, no visible text or symbols

Person pouring liquid from a glass container into a kitchen appliance (no text or symbols visible)

Close-up of a hand using a vacuum cleaner to lift a component (no visible text or symbols)

F

Close-up of hands holding a small object with an arrow indicating motion (no visible text or symbols)

Illustration of hands performing a medical procedure on a patient's abdomen (no text or symbols visible)

G

Close-up of hands operating a mechanical device with a cylindrical component and a curved arrow indicating motion (no visible text or symbols)

[Non-Text]

Illustration of a hand holding a cylindrical object with a metallic pipe above it (no text or symbols visible)

H

Person placing a device into a device with arrows indicating motion (no text or symbols visible)

Close-up of hands installing or adjusting a black helmet component (no visible text or symbols)

Illustration of a hand holding a glass with a metallic faucet (no text or symbols)

[Non-Text]

Close-up of hands installing or adjusting a black helmet component (no visible text or symbols)

I

Person placing a helmet on a device, with arrows indicating motion (no text or symbols visible)

Close-up of a hand holding a black vacuum cleaner device (no visible text or symbols)

Close-up of a hand pressing down on a mechanical component with an arrow indicating motion (no text or symbols visible)

[Non-Text]

Close-up of a hand pressing down on a mechanical device component (no visible text or symbols)

Close-up of a hand pressing down on a black robotic vacuum cleaner's air vent (no text or symbols visible)

Hand holding a mechanical device with a curved handle and two spherical components above it (no text or symbols visible)

》

Close-up of hands installing or adjusting a mechanical component with a ruler and arrow (no visible text or symbols)

[Non-Text]

Close-up of hands adjusting a mechanical component with an arrow indicating direction (no text or symbols visible)

Congratulations on your choice of our appliance, and welcome among the users of Zelmer products.

In order to achieve best possible results we recommend using exclusively original Zelmer accessories. They have been specially designed for this product.

Please read this instruction manual carefully. Pay special attention to important safety instructions. Keep this instruction manual for future reference.

Important safety instructions

DANGER! / WARNING!

Health hazard

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- Always the plug must be removed from the socket-outlet before cleaning, maintaining, assembling or dismantling the appliance.

- Turn off the device and unplug from an outlet before replacing the equipment or approaching moving parts during use.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Do not operate the appliance if it has a damaged cord or if the housing is visibly damaged.

- The appliance can only be repaired by qualified service personnel.

Improper servicing may cause a serious hazard to the user. In case of defects please contact a qualified service center.

- Do not touch the appliance with wet hands when it is connected to the mains supply.

- Do not use the vacuum cleaner to clean people or animals, pay special attention to keep the nozzles away from eyes and ears.

- Only use the appliance indoors at room temperature and up to 2000 m above sea level.

CAUTION!

Not observance can result in damage to possessions

Connect the vacuum cleaner only to a 230 V mains supply equipped with a 16 A fuse.

Do not unplug by pulling on cord.

Make sure the tubes and the hose are not clogged! Remove larger items that clog the appliance before operating the vacuum cleaner. If such items remain inside the suction tubes, it may cause damage to the motor or other parts of the appliance.

Do not allow the plug to have contact with water.

Do not run the vacuum cleaner or the brushes over the cord, it may cause damage to the cord insulation.

Do not pick up: matches, cigarette butts, hot ash. Avoid picking up sharp objects.

Do not vacuum fine dust such as: flour, cement, gypsum, toners for printers and copy machines etc.

Do not pick up corrosive and toxic materials, petrol, kerosene and other flammable or explosive liquids.

During operation pay attention not to knock the vacuum cleaner over or to spill water on the appliance.

During storage, the suction hose may be rolled up, but not bent.

Do not expose the vacuum cleaner to atmospheric conditions (rain, frost).

Do not use the vacuum cleaner without the foam filter installed in the filter unit.

During operation, do not remove the tank lid and do not take out the water filter unit from the tank.

Do not leave a switched on and operating vacuum cleaner unattended.

The vacuum cleaner may only operate in a natural position i.e. when it is placed with four wheels on the surface.

SUGGESTION 1 Information on the product and suggestions for its use

This appliance is intended for domestic use only.

Periodically clean the wheels. The dirt which accumulates on the wheel axis may cause difficulties in the wheel movement.

Move the vacuum cleaner carefully on doorsteps and uneven surfaces, not to cause an excessive rippling of the water inside the tank. This might lead to a slight water overflow.

Appliance features

The vacuum cleaner is designed to remove more than 2.5 litres of liquid, but it also vacuums dry surfaces and removes dust, fibres, threads and lint.

Technical parameters

The type of the vacuum cleaner and the technical parameters are indicated on the rating label. Mains protection 16 A.

Does not interfere with radio and TV reception.

Noise level: 86 dB(A).

VACUUM CLEANER TYPES

VIB\Workmanship and equipment option	Electronic power control	Dust bag/amount	Outlet filter	Suction tube	Combination brush	Small nozzle	Crevice nozzle	Small brush	Turbo brush	Parquet brush “BNB”	Water pick up nozzle
1	2	3	4	5	6	7	8	9	10	11	12
ZVC722ST	+	SAFBAG 1 piece	EPA E10	Telescopic	+	+	+	+	+	+	+
ZVC722SP	+	SAFBAG 1 piece	EPA E10	Telescopic	+	+	+	+	-	+	+
ZVC722ZK	-	SAFBAG 1 piece	EPA E10	Telescopic	+	+	+	+	-	-	+

Static electricity

In the process of vacuuming of some surfaces in areas of low air humidity the device may become electrically charged. It is a natural phenomenon – it does not damage the device, and it is not considered to be a fault.

In order to minimize the phenomenon, we recommend you to:

discharge the device by touching metal items in the room with the pipe,

increase air humidity in the room,

use widely available antistatic agents.

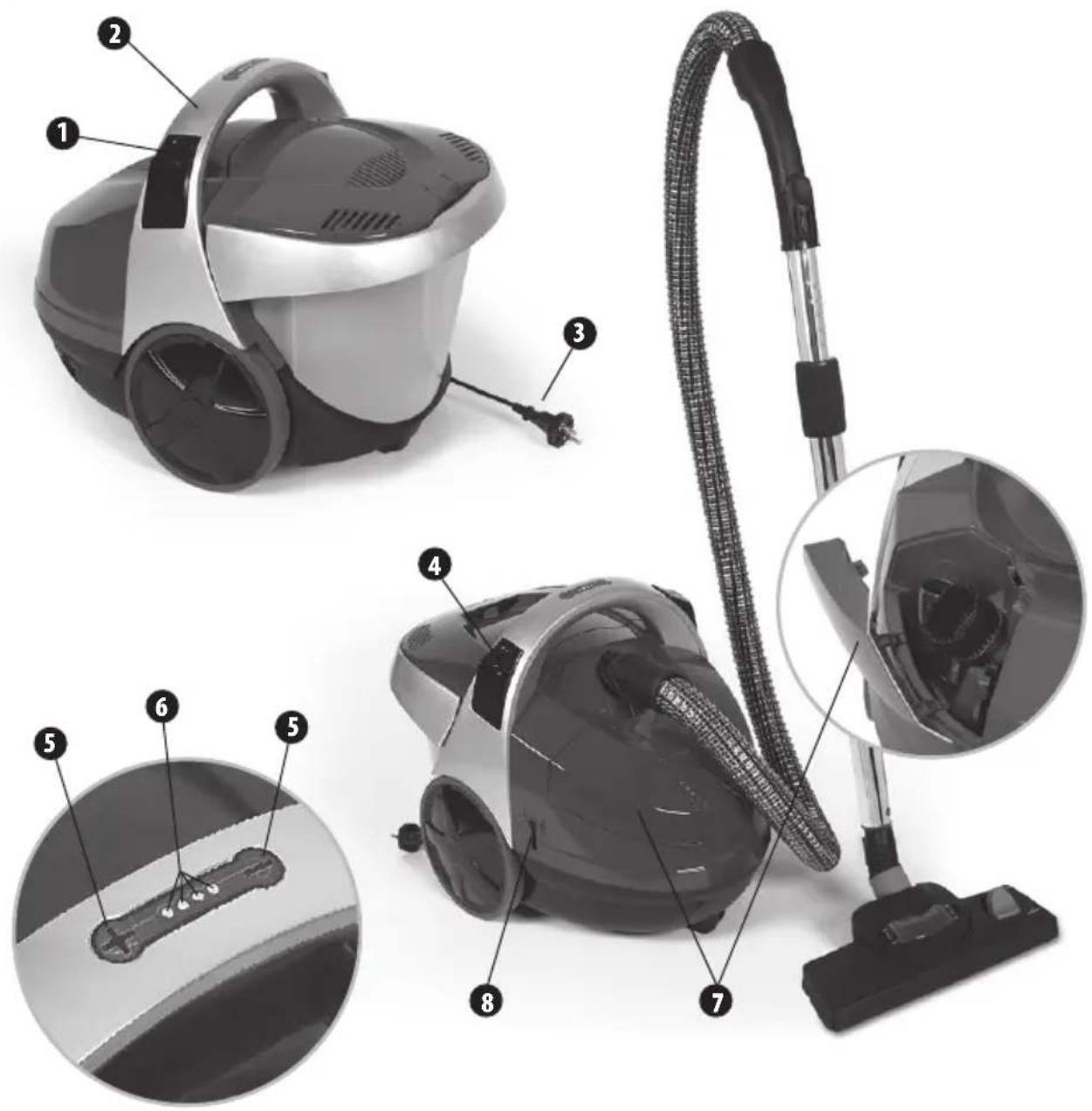

Appliance elements

1 ON/OFF button

2 Handle

3 Plug and cord

4 Cord rewind button

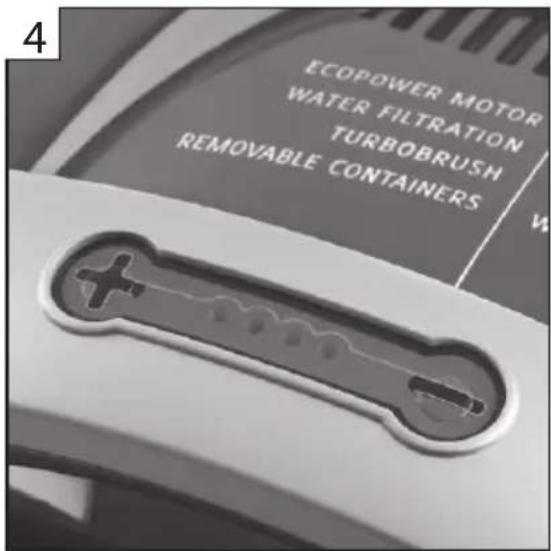

5 Power adjustment button ⊕,⊖ (type 829.0)

6 Power level indicator (type 829.0)

7 Accessory compartment cover

8 Combination brush fastening

9 Motor filter (installed in the vacuum cleaner)

10 Foam filter II (installed in the vacuum cleaner)

⑪ EPA E10 outlet filter (installed in the vacuum cleaner)

12 Foam filter III (installed in the vacuum cleaner)

13 Anti-foam agent

14 Foam filter I (installed in the vacuum cleaner)

15 Suction hose

16 Telescopic suction tube

17 Crevice nozzle

18 Small brush

19 Small nozzle

20 Water pick up nozzle

21 Parquet brush "BNB" (type 829.0)

Is used to clean and polish hard, scratch sensitive surfaces such as wooden floors, floor panels, parquet, marble, tiles, etc.

Delicate and soft natural bristles ensure maximum vacuum effectiveness and protects against scratching the cleaned surface.

22 Combination brush. The vacuum cleaner is equipped with only one type of combination brush (A or B)

Ⓐ Switchable combination brush

B Combination brush with a small item separator

23 Turbo brush (type 829.0 ST)
24 SAFBAG dust bag holder
25 Water filter module:

Ⓐ Filtration unit

B Partition

26 Container

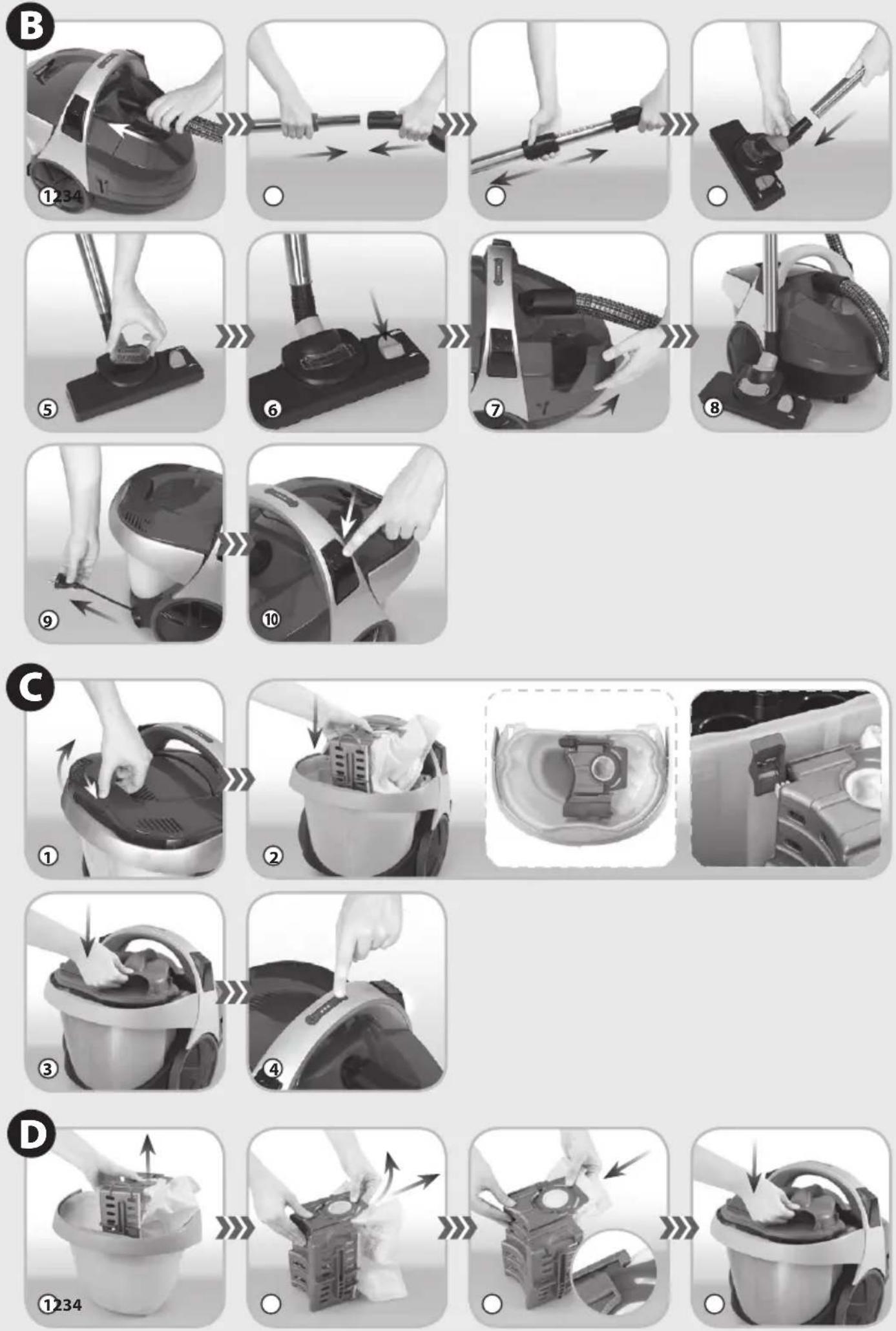

Preparing the vacuum cleaner for operation

① Insert the end of the suction hose to the vacuum cleaner opening so that the hose interlock is in the protrusion of the opening. A characteristic click indicates that the hose has been properly installed.
② Connect the other end of the hose (handle) with the telescopic suction tube.
③ Hold the ring on the pipe and set chosen length putting it in or out.
④ Assemble the appropriate nozzle or brush to the other end of the suction tube.
⑤ You may assemble a basket for picking up small objects in the combination brush with small item separator. In order to do so remove the basket cover and insert the basket.
⑥ To clean hard surfaces – wooden floors, plastic floors, ceramic tiles etc. pull out the brush by pressing the switch on the nozzle according to the figure ☐☐☐☐
⑦ The vacuum cleaner is equipped with an accessory compartment. The compartment is located in the front lid of the appliance. To open/close the compartment lift/close the lid and take out/put away the desired nozzle.
⑧ The vacuum cleaner may be stored in a horizontal position; in order to this, place the fastening hook of the combination nozzle/brush into its fastening. The hose may be left attached to the vacuum cleaner, but it is important to pay attention not to leave it heavily bent during storage.
⑨ Grab the plug (3) and pull the cord out of the vacuum cleaner.

Plug in the appliance.

Before operation, make sure that all filters as well as the appropriate module are installed in the appliance.

⑩ Switch on the vacuum cleaner by pressing the "on/off" button (1).

Vacuum cleaner functions

TRADITIONAL CLEANING WITH SAFBAG DUST BAG

① Press the "PRESS" button and remove the tank lid.
② Put the SAFBAG holder (24) into the container. Make sure the holder is inserted correctly in the container guide slots and the safety lock is engaged. Unfold the bag in the container.

water filter module/the dry filtration module with the SAFBAG dust bag may only be removed and inserted when the end of the hose is removed from the vacuum cleaner opening.

not put SAFBAG holder into a wet container. Thoroughly dry a wet container. SAFBAG dust bag must not get wet.

③ Cover the container with the filtration unit.

the SAFBAG holder is not attached properly, the safety lock will prevent covering the container with the filtration unit.

Prepare the vacuum cleaner for operation according to section B.

④ The vacuum cleaner starts up with default setting of the highest power range. One diode will light on the power level indicator (6). Set the desired power value (this function is only available in vacuum cleaners type 829.0) by pressing the power adjustment buttons +(5)

SAFBAG dust bag disassembly/assembly

① Remove the filtration unit from the container and pull out the SAFBAG holder (24).

The water filter module/the dry filtration module with the SAFBAG dust bag may only be removed and inserted when the end of the hose is removed from the vacuum cleaner opening.

② Lift the SAFBAG tab and slide the dust bag from the holder guide.
③ Slide the new SAFBAG tab all the way into the holder guide as directed by the arrow printed on the bag until tab locks in the guide.
④ Put the SAFBAG holder (24) in the container and cover with the filtration unit in accordance with paragraphs C2 and C3.

If the SAFBAG dust bag is not properly attached to the holder, the safety lock will prevent covering the container with the filtration unit.

VACUUM CLEANING WITH THE USE OF THE WATER FILTER MODULE

① Press the "PRESS" button and remove the tank lid.
② Insert the partition in the container. Make sure the partition is inserted correctly in the container guide slots and the safety lock is engaged.
③ Fill the container with 1,2 liter of water. The water level should be in the range marked on the tank wall.

Do not operate the appliance with container while vacuum cleaning with the use of the water filter module.

④ Cover the container with the filtration unit.

the partition is not inserted properly, safety lock will prevent covering the container with the filtration unit.

Prepare the vacuum cleaner for operation according to section B.

The vacuum cleaner starts up with default setting of the highest power range. One diode will light on the power level indicator (6). Set the desired power value (this function is only available in vacuum cleaners type 829.0) by pressing the power adjustment buttons (+, (5)).

Do not operate the appliance for without replacing the water in the case of long-term or very intensive vacuuming of large amounts of dirt, the water in the tank which constitutes the first filtration level may in whole or in a considerable part be absorbed by the dirt. In such a case, exchange the water and continue vacuuming.

Avoid vacuuming surfaces covered with substances which may favor an excessive foaming of the water inside the tank. If you notice that the water is heavily foamed, add a foam neutralizer recommended by the manufacturer of the appliance e.g. "G 478 Buz® Defoam" in the amount indicated on the packaging. It can be purchased in stores which offer ZELMER products or by mail order.

Vacuuming with the amount of water in the tank which exceeds the marked, permissible may cause the water to spill to the outside of the appliance. If this situation repeats often, it may lead to a fast clogging of the outlet EPA E10 filter.

e vacuum cleaner is equipped with which will automatically block the suction if the foam filter II (10) is heavily dirty or the exceeds the maximum level. In such switch off the vacuum cleaner by pressing the on/off button (1), unplug the appliance, the filter and empty the container.

PICKING UP WATER

If you want to use the vacuum cleaner to vacuum liquid, the vacuum cleaner should be prepared as in the case of vacuum cleaning with the use of the water filter module except that:

The container should be empty (without water).

You should use the nozzle for picking up water (20).

Do not operate the vacuum cleaner with a full container! Do not vacuum large amounts liquid at a time (e.g. with the hose into water).

If the water exceeds the maximum level during vacuuming, the float will automatically block the suction. The maximum capacity of the container is about 4,0 l. In such a case proceed in the manner described above in the part concerning the blocking of suction caused by a dirty foam filter.

End of operation cleaning and maintenance

Switch off the vacuum cleaner by pressing the on/off button (1) and unplug the appliance.
Wind the cord by pressing the cord rewind button (4). While doing this hold the cord to make sure it is not tangled and the plug does not hit the vacuum cleaner housing.
Press the interlock on the hose end and remove the hose from the opening.
Disconnect the telescopic tube from the hose and the nozzle or brush.

In case of vacuuming or picking up water with the use of the water filter module, remove the dirty water from the tank.

It is recommended to wash the container, filters (disassembly below) and partition thoroughly after each use – changing water several times.

If you do not clean the above-mentioned parts or clean them insufficiently it may lead to the loss of the filtration capabilities of the inserts and foam and cause the formation of bacteria and mites.

all the reassembly.

cleaned

parts thoroughly

before

Filter disassembly

FOAM FILTER I

① Open the lid of the filter unit – press the handle and lift the lid.
② Take out the filter, wash it under running water, dry and reinsert.

a Close the filter unit lid by pressing it until you hear a characteristic click.

clean FOAM FILTER II

It is recommended to wear rubber protective gloves while dismantling the filter.

① Grab the foam filter with your fingers and remove it from the filter unit body.
② Wash under running water, dry and reinsert.

Do not hand wash the filter foam, do not wring it, do not wash it in washing machines. Avoid crumpling, stretching and deforming. After cleaning dry the foam in room temperature of Never dry the foam on heaters, stoves, etc. immersed

MOTOR FILTER

A filtration fabric is inserted in the motor cooling cycle which is to catch the coal dust which arises due to the natural wear and tear of the brushes and the commutator in the motor.

① Remove the tank from the vacuum cleaner.

② Place the vacuum cleaner with the “wheels upwards” so that the upper sloping surface and the handle are rested on the floor. Insert a flat, narrow tool e.g. a screwdriver into the special slot of the filter lid; pry the fastening with an upward hand movement (lever principle) which will release the lid wwlatch while being bent.
③ If the motor filter (9) is dirty, it is possible to rinse the filter (9) under running water. Remember to dry the above mentioned filter before reassembly.
④ Insert the new/rinsed motor filter (9), make sure that the filter edges do not remain outside the outline of the section. Snap the filter lid shut by first inserting the lower fastening and then pressing the fastening so that the upper fastening clicks into place at the edge of the appliance body.

OUTLET EPA E10 FILTER AND FOAM FILTER III

The EPA E10 outlet filter should be replaced after about 30 hours of operation (6 months) or earlier in case of heavy dirt.

① Remove the tank from the vacuum cleaner.
② Place the vacuum cleaner with the “wheels upwards” so that the upper sloping surface and the handle are rested on the floor.
③ Slide the slider of the filter cover interlock to the "open" position and remove the filter lid.
④ Remove the foam filter III (12). Rinse or replace if the filter becomes dirty. Remember to dry the filter before reassembly.

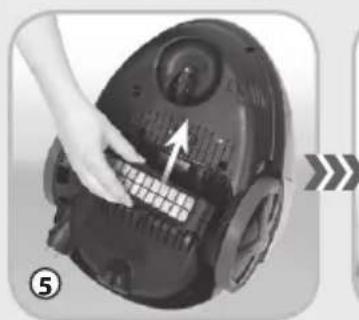

⑤ Remove the foam filter III (12) and next remove the EPA E10 filter by grabbing the handle. Replace with a new one if the filter becomes dirty.

It is recommended to periodically inspect the condition of the filter, especially if there was a water overflow to the outside of the vacuum cleaner. In case of detecting damage (a break) in the filter layer or if the layer is evenly covered with dust, the filter should be replace with a new one.

⑥ If the EPA E10 filter is dirty, replace it with a new one or rinse under running water. Remember to dry the filter before reassembly.
⑦ Reinsert the filters, insert the filter lid and press firmly.
⑧ Slide the slider of the filter cover interlock to the "closed" position.

Turn the vacuum cleaner to its natural position (on four wheels).

Disposal

Dispose of packaging in an environmentally-friendly manner. This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment – WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU. Please ask your specialist retailer about current disposal facilities.

The manufacturer does not accept any liability for any damages resulting from unintended use or inappropriate handling.

The manufacturer reserves his rights for modifying the product any time in order to adjust it to law regulations, norms, directives, or due to construction, trade aesthetic or other reasons, without notifying it in advance.

Close-up of a vacuum cleaner cleaning tiled floor with visible paint residue (no text or symbols)

Black-and-white photo showing a vacuum cleaner with coiled hose and cleaning tool, alongside a close-up of a small mechanical component (no visible text or symbols)
