Product Type	Electric Shaver
Brand	Zelmer
Model	SH1810
Power Supply	AC 100-240 V via adaptor
Battery Type	2 x Ni-MH 650 mAh
Charging Time	Approximately 60 minutes
Operating Time	Approximately 35 minutes on full charge
Battery Life	Approximately 4 years with weekly charging

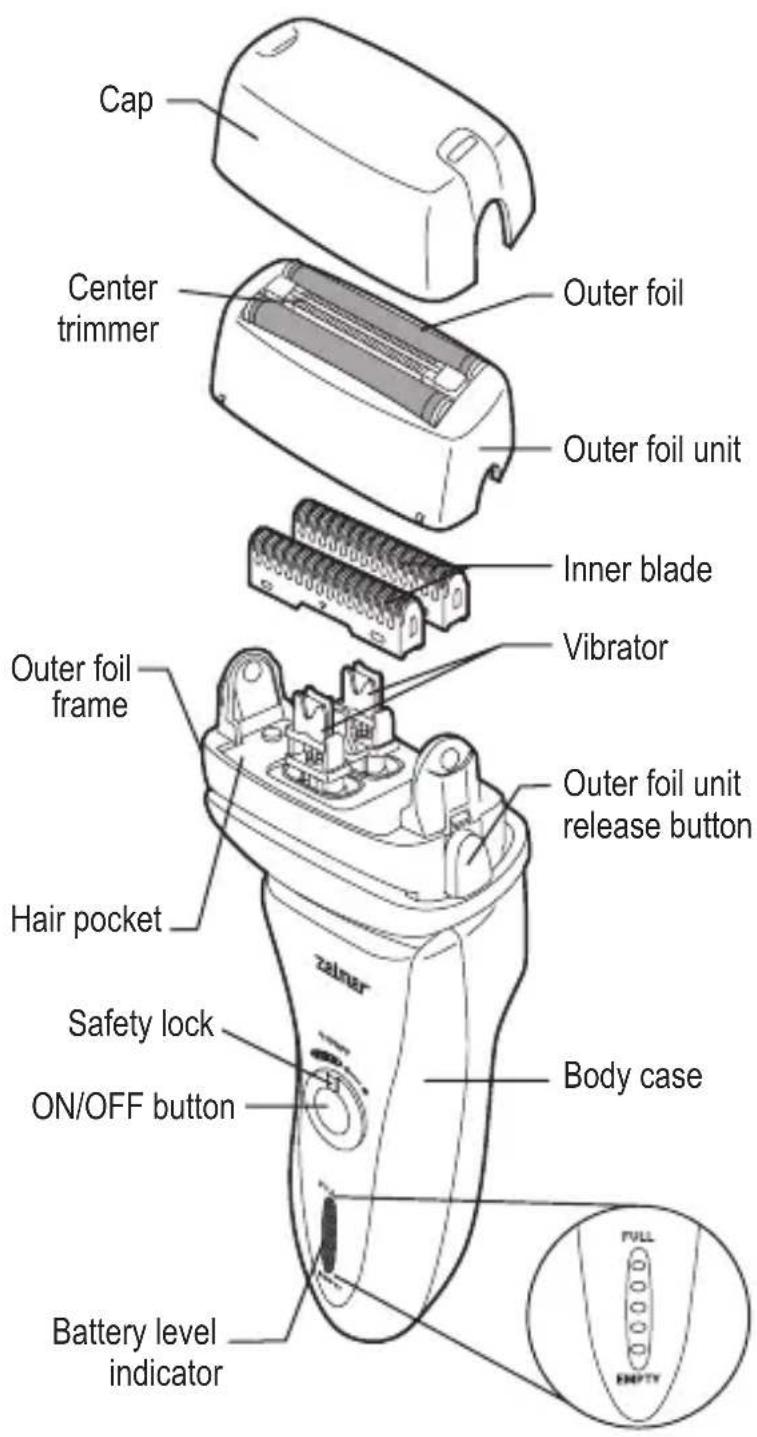

Shaving System	Foil and inner blade
Trimming Blade	Yes, pop-up

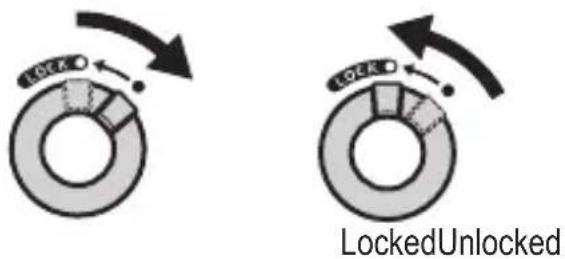

Safety Lock	Yes
Washable	Yes (when unplugged)
Wet/Dry Use	Can be used with soap/foam on battery only
Cleaning Method	Brush or rinse under running water
Replacement Parts	Outer foil and inner blade set (SH1810111)
Indicators	Battery level indicator (LED)
Operating Temperature	0-40°C
Dimensions (approx)	15 x 5 x 4 cm
Weight (approx)	200 g

Frequently Asked Questions - SH1810 Zelmer

How long does it take to fully charge the Zelmer SH1810?

The standard charging time is approximately 60 minutes. For first use or after long storage, charge for 8 hours to activate the battery.

Can I use the shaver while it is charging?

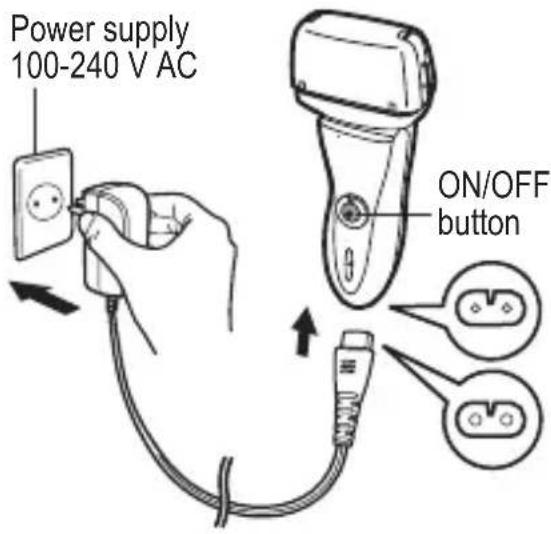

Yes, you can use the shaver with the AC power supply. However, when using on AC power, do not use soap or shaving foam. The battery will still discharge slowly, so recharge every three weeks.

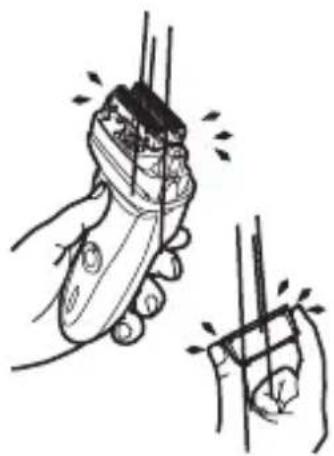

How do I clean the shaver?

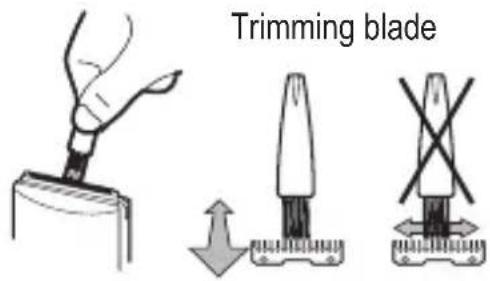

You can clean the shaver using the brush provided or rinse it under running water. For rinsing, remove the outer foil unit, turn on the shaver, and wash the blades in cold or lukewarm water. Dry thoroughly and apply shaver oil. Always unplug before cleaning.

When should I replace the outer foil and inner blade?

It is recommended to replace both the outer foil and inner blade as a set at least once a year. Replace immediately if you notice poor shaving performance, damage, or deformation. Use original Zelmer parts set SH1810111.

How can I maximize battery life?

To avoid the memory effect, fully discharge the battery before recharging. If you experience reduced usage time, discharge completely and recharge for 8 hours, repeating 2-3 times. If the issue persists, the battery may need replacement.

Is the shaver suitable for wet shaving with foam?

Yes, but only when operating on the rechargeable battery (not on AC power). After using with soap or foam, be sure to wash the shaver under running water and apply oil.

What does the battery level indicator mean?

During charging, lights flash and light up sequentially. After full charge, all lights flash. While shaving, lights go out one by one. When empty, the 'Empty' light comes on.

Can I travel with the shaver?

Yes, the adaptor accepts 100-240 V, so it can be used worldwide. Ensure the shaver is fully charged or pack the adaptor for corded use.

What should I do if the shaver makes an abnormal noise?

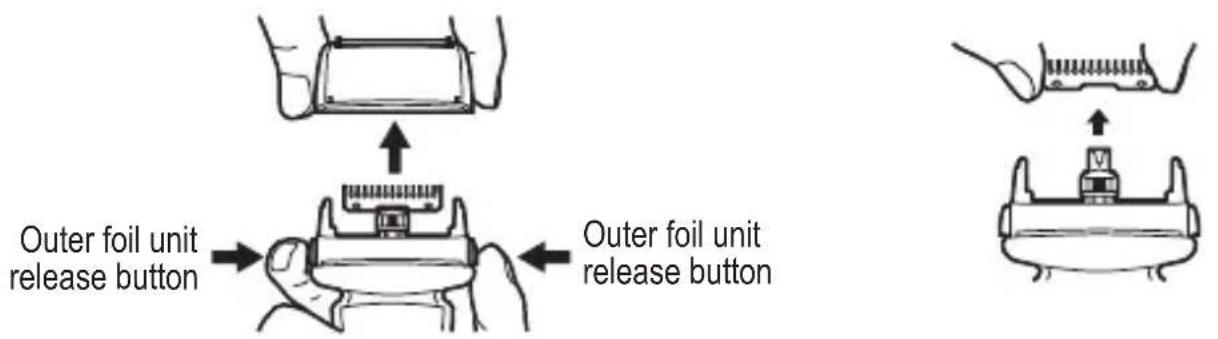

Abnormal noise may indicate that the outer foil unit is not fitted correctly. Turn off the shaver, remove and reseat the foil unit until you hear a click. Also check the blades for damage.

How do I dispose of the shaver and battery?

Do not dispose of the shaver in household waste. Bring it to an official recycling center. Batteries contain harmful substances and must be recycled separately. Follow local regulations.

USER MANUAL SH1810 Zelmer

Illustration of two hands holding a device with wires, no text or symbols present

Illustration of a hand holding a small object with arrows indicating movement or force (no text or symbols present)

Illustration of a hand holding a small electronic device with a close-up view showing the internal structure (no text or symbols)

Illustration of a hand holding a handheld electric shaver with motion lines indicating airflow (no text or symbols)

Diagram showing a hand holding a tool above a device with an arrow pointing to it (no text or symbols present)

Illustration of hands holding a small electronic component (no text or symbols visible)

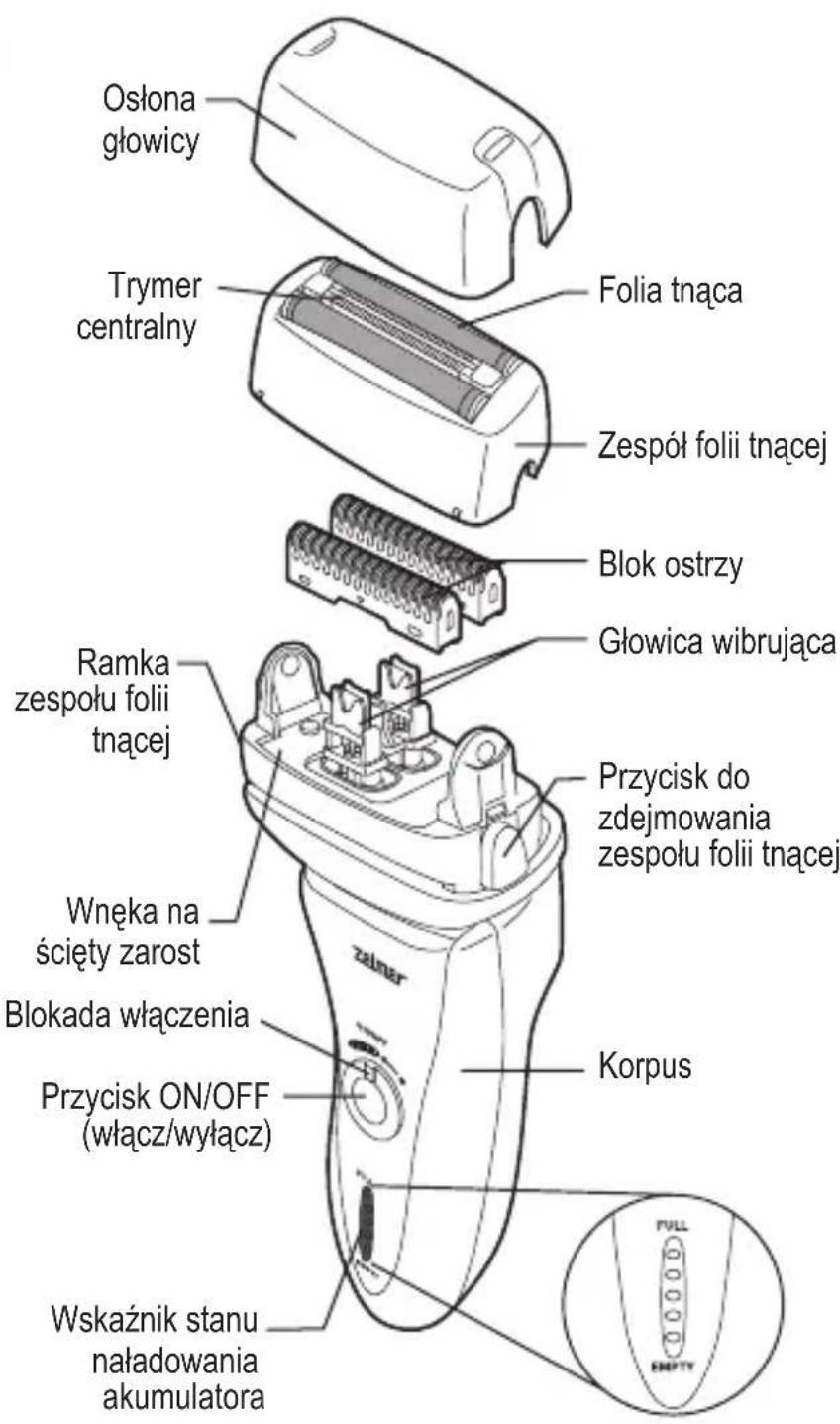

Folia tnąca

Hand inserting a component into a mechanical component labeled 'Korpus' (no other text or symbols)

Diagram showing a hand pressing down on a mechanical component (no text or symbols present)

Illustration showing a hand holding a small electronic component with a ruler above it, no text or symbols present.

Line drawing of a rectangular electronic device casing with internal ventilation slots (no text or symbols)

Zespół folii tnącej

Illustration of two stacked electronic components with no visible text or symbols

Blok ostrzy

Zespół folii tnącej

Illustration of a hand holding a small mechanical component with directional arrows indicating movement (no text or symbols)

Blok ostrzy

Illustration of a hand holding a small object with arrows indicating movement or force (no text or symbols)

rys. 2

Illustration of a hand using a measuring tool to press or adjust a mechanical component (no text or symbols present)

Symbol of a trash bin with crossed x- and y-axes, no text or labels present

Illustration of a hand holding a device with wires, showing internal components and motion (no text or symbols)

Illustration of a hand holding a tool with arrows indicating movement or force (no text or symbols present)

Illustration of a hand holding a small electronic device with a close-up view showing internal components (no text or symbols)

Illustration of a hand holding a handheld device with motion lines indicating movement (no text or symbols)

Diagram showing a mechanical assembly with a bracket and a valve, no text or symbols present

Illustration of hands holding a small electronic component (no text or symbols visible)

Holící planžeta

Illustration of a hand holding a small object with multiple small objects inside, labeled 'Tělo s' at the bottom (no other text or symbols)

Tělo strojku

Simple line drawing of a hand holding a spring above a base with a small object inside (no text or symbols)

Illustration of a hand holding a small electronic component with a ruler, showing a step-down view (no text or symbols)

Line drawing of a rectangular electronic device with internal components (no text or symbols)

Illustration of two cylindrical electronic components with textured surfaces (no text or symbols)

Holící planžety

Illustration of a hand holding a small object with arrows indicating movement or force (no text or symbols)

Břitový blok

Symbol of a trash bin with crossed x- and y-axes, no text or labels present

Cross-sectional diagram of a mechanical component with an arrow indicating direction (no text or symbols)

Illustration of two hands holding a device with wires, no text or symbols present

Illustration of a hand holding a small object with arrows indicating movement or force (no text or symbols present)

Illustration of a hand holding a small electronic device with a spring, showing the process (no text or symbols)

Illustration of a hand holding a handheld electric shaver with motion lines indicating airflow (no text or symbols)

④ Sústavu holiacich čepelí nasad'te na predošlé miesto tak, aby ste sa nedotkli holiacej planžety.

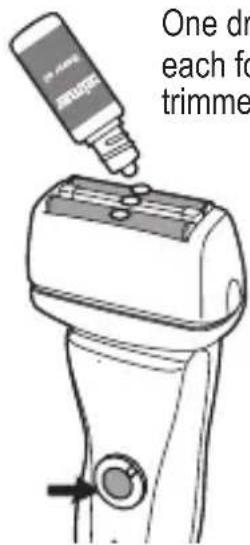

⑤ Aplikujte olej na čepele planžety a zastrihávača.

Diagram showing a hand holding a tool above a mechanical component with an arrow indicating upward motion (no text or symbols present)

Illustration of hands holding a small electronic component (no text or symbols visible)

Hand holding a small object with multiple small components, possibly a tool or component (no text or symbols visible)

Diagram showing a hand pressing down on a mechanical component (no text or symbols present)

Illustration showing a hand holding a small electronic component with a downward arrow indicating process (no text or symbols)

Line drawing of a rectangular electronic device casing with internal grating (no text or symbols)

Illustration of two cylindrical electronic components with textured surfaces (no text or symbols)

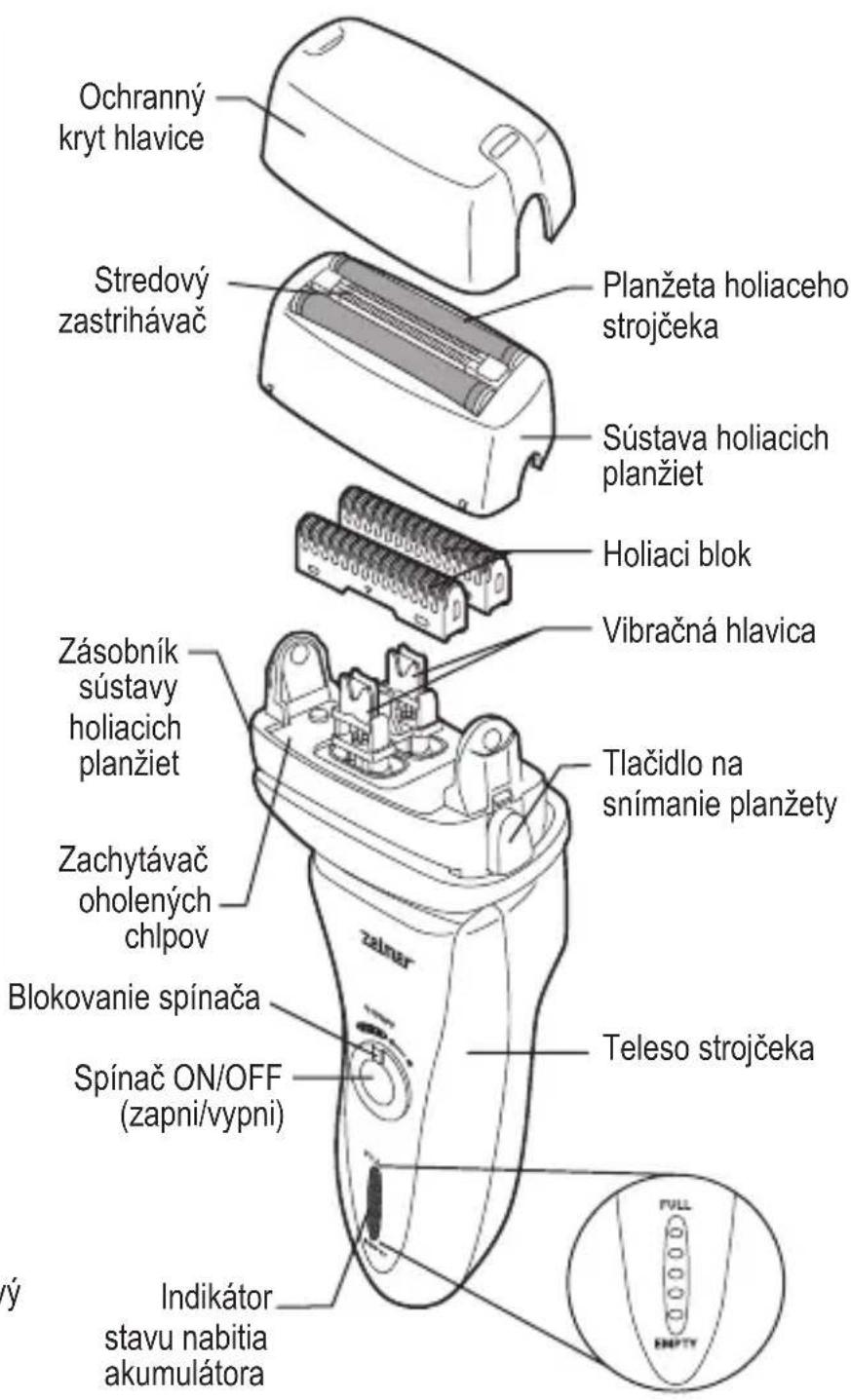

Blok čepelí

Illustration of a hand holding a small object with arrows indicating movement or force (no text or symbols)

Blok čepelí

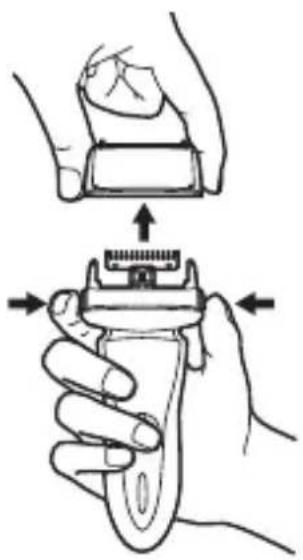

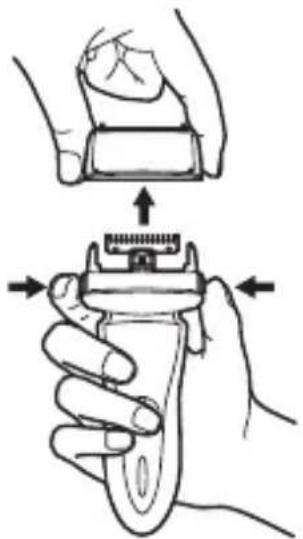

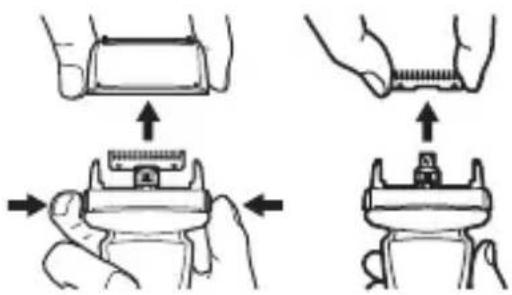

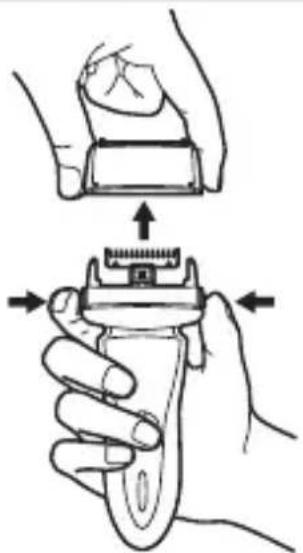

① Vyberte sústavu holiacich planžiet (obr. 1).
② Prstami uchopte boky bloku čepelí a vytiahnite ho smerom nahor (obr. 2).
③ Nasadte a zatlačte na vibrujúcu hlavicu nový blok čepelí.

obr. 1

Illustration of a hand holding a small electronic device with arrows indicating movement or force (no text or symbols)

obr. 2

Illustration of a hand pressing down on a mechanical component (no text or symbols)

Symbol of a trash bin with crossed x- and y-axes, no text or labels present

Illustration of two hands holding a device with wires, no text or symbols present

Illustration of a hand holding a small object with arrows indicating movement or force (no text or symbols present)

Illustration of a hand holding a small electronic device with a handle, showing a step-down view (no text or symbols)

Illustration of a hand holding a handheld electric shaver with motion lines indicating airflow (no text or symbols)

Illustration of hands holding a small mechanical component (no text or symbols visible)

Vágófólia

Illustration of a hand inserting into a test tube (no text or symbols on the diagram itself)

Diagram showing a hand pressing down on a mechanical component (no text or symbols present)

Illustration of a hand holding a small electronic device with a ruler, showing the process (no text or symbols)

Line drawing of a rectangular electronic device with ventilation slots and a recessed top (no text or symbols)

Illustration of two cylindrical electronic components with textured surfaces (no text or symbols)

Vágófólia egység

Illustration of a hand holding a small object with arrows indicating movement or force (no text or symbols)

Kések blokkja

Symbol of a trash bin with crossed x- and y-axes, no text or labels present

Illustration of two hands holding a device with wires, no text or symbols present

Illustration of a hand holding a small object with arrows indicating movement or force (no text or symbols present)

Illustration of a hand holding a small electronic component, showing a step-down view (no text or symbols)

Illustration of a hand holding a small electronic device with motion lines indicating movement (no text or symbols)

Diagram showing a mechanical component with an upward arrow, no text or symbols present

Illustration of a hand inserting a component into a mechanical component labeled 'Corpul' (no other text or symbols)

Line drawing of a rectangular electronic device casing with internal compartments (no text or symbols)

Illustration of two stacked electronic components with no visible text or symbols

Bloc de lame

Illustration of a hand holding a device with arrows indicating movement or force (no text or symbols)

Blocul de lame

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

Line drawing of a plug with a cord and connector (no text or symbols)

Diagram of a hand holding a small electronic device with an arrow indicating the process (no text or symbols present)

Illustration of two hands holding a device with wires, no text or symbols present

Illustration of a hand holding a small object with arrows indicating movement or force (no text or symbols present)

Illustration of a hand holding a device with a close-up view of the internal component (no text or symbols)

Illustration of a hand holding a device with motion lines indicating movement (no text or symbols)

Illustration of hands holding a small electronic component (no text or symbols visible)

Режущая сетка

Diagram showing a mechanical component being lowered into a base (no text or symbols present)

Illustration of a hand holding a small electronic component with a top view, showing a step-down process (no text or symbols)

Diagram showing two mechanical components with arrows indicating direction (no text or symbols)

Line drawing of a rectangular electronic device casing with internal compartments (no text or symbols)

Illustration of two cylindrical electronic components with no visible text or symbols

Система лезвий

Illustration of a hand holding a small mechanical component with arrows indicating movement or force (no text or symbols)

Блок лезвий

Symbol of a trash bin with crossed x- and y-axes, no text or labels present

Diagram of a hand holding a device with an arrow indicating the process (no text or symbols present)

Illustration of two hands holding a device with wires, no text or symbols present

Illustration of a hand holding a small object with arrows indicating movement or force (no text or symbols present)

Illustration of a hand holding a small electronic device with a spring-like component, showing a downward arrow (no text or symbols present)

Illustration of a hand holding a handheld device with motion lines indicating movement (no text or symbols)

Diagram showing a mechanical assembly with a bracket and a valve, no text or symbols present

Illustration of two hands holding a small electronic component (no text or symbols visible)

Illustration of two hands holding a small object with a ruler, no text or symbols present

Illustration of a hand holding a small object with no visible text or symbols

Diagram showing a hand pressing down on a mechanical component with a small object inside (no text or symbols)

Illustration of a hand holding a small electronic component with a magnified view showing internal structure (no text or symbols)

Line drawing of a rectangular electronic device casing with internal components (no text or symbols)

Illustration of two stacked electronic components with no visible text or symbols

Блок на фолиото

Illustration of a hand holding a small object with arrows indicating movement or force (no text or symbols)

Блок остриета

Symbol of a trash bin with crossed x- and y-axes, no text or labels present

Diagram of a hand holding a small electronic device with an arrow indicating the process (no text or symbols present)

Illustration of two hands holding a small object with arrows indicating motion or force (no text or symbols)

Illustration of a hand holding a small object with arrows indicating movement or force (no text or symbols present)

Illustration of a hand holding a small electronic component with a close-up view showing the internal structure (no text or symbols)

Illustration of a hand holding a battery with a brush, emitting motion lines (no text or symbols)

Diagram showing a hand holding a small object above a device with an arrow indicating upward motion (no text or symbols present)

Illustration of hands holding a small electronic component (no text or symbols visible)

Ріжуча плівка

Diagram showing a hand holding a small object above a device, with no visible text or symbols.

Illustration showing a hand holding a small object with a ruler inside, no text or symbols present

Line drawing of a rectangular electronic device casing with internal components (no text or symbols)

Illustration of two rectangular electronic components with no visible text or symbols

Система лез

Illustration of a hand holding a device with arrows indicating movement or force (no text or symbols)

Блок лез

Symbol of a trash bin with crossed x- and y-axes, no text or labels present

Congratulations on your choice of our appliance, and welcome among the users of Zelmer products.

In order to achieve best possible results we recommend using exclusively original Zelmer accessories. They have been specially designed for this product.

Please read this instruction manual carefully. Pay special attention to important safety instructions. Keep this instruction manual for future reference.

Operation and safety precautions

This information concerns your health and safety. You must read all the operation and safety precautions before using your shaver for the first time.

DANGER! / WARNING!

Risk of injury

Do not use the appliance if the shaver or AC adaptor is damaged. In such a case take your shaver to a local service centre for repair. Do not attempt to repair the shaver on your own.
If the cord or plug of the AC adaptor is damaged, or if the plug is loose in the outlet, do not recharge the shaver or use it with an AC power supply.
The shaver may be repaired by qualified personnel only. In case of any defects, contact a local ZELMER service centre.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
Unplug the AC adaptor from the outlet when the shaver is not in use and before cleaning.
Do not pull the cord to unplug the shaver from the outlet.
Do not use the shaver in a bath or under a shower.
Do not immerse the shaver and AC adaptor in water or any other liquid.
Do not plug and unplug the mains cord from the outlet with wet hands.
When using the shaver on an AC power supply, use only the AC adaptor and cord provided with the shaver.
Use the shaver only with a power supply of 100-240 V. Otherwise it may result in a fire or an electric shock.

Do not break, bend, stretch, twist or bundle the cord of the AC adaptor. Do not place heavy objects on the cord or put it between them. A broken cord will cause a fire or an electric shock.
Before using the shaver, make sure that the foil or inner blade is not damaged, as such foil or blade may scratch your face.
Do not touch the inner parts of the inner blade as its edges are very sharp.
Do not use the shaver on any other part of your body than your face (such as your head). This may cause an injury to your skin, and will shorten the service life of the outer foil.

WARNING!

Risk of property damage

Do not cover the AC adaptor, as it may cause the temperature inside the adaptor to increase dangerously.
The shaver is intended for shaving and trimming natural hair only. It may be used with human hair only. Do not use the shaver to shave or trim artificial or animal hair.
When finished using or charging the shaver, be sure to remove the AC adaptor from the outlet.
Do not forcibly press against the outer foil, as this may break the foil to cause an injury to your skin.
Do not use the AC adaptor included with the shaver to recharge other electric appliances.
Before washing the shaver under running water, unplug it from the AC adaptor!
Do not recharge the shaver or use it with an AC power supply when the room temperature is below 0^ C or over 40^ C. Never recharge the shaver in direct sunlight or near a heating element such as a heater.
Do not charge and use the shaver with an AC power supply in a humid place or in a place where the AC adaptor is exposed to splashes of water.
Do not store the shaver in a humid place or where it may be exposed to splashes of water, or in high temperatures.
To clean the body case of the shaver, wipe it with a cloth soaked with a diluted water solution of a neutral detergent. Do not use thinners or benzine as they may damage the plastic parts of the body case.
Do not leave the shaver unattended when charging.

Product information user instructions

The shaver is for household use only.
The shaver should be preferably charged at temperature between 15^ C and 35^ C.
Failure to use the shaver in accordance with its purpose will void the guarantee.
The shaver may be operated on AC power or rechargeable battery.
Before shaving, degrease the skin of your face to prevent hair sticking to the outer foil and causing blades to rub against it. If the foil is dirty, clean it before shaving (e.g. using a handkerchief).
When cleaning the shaver make sure that you do not apply too much oil on the blade and foil. Too much oil will soil the outer foil. Before shaving, wipe the residual shaver oil from the foil (e.g. using a handkerchief).

This symbol means that the shaver is washable, however only when unplugged from the outlet.

Make sure that you understand the above tips.

Technical specification

Technical specifications are given on the nameplate.

The charging adaptor is a Class II electrical device and does not require grounding ☐.

The shaver meets the requirements of applicable standards.

This appliance complies with Commission Regulation (EC) no. 1275/2008 on eco-design requirements.

The appliance complies with the following directives:

– Low Voltage Device (LVD) – 2006/95/EC.

– Electro-Magnetic Compatibility (EMC) – 2004/108/EC.

The product is marked with CE symbol on the nameplate.

Battery: 2 x Ni-MH 650 mAh cell. Standard charging time: 60 minutes. Working temperature range: 0-40°C.

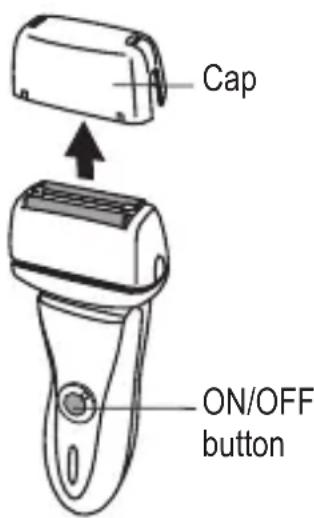

Elements and accessories

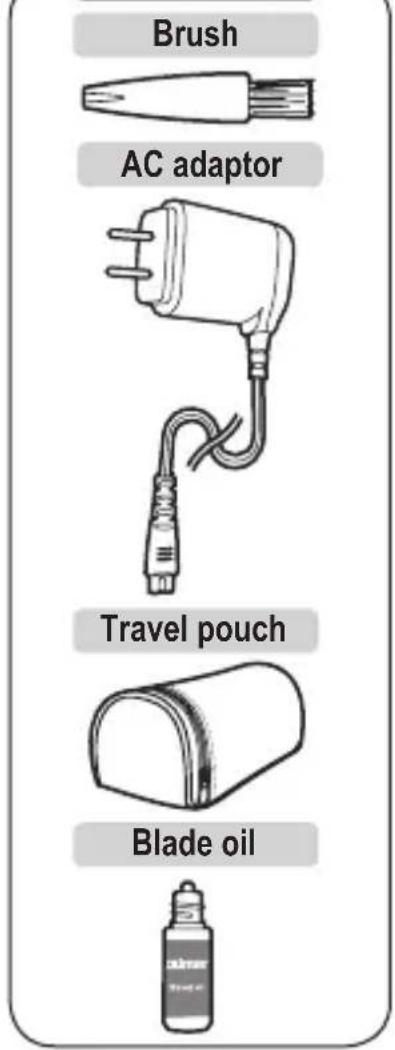

Accessories

Widok od spodu

Rear side

Shaving head
Trimming blade
Trimming blade button

Safety lock

Operation

CHARGING

For recharging the shaver use only the AC adaptor provided with the shaver.

Battery activation

When the shaver is first used after being purchased or being left unused for a long time, be sure to recharge the shaver for 8 hours to the full capacity before use, to activate the rechargeable battery. After that, approximately 60 minutes of recharging will fully recharge the shaver.

Charge the shaver when the battery level indicator lights up in red.

"Battery Memory Effect"

To avoid the “memory effect”, recharge the shaver only after the battery is completely empty.

What is the "memory effect"?

If the Ni-MH battery in your shaver is repeatedly recharged before it runs out of energy, the voltage drops more quickly to decrease the number of times you can use the shaver before the battery runs down.

If you have noticed the "memory effect"

If the full recharge allows less number of shaves before the battery is depleted, consume the recharged energy completely, and then recharge the shaver for approximately 8 hours. Repeating this procedure 2 to 3 times will restore the battery. If the “memory effect” persists, the service life of the battery may have expired. Consult the retailer from whom your shaver was purchased.

Battery life

The life of the battery is approximately 4 years when if it is recharged once a week. However, its life will be shortened if it is recharged more frequently, and it also varies depending on the conditions of use.
If a 1-hour recharging permits only 2 to 3 shaves, the battery life is near its end. In that case, contact the retailer from whom the shaver was purchased. If the shaver is left unused for more than 6 months, the battery's characteristics will deteriorate by self-discharge. It is recommended, therefore, that the shaver be recharged at least once every 6 months even if not in use.

Charging

① Make sure that the shaver is off. To turn it off press the ON/OFF button. Put on the head cap.

The battery cannot be charged when the shaver is on.

If the safety lock is locked, unlock it.

② Insert the socket plug of the AC adaptor into the socket at the bottom of the shaver.

Before putting the plug of the AC adaptor into the socket of the shaver, make sure that the socket is completely dry to prevent any possible malfunction.

③ Insert the outlet plug of the AC adaptor into an appropriate outlet (see the rating plate on the AC adaptor).

- The shaver is fully charged in approximately 60 minutes. - Charging may be completed in less than 60 minutes if the battery is not completely empty and the safety function works to prevent overcharge.

④ When charging is completed, unplug the AC adaptor from the outlet.

When unplugging the AC adaptor, do not pull the cord, as this may damage the AC adaptor. Be sure to hold the plug to pull it out.

On a fully charged battery the shaver will operate for approx. 35 minutes.

Battery level indicator

During charging:

The lights flash and then light up one by one from bottom to top indicating the battery level.

After full charge:

All the lights flash.

While shaving:

The lights go out one by one as the battery level decreases. When the battery is empty the "Empty" light comes on.

Battery level indicator lights

- To prevent possible malfunctions, before charging make sure that the plug and outlet are not damaged.

- While the shaver is charging, the shaver body or AC adaptor may emit a slight noise and/or become slightly warm. This is not a defect.

USING THE SHAVER WITH AC POWER SUPPLY

Check if the shaver is off. Insert the socket plug of the AC adaptor securely into the socket at the bottom of the shaver. Insert the outlet plug of the AC adaptor into the outlet. Turn on the shaver.

If the shaver will not operate by pressing the power switch immediately after the plugs are inserted, the rechargeable battery is completely depleted. In that case, turn off the shaver, put it away for 1 minute to charge the battery and turn it on again.

After use, be sure to turn off the shaver and then unplug the AC adaptor from the outlet and the socket of the shaver.

In a humid place, such as bathroom, do not use the shaver with an AC power supply.

When using the shaver with an AC power supply, do not use soap or shaving foam.

The energy stored in the rechargeable battery decreases even while the shaver is used with an AC power supply. Recharge the shaver once every three weeks.

USE

If the outer foil is deformed or damaged, replace it with a new one (see the "REPLACEMENT OF OUTER FOIL / INNER BLADE" section). Otherwise, it may scratch your face.

① Remove the cap, unlock the safety lock and turn on the shaver by pressing the ON/OFF button.

② Bring the outer foil in gentle contact with the skin at the right angle, stretch the skin and move the shaver gently upwards against the grain.

While shaving, take care not to push the outer foil too strongly against the skin. Otherwise, the outer foil will wear at a higher rate and become dull or damaged.

To shave delicate parts like the chin, pull up the slack of the skin by hand, and stroke upwards. When shaving the throat, lift the face upwards to thrust the throat out to pull the slack upwards.

③ To use the trimming blade, slide the trimming blade button upwards. The trimming blade vibrates correspondingly with the inner blade.

④ To cut sideburns, apply the trimming blade to the skin lightly at a right angle, and move the shaver gently downwards.

⑤ After use, turn off the shaver and clean it with the accessory brush (see the "CLEANING USING BRUSH" section). Be sure to put the cap on after cleaning.

Even if the charging indicator indicates that the shaver is empty and the shaver stops vibrating, never leave it with the power switch turned on.

The shaver can be used to shave with soap or shaving foam only when operated on the rechargeable battery and not on an AC power supply. After every use with soap or shaving foam, be sure to wash the shaver in water (see the “WASHING UNDER RUNNING WATER” section).

Cleaning and maintenance

Before any cleaning and/or maintenance activities, unplug the AC adaptor from the shaver.

WASHING UNDER RUNNING WATER

① Turn off the shaver. Press the outer foil unit release buttons on both sides of the shaver and remove the outer foil unit.

Illustration of two hands holding a device with wires, no text or symbols present

Illustration of a hand holding a tool with an arrow indicating movement or force (no text or symbols present)

② Turn on the shaver and wash the blades in cold or lukewarm water. After washing, turn off the shaver and dry the blades (e.g. using a towel).

③ Place the shaver in an airy place to dry it.

Illustration of a hand holding a small mechanical component, showing a step-down view (no text or symbols)

Illustration of a hand holding a handheld device with motion lines indicating movement (no text or symbols)

④ Refit the outer foil unit, taking care not to touch the outer foil.

⑤ Apply shaver oil to the outer foil and trimmer.

Use the blade oil provided with the electric shaver.

⑥ Turn on the shaver for approximately 10 seconds and then wipe the residual oil from the outer foil (e.g. using a handkerchief).

Turn off the shaver before wiping the residual oil from the outer foil.

Only for conservation purposes. Do not drink. Avoid contact with eses and skin. Keep away from children. Keep away from direct sunlight. Keep in dark storage.

CLEANING WITH BRUSH

① Before cleaning make sure that the shaver is off. Press the outer foil unit release buttons on both sides of the shaver and remove the outer foil unit.

② Using the brush, clean the inside of the outer foil unit, the inner blade and the body case of the shaver.

To remove the inner blade, simply pull it upwards.

The blades are sharp and may cut your fingers. Take special care when removing and inserting the inner blade.

Illustration of hands holding a small electronic component (no text or symbols visible)

Outer foil

③ After cleaning, fit correctly the inner blade. Next, fit the outer foil unit, taking care not to touch the foil.

Poor shaving quality and abnormal sound may indicate that the outer foil unit is fitted incorrectly.

Diagram showing a hand holding a spring-like object above a base with a small object inside, indicating a mechanical or electrical component (no text or symbols present)

Illustration of a hand holding a small electronic component with a ruler, showing a step-down view (no text or symbols)

Do not remove the outer foil from the outer foil unit.

④ Before cleaning the trimming blade, turn off the shaver.

Check that the trimming blade is not moving when cleaning it.

⑤ Oil the outer foil.

REPLACEMENT OF OUTER FOIL / INNER BLADE

The outer foil and the inner blade are consumables. In order to enjoy a comfortable clean shave, it is recommended that the outer foil and the inner blade be replaced with new ones in a set at least once a year. Use of foil and blade beyond their serviceable life may not only result in poor shaving performance but also damage such foil and blade to scratch your skin.

The above replacement period of the outer foil and the inner blade serves as a guideline only, and their serviceable lives vary greatly depending on the condition of use of each user. If you find them unable to give a good shave, damaged or deformed, replace them with new ones immediately.

Before replacing the outer foil or inner blade, be sure to turn off the shaver.

We recommend using only original ZELMER spare parts. Spare parts set no. SH1810111.

Line drawing of a rectangular electronic device with internal components (no text or symbols)

Outer foil unit Inner blade

Illustration of two cylindrical electronic components with textured surfaces (no text or symbols)

Outer foil unit

① Press the outer foil unit release buttons on both sides of the shaver and remove the outer foil unit.
② Fit correctly a new outer foil unit (a click sound will indicate correct fitting).

Illustration of a hand holding a device with arrows indicating movement or force (no text or symbols)

Inner blade

① Remove the outer foil unit (fig. 1).
② Hold the sides of the inner blade with your fingers and pull it upwards (fig. 2).
③ Fit the new inner blade on the vibrator by pushing it downwards.

fig. 1 fig. 2

Be sure to set both inner blades. Otherwise, abnormal noise, injury or malfunction may result.

④ Fit the outer foil unit securely.

Ecology – protect the environment

Each user can contribute to protecting the environment. It is not difficult or too expensive. For this purpose, dispose of the carton and plastic packaging materials into appropriate waste paper and plastic (PE) recycling containers.

Batteries contain substances harmful to the environment. Do not dispose the appliance in household waste. Bring the battery to an official recycling centre.

At the end of its useful life, bring the appliance to an official waste collection site, as some of its components may be hazardous to the environment.

Symbol of a trash bin with crossed x- and y-axes, no text or labels present

Do not dispose of together with domestic waste!

The manufacturer/importer does not accept any liability for any damages resulting from unintended use or improper handling.

The manufacturer/importer reserves his rights to modify the product any time in order to adjust it to law regulations, norms, directives, or due to construction, trade, aesthetic or other reasons, without notifying in advance.

Notes

Notes
