Product Type	Tablet
Brand	Overmax
Model	Basis 10
Display Size	10.1 inches
Display Resolution	1280 x 800 pixels
Operating System	Android
Processor	Quad-core 1.3 GHz
RAM	2 GB
Internal Storage	32 GB
Expandable Storage	microSD up to 128 GB
Battery Capacity	5000 mAh
Battery Life	Up to 8 hours
Dimensions (W x D x H)	240 x 170 x 8.5 mm
Weight	510 g
Connectivity	Wi-Fi 802.11 b/g/n, Bluetooth 4.0
Cameras	Front 2 MP, Rear 5 MP
Ports	Micro USB, 3.5 mm headphone jack
Sensors	G-sensor
Power Supply	5V/2A adapter (included)
Maintenance	Clean with a soft, dry cloth. Do not use liquids.
Safety	Keep away from water and extreme temperatures. Use only approved charger.
Spare Parts & Repairability	Battery and screen can be replaced by authorized service center.

Frequently Asked Questions - Basis 10 Overmax

How do I turn on the Overmax Basis 10 tablet?

Press and hold the power button located on the side of the tablet for about 3 seconds until the screen lights up.

How can I connect to Wi-Fi?

Go to Settings > Wi-Fi, toggle it on, and select your network. Enter the password if required.

How do I insert a microSD card?

Locate the microSD card slot on the edge of the tablet. Gently push the card in until it clicks. To remove, push it in again to eject.

Why is my tablet not charging?

Check that the charger is connected properly and the cable is not damaged. Try a different outlet. If the issue persists, the charger may be faulty.

How can I improve battery life?

Reduce screen brightness, turn off Wi-Fi when not in use, close background apps, and disable location services.

How do I take a screenshot?

Press and hold the Power button and the Volume Down button simultaneously for about 2 seconds.

Can I use a keyboard with the tablet?

Yes, you can connect a Bluetooth keyboard. Go to Settings > Bluetooth, pair the keyboard, and start typing.

What should I do if the tablet freezes?

Press and hold the power button for about 10 seconds to force a restart. If it continues, try a factory reset from recovery mode.

How do I transfer files from the tablet to a computer?

Connect the tablet to your computer using a USB cable. On the tablet, select File Transfer mode. Your computer will detect it as a removable drive.

Does the tablet support OTG?

Yes, the Overmax Basis 10 supports USB On-The-Go (OTG). You can connect USB flash drives, mice, or keyboards via an OTG adapter.

USER MANUAL Basis 10 Overmax

Your electronic world

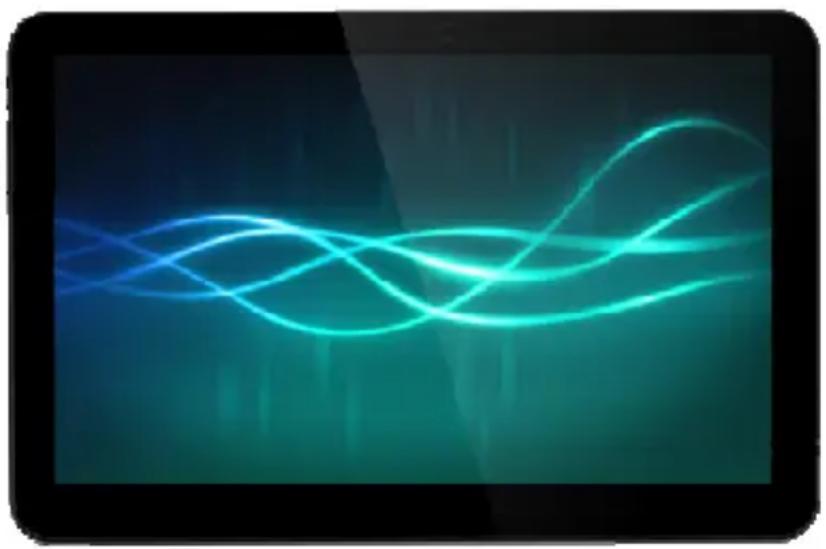

Abstract glowing blue wave pattern on dark background (no text or symbols)

Thank you for buying this MID. Please read and retain all the operating instructions before operating the unit.

I. Note

1. Avoid the unit being dropped. Avoid the display been shake seriously, or the display will be damaged or unusual.

2. Do not use metal object to touch the device to prevent it from short circuit.

3. Please backup your data in case your important data is lost, especially before you upgrade the firmware.

4. Do not disassemble. Do not wipe the surface of the unit by alcohol, thinner or benzene.

5. Do not disconnect the unit while it is formatting or uploading/downloading, or the procedures may lead to errors.

6. Avoid water or foreign objects enter the unit.

7. Do not use the unit in places that are extremely hot, cold, dusty, or humid.

8. Specifications are subject to change and improvement without notice.

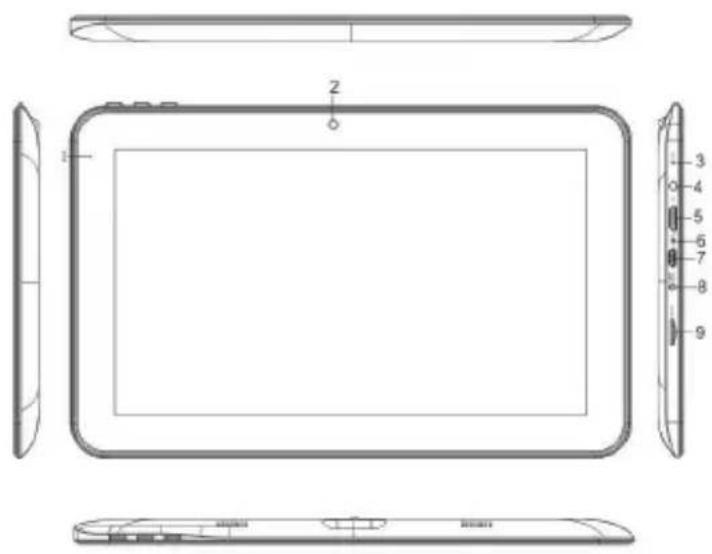

II. Introduction of cover

1. DC LED

2. Front Camera

3. Reset

4. Earphone Jack

5. HDMI interface

6. MIC

7. Micro USB interface

8. DC charger interface

9. TF card interface

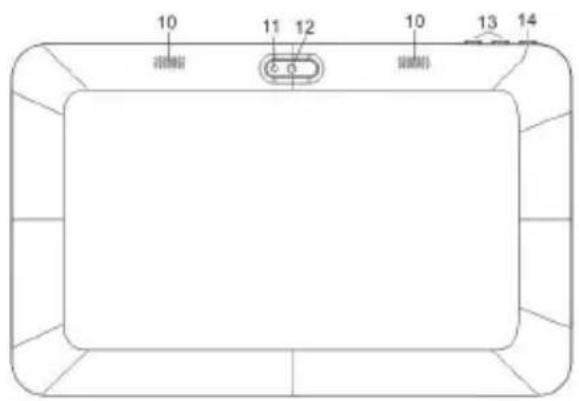

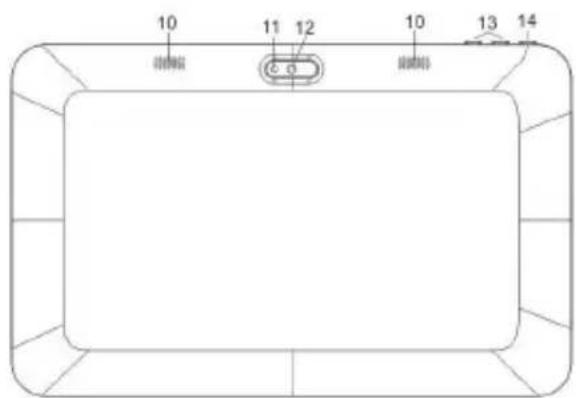

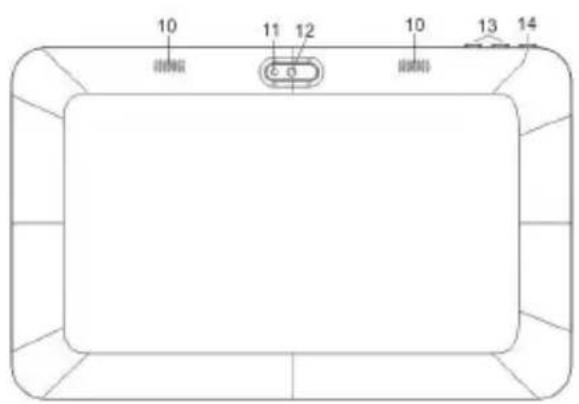

10. Loudspeaker

11. Shining Light

12. Back Camera

13. Volume +,Volume -

14. Power on/off

III. Operation Instruction

1. Basic Operation

1.1. Power on/Power off

Power on

Press and hold the power switch for 5 seconds; the unit displays the start-up logo and enters the working mode.

Power off

Press and hold the power switch for 5 seconds to turn the unit off.

Sleep

While the device is at working status, press the power switch, it enters the sleeping mode, and the screen will be off then. Press the power switch again, it shift to the normal mode. You may use this function when you don't' use the device temporary to save power.

1.2. Charging

When the device prompts low battery, please charge it by provided charger.

Note: To improve the longevity of the battery, you may charge for another 15 minutes after it prompts the battery is full.

1.3. Main menu

Click the icon in the main interface, the main menu is appeared. It including the system setting, music playback, video playback, web browser and other applications you installed in the main menu.

2. Settings

Click “Settings” in the main interface to enter the setting interface. Click the corresponding setting items to operate.

2.1. Date and Time Setting

Click "Date & time" in the setting interface to set the date and time. You may set the date, time zone, time, time format and date format etc. in the menu.

2.2. Brightness

Select "Display" in the setting interface. Click "Brightness" to enter, and slide the bar to adjust the brightness.

2.3. Screen Timeout

Adjust the delay before the screen automatically turns off.

Select "Display" in the setting interface. Click "Sleep" to enter, and click the time you want.

Note: The setting of screen timeout is unavailable while playing video.

3. Wi-Fi connection

Click “Settings” in the main interface. Click Wi-Fi to turn on the WIFI, it lists the open network it searched. Click the name of the network; it pops up the setting window. You may connect it to WIFI according to the prompts. You need to input the user name and password if networks are encrypted.

4. Install, Uninstall and Run applications

4.1 Install

There are many ways to install applications under Android, such as via USB, by third party program. We introduce installation by Apps Installer here.

Click the "APKInstaller" in the main interface to enter the "install and manage" interface.

Select the APK file you want and enter the application installation interface. Click "Install" to install the application automatically. After installation, it prompts "Open" and "Finish". Click "Open" to open the application. Click "Finish" to exit.

4.2 Uninstall

You may use the corresponding third party software management tool or the installed application management software of the device to install applications.

Select “Setting/Applications/Manage applications” to select the installed applications and check the attribute of it or uninstall it.

5. Connect to internet

5.1. After connecting with WIFI, open the browser and input the web address, you can browse the web then.

5.2. Click the icon to enter the bookmark to view the browse history. Click the web page you want to open it.

6. Audio and video playback

6.1. Audio playback

Click the "MUSIC" in the main menu to enter the audio playback interface. It lists the audio files in the device, and you may click the file name to play it. in the audio playing interface, click the icons to play/pause/ increase volume/ decrease volume/ FF/ REW....

6.2. Video Playback

Click the "Gallery" in the main menu to enter the video playback interface. It lists the video files in the device, and you may click the file name to play it. in the video playing interface, touch the screen to pop-up the operation icons and click the icons to play/pause/increase volume/decrease volume/skip to next file/skip to previous file....

7. Picture viewing

Click "Gallery" in the main menu to enter the picture folder list. Select and click the folder you want to enter, it displays the . click the thumbnail of the picture to view it.

Touch the screen to pop-up the operation icons while viewing the picture, you may zoom in/zoom out/ skip to next picture/skip to previous picture/ rotate/ delete the picture...

8. Camera

Click "Camera" in the main interface.

8.1 Camera

If the cursor is at -position, the device is at Camera mode.

Click to take picture.

Click to set the scene mode, Picture size, Picture quality, and colour effect.

Click to set white balance.

8.2 DV

If the cursor is at position, the device is at DV mode.

Click to take picture.

Click to set the colour effect or restore to default settings.

9. Connect with external device

9.1. Connect with PC

Connect the device with the PC via the USB cable. The PC appears two new disk symbols after connected successfully. One is the TF card, and the other is the built-in flash.

9.2. Use of OTG

It supports the movable device with FAT32 format, such as U disk and MP3. Connect the movable device to the MID.

9.3. Applications

For convenient usage, we installed some third party software in the MID. For detailed operation methods, please check the corresponding instruction. Some of the software may be able to be used in some area because of network service.

IV. Troubleshooting

3. What if the device is abnormal during operation?

Answer: 1) Reboot the device to see if it works OK.

2) Charge the device by the charger to activate the battery. Make sure it has power before you operate it.

3) It is suggested to upgrade the OS of the device by professional.

4. Why the standby time is so short sometimes?

Answer: the use time of the battery is all depend on the temperature and use instance. If the temperature is too high or too low, the use time of the battery might be effected. It is suggest using the device in normal temperature. The using time is also affected by increased volume and frequently operation.

MEANING OF THE DUSTBIN SYMBOL

Protect our environment: do not dispose of electrical equipment in your domestic waste. Please return any electrical equipment that you will no longer use to the collection points provided for their disposal. These simple steps can help to avoid the potential effects that incorrect waste disposal can cause on the environment and human health. This will contribute to recycling and other forms of re-use of electrical and electronic equipment. Information concerning where the equipment can be disposed of can be obtained from your local authorities.

NÁVOD K OBSLUZE

CZ†

OV-Basis10

Úvod

Symbol of a trash bin with crossed lines and a blank rectangular block below (no text or labels)

1. DC LED

2. Camera frontala

3. Reset

4. Casca Jack

5. Interfata HDMI

6. MIC

7. Interfata Micro USB

8. Interfata incarcator DC

9. Interfata card TF

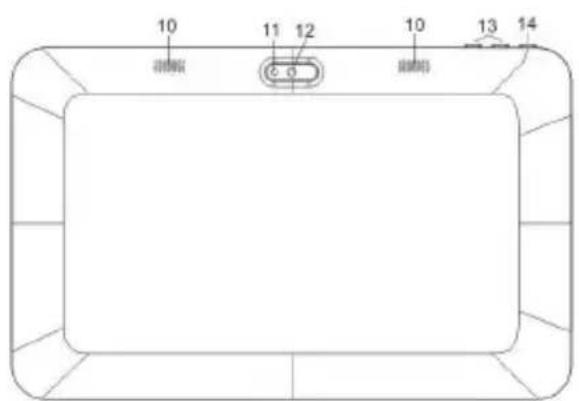

10. Difuzor

11. Lumina stralucitoare

12. Camera spate

13. Volum +,Volum -

14. Pornire /Oprire

III. Instructiuni de operare

1. Operatiuni de baza

1.1. Pornire/Oprire

Pornire

Symbol of a trash bin with crossed lines and a blank rectangular block below (no text or labels)

MEANING OF THE DUSTBIN SYMBOL

Symbol of a trash bin crossed with diagonal lines, no text or labels present

Protect our environment: do not dispose of electrical equipment in your domestic waste. Please return any electrical equipment that you will no longer use to the collection points provided for their disposal. These simple steps can help to avoid the potential effects that incorrect waste disposal can cause on the environment and human health. This will contribute to recycling and other forms of re-use of electrical and electronic equipment. Information concerning where the equipment can be disposed of can be obtained from your local authorities.

OVERMAX

Your electronic world

Declaration of Conformity

We, the undersigned:

Declare the following apparatus:

Products name: Tablet 10.1”
Brand and Model name: OV-Basis10

Hereby we confirm above product compliance with the European directive of CE :

EMC : 2004/108/EC
LVD : 2006/95/EC
R&TTE : 1999/5/EC
ROHS : 2011/65/EU
WE : 1275/2008

Below standards were tested and passed :

EMC :	ETSI EN 301 489-1 V1.8.1 (2008-04)ETSI EN 301 489-17 V2.1.1 (2009-05)
LVD :	EN 60950-1:2006 + A11:2009 +A1:2010 + A12:2011
R&TTE :	EN 300328 V1.7.1:2006EN 62311:2008

Release date: 21.09.2012

May be sold in: BE CZ DK DE EE IE EL ES FR HR IT LV LT HU MT NL AT PL PT RO SI SK FI SE UK

The original document is located in the headquarter Overmax Poland sp. z o.o sp. k. ul. Dziadoszańskiej 10 61-248 Poznan Poland
