BLINK - Poussettes BRITAX - Notice d'utilisation et mode d'emploi gratuit

Type de produit	Poussette
Marque	BRITAX
Modèle	BLINK
Âge recommandé	À partir de 6 mois
Poids maximal de l'enfant	24,9 kg (55 lbs)
Poids maximal du panier	2,3 kg (5 lbs)
Poids maximal de la poche de rangement	0,45 kg (1 lb)
Nombre d'enfants	1
Pliage	Pliage compact avec verrouillage automatique
Frein de stationnement	Frein à levier actionnant les deux roues arrière
Roues pivotantes	Roues avant pivotantes avec verrouillage
Réglage du dossier	Inclinable avec bouton de déverrouillage
Auvent	Auvent escamotable avec verrous et visière
Harnais	Harnais 5 points réglable en hauteur
Entretien du cadre	Nettoyer avec un chiffon humide et du savon doux
Entretien du tissu	Nettoyer à l'eau froide avec un savon doux
Entretien des pièces plastiques	Ne pas utiliser de produits abrasifs ou solvants
Stockage	Stocker à l'abri de la chaleur extrême et couvrir pour éviter la poussière
Garantie	1 an limitée (pièces et main-d'œuvre)
Assistance	1-888-4BRITAX ou www.BritaxUSA.com

FOIRE AUX QUESTIONS - BLINK BRITAX

Comment assembler la poussette BLINK ?

L'assemblage initial comprend le montage des roues avant, le dépliage du châssis, la fixation des clips de l'auvent et l'attache du tissu. Seul un adulte doit effectuer l'assemblage. Consultez les instructions détaillées dans la notice.

Comment déplier la poussette ?

Pressez le cadre tout en libérant le verrou du châssis. Soulevez la poignée vers le haut et écartez-la pour déplier. Enclenchez le verrou du cadre en appuyant sur la pédale de verrouillage. Assurez-vous que le châssis est bien verrouillé avant utilisation.

Comment plier la poussette ?

Rabattez l'auvent, puis libérez le verrou principal en tirant sur la sangle de transport ou en soulevant la pédale. Avec le pied droit, appuyez sur la pédale de déverrouillage secondaire tout en poussant légèrement les poignées vers l'intérieur. Rabattez la poussette vers l'avant jusqu'à ce qu'elle soit complètement pliée. Le verrou du châssis doit s'enclencher automatiquement.

Comment utiliser le frein de stationnement ?

Pour activer le frein, appuyez sur l'un des leviers de frein : cela actionne les deux roues arrière. Pour le relâcher, soulevez le levier. Vérifiez que les freins sont bien engagés en essayant de faire avancer ou reculer la poussette.

Comment régler le harnais de sécurité ?

Placez le harnais autour de l'enfant et serrez ou desserrez chaque sangle à l'aide des cinq régleurs. Pour ajuster la hauteur des épaules, déconnectez les sangles d'épaule et de taille, passez la sangle d'épaule à travers la fente la plus proche de la hauteur des épaules de l'enfant, puis reconnectez-la.

Quel est le poids maximum supporté par le panier ?

Le panier supporte un maximum de 2,3 kg (5 lbs). La poche de rangement supporte un maximum de 0,45 kg (1 lb). Ne pas dépasser ces limites pour éviter tout risque de basculement.

À partir de quel âge puis-je utiliser la poussette ?

La poussette est conçue pour les enfants d'au moins 6 mois. Ne pas l'utiliser avec un nourrisson. Le poids maximum de l'enfant est de 24,9 kg (55 lbs).

Comment nettoyer la poussette ?

Nettoyez le cadre avec un chiffon humide et du savon doux. Pour le tissu, utilisez de l'eau froide et du savon doux. Les pièces en plastique se nettoient avec un chiffon humide et du savon doux. N'utilisez pas de produits abrasifs, solvants ou détergents puissants.

Que faire si la poussette est mouillée ?

Séchez-la avec un chiffon propre pour éviter la corrosion. Ne la pliez pas lorsqu'elle est humide. Assurez-vous qu'elle est complètement sèche avant de la ranger.

Comment enregistrer ma poussette pour la garantie ?

Remplissez la carte d'enregistrement jointe et renvoyez-la dans les 30 jours suivant l'achat, ou enregistrez-vous en ligne sur www.BritaxUSA.com/registration. Cela permet d'être contacté en cas de rappel.

MODE D'EMPLOI BLINK BRITAX

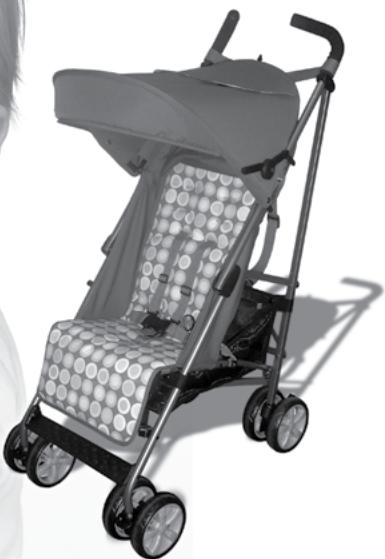

Blink™ Stroller

User Guide

PLEASE READ INSTRUCTIONS

Warnings 2

Features 3

Assembly 4

Operating Instructions

Unfold. 5

Fold. 6

Parking Brakes 7

Swivel Wheels. 7

Backrest 8

Canopy 9

Harness & Securing Child 10

Releasing Harness 11

Care and Maintenance 12

Warranty 13

This product and its components are subject to change without notice.

© 2009 Britax Child Safety, Inc. All rights reserved.

P343200 R5:03/09

Printed in China

• Never leave child unattended.
• Read and understand these instructions before using this product. To ensure proper use, store this user guide in a convenient place so it can be consulted often. Failure to follow all warnings and instructions could result in serious injury or death.
• Avoid serious injury from falling or sliding out of the stroller. Always buckle the harness when a child is in the stroller.
• Do not use stroller with an infant. Child must be approximately 6 months or older.
• Do not use stroller with a child who weighs more than 55 lbs (24.9 kg).
• Do not overload basket. Maximum weight in basket is 5 lbs (2.3 kg). Overloading the basket may cause the stroller to become unstable and tip over.
• Do not overload storage pouch. Maximum weight in pouch is 1 lb. (.45 kg). Overloading the pouch may cause the stroller to become unstable and tip over.
• Always make certain that the stroller is fully unfolded and locked before use.
  Assembly of this stroller must be performed only by an adult.
• Do not hang or place items on the stroller handle or frame. They may cause the stroller to become unstable and tip over.
  Children must always be restrained to prevent standing or falling out of stroller.
• Do not allow children to climb on or play with the stroller.
• Never use stroller on stairs or escalators.
• To avoid entrapment or pinching, do not fold or unfold stroller when child is in or around stroller.
• Stroller is intended for walking speed only. Do not use while jogging, skating, etc.
• Never use the stroller with more than one child at a time.
  Always set the parking brake when stroller is not moving.
• Only use accessories and replacement parts approved by Britax Child Safety, Inc.

NOTE: Actual product may vary from photographs

Initial Assembly

1 Locate both dual front wheels and canopy

2 Attach front wheels to stroller frame
3 Unfold stroller as instructed on page 5

4 Press two attachment clips onto each side of stroller frame, placing clips above and below where fabric overlaps frame
5 Attach hook and loop fasteners around seat back

Unfold

1 Squeeze frame while releasing chassis lock

2 Lift handle upward and apart to unfold stroller

3 Step on frame lock pedal to lock stroller chassis

IMPORTANT - Make sure frame is locked before use

4 Adjust leg rest into desired position by pressing release levers as shown

Fold

1 Collapse canopy (pg 9) and release primary frame lock by pulling up on the carry strap or lifting the frame lock pedal

3 Fold forward and downward until completely collapsed

2 Using right foot on secondary release, step on frame release pedal while pressing inward slightly on handles and fold stroller forward

4 Chassis lock should engage automatically

Parking Brakes

To set parking brake, pressing down just one brake lever will activate both rear brakes

NOTE: Verify that brakes are fully engaged by attempting to move stroller forward and backward

Swivel Wheels

To unlock swivel wheels, press swivel lock lever down on each of the front sets of wheels

To release parking brake, lift lever until released

To lock swivel wheels, turn wheels forward, then lift swivel lock lever up until engaged

Note - Helpful on uneven terrain

Backrest

To lower backrest, press release button on recline adjuster and slide adjuster away from backrest

Press backrest down to reclined position

To raise backrest, press release button on backrest recline adjuster and slide toward backrest while holding backrest adjustment strap

Canopy

To Open Canopy, pull canopy forward, then engage both canopy locks (found on either side of the canopy) by pressing down - Pull out visor if desired

To Collapse Canopy, release each canopy lock by pressing up at center and push canopy back

Harness Adjustment & Securing Child

1 Set brake and position harness around child
2 Loosen or tighten harness by sliding each of the five adjusters to desired position

3 Insert each clip into adjacent sides of the buckle

1 Shoulder height may need to be adjusted
2 With buckle released, disconnect shoulder and waist straps by squeezing clips on both sides
3 Pull shoulder strap completely through seat back and thread it back through the slot nearest the shoulder height of the child

4 Reconnect shoulder strap to waist strap before securing child

Releasing Harness

1 ALWAYS set parking brake before removing child
2 Unfasten buckle by squeezing clip on each side

Parking Brake

• Periodically check that the parking brake works properly and locks both wheels securely.
• Clean out any dirt or debris that may prevent the brake from engaging.

Frame

• Wipe the frame with a damp cloth and mild soap. Use a clean, dry cloth or towel to wipe away excess water and soap.

Fabric

• Wipe the fabric surface with cold water and mild soap.
  Cleaning Plastic Parts:
• Wipe with a damp cloth and mild soap. Use a clean, dry cloth or towel to wipe away excess water and soap.

Maintenance

If Stroller Gets Wet:

• Dry stroller with a clean cloth or towel to prevent corrosion.
• Do not fold stroller when wet or damp. Always make sure that the stroller is dry before storing.

Plastic Parts

• Do not use abrasives, solvents, strong detergents, or household cleaners. These products can scratch, discolor, and weaken plastic or cause corrosion on metal surfaces.

Storage

• Store away from extreme heat to prevent damage to plastic parts.
• Cover stroller to prevent dust build-up and exposure to sunlight.
• Do not stack other items on top of stroller.

Registration

In case of recall, we can reach you only if we have your name and address. Send in the completed registration card or register online to be on our recall list.

www.BritaxUSA.com/registration

This product is distributed by Britax Child Safety, Inc. Britax Child Safety, Inc. ("Britax") warrants this product to the original retail purchaser as follows:

Limited One-Year Warranty

This product is warranted against defective materials or workmanship for one year from the date of original purchase. Proof of purchase is required. Your exclusive remedy for this warranty is that Britax will, at its option, provide repair or replacement components to the original purchaser for this product or refund the original purchase price of the product. Britax reserves the right to discontinue or change fabrics, parts, models or products, or to make substitutions. Labor and shipping costs for returns are not included.

To make a claim under this Warranty, you must contact Britax Customer Services Department at 1-888-4BRITAX or write to 13501 South Ridge Drive, Charlotte, NC 28273. Proof of purchase is required.

PLEASE COMPLETE AND MAIL THE REGISTRATION CARD WITHIN 30 DAYS OF PURCHASE, OR REGISTER ONLINE AT WWW.BRITAXUSA.COM/REGISTRATION.

Warranty Limitations

This warranty does not include damages which arise from negligence, misuse, salt corrosion, or use not in accordance with the user guide.

The use of non-Britax accessories is not approved by Britax. The use of unapproved accessories could cause this product to become damaged or dangerous. Their use automatically voids the Britax warranty.

Limitations of Damages

The warranty and remedies as set forth above are exclusive and in lieu of all others, oral or written, express or implied. In no event will Britax or the retailer selling this product be liable for any damages, including incidental or consequential damages, arising out of the use or inability to use this product.

Limitations of Warranties and Other Warranty Terms and State Law Rights

Any implied warranties, including implied warranties of merchantability and fitness for a particular purpose, shall be limited to the duration and terms of the express written warranty. Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above limitations may not apply to you. This warranty gives you specific legal rights, and you may have other rights, which vary from state to state. Neither Britax, nor the retailer selling this product, authorizes any person to create for it any other warranty, obligation, or liability in connection with this product.

Britax Child Safety, Inc.

13501 South Ridge Drive

Charlotte, NC 28273

USA

Tel [phone]

www.BritaxUSA.com
