Product Type	Stroller
Brand	BRITAX
Model	BLINK
Recommended Age	From 6 months
Maximum child weight	24.9 kg (55 lbs)
Maximum basket weight	2.3 kg (5 lbs)
Maximum storage pocket weight	0.45 kg (1 lb)
Number of children	1
Fold	Compact fold with auto-lock
Parking brake	Lever brake activating both rear wheels
Swivel wheels	Front swivel wheels with lock
Backrest adjustment	Reclining with release button
Canopy	Retractable canopy with locks and visor
Harness	Height-adjustable 5-point harness
Frame maintenance	Clean with a damp cloth and mild soap
Fabric maintenance	Clean with cold water and mild soap
Plastic parts maintenance	Do not use abrasive products or solvents
Storage	Store away from extreme heat and cover to avoid dust
Warranty	1-year limited (parts and labor)
Support	1-888-4BRITAX or www.BritaxUSA.com

Frequently Asked Questions - BLINK BRITAX

How to assemble the BLINK stroller?

Initial assembly includes mounting the front wheels, unfolding the frame, attaching the canopy clips, and fastening the fabric. Only an adult should perform assembly. Refer to the detailed instructions in the manual.

How to unfold the stroller?

Press the frame while releasing the chassis lock. Lift the handle upward and spread it open to unfold. Engage the frame lock by pressing the locking pedal. Make sure the chassis is securely locked before use.

How to fold the stroller?

Fold the canopy, then release the main lock by pulling the carry strap or lifting the pedal. With your right foot, press the secondary unlocking pedal while gently pushing the handles inward. Fold the stroller forward until it is fully collapsed. The chassis lock should engage automatically.

How to use the parking brake?

To activate the brake, press one of the brake levers; this engages both rear wheels. To release, lift the lever. Check that the brakes are engaged by trying to push or pull the stroller.

How to adjust the safety harness?

Place the harness around the child and tighten or loosen each strap using the five adjusters. To adjust the shoulder height, disconnect the shoulder and waist straps, thread the shoulder strap through the slot closest to the child's shoulder height, then reconnect it.

What is the maximum weight supported by the basket?

The basket supports a maximum of 2.3 kg (5 lbs). The storage pocket supports a maximum of 0.45 kg (1 lb). Do not exceed these limits to avoid the risk of tipping.

At what age can I use the stroller?

The stroller is designed for children at least 6 months old. Do not use with an infant. The maximum child weight is 24.9 kg (55 lbs).

How to clean the stroller?

Clean the frame with a damp cloth and mild soap. For the fabric, use cold water and mild soap. Plastic parts can be cleaned with a damp cloth and mild soap. Do not use abrasive products, solvents, or strong detergents.

What to do if the stroller gets wet?

Dry it with a clean cloth to prevent corrosion. Do not fold it when wet. Make sure it is completely dry before storing.

How to register my stroller for warranty?

Fill out the enclosed registration card and return it within 30 days of purchase, or register online at www.BritaxUSA.com/registration. This allows you to be contacted in case of a recall.

USER MANUAL BLINK BRITAX

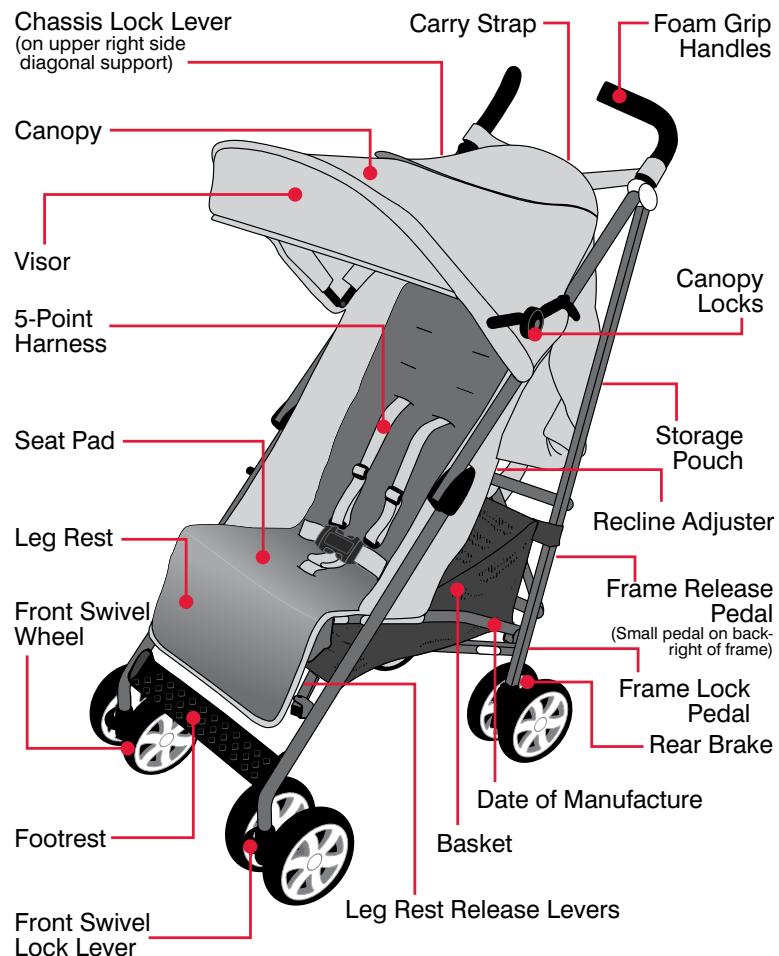

Operating Instructions

Unfold. 5

Fold. 6

Parking Brakes 7

Swivel Wheels. 7

Backrest 8

Canopy 9

Harness & Securing Child 10

Releasing Harness 11

Care and Maintenance 12

Warranty 13

This product and its components are subject to change without notice.

© 2009 Britax Child Safety, Inc. All rights reserved.

P343200 R5:03/09

Printed in China

• Never leave child unattended.
• Read and understand these instructions before using this product. To ensure proper use, store this user guide in a convenient place so it can be consulted often. Failure to follow all warnings and instructions could result in serious injury or death.
• Avoid serious injury from falling or sliding out of the stroller. Always buckle the harness when a child is in the stroller.
• Do not use stroller with an infant. Child must be approximately 6 months or older.
• Do not use stroller with a child who weighs more than 55 lbs (24.9 kg).
• Do not overload basket. Maximum weight in basket is 5 lbs (2.3 kg). Overloading the basket may cause the stroller to become unstable and tip over.
• Do not overload storage pouch. Maximum weight in pouch is 1 lb. (.45 kg). Overloading the pouch may cause the stroller to become unstable and tip over.
• Always make certain that the stroller is fully unfolded and locked before use.
  Assembly of this stroller must be performed only by an adult.
• Do not hang or place items on the stroller handle or frame. They may cause the stroller to become unstable and tip over.
  Children must always be restrained to prevent standing or falling out of stroller.
• Do not allow children to climb on or play with the stroller.
• Never use stroller on stairs or escalators.
• To avoid entrapment or pinching, do not fold or unfold stroller when child is in or around stroller.
• Stroller is intended for walking speed only. Do not use while jogging, skating, etc.
• Never use the stroller with more than one child at a time.
  Always set the parking brake when stroller is not moving.
• Only use accessories and replacement parts approved by Britax Child Safety, Inc.

NOTE: Actual product may vary from photographs

Initial Assembly

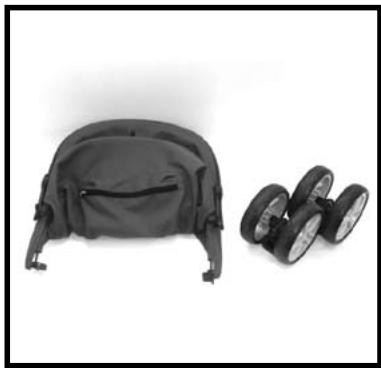

1 Locate both dual front wheels and canopy

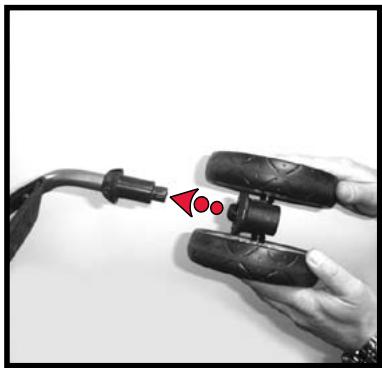

2 Attach front wheels to stroller frame
3 Unfold stroller as instructed on page 5

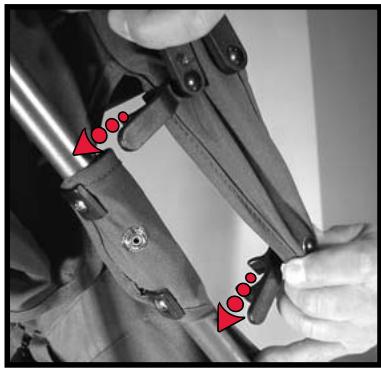

4 Press two attachment clips onto each side of stroller frame, placing clips above and below where fabric overlaps frame
5 Attach hook and loop fasteners around seat back

Unfold

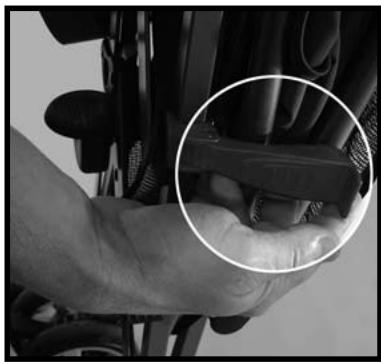

1 Squeeze frame while releasing chassis lock

2 Lift handle upward and apart to unfold stroller

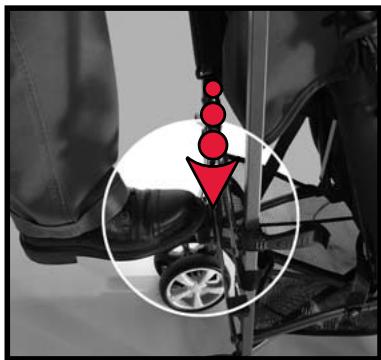

3 Step on frame lock pedal to lock stroller chassis

IMPORTANT - Make sure frame is locked before use

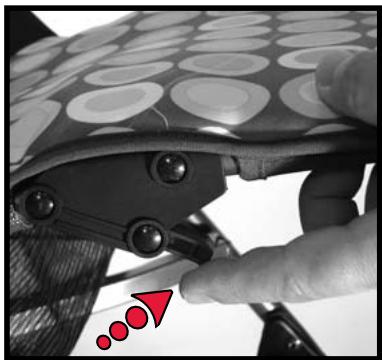

4 Adjust leg rest into desired position by pressing release levers as shown

Fold

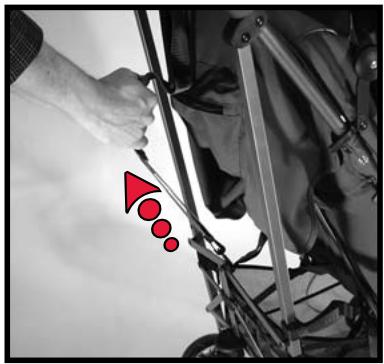

1 Collapse canopy (pg 9) and release primary frame lock by pulling up on the carry strap or lifting the frame lock pedal

3 Fold forward and downward until completely collapsed

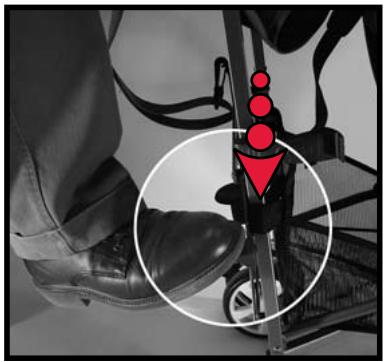

2 Using right foot on secondary release, step on frame release pedal while pressing inward slightly on handles and fold stroller forward

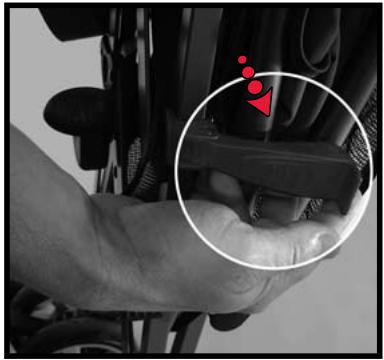

4 Chassis lock should engage automatically

Parking Brakes

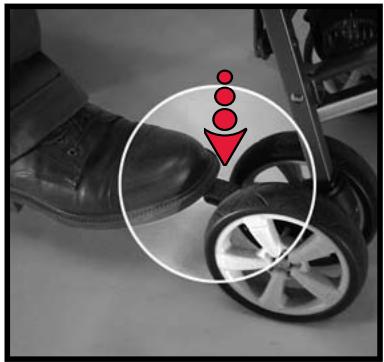

To set parking brake, pressing down just one brake lever will activate both rear brakes

NOTE: Verify that brakes are fully engaged by attempting to move stroller forward and backward

Swivel Wheels

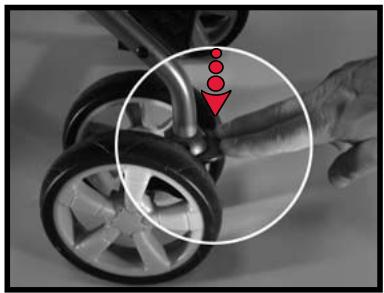

To unlock swivel wheels, press swivel lock lever down on each of the front sets of wheels

To release parking brake, lift lever until released

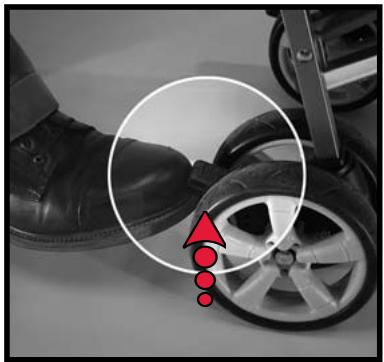

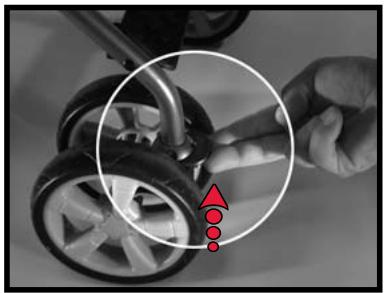

To lock swivel wheels, turn wheels forward, then lift swivel lock lever up until engaged

Note - Helpful on uneven terrain

Backrest

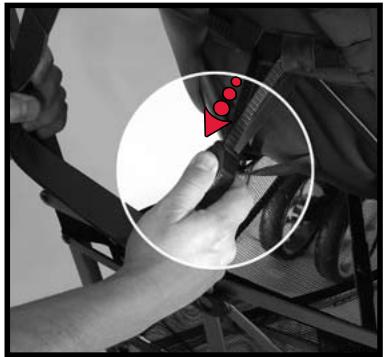

To lower backrest, press release button on recline adjuster and slide adjuster away from backrest

Press backrest down to reclined position

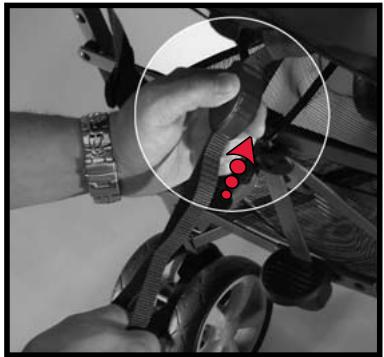

To raise backrest, press release button on backrest recline adjuster and slide toward backrest while holding backrest adjustment strap

Canopy

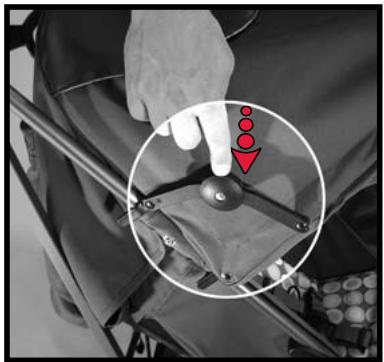

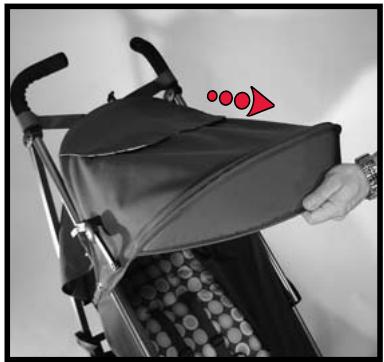

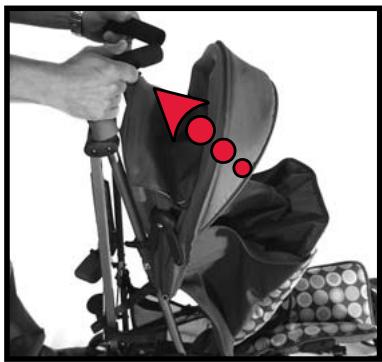

To Open Canopy, pull canopy forward, then engage both canopy locks (found on either side of the canopy) by pressing down - Pull out visor if desired

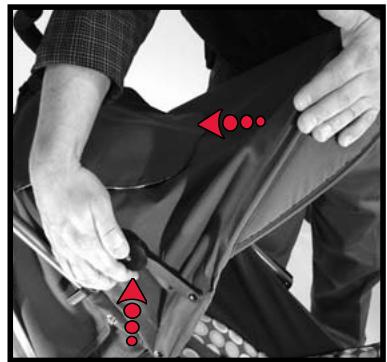

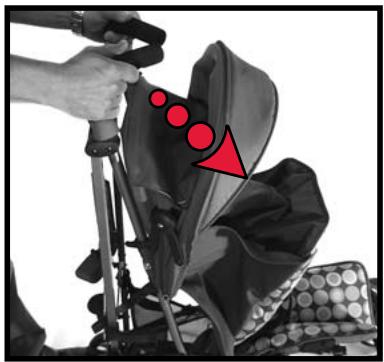

To Collapse Canopy, release each canopy lock by pressing up at center and push canopy back

Harness Adjustment & Securing Child

1 Set brake and position harness around child

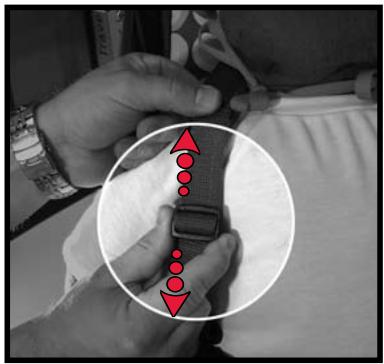

2 Loosen or tighten harness by sliding each of the five adjusters to desired position

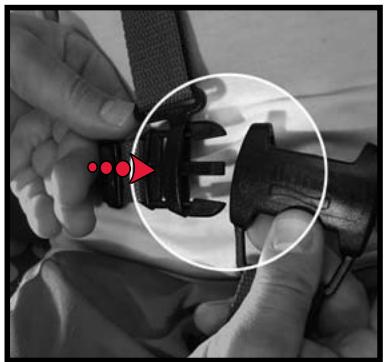

3 Insert each clip into adjacent sides of the buckle

1 Shoulder height may need to be adjusted

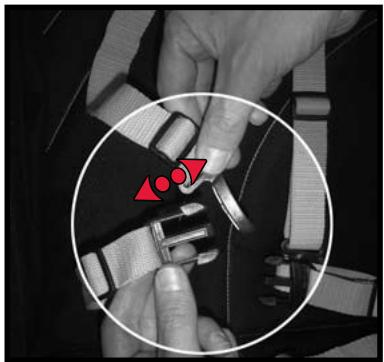

2 With buckle released, disconnect shoulder and waist straps by squeezing clips on both sides

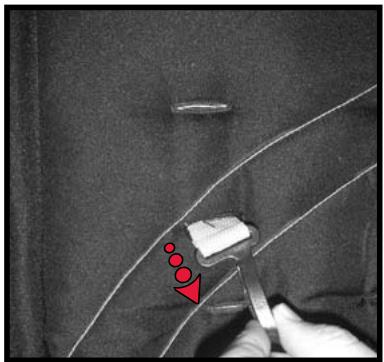

3 Pull shoulder strap completely through seat back and thread it back through the slot nearest the shoulder height of the child

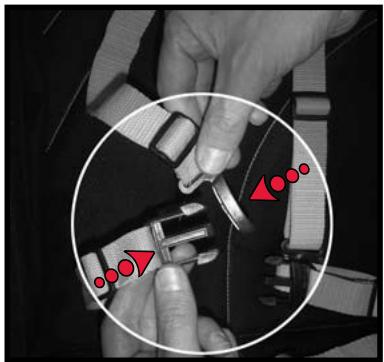

4 Reconnect shoulder strap to waist strap before securing child

Releasing Harness

1 ALWAYS set parking brake before removing child

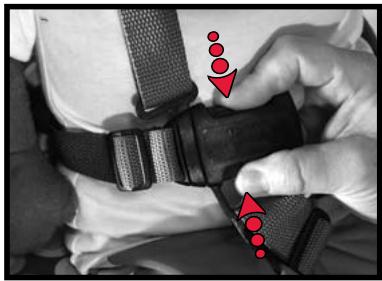

2 Unfasten buckle by squeezing clip on each side

Parking Brake

• Periodically check that the parking brake works properly and locks both wheels securely.
• Clean out any dirt or debris that may prevent the brake from engaging.

Frame

• Wipe the frame with a damp cloth and mild soap. Use a clean, dry cloth or towel to wipe away excess water and soap.

Fabric

• Wipe the fabric surface with cold water and mild soap.
  Cleaning Plastic Parts:
• Wipe with a damp cloth and mild soap. Use a clean, dry cloth or towel to wipe away excess water and soap.

Maintenance

If Stroller Gets Wet:

• Dry stroller with a clean cloth or towel to prevent corrosion.
• Do not fold stroller when wet or damp. Always make sure that the stroller is dry before storing.

Plastic Parts

• Do not use abrasives, solvents, strong detergents, or household cleaners. These products can scratch, discolor, and weaken plastic or cause corrosion on metal surfaces.

Storage

• Store away from extreme heat to prevent damage to plastic parts.
• Cover stroller to prevent dust build-up and exposure to sunlight.
• Do not stack other items on top of stroller.

Registration

In case of recall, we can reach you only if we have your name and address. Send in the completed registration card or register online to be on our recall list.

www.BritaxUSA.com/registration

This product is distributed by Britax Child Safety, Inc. Britax Child Safety, Inc. ("Britax") warrants this product to the original retail purchaser as follows:

Limited One-Year Warranty

This product is warranted against defective materials or workmanship for one year from the date of original purchase. Proof of purchase is required. Your exclusive remedy for this warranty is that Britax will, at its option, provide repair or replacement components to the original purchaser for this product or refund the original purchase price of the product. Britax reserves the right to discontinue or change fabrics, parts, models or products, or to make substitutions. Labor and shipping costs for returns are not included.

To make a claim under this Warranty, you must contact Britax Customer Services Department at 1-888-4BRITAX or write to 13501 South Ridge Drive, Charlotte, NC 28273. Proof of purchase is required.

PLEASE COMPLETE AND MAIL THE REGISTRATION CARD WITHIN 30 DAYS OF PURCHASE, OR REGISTER ONLINE AT WWW.BRITAXUSA.COM/REGISTRATION.

Warranty Limitations

This warranty does not include damages which arise from negligence, misuse, salt corrosion, or use not in accordance with the user guide.

The use of non-Britax accessories is not approved by Britax. The use of unapproved accessories could cause this product to become damaged or dangerous. Their use automatically voids the Britax warranty.

Limitations of Damages

The warranty and remedies as set forth above are exclusive and in lieu of all others, oral or written, express or implied. In no event will Britax or the retailer selling this product be liable for any damages, including incidental or consequential damages, arising out of the use or inability to use this product.

Limitations of Warranties and Other Warranty Terms and State Law Rights

Any implied warranties, including implied warranties of merchantability and fitness for a particular purpose, shall be limited to the duration and terms of the express written warranty. Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above limitations may not apply to you. This warranty gives you specific legal rights, and you may have other rights, which vary from state to state. Neither Britax, nor the retailer selling this product, authorizes any person to create for it any other warranty, obligation, or liability in connection with this product.

Britax Child Safety, Inc.

13501 South Ridge Drive

Charlotte, NC 28273

USA

Tel [phone]

www.BritaxUSA.com
