| Marque | Alpine |
| Modèle | DVR-F790 |
| Type de produit | Caméra de tableau de bord (Dashcam) |
| Dimensions (unité principale) | 92 x 53,3 x 29,7 mm |
| Poids (avec socle) | 169,4 g |
| Mémoire interne | Carte microSD 32 Go fournie (consommable) |
| Résolution vidéo | Full HD 1920 x 1080 @ 30 images/s |
| Angle de vue | 140° (diagonale) |
| Capteur | 2,1 mégapixels CMOS |
| Accéléromètre | 3 axes ±3G, 5 niveaux de sensibilité |
| GPS | Intégré dans le socle (GPS + BeiDou) |
| Connectivité | Wi-Fi 2,4 GHz 802.11 b/g/n |
| Alimentation | DC 12/24 V (câble de câblage en dur ou chargeur optionnel) |
| Consommation électrique | 2 canaux : 4,5 W / 1 canal : 3,1 W (moyenne) |
| Température de fonctionnement | -10 °C à 60 °C |
| Fonctions principales | Enregistrement continu, incident, manuel, stationnement (détection de mouvement, time-lapse, économie d'énergie), SOS |
| Fonctions de sécurité | ADAS (LDWS, FCWS, Low Speed FCWS, FVDW), alerte radars, Super Vision Nocturne |
| Entretien et nettoyage | Nettoyer avec un chiffon doux et sec ; ne pas utiliser de produits chimiques |
| Pièces détachées et réparabilité | Carte mémoire microSD, câble de câblage en dur, câble de caméra arrière (optionnel), chargeur (optionnel) |
| Informations générales | Conforme à la directive 2014/53/UE ; garantie constructeur (voir notice) |
FOIRE AUX QUESTIONS - DVR-F790 ALPINE
Questions des utilisateurs sur DVR-F790 ALPINE
0 question sur cet appareil. Repondez a celles que vous connaissez ou posez la votre.
Poser une nouvelle question sur cet appareil
Téléchargez la notice de votre Dashcam au format PDF gratuitement ! Retrouvez votre notice DVR-F790 - ALPINE et reprennez votre appareil électronique en main. Sur cette page sont publiés tous les documents nécessaires à l'utilisation de votre appareil DVR-F790 de la marque ALPINE.
MODE D'EMPLOI DVR-F790 ALPINE
FOR CAR USE ONLY/ POUR APPLICATION AUTOMOBILE UNIQUEMENT/ NUR FÜR AUTOMOBIL GEBRAUCH/ PARA USO EN AUTOMÓVILES/ SOLO PER L'UTILIZZO IN AUTOMOBILE/ ТОЛЬКО ДЛЯ ИСПОЛЬЗОВАНИЯ В АВТОМОБИЛЯХ
ALPINE
WIFI DASH CAM
DVR-F790
- OWNER'S MANUAL Please read before using this equipment.
- MODE D'EMPLOI Veuillez lire avant d'utiliser cet appareil.
-
BEDIENUNGSANLEITUNG Lesen Sie diese Bedienungsanleitung bitte vor Gebrauch des Gerätes.
-
MANUAL DE OPERACIÓN Léalo antes de utilizar este equipo.
- ISTRUZIONI PER L'USO Si prega di leggere prima di utilizzare il attrezzatura.
- РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ Прочтите настоящее руководство перед началом использования оборудования.
Before using the product
About the product
This product records videos while the vehicle is operating. Use this product only for reference when investigating incidents or road accidents. This product is not guaranteed to record for all events. The device may not record accidents with impacts that are too minor to activate the impact sensor or accidents with massive impacts that cause the vehicle's battery voltage to deviate.
Video recording does not begin until the product is completely turned on (booted up). To ensure that all vehicle events are recorded, wait until the product is completely booted up after turning it on, and then begin operating the vehicle.
ALPS ALPINE is not responsible for any loss caused by an accident, nor is it responsible for providing any support regarding the outcome of an accident.
Depending on the vehicle's configuration or operating conditions, such as the installation of remote door lock devices, ECU settings, or TPMS settings, some product features may not be supported, and different firmware versions may influence the product's performance or features.
About the user guide
The information provided in the guide may change when the manufacturer updates its service policy.
This user guide is intended for Alpine DVR-F790 model only, and it may contain technical errors, editorial errors, or missing information.
Copyrights
All rights for the content and maps in this guide are reserved by THINKWARE and are protected under copyright laws. All unauthorized duplication, revision, publication, or distribution of this guide without written consent from THINKWARE is prohibited and is eligible for criminal charges.
Registered trademarks
THINKWARE F790 is a registered trademark of THINKWARE.
Other product logos and service names in this guide are trademarks of the relevant companies.
Contents
Safety information 4
1. Product overview 6
1.1 Included items 6
1.1.1 Standard items 6
1.1.2 Accessories (sold separately) 6
1.2 Part names 7
1.2.1 Front camera (main unit) - front view 7
1.2.2 Front camera (main unit) - rear view 8
1.2.3 Cradle 8
1.2.4 Rear camera (optional) 9
1.3 Removing and inserting the memory card 9
2. Installing the product 10
2.1 Installing the front camera (main unit) 10
2.1.1 Selecting an installation location 10
2.1.2 Securing the product 10
2.1.3 Connecting the power cable 12
2.2 Installing the rear camera (optional) 13
2.2.1 Selecting an installation location 13
2.2.2 Securing the rear camera 13

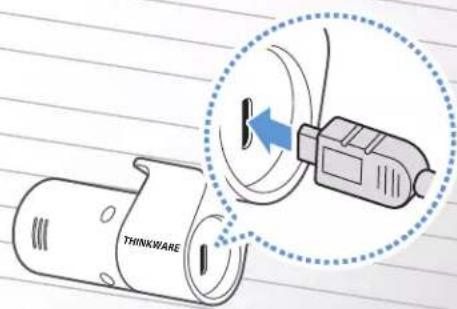

2.2.3 Connecting the rear camera cable 14
3. Using recording features 15
3.1 Turning the product on or off 15
3.2 Learning about the file storage locations 15
3.3 Using the continuous recording feature 15
3.4 Recording manually 16
3.5 Using the SOS recording feature 16
3.6 Using parking mode 16
3.7 Using the Super Night Vision 18
3.8 Using the road safety features 18
4. Using the mobile viewer 19
4.1 Connect the product to a smartphone 19
4.2 Viewing the mobile viewer screen layout 19

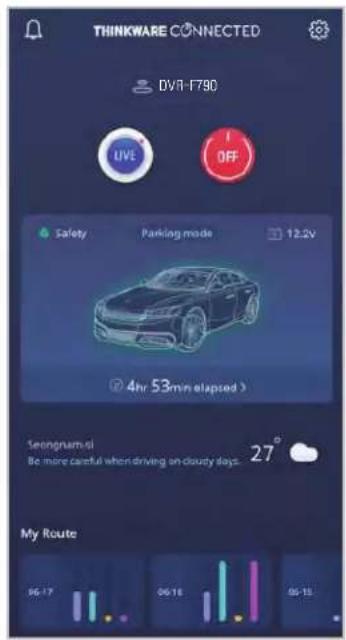

5. Using THINKWARE CONNECTED 20
5.1 Connecting the product to THINKWARE CONNECTED 20
6. Using the PC viewer 21
6.1 System requirements 21
6.2 Learning about the PC viewer 21
6.2.1 Installing the PC viewer 21

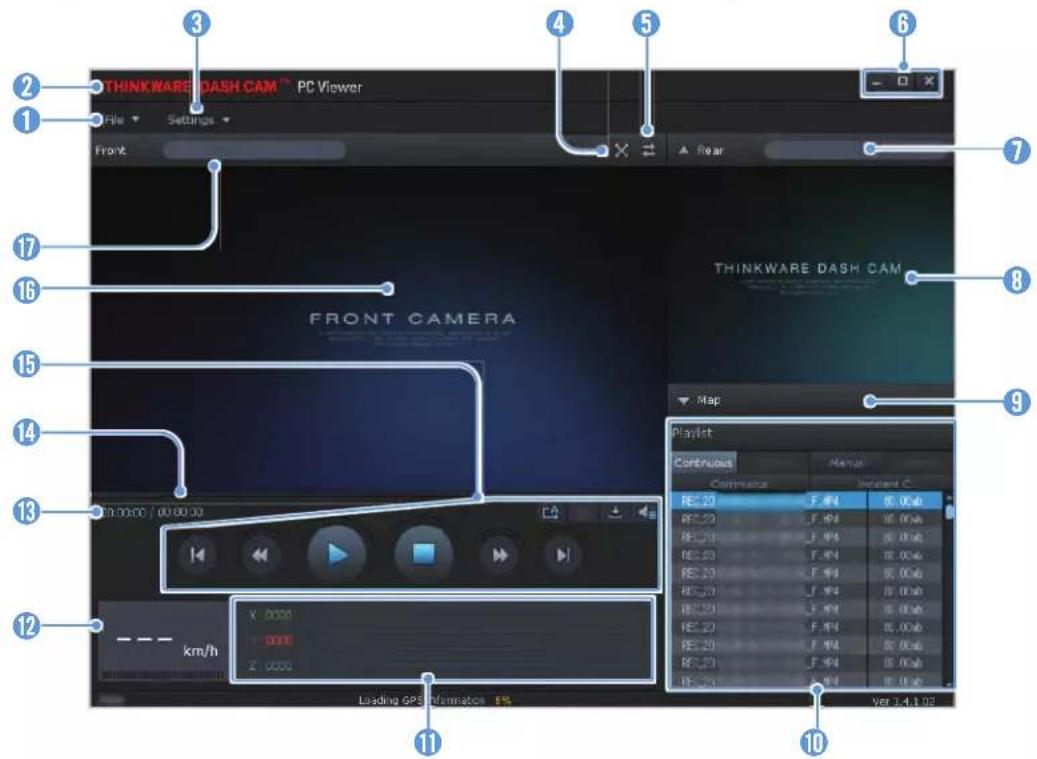

6.2.2 PC viewer screen layout (for Windows) 22
6.2.3 Playing recorded videos on the PC viewer (for Windows) 23
6.2.4 PC viewer screen layout (for Mac) 24
6.2.5 Playing recorded videos on the PC viewer (for Mac) 25
7. Settings 26
7.1 Managing the memory card 26
7.2 Setting the Camera 26
7.3 Setting recording features 27
7.4 Setting road safety features 28
7.5 Configuring the system settings 28
8. Accessing the product information 29
8.1 Viewing the product information 29
8.2 Accessing and configuring the GPS 29
9. Upgrading the firmware 30
10. Troubleshooting 31
11. Specifications 32
Safety information
Read the following safety information to properly use the product.
Safety symbols in this guide
"Warning" - Indicates a potential hazard which, if not avoided, may result in injury or death.
"Caution" – Indicates a potential hazard which, if not avoided, may result in minor injury or property damage.
"Note" - Provides useful information to help users better utilize the product's features.
Safety information for proper use
Driving and product operation
- Do not operate the product while driving a vehicle. Distraction while driving may cause accidents and result in injury or death.
- Install the product in places where the driver's view is not obstructed. Obstruction of the driver's vision may cause accidents and result in injury or death. Check with your state and municipal laws before mounting the product to the windshield.
Power supply
- Do not operate or handle the power cable with wet hands. Doing so may result in electrocution.
- Do not use damaged power cables. Doing so may result in electrical fire or electrocution.
- Keep the power cable away from all heat sources. Failure to do so may cause the power cord insulation to melt, resulting in electrical fire or electrocution.
- Use the power cable with the correct connector and make sure the power cable is connected securely and is firmly in place. Failure to do so may result in electrical fire or electrocution.
- Do not modify or cut the power cable. Also, do not place heavy objects on the power cable or pull, insert, or bend the power cable using excessive force. Doing so may result in electrical fire or electrocution.
- Use only genuine accessories from ALPINE or an authorized ALPINE dealer. ALPS ALPINE does not guarantee compatibility and normal operation of third-party accessories.
- When connecting the power cable to the product, ensure that the connection between the cable plug and the power cable connector on the product is secure. If the connection is loose, the power cable may become disconnected due to vehicle vibration. Video recording is not available if the power connector is disconnected.
Children and pets
Ensure that the product is out of the reach of children and pets. If the product breaks, it may result in fatal damage.
Other information about the product
Product management and operation
- Do not separate the product and the cradle when the product is turned on. Doing so may result in product malfunction.
- Do not expose the product to direct sunlight or intense light. The lens or internal circuitry may fail otherwise.
- Use the product at a temperature between 14^ and 140^ (-10^ to 60^) and store the product at a temperature between -4^ and 158^ (-20^ to 70^) . The product may not function as designed and some permanent physical damages may result if it is operated or stored out of the specified temperature ranges. Such damages are not covered by the warranty.
- Frequently check the product for the proper installation position. Impact caused by extreme road conditions may alter the installation position. Ensure that the product is positioned as instructed in this guide.
- Do not apply excessive force when pressing the buttons. Doing so may damage the buttons.
- Do not use chemical cleaners or solvents to clean the product. Doing so may damage plastic components of the product. Clean the product using a clean, soft, and dry fabric.
- Do not disassemble the product or subject the product to impact. Doing so may damage the product. Unauthorized disassembly of the product voids the product warranty.
- Handle with care. If you drop, mishandle, or expose the product to external shocks, it may cause damage and/or result in the malfunction of the product.
- Do not attempt to insert foreign objects into the device. Doing so may damage the product.
- Avoid excessive humidity and do not allow any water to enter the product. Electronic components inside the product may fail if exposed to humidity or water.
- Depending on the make and model of your car, the power may be constantly supplied to the dash cam even when the ignition is turned off. Installation of the device to a continuously powered 12V outlet could result in vehicle battery drainage.
- This device is designed to record video while the vehicle is in operation. The quality of the video might be affected by weather conditions and the road environment, such as whether it is day or night, presence of street lighting, entering/exiting tunnels, and the surrounding temperature.
- ALPS ALPINE is NOT responsible for the loss of any recorded video during operation.
- Although the device was designed to withstand high-impact car collisions, ALPS ALPINE does not guarantee the recording of accidents when the device is damaged as a result of the accident.
- Keep the windshield and camera lens clean for optimal video quality. Particles and substances on the camera lens or windshield may reduce the quality of the recorded videos.
- This device is intended to be used inside the vehicle only.
1. Product overview
1.1 Included items
Ensure that all the items are included when you open the product box.
1.1.1 Standard items
Front camera (main unit)
Cradle
Hardwiring cable
microSD memory card with adapter (consumable)
Quick start guide / User guide (stored in the microSD card)
The standard items may change without prior notice.
1.1.2 Accessories (sold separately)
Rear camera Rear camera cable Car charger
1.2 Part names

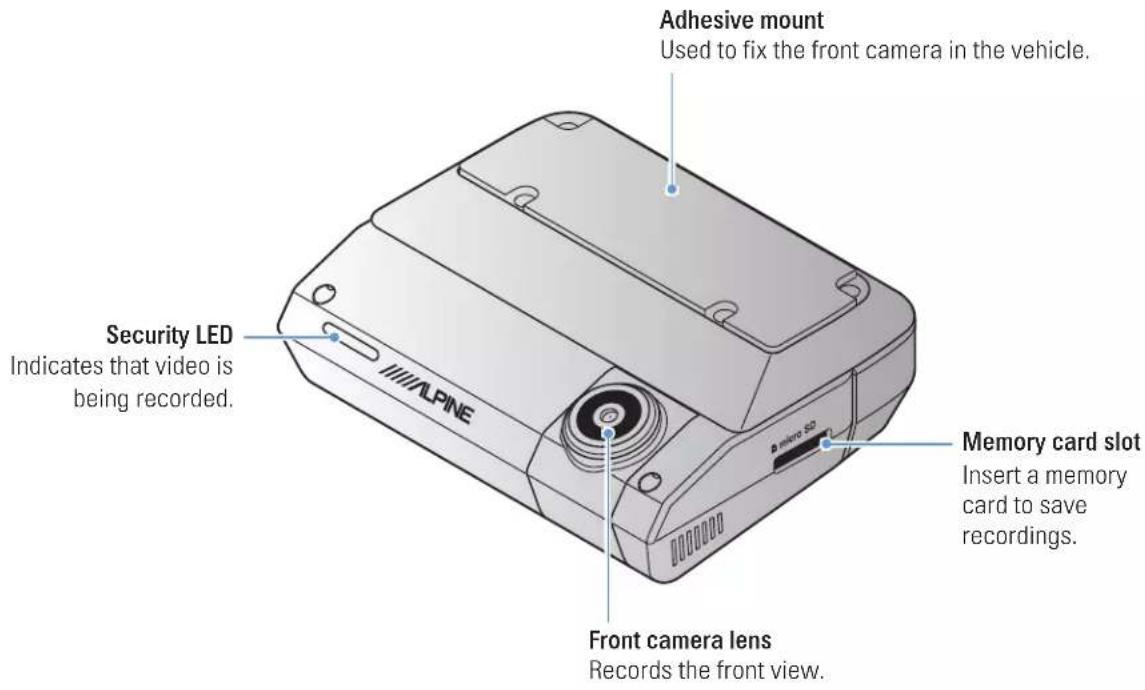

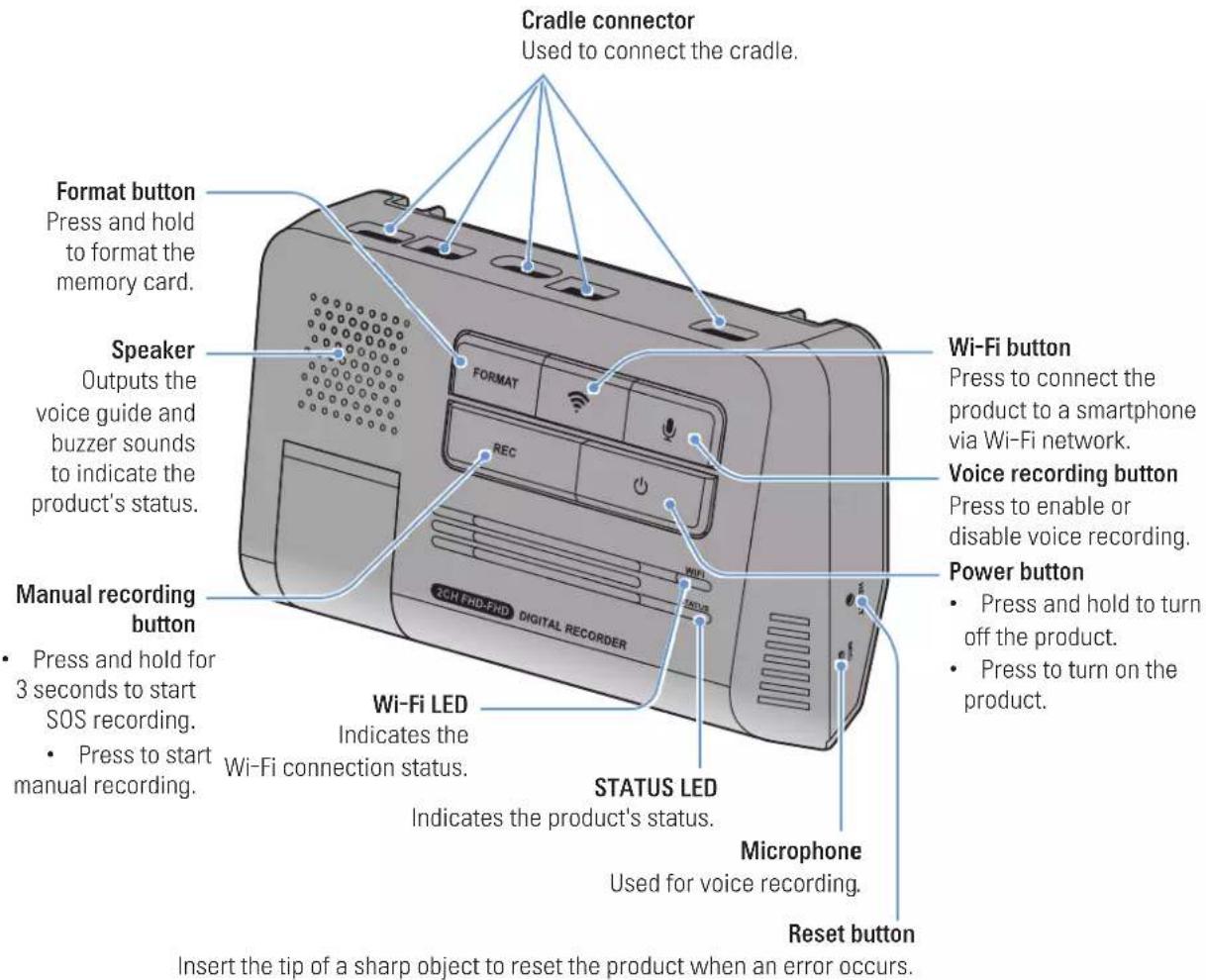

1.2.1 Front camera (main unit) - front view
- To reset the product, press and hold the voice recording (☐) and manual recording (REC) buttons simultaneously until you hear beeps.
• Refer to the following table to check the status of the product using the LED indicators.
| LED LED STATUS Operation description | ||
| Security LED | (light on) | The product is turned on. |
| Wi-Fi LED |   | Wi-Fi connected. |
  | The product is waiting for Wi-Fi connection. | |
| STATUS LED |   | The product is turning on. |
  | SD card not reading. | |
1.2.2 Front camera (main unit) - rear view

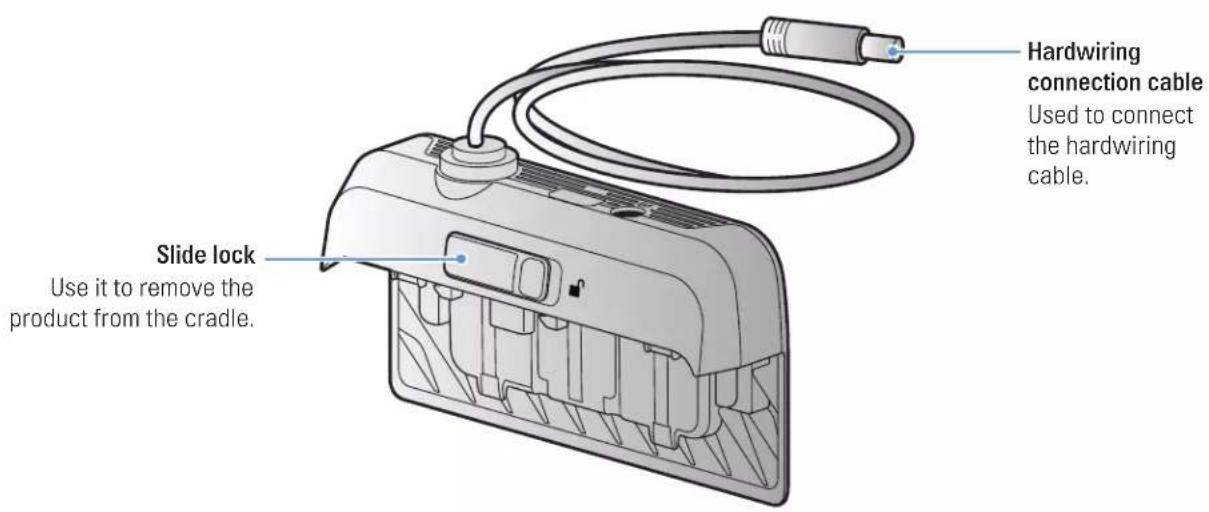

1.2.3 Cradle
• GPS is built into the cradle.
- Do not separate the product and the cradle when the product is turned on. Doing so may result in product malfunction.
- If the product and cradle are not fully connected, the red part of the slide lock will show.
- Ensure that the hardwiring connection cable is in the correct direction before connecting it to the hardwiring cable.

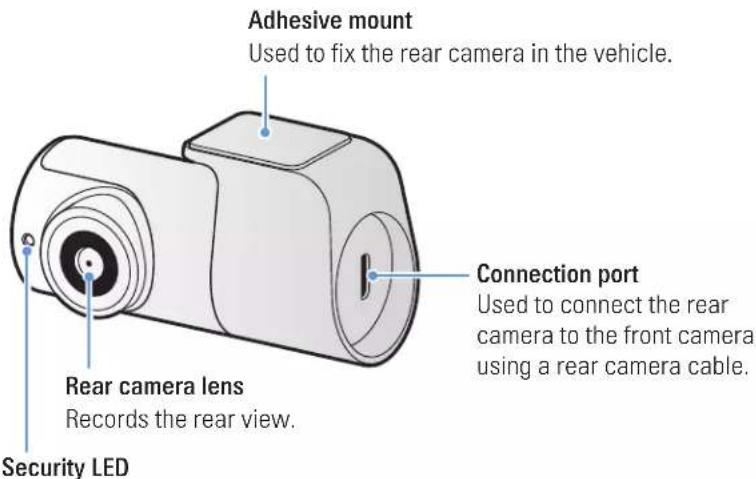

1.2.4 Rear camera (optional)
Indicates that the video is being recorded.
If the rear camera is not connected to the product, the product will say "Rear view camera disconnected" when you turn on the ACC or start the engine, and the product will only record the front view. Connect the rear camera in advance to use the 2-channel recording.
To record the front view only, without hearing the voice guidance after each boot-up, tap Dash Cam Settings > Camera Settings > Camera Channel and select 1-channel.

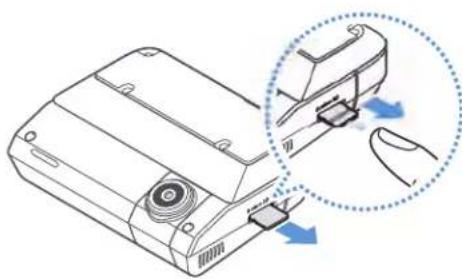

1.3 Removing and inserting the memory card
Follow the instructions to remove the memory card from the product or to insert the memory card into the product.
To insert the memory card into the memory card slot, ensure that the metal contacts on the memory card are facing toward the product's buttons, and insert it into the slot until you hear a click.
- Ensure that the product is turned off before removing the memory card. The recorded video files may be corrupted or lost if you remove the memory card while the product is on.
- Ensure that the memory card is in the correct direction before inserting it into the product. The memory card slot or the memory card may be damaged if it is inserted incorrectly.
- Use only authentic memory cards from ALPINE. ALPS ALPINE does not guarantee the compatibility and normal operation of third-party memory cards.
To prevent loss of recorded video files, periodically back up the video files on a separate storage device.
2. Installing the product
2.1 Installing the front camera (main unit)
Follow the instructions to properly install the product.

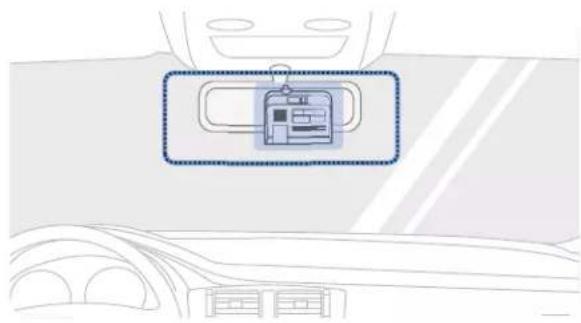

2.1.1 Selecting an installation location
If a GPS navigating device is installed on the dashboard, its GPS reception may be affected depending on the dashboard camera's installation location.
Adjust the installation location of the GPS navigating device to ensure that the two devices are separated by at least 20 centimeters (approximately 8 inches).
2.1.2 Securing the product
Follow the instructions to secure the product at the installation location.

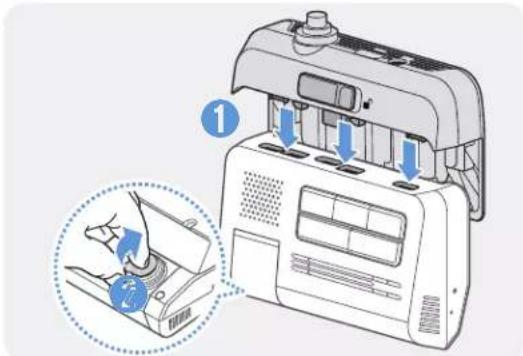

1

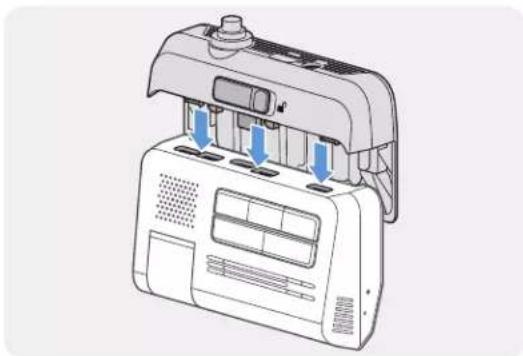

Align the cradle with the mount rail and connector on the product and slide it down until you hear a click. Then, carefully remove the protective film.
2 After determining the installation location, wipe the installation location on the windshield with a dry cloth.
3

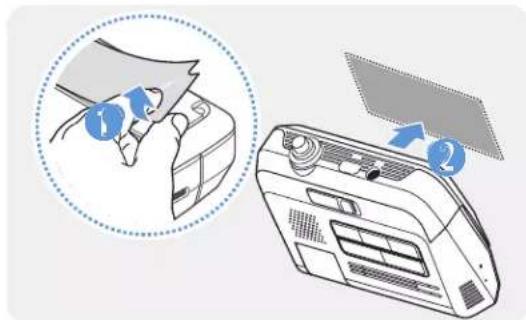

Remove the protective film from the adhesive mount, and then press the mount to the installation location.
4

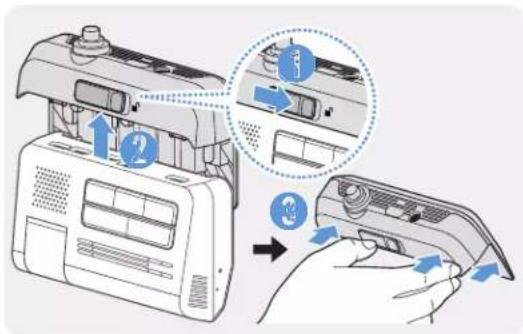

Pull the slide lock to the right and pull up the cradle to remove it from the product. Then push the cradle against the windshield to ensure that it is firmly fixed.
5
• The product may fall and be damaged during vehicle operation if it is not firmly fixed to the cradle.
- If you need to remove the cradle from the windshield to alter the installation location, be careful not to damage the windshield's film coat.

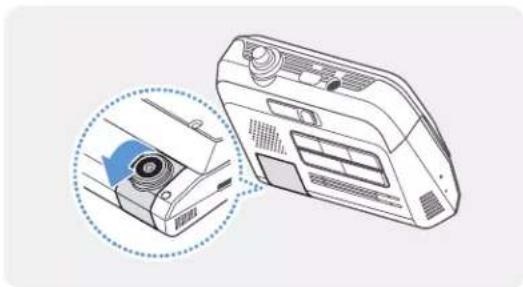

6
If the product and cradle are not fully connected, the red part of the slide lock will show.

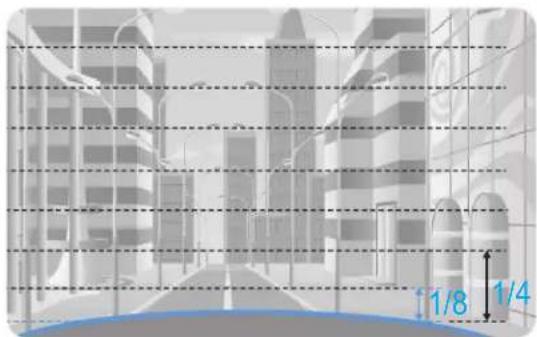

To confirm the camera angle, record a video after installation and check the video using the mobile viewer or the PC viewer. If necessary, adjust the camera angle again. For more information about the mobile viewer or the PC viewer, refer to "4. Using the mobile viewer" on page 19 or "6. Using the PC viewer" on page 21.
2.1.3 Connecting the power cable
When the engine and electrical accessories are turned off, connect the continuous power cable to the product.

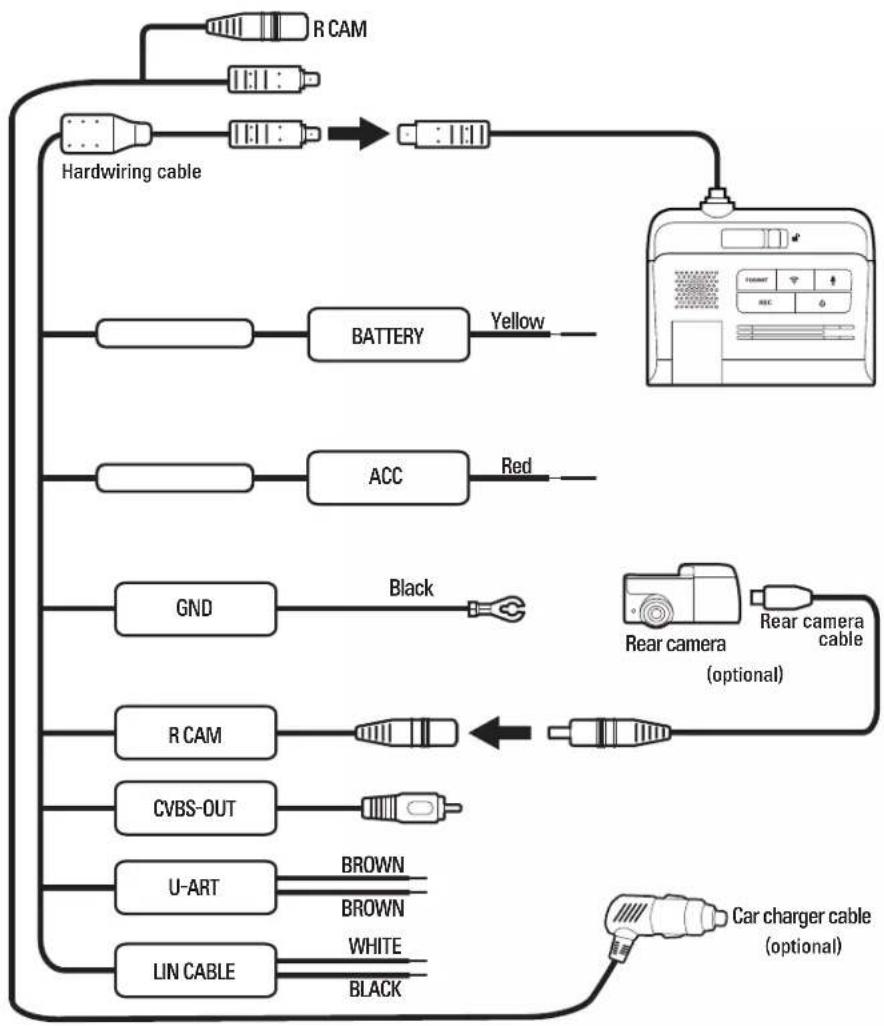

Overviewing the connection diagram
Connect the product to THINKWARE DASH CAM LINK on your smartphone and adjust the camera angle so that the hood of the vehicle covers 1/4 - 1/8 of the screen while viewing the live view screen, as shown in the image to the left.
For more information about connecting and using the THINKWARE DASH CAM LINK, refer to "4. Using the mobile viewer" on page 19.
2.2 Installing the rear camera (optional)
Refer to the following instructions to properly install the rear camera.

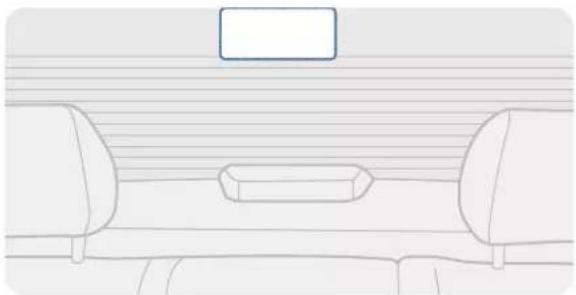

2.2.1 Selecting an installation location
- For vehicles with a sunshade attached to the rear windshield, you must select a location where using the sunshade will not interfere with camera operation.
• The adhesive part of the rear camera should not touch the defrost grid.

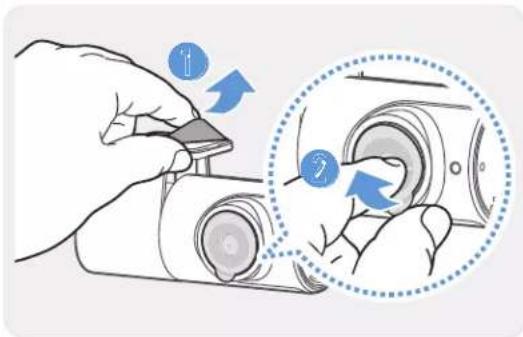

2.2.2 Securing the rear camera
Refer to the following instructions to secure the product to the installation location.
1 After determining the installation location, wipe the installation surface of the windshield with a dry cloth.
Check the installation location before you secure the rear camera to the rear windshield. After securing the rear camera to the windshield, it is hard to remove the camera or change the installation location due to the strong adhesive.
2
3
Attach the product with the THINKWARE logo facing indoors and press the adhesive tape firmly to secure the camera.
If the product is fixed in reverse, the rear view will be recorded upside down.
4
2.2.3 Connecting the rear camera cable
Power off the product and connect the rear camera cable to the front camera (main unit).
1 Connect one end of the rear camera cable to the front camera's V-IN port.
2
Connect the other end of the rear camera cable to the rear camera's connection port.
For safe driving, arrange the cables to prevent the driver's vision from being obstructed or interfering with driving.
3 Turn on the ACC or start the engine to check if the product is powered on. After the product is powered on, the voice guidance will be turned on.
The product is powered on when the ACC mode is turned on or when the engine starts.
3. Using recording features
3.1 Turning the product on or off
The product is turned on automatically and continuous recording starts when you turn on the ACC or start the engine.
Wait until the product is completely booted up after turning it on, and then begin operating the vehicle. The video recording does not begin until the product is completely turned on (booted up).
3.2 Learning about the file storage locations
Videos are stored in the following folders according to their recording mode.
| On the mobile viewer | Continuous | Continuous Incident | Manual Recording | Motion Detection | Parking Incident | SOS Recording |
| In the memory card | cont_rec | evt_rec manual_rec | motion_timelapse_rec | parking_rec | sos_rec |
Play videos on Window/Mac computer or using the THINKWARE DASH CAM LINK. If you play videos by inserting the memory card in devices such as a smartphone or a tablet PC, the video files may be lost.

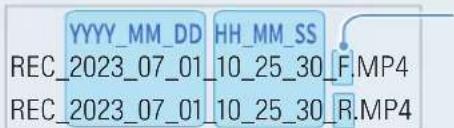

A file name is composed of the recording start date and time, and the recording option.
Recording conditions
• F: Front camera
• R: Rear camera (when optional rear camera is equipped)
3.3 Using the continuous recording feature
Connect the power cable to the product's DC-IN power port and then turn on the vehicle's electrical accessories or start the engine. The voice guide will indicate that continuous recording has started.
During continuous recording, the product operates as follows.
| Mode Operation description STATUS LED | ||
| Continuous recording | During driving, videos are recorded in 1 minute segments and stored in the "cont_rec" folder. | [cx88](light on) |
| Incident continuous recording* | When an impact to the vehicle is detected, a video is recorded for 20 seconds (from 10 seconds before the detection to 10 seconds after the detection) and stored in the "evt_rec" folder. |  (flickers quickly) |
(light on)
(flickers quickly)
* When an impact to the vehicle is detected during continuous recording, incident continuous recording starts with a double beep sound.
- Wait until the product is completely booted up after turning it on, and then begin operating the vehicle. The video recording does not begin until the product is completely turned on (booted up).
- When incident continuous recording starts, a double "beep" sounds as a notification.
- To enable recording, you must insert a memory card into the product.
3.4 Recording manually
You can record a scene you want to capture while driving and store it as a separate file.
To start manual recording, press the manual recording (REC) button. Then, the voice guide will indicate that manual recording has started.
During manual recording, the product operates as follows.
| Mode Operation description STATUS LED | ||
| Manual recording | When you press the manual recording (REC) button, a video will be recorded for 1 minute (from 10 seconds before to 50 seconds after pressing the button) and stored in the "manual_rec" folder. |  (flickers quickly) |
3.5 Using the SOS recording feature
You can record a scene when an accident occurs while driving and store it as a separate file.
To start SOS recording, press the REC button for 3 seconds. During SOS recording, the product operates as follows.
| Mode Operation description STATUS & Wi-Fi LED | ||
| SOS recording | If you press the REC button for 3 seconds when an accident occurs, a video will be recorded for 10 seconds (from 5 seconds before the accident to 5 seconds after pressing the button) and stored in the "sos_rec" folder. |  (flickers quickly) |
- To use this feature, you must sign in to the THINKWARE CONNECTED application.
- The video will be uploaded to the THINKWARE CONNECTED application with the location where the accident occurred.
3.6 Using parking mode
When the product is connected to the vehicle via the hardwiring cable, the operating mode is switched to parking mode after the engine or electrical accessories are turned off and the voice guide will indicate that the parking mode has started.
- Parking mode operates only when the hardwiring cable is connected. The hardwiring cable must be professionally installed to the vehicle by a trained mechanic.
- To use all recording modes, you must insert a memory card into the product.
- Depending on the battery charging status of the vehicle, the duration of parking mode may differ. If you want to use parking mode for an extended period, check the battery level to prevent battery depletion.
If you do not want to use parking mode or you want to change the mode settings, from the mobile viewer, tap Dash Cam Settings > Record Settings.
Refer to the following table to set the Parking Mode options.
| Option Operation description STATUS LED | |||
| Motion Detection | No motion or impact detected | Monitors movement in the area or impacts to the vehicle. Video will be recorded only when motion or an impact is detected. |  (flickers slowly) |
| Motion detected | When a moving objects is detected while parking, a video is recorded for 20 seconds (from 10 seconds before detection to 10 seconds after detection) and stored in the "motion_timelapse_rec" folder. |  (flickers quickly) | |
| Impact detected | When an impact is detected while parking, a video is recorded for 20 seconds (from the moment 10 seconds before detection to 10 seconds after detection) and stored in the "parking_rec" folder. |  (flickers quickly) | |
| Time Lapse | No impact detected | A videos is recorded at a rate of 2 fps for 10 minutes, compressed into a 2-minute long file, and stored in the "motion_timelapse_rec" folder. Since the video file recorded with this option is small, you can record a long video. |  (flickers slowly) |
| Impact detected | When an impact is detected while parking, a video is recorded for 100 seconds at a rate of 2 fps (from the moment 50 seconds before detection to 50 seconds after detection) and stored in the "parking_rec" folder after being compressed into a 20-second long file. (The buzzer will sound.) |  (flickers quickly) | |
| Energy Saving | No impact detected | Monitors impacts to the vehicle. Video will be recorded only when an impact is detected. | OFF |
| Impact detected | When an impact is detected while parking, a video is recorded for 20 seconds (from within 1 second after detection) and stored in the "parking_rec" folder. |  (flickers quickly) | |
| OFF | The product is powered off when electric accessories and the engine are turned off. | OFF | |
If parking mode settings are changed, the videos recorded with the previous settings will be deleted. To prevent data loss, back up all parking mode videos before changing parking mode settings.
You cannot use Motion Detection, Time Lapse, or Energy Saving at the same time.
3.7 Using the Super Night Vision
With the Super Night Vision feature, you can record videos that are much brighter than videos recorded without this feature. This feature is enabled by real-time image signal processing (ISP) to improve the brightness of videos recorded while parking at night.
2 From Super Night Vision, select the desired recording mode to use the Super Night Vision feature. The new setting is applied automatically.
3.8 Using the road safety features
The road safety features include a safety camera alert system, a lane departure warning system (LDWS), a forward-collision warning system (FCWS), a low speed Forward collision warning system (low-speed FCWS), and a front vehicle departure warning (FVDW).
| Safety feature Description | |
| LDWS(Lane Departure Warning) | Detects the lane departure via the real-time video and warns the driver. |
| FCWS(Forward Collision Warning) | Detects forward collision threats via the real-time video and warns the driver when the vehicle is moving at 40 km/h or above. |
| Low Speed FCWS | Detects forward collision threats via real-time video and warns the driver when the vehicle is moving at 10-30 km/h. |
| FVDW(Front Vehicle Departure Warning) | Detects the departure of another vehicle that was previously stationary in front of the vehicle and notifies the driver after four seconds. |
Road safety features are performed differently depending on the set speed and sensitivity of the features.
4. Using the mobile viewer
You can view and manage recorded videos and configure various product features on your smartphone.
One of the following environments is required to use the THINKWARE DASH CAM LINK application:
- Android 7.0 (Nougat) or higher
- iOS 13 or higher
4.1 Connect the product to a smartphone
1 On your smartphone, open the Google Play Store or Apple App Store and download and install THINKWARE DASH CAM LINK.
2 Run THINKWARE DASH CAM LINK.
3 Tap Dash cam connection is required. at the bottom of the screen and follow the on-screen instructions to connect the product to a smartphone.
- From the network list, select the Wi-Fi network starting with "Alpine_XX."
- The Wi-Fi password is required when you connect the product to a smartphone for the first time. Enter "123456789" in the password input field.

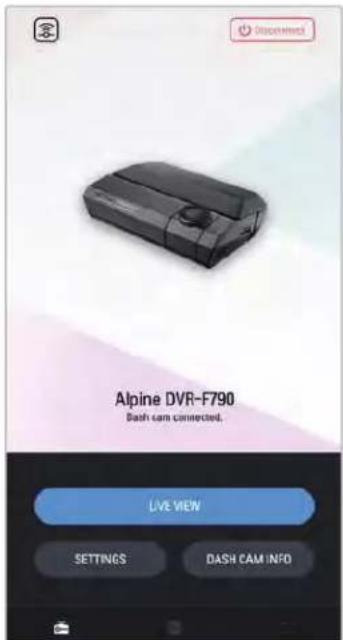

4.2 Viewing the mobile viewer screen layout
The following is the screen layout for the mobile viewer.
5. Using THINKWARE CONNECTED
When using parking mode, you can check vehicle status notifications, such as Live View, parking impact notifications, the vehicle voltage status, the dash cam power status, and the recent parking location on the THINKWARE CONNECTED application depending on your service plan.
• One of the following environments is required to use the THINKWARE CONNECTED application:
- Android 7.0 (Nougat) or higher
- iOS 11.4 or higher
- The services and features provided by THINKWARE CONNECTED application may be changed according to the service policy. Refer to the THINKWARE website (https://www.thinkware.com) for more information.
• Status of the vehicle while driving/parking
• Vehicle battery voltage status
- Dash cam power off
- Driving history
• SOS notification, recorded video backup, and SMS transmission
- Driving impact notification, video backup, and SMS transmission
- Parking impact notification and recorded video backup
• Download and share the event location and recorded video
• The captured image of the camera during the most recent parking
• Real-time vehicle location
- Remote live view
5.1 Connecting the product to THINKWARE CONNECTED
1 On your smartphone, open the Google Play Store or Apple App Store and download and install THINKWARE CONNECTED and THINKWARE DASH CAM LINK.
2 Register the dash cam in THINKWARE DASH CAM LINK, then add the network to connect to THINKWARE CONNECTED.
3 Follow the instructions in the Wi-Fi dash cam tab of THINKWARE CONNECTED to register by scanning the barcode on the dashcam or the barcode on the product box.
4 After requesting authentication, press the REC button on the dashcam within 30 seconds of the audio instructions to complete the registration.
6. Using the PC viewer
You can view and manage the recorded videos and configure various product features on your PC.
6.1 System requirements
The following are the system requirements for running the PC viewer.
• Processor: Intel Core i5, or higher
• Memory: 4 GB or more
- Operating system: Windows 7 or later (64-bit is recommended), Mac OS X 10.10 or later
• Other: DirectX 9.0 or higher / Microsoft Explorer version 7.0 or higher
The PC viewer will not operate properly on PC systems running an operating system other than those listed in the system requirements.
6.2 Learning about the PC viewer
6.2.1 Installing the PC viewer
You can download the latest PC viewer software from the ALPS ALPINE website (https://support.alpine-europe.com).
The PC viewer installation file (setup.exe) is stored in the root folder of the memory card that is provided with the product. Follow the instructions to install the PC viewer on your PC.
1 Insert the memory card into a memory card reader connected to your PC.
2 Move the installation file to the desktop, run it, and complete the installation according to the instructions given in the installation wizard.
After the installation is complete, there will be a shortcut icon to Thinkware Dashcam Viewer.
6.2.2 PC viewer screen layout (for Windows)
The following provides brief information about the PC viewer's screen layout.
| Number | Description |
| 1 | Open a file, or save a video with a different name. |
| 2 | Visit the THINKWARE website. |
| 3 | View or configure the dashcam settings, and set the language for the PC viewer. |
| 4 | Display the current video in full screen. Tap the Back (×) button to return to the previous screen. |
| 5 | Switch between the front and rear videos. |
| 6 | Minimize, expand, or close the software. |
| 7 | Displays the rear camera video file name. |
| 8 | Displays the recorded rear camera video. |
| 9 | Display the map screen. |
| 10 | Displays the playlist. |
| 11 | Indicates the G sensor value at the time of recording. |
| 12 | Indicates the vehicle's driving speed at the time of recording. |
| 13 | Displays the current and total running time of the current video. |
| 14 | Displays the progress of video playback. |
| 15 | Play or control a video. |
| 16 | Displays the recorded front camera video. |
| 17 | Displays the front camera video file name. |
6.2.3 Playing recorded videos on the PC viewer (for Windows)
Follow the instructions to play recorded videos.
1 Turn off the product and remove the memory card.
2 Insert the memory card into a memory card reader connected to your PC.
3 Double-click the shortcut to the PC viewer (R) to open the program. The video files in the memory card will be automatically added to the playlist in the bottom-right corner of the PC viewer screen. The playlist section layout is as follows.

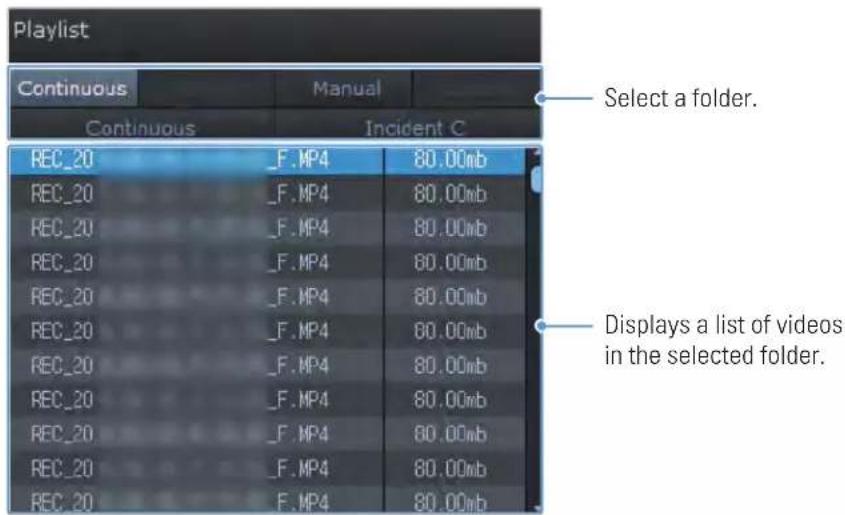

4 Double-click a video file after selecting a video folder, or click the Play (▶) button after selecting a video file. The selected video file will be played.
If the video files on the memory card are not automatically added to the playlist when you run the PC viewer, click File ▼ > Open, select the removable storage device for the memory card, and click Confirm.

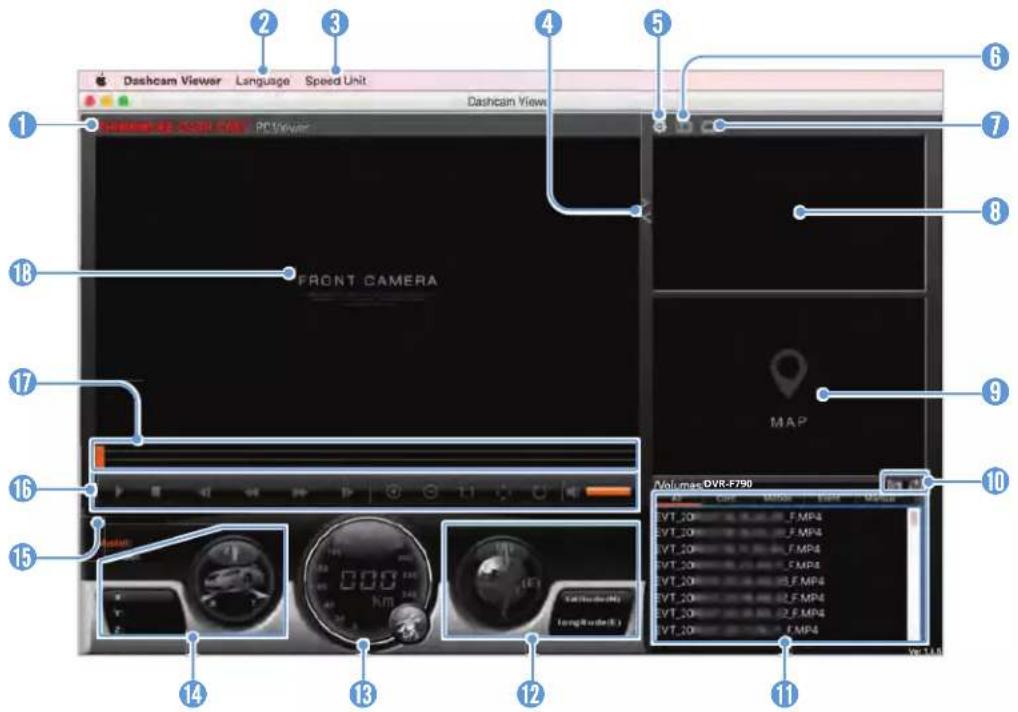

6.2.4 PC viewer screen layout (for Mac)
The following provides brief information about the PC viewer's screen layout.
| Number | Description |
| 1 | Visit the THINKWARE website. |
| 2 | Set the language for the PC viewer. |
| 3 | Set the speed unit. |
| 4 | Switch between the front and rear videos. |
| 5 | View or configure the dashcam settings. |
| 6 | Save the current scene. |
| 7 | Print the current scene. |
| 8 | Displays the recorded rear camera video. |
| 9 | Displays the map screen. |
| 10 | Open a file, or save a video with a different name. |
| 11 | Displays the playlist. |
| 12 | Displays the GPS information at the time of recording. |
| 13 | Indicates the vehicle's driving speed at the time of recording. |
| 14 | Indicates the G sensor value at the time of recording. |
| 15 | Displays the current and total running time of the current video. |
| 16 | Play or control a video. |
| 17 | Displays the progress of video playback. |
| 18 | Displays the recorded front camera video. Right-click this pane to display the current video in full screen. |
6.2.5 Playing recorded videos on the PC viewer (for Mac)
Follow the instructions to play recorded videos.
1 Turn off the product and remove the memory card.
2 Insert the memory card into your Mac using a SD card reader or SD card adapter provided.
3 Open the PC viewer.
4 Click and locate the memory card.
The video files in the memory card will be automatically added to the playlist in the bottom-right corner of the PC viewer screen. The playlist section layout is as follows.

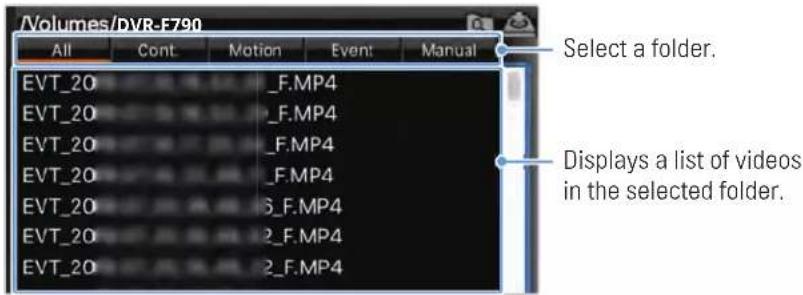

5 Double-click a video file after selecting a video folder, or click the Play (▶) button after selecting a video file. The selected video file will be played.
7. Settings
You can set the product features according to your needs and preferences using the mobile viewer or the PC viewer. The following procedures are based on the mobile viewer.
The product will stop recording while configuring settings on the mobile viewer.
7.1 Managing the memory card
From the mobile viewer, tap Dash Cam settings > Memory Card Settings to manage the memory card settings.
| Options Description | |
| Memory Partition | Select from Continuous Priority/Incident Priority/Parking Priority/Manual Priority/Driving Recording Only for the memory partition type. |
| Formatting Memory Card | In Formatting Memory Card, tap Format > OK to proceed with formatting the memory card. |
| Overwrite Videos | Select the desired modes to allow video overwriting. |
7.2 Setting the Camera
From the mobile viewer, tap Dash Cam settings> Camera Settings to adjust the camera settings.
| Options Description | |
| Brightness-front | Select from Dark/Mid/Bright for the brightness of the front camera. |
| Brightness-rear | Select from Dark/Mid/Bright for the brightness of the rear camera. |
| Camera Channel | Select the desired camera channel from 1-channel/2-channel. |
| Video out | Select from Front/Rear/Disabled for the Video out. |
| Mirror Video Out | Select from Enabled/Disabled. |
7.3 Setting recording features
From the mobile viewer, tap Dash Cam settings > Record Settings to manage the recording features settings.
| Options Description | |
| Continuous Mode Incident Recording Sensitivity | Select from Disabled/Lowest/Low/Mid/High for the sensitivity. |
| Super Night Vision | Select from Disabled/Continuous Mode/Parking Mode/Continuous+Parking for the Super Night Vision feature. |
| HDR | Select from Enabled/Disabled for the HDR feature. |
| Set Privacy Recording | You can set the privacy recording feature to delete your recorded files after a set amount of time to protect the privacy of others. Select from OFF/1min(max. 2min)/3min(max. 4min) for the privacy recording setting. |
| Parking Mode | Select from Disabled/Motion Detection/Time Lapse/Energy Saving for the parking mode. |
| Impact Sensitivity in Parking Mode | Select one of the five parking mode sensitivity levels. |
| Motion Detection Sensitivity | Select one of the five motion detection sensitivity levels. |
| Record Timer | Select the desired record time. To turn off the record timer, select Disabled. |
| Battery Protection | Select from Enabled/Disabled for the battery protection. |
| Battery cutoff voltage | Select from 12V (11.6-12.3)/24V (23.2-24.6) for the battery cutoff voltage. |
| Wintertime Battery Protection | Select the month(s) to apply the battery protection feature. |
- To use parking mode, you must install the hardwiring cable. If continuous power is not supplied to the product, the product will stop recording when the vehicle engine is turned off.
- The vehicle battery will not be charged while the vehicle is parked. If you record in parking mode for an extended period, the vehicle's battery may be depleted and you may not be able to start the vehicle.
- For more information about parking mode, refer to "3.6 Using parking mode" on page 16.
- The battery cutoff voltage can be set only when the Battery Protection setting is set to Enabled.
- If the off voltage value is too low, the product may consume the battery completely depending on the conditions like the vehicle type or temperature.
7.4 Setting road safety features
From the mobile viewer, tap Dash Cam settings> Road Safety Settings to manage the road safety features settings.
| Options Description | |
| Safety Cameras | Select from Enabled/Disabled for the safety cameras. |
| Mobile Zone Alert | Select from Enabled/Disabled for the mobile zone alert. |
| Vehicle Type | Select the vehicle type from Sedan/SUV/Truck (Bus). |
| Initialize ADAS | In Initialize ADAS, tap Initialize >OK to proceed with initializing. |
| LDWS(Lane Departure Warning) | Select from Disabled/Low/Mid/High for the LDWS sensitivity. |
| LDWS Speed | Select from 50km/h / 60km/h / 80km/h / 100km/h for the LDWS detection speed. |
| FCWS(Forward Collision Warning) | Select from Disabled/Low/Mid/High for the sensitivity. |
| Low Speed FCWS | Select from Disabled/Low/Mid/High for the sensitivity. |
| FVDW (Front Vehicle Departure Warning) | Select from Enabled/Disabled for the FVDW feature. |
7.5 Configuring the system settings
From the mobile viewer, tap Dash Cam Settings > System Settings to configure the hardware system settings.
| Options Description | |
| Language | Select the desired language. |
| Volume | Select the desired volume level for each feature (Safety Cameras/ADAS/System). |
| Security LED | Select from Enabled/Disabled for the security LED. |
| Time Zone | Select the desired time zone. |
| Daylight Saving | Select from Enabled/Disabled for the daylight saving. |
| Speed Unit | Select from km/h/mph for the speed unit. |
| Speed Stamp | Select from Enabled/Disabled for the speed stamp. |
| Voice Recording | Select from Enabled/Disabled. |
| Internet | Select from Enabled/Disabled for Internet mode. |
If you select 0 for the volume level, the voice guidance will be disabled.
8. Accessing the product information
New users may benefit from the basic product information that can be accessed from the Menu screen.
8.1 Viewing the product information
From the mobile viewer, tap Dash Cam Info to view product information. The following product information will be displayed on the screen.
- Model Name
- Firmware Ver.
- Safety Camera Ver.
- Memory Size
- LOCAL ID
- GPS Info
8.2 Accessing and configuring the GPS
A GPS module is used to include the location data in the recorded videos. From the mobile viewer, tap Dash Cam Info > GPS Info to view the GPS features. The connection status, signal strength, time (UTC), vehicle speed, current altitude, and Horizontal Dilution of Precision (HDOP) are displayed on the screen.
Tap ☺ to initialize the GPS, and allow it to locate the current position.
Horizontal Dilution of Precision (HDOP)
HDOP is a value that refers to GPS deviation due to satellite positioning.
9. Upgrading the firmware
A firmware upgrade is provided to enhance the product's features, operation or to increase stability. For optimal operation of the product, ensure that you keep the firmware up to date.
Follow the instructions to upgrade the firmware.
1 On your PC, open a web browser and go to https://support.alpine-europe.com.
2 Select the product and download the latest firmware upgrade file.
3 Unzip the downloaded file.
4 Disconnect power to the product and remove the memory card.
5 Open the memory card on a PC and copy the firmware upgrade file to the root folder of the memory card.
6 While the power is disconnected from the product, insert the memory card into the memory card slot on the product.
7 Connect the power cable to the product, and then turn on the power (ACC ON) or start the engine to turn on the product. The firmware upgrade starts automatically, and the system will restart once the firmware update is completed.
Do not disconnect the power or remove the memory card from the product during the upgrade. Doing so may cause serious damage to the product, or to the data stored in the memory card.
You can also update the firmware from the mobile viewer and the PC viewer.
10. Troubleshooting
The following table lists the problems users may encounter while using the product and measures to resolve them. If the problem persists after taking the measures provided in the table, contact the customer service center.
| Problems Solution | |
| Cannot power on the product | Make sure the power cable (the hardwiring cable or the optional car charger) is connected to the vehicle and the product properly.Check the vehicle's battery level. |
| The voice guide and/or buzzer do not sound. | Check if the volume is set to the minimum. |
| The video is unclear or hardly visible. | Ensure that the protective film on the camera lens has been removed. The video may look unclear if the protective film is still on the camera lens.Check the installation location of the front or rear camera, turn on the product, and then adjust the camera's viewing angle. |
| The memory card cannot be recognized. | Ensure that the memory card has been inserted in the correct direction. Before inserting the memory card, ensure that the metal contacts on the memory card are facing toward the lens of the product.Turn off the power, remove the memory card, and then check to ensure that the contacts in the memory card slot are not damaged.Ensure that the memory card is an authentic product distributed by ALPINE. ALPS ALPINE does not guarantee compatibility and normal operation of third-party memory cards. |
| The recorded video cannot be played on a PC. | The recorded videos are stored as MP4 video files. Ensure that the video player installed on your PC supports the playback of MP4 video files. |
| GPS signal cannot be received. | The GPS signal may not be received in out-of-service areas, or if the product is located between tall buildings. Also, GPS signal reception may not be available during storms or heavy rain. Try again on a clear day at a location that is known to have a good GPS reception. It may take up to 5 minutes until GPS reception is established. |
Before contacting a service center
Please back up all important data stored in the memory card. The data in the memory card may be deleted during repair. Every product requested for repair is regarded as a device that has had its data backed up. The customer service center does not back up your data. ALPS ALPINE is not responsible for any loss, such as data loss.
11. Specifications
To see the product specifications, refer to the following table.
| Item Specification Remarks | ||
| Model name DVR-F790 | ||
| Dimensions / Weight 92 x 53.3 x 29.7 mm / 77.6 g Including cradle: 92 x 71.4 x 34.4 mm / 169.4 g | ||
| Memory microSD memory card 32 GB | ||
| Recording mode | Continuous Rec, Incident Rec, Manual Rec, Parking Rec (Motion Detection, Time Lapse, Energy Saving), SOS Rec | |
| Camera sensor 2.1 Megapixel, CMOS | ||
| Angle of view (Lens) Approximately 140° (diagonally) | ||
| Video | FHD (1920 x 1080 @ 30fps) / H.264 / MP4 | |
| Audio HE-AAC | Press the voice recording button to turn the audio recording on or off. | |
| Acceleration sensor 3-axis acceleration sensor (3D, ±3G) 5 levels for sensitivity adjustment available | ||
| GPS Embedded GPS | Supports ADAS features (LDWS, FCWS, Low Speed FCWS, FVDW) | |
| GNSS | GPS/BEIDOU | |
| Features | Format Free 2.0, High temperature shutdown, Super Capacitor, True HDR, Quick Boot | |
| Wi-Fi | 2.4 G, 802.11 b/g/n | |
| Power input | DC 12 / 24 V supported | |
| Power consumption | 2ch: 4.5 W / 1ch: 3.1 W (mean) | Except for the fully charged supercapacitor / GPS |
| Auxiliary power unit | Super capacitor | |
| LED indicator | Wi-Fi LED, STATUS LED, Security LED | |
| Alarm | Built-in speakers | Voice guide (buzzer sounds) |
| Operating temperature | 14 - 140°F / -10 - 60°C | |
| Storage temperature | -4 - 158°F / -20 - 70°C | |
Hereby, ALPS ALPINE EUROPE GmbH declares that the radio equipment type DVR-F790 is in compliance with Directive 2014/53/EU.
- WiFi ((IEEE 802.11b/g/n) in the 2.4GHz ISM band (2402\~2480MHz), Maximum Power [15.06dBm / 32.06mW (EIRP)])
• GNSS(1559\~1610MHz), L1 (1575.42MHz) + B1 (1561.098MHz), Rx only
The full text of the EU declaration of conformity is available at the following internet address:
http://www.alpine.com/e/research/doc/
Hereby, ALPS ALPINE EUROPE GmbH declares that the radio equipment type DVR-F790 is in compliance with Directive 2014/53/EU.
- WiFi ((IEEE 802.11b/g/n) in the 2.4GHz ISM band (2402\~2480MHz), Maximum Power [15.06dBm / 32.06mW (EIRP)])
• GNSS(1559\~1610MHz), L1 (1575.42MHz) + B1 (1561.098MHz), Rx only
The full text of the UK declaration of conformity is available at the following internet address:
http://www.alpine.com/e/research/doc/
Important information on handling electrical and electronic equipment
Thank you for purchasing an Alpine brand product. To ensure that you can dispose of the device properly and in an environmentally friendly manner, we would like to draw your attention to the statutory provisions of the European Waste of Electrical and Electronic Equipment (WEEE) directive and its national implementations.
1. Separate disposal
The WEEE directive and related national laws stipulate that electrical equipment must not be disposed of with household waste. Instead, it must be disposed of properly. Please hand in the device at a public collection point or your local recycling center. There it will be handled properly and recycled in an environmentally friendly manner.
2. Labeling
Electrical appliances are marked with a symbol (crossed-out dustbin on wheels) indicating that the appliance must not be disposed of with household waste.
3. Data erasure
Before disposing of the electrical device, you must ensure that all personal data stored on the device has been deleted. To do this, you can reset the device to the factory settings or delete the data manually.
4. Return and collection systems
You also have the option of returning the electrical device free of charge to municipal collection points, recycling centers or retailers. There, the device will be properly handled and recycled.
We hope that you are satisfied with your electrical product and that it will serve you well. If you have any further questions, please do not hesitate to contact us or one of our local distributors.
Important information on the software
About the software license of the product
The software installed in the product contains open-source software.
See the following Alpine website for details on the open-source software.
https://www.alpine.co.uk/support/software-und-kartenupdate/opensource.html
www.alpine-europe.com
Ver. 1.0 (Jun. 2023)
ALPS ALPINE MARKETING, INC.
1-7, Yukigaya-Otsukamachi, Ota-ku,
Tokyo 145-0067, JAPAN
Phone: 03-5499-4531
ALPS ALPINE OF AMERICA, INC.
1500 Atlantic Boulevard, Auburn Hills,
Michigan 48326, U.S.A.
Phone 1-800-ALPINE-1 (1-800-257-4631)
ALPS ALPINE ASIA CO., LTD.
The 9th Towers, Tower B, 24th Floor, 33/4 Rama 9 Road,
Huay Kwang, Bangkok, 10310, Thailand
Phone +66 (2) 0909596
ALPS ALPINE EUROPE GmbH
Ohmstraße 4
85716 Unterschleißheim, Germany
Phone: 089-3242640
For contact information in your respective country,
please visit: www.alpine-europe.com/distribution.html
ALPS ALPINE OF AUSTRALIA PTY. LTD.
161-165 Princes Highway,
Hallam Victoria 3803, Australia
Phone 03-8787-1200
