Expanded Basic Functions, to Support Variety of Business Needs
Simple operability to enhance your work efficiency
Special hard keys
Special operations such as ID Copy and Simplex/Duplex setting are now assigned to special hard keys. There is no need to go through different menus but with one simple touch.
High productivity
Fast startup and output.
| bizhub 226 | bizhub 206 |
| Speed | 22 ppm | 20 ppm |
| WUT*1 | 15 seconds |
| FCOT*2 | 6.5 seconds |
*1 WUT(Warm-up Time)
The time between when the power switch is turned on and when copy operation can start.
*2 FCOT(First Copy Out Time)
The time between when the Start button is pressed and the end of output of the first copy page.
The backlit LCD screen
A five-line display for better operability. The guidance uses icons and images for easy information recognition. When an error occurs, guidance with graphics is displayed on the screen.
Spending less time to go through the product manual.
Convenient feature 1
Variety of copy and print features
Booklet print
A convenient print feature to collate multiple pages into one booklet.
- Optional Auto Duplex Unit AD-509 is required.
N-up print (2in1, 4in1)
Multi-page documents can be printed on one sheet. 2in1 prints 2 pages on 1 sheet, and 4in1 prints 4 pages on 1 sheet.
Duplex copy
Variety of duplex copy methods to fulfill different purposes.
- 1-sided 2-sided*1: Automatic double-sided copying.
- 2-sided 1-sided*2: A double-sided document can be copied into 2 pages with 1-sided each.
- 2-sided 2-sided ^3 : Automatically copy double-sided document to one sheet of paper.
1 Optional Auto Duplex Unit AD-509 is required.
2 Optional Reverse Automatic Document Feeder DF-625 is required.
3 Optional Auto Duplex Unit AD-509 and Reverse Automatic Document Feeder DF-625 are required.
Linux support
Output from a Linux environment is also available.
Red Hat Enterprise Linux 5 (CUPS Ver1.2.4) × 86
Red Hat Enterprise Linux 5 (CUPS Ver1.2.4) AMD64/Intel64
SUSE Linux Enterprise Desktop 11(CUPS Ver1.1.23) ×86
SUSE Linux Enterprise Desktop 11(CUPS Ver1.1.23) AMD64/Intel64
ID copy
Any small documents such as employee ID or driver license, its front and back side can be output into one sheet of paper. The readable range is up to A5 size ^*1 . Press the ID Copy button on the operation panel to access this feature directly.
*1 More than one card can be placed (up to A5), as long as the originals are placed within the glass platen.
Convenient feature 3
Multiple convenience colour scan features
Colour scan
Colour documents can be digitised into colour files. Fast colour scan at 20ppm (150dpi)* ^1 , never slows work down. The supported scan file formats are TIFF, PDF, and JPEG.
*1 This is the speed when equipped with the Reverse Automatic Document feeder DF-625.
Select the destination for the scanned data
The scanned files can be saved directly to USB memory, or sent to different destination such as E-mail*1, SMB*1 or FTP*1. The supported scan formats are TIFF, PDF and JPEG.
*1 Optional Network Interface Card NC-504 or PCL controller with NIC IC-209 and Option Panel MK-749 are required.
Cost and environmental friendliness are always the first priority
Double-sided print and double-sided scan
2-sided document can be output by the Auto Duplex Unit AD-509 (optional) to reduce paper amount.
Any multiple 2-sided documents can be scanned automatically all at once with the Reverse Automatic Document Feeder DF-625 (Optional).
Scan performance (1-sided per minute)
| Black/white binary | Grayscale | Full colour |
| 150dpi | 46ppm | 38ppm | 20ppm |
| 300dpi | 46ppm | 16ppm | 8ppm |
| 600dpi | 23ppm | - | - |
- When equipped with the Reverse Automatic Document feeder DF-625.
Toner loop mechanism
With the Kona Minolta's own Toner Loop Mechanism technology, there will be no more waste toner.
Simitri toner with biomas
Konica Minolta's own Polymerized Toner technology achieves high image quality. The toner fuses at low temperature to bring the overall reduction of power consumption and CO2 emission, and saving TCO. CO2 emission in the production process can also be also greatly reduced, compared to pulverised toner.
Comparison of CO_2 emissions during the production of Simitri toner and pulverised toner
SMTP authentication
To support SMTP authentication which permits sending e-mail to users authenticated by the SMTP server. E-mail servers and ISPs (Internet Service Providers) etc. which are set for SMTP authentication can be used.
Connection to an SMTP server allows SSL communication, so E-mail can be sent in a security-conscious state. This is suitable for small offices and other situations without a private E-mail server.
Watermark
Different types of Watermarks can be added on the documents based on the purpose or importance level of documents.
Account track
The MFP can be set to request a 3-digit account number to use the Copy feature. To restrict users who are not authorized to use the MFP. Also, numbers of copies made under each account can be tracked.
ACCOUNT NO.:---
Input=10Key
Security print
The MFP will not perform any outputs until user enters the same password as it has been set in the printer driver.
To prevent highly confidentiality documents being left on the MFP or taken by unauthorized user.

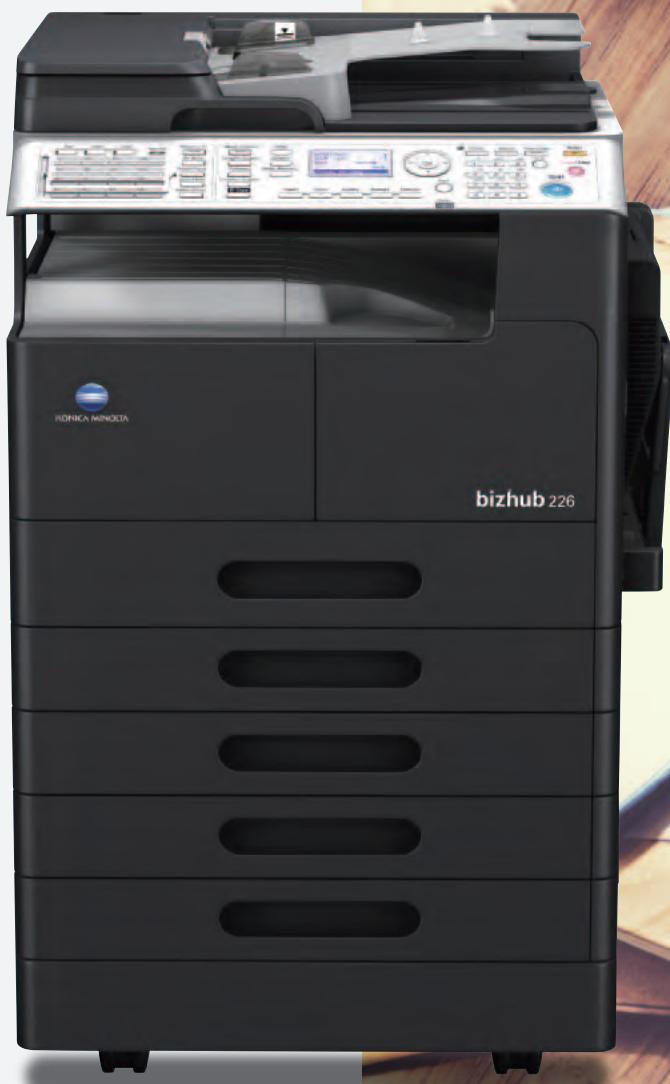

Model shown is 226 with options.
bizhub 226/206
226
B&W
22
ppm
B&W
B&
A.
RADE
46
46opm
￥1
B
C
=
1
m
*2
PCL
Controller
with NIC.
￥1
Scan
to
UCD
USB
2 : x^ ( x) = 10 .
Internet
Eax
Fax
Simitri
1 + u7 = 4.8
w t h b B to m a s s
*1 Optional
^*2 150 dpi
