Type de produit	Imprimante multifonction monochrome
Fonctions principales	Impression, copie, numérisation, envoi de fax
Vitesse d'impression	22 pages par minute (ppm)
Résolution d'impression	1200 x 1200 dpi
Capacité du bac d'alimentation	250 feuilles (standard), extensible jusqu'à 1 200 feuilles
Dimensions approximatives	600 x 600 x 450 mm
Poids	Environ 32 kg
Alimentation électrique	220-240 V, 50/60 Hz
Consommation énergétique	Environ 400 W (impression), 50 W (veille)
Connectivité	USB 2.0, Ethernet, Wi-Fi (en option)
Compatibilités	Windows, macOS, Linux
Entretien et nettoyage	Nettoyage régulier des rouleaux et de l'unité de fusion
Pièces détachées et réparabilité	Accessibilité des pièces pour maintenance, kit de remplacement disponible
Sécurité	Fonctionnalités de sécurité intégrées, protection des données
Informations générales	Idéal pour les petites et moyennes entreprises, faible coût d'exploitation

FOIRE AUX QUESTIONS - BIZHUB 226 KONICA MINOLTA

Comment réinitialiser l'imprimante KONICA MINOLTA BIZHUB 226 ?

Pour réinitialiser l'imprimante, appuyez sur le bouton 'Menu', sélectionnez 'Système', puis 'Réinitialiser'. Suivez les instructions à l'écran.

Que faire si l'imprimante ne s'allume pas ?

Vérifiez que l'imprimante est correctement branchée à une source d'alimentation et que le câble d'alimentation n'est pas endommagé. Essayez de brancher l'imprimante sur une autre prise.

Pourquoi mon imprimante affiche-t-elle un message d'erreur de papier ?

Cela peut être dû à un bourrage papier. Ouvrez le panneau d'accès et retirez tout papier coincé. Assurez-vous également que le papier est chargé correctement dans le bac.

Comment remplacer la cartouche de toner ?

Ouvrez le couvercle supérieur de l'imprimante, retirez l'ancienne cartouche de toner, puis insérez la nouvelle en vous assurant qu'elle est bien en place avant de refermer le couvercle.

Que faire si l'imprimante ne se connecte pas au réseau ?

Vérifiez les paramètres de réseau de l'imprimante. Assurez-vous qu'elle est connectée au bon réseau Wi-Fi et que le mot de passe est correct. Redémarrez l'imprimante si nécessaire.

Comment imprimer en recto verso ?

Accédez aux paramètres d'impression sur votre ordinateur, sélectionnez 'Impression recto verso' ou 'Duplex' dans les options d'impression, puis lancez l'impression.

Pourquoi la qualité d'impression est-elle mauvaise ?

Vérifiez le niveau de toner et remplacez-le si nécessaire. Nettoyez également le tambour d'impression et assurez-vous que le papier utilisé est de bonne qualité.

Comment mettre à jour le firmware de l'imprimante ?

Visitez le site web de KONICA MINOLTA, téléchargez la dernière mise à jour du firmware pour votre modèle, puis suivez les instructions fournies pour l'installation.

L'imprimante ne numérise pas, que faire ?

Vérifiez que l'imprimante est correctement configurée pour la numérisation. Assurez-vous que les pilotes sont installés sur votre ordinateur et que l'imprimante est connectée au réseau.

Comment vérifier le niveau de toner de l'imprimante ?

Accédez au panneau de contrôle de l'imprimante, sélectionnez 'Informations sur l'imprimante', puis cliquez sur 'Niveaux de toner' pour voir l'état de chaque cartouche.

MODE D'EMPLOI BIZHUB 226 KONICA MINOLTA

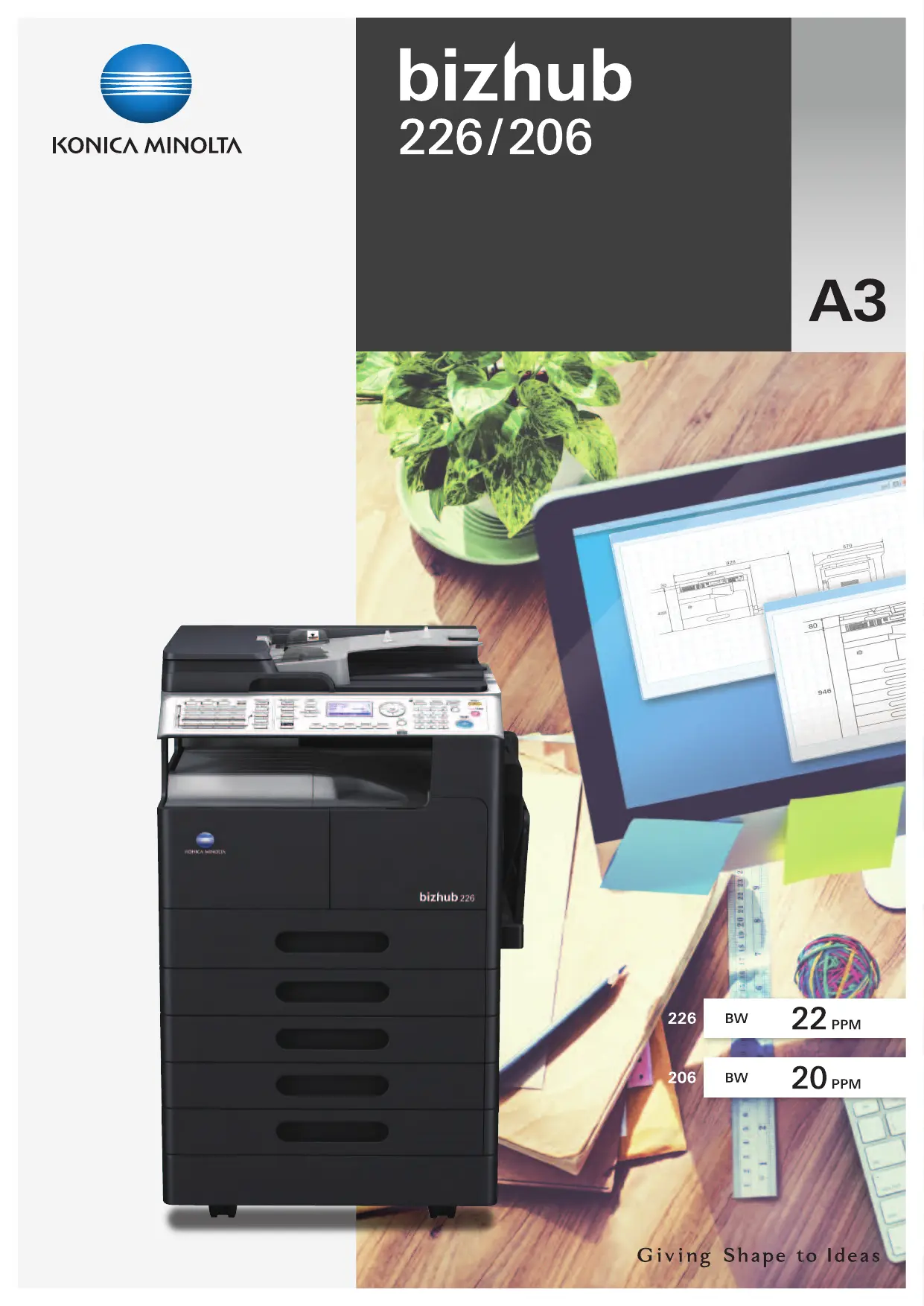

bizhub

226/206

A3

226

BW

22 PPM

206

BW

20 PPM

Expanded Basic Functions, to Support Variety of Business Needs

Simple operability to enhance your work efficiency

Special hard keys

Special operations such as ID Copy and Simplex/Duplex setting are now assigned to special hard keys. There is no need to go through different menus but with one simple touch.

High productivity

Fast startup and output.

	bizhub 226	bizhub 206
Speed	22 ppm	20 ppm
WUT*1	15 seconds
FCOT*2	6.5 seconds

*1 WUT(Warm-up Time)

The time between when the power switch is turned on and when copy operation can start.

*2 FCOT(First Copy Out Time)

The time between when the Start button is pressed and the end of output of the first copy page.

The backlit LCD screen

A five-line display for better operability. The guidance uses icons and images for easy information recognition. When an error occurs, guidance with graphics is displayed on the screen.

Spending less time to go through the product manual.

Convenient feature 1

Variety of copy and print features

Booklet print

A convenient print feature to collate multiple pages into one booklet.

• Optional Auto Duplex Unit AD-509 is required.

N-up print (2in1, 4in1)

Multi-page documents can be printed on one sheet. 2in1 prints 2 pages on 1 sheet, and 4in1 prints 4 pages on 1 sheet.

Duplex copy

Variety of duplex copy methods to fulfill different purposes.

• 1-sided 2-sided*1: Automatic double-sided copying.
• 2-sided 1-sided*2: A double-sided document can be copied into 2 pages with 1-sided each.
• 2-sided 2-sided ^3 : Automatically copy double-sided document to one sheet of paper.
  1 Optional Auto Duplex Unit AD-509 is required.
  2 Optional Reverse Automatic Document Feeder DF-625 is required.
  3 Optional Auto Duplex Unit AD-509 and Reverse Automatic Document Feeder DF-625 are required.

Linux support

Output from a Linux environment is also available.

Red Hat Enterprise Linux 5 (CUPS Ver1.2.4) × 86

Red Hat Enterprise Linux 5 (CUPS Ver1.2.4) AMD64/Intel64

SUSE Linux Enterprise Desktop 11(CUPS Ver1.1.23) ×86

SUSE Linux Enterprise Desktop 11(CUPS Ver1.1.23) AMD64/ Intel64

ID copy

Any small documents such as employee ID or driver license, its front and back side can be output into one sheet of paper. The readable range is up to A5 size ^*1 . Press the ID Copy button on the operation panel to access this feature directly.

*1 More than one card can be placed (up to A5), as long as the originals are placed within the glass platen.

Convenient feature 3

Multiple convenience colour scan features

Colour scan

Colour documents can be digitised into colour files. Fast colour scan at 20ppm (150dpi)* ^1 , never slows work down. The supported scan file formats are TIFF, PDF, and JPEG.

*1 This is the speed when equipped with the Reverse Automatic Document feeder DF-625.

Select the destination for the scanned data

The scanned files can be saved directly to USB memory, or sent to different destination such as E-mail*1, SMB*1 or FTP*1. The supported scan formats are TIFF, PDF and JPEG.

*1 Optional Network Interface Card NC-504 or PCL controller with NIC IC-209 and Option Panel MK-749 are required.

Cost and environmental friendliness are always the first priority

Double-sided print and double-sided scan

2-sided document can be output by the Auto Duplex Unit AD-509 (optional) to reduce paper amount.

Any multiple 2-sided documents can be scanned automatically all at once with the Reverse Automatic Document Feeder DF-625 (Optional).

Scan performance (1-sided per minute)

	Black/white binary	Grayscale	Full colour
150dpi	46ppm	38ppm	20ppm
300dpi	46ppm	16ppm	8ppm
600dpi	23ppm	-	-

• When equipped with the Reverse Automatic Document feeder DF-625.

Toner loop mechanism

With the Kona Minolta's own Toner Loop Mechanism technology, there will be no more waste toner.

Simitri toner with biomas

Konica Minolta's own Polymerized Toner technology achieves high image quality. The toner fuses at low temperature to bring the overall reduction of power consumption and CO2 emission, and saving TCO. CO2 emission in the production process can also be also greatly reduced, compared to pulverised toner.

Comparison of CO_2 emissions during the production of Simitri toner and pulverised toner

SMTP authentication

To support SMTP authentication which permits sending e-mail to users authenticated by the SMTP server. E-mail servers and ISPs (Internet Service Providers) etc. which are set for SMTP authentication can be used.

Connection to an SMTP server allows SSL communication, so E-mail can be sent in a security-conscious state. This is suitable for small offices and other situations without a private E-mail server.

Watermark

Different types of Watermarks can be added on the documents based on the purpose or importance level of documents.

Account track

The MFP can be set to request a 3-digit account number to use the Copy feature. To restrict users who are not authorized to use the MFP. Also, numbers of copies made under each account can be tracked.

ACCOUNT NO.:---

Input=10Key

Security print

The MFP will not perform any outputs until user enters the same password as it has been set in the printer driver.

To prevent highly confidentiality documents being left on the MFP or taken by unauthorized user.

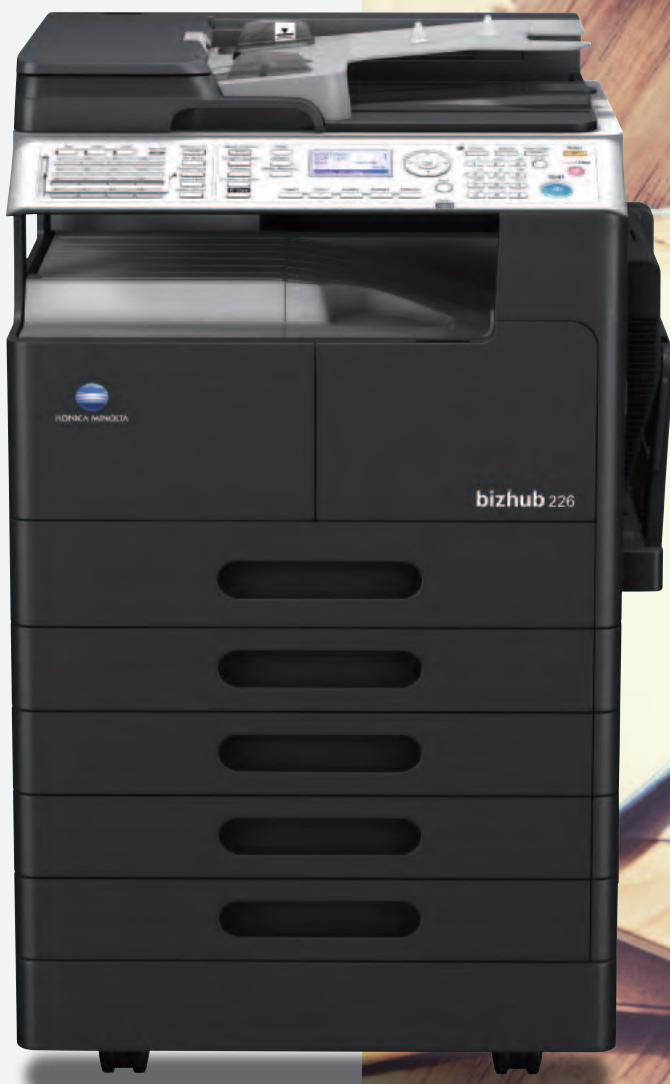

Model shown is 226 with options.

bizhub 226/206

226

B&W

22

ppm

B&W

B&

A

RADE

46

40opm

￥1

BADE

。

20 opn

￥1￥

Net

Inte

C

rk

ce

1

*1

P

Con

with

m = 311 ;

For more information please visit the bizhub website at

http://www.biz.konicaminolta.com/bw/226_206/index.html

Product appearance, configuration and/or specifications are subject to change without notice. This product is not available for some countries or regions.

The KONICA MINOLTA logo, symbol mark, "Giving Shape to Ideas", bizhub, Simitri and their respective logos are registered trademarks or trademarks of KONICA MINOLTA, INC.
Linux is a registered trademark of Linus Torvalds in the United States and other countries.
Red Hat is a registered trademark of Red Hat, Inc. in the United States and other countries.
SUSE is a registered trademark of Novell, Inc. in the United States and other countries.
All other brands and product names are registered trademarks or trademarks of their respective companies or organisations.

KONICA MINOLTA, INC.

2-7-2 Marunouchi Chiyoda-ku, Tokyo, Japan

http://www.biz.konicaminolta.com

Ecology & Environment

KONICA MINOLTA products are designed with the environment in mind.

Energy Star
RoHS Compliance
WEEE Compliance
- Eco-friendly Toners
- Production at ISO Certified Factories

Requirements for safe use

• Please read and follow the instruction manual to ensure safe operation.
• Only operate using appropriate power supply and voltage.
• Connecting the earth wire to an inappropriate place may cause explosion or electric shock.

Please connect accordingly (Taiwan and the Philippines only)
