POWER4ALL PSM18LI - Outil électrique BOSCH - Notice d'utilisation et mode d'emploi gratuit

Type de produit	Ponceuse multi-usage sans fil
Caractéristiques techniques principales	Ponceuse vibrante, fonction de ponçage et de polissage
Alimentation électrique	Sans fil, compatible avec la batterie POWER4ALL de Bosch
Type de batterie	Li-ion
Tension	18 V
Puissance	Non spécifiée, mais adaptée pour un usage domestique
Dimensions approximatives	Longueur : 30 cm, Largeur : 12 cm, Hauteur : 15 cm
Poids	1,2 kg
Fonctions principales	Ponçage de surfaces planes et courbes, polissage
Entretien et nettoyage	Nettoyer le filtre à poussière régulièrement, changer les abrasifs usés
Pièces détachées et réparabilité	Disponibilité de pièces de rechange via le service client Bosch
Sécurité	Utiliser des lunettes de protection et un masque anti-poussière lors de l'utilisation
Informations générales utiles	Compatible avec d'autres outils de la gamme POWER4ALL, garantie de 2 ans

FOIRE AUX QUESTIONS - POWER4ALL PSM18LI BOSCH

Comment charger la batterie du BOSCH POWER4ALL PSM18LI ?

Pour charger la batterie, insérez-la dans le chargeur fourni et branchez-le à une prise électrique. Assurez-vous que le témoin de charge s'allume pour indiquer que la batterie est en cours de chargement.

Quelle est la durée de charge de la batterie ?

La durée de charge complète de la batterie est d'environ 1 à 2 heures, selon le modèle de la batterie et l'état de charge initial.

Comment remplacer les accessoires de ponçage ?

Pour remplacer les accessoires de ponçage, retirez le plateau de ponçage en dévissant la vis de fixation, puis retirez l'ancien papier de verre. Placez le nouveau papier de verre sur le plateau et revissez-le en place.

Que faire si l'outil ne démarre pas ?

Vérifiez d'abord que la batterie est correctement chargée et insérée. Assurez-vous également que l'outil n'est pas en mode verrouillage. Si le problème persiste, consultez le service après-vente.

L'outil émet des bruits étranges, que faire ?

Des bruits étranges peuvent indiquer un problème mécanique. Éteignez l'outil, retirez la batterie et vérifiez si des débris bloquent les pièces mobiles. Si le bruit persiste après nettoyage, contactez le service après-vente.

Puis-je utiliser cet outil pour poncer des surfaces en bois ?

Oui, le BOSCH POWER4ALL PSM18LI est conçu pour poncer des surfaces en bois, ainsi que d'autres matériaux comme le plâtre et le métal, en utilisant les accessoires appropriés.

Comment nettoyer l'outil après utilisation ?

Pour nettoyer l'outil, retirez la batterie et utilisez un chiffon doux pour enlever la poussière et les débris. Évitez d'utiliser de l'eau ou des nettoyants agressifs.

Où puis-je trouver des pièces de rechange ?

Les pièces de rechange peuvent être commandées auprès des revendeurs agréés BOSCH ou sur le site officiel de BOSCH.

Quelle est la garantie de l'outil ?

La garantie standard est de 2 ans à partir de la date d'achat. Conservez votre reçu pour toute réclamation.

Comment savoir si ma batterie est défectueuse ?

Si l'outil ne fonctionne pas malgré une batterie chargée ou si la batterie se décharge rapidement, cela peut indiquer un problème. Essayez une autre batterie compatible pour vérifier.

MODE D'EMPLOI POWER4ALL PSM18LI BOSCH

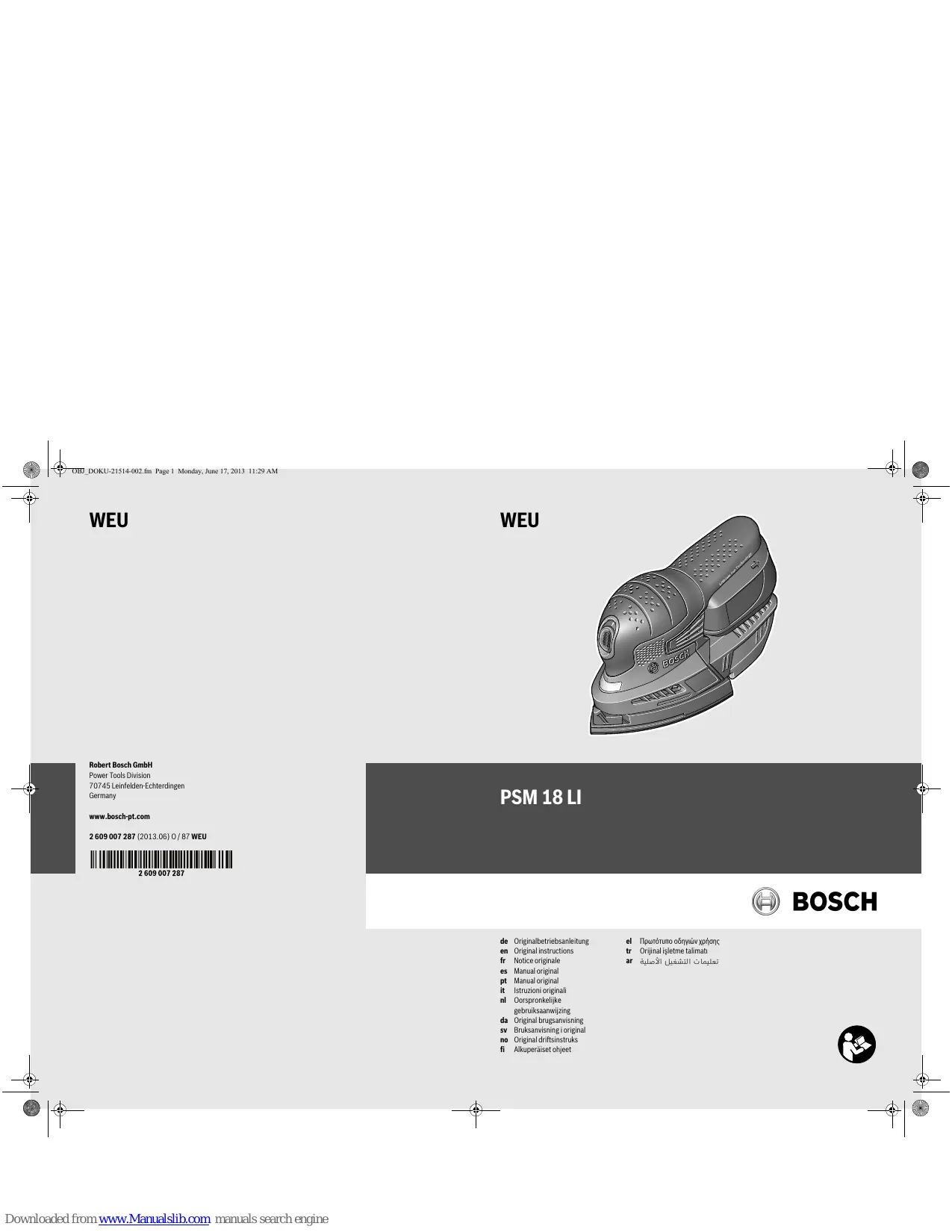

OBJ_DOKU-21514-002.fm Page 1 Monday, June 17, 2013 11:29 AM

WEU

Robert Bosch GmbH

Power Tools Division

70745 Leinfelden-Echterdingen

Germany

www.bosch-pt.com

2609007287(2013.06)O/87 WEU

2609007287

WEU

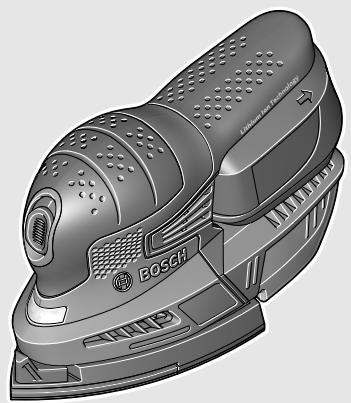

PSM 18 LI

BOSCH

de Originalbetriebsanleitung
en Original instructions
fr Notice originale
es Manual original
pt Manual original
it Istruzioni originali
nl Oorspronkelijke

gebruiksaanwijzinq

da Original brugsanvisning
sy Bruksanyisping i original
no Original driftsinstruks
f1 Alkuperäiset ojheet

el Ppwrtoo 08nyw xphoc
tr Orijinal isletme talimatu
ar aull lusill lae

PSM 18 LI

English|11

Kundendienst und Anwendungsberatung

Der Kundendienst beantwortet Its Frege zu Reparatur und Wartung Ihres Produktus sowie zu Ersatzteilen. Explosions-zeichnungen und Informationen zu Ersatzteilen finden Sie auch unter:

www.bosch-pt.com

Das Bosch-Anwendungsberatungs-Team hilf Ihnenerne bei Fragen zu unseren Produkten und deren Zubehör.

www.bosch-do-it.de, das Internetportal für Heimwerker und Gartenfreunde.

www.1-2-do.com

In der Heimwerker-Community 1-2-do.com konnen Sie Produktsteter werden, IdeenSAMMeln oder sich mit anderen Heimwerkern austauschen.

www.dha.de, das komplette Service-Angebot der Deutschen Heimwerker Akademie.

Geben Sie bei allen Rückfragen und Ersatzteilbestellungenitte unbedingt die 10-stellige Sachnummer laut Typenschilddes Elektrowerkeuges an.

Deutschland

Robert Bosch GmbH

Servicezentrum Elektrowerkeuge

Zur Luhne 2

37589 Kalefeld - Willershausen

Unter www.bosch-pt.com können Sie online Ersatzteile bestellen oder Reparaturen anmelden.

Kundendienst: Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Anwendungsberatung: Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Österreich

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Schweiz

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Luxemburg

Tel.: [phone]

Fax:[phone]

E-Mail: [e-mail]

Transport

Versenden Sie Akkus nur, wenn das Gehäuse unbeschädigt ist. Kleben Sie offene Kontakte ab und verpacken Sie den Akku so, dass er sich nicht in der Verpackung bewegt.
Bitte beachten Sie auch eventuelle weiterführrende nationale Vorschriften.

Die enthaltenen Li-lonen-Akkus unterliegen den Anforderungen des Gefahrgutrechts. Die Akkus konnen durch den Benutzer ohne weitere Auflagen auf der Straße transportiert werden.

Beim Versand durch Dritte (z.B.: Lufttransport oder Spedition) sind besondere Anforderungen an Verpackung und Kennzeichnung zu beachten. Hier muss bei der Vorbereitung des Versandstückes ein Gefahrgut-Experte hinzugezogen werden.

Entsorgung

Elektrowerkzeuge, Akkus, Zubehor und Verpackungen sollen einer umweltgerechten Wiederverwertung zugeführten werden.

Werfen Sie Elektrowerkzeuge und Akkus/Batterien nicht in den Hausmüll!

Nur für EU-Länder:

Gemäß der europäischen Richtlinie 2012/19/EU mussen nicht mehr gebrauchsfähige Elektrowerkeuge und mäß der europäischen Richtlinie

2006/66/EG müssen defekte oder verbrauchte Akkus/Batterien getrennt gesam

melt und einer umweltgerechten Wiederverwendung zugefuhrt werden.

Nicht mehr gebrauchsfähige Akkus/Batterien können direkt abgegeben werden bei:

Deutschland

Recyclingzentrum Elektrowerkzeuge

Osteroder Landstraße 3

37589Kalefeld

Schweiz

Batrec AG

3752 Wimmis BE

Akkus/Batterien:

Li-Ion:

Bitte beachten Sie die Hinweise im Abschnitt „Transport“, Seite 11.

Änderungen vorbehalten.

English

Safety Notes

General Power Tool SafetyWarnings

ABNING Read all safety warnings and all in

Structions. Failure to follow the warnings

and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

12 | English

Work area safety

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.
  Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
• Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical safety

• Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
• Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
• Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
  Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges and moving parts. Damaged or entangled cords increase the risk of electric shock.
• When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
  If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Personal safety

Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

Power tool use and care

• Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
  Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
• Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
• Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
• Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
• Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

Battery tool use and care

Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
- Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
- When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

English|13

Service

Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

SafetyWarnings for Sander

Use the machine only for dry sanding. Penetration of water into the machine increases the risk of an electric shock.
- Caution, fire hazard! Avoid overheating the object being sanded as well as the sander. Always empty the dust collector before taking breaks. In unfavourable conditions, e. g., when sparks emit from sanding metals, sanding debris in the dust bag, micro filter or paper sack (or in the filter sack or filter of the vacuum cleaner) can self-ignite. Particularly when mixed with remainders of varnish, polyurethane or other chemical materials and when the sanding debris is hot after long periods of working.
Secure the workpiece. A workpiece clamped with clamping devices or in a vice is held more secure than by hand.
- Keep your workplace clean. Blends of materials are particularly dangerous. Dust from light alloys can burn or explode.
Do not open the battery. Danger of short-circuiting.

Protect the battery against heat, e. g., against continuous intense sunlight, fire, water, and moisture. Danger of explosion.

In case of damage and improper use of the battery, vapours may be emitted. Ventilate the area and seek medical help in case of complaints. The vapours can irritate the respiratory system.
- Use the battery only in conjunction with your Bosch power tool. This measure alone protects the battery against dangerous overload.
- Use only original Bosch batteries with the voltage listed on the nameplate of your power tool. When using other batteries, e.g. imitations, reconditioned batteries or other brands, there is danger of injury as well as property damage through exploding batteries.

Product Description and Specifications

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Intended Use

The machine is intended for dry sanding and polishing of wood, filler and coated surfaces. It is especially suitable for profiles, corners or hard to reach locations.

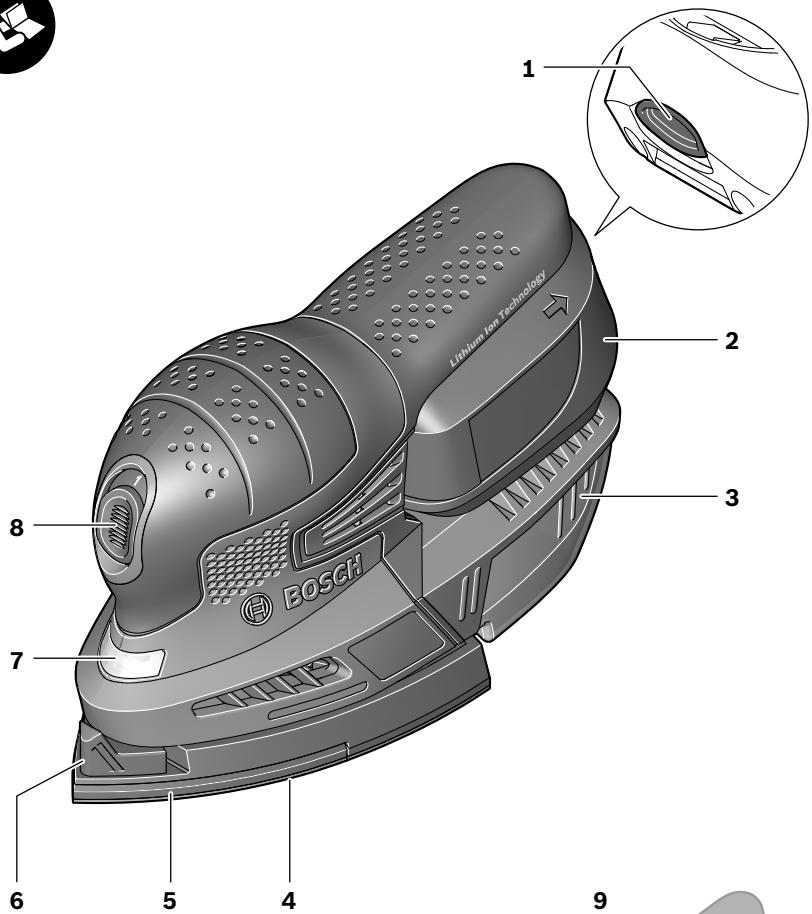

Product Features

The numbering of the product features refers to the illustration of the machine on the graphics page.

1 Battery unlocking button
2 Battery pack
3 Dust box, complete (Microfilter System)
4 Sanding sheet
5 Sanding plate

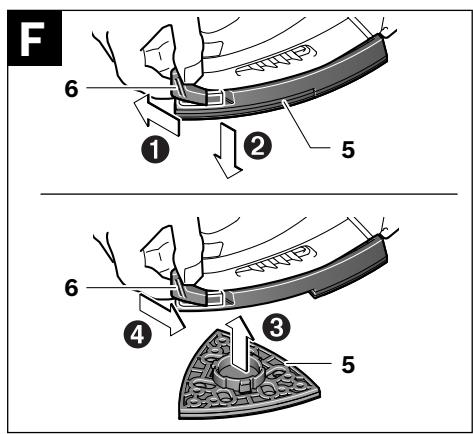

6 SDS button for release of the sanding plate
7 Battery charge-control indicator
8 On/Off switch
9 Handle (insulated gripping surface)
10 Extraction outlet
11 Filter element (Microfilter System)
12 Extraction adapter
13 Vacuum hose
14 Pad extender

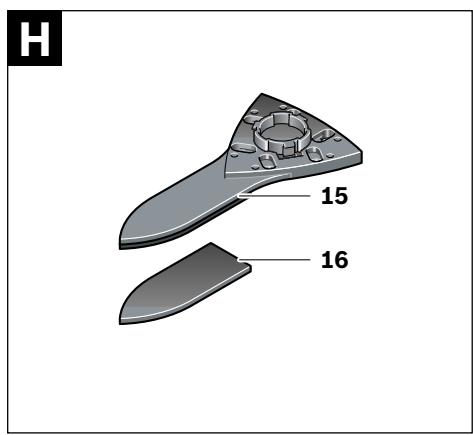

15 Narrow pad extender
16 Sanding sheet for extender

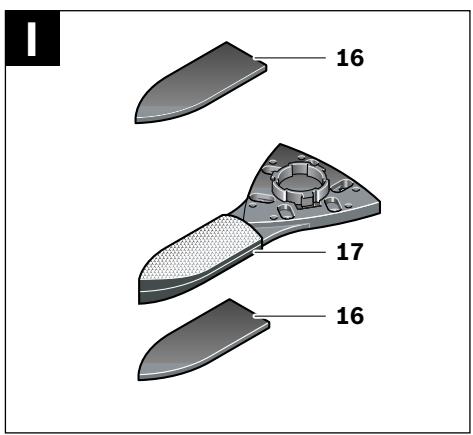

17 Narrow rounded pad extender*

*Accessories shown or described are not part of the standard delivery scope of the product. A complete overview of accessories can be found in our accessories program.

Technical Data

Cordless Multi Sander PSM 18 LI
Article number		3 603 CA1 3..
Rated voltage	V=	18
No-load speed	min-1	11000
No-load orbital stroke rate	min-1	22000
Sanding sheet surface	cm2	104
Orbit diameter	mm	1.6
Weight according to EPTA-Procedure 01/2003	kg	1.3

Noise/Vibration Information

Measured sound values determined according to EN 60745.

Typically the A-weighted sound pressure level of the product is 72dB(A) Uncertainty K = 3dB

The noise level when working can exceed 80 dB(A). Wear hearing protection!

Vibration total values a_h (triax vector sum) and uncertainty K determined according to EN 60745:

a_h = 7m / s^2 K = 1.5m / s^2

The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure. The declared vibration emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period.

An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period.

14|English

Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep hands warm, organise work patterns.

Declaration of Conformity C

We declare under our sole responsibility that the product described under "Technical Data" is in conformity with the following standards or standardization documents: EN 60745 according to the provisions of the directives 2011/65/EU, 2004/108/EC, 2006/42/EC.

Technical file (2006/42/EC) at:

Robert Bosch GmbH, PT/ETM9,

D-70745 Leinfelden-Echterdingen

Henk Becker

Helmut Heinzelmann

Executive Vice President

Head of Product Certification

Engineering

PT/ETM9

Robert Bosch GmbH, Power Tools Division

D-70745 Leinfelden-Echterdingen

26.04.2013

Assembly

Before any work on the machine (e.g. maintenance, changing the tool, etc.) as well as during its transport and storage, lock the On/Off switch in the off position.

There is danger of injury when the On/Off switch is unintentionally actuated.

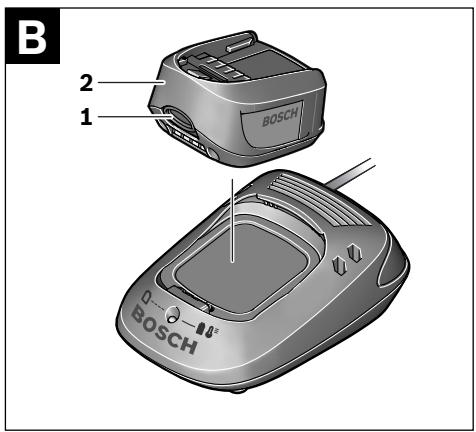

Battery Charging (see figures A-B)

• Use only the battery chargers listed on the accessories page. Only these battery chargers are matched to the lithium ion battery of your power tool.

Note: The battery is supplied partially charged. To ensure full capacity of the battery, completely charge the battery in the battery charger before using your power tool for the first time. The lithium ion battery can be charged at any time without reducing its service life. Interrupting the charging procedure does not damage the battery.

The Lithium- ion battery is protected against deep discharging by the "Electronic Cell Protection (ECP)". When the battery is empty, the machine is switched off by means of a protective circuit: The inserted tool no longer rotates.

Do not continue to press the On/Off switch after the machine has been automatically switched off. The battery can be damaged.

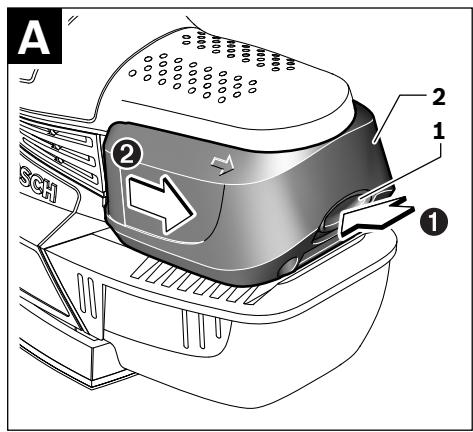

To remove the battery 2, press the battery unlocking button 1 and pull the battery out of the power tool toward the rear. Do not exert any force.

The battery is equipped with a NTC temperature control which allows charging only within a temperature range of between 0^ and 45^ . A long battery service life is achieved in this manner.

Observe the notes for disposal.

Dust/Chip Extraction

• Dusts from materials such as lead-containing coatings, some wood types, minerals and metal can be harmful to one's health. Touching or breathing-in the dusts can cause allergic reactions and/or lead to respiratory infections of the user or bystanders.

Certain dusts, such as oak or beech dust, are considered as carcinogenic, especially in connection with wood-treatment additives (chromate, wood preservative). Materials containing asbestos may only be worked by specialists.

• As far as possible, use a dust extraction system suitable for the material.
• Provide for good ventilation of the working place.
• It is recommended to wear a P2 filter-class respirator. Observe the relevant regulations in your country for the materials to be worked.

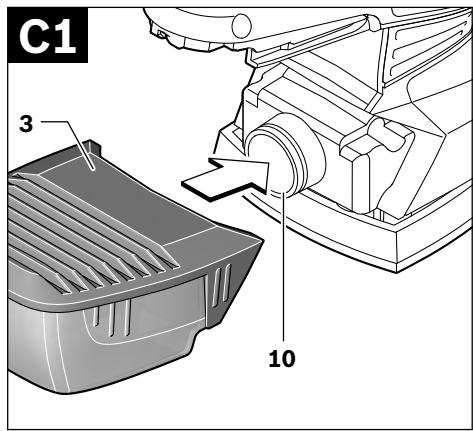

Integrated Dust Extraction with Dust Box (see figures C1 - C4)

Attach the dust box 3 onto the extraction outlet 10 until it latches.

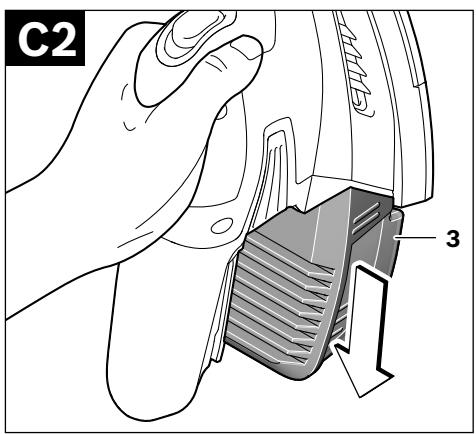

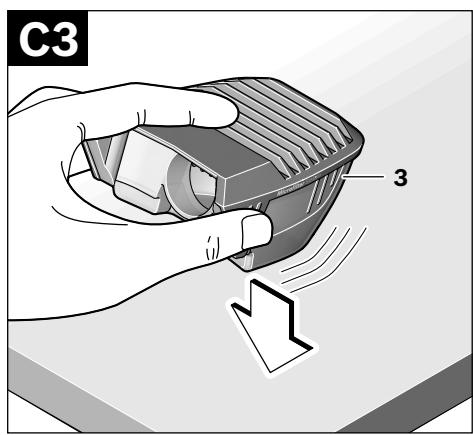

To empty the dust box 3, pull off the dust box downward. Before opening the dust box 3, it is recommended to loosen the dust from the filter element by gently striking it against a firm support (as shown in the figure).

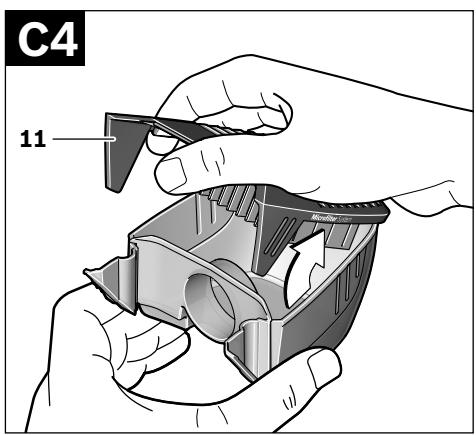

Hold the dust box 3 firmly, fold the filter element 11 upward and empty the dust box. Clean the thin plates of the filter element 11 with a soft brush.

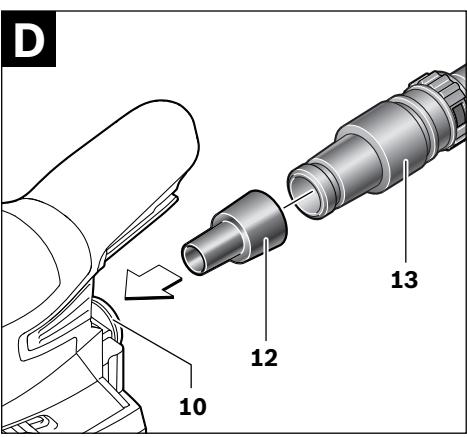

External Dust Extraction (see figure D)

Slide the extraction adapter 12 onto the outlet piece 10. The extraction adapter 12 accepts a vacuum hose with a diameter of 19mm .

An overview for connecting to different vacuum cleaners can be found at the end of these operating instructions.

The vacuum cleaner must be suitable for the material being worked.

When vacuuming dry dust that is especially detrimental to health or carcinogenic, use a special vacuum cleaner.

Replacing the Sanding Sheet (see figure E)

When attaching a new sanding sheet, remove any dust or debris from the sanding plate 5 (e.g. with a brush).

To ensure optimum dust extraction, pay attention that the punched holes in the sanding sheet match with the holes in the sanding plate.

The sanding plate 5 is fitted with Velcro backing for quick and easy fastening of sanding sheets with Velcro adhesion.

Before attaching the sanding sheet 4, free the Velcro backing of the sanding plate 5 from any debris by tapping against it in order to enable optimum adhesion.

The machine is fitted with 2 sanding sheets that can be changed individually, depending on the degree of wear.

Only use the machine when both sanding sheets are mounted.

Only use sanding sheets with the same grain size.

English|15

Position the sanding sheet 4 flush alongside one edge of the sanding plate 5, then lay the sanding sheet onto the sanding plate and press firmly.

To remove the sanding sheet 4, grasp it at one of the tips and pull it off from the sanding plate 5.

Sanding sheets of the Bosch Delta Sander can be used.

Sanding accessories, such as fleece pads/polishing cloth pads, are attached to the sanding plate in the same manner.

Selecting the Sanding Sheet

Depending on the material to be worked and the required rate of material removal, different sanding sheets are available:

Grain size

Red:Wood

40-180

For the working of all wooden materials

For coarse-sanding, e. g. of rough, coarse 40 unplaned beams and boards

For face sanding and planing small medium 80,120 irregularities

For finish and fine sanding of wood fine 180

white: Paint

40-180

For the working of paint/enamel coats or primers and fillers

For sanding off paint	coarse	40
For sanding primer	medium	80, 120
For final sanding of primers before coating	fine	180

For reworking or polishing, especially of metal and stone, use fleece/polishing cloth pad.

Depending on the desired surface quality of the workpiece, different fleece types or polishing cloth pads are to be used.

Replacing the Sanding Plate (see figure F)

Slide the SDS button for release of the sanding plate 6 all the way to the right.
Remove the sanding plate 5.
Guide the sanding plate 5 from below against the sanding plate holder and firmly press them together.
Slide the SDS button for release of the sanding plate 6 all the way to the left.

If, e.g., the front tip of the sanding sheet is worn, you can also remove the complete sanding plate and reattach it turned by 120^ .

Specialty Sanding Plates

You can replace the supplied sanding plate 5 with a specialty sanding plate, which is available as an accessory.

The specialty sanding plate is attached in the same manner as the one supplied.

Attach and remove the respective sanding sheets in the same manner as when changing original sanding sheets.

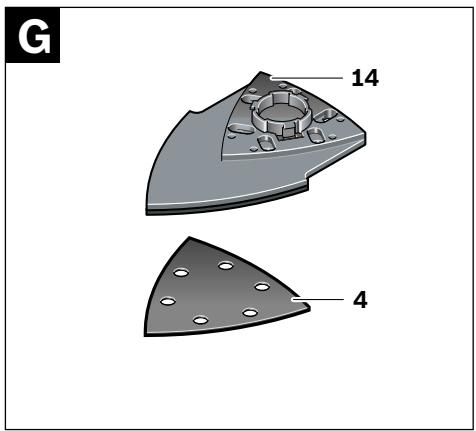

Pad Extender (see figure G)

With the pad extender 14 you can sand surfaces that are difficult to access, such as sills on windows, cabinets or doors.

Pad Extender, Narrow (see figure H)

With the narrow pad extender 15 you can sand narrow openings, slots and passages.

Pad Extender, Narrow Rounded (see figure 1)

The narrow rounded pad extender 17 allows you to sand curved and hollow areas or surfaces that are curved inward, such as on furniture, rails or heating radiators.

Operation

Starting Operation

Inserting the battery

• Use only original Bosch lithium ion batteries with the voltage listed on the nameplate of your power tool. Using other batteries can lead to injuries and pose a fire hazard.

Switching On and Off

To start the machine, push the ON/Off switch 8 downward to position "1".

To switch off the machine, push the On/Off switch 8 upward to positon "0".

To save energy, only switch the power tool on when using it.

Battery Charge-control Indication

The battery charge-control indicator 7 indicates the charge condition of the battery when the machine is switched on. It consists of 3 green LEDs.

LED	Capacity
Continuous lighting 3 x green	≥ 66%
Continuous lighting 2 x green	34–65%
Continuous lighting 1 x green	11–33%
Slow flashing 1 x green	≤ 10%

Temperature Dependent Overload Protection

When using as intended for, the power tool cannot be subject to overload. When the load is too high or the allowable battery temperature of 70^ is exceeded, the electronic control switches off the power tool until the temperature is in the optimum temperature range again.

The 3 LEDs of the battery charge-control indicator 7 flash rapidly when the battery temperature is not within the operating temperature range of -20 to +70^ , and/or when the overload protection has responded.

Protection Against Deep Discharging

The Lithium-lon battery is protected against deep discharging by the "Electronic Cell Protection (ECP)". When the battery is empty, the machine is switched off by means of a protective circuit: The inserted tool no longer rotates.

16 | English

Working Advice

Wait until the machine has come to a standstill before placing it down.

The removal capacity during sanding is mainly determined by the selection of the sanding sheet.

Only flawless sanding sheets achieve good sanding capacity and extend the service life of the machine.

Pay attention to apply uniform sanding pressure; this increases the working life of the sanding sheets.

Intensifying the sanding pressure does not lead to an increase of the sanding capacity, but to increased wear of the machine and the sanding sheet.

For precise on-the-spot sanding of edges, corners and hard to reach areas, it is also possible to work only with the tip or an edge of the sanding plate.

A sanding sheet that has been used for metal should not be used for other materials.

Use only original Bosch sanding accessories.

Maintenance and Service

Maintenance and Cleaning

Before any work on the machine (e. g. maintenance, changing the tool, etc.) as well as during its transport and storage, lock the On/Off switch in the off position.

There is danger of injury when the On/Off switch is unintentionally actuated.

For safe and proper working, always keep the machine and ventilation slots clean.

When the battery is no longer operative, please refer to an authorised after-sales service agent for Bosch power tools.

After-sales Service and Application Service

Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. Exploded views and information on spare parts can also be found under:

www.bosch-pt.com

Bosch's application service team will gladly answer questions concerning our products and their accessories.

In all correspondence and spare parts order, please always include the 10-digit article number given on the type plate of the machine.

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O.Box 98

Broadwater Park

North Orbital Road

Denham

Uxb

UB95HJ

Tel. Service: [phone]

Fax: [phone]

E-Mail: [e-mail]

Ireland

Origo Ltd

Unit 23 Magna Drive

Magna Business Park

City West

Dublin 24

Tel. Service: [phone]

Fax: [phone]

Australia, New Zealand and Pacific Islands

Robert Bosch Australia Pty. Ltd.

Power Tools

Locked Bag 66

Clayton South VIC 3169

Customer Contact Center

Inside Australia:

Phone: [phone]

Fax: [phone]

Inside New Zealand:

Phone: [phone]

Fax: [phone]

Outside AU and NZ:

Phone: [phone]

www.bosch.com.au

Republic of South Africa

Customer service

Hotline: [phone]

Gauteng - BSC Service Centre

35 Roper Street, New Centre

Johannesburg

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

KZN - BSC Service Centre

Unit E, Almar Centre

143 Crompton Street

Pinetown

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Western Cape - BSC Service Centre

Democracy Way, Prosperity Park

Milnerton

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Bosch Headquarters

Midrand, Gauteng

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Transport

Dispatch batteries only when the housing is undamaged.

Tape or mask off open contacts and pack up the battery in

such a manner that it cannot move around in the packaging.

Please also observe possibly more detailed national regula
