| Type de produit | Capteur de proximité photodlectrique laser |
| Marque | OMRON |
| Modèle | E3-LDA (série E3C-LDA) |
| Principe de détection | Réflexion diffuse et rétroréflexion coaxiale (MSR) |
| Distance de détection maximale | Jusqu'à 7 m (mode rétroréfléchissant) |
| Diamètre du faisceau minimal | 0,8 mm à 1000 mm |
| Formes de faisceau disponibles | Spot, ligne, zone, rétroréfléchissant |
| Réglage du point focal et de l'axe | Oui, mécanisme breveté |
| Affichage | Double affichage numérique (niveau lumineux incident et seuil) |
| Types de sortie | NPN et PNP (selon modèle d'amplificateur) |
| Fonctions de minuterie | Temporisation ON, OFF, One-shot, mode compteur |
| Prévention d'interférences mutuelles | Jusqu'à 10 capteurs sans interférence |
| Alimentation | 12 à 24 VCC |
| Consommation électrique | Max. 100 mA |
| Température de fonctionnement | 0 à 50 °C |
| Indice de protection | IP67 (estimation pour usage industriel) |
| Matériau du boîtier | Plastique et métal |
| Raccordement | Connecteurs E-Con (Plug & Play) |
| Console mobile optionnelle | Modèle E3X-MC11-S |
| Applications typiques | Détection de composants, inspection de joints, positionnement, industries automobile, pharmaceutique, papier |
| Entretien | Nettoyer les lentilles avec un chiffon doux et sec |
| Sécurité laser | Respecter les normes laser en vigueur (classe 1 probable) |
| Réparabilité | Tête de capteur et amplificateur remplaçables séparément |
FOIRE AUX QUESTIONS - E3-LDA OMRON
Questions des utilisateurs sur E3-LDA OMRON
0 question sur cet appareil. Repondez a celles que vous connaissez ou posez la votre.
Poser une nouvelle question sur cet appareil
Téléchargez la notice de votre Capteur de proximité au format PDF gratuitement ! Retrouvez votre notice E3-LDA - OMRON et reprennez votre appareil électronique en main. Sur cette page sont publiés tous les documents nécessaires à l'utilisation de votre appareil E3-LDA de la marque OMRON.
MODE D'EMPLOI E3-LDA OMRON
Photoelectric laser sensors
E3C-LDA SERIES
long-distance, adjustable laser beam
Advanced Industrial Automation
Omron's E3C-LDA photoelectric laser sensor series is designed to provide advanced object detection, positioning and high-resolution sensing. What's unique about the E3C-LDA is that the focal point and optical axis on the sensor head can be easily adjusted for precise beam adjustment, which in turn ensures easy set-up and very precise operation from a long distance. In addition, the E3C-LDA series offers multiple separate laser beam types – spot beam, line beam, area beam and retroreflective - to cover a multitude of applications!
Compact, fast and very accurate!

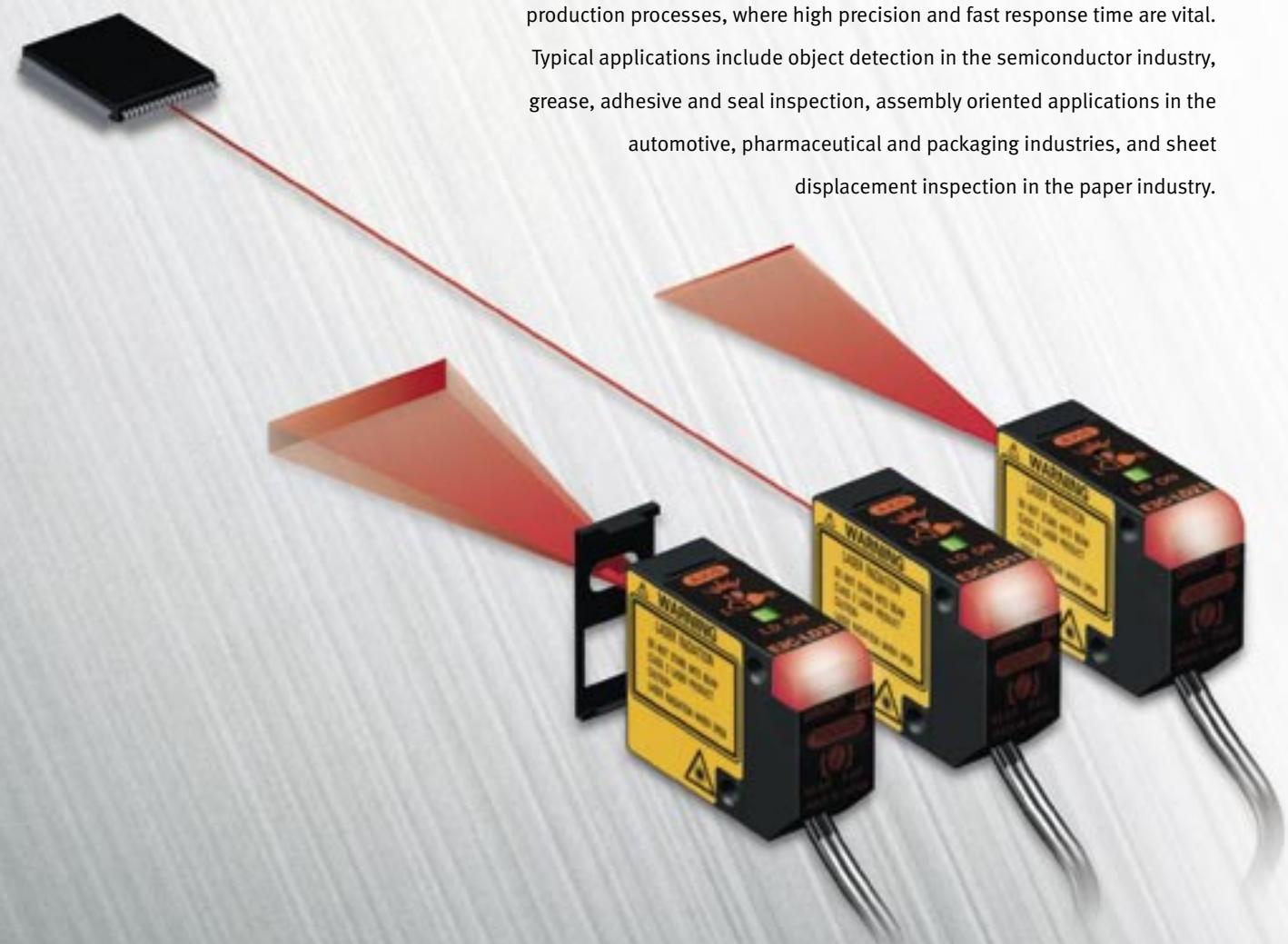

It's state-of-the-art construction, speed, accuracy and built-in reliability combine to make this very compact photoelectric sensor series ideal for use in today's production processes, where high precision and fast response time are vital. Typical applications include object detection in the semiconductor industry, grease, adhesive and seal inspection, assembly oriented applications in the automotive, pharmaceutical and packaging industries, and sheet displacement inspection in the paper industry.
E3C-LDA SERIES

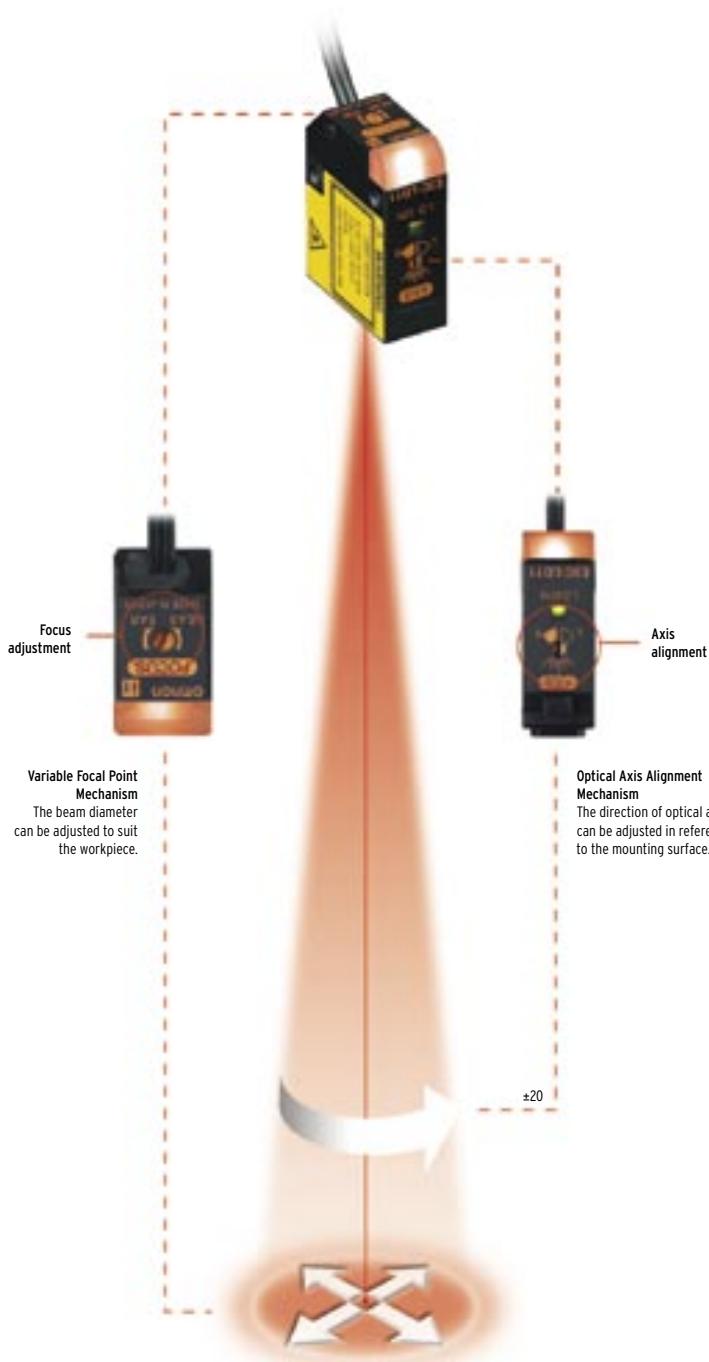

Unique! Adjustable settings for easy mounting and installation
The E3C-LDA is currently the only photoelectric sensor whose focal point and axis can be easily adjusted to provide optimum sensing capability. By varying the focal point mechanism (patent pending) you can adjust the beam diameter to suit the work-piece. This in turn improves the reliability of detection. Varying the axis alignment mechanism (patent pending) enables you to adjust the direction of the beam fan to the mounting surface. This feature is perfect for accurate, long-distance positioning applications.
Multiple optical beam shapes to choose from!
With just one sensor head (spot size, E3C-LD11) and two clip-on units (E39-P11 and E39-P21 lenses) the E3C-LDA series effectively offers multiple different beam shapes – spot, line, area beam or retroreflective. The E3C-LD31 unit provides the area beam, while the E3C-LD21 provides the line beam. This feature really extends the application possibilities of the sensor.
Spot size shape
Ideal for detecting minute items like IC-pins and for very precise positioning.
Line beam shape
Ideal for detecting objects that are not fixed or for inspecting the completeness of parts. Typical application is edge control inspection.
Area beam shape
Ideal for printed mark detection or for basic object detection in the paper and wood industry.
New! Retroreflective beam
This sensor combines high performance with easy installation and set-up. Using the new MSR sensing principle and small laser focus adjustment, this sensor achieves sensing distances of up to 7 metres with high-precision object detection. It is ideal for object detection through a small hole or gap in the assembly process. It can also be used for object detection through a glass view port in environmentally harsh processes.

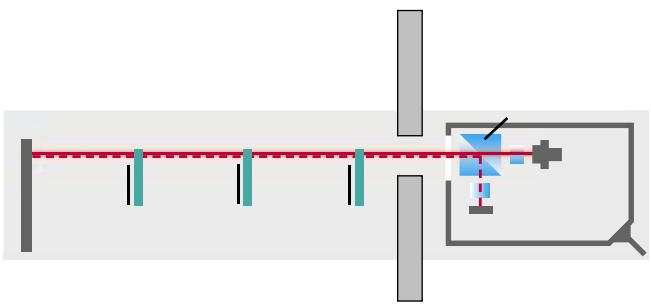

Conventional principle
In areas where space is limited, the reflection of the object does not reach the receiver side.

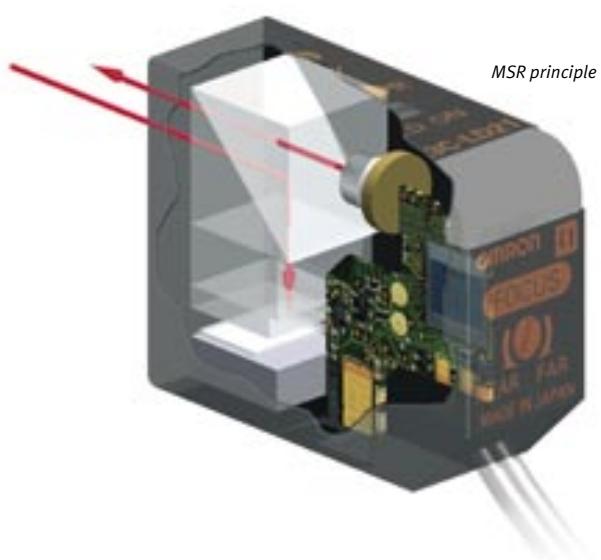

New MSR principle
The E3C-LR enables highly accurate detection, even in a limited space area. Object detection is possible even through a small hole or gap, thanks to the coaxial (MSR) sensing principle.
E3C-LD21 Line beam sensor
E3C-LD11 Spot beam sensor
E3C-LD31 Area beam sensor
Ultra-compact sensor head
The E3C-LD11 sensor head is very compact, which makes it easier to install and implement in production equipment.
Easy, reliable connection
E-Con* connectors enable fast, easy connection of the E3C-LDA sensor to the amplifier, using Omron's Plug & Play concept. This ensures fast, easy replacement of the sensor head when required, and easier maintenance. The E-Con connection also ensures reliable contact between the sensor and amplifier, and minimises possible mistakes by maintenance staff.
*Connectors comply with E-Con specifications.
Unique! Sensing distance up to 7 metres!
The E3C-LD sensor heads have a detecting distance of up to 1000 mm, while the retroreflective E3C-LR sensor heads a detecting distance of up to 7000 mm by using the reflector.
Two Digital Displays
This means that the sensor can be located away from moving parts in a production process and still function with great precision, so installation is fast and easy.
The retroreflective laser sensor has a sensing distance of up to 7 metres. It is also highly precise and easy to set up.
Min. beam spot of 0.8mm (at 1.000mm )
Max. sensing distance up to 7 m
3
Mobile console
Slim sized Amplifier
Beam Unit
Sensor Head
2
Incidental
light level
Threshold
value
(Setting range: approx. 1/8 to 1.5 times initial setting)
Power Tuning Function

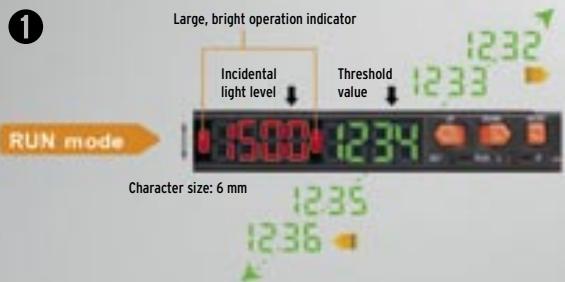

Large, intelligent dual display 1
The slim-line amplifier's easy-to-read display provides a variety of display modes, including the incident light level and the threshold value. Threshold values can be easily set while checking incident light levels.
Mutual interference prevention
Up to 10 sensors can be combined very closely together without any mutual interference occurring between them. With this feature multiple measurements can be made in a machine or a process.
Timer functions
The E3C-LDA's amplifier features a variety of timer functions. It is possible to set up specific times for ON-delay, OFF-delay and One-shot operation functions. The counter mode counts objects in a process (count-up and count-down).
Differential output mode
The differential output mode provides stable detection during counting, and ignores unstable conditions in the production process.
Power tuning function 2
Omron's patented power tuning function provides optimal light level settings for all connected sensors. With just one touch you can adjust the light level settings of all connected amplifiers to the same level. This feature saves you time and money by eliminating labour-intensive adjustments.
Flexible control 3
An Omron mobile console (E3X-MC11-S) can be used for operating the sensor head when a considerable distance separates the sensor head and amplifier. All parameters and settings can be set up via this mobile console.**
Adhesive and seal application inspection
Glass detection through a view port
Grease application inspection
Repeated robot arm positioning teaching for calibration
Sheet displacement inspection

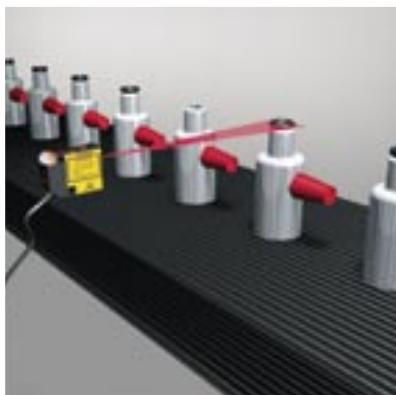

Inspection of fine pins
Existence of 0-ring in the assembly process

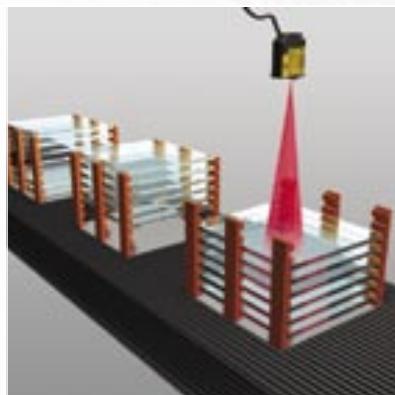

Glass mapping
| Sensing method | Focus | Model number | Remarks |
| Diffuse reflective | Spot | E3C-LD11 | Mounting a Beam Unit (sold separately) allows the use of line and area beams |
| Line | E3C-LD21 | This model number is for the set consisting of the E39-P11 mounted to the E3C-LD11 | |
| Area | E3C-LD31 | This model number is for the set consisting of the E39-P21 mounted to the E3C-LD11 | |
| Coaxial retroreflective | Spot (variable) | E3C-LR11* | Mounting a Beam Unit (sold separately) allows the use of line and area beams |
| Spot (2.0-mm fixed dia.) | E3C-LR12* |
- Select a reflector (sold separately) according to the application.
Amplifier units
| Amplifier units with cables | Item | Appearance | Functions | Model | Model | |
| NPN output | PNP output | |||||
| Advanced models | Twin-output models | Area output, self-diagnosis, differential operation | E3C-LDA11 | E3C-LDA41 | ||
| External-output models | Remote setting, counter, differential operation | E3C-LDA21 | E3C-LDA51 | |||
| Amplifier units with connectors | Advanced models | Twin-output models | Area output, self-diagnosis, differential operation | E3C-LDA6 | E3C-LDA8 | |
| External-output models | Remote setting, counter, differential operation | E3C-LDA7 | E3C-LDA9 | |||
The E3C-LDA series is the latest in a family of Omron sensor systems that include the E3X series, the ZX series, the ZX-E series and the ZS series.
