Type de produit	Carte tuner TV PCI
Caractéristiques techniques principales	DVB-T, support des signaux numériques terrestres, double tuner
Alimentation électrique	Alimentation via le slot PCI
Dimensions approximatives	Standard PCI, dimensions non spécifiées
Poids	Environ 200 g
Compatibilités	Compatible avec Windows XP, Vista, 7, 8, 10
Fonctions principales	Réception de chaînes de télévision numérique, enregistrement vidéo, fonction timeshift
Entretien et nettoyage	Débrancher l'appareil avant nettoyage, utiliser un chiffon doux et sec
Pièces détachées et réparabilité	Réparabilité limitée, pièces détachées disponibles selon le fournisseur
Sécurité	Ne pas exposer à l'humidité, respecter les normes électriques
Informations générales utiles	Vérifier la compatibilité avec le système d'exploitation avant l'achat

FOIRE AUX QUESTIONS - PCTV DUAL DVB-T PRO PCI PINNACLE

Comment installer la carte PINNACLE PCTV DUAL DVB-T PRO PCI ?

Pour installer la carte, éteignez votre ordinateur, ouvrez le boîtier, insérez la carte PCI dans un slot disponible et refermez le boîtier. Ensuite, démarrez l'ordinateur et installez les pilotes fournis.

Quels systèmes d'exploitation sont compatibles avec la carte ?

La carte est compatible avec Windows 7, 8 et 10. Assurez-vous d'utiliser les pilotes appropriés pour votre version de Windows.

Que faire si la carte n'est pas reconnue par mon ordinateur ?

Vérifiez que la carte est correctement insérée dans le slot PCI. Assurez-vous également que les pilotes sont bien installés et à jour. Vous pouvez également essayer de réinstaller les pilotes.

Comment configurer les chaînes TV après l'installation ?

Ouvrez le logiciel fourni avec la carte, allez dans les paramètres de recherche de chaînes, et lancez une recherche automatique pour détecter les chaînes disponibles.

Pourquoi je ne reçois pas de signal TV ?

Vérifiez que l'antenne est correctement connectée et orientée. Assurez-vous également que le signal de l'antenne est suffisant et que vous êtes dans une zone de couverture.

Y a-t-il des mises à jour de pilotes disponibles ?

Oui, vous pouvez vérifier sur le site officiel de Pinnacle pour les mises à jour de pilotes et les installer si nécessaire.

Comment désinstaller la carte si nécessaire ?

Allez dans le Panneau de configuration, sélectionnez 'Programmes et fonctionnalités', trouvez le logiciel de la carte Pinnacle, puis désinstallez-le. Ensuite, éteignez l'ordinateur, retirez la carte PCI et refermez le boîtier.

La carte fonctionne-t-elle avec des logiciels tiers de visualisation TV ?

Oui, la carte est généralement compatible avec des logiciels tiers comme VLC ou Kodi, mais vous devrez peut-être configurer les paramètres de l'application pour qu'elle reconnaisse la carte.

MODE D'EMPLOI PCTV DUAL DVB-T PRO PCI PINNACLE

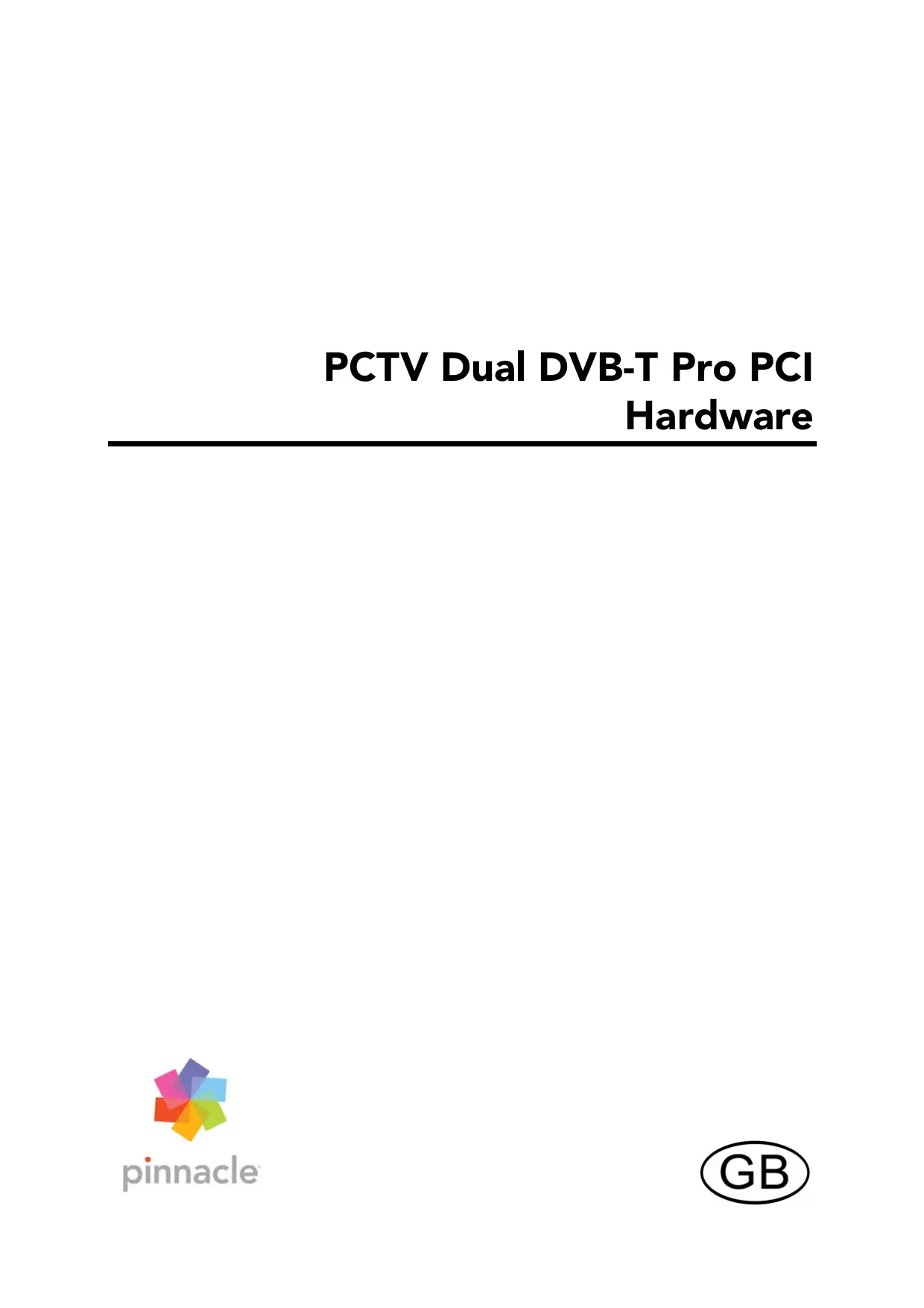

PCTV Dual DVB-T Pro PCI Hardware

PCTV Dual DVB-T Pro PCI Hardware

GB February 2006

© Pinnacle Systems GmbH 2006

All rights reserved.

No part of this manual may be reproduced or transferred to other media without explicit written permission from Pinnacle Systems GmbH, Braunschweig, Germany.

All brand or product names are trademarks or registered trademarks of their respective holders.

Pinnacle Systems GmbH has written this manual to the best of its knowledge, but does not guarantee that the programs/systems will fulfill the users' intended applications.

The feature descriptions are not to be understood as a warranty.

Pinnacle Systems GmbH retains the right to make alterations to the contents of this manual without obligation to inform third parties.

All quotes, sales, supply and manufacturing contracts from Pinnacle Systems GmbH, including consulting, installation and other contractual services are subject exclusively to the General Sales and Delivery Terms of Pinnacle Systems GmbH.

Disposal and Recycling

Do not dispose of electric components in the garbage. Either return defective or unwanted devices to the retailer or take them to an appropriate recycling station for environmentally friendly disposal!

Table of Contents

Introduction 1

Box Contents 2

System Requirements 3

Operating System 3

Processor 3

Working Memory 3

Hard Disk 3

Graphics Card 3

Sound Card. 3

Expansion Slot 3

CD-ROM / DVD-ROM Drive or Recorder 3

For Your Own Safety 4

Hardware Installation 5

Preparing for Installation 5

PCTV Dual DVB-T Pro PCI Hardware Installation 6

After Installation 6

Connecting the Equipment 7

Tips on Positioning the Antenna 8

Technical Data. 9

Bus System. 9

TV Tuner 9

DVB-T Demodulator 9

TV Format. 9

Remote Input Terminal 9

Congratulations on your purchase of PCTV Dual DVB-T Pro PCI!

The PCTV Dual DVB-T Pro PCI gives you two DVB-T tuners on a single PCI card – and you only need one antenna for it. Depending on the software you are using, this means you can watch or record two channels simultaneously.

DVB-T (Digital Video Broadcasting Terrestrial), digital terrestrial TV, offers a wide selection of channels with excellent image and sound quality, without requiring a satellite dish or cable connection.

Additional services planned for the future include digital radio, interactive TV, and IP data reception. Some of these services are already available in selected areas. More information about DVB-T can be found on the Internet, for example, at www.dvb.org or www.freeview.co.uk. For Australia, go to www.dba.org.au.

And now have fun with your PCTV Dual DVB-T Pro PCI!

PCTV Dual DVB-T Pro PCI (image is a sample)

Installation CD

Remote control with batteries and receiver cable (images are samples)

Quick Start Guide

PDF files on CD-ROM: user manual, hardware operating instructions, remote control operating instructions

Depending on the version of your product, package contents may vary.

Your system must fulfill the following requirements if you want to guarantee proper PCTV Sat Pro PCI function:

Operating System

Windows XP (Home Edition, Professional Edition or Media Center Edition 2005) with the latest service pack

Processor

Minimum: Pentium IV with 2 GHz or equivalent AMD Athlon XP

Recommended: Pentium IV with 2.8 GHz or equivalent AMD Athlon 64

Working Memory

Minimum: 256 MB RAM

Recommended: 512 MB RAM

Hard Disk

Minimum: IDE hard disk with master mode drivers and 5 GB free disk space
Recommended: U-DMA hard disk with 20 GB free disk space

Graphics Card

Minimum: DirectX9 compatible graphics card

Sound Card

Minimum: DirectX9 compatible sound card

Expansion Slot

PCI 2.3 compatible expansion slot

CD-ROM / DVD-ROM Drive or Recorder

Minimum: CD-ROM or DVD-ROM drive

Recommended: CD or DVD recorder

If you purchased your PCTV Dual DVB-T Pro PCI together with a PC and it is already installed, skip the next few sections and continue with the section "Connecting the Equipment".

In the interest of your own safety and the flawless functioning of your new PCTV Dual DVB-T Pro PCI and computer system, note the following before installing any hardware:

• Computer components are sensitive to static charge. Divert any electrostatic charge from your body before touching the components with your hands or any tools.
• Before opening the computer, make sure that the power plug is disconnected from the wall outlet.

Preparing for Installation

You will need a screwdriver to install your hardware.

• Divert any possible electrostatic charge from your body by touching the casing of your PC.
• Turn off your computer and all peripheral devices. Disconnect computer from the power supply and all necessary components.
• Loosen the computer cover screws and remove the cover.
• Select a free PCI slot. Remove the slot cover on the back panel of the computer. Make sure to keep the screws in a safe place.

PCTV Dual DVB-T Pro PCI Hardware Installation

• Insert the card into the available PCI slot. Hold it firmly on the upper edge and ease it down into the slot by applying even pressure at both ends. Press down on the upper edge until the card fits securely in the slot.

• If you cannot easily insert the card into the slot, do not use force because this can bend and damage the contact springs on the socket connector. Instead, remove the card and try to insert it again.

After Installation

• After you have inserted the hardware, tighten the card retaining bracket firmly on the back of the computer.
• Now place the cover back onto your computer and reconnect the peripherals and the power supply.

For optimal digital terrestrial TV reception, please observe the following instructions:

• Connect to a roof antenna if one is available.
  If you wish to use the indoor antenna, it should be located as near as possible to a window.
• Wherever possible, point the antenna towards the nearest transmitter.
• Try to position an indoor antenna as high as possible (for example, on top of a cupboard).
• An indoor antenna should not be located near a computer monitor, television or similar equipment.
• Make sure you have the proper polarization if you use an active flat antenna (if you are not certain, you can find out whether the antenna should have a transverse or upright position by trial and error).
• For active antennas without a separate power supply, activate the antenna power supply in the "Settings" menu of the Pinnacle Media Center application.
• Only double-shielded antenna cable should be used.

Bus System

PCI Rev. 2.3

TV Tuner

2 x Microtune MT2060

The frequency range is 48 - 860MHz (VHF and UHF).

DVB-T Demodulator

2xZarlinkZL10353
16.64 QAM, QPSK
6, 7, 8 MHz bandwidth
UHF, VHF

TV Format

DVB-T

Remote Input Terminal

• 2.5 ~mm jack plug for connecting the optional receiver cable included in the package

CE

Konformitätserklung nach ISO/IEC 17050-1

Declaration of conformity in accordance with ISO/IEC 17050-1

Nr. / No 1.00

Anbieter / Supplier : Pinnacle Systems GmbH

Anschrift / Address : Frankfurter Strasse 3c 38122 Braunschweig, Germany

Produkt / Product : PCTV 2000i

Das oben beschriebene Produkt ist konform mit: / The product described above is in conformity with:

Dokument-Nr. Document No.	Titel Title
EN 55013 : 2002	Funkstör eigenschaften von Rundfunkempfängern und verwandten Geräten der Unterhaltungselektronik Limits and methods of measurement of radio disturbance characteristics of broadcast receivers and associated equipment
EN 55020 : 2003	Störfestigkeit von Rundfunkempfängern und verwandten Geräten der Unterhaltungselektronik Electromagnetic immunity of broadcast receivers and associated equipment
EN 61000-4-2 : 2001	Störfestigkeit gegen Entladung statischer Elektrizität Electrostatic discharge immunity test
EN 61000-4-3 : 2001	Störfestigkeit gegen hochfrequente elektromagnetische Felder Radiated, radio-frequency, electromagnetic field immunity test
EN 61000-4-4 : 2002	Störfestigkeit gegen schnelle transiente elektrische Stögrößen/BURST Electrical fast transient/burst immunity test
EN 61000-4-5 : 2001	Störfestigkeit gegen Stoßspannungen/SURGE Surge immunity test
EN 61000-4-6 : 2001	Störfestigkeit gegen leitungsgeführte Stögrößen, induziert durch hochfrequente Felder Immunity to conducted disturbances, induced by radio-frequency fields
EN 61000-4-8 : 2001	Störfestigkeit gegen Magnetfelder mit energietechnischen Frenzen Power frequency magnetic field immunity test
EN 61000-4-11 : 2001	Störfestigkeit gegen Spannungseinbrüche, Kurzzeitunterbrechungen und Spannungsschwankungen Voltage dips, short interruptions and voltage variations immunity tests
EN 61000-3-2 : 2001	Grenzwerte für Oberschwungungsströme Limitations for harmonic currents
EN 61000-3-3 : 2002	Grenzwerte für Spannungsschwankungen und Flicker Limitations of voltage fluctuations and flicker
EN 60950 : 2001	Sicherheit von Einrichtungen der Informationstechnik Safety of information technology equipment

Dieser Erklärung liegt zugrunde: Prüfbericht(e) des EMV-Prüflabors
This certification is based on: Test report(s) generated by EMI-test laboratory

Braunschweig, 15. Februar 2006 / February 15th, 2006
Dr. Alexander Roy Jörg Tewes

Director Hardware Engineering

VP Engineering (Rechtsverbindliche Unterschrift / Legally Binding)
