| Type de produit | Perceuse-visseuse sans fil |
| Marque | Metabo |
| Modèle | BSZ 14.4 |
| Tension de la batterie | 14,4 V (nominale) |
| Type de batterie | NiCd ou Li-ion (selon version) |
| Capacité de la batterie | 2 Ah (NiCd) / 2,2 Ah (Li-ion) |
| Couple max (mou) | 24 Nm |
| Couple max (dur) | 55 Nm |
| Vitesse à vide | 0 - 400 / 0 - 1400 tr/min |
| Capacité de perçage (acier) | 12 mm / 5 mm (selon vitesse) |
| Capacité de perçage (bois) | 30 mm / 22 mm (selon vitesse) |
| Mandrin | Mandrin sans clé Metabo Quick, capacité 1,5 - 13 mm |
| Filetage de broche | 1/2" - 20 UNF |
| Poids (avec batterie) | 2,1 kg |
| Électronique | Variospeed (V) avec réglage progressif de la vitesse |
| Nombre de niveaux de couple | 20 niveaux + mode perçage |
| Sens de rotation | Horaire et antihoraire |
| Arrêt rapide | Oui |
| Blocage de broche | Oui, pour changement d'outil facile |
| Poignée | Poignée pistolet avec revêtement caoutchouc |
| Boîtier d'engrenages | En aluminium moulé sous pression |
| Transmission | Engrenages planétaires métalliques à 3 vitesses |
| Ventilation moteur | Ventilateur collecteur intégré |
| Équipement standard | 2 batteries, chargeur, mallette de transport |
| Chargeur | Chargeur rapide AC 30 (ou ACS 15 selon version) |
FOIRE AUX QUESTIONS - BSZ 14.4 METABO
Questions des utilisateurs sur BSZ 14.4 METABO
0 question sur cet appareil. Repondez a celles que vous connaissez ou posez la votre.
Poser une nouvelle question sur cet appareil
Téléchargez la notice de votre Outil électrique au format PDF gratuitement ! Retrouvez votre notice BSZ 14.4 - METABO et reprennez votre appareil électronique en main. Sur cette page sont publiés tous les documents nécessaires à l'utilisation de votre appareil BSZ 14.4 de la marque METABO.
MODE D'EMPLOI BSZ 14.4 METABO

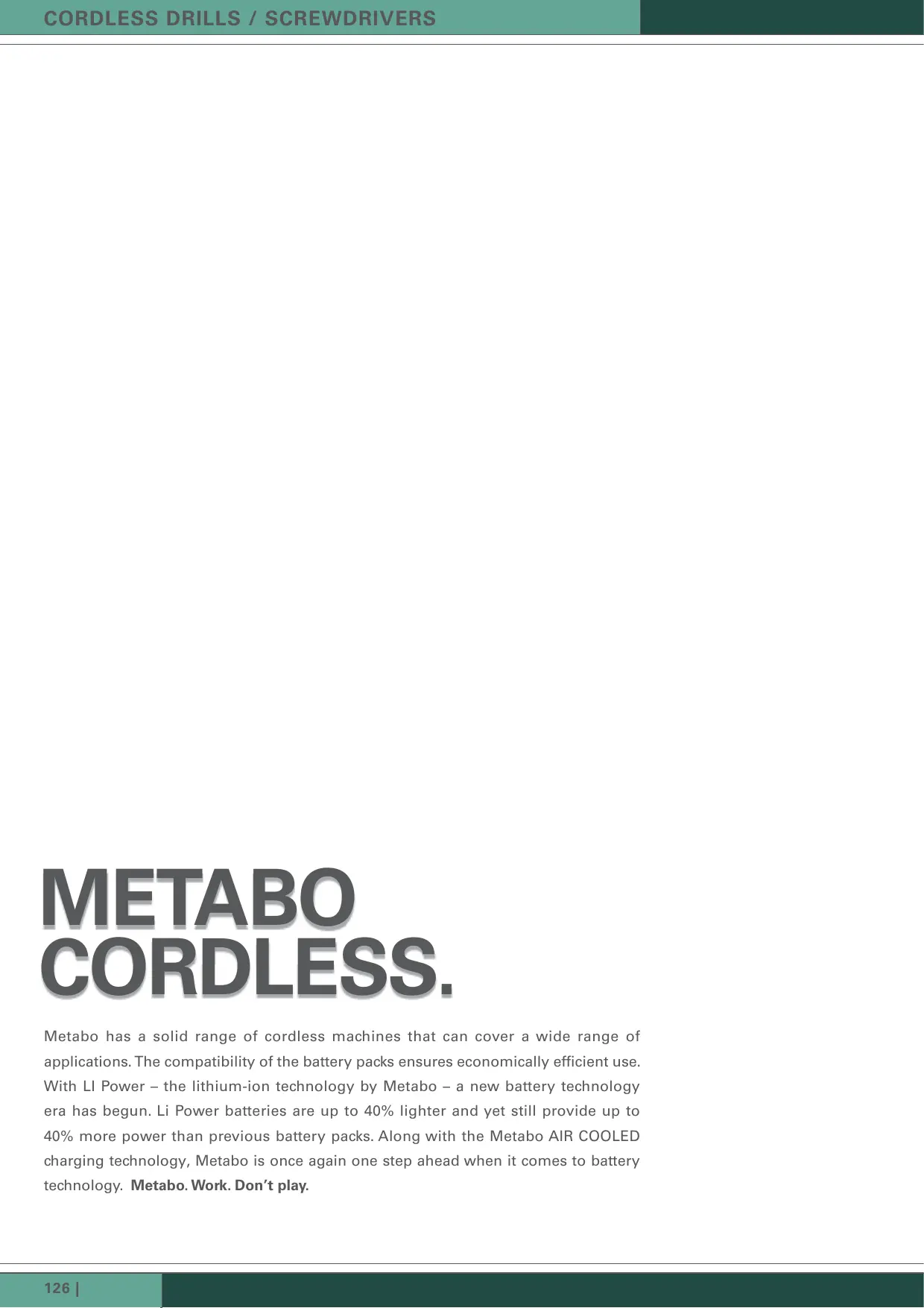

METABOCORDLESS.
Metabo has a solid range of cordless machines that can cover a wide range of applications. The compatibility of the battery packs ensures economically efficient use. With Li Power – the lithium-ion technology by Metabo – a new battery technology era has begun. Li Power batteries are up to 40% lighter and yet still provide up to 40% more power than previous battery packs. Along with the Metabo AIR COOLED charging technology, Metabo is once again one step ahead when it comes to battery technology. Metabo. Work. Don’t play.
Li Power battery packs
are up to 40 % lighter and still provide up to 40 % more power than NiCd battery packs.
TRUE PROS GET EVERYWHERE.
For professional users, mobility is essential. They still want to screw, drill, cut and saw even without electrical power supply. They need power, for as long as possible.
Therefore, besides the torque and speed criteria, the battery capacity and the charging system also plays an important role.
Metabo "Impulse" technology
Tight-fitting screws or damaged screw heads can be easily removed using this "start-up aid."
Gentle and faster charging
The new Metabo quick re-charging devices are suited to re-charge old and new Metabo NiCd- and NiMH-battery packs. With the "Plus" devices, Li-power battery-packs can also be re-charged
System flexibility
Battery packs that always fit. Regardless of the charger you use.
THE METABO RANGE OF BATTERIES WITH HIGH SYSTEM FLEXIBILITY.
For charging your battery packs, you can choose between the universal quick chargers C 45, the pulse computer quick charger ICS 10 and the air-cooled chargers AC 30, AC 30 Plus, ACS 15 and ACS 15 Plus. You can even charge battery packs of the first generation with
our latest chargers and thus enjoy shorter charging times. When the charging process is finished, the charger automatically switches to trickle charging. The battery pack can therefore remain in the charger, is not overcharged and is always fully ready for use.
*charging time at 9,6 V/1,4 Ah
EQUIPMENT FEATURES
Lightweight for fatigue-free work
Variospeed (V) electronics
Motor with integrated air cooling
Quick stop
Spindle stop
Integrated working light
Sturdy die cast gear housing
Pistol grip for optimum power transmission in direction of drilling
Rubber-coated handle
With LC 60 charger, charging time approx. 30 mins (for 1.1 Ah)
... 40 % more output with 40 % less weight
PowerGrip Li
NEW
EQUIPMENT FEATURES
Lightweight for fatigue-free work
- Variospeed (V) electronics
20-level adjustable torque, plus drilling level
Clockwise and anticlockwise rotation
Quick stop
Spindle stop
Spindle with hexagon recess for screwdriver bits
Pistol grip for optimum power transmission in direction of drilling
Sturdy die cast gear housing
Easy and quick change of battery pack
- Charger (charge time approx. 2 hours)
| 7.2 Volt Cordless Screwdriver Power Grip Li | |
| Comparative device characteristics | |
| Type of battery pack | Li-lon |
| Battery pack voltage | 7,2 V 1) |
| Capacity of battery pack | 1,1 Ah |
| Maximum torque, soft | 7 Nm |
| Maximum torque, hard | 13 Nm |
| No load speed | 0 - 250 /min |
| Adjustable torque | 0,3 - 3,5 Nm |
| Weight (including battery pack) | 0,6 kg |
| Standard equipment | Li-lon battery pack (7.2 V/1.1 Ah), charger, charger LC 60, bit assortment (7-piece) |
| 1) at nominal voltage, maximum voltage 8 Volts | |
| Type | PowerGrip Li |
| Order no. | 6.00077.50 |
ACCESSORIES FOR THE CORDLESS SCREWDRIVER POWERGRIP LI
| Order no. | ||
| Rechargeable battery pack 7.2 V, 2.2 Ah, Li-ion | 6.25487 | |
| Rechargeable battery pack 7.2 V, 1.1 Ah, Li-ion (as spare) | 6.25485 | |
| 4,8 Volt Cordless Drill / Screwdriver PowerMaxx | ||
| Comparative device characteristics | ||
| Type of battery pack | NiCd | |
| Battery pack voltage | 4,8 V | |
| Capacity of battery pack | 1,25 Ah | |
| Maximum torque, soft | 5 Nm | |
| Maximum torque, hard | 9 Nm | |
| No-load speeds | 0 - 200 / 0 - 600 /min | |
| Weight (including battery pack) | 0,66 kg | |
| Standard equipment | NiCd battery pack (4.8 V/ 1.25 Ah), charger, carry case, bit assortment (7-piece) | |
| Type Order no. | PowerMaxx 6.00059.51 | |
ACCESSIONS FOR THE CORDLESS DRILL / SCREWDRIVER POWERMAXX
| Order no. | ||
| Battery charger 2 h, 4.8 V, EU Mains voltage: 230 - 240 V Mains frequency: 50/60 Hz | 6.27270 | |
| Battery pack 4.8 V, 1.25 Ah, NiCd | 6.31858 | |
| Accessories for PowerGrip/ PowerMaxx rechargeable battery For using the 4.8 Volt battery pack in the current Metabo chargers | 6.31976 | |
COMMON FEATURES
Lightweight for fatigue-free work
- Variospeed (V) electronics
20-level adjustable torque, plus drilling level
Motor with integrated air cooling
Clockwise and anticlockwise rotation
Quick stop
Spindle stop
Spindle with hexagon recess for screwdriver bits
Pistol grip for optimum power transmission in direction of drilling
Rubber-coated handle
3-level planetary metal gears
Sturdy die cast gear housing
Powerful Li-lon battery pack. No memory effect!
- Charger (charge time approx. 1 hours)
| 7.2 Volt Cordless Drill / Screwdriver PowerMaxx Li Basic | 7.2 Volt Cordless Drill / Screwdriver PowerMaxx Li Pro | |
| Comparative device characteristics | ||
| Maximum torque, soft | 9 Nm | 9 Nm |
| Maximum torque, hard | 16 Nm | 16 Nm |
| Drilling capacity in | ||
| - Steel | 3 mm | 3 mm |
| - Wood | 6,5 mm | 6,5 mm |
| No-load speeds | 0 - 250 / 0 - 750 /min | 0 - 250 / 0 - 750 /min |
| Drilling spindle thread | 1/2" - 20 UNF | 1/2" - 20 UNF |
| Chuck capacity | - | 0,8 - 6,5 mm |
| Weight (including battery pack) | 0,73 kg | 0,73 kg |
| Standard equipment | 2 Li-lon battery packs (7.2 V 1)/2.2 Ah), charger LC 60, carry case, bit assortment (20-piece) | Quick-action keyless chuck Futuro Plus, screw-type angle attachment, 2 Li-lon battery packs (7.2 V 1)/2.2 Ah), charger LC 60, carry case, bit assortment (20-piece) |
| 1) at nominal voltage, maximum voltage 8 Volts | ||
| Type | PowerMaxx Li Basic | PowerMaxx Li Pro |
| Order no. | 6.00068.50 | 6.00069.50 |
ACCESSIONS FOR THE CORDLESS DRILL / SCREWDRIVER POWERMAXX
| Order no. | ||
| Quick-action keyless chuck Futuro Plus H1 M Clamping width: 0,8 - 6,5 mm | 6.36623¹) | |
| Screw-type angle attachment for PowerMaxx For fixing screws more easily at locations difficult to reach Specially for PowerMaxx ■ Magnetic bit holder with 1/4" (6.35mm) hexagonal shank ■ Gears made of special steel ■ Suitable for clockwise and anticlockwise rotation | 6.30650¹) | |
1) Standard equipment with power Maxx Li Pro
ACCESSORIES FORTHE CORDLESS DRILL /SCREWDRIVER POWERMAXX
| Order no. | ||
| Battery charger LC 60, 7.2 V, EU | 6.27306 |
ACCESSIONS FOR THE CORDLESS SCREWDRIVER POWERMAXX LI BASIC / PRO
| Order no. | ||
| Rechargeable battery pack 7.2 V, 2.2 Ah, Li-lon (as spare) | 6.25487 | |
COMMON FEATURES
- Variospeed (V) electronics
20-level adjustable torque, plus drilling level
Clockwise and anticlockwise rotation
Quick stop - Quick-action keyless chuck and spindle stop gear for convenient one-hand tool change: Metabo "Quick"
T-handle for optimum centre of gravity
Fatigue-free operation due to perfect ergonomy
3-level planetary metal gears
Gentle gear change
Built-in collector fan to prevent overheating
Bit case for two bits
Maximum system flexibility through free combination of chargers and battery packs (within a voltage class)
Easy and quick change of battery pack
| 12 Volt Cordless Drill / Screwdriver BZ 12 SP | 12 Volt Cordless Drill / Screwdriver BSZ 12 | 12 Volt Cordless Drill / Screwdriver BSZ 12 | |||
| Special advantages | |||||
| ■ Rubber-coated handle | ● | ● | |||
| ■ Li-Ion battery packs for up to 40% more power with up to 40% less weight. No memory effect! | ● | ||||
| Comparative device characteristics | |||||
| Maximum torque, soft | 18 Nm | 22 Nm | 22 Nm | ||
| Maximum torque, hard | 35 Nm | 52 Nm | 52 Nm | ||
| Drilling capacity in | |||||
| - Steel | 10 mm/5 mm | 10 mm/5 mm | 10 mm/5 mm | ||
| - Wood | 20 mm/16 mm | 25 mm/20 mm | 25 mm/20 mm | ||
| No-load speeds | 0 - 400 / 0 - 1.450 /min | 0 - 400 / 0 - 1.350 /min | 0 - 400 / 0 - 1.350 /min | ||
| Drilling spindle thread | 1/2" - 20 UNF | 1/2" - 20 UNF | 1/2" - 20 UNF | ||
| Chuck capacity | 1 - 10 mm | 1,5 - 13 mm | 1,5 - 13 mm | ||
| Weight (including battery pack) | 1,7 kg | 2 kg | 1,7 kg | ||
| Standard equipment | 2 battery packs, charger, carry case | 2 battery packs, charger, carry case | 2 battery packs, charger, carry case | ||
| 1) at maximum voltage, nominal voltage 10,8 Volts | |||||
| Type Order no. Machine with Battery pack | Charger | BZ 12 SP | BSZ 12 | BSZ 12 | |
| -NiCd (12 V / 2 Ah) | AC 30 | 6.02151.50 | 6.02153.51 | - | |
| -Li-Ion (12 V1) / 2,2 Ah) | AC 30 Plus | - | - | 6.02161.50 | |
COMMON FEATURES
- Selectable impulse mode
- Variospeed (V) electronics
20-level adjustable torque, plus drilling level
Clockwise and anticlockwise rotation
Quick stop - Quick-action keyless chuck and spindle stop gear for convenient one-hand tool change: Metabo "Quick"
T-handle for optimum centre of gravity
Fatigue-free operation due to perfect ergonomy
Rubber-coated handle
3-level planetary metal gears
Gentle gear change
Built-in collector fan to prevent overheating
Bit case for two bits
Maximum system flexibility through free combination of chargers and battery packs (within a voltage class)
Easy and quick change of battery pack
... 40 % more output with 40 % less weight
| 12 Volt Cordless Drill / Screwdriver BSZ 12 Impuls | 12 Volt Cordless Drill / Screwdriver BSZ 12 Impuls | 12 Volt Cordless Drill / Screwdriver BSP 12 Plus | ||
| Special advantages | ||||
| ■ Side handle | ● | |||
| ■ Die cast aluminium gear housing | ● | |||
| ■ Li-lon battery packs for up to 40% more power with up to 40% less weight. No memory effect! | ● | |||
| Comparative device characteristics | ||||
| Maximum torque, soft | 22 Nm | 22 Nm | 20 Nm | |
| Maximum torque, hard | 52 Nm | 52 Nm | 55 Nm | |
| Drilling capacity in | ||||
| - Steel | 10 mm/5 mm | 10 mm/5 mm | 13 mm/8 mm | |
| - Wood | 25 mm/20 mm | 25 mm/20 mm | 40 mm/20 mm | |
| No-load speeds | 0 - 400 / 0 - 1.350 /min | 0 - 400 / 0 - 1.350 /min | 0 - 400 / 0 - 1.400 /min | |
| Drilling spindle thread | 1/2" - 20 UNF | 1/2" - 20 UNF | 1/2" - 20 UNF | |
| Chuck capacity | 1,5 - 13 mm | 1,5 - 13 mm | 1,5 - 13 mm | |
| Weight (including battery pack) | 2 kg | 1,7 kg | 2,5 kg | |
| Standard equipment | 2 battery packs, charger, carry case | 2 battery packs, charger, carry case | Quick-action keyless chuck Futuro Plus, additional handle, 2 battery packs, charger, carry case | |
| 1) at maximum voltage, nominal voltage 10,8 Volts | ||||
| Type Order no. Machine with Battery pack | Charger | BSZ 12 Impuls | BSZ 12 Impuls | BSP 12 Plus |
| -NiCd (12 V / 2 Ah) | AC 30 | 6.02157.51 | - | 6.02419.50 |
| -NiCd (12 V / 2 Ah) | ACS 15 | - | - | 6.02419.51 |
| -NiMH (12 V / 3 Ah) | AC 30 | 6.02157.60 | - | - |
| -Li-Ion (12 V 1) / 2,2 Ah) | AC 30 Plus | - | 6.02164.51 | - |
| -Li-Ion (12 V 1) / 2,2 Ah) | ACS 15 Plus | - | 6.02164.50 | - |
COMMON FEATURES
- Variospeed (V) electronics
20-level adjustable torque, plus drilling level
Clockwise and anticlockwise rotation
Quick stop - Quick-action keyless chuck and spindle stop gear for convenient one-hand tool change: Metabo "Quick"
T-handle for optimum centre of gravity
Fatigue-free operation due to perfect ergonomy
Rubber-coated handle
3-level planetary metal gears
Gentle gear change
Built-in collector fan to prevent overheating
Bit case for two bits
Maximum system flexibility through free combination of chargers and battery packs (within a voltage class)
Easy and quick change of battery pack
| 14,4 Volt Cordless Drill / Screwdriver BSZ 14.4 | 14.4 Volt Cordless Drill / Screwdriver BSZ 14.4 Impuls | 15,6 Volt Cordless Drill / Screwdriver BSP 15.6 Plus | |||
| Special advantages | |||||
| ■ Selectable impulse mode | ● | ● | |||
| ■ Side handle | ● | ||||
| ■ Die cast aluminium gear housing | ● | ||||
| Comparative device characteristics | |||||
| Maximum torque, soft | 24 Nm | 24 Nm | 26 Nm | ||
| Pulse torque | - | 28 Nm | 28 Nm | ||
| Maximum torque, hard | 55 Nm | 55 Nm | 60 Nm | ||
| Drilling capacity in | |||||
| - Steel | 12 mm/5 mm | 12 mm/5 mm | 13 mm/8 mm | ||
| - Wood | 30 mm/22 mm | 30 mm/22 mm | 45 mm/25 mm | ||
| No-load speeds | 0 - 400 / 0 - 1.400 /min | 0 - 400 / 0 - 1.400 /min | 0 - 400 / 0 - 1.400 /min | ||
| Drilling spindle thread | 1/2" - 20 UNF | 1/2" - 20 UNF | 1/2" - 20 UNF | ||
| Chuck capacity | 1,5 - 13 mm | 1,5 - 13 mm | 1,5 - 13 mm | ||
| Weight (including battery pack) | 2,1 kg | 2,1 kg | 2,6 kg | ||
| Standard equipment | 2 battery packs, charger, carry case | 2 battery packs, charger, carry case | Quick-action keyless chuck Futuro Plus, additional handle, 2 battery packs, charger, carry case | ||
| 2) at nominal voltage, maximum voltage 16 Volts | |||||
| Type Order no. Machine with Battery pack | Charger | BSZ 14.4 | BSZ 14.4 Impuls | BSP 15.6 Plus | |
| - NiCd (14,4 V / 2 Ah) | AC 30 | 6.02154.51 | 6.02158.53 | - | |
| - NiMH (14,4 V / 3 Ah) | AC 30 | - | 6.02158.60 | - | |
| - Li-Ion (14,4 V2) / 2,2 Ah) | AC 30 | - | 6.02165.51 | - | |
| - Li-Ion (14,4 V2) / 2,2 Ah) | ACS 15 | - | 6.02165.50 | - | |
| - NiCd (15,6 V / 1,25Ah) | AC 30 | - | - | 6.02420.50 | |
| - NiCd (15,6 V / 2,4 Ah) | AC 30 | - | - | 6.02420.51 | |
| - NiCd (15,6 V / 2,4 Ah) | ACS 15 | - | - | 6.02420.60 | |
COMMON FEATURES
- Variospeed (V) electronics
20-level adjustable torque, plus drilling level
Clockwise and anticlockwise rotation
Quick stop - Quick-action keyless chuck and spindle stop gear for convenient one-hand tool change: Metabo "Quick"
T-handle for optimum centre of gravity
Fatigue-free operation due to perfect ergonomy
Rubber-coated handle
3-level planetary metal gears
Gentle gear change
Built-in collector fan to prevent overheating
Bit case for two bits
Maximum system flexibility through free combination of chargers and battery packs (within a voltage class)
Easy and quick change of battery pack
| 18 Volt Cordless Drill / Screwdriver BSZ 18 | 18 Volt Cordless Drill / Screwdriver BSZ 18 Impuls | 18 Volt Cordless Drill / Screwdriver BSP 18 Plus | ||
| Special advantages | ||||
| ■ Selectable impulse mode | · | · | ||
| ■ Side handle | · | |||
| ■ Die cast aluminium gear housing | · | |||
| ■ Li-Ion battery packs for up to 40% more power with up to 40% less weight. No memory effect! | · | |||
| Comparative device characteristics | ||||
| Maximum torque, soft | 28 Nm | 28 Nm | 30 Nm | |
| Pulse torque | - | 32 Nm | 32 Nm | |
| Maximum torque, hard | 62 Nm | 62 Nm | 65 Nm | |
| Drilling capacity in | ||||
| - Steel | 12 mm/6 mm | 12 mm/6 mm | 13 mm/8 mm | |
| - Wood | 30 mm/22 mm | 30 mm/22 mm | 50 mm/25 mm | |
| No-load speeds | 0 - 450 / 0 - 1.450 /min | 0 - 450 / 0 - 1.450 /min | 0 - 400 / 0 - 1.400 /min | |
| Drilling spindle thread | 1/2" - 20 UNF | 1/2" - 20 UNF | 1/2" - 20 UNF | |
| Chuck capacity | 1,5 - 13 mm | 1,5 - 13 mm | 1,5 - 13 mm | |
| Weight (including battery pack) | 2,2 kg | 1,9 kg | 2,8 kg | |
| Standard equipment | 2 battery packs, charger, carry case | 2 battery packs, charger, carry case | Quick-action keyless chuck Futuro Plus, additional handle, 2 battery packs, charger, carry case | |
| 3) at nominal voltage, maximum voltage 20 Volts | ||||
| Type Order no. Machine with Battery pack | Charger | BSZ 18 | BSZ 18 Impuls | BSP 18 Plus |
| - NiCd (18 V / 1,25 Ah) | AC 30 | - | - | 6.02421.50 |
| - NiCd (18 V / 2 Ah) | AC 30 | 6.02155.60 | 6.02159.53 | - |
| - NiCd (18 V / 2,4 Ah) | AC 30 | - | - | 6.02421.60 |
| - NiCd (18 V / 2,4 Ah) | ACS 15 | - | - | 6.02421.51 |
| - NiMH (18 V / 3 Ah) | AC 30 | - | 6.02159.61 | - |
| - Li-Ion (18 V 3/2,2 Ah) | AC 30 | - | 6.02166.51 | - |
| - Li-Ion (18 V 3/2,2 Ah) | ACS 15 | - | 6.02166.50 | - |
EQUIPMENT FEATURES
- Compact cordless impact screwdriver for tough applications
High torque machine with low kick-back torque
T-handle for optimum centre of gravity
Rubber-coated handle
Variospeed (V) electronics
Ergonomic clockw./anticl. switch for comfortable, hassle free operation
Die cast aluminium gear housing
Bit case
Maximum system flexibility through free combination of chargers and battery packs (within a voltage class)
Easy and quick change of battery pack
Li-lon battery packs for up to 40% more power with up to 40% less weight. No memory effect!
... 40 % more output with 40 % less weight
SSP 12
| 12 Volt Cordless Impact Screwdriver SSP 12 | |
| Comparative device characteristics | |
| Type of battery pack | Li-lon |
| Battery voltage | 12 V 1) |
| Capacity of battery pack | 2,2 Ah |
| No load speed | 0 - 2,500 /min |
| Maximum impact rate | 3.000 /min |
| Maximum tightening torque | 100 Nm |
| Bit retainer | Hexagon recess 1/4" (6.35 mm) |
| Weight (including battery pack) | 1,6 kg |
| Standard equipment | 2 Li-lon battery packs (12 V/2.2 Ah), "AIR COOLED" quick charger AC 30 Plus, carry case |
| 1) at maximum voltage, nominal voltage 10,8 Volts | |
| Type | SSP 12 |
| Order no. | 6.02167 |
ACCESSORIES FOR CORDLESS SCREWDRIVERS
| Screwdriver bit assortments 1/4" (6.35 mm) hexagonal shank | ||
| Order no. | ||
| NEW | Bit box with stainless steel bits (10-piece) Small plastic case Consisting of a "rapid in/easy out" bit holder and the bits mostly commonly used in woodwork. Sizes: PH2, PZ2x2, PZ1, TX10, TX15, TX20, TX25, TX30 Bits and holders are made from stainless steel. | 6.25388 |
| NEW | Bit box with stainless steel bits (10-piece) Small plastic case Consisting of a "rapid in/easy out" bit holder and the bits most commonly used in metal-working. Sizes: PH1x2, PH2x2, PH3, Allen 2.5,3.0,4.0,5.0. Bits and holders are made from stainless steel. | 6.25389 |
| NEW | Bit box torsion (10-piece) Small plastic case Consisting of: Phillips bits, sizes 1, 2, 3 (1 each size) Pozidriv bits, sizes 1, 2, 3 (1 each size) each with one bit for slotted-head screws 0.8 x 5.5 mm, 1.0 x 5.5 mm and 1.2 x 6.5 mm Bit holder "Rapid in/easy out" | 6.25390 |
| NEW | Bit box Torx + Pozidriv (10-piece) Small plastic case Consisting of: Pozidriv bits sizes 1, 2, 3 (torsion bits, 1 each size) Torx bits sizes TX 10, 15, 20, 25, 30 and 40 (1 each) Bit holder "Rapid in/easy out" | 6.25391 |
| NEW | Bit box torsion Universal (10-piece) Small plastic case Consisting of: Phillips bits, sizes 1, 2, 3 (1 each size) Pozidriv bits, sizes 1, 2, 3 (1 each size) bits for slotted-head screws 0.8x5.5 mm, 1.0x5.5 mm and 1.2x6.5 mm (1 each) Bit holder "Rapid in/easy out" | 6.25396 |
| NEW | Bit box diamond Pozidriv (7-piece) Small plastic case Consisting of: Pozidriv bits 2 x size 1, 3 x size 2, 1 x size 3 (diamond) Bit holder "Rapid in/easy out" | 6.25393 |
| NEW | Bit box torsion Torx (7-piece) Small plastic case Consisting of: Torx bits 8, 9, 10, 15, 20, 25, 27, 30 and 40 (1 each) Bit holder "Rapid in/easy out" | 6.25394 |
| NEW | Bit box diamond Universal (7-piece) Small plastic case Consisting of: Phillips bits, sizes 1, 2, 3 (1 each size) Pozidriv bits, sizes 1, 2, 3 (1 each size) bits for slotted-head screws 0.8x5.5 mm, 1.0x5.5 mm and 1.2x6.5 mm (1 each) Bit holder "Rapid in/easy out" | 6.25397 |
Further accessories for the cordless screwdrivers can be found on pages 147-149.
Universal fast-action charger
| Order no. | |
| Universal quick charger AC 30 • For charging all old (with 6.27075 adapter) and new Metabo NiCd and NiMH battery packs of 4.8 V -18 V • Monitored charging with microcontroller • Battery diagnosis • Charge time approx. 30 minutes at 1.4 Ah • "AIR COOLED" function • For connecting to 230/240 V, 50-60 Hz (EU) to 230/240 V, 50-60 Hz (GB) to 230/240 V, 50-60 Hz (AUS/NZ) to 110/120 V, 50-60 Hz (USA/CDN) | 6.27300 6.27303 6.27305 6.27304 |
| Universal quick charger AC 30 Plus • For charging all old (with adapter 6.27075) and new Metabo NiCd and NiMH battery packs of 4.8 V -18 V, as well as the new Li-lon battery packs of 12 V-18 V • Monitored charging with microcontroller • Battery diagnosis • Charge time approx. 30 minutes at 1.4 Ah • "AIR COOLED" function • For connecting to 230/240V, 50-60 Hz (EU) to 230/240V, 50-60 Hz (GB) to 230/240V, 50-60 Hz (AUS/NZ) to 110/120V, 50-60 Hz (USA/CDN) | 6.27275 6.27276 6.27278 6.27277 |
Fast-action charger
| Order no. | |
| Super quick charger ACS 15 • For charging all old (with 6.27075 adapter) and new Metabo NiCd and NiMH battery packs of 4.8 V -18 V • Monitored charging with microcontroller • Battery diagnosis • Charge time approx. 15 minutes at 1.4 Ah • "AIR COOLED" function • For connecting to 230/240 V, 50-60 Hz (EU) to 230/240 V, 50-60 Hz (GB) to 230/240 V, 50-60 Hz (AUS/NZ) to 110/120 V, 50-60 Hz (USA/CDN) | 6.27089 6.27090 6.27092 6.27091 |
| Super quick charger ACS 15 Plus • For charging all old (with adapter 6.27075) and new Metabo NiCd and NiMH battery packs of 4.8 V -18 V, as well as the new Li-ion battery packs of 12 V-18 V • Monitored charging with microcontroller • Battery diagnosis • Charge time approx. 15 minutes at 1.4 Ah • "AIR COOLED" function • Refresh" function for maintenance of batteries for NiCd and NiMH battery packs • For connecting to 230/240 V, 50-60 Hz (EU) to 230/240 V, 50-60 Hz (GB) to 230/240 V, 50-60 Hz (AUS/NZ) to 110/120 V, 50-60 Hz (USA/CDN) | 6.27109 6.27109 6.27109 |
| Super quick charger ASS 15 Plus • For charging Metabo NiCd battery packs of 24 V, as well as Li-ion battery packs of 25.2 V. • The battery packs must be suitable for being pushed on to the charger. (slide in design) • Monitored charging with microcontroller • Battery diagnosis • Charge time approx. 15 minutes at 1.4 Ah • "AIR COOLED" function • Refresh" function for maintenance of batteries for NiCd battery packs • For connecting to 230/240 V, 50-60 Hz (EU) to 230/240 V, 50-60 Hz (GB) to 230/240 V, 50-60 Hz (AUS/NZ) to 110/120 V, 50-60 Hz (USA/CDN) | 6.37060 6.37061 6.37063 6.37062 |
YOU WON'T FIND A BETTER PERCENTAGE ANYWHERE!
Greater efficiency with more power at considerably less weight: That's Metabo Li-Power! A Metabo Li-power lithium battery supplies around 96 % efficiency, 16 % more than NiCd or NiMH, as a result it can provide approximately 40 % more energy the NiCd & NiMH batteries. At the same time it is around 40 % lighter. A 18 V 2.2 Ah Li- ion pack weighs in at approx 700g where as a normal NiMH battery pack comes in at just over 1kg!
This is not all Li-Power has to offer. Thanks to its lower self discharge rate, Li-ion packs can be used immediately at full power even after long period of non use. When you charge the battery, neither the memory nor the lazy battery effect arises. And unlike NiMH batteries, Li-ion batteries work from -20 °C to 50 °C without any problems (just like NiCd).
Electronics
An electronic overcharging and discharging protection mechanism ensures optimum charging and the maximisation of the service life of the battery pack.
Patented multifunction display
All information on one display: capacity querying, temperature monitoring, overload warning and automatic display when a low capacity level is reached.
Corepack
Power tool lithium cells of the highest quality for maximum performance.
Cell connector
Their special design guarantees optimum conductivity and an extremely robust construction. Control and monitoring of every single cell for protection against overcharging, undercharging, total discharge and overstraining.
METABO AIR COOLED CHARGING TECHNOLOGY: THE QUICKEST CHARGERS.
"AIR COOLED" is a technology that only Metabo has to offer. In combination with Li Power, it forms what is possibly the most effective battery system on the market.
The cooler the battery is while charging the faster it can be used again. Every battery heats up when used, which impedes an immediate, effective recharge. The new, patented AIR COOLED charging technology takes this problem out of the equation, since the battery is cooled down before and during the charging process. The charging process thus becomes around 30% quicker, the batteries last longer and
you save yourself the hassle of hanging around waiting for batteries to charge. Another outstanding new feature is the refresh function (only with ACS 15 PLUS). This feature brings the performance impairing unbalanced charge levels of the cells back into line. This 'cell balancing' process should be activated at the end of the charging process once every month on NiCd and NiMH batteries only.
NiCd battery packs
| Battery pack voltage V | Capacity of battery pack Ah | Order no. | |
| NiCd battery packs series 1 | |||
| 7,2 | 1,4 | 6.30069 | |
| 9,6 | 1,4 | 6.30070 | |
| 9,6 | 1,7 | 6.30072 | |
| 12 | 1,7 | 6.30073 | |
| 12 | 2 | 6.31723 | |
| NiCd battery packs series 2 | |||
| 9,6 | 1,7 | 6.30065 | |
| 12 | 2 | 6.31724 | |
| 14,4 | 2 | 6.31725 | |
| NiCd battery packs series 3 | |||
| 9,6 | 1,4 | 6.31746 | |
| 9,6 | 2 | 6.31728 | |
| 12 | 1,25 | 6.31737 | |
| 12 | 1,4 | 6.31747 | |
| 12 | 2 | 6.31729 | |
| 12 | 2,4 | 6.31748 | |
| 15,6 | 1,25 | 6.31738 | |
| 15,6 | 2,4 | 6.31749 | |
| 18 | 1,25 | 6.31739 | |
| 18 | 2 | 6.31857 | |
| 18 | 2,4 | 6.31740 | |
| "AIR COOLED" NiCd battery packs | |||
| 9,6 | 1,4 | 6.25470 | |
| 9,6 | 2 | 6.25471 | |
| 12 | 1,4 | 6.25473 | |
| 12 | 2 | 6.25474 | |
| 14,4 | 1,4 | 6.25475 | |
| 14,4 | 2 | 6.25476 | |
| 18 | 1,4 | 6.25477 | |
| 18 | 2 | 6.25478 | |
| "AIR COOLED" NiCd battery packs | |||
| 24 | 2 | 6.25488 | |
NiMH battery packs
| Battery pack voltage V | Capacity of battery pack Ah | Order no. | |
| NiMH battery packsseries 1 | |||
| 12 | 3 | 6.31776 | |
| 15,6 | 3 | 6.31777 | |
| "AIR COOLED"NiMH battery packs | |||
| 12 | 3 | 6.25479 | |
| 14,4 | 3 | 6.25480 | |
| 18 | 3 | 6.25481 | |
"AIR COOLED" Li-lon battery packs
| Battery pack voltage 1) V | Capacity of battery pack Ah | Order no. | |
| "AIR COOLED" Li-Ion battery packs | |||
| 10.8 / 12 | 2,2 | 6.25486 | |
| 14.4 / 16 | 2,2 | 6.25482 | |
| 18 / 20 | 2,2 | 6.25484 | |
| "AIR COOLED" Li-Ion battery packs | |||
| 25,2 / 28 | 2,2 | 6.25489 | |
1) Nominal voltage / max. voltage
NiCd battery pack for Bh EA 14 S - R+L
| Battery pack voltage V | Capacity of battery pack Ah | Order no. | |
| 14,4 | 4 | 6.31727 |
Adapter for older Metabo chargers
| Order no. | |
| For inserting older battery packs (starting 1981, models 1 and 2) into the new "AIR COOLED" chargers. Also for inserting "AIR COOLED" batteries into older chargers | 6.27075 |
Carry case
| Order no. | |
| melabo | 6.25441 |
| Carry case SBT/BSP/SBP For BSP 12 Plus, BSP 15.6 Plus, BSP 18 Plus and chargers ACS 15, AC 30, ICS 10, C 45 For SBP 12 Plus, SBP 18 Plus and chargers ACS 15, AC 30, ICS 10, C 45 |
