Type de produit	Meuleuse angulaire
Caractéristiques techniques principales	Vitesse à vide : 10 000 tr/min
Alimentation électrique	230 V
Dimensions approximatives	Longueur : 350 mm
Poids	2,1 kg
Compatibilités	Disques de 115 mm
Tension	230 V
Puissance	720 W
Fonctions principales	Coupe, meulage, polissage
Entretien et nettoyage	Nettoyer régulièrement les grilles d'aération et vérifier l'état des balais
Pièces détachées et réparabilité	Disponibilité de pièces de rechange, réparabilité facilitée
Sécurité	Utiliser des lunettes de protection et des gants lors de l'utilisation
Informations générales	Garantie de 1 an, poids léger pour une utilisation prolongée

FOIRE AUX QUESTIONS - 9015A MAKITA

Quelle est la puissance du MAKITA 9015A ?

Le MAKITA 9015A a une puissance de 720 W.

Quelle est la vitesse à vide du MAKITA 9015A ?

La vitesse à vide du MAKITA 9015A est de 10 000 tr/min.

Comment régler la profondeur de coupe ?

Pour régler la profondeur de coupe, dévissez le bouton de verrouillage, ajustez la base à la profondeur souhaitée et revissez le bouton.

Quel type de disque peut-on utiliser avec le MAKITA 9015A ?

Le MAKITA 9015A est compatible avec des disques de 150 mm de diamètre.

Que faire si le MAKITA 9015A ne démarre pas ?

Vérifiez si l'appareil est correctement branché, si le câble d'alimentation n'est pas endommagé et si l'interrupteur fonctionne correctement.

Comment changer le disque de coupe ?

Pour changer le disque, dévissez l'écrou de fixation à l'aide de la clé fournie, retirez l'ancien disque et installez le nouveau en serrant bien l'écrou.

Le MAKITA 9015A fait beaucoup de bruit, est-ce normal ?

Un certain niveau de bruit est normal lors de l'utilisation, mais si le bruit est excessif, vérifiez l'état du moteur et du disque.

Comment nettoyer le MAKITA 9015A après utilisation ?

Débranchez l'appareil et utilisez un chiffon sec pour nettoyer le boîtier. Évitez d'utiliser de l'eau ou des produits liquides.

Quelle est la garantie du MAKITA 9015A ?

Le MAKITA 9015A est généralement livré avec une garantie de 1 an, mais cela peut varier en fonction du revendeur.

Peut-on utiliser le MAKITA 9015A pour couper des matériaux autres que le bois ?

Le MAKITA 9015A est principalement conçu pour le bois, mais peut également couper des matériaux comme le plastique et certains métaux légers avec le bon disque.

Où puis-je trouver des pièces de rechange pour le MAKITA 9015A ?

Les pièces de rechange peuvent être trouvées chez les revendeurs Makita agréés ou sur leur site internet.

MODE D'EMPLOI 9015A MAKITA

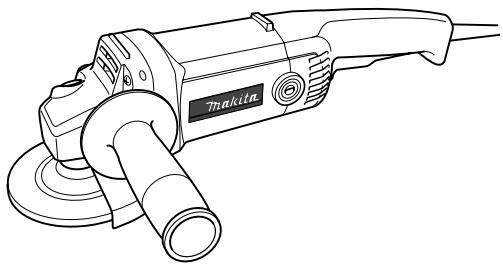

Angle Grinding

125 mm (5")
MODEL 9015A

DOUBLE INSULATION

INSTRUCTION MANUAL

WARNING:

For your personal safety, READ and UNDERSTAND before using. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

SPECIFICATIONS

model	9015A
No load speed (RPM)	10,000/min
Overall length	384 mm (15-1/8")
Net weight	2.4 kg (5.3 lbs)
Spindle thread	5/8"

• Manufacturer reserves the right to change specifications without notice.
• Specifications may differ from country to country.

GENERAL SAFETY RULES

USA002-2

(For All Tools)

WARNING:

Read and understand all instructions. Failure to follow all instructions listed below, may result in electric shock, fire and/or serious personal injury.

SAVE THESE INSTRUCTIONS

Work Area

1. Keep your work area clean and well lit. Cluttered benches and dark areas invite accidents.
2. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Power tools create sparks which may ignite the dust or fumes.
3. Keep bystanders, children, and visitors away while operating a power tool. Distractions can cause you to lose control.

Electrical Safety

1. Double insulated tools are equipped with a polarized plug (one blade is wider than the other.) This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install a polarized outlet. Do not change the plug in any way. Double insulation eliminates the need for the three wire grounded power cord and grounded power supply system.

2. Avoid body contact with grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is grounded.

3. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
4. Do not abuse the cord. Never use the cord to carry the tools or pull the plug from an outlet. Keep cord away from heat, oil, sharp edges or moving parts. Replace damaged cords immediately. Damaged cords increase the risk of electric shock.
5. When operating a power tool outside, use an outdoor extension cord marked "W-A" or "W". These cords are rated for outdoor use and reduce the risk of electric shock.

Personal Safety

1. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use tool while tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating power tools may result in serious personal injury.
2. Dress properly. Do not wear loose clothing or jewelry. Contain long hair. Keep your hair, clothing, and gloves away from moving parts. Loose clothes, jewelry, or long hair can be caught in moving parts.
3. Avoid accidental starting. Be sure switch is off before plugging in. Carrying tools with your finger on the switch or plugging in tools that have the switch on invites accidents.
4. Remove adjusting keys or wrenches before turning the tool on. A wrench or a key that is left attached to a rotating part of the tool may result in personal injury.
5. Do not overreach. Keep proper footing and balance at all times. Proper footing and balance enables better control of the tool in unexpected situations.
6. Use safety equipment. Always wear eye protection. Dust mask, non-skid safety shoes, hard hat, or hearing protection must

be used for appropriate conditions. Ordinary eye or sun glasses are NOT eye protection.

Tool Use and Care

1. Use clamps or other practical way to secure and support the workpiece to a stable platform. Holding the work by hand or against your body is unstable and may lead to loss of control.
2. Do not force tool. Use the correct tool for your application. The correct tool will do the job better and safer at the rate for which it is designed.
3. Do not use tool if switch does not turn it on or off. Any tool that cannot be controlled with the switch is dangerous and must be repaired.
4. Disconnect the plug from the power source before making any adjustments, changing accessories, or storing the tool. Such preventive safety measures reduce the risk of starting the tool accidentally.
5. Store idle tools out of reach of children and other untrained persons. Tools are dangerous in the hands of untrained users.
6. Maintain tools with care. Keep cutting tools sharp and clean. Properly maintained tools with sharp cutting edges are less likely to bind and are easier to control.
7. Check for misalignment or binding of moving parts, breakage of parts, and any other condition that may affect the tools operation. If damaged, have the tool serviced before using. Many accidents are caused by poorly maintained tools.
8. Use only accessories that are recommended by the manufacturer for your model. Accessories that may be suitable for one tool, may become hazardous when used on another tool.

SERVICE

1. Tool service must be performed only by qualified repair personnel. Service or maintenance performed by unqualified personnel could result in a risk of injury.

2. When servicing a tool, use only identical replacement parts. Follow instructions in the Maintenance section of this manual.

Use of unauthorized parts or failure to follow Maintenance instructions may create a risk of electric shock or injury.

USE PROPER EXTENSION CORD: Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. Table 1 shows the correct size to use depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gage. The smaller the gage number, the heavier the cord.

Table 1: Minimum gage for cord

Ampere Rating		Volts	Total length of cord in feet
		120 V	25 ft.	50 ft.	100 ft.	150 ft.
More Than	Not More Than	AWG
0	6		18	16	16	14
6	10		18	16	14	12
10	12		16	16	14	12
12	16		14	12	Not Recommended

SPECIFIC SAFETY RULES

USB005-3

DO NOT let comfort or familiarity with product (gained from repeated use) replace strict adherence to grinder safety rules. If you use this tool unsafely or incorrectly, you can suffer serious personal injury.

1. Always use proper guard with grinding wheel. A guard protects operator from broken wheel fragments.
2. Accessories must be rated for at least the speed recommended on the tool warning label. Wheels and other accessories running over rated speed can fly apart and cause injury.

3. Hold tool by insulated gripping surfaces when performing an operation where the cutting tool may contact hidden wiring or its own cord. Contact with a "live" wire will make exposed metal parts of the tool "live" and shock the operator.

4. When using depressed center grinding wheels, be sure to use only fiberglass-reinforced wheels.

5. Always use safety glasses or goggles. Ordinary eye or sun glasses are NOT safety glasses.
6. Check the wheel carefully for cracks or damage before operation. Replace cracked or damaged wheel immediately. Run the tool (with guard) at no load for about a minute, holding tool away from others. If wheel is flawed, it will likely separate during this test.

7. Use only flanges specified for this tool.

8. Be careful not to damage the spindle, the flange (especially the installing surface) or the lock nut. Damage to these parts could result in wheel breakage.

9. NEVER use tool with wood cutting blades or other sawblades. Such blades when used on a grinder frequently kick and cause loss of control leading to personal injury.
10. Hold the tool firmly.
11. Keep hands away from rotating parts.
12. Make sure cord is clear of wheel. Do not wrap cord around your arm or wrist. If control of tool is lost, cord may become wrapped around you and cause personal injury.
13. Make sure the wheel is not contacting the workpiece before the switch is turned on.
14. Before using the tool on an actual workpiece, let it run for a while. Watch for vibration or wobbling that could indicate

poor installation or a poorly balanced wheel.

1. Use the specified surface of the wheel to perform the grinding.
2. Watch out for flying sparks. Hold the tool so that sparks fly away from you and other persons or flammable materials.
3. Do not leave the tool running. Operate the tool only when hand-held.
4. Do not touch the workpiece immediately after operation; it may be extremely hot and could burn your skin.
5. ALWAYS wear proper apparel including long sleeve shirts, leather gloves and shop aprons to protect skin from contact with hot grindings.
6. Use of this tool to grind or sand some products, paints and wood could expose user to dust containing hazardous substances. Use appropriate respiratory protection.

SAVE THESE INSTRUCTIONS

WARNING:

MISUSE or failure to follow the safety rules stated in this instruction manual may cause serious personal injury.

SYMBOLS

USD291-2

The followings show the symbols used for tool.

V . volts

A. amperes

....alternating or direct current

no load speed

回 .Class II Construction

.../min.......revolutions or reciprocation per minute

FUNCTIONAL DESCRIPTION

1. Shaft lock

1. Switch trigger

ASSEMBLY

CAUTION:

• Always be sure that the tool is switched off and unplugged before adjusting or checking function on the tool.

Shaft lock

CAUTION:

• Never actuate the shaft lock when the spindle is moving. The tool may be damaged.

Press the shaft lock to prevent spindle rotation when installing or removing accessories.

Switch action

CAUTION:

• Before plugging in the tool, always check to see that the switch trigger actuates properly and returns to the "OFF" position when released.

To start the tool, simply pull the switch trigger. Release the switch trigger to stop.

CAUTION:

• Always be sure that the tool is switched off and unplugged before carrying out any work on the tool.

Installing side grip (handle)

CAUTION:

• Always be sure that the side grip is installed securely before operation.

Screw the side grip securely on the position of the tool as shown in the figure.

1. Wheel guard
2. Bearing box
3. Screw

Installing or removing wheel guard

CAUTION:

• When using a depressed center grinding wheel/Multidisc, wire wheel brush or cut-off wheel, the wheel guard must be fitted on the tool so that the closed side of the guard always points toward the operator.

Mount the wheel guard with the protrusion on the wheel guard band aligned with the notch on the bearing box. Then rotate the wheel guard around 180 degrees. Be sure to tighten the screw securely.

To remove wheel guard, follow the installation procedure in reverse.

1. Lock nut
2. Depressed center grinding wheel/Multi-disc
3. Inner flange

1. Lock nut wrench
2. Shaft lock

Installing or removing depressed center grinding wheel/Multi-disc

WARNING:

• Always use supplied guard when depressed center grinding wheel/Multi-disc is on tool. Wheel can shatter during use and guard helps to reduce chances of personal injury.

Mount the inner flange onto the spindle. Fit the wheel/disc on the inner flange and screw the lock nut onto the spindle.

To tighten the lock nut, press the shaft lock firmly so that the spindle cannot revolve, then use the lock nut wrench and securely tighten clockwise.

To remove the wheel, follow the installation procedure in reverse.

1. Lock nut
2. Abrasive disc
3. Rubber pad

Installing or removing abrasive disc (optional accessory)

NOTE:

• Use sander accessories specified in this manual. These must be purchased separately.

Mount the rubber pad onto the spindle. Fit the disc on the rubber pad and screw the lock nut onto the spindle. To tighten the lock nut, press the shaft lock firmly so that the spindle cannot revolve, then use the lock nut wrench and securely tighten clockwise.

To remove the disc, follow the installation procedure in reverse.

OPERATION

WARNING:

• It should never be necessary to force the tool. The weight of the tool applies adequate pressure. Forcing and excessive pressure could cause dangerous wheel breakage.
• ALWAYS replace wheel if tool is dropped while grinding.
• NEVER bang or hit grinding disc or wheel onto work.
• Avoid bouncing and snagging the wheel, especially when working corners, sharp edges etc. This can cause loss of control and kickback.
• NEVER use tool with wood cutting blades and other sawblades. Such blades when used on a grinder frequently kick and cause loss of control leading to personal injury.

CAUTION:

• After operation, always switch off the tool and wait until the wheel has come to a complete stop before putting the tool down.

Grinding and sanding operation

ALWAYS hold the tool firmly with one hand on rear handle and the other on the side handle. Turn the tool on and then apply the wheel or disc to the workpiece.

In general, keep the edge of the wheel or disc at an angle of about 15 degrees to the workpiece surface.

During the break-in period with a new wheel, do not work the grinder in the B direction or it will cut into the workpiece. Once the edge of the wheel has been rounded off by use, the wheel may be worked in both A and B direction.

1. Wire cup brush
2. Urethane washer

Operation with wire cup brush (optional accessory)

CAUTION:

• Check operation of brush by running tool with no load, insuring that no one is in front of or in line with brush.
• Do not use brush that is damaged, or which is out of balance. Use of damaged brush could increase potential for injury from contact with broken brush wires.

Unplug tool and place it upside down allowing easy access to spindle. Remove any accessories on spindle. Mount urethane washer then thread wire cup brush onto spindle and tighten with supplied wrench. When using brush, avoid applying too much pressure which causes over bending of wires, leading to premature breakage.

NOTE:

• When using wire cup brush, mount urethane washer to the spindle. It will make it easier to remove wire cup brush.

1. Wire wheel brush

Operation with wire wheel brush (optional accessory)

CAUTION:

• Check operation of wire wheel brush by running tool with no load, insuring that no one is in front of or in line with the wire wheel brush.

• Do not use wire wheel brush that is damaged, or which is out of balance. Use of damaged wire wheel brush could increase potential for injury from contact with broken wires.

• ALWAYS use guard with wire wheel brushes, assuring diameter of wheel fits inside guard. Wheel can shatter during use and guard helps to reduce chances of personal injury.

Unplug tool and place it upside down allowing easy access to spindle. Remove any accessories on spindle. Thread wire wheel brush onto spindle and tighten with the wrenches.

When using wire wheel brush, avoid applying too much pressure which causes over bending of wires, leading to premature breakage.

1. Lock nut
2. Abrasive cut-off wheel
3. Inner flange
4. Wheel guard for cut-off wheel

MAINTENANCE

1. Exhaust vent
2. Inhalation vent

Operation with abrasive cut-off wheel (optional accessory)

WARNING:

• When using an abrasive cut-off wheel, be sure to use only the special wheel guard designed for use with cut-off wheels.
• NEVER use cut-off wheel for side grinding.

During cutting operations, never change the angle of the wheel. Placing side pressure on the cut-off wheel (as in grinding) will cause the wheel to crack and break, causing serious personal injury.

CAUTION:

• Always be sure that the tool is switched off and unplugged before attempting to perform inspection or maintenance.

The tool and its air vents have to be kept clean. Regularly clean the tool's air vents or whenever the vents start to become obstructed.

1. Limit mark

1. Brush holder cap
2. Screwdriver

ACCESSIONS

Replacing carbon brushes

Remove and check the carbon brushes regularly. Replace when they wear down to the limit mark. Keep the carbon brushes clean and free to slip in the holders. Both carbon brushes should be replaced at the same time. Use only identical carbon brushes.

Use a screwdriver to remove the brush holder caps. Take out the worn carbon brushes, insert the new ones and secure the brush holder caps.

To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized or Factory Service Centers, always using Makita replacement parts.

CAUTION:

• These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose.
• Your tool is supplied with a guard for use with a depressed center grinding wheel, multi-disc and wire wheel brush. A cut-off wheel can also be used with an optional guard. If you decide to use your Makita grinder with approved accessories which you purchase from your Makita distributor or factory service center, be sure to obtain and use all necessary fasteners and guards as recommended in this manual. Your failure to do so could result in personal injury to you and others.

If you need any assistance for more details regarding these accessories, ask your local Makita service center.

001183

	9015A
1	Grip 36
2	Wheel guard
3	Inner flange 45
4	Depressed center grinding wheel/Multi-disc
5	Lock nut 5/8-45
6	Rubber pad 115
7	Abrasive disc
8	Sanding lock nut 5/8-48
9	Wire wheel brush
10	Urethane washer 14
11	Wire cup brush
12	Wheel guard (For cut-off wheel)
13	Cut-off wheel
-	Lock nut wrench 28

Makita U.S.A., Inc.

14930 Northam Street

La Mirada, CA 90638-5753

Fold

MAIL THIS PORTION

Your answers to the following questions are appreciated.

1. This product was purchased from:

Home Center
Hardware/Lumber Store
Tool Distributor
Industrial Supply
Construction Supply

□ Other(

2. Use of the product is intended for:

Construction Trade
Industrial Maintenance
Home Maintenance
Hobby
□ Other ( )

3. How did you learn about this product:

Magazine
From Dealer
□ Newspaper
Store Display
Catalog

Radio
Exhibition
From Friend
Previous Usage
Other(

4. Most favored points are:

Design
Features
Size
Price
Makita Brand

Repair Service
Durability
Power
Other(

5. Any comments:

BE SURE TO COMPLETE THE CUSTOMER'S PORTION OF THIS FORM AND RETAIN FOR YOUR RECORDS.

Please return this portion by facsimile or mail.

Facsimile No: [phone]

FACTORY SERVICE CENTERS

1-800-4-MAKITA

RETAIN THIS PORTION FOR YOUR RECORDS

ALABAMA

2365 Pelham Parkway

Pelham, AL 35124

[phone]

ARIZONA

3707 E. Broadway Rd., Ste. 6

Phoenix, AZ 85040

[phone]

ARKANSAS

Shackleford Shopping Center

240 South Shackleford Rd.,

Ste.C

Little Rock, AR 72211

[phone]

CALIFORNIA

41850 Christy St.

Fremont, CA 94538-5107

[phone]

1421 N. Clovis Ave., Ste. 112

Fresno, CA 93727

[phone]

14930 Northam St.

La Mirada, CA 90638-5753

[phone]

1970 Fulton Avenue

Sacramento, CA 95825

[phone]

1440 South "E" Street

San Bernardino, CA 92408

[phone]

7674 Clairemont Mesa Blvd.

San Diego, CA 92111

[phone]

1714 E.McFadden Ave., Unit M

Santa Ana, CA 92705

[phone]

1565 Winchester B.

Campbell, CA 95008-0501

[phone]

16735 Saticoy St., Ste. 105

Van Nuys, CA 91406

[phone]

COLORADO

11839 E. 51st Ave.

Denver, CO 80239-2709

[phone]

CONNECTICUT

508 Spring St.

Windsor Locks, CT 06096

[phone]

FLORIDA

620 Douglas Ave. Suite 1302

Altamonte Springs, FL 32714

[phone]

750 East Sample Road

Pompano Beach, FL 33064

[phone]

Thompson Center Waters

5501 W.Waters Ave., Ste. 406

Tampa,FL 33634

[phone]

GEORGIA

4680 River Green Parkway

Duluth, GA 30096-2566

[phone]

HAWAII

4510 Salt Lake Blvd., Suite A7

Honolulu, HI 96818

[phone]

ILLINOIS

1450 Feehanville Dr.

Mt. Prospect, IL 60056-6011

[phone]

INDIANA

8403 Michigan Road, Unit 1

Indianapolis, IN 46268

[phone]

KANSAS

8819 W, 95th St.

Overland Park, KS 66212

[phone]

KENTUCKY

1215 S. Hurstbourne Parkway

Louisville, KY 40222

[phone]

LOUSIANA

5626 Jefferson Hwy.

Harahan, LA 70123

[phone]

MARYLAND

7541-45 Ritchie Highway

Glen Burnie, MD 21061

[phone]

MASSACHUSETTS

232 Providence Hwy.

Westwood, MA 02090

[phone]

MICHIGAN

37454 Ann Arbor Trail

Livonia, MI 48150

[phone]

MINNESOTA

6427 Penn Ave. South

Richfield, MN 55423

[phone]

MISSOURI

9876 Watson Road

St. Louis, MO 63126-2221

[phone]

NEBRASKA

4129 S. 84th St.

Omaha, NE 68127

[phone]

NEVADA

3375 S. Decatur Blvd.

Suites.22-24

Las Vegas, NV 89102

[phone]

NEW JERSEY

251 Herrod Blvd.

Dayton, NJ 08810-1539

[phone]

NEW MEXICO

5805 Menaul Blvd. NE

Albuquerque, NM 87110

[phone]

NEW YORK

4917 Genessee Street

Cheektowaga, NY 14225

[phone]

131-35 31st Ave.

Flushing, NY 11354

[phone]

NORTH CAROLINA

3501-G S. Tryon St.

Charlotte, NC 28217

[phone]

OHIO

6253 E. Main St.

Columbus, OH 43213

[phone]

6379 Pearl Road

Parma Heights, OH 44130

[phone]

1617 E. Kemper Rd.

Sharonville, OH 45246

[phone]

OKLAHOMA

552 E. Memorial Road

Oklahoma City, OK 73114

[phone]

OREGON

828 19th Avenue., N.W.

Portland, OR 97209

[phone]

PENNSYLVANIA

Springwater Plaza

364 Wilmington W. Chester

Pike

Glen Mills, PA 19342

[phone]

6200 Babcock Blvd

Pittsburgh, PA 15237

[phone]

PUERTO RICO

200 Guayama St.

Hato Rev. PR 00917

[phone]

TENNESSEE

4655 Nolensville Rd.

Nashville, TN 37211

[phone]

TEXAS

12801 Stemmons Fwy Ste. 809

Farmers Branch, TX 75234

[phone]

12701 Directors Dr.

Stafford, TX 77477-3701

[phone]

3453 IH-35 North, Ste. 101

San Antonio, TX 78219

[phone]

UTAH

145 E. 1300 S., Ste. 101

Salt Lake City, UT 84115

[phone]

VIRGINIA

5760 Northampton Blvd., Ste.

102

Virginia Beach, VA 23455

[phone]

WASHINGTON

22220 84th Ave. So., Bldg. A

Kent, WA 98032

[phone]

WISCONSIN

Lincoln Plaza Shopping Ctr.

2245 S.108th St.West Allis, WI

53227

[phone]

CUSTOMER'S RECORD

When you need service: Send complete tool (prepaid) to one of the Makita Factory Service Centers listed, or to an Authorized Makita Service Center. Be sure to attach a letter to the outside of the carton detailing the problem with your tool.	Date Purchased
	Dealer's Name & Address
	Model No.
	Serial No.

WARNING

Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• lead from lead-based paints,
  crystalline silica from bricks and cement and other masonry products, and
• arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

MAKITA LIMITED ONE YEAR WARRANTY

Warranty Policy

Every Makita tool is thoroughly inspected and tested before leaving the factory. It is warranted to be free of defects from workmanship and materials for the period of ONE YEAR from the date of original purchase. Should any trouble develop during this one-year period, return the COMPLETE tool, freight prepaid, to one of Makita's Factory or Authorized Service Centers. If inspection shows the trouble is caused by defective workmanship or material, Makita will repair (or at our option, replace) without charge.

This Warranty does not apply where:

• repairs have been made or attempted by others:
• repairs are required because of normal wear and tear:
• the tool has been abused, misused or improperly maintained:
  alterations have been made to the tool.

IN NO EVENT SHALL MAKITA BE LIABLE FOR ANY INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES FROM THE SALE OR USE OF THE PRODUCT. THIS DISCLAIMER APPLIES BOTH DURING AND AFTER THE TERM OF THIS WARRANTY.

MAKITA DISCLAIMS LIABILITY FOR ANY IMPLIED WARRANTY, INCLUDING IMPLIED WARRANTY OF "MERCHANTABILITY" AND "FITNESS FOR A SPECIFIC PURPOSE," AFTER THE ONE-YEAR TERM OF THIS WARRANTY.

This Warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you.

Makita Corporation

3-11-8, Sumiyoshi-cho,

Anjo, Aichi 446-8502 Japan
