ZU510Te - Projector OPTOMA - Free user manual and instructions

Product Type	DLP Laser Projector
Display Technology	DLP Texas Instruments
Native Resolution	WUXGA (1920 x 1200)
Brightness	5100 lumens
Contrast Ratio	300,000:1
Light Source Life	20,000 hours (normal mode)
Power Supply	100-240 V AC, 50/60 Hz
Power Consumption	380 W (max)
Dimensions (W x D x H)	486 x 393 x 186 mm
Weight	11.5 kg
Connectivity	HDMI (x2), VGA, USB, RJ45, RS232
Main Functions	Keystone correction (H/V), motorized zoom, networking, 3D compatibility
Maintenance	Clean air filter every 500 hours; sealed laser source
Security	Kensington lock, startup password, lockable menu
Spare Parts Available	Air filter, remote control, HDMI and VGA cables, mounting bracket
Warranty	3 years (parts and labor)

Frequently Asked Questions - ZU510Te OPTOMA

How to install the OPTOMA ZU510Te projector?

Place the projector on a stable surface and clear the ventilation openings. Connect the power cord and the video source (HDMI or VGA). Turn on the projector and adjust focus and zoom using the remote control or the control panel.

How to clean the air filter?

Turn off the projector and unplug it. Open the air filter cover on the side. Remove the filter, vacuum it with a soft vacuum or wash it with warm soapy water. Dry completely before reinstalling. Perform this operation every 500 hours of use.

What to do if the image is blurry?

Check the projection distance and use the focus ring on the lens. If the image remains blurry, clean the lens with a soft dry cloth. Ensure the source resolution matches the native resolution of the projector (WUXGA).

The projector does not turn on, what to do?

Check that the power cable is properly connected and the outlet works. Make sure the power button is not disabled by a password. If the LED indicator blinks, refer to the error code section in the manual.

How to connect a computer to the projector?

Use an HDMI or VGA cable to connect the computer to the projector. Select the corresponding input source via the menu or the Source button on the remote control. For audio, use an audio cable if necessary.

Can I use the projector for wireless presentation?

Yes, if you have an optional Wi-Fi adapter (not included). You can also use the RJ45 port for a wired network connection and project via networking software.

How to adjust the keystone correction?

Press the Keystone button on the remote control or go to the Settings menu. Use the arrows to correct horizontal and vertical distortion. The projector adjusts automatically if enabled.

What is the lifespan of the light source?

The laser source has a lifespan of 20,000 hours in normal mode, and up to 30,000 hours in Eco mode. This corresponds to approximately 8 to 12 years of daily use.

The projector displays a temperature error message, what to do?

Turn off the projector and let it cool down. Check that the air intakes and hot air outlet are not blocked. Clean the air filter if necessary. If the problem persists, contact support service.

How to reset the security password?

Go to the Security menu in the settings. Enter the current password (default: 0000). Select the reset option. If you forgot the password, contact OPTOMA support with the serial number.

USER MANUAL ZU510Te OPTOMA

Line drawing of a projector with ventilation slots and a circular vent (no text or symbols)

TABLE DES MATIÈRES

SÉCURITÉ ....3

LASER RADIATION DO NOT STARE INTO BEAM CLASS 2 LASER PRODUCT WAVE LENGTH: 450-460 nm / MAX OUTPUT: 15.9 mW / PULSE DURATION: 1.25 ms IEC 60825-1:2014 CLASS 1 LASER PRODUCT / RISK GROUP 2 Possibly hazardous optical radiation emitted from this product. Do not stare into the beam, May be harmful to the eyes.

COMPLIES WITH 21 CFR 1040.10 AND 1040.11 EXCEPT FOR DEVIATIONS PURSUANT TO LASER NOTICE No. 50, DATED JUNE 24, 2007. IEC/EN 60825-1:2007

AVERTISSEMENT

Illustration of a projector with a camera lens and label 'Projecteur' below (no other text or symbols)

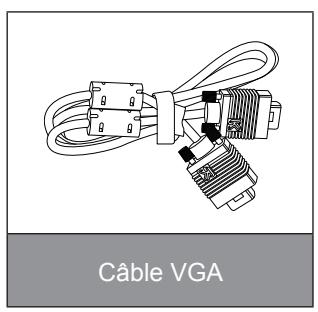

Diagram of a cable VGA connector with coiled cable and connectors (no text or symbols on the diagram itself)

ANNEXES
