Impera i10G - Tablet Allview - Free user manual and instructions

Product Type	Tablet
Brand	Allview
Model	Impera i10G
Display Size	10.1 inches
Display Resolution	1280 x 800 pixels
Processor	Quad-core 1.3 GHz
RAM	2 GB
Internal Storage	32 GB
Battery Capacity	6000 mAh
Operating System	Android 10
Connectivity	Wi-Fi 802.11 b/g/n, Bluetooth 4.0
Camera Rear	5 MP
Camera Front	2 MP
Dimensions	245 x 165 x 9 mm
Weight	520 g
Power Supply	5V/2A via micro USB
Audio	3.5 mm headphone jack, built-in speaker
Expansion Slot	microSD up to 128 GB
Sensors	Accelerometer, light sensor
Cleaning and Maintenance	Wipe with dry cloth; avoid liquids
Safety	Do not expose to extreme temperatures or moisture
Spare Parts and Repairability	Battery and screen replaceable by authorized service centers

Frequently Asked Questions - Impera i10G Allview

How do I perform a factory reset on the Impera i10G?

Go to Settings > Backup & reset > Factory data reset. Confirm and the device will erase all data.

How can I expand the storage?

Insert a microSD card (up to 128 GB) into the slot on the side of the tablet. It will be recognized automatically.

What should I do if the screen is cracked?

Contact authorized service centers for screen replacement. Do not attempt self-repair to avoid damage.

How do I connect to Wi-Fi?

Open Settings > Wi-Fi, turn it on, select your network, and enter the password.

Why is the battery draining fast?

Reduce screen brightness, close unused apps, disable Bluetooth and GPS when not needed. If persistent, check for battery health in settings.

How do I take a screenshot?

Press and hold the Power and Volume Down buttons simultaneously until the screen flashes.

Can I use a keyboard or mouse with this tablet?

Yes, via Bluetooth or a USB OTG adapter. Connect a wireless keyboard or mouse in Bluetooth settings.

How do I charge the tablet?

Use the included micro USB cable and a 5V/2A charger. Charging time is approximately 4 hours.

The touchscreen is not responding. What can I do?

Try restarting the device. If issue persists, perform a factory reset (backup data first). If still not working, it may be a hardware defect requiring service.

Is there a protective case available?

Yes, generic cases for 10.1-inch tablets should fit. You can find them online or at electronics stores.

USER MANUAL Impera i10G Allview

Blank tablet device with blank screen and white frame (no text or symbols)

User's manual....3

Manual de utilizare......14

Uputstvo....25

Specification......49

EN

1 Camera 1
2 Power 2
3 MicroUSB 3
4 Microphon 4
5 Earphone 5
6 Volume 6
7 MicroSD 7
8 Speaker 8
9 SIM slot 9

RO

Camera

Buton pornire

Mufa MicroUSB

Microfon

Mufa casti

Buton volum

Slot MicroSD

Difuzor

Slot SIM

SR

1 Kamera 1
2 Dugme za 2
3 MicroUSB 3
4 mikrofon 4
5 Priključak za 5
6 запремина 6
7 MicroSD slot 7
8 zvučnik 8
9 СИМ слот 9

PL

User's manual Impera i10G

Foreword

Thank you for purchasing our product.

These operational guidelines for the user, to ensure you a quick and convenient use, read the instructions carefully.

This device is a specialized top quality portable table product with a series of remarkable functions. There will be no separate notice in the case of any change in content of this text.

This company will continue to provide new functions for the development of the product, and there will be no separate notice in the case of any change in the product's performance and functions. While this unit is used as a mobile storage device, this company will not be held liable for the security of files saved in the disk.

If the actual setup and the application methods are not identical to those as set forth in this manual, please access the latest product information of this company's website.

Points for Attention

• Do not use the tablet in exceptionally cold or hot, dusty, damp or dry environments.
• Do not allow the tablet to fall down while using it.
• Please charge your battery when:
  ■ Battery symbol shows an empty icon;
  ■ The system automatically shuts down and the power is soon off when you switch on the unit once again;
  ■ There is no response if you operate on any key
• Please do not disconnect power when the tablet is being formatted or in the process of uploading or downloading. Otherwise it may lead to the error in the program.
• When this unit is used as a moving disk, the user shall store or export files in the proper file management operation method. Any improper operation method may lead to the loss of files, for which this Company will be held no liable.
• Please do not disassemble this unit by yourself. If you encounter any malfunction, please contact the dealer.
  ● There will be no separate notice in the case of any change in the functions and performance of this product.

To avoid the problems that might occur with the service shops approved by Visual Fan Ltd. (because Visual Fan reserves the right to stop the collaboration with any service shop which was previously approved and mentioned in the warranty card on the date on which the product batch was sold on the market), before taking a product to the service shop, please check the updated list of approved service shops on Allview website at the section: “Support&Service – Approved service”.

We do not assume the responsibility in case the product is used other way than stated in the user guide. Our company reserves the right to bring modifications in the content of the user guide without making this fact public.

All the modifications will be listed on the company website (www.allviewmobile.com) in the section dedicated to the specific product which is subject to modifications. The content of this guide may vary from the one existing in electronic format within the product. In such case the latter one will be taken into consideration.

Buttons description and application

Note: The keyboard is optional (not included) and will be used according to product configuration.

Top-down view of a beige tablet keyboard with labeled buttons (①, ②, ③), no visible text or symbols on the main body.

1、Fixed tablet: easy alignment and fixed tablet.

2、 Keyboard form: provide a QWERTY keyboard set of buttons and provide excellent typing comfort.

3、Base: folding base of tablets.

The use of tablet with the keyboard

White foldable tablet with black keyboard and open case (no visible text or symbols)

Desktop

1、The desktop is introduced: In Windows 8.1 start screen you can see many applications in fixed positions as in the picture that will display in form of "magnet", with easy access of one click.

Before using applications in full need to login to your Microsoft account first

2、Picture slide application

Slide to the right

Slide from the left side to the rightside of the screen in order to openthe running application screen.

Slide to the left

Hand interacting with a touchscreen device displaying colorful app icons (no text or symbols visible)

Slide from the right side to the left side of the screen to open the menu bar.

Zoom Out

Illustration of a hand interacting with a tablet displaying colorful app icons (no text or symbols)

Two fingers together on the touch screen to shrink.

Slide down sliding

Illustration of a hand pointing upward at a colorful digital interface (no text or symbols visible)

In the start screen, slide down from the top to display customization options.

Zoom In

Separate two fingers on the touch screen to zoom in.

Fingers sliding

Illustration of a hand interacting with a colorful digital interface displaying a grid of app icons (no text or symbols visible)

Slide from the center of the screen to the left or to the right to mode around the screens.

Slide down sliding

At the start of the screen, from underneath the screen sliding upwards to show the application or screen options

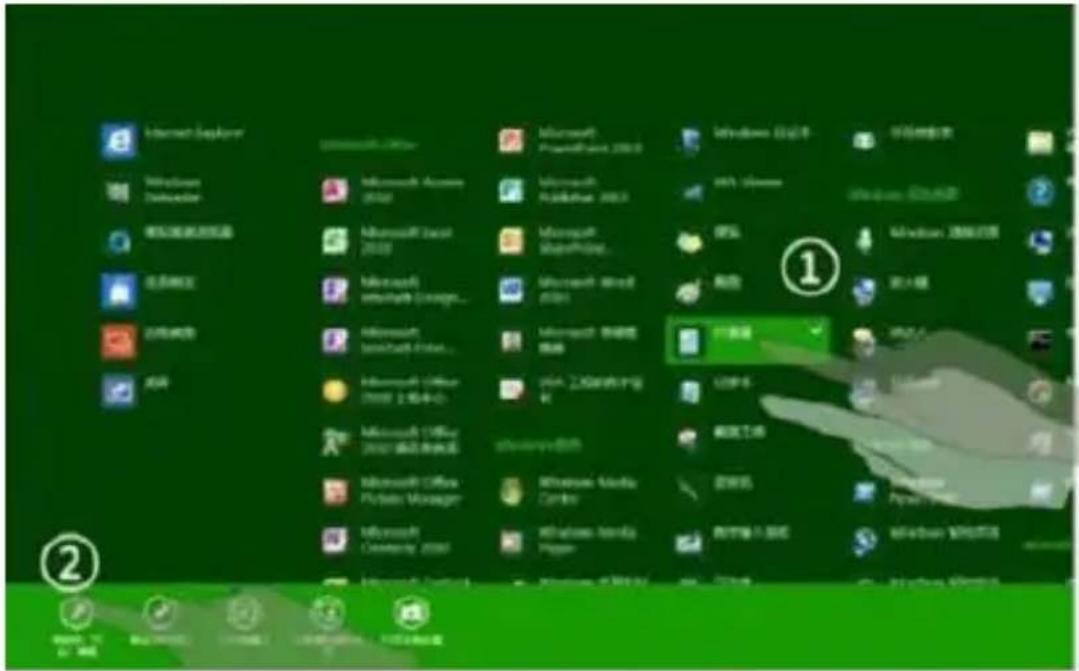

App interface introduce

In start screen you can also expand to see all applications available if slide upwards.

If you want to fix more applications in start screen, please light touch as in (1) and hold the application magnet for about 1 second, let go, select (2) and now application is fixed to the start screen.

In start screen if you want to remove, or delete an application, (1) light touch and hold the application magnet for about 1 second, and then let go run, select (2)

attribute column, remove fixed, delete, etc. The application can be completed.

Charm menu bar

Slide from the right side of the screen to the left, to unlock Charm menu bar including: start, equipment, share, search program.

Allows you to search for files or applications in tablet.

Allows you to share through social networks or email program.

Can return to the start screen; From the start screen you can also use this function to return to recently opened applications.

Allows you to connect to the tablet devices to read and write and share files, an rnal screen or printer.

Allows you to enter tablet PC Settings.

Search menu

Share menu

Equipment menu

Settings menu

Double screen app

1、As in (figure 1) in the left picture, from the left side of the screen if stall in sliding you can open double interface.

2、As in (Figure 2), press and hold the middle button dividing line and split, drag, and dual display scale can be divided.

Desktop computer interface with landscape background and weather icons, no readable text or symbols on the scene itself.

(Figure 1)

(Figure 2)

Basic operation

1、Standby, restart, turning off

2、Safety management

User and password

Fast method Settings:

Click on the "Charm" set the "set" button, select "more PC Settings". Choose "user" on the left of the Settings, and click the "your account" on the right side of "create the local account". After input complete Windows live ID account password, enter the user name, password and confirm password.

DECLARATION OF CONFORMITY

№1311 - 04.08.2014

We, SC VISUAL FAN SRL, importer located in Brasov, 61 Brazilor STR., 500313, registered at the Commerce Chamber Brasov no. J08/818/2002, CUI 14724950, assures, guarantee and declare on our own responsibility, in accordance with art.4 from HG nr. 1.022/2002 regarding the statute of the products and services that can jeopardize life, health, work security and environmental protection, that:

The product Impera i10G tablet PC, ALLVIEW brand and the accessories that came with the product: 220V charger, headphones and battery don't jeopardize life, health, work security and environmental protection and they are according to:

• The Stipulations of HG nr.982/2007 witch transpose the essential requirements specified in Direction 2004/108/CE, regarding electromagnetically compatibility;
• The Direction regarding the low voltage equipment users assurance 73/32/CEE, modified by Direction 93/68/CEE (HG 457/2003) and tests EN

55013:2001+A1:2003+A2:2006, EN 55020:2007, EN 610000-3-2:2006, EN 61000-3-3:1995+A1:2001+A2:2005;

• The Direction regarding the radio and telecommunication equipments R&TTE 1999/5/CE (HG 88/303).
• The safety requirements of the European Directive 2001/95/EC and of EN standards 60065:2002/A12:2011 and EN 60950-1:2006/A12:2011, EN62209-1(2006), EN62311(2008) of the decibels level emitted by the sold devices.

The Product described upstairs in this Declaration and all the accessories are according to the next standards:

• Health EN 50360, EN 50361;
• Safety EN 6095-1;
• EMC EN 301 489-1-7/17;
• Radio spectrum EN 301511 EN 300328;

After the performed tests emerge that the samples comply with the upstairs specification, as the test results show. Documentation is stored on VISUAL FAN LTD - Brasov, 61 Brazilor STR.

Also available on web: http://allviewmobile.com

CE 0678 Director

SAR: 1,06 W/kg Cotuna Gheorghe

Manual de utilizare

Impera i10G

Cuvânt înainte

Top-down view of a beige electronic keyboard with labeled parts (no text or symbols on the main body)

White portable tablet with black keyboard and open case (no visible text or symbols)

Desktop

Hand interacting with a touchscreen displaying app icons (no text or symbols visible)

Illustration of a hand interacting with a tablet displaying colorful app icons (no text or symbols)

Illustration of a hand pointing upward on a digital interface with colorful app icons (no text or symbols)

Illustration of a hand interacting with a colorful digital interface displaying a grid of app icons (no text or symbols visible)

Distribuire meniu

Meniu de setări

Computer desktop with landscape background, calendar, and hand icon overlay (no readable text or symbols)

(Figura 1)

(Figura 2)

Operatiuni de bază

1、Hibernare, repornire, oprire

22 Ro

Top-down view of a beige electronic keyboard with labeled parts (①, ②, ③), no visible text or symbols on the main body.

White foldable tablet with black screen and keyboard, resting on a stand (no visible text or symbols)

Radna površina

1、Prezentacija radne površine: U početnom ekranu Windows 8.1 možete vidjeti mnoge aplikacije u fiksiranim pozicijama kao na slici koje će se pojaviti u formi magneta, kojima se može lako pristupiti jednim klikom. Prije upotrebe aplikacija u potpunsti potrebno je da se ulogujete na vaš Microsoft korisnički nalog.

Hand interacting with a touchscreen device displaying colorful app icons (no text or symbols visible)

Illustration of a hand interacting with a tablet displaying colorful app icons (no text or symbols)

Iskoristite dva prsta na ekranu kao na slici da umanjite isti.

Prevlačenje na dole

Illustration of a hand pointing upward at a colorful digital interface (no text or symbols visible)

Na početnom ekranu, prevucite prema dole za prikaz opcija za prilagođavanje.

Prevlačenje na gore

Na početnom ekranu, prevucite sa dna ekrana prema gore za prikaz aplikacije ili opcija vezanih za ekran.

Uvećajte

Iskoristite dva prsta na ekranu kao na slici da uvećate isti.

Prevlačenje prstima

Illustration of a hand interacting with a colorful digital interface displaying a grid of app icons (no text or symbols visible)

Ukoliko želite da postavite više aplikacija na početni ekran, potrebno je da lakim dodirom kao na slici (1) pritisnete i držite magnet aplikacije jednu sekundu, pustite,

izaberete opciju prikazanu na slici (2) i nakon toga magnet aplikacije će biti fiksiran na početnom ekranu.

Ukoliko želite da odstranite ili obrišete aplikaciju sa početnog ekrana, laganim dodirom na (1) na slici izaberite aplikaciju, držite jednu sekundu te odaberite

nakon puštanja jednu od opcija kao što su odstraniti, izbrisati, itd. na liniji (2) na slici.

Aplikacija može biti kopmletirana.

„Charm“ meni

Prevucite sa desne strane početnog ekrana prema lijevoj za pristupanje „Charm“ meniju koji sadrži programe Start, oprema, podjeli, i pretraži.

Omogućuje vam pretragu za podacima i aplikacijama u uređaju.

Meni opreme

Meni postavki

Dvostruki displej

1、Kao što je prikazano na slici 1, sa lijeve strane ekrana ako sporije prevlačite prstom možete otvoriti dvostruki interfejs.

Desktop computer with open screen showing calendar, globe, and landscape photo (no readable text or symbols)

(Slika 1)

(Slika 2)

Osnovne operacije

2、Upravljanje bezbjednosnim postavkama

Korisničko ime i lozinka

Brza podešavanja:

Kliknite na „Charm“ dugme, postavite „set“ (postavi) dugme, izaberite „više PC podešavanja“. Izaberite „korisnik“ na lijevoj strani opcija, i kliknite „vaš nalog“ na dsnoj strani od „kreiraj lokalni nalog“. Nakon toga, unesite Windows live ID lozinku, unesite korisničko ime i lozinku, koju treba dva puta unijeti radi potvrđivanja iste.

Top-down view of a beige tablet keyboard with visible keys and labeled buttons (no text or symbols on the main body)

White foldable tablet with black keyboard and open case (no visible text or symbols)

Przesuń w lewo

Hand interacting with a touchscreen device displaying app icons (no text or symbols visible)

Illustration of a hand interacting with a tablet displaying colorful app icons (no text or symbols)

Iskoristite dva prsta na ekranu kao na slici da umanjite isti.

Prevlačenje na dole

Illustration of a hand pointing upward at a colorful digital interface (no text or symbols visible)

Na početnom ekranu, prevucite prema dole za prikaz opcija za prilagođavanje.

Prevlačenje na gore

Na početnom ekranu, prevucite sa dna ekrana prema gore za prikaz aplikacije ili opcija vezanih za ekran.

Uvećajte

Iskoristite dva prsta na ekranu kao na slici da uvećate isti.

Prevlačenje prstima

Illustration of a hand interacting with a colorful digital interface displaying a grid of app icons (no text or symbols visible)

Menu ustawień

Computer desktop with a landscape photo showing a bare tree, grassy field, and sky (no readable text or symbols)

(Rys. 1)

(Rys. 2)

2、 Bezpieczeństwo
