DS27510 - Television SANYO - Free user manual and instructions

Brand	Sanyo
Model	DS27510
Product Type	Television
Screen Size	27 inches (diagonal)
Display Technology	CRT
Dimensions (W x H x D)	25.6 x 21.3 x 20.5 inches (650 x 541 x 521 mm)
Weight	72.5 lbs (32.9 kg)
Power Supply	AC 120V, 60 Hz
Power Consumption	150 W (max)
Remote Control	Included (model RC-DS27)
Inputs	RF coaxial, Composite (RCA), S-Video
Outputs	Audio L/R, Headphone jack
Built-in Tuner	Analog NTSC
Channel Coverage	VHF 2-13, UHF 14-69
Audio Output	5W + 5W stereo
Closed Captioning	Yes
Sleep Timer	Yes (up to 120 minutes)
Parental Lock	V-Chip
Picture Adjustment	Brightness, Contrast, Color, Tint, Sharpness
Cleaning Instructions	Wipe with a dry, soft cloth. Do not use liquid cleaners.
Safety Warning	Do not block ventilation openings. Avoid placing near heat sources.
Spare Parts Availability	Contact authorized Sanyo service centers.

Frequently Asked Questions - DS27510 SANYO

How do I connect my antenna to the DS27510?

Connect the coaxial cable from your antenna to the RF IN port on the back of the TV. Then run a channel scan to detect available stations.

The TV has no power. What should I check?

Ensure the power cord is firmly plugged into a working outlet. Check the power switch on the TV. If still no power, the internal fuse may be blown – contact a qualified technician.

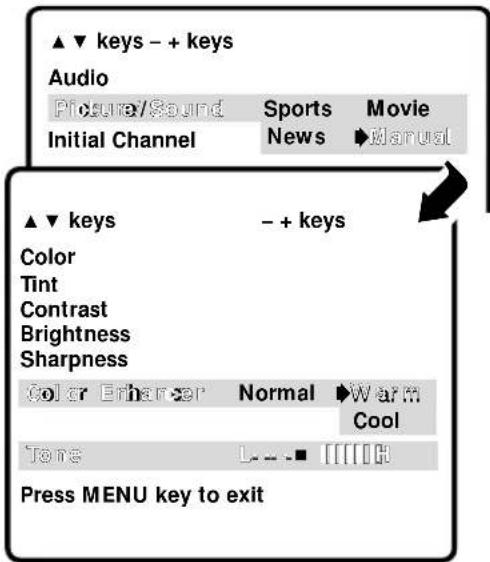

How do I adjust the picture settings?

Press the MENU button on the remote or TV, navigate to Picture settings, and adjust Brightness, Contrast, Color, Tint, and Sharpness using the arrow keys.

The remote control doesn't work. What can I do?

Replace the batteries with fresh ones. Point the remote directly at the sensor. Check for obstructions. If still not working, try resetting by removing batteries and pressing any button for 10 seconds.

How do I set the parental lock (V-Chip)?

Press MENU, go to Parental Lock or V-Chip, enter a 4-digit password (default 0000), and adjust rating limits according to your preferences.

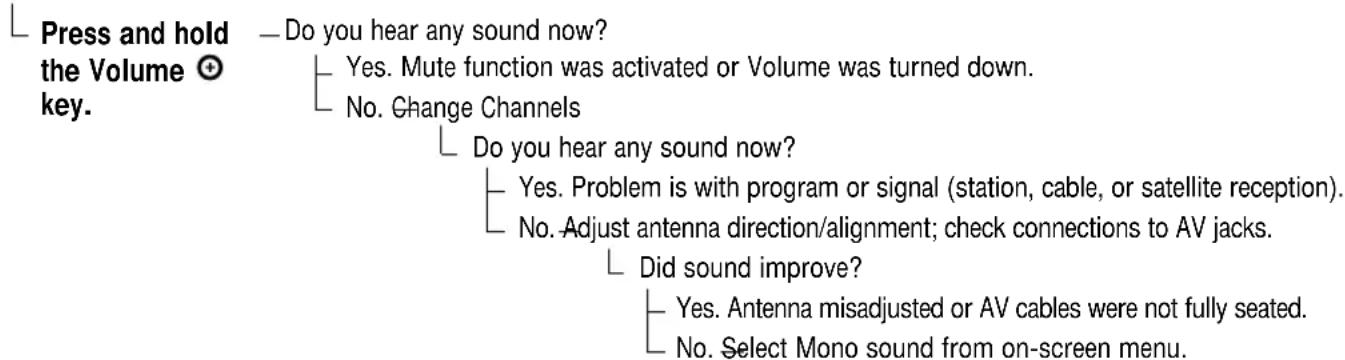

Why is there no sound from the TV?

Check the volume level and mute setting. Ensure external speakers or headphones are not connected. If using external audio, verify the connection. Try a different source. If no sound persists, the internal speakers may need service.

How do I clean the TV screen?

Turn off the TV and let it cool. Wipe the screen gently with a dry, soft cloth to avoid scratches. For stubborn smudges, slightly dampen the cloth with water, but never spray liquid directly on the screen.

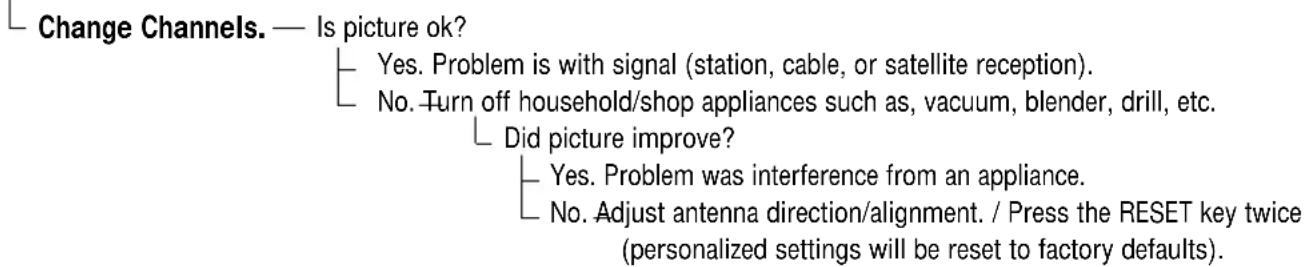

The picture is distorted or has lines. What's wrong?

This may be due to interference from nearby electronic devices. Move such devices away. Also check the antenna connection. If using cable, ensure the signal is strong. A degaussing cycle can sometimes fix color anomalies – turn the TV off for 30 minutes.

Can I record shows from this TV?

Yes, you can connect a VCR or DVD recorder to the Audio/Video Output jacks on the back. Select the channel you want to record on the TV, and start recording on the external device.

Where can I find replacement parts or service?

For genuine replacement parts and authorized service, visit the Sanyo support website or contact an official Sanyo service center. Do not attempt internal repairs yourself.

USER MANUAL DS27510 SANYO

Welcome to the World of Sanyo

Thank you for purchasing a Sanyo Color Television. You made an excellent choice for Performance, Reliability, and Value. The TV is designed with easy on-screen set-up instructions and operating features. To meet the growing needs of our customers, this television has a "V-Chip" for parental controlled viewing. "Read this manual before assembling (or using) this product." Need assistance? visit our web site at www.sanyoctv.com or call toll free 1-800-877-5032.

CONTENTS

Important Safety Tips 2

Features 3

Specifications 3

Basic Setup 3

Basic Hookup Methods 4

Front Panel 5

Rear Panel 5

Multimedia Remote Control 5\~8

TV Adjustment and Setup 9 \~ 10

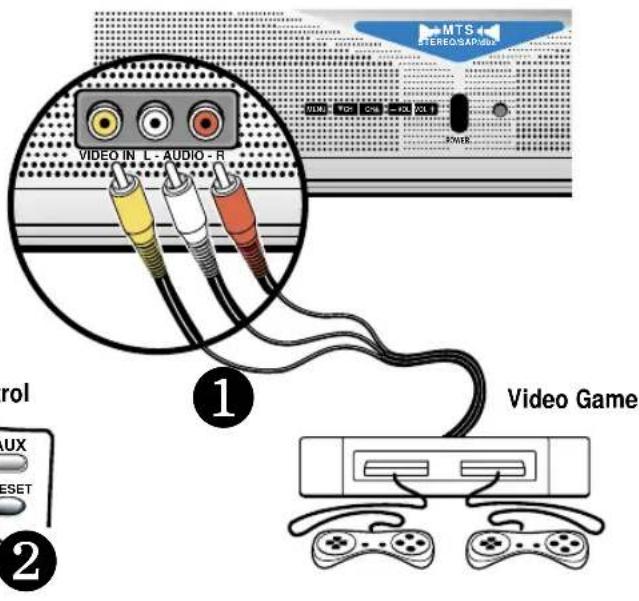

Using Front Audio/Video Input Jacks ....10

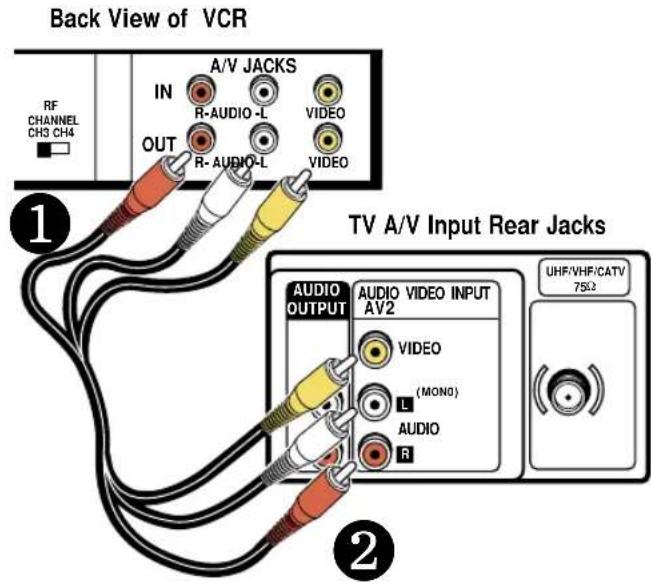

Using Rear Audio/Video Input Jacks ....11

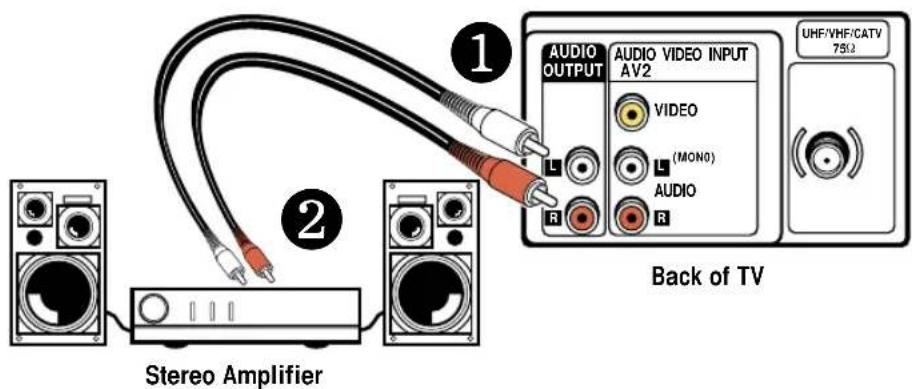

Using Audio Output Jacks ..... 11

V-Guide Information 12

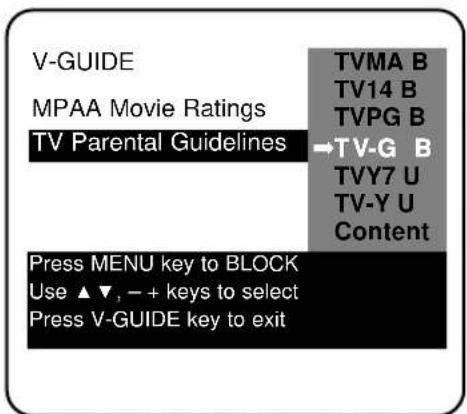

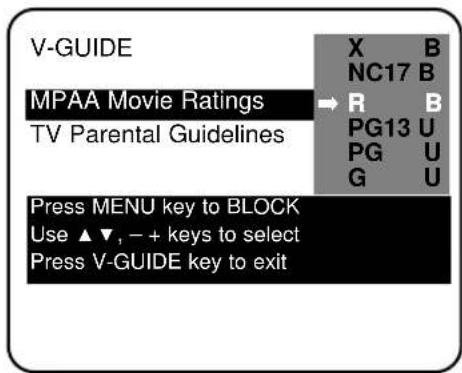

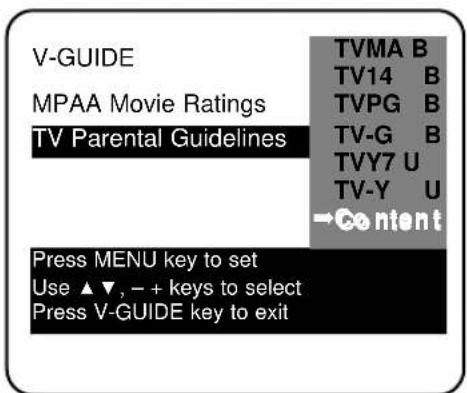

V-Guide Operation (Parental Control) .. 12 \~ 13

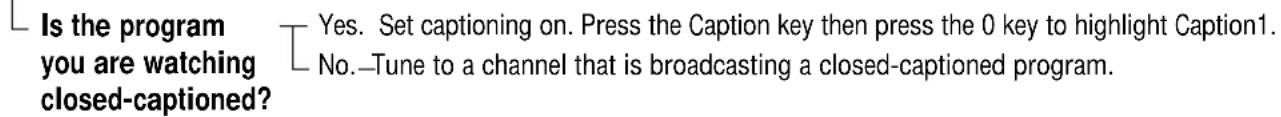

Closed-Captioning .....14

Setting the Sleep Timer 15

Resetting the TV 15

Care and Cleaning 15

Troubleshooting 16 \~ 18

Warranty (Mexico) 19

Warranty (U.S.A. and Canada) .....20

Child Safety Matters .... Back cover

FRANÇAIS 21 \~ 38

Black-and-white photo of a person on a surfboard on a TV, with no visible text or symbols on the device or background.

TV screen image / Image de télévision / Imagen de la Pantalla del Televisor © 2001 PhotoDisc, Inc.

"As an ENERGY STAR® Partner, Sanyo Manufacturing Corporation has determined that this product meets the ENERGY STAR® guidelines for energy efficiency."

Importado Por :

Col. Santa Cruz Acayucan

THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THIS UNIT.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

IMPORTANT SAFETY INSTRUCTIONS

CAUTION: PLEASE ADHERE TO ALL WARNINGS ON THE PRODUCT AND IN THE OPERATING INSTRUCTIONS. BEFORE OPERATING THE PRODUCT, PLEASE READ ALL OF THE SAFETY AND OPERATING INSTRUCTIONS. RETAIN THIS LITERATURE FOR REFERENCE. Follow all instructions...

Positioning the appliance

1. Do not place your appliance on an unstable cart, stand, shelf or table. Serious injury to an individual, and damage to the appliance, may result if it should fall. Your salesperson can recommend approved carts and stands or shelf and wall mounting instructions. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

2. Slots and openings in the cabinet and in the back or bottom are provided for ventilation. To ensure reliable operation of the appliance and to protect it from overheating, these openings must not be blocked or covered. The openings should never be covered with a cloth or other material, and the bottom openings should not be blocked by placing the unit on a bed, sofa, rug, or other similar surface. This appliance should never be placed near or over a radiator or heat register. This appliance should not be placed in a built-in installation such as a bookcase unless proper ventilation is provided.

3. Do not expose the appliance to rain or use near water . . . for example, near a bathtub, swimming pool, kitchen sink, in a wet basement, etc.

Hooking Up Outdoor Antenna

LIGHTNING PROTECTION FOR YOUR ANTENNA AND SET AS PER NATIONAL ELECTRICAL CODE INSTRUCTIONS.

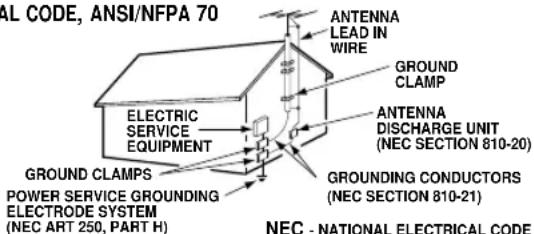

EXAMPLE OF ANTENNA GROUNDING ACCORDING TO NATIONAL ELECTRICAL CODE, ANSI/NFPA 70 ANTENNA

"Note to CATV system installer:
This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical."

1. If an outside antenna is connected to the receiver, be sure the antenna system is grounded so as to provide some protection against voltage surges and built up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

Plug in the power cord

1. This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. This product is equipped with a polarized alternating current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of this polarized plug. Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.
2. Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

Cleaning

1. Before cleaning, unplug the unit from the wall outlet. Do not apply liquid cleaners or aerosol cleaners directly to the unit. Use a damp cloth for cleaning.

Service & Repair

1. Unplug the appliance from the wall outlet and refer servicing to qualified service personnel under the following conditions:

A. If the power cord or plug is damaged or frayed.

B. If liquid has been spilled into the appliance.

C. If the appliance has been exposed to rain or water.

D. If the appliance has been dropped or the cabinet has been damaged.

E. If the appliance exhibits a distinct change in performance.

F. If the appliance does not operate normally by following the operating instructions, adjust only those controls that are covered in the operating instructions. Improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the appliance to normal operation.

1. Upon completion of any service or repair, request the service technician's assurance that only Factory Authorized Replacement Parts that have the same characteristics as the original parts were used, and that routine safety checks have been performed to determine that the appliance is in safe operating condition. Unauthorized substitutions may result in fire, electrical shock, or other hazards.

2. Never add accessories that have not been specifically designed for use with this appliance as they may cause hazards.

3. For added protection during a lightning storm, or when the set is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage to the set due to lightning or power line surges.

4. Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

FEATURES

• Trilingual On-Screen Menu
  ◆ Automatic Channel Search
• Auto Shut Off
  ◆ Closed-Captioning/Quikcap
  ◆ Digital picture controls with on-screen display
  MTS stereo/dbx®/SAP Decoder
  ◆ Auto Flesh Tone
• Color Enhancer
  ◆ Factory preset adjustments for picture/sound
  ♦ Tone
  ◆ V-Guide (Parental Control)
  ◆ Front (AV1) and Rear (AV2) Audio/Video Input Jacks
  ◆ Audio Output Jacks (Fixed)
  ◆ Sleep Timer (3 hours)
  TV Reset

181 Channel Tuning System

VHF Channels 2-13

UHF Channels 14-69

Cable TV (CATV) 1, 14-125

Automatic Fine Tuning

VHF and Cable Channels

Multimedia/Universal

Remote Control

VCR/TV/AUX

Large Glow-in-the-Dark

basic operating keys

Numbered Channel Selection

Channel Scanning

Volume Mute

Power Recall

Display Sleep

Caption Reset

Menu VCR keys

Input V-Guide

dbx® is a registered trademark of Carillon Electronics Corporation

SPECIFICATIONS

PICTURE TUBE SIZE

(Measured Diagonally) ..... 27-Inch screen

PICTURE RESOLUTION ..... 260 Lines

Video Input ..... 400 Lines

ANTENNA INPUT UHF/VHF/CATV 75Ω

POWER REQUIREMENT ..... 120VAC 60Hz

POWER 86 watts

HORIZONTAL DIM. (Width) ..... 26.1 in. (664mm)

VERTICAL DIM. (Height) ..... 23.2 in. (589mm)

DEPTH DIM. (Thickness) ..... 20.5 in. (522mm)

WEIGHT (Approx.) 66.7 lbs. (30.3 Kg.)

SOUND (2 Speakers) ..... Size: 8 cm

AMPLIFIER Built-in with 1W/ch

AUDIO/VIDEO INPUT JACKS ..... Video Input

(Front/Rear) Audio Input (R/L)

AUDIO OUTPUT JACKS .... Fixed Audio Output (R/L) (RCA Connectors)

CAUTION: FCC Regulations state that improper modifications or unauthorized changes to this unit may void the user's authority to operate the unit.

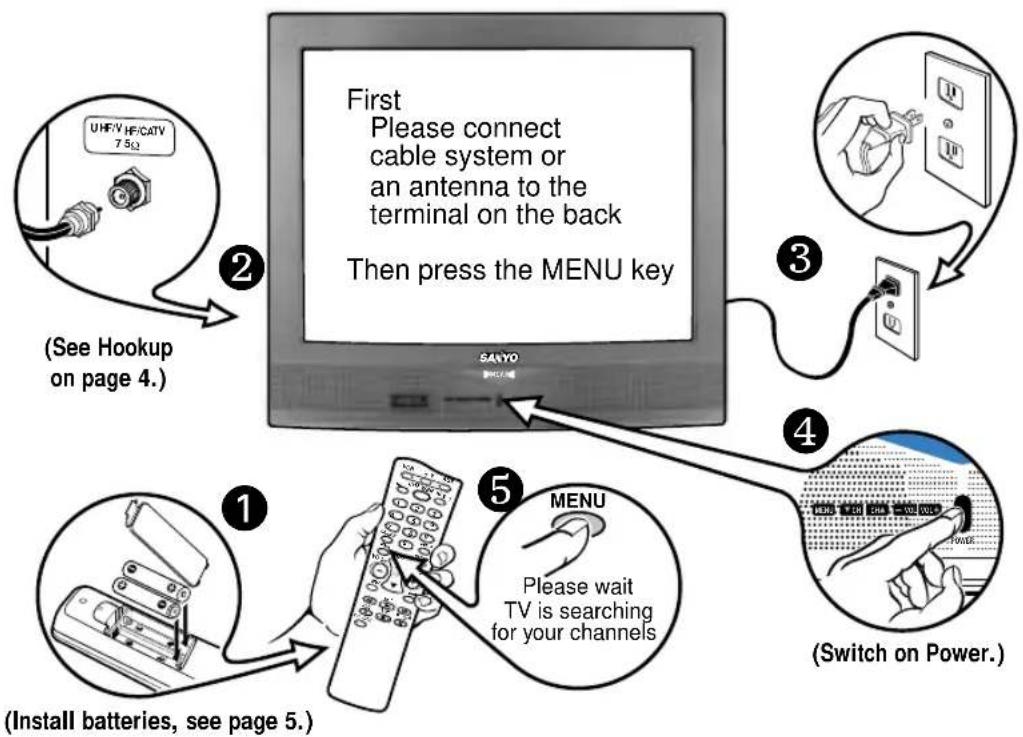

BASIC SETUP

Quick Tips

• Do not position the TV in a confined area. Allow normal air circulation for electronic parts.
• Position your TV at least 2 feet from stereo speakers. The magnets in the speakers may affect the picture quality.
• The TV will automatically select the correct Antenna mode for the type of signal you connect.

Need help?

visit our website at

www.sanyoctv.com

or

Call 1-800-877-5032

Quick Tips

• The TV will automatically select the correct Antenna mode for the type of signal you connect.
  ■ TV will switch off automatically after 15 minutes if there is no signal reception (cable out or station not broadcasting).

Exception—When the Video mode is selected, the TV will not automatically switch off when signal reception has stopped for 15 minutes.

Need help?

visit our website at

www.sanyoctv.co

m

or

CATV FRANCHISE NOTE: Cable companies, like public utilities, are franchised by local government authorities. To receive cable programs, even with equipment which is capable of receiving cable channels, the consumer must subscribe to the cable company's service.

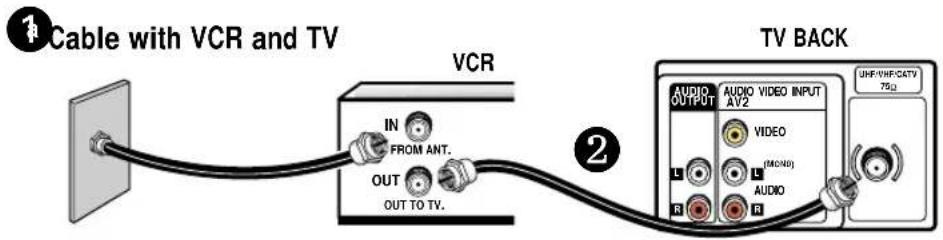

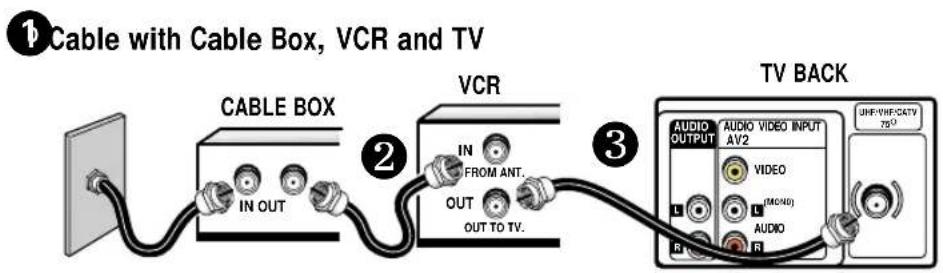

BASIC HOOKUP METHODS

Use one of these methods to connect a signal to your TV. Select 1a—if you have cable service and a VCR, 1b—if you have a cable box and a VCR, 1c—if you have an outdoor or indoor antenna and a VCR, or 1d—if you have a satellite dish and a VCR. Connect your cable or antenna directly to the TV if you don't have any optional accessories.


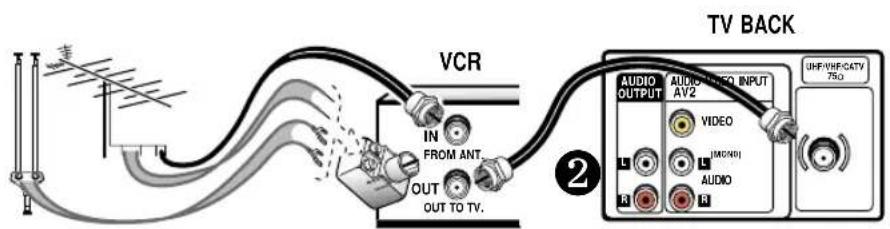

Outdoor or Indoor Antenna with VCR and TV

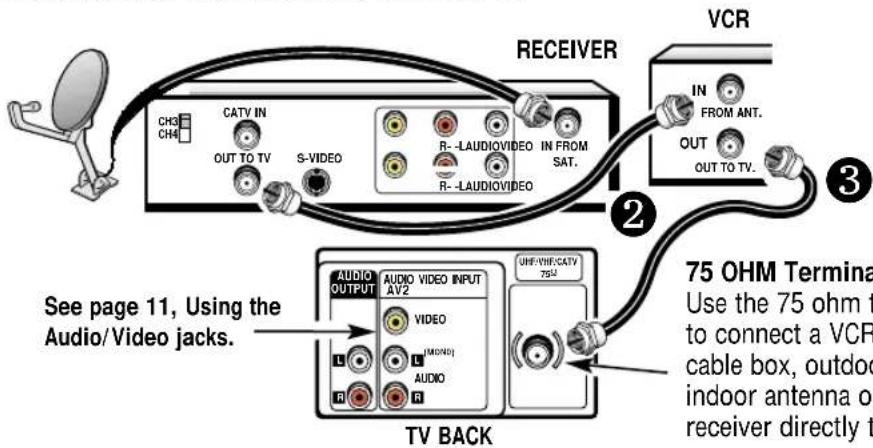

Satellite Dish with Receiver, VCR and TV

75 OHM Terminal

Use the 75 ohm terminal to connect a VCR, cable, cable box, outdoor/ indoor antenna or satellite receiver directly to the TV.

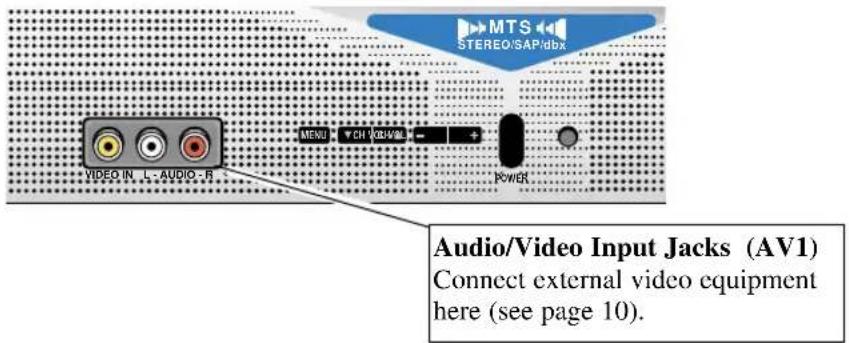

FRONT PANEL

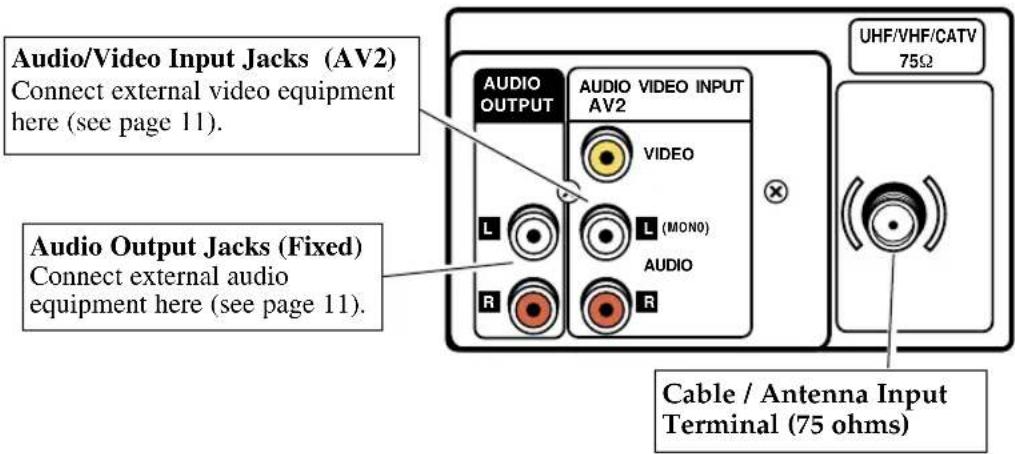

REAR PANEL

MULTIMEDIA REMOTE CONTROL

Operates your TV, VCR, DVD, and Cable converter box. To familiarize yourself with this remote control, see page 6. To program the remote control, see pages 7 \~ 8.

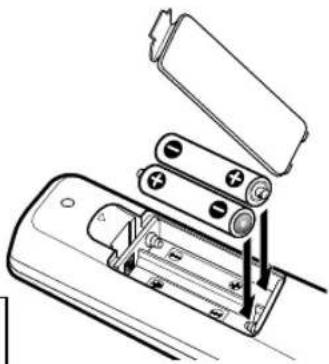

INSTALLING BATTERIES (2 AA not included)

1. Remove the battery cover by pressing the tab and tilting the cover upward. Insert batteries. Make sure you match + on the batteries with marks inside the remote control.
2. Replace battery cover. The remote control is ready!

Notes:

• Do not mix old batteries with new ones or mix different types of batteries together.
• Remove the batteries if the remote control will not be used for a month or more. Weak batteries may leak and cause damage.

IMPORTANT NOTE: Spent or discharged batteries must be recycled or disposed of properly in compliance with all applicable laws. For detailed information, contact your local County Solid Waste Authority.

Diagram of a battery pack with open casing and internal components (no text or symbols)

Quick Tips

■ Make sure all cable connectors are fully seated on jacks. See pages 10\~11 before connecting external video equipment.
■ Cables are not supplied for connecting your external equipment.

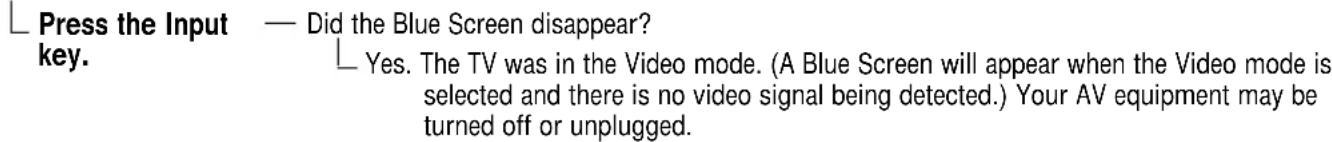

- A solid Blue screen with the word Video displayed means that the Video mode is selected, but no signal is being detected at the Video jack. Check connection, and turn on external equipment.
- Be sure batteries are installed correctly.
- Point the remote control toward the equipment you want to operate. Objects between the remote control and the equipment may cause misoperation of the remote control function.

Need help?

visit our website at

www.sanyoctv.co

m

or

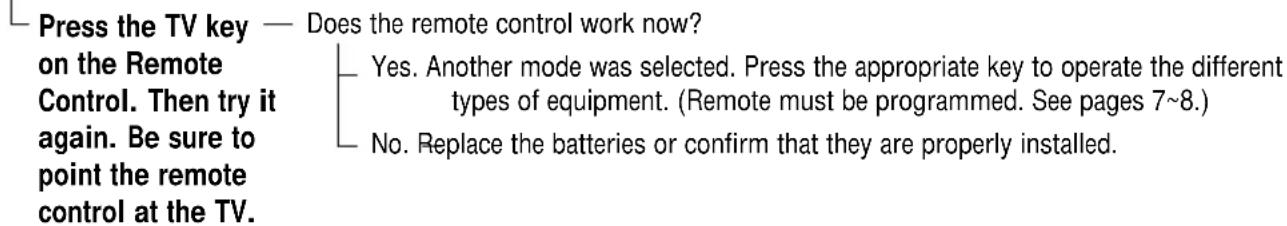

Quick Tips

■ Make sure batteries have been installed correctly.
- If the remote control does not work: Press TV key (see item 1).
- The remote control must be programmed before it will operate your VCR, DVD, or Cable Box. See pages 7\~8.
- Cannot select channel with number keys. Press "0" in front of numbers 1 \~ 9. Example: Channel 05.
- The "C" in front of the channel number indicates a Cable channel.
- Adjusting the volume level: Right flashing arrow indicates volume is increasing and left flashing arrow indicates volume is decreasing.
- Channel number will not display continuously when captioning is on.

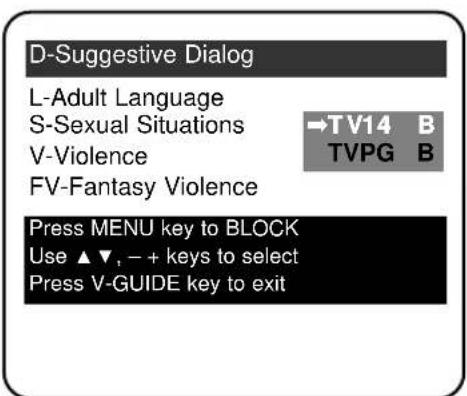

- Using V-Guide TV Parental Guidelines settings can be changed only by using the Remote Control. See pages 12 \~ 13.

Need help?

visit our website at

www.sanyoctv.com

or

Call 1-800-877-5032

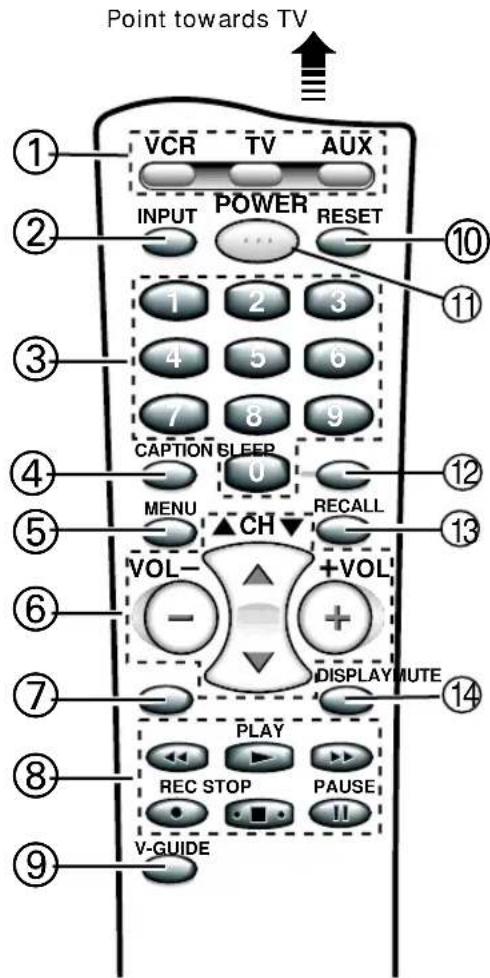

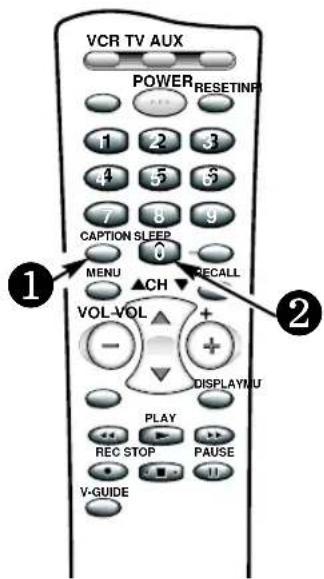

MULTIMEDIA REMOTE CONTROL KEYS

①Mode Keys

Use these keys to program the remote control and to select the operating mode (VCR, TV, or AUX).

②Input Key

Press to select the program source to be displayed on the screen: TV signal or signal from the equipment you have connected to the A/V jacks.

③Number Keys

Two keys must be pressed to select a channel. Example: Press 0 then 6 to select channel 6. For cable channels 100 through 125, press and hold the 1 key until C1—appears. Then press the other two numbers.

④Caption Key (See page 14.)

⑤Menu Key

Use this key with the AND

features of the on-screen menu system (see pages 9 \~ 11).

⑥Channel (CH) Scanning (A) and Volume (A) Keys

Press to scan through the channels in memory and to adjust the volume.

⑦Mute Key

Press once to minimize the volume. Press again to restore.

Note: When using the audio out jacks this key will not mute the sound.

⑧VCR Keys

These keys control the VCR's Fast Forward ( ) Rewind ( ),

Play ( ) Record ( ),

Stop (●) and Pause ( ) functions.

⑨V-Guide Key (See pages 12 \~13.)

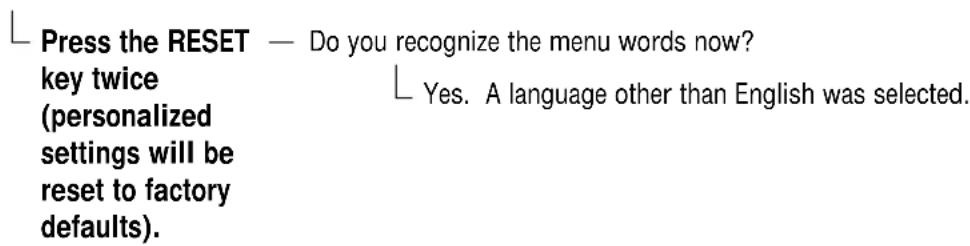

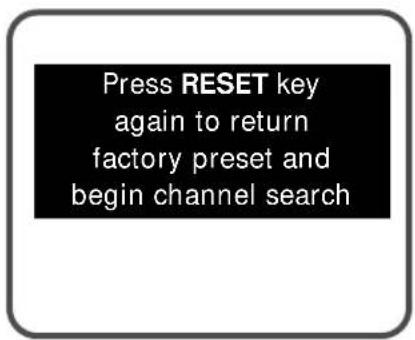

⑩Reset Key

Press this key twice to restore factory settings. The TV will automatically start Channel Search and clear all customized settings. (See page 15.)

⑪Power Key

Press to turn TV on or off.

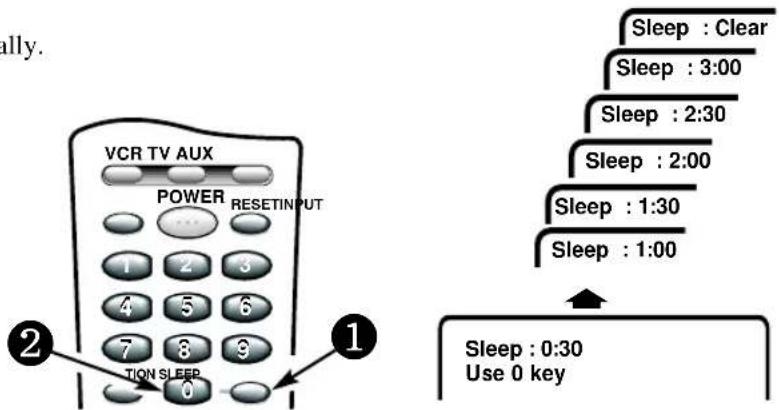

⑫Sleep Key

Use this key with the "0" key to set the Sleep Timer (see page 15).

⑬Recall Key

Select a channel then select another channel using the number keys. Press Recall to switch between the channels.

⑭Display Key

Press once to display the channel number. Press twice to display the channel number continuously. Press again to remove the display.

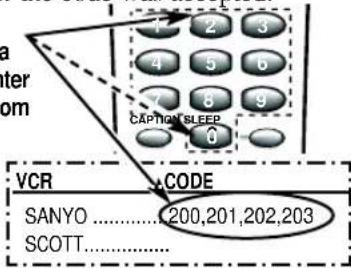

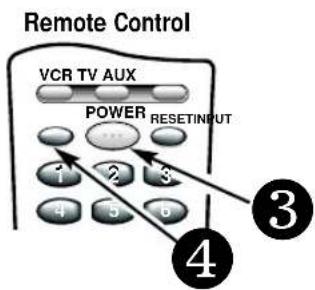

PROGRAMMING THE MULTIMEDIA REMOTE CONTROL

Find your code. It is next to the brand name of your equipment in the chart below and on page 8. (The illustrated example is for a Sanyo VCR.)

① Press and hold VCR or AUX key.

Press button and hold down.

② Using the NUMBER keys on the remote, enter the three-digit code number for your VCR, DVD, or Cable Box. The key will flash 5 times when released if the code was accepted.

Enter Code: Example: For a Sanyo VCR, Enter code "200" (from chart below).

3 Press the POWER and CHANNEL keys to check programming. If they operate properly, programming is completed. If not, use another code, if available and repeat steps.

Notes:

• There may be VCRs, DVDs, and cable boxes that this remote control cannot operate.
• Some manufacturers use different types of remote controls. If your brand has several codes listed, repeat steps ① and ② with each number until you find the correct code. Write your codes in the spaces on back of remote control and page 8 for quick reference.

To Operate Your...

VCR—Press the VCR key.

Cable Box—Press the AUX key.

DVD Player—Press the AUX key.

Television—Press the TV key.

Quick Tips

■ Make sure batteries have been installed correctly.

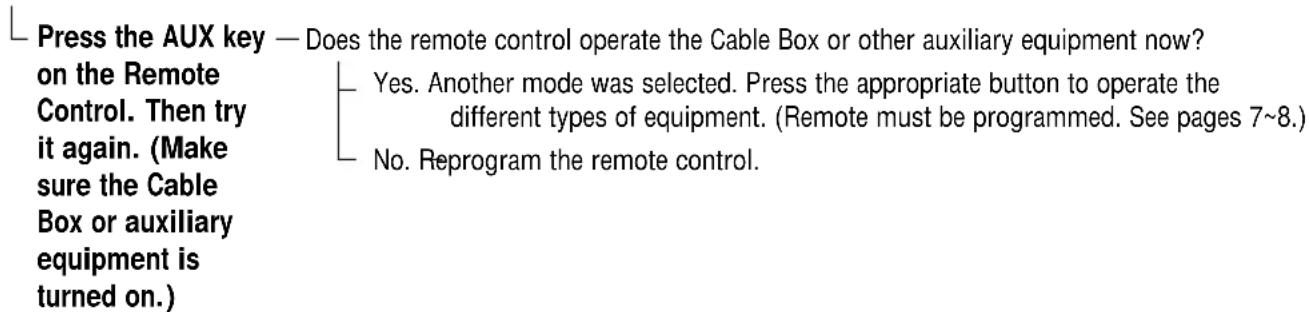

■ The remote control will not operate my VCR, DVD, or Cable Box.

- Press the VCR or AUX key.

- Reprogram the remote control.

• Special key functions: The INPUT key functions as the VCR's TV/VCR key when the Remote Control is in the VCR mode.
  ■ The AUX mode will accept codes for DVDs, Cable boxes, or a second VCR, but only one at a time.

Need help?

visit our website at

www.sanyoctv.com

or Call 1-800-877-5032

VCR Codes Chart

BRAND NAME	CODE NO.	BRAND NAME	CODE NO.	BRAND NAME	CODE NO.
ADMIRAL	234,239,243,247,224,229,222,215	HUGHES	221	QUARTZ	200
ADVENTURA	228	JBL	237	QUASAR	245,232,236,223,216
AIKO	240,205	JENSEN	209	RADIO SHACK	228,245,223
AIWA	228,217	JVC	220,225,238,226,203,209,221	RCA	221,241,246,230,232,236,239,224
AKAI	209,215	KEC	240,205		226,229,221,201,207,208,210,216
AMERICA ACTION	205	KENWOOD	226,238,220,201,203,209	REALISTIC	232,239,223,224,228,229,200,201
AMERICA HIGH	232	KODAK	232		202,203,206,208,216,217,245
BELL & HOWELL	203	LLOYD'S	228	SAMSUNG	208,233,211,217,222
BROKSONIC	234,243,247,227,204	LOGIK	235,219	SANKY	239,229,224
CANDLE	233,240,222,223,204,205,208	LXI	232,221,228,201,202,203,206	SANSUI	243,226,228,209,219,220
	211,216,217		211,217	SANYO	200,201,202,203
CANON	232,216	MAGNASONIC	223,240,205,219	SCOTT	234,247,223,227,211
CCE	240,205	MAGNAVOX	204,232,228,211,216,217,219,220	SEARS	232,223,228,221,200,201
CINERAL	240,205	MARTA	206		202,203,206,211,216,217
CITIZEN	233,240,222,205,211,216,217	MATSUSHITA	232,216	SEMP	211
CRAIG	223,202,219	MEI	232	SHARP	239,229,224
CRAVER	204	MEMOREX	232,239,243,245,223,224,228,	SHINTOM	219,227
CURTIS MATHES	232,236,238,222,228,208,209		229,221,200,202,203,206,215	SIGNATURE	217,239,229,224,200
	211,216,217	MINOLTA	221	SONY	214,218,232,237,226,228
DAEWOO	205,240,211	MITSUBISHI	231,239,244,224,226,229,210,223	STS	221
DAYTRON	240,205	MOTOROLA	232,239,229,224	SYLVANIA	228,232,244,204,216,217
DENON	221	MTC	228,217,219	SYMPHONIC	217,228,233,226,202
DYNATECH	228	MULTITECH	228,217	TATUNG	226,209
EMEREX	214	NEC	238,208,223,226,203,206,209	TEAC	228,209,214,217
EMERSON	234,236,240,243,247,223,227,228		215,217	TECHNICS	232
	203,204,205,206,210,211,217	OLYMPUS	232	TEKNIKA	232,223,228,216,217
FISHER	200,201,202,203,211	OPRIMUS	239,245,248,223,224,229,203,208	TOMAS	228,217
FUJI	232	ORION	243,227,234,205,206,210,211,240	TOSHIBA	211,240,244,202,205,210
FUNAI	228,233,217	PANASONIC	245,232,236,223,202,211,216,219	VECTOR	211
GARRARD	228	PENNY	230,232,221,223,208,211,216,219	VIDEO CONCEPT	211
GE	222,246,232,236,239,226	PENTAX	238,221	WARDS	230,232,239,223,224,228,229
	229,224,208,212,216	PHILCO	204,232,243,228,216,217		221,202,204,208,211,217
GOLDSTAR	223,238,226,206,208,215,217	PHILIPS	204,232,211,216,217,228	WHITE
GO VIDEO	248,249,208,212,219	PIONEER	242,204,207,220	WESTINGHOUSE	240,243,205
GRADIENTE	228	PROSCAN	222,241,246,230,236,226	XR-1000	228,232
HARLEY DAVIDSON	228	PROTON	219	YAMAHA	238,226
HEADQUARTER	200	PULSAR	233,240,205, 208,216,217	ZENITH	215,237,243,223,225,228,222
HITACHI	230,246,226,228,221,222,209,217	QUARTER	200

Cable Converter Box Codes Chart

BRAND NAME	CODE NO.	BRAND NAME	CODE NO.
ABC	304,306,309,312	PHILIPS	325,329,301
	313,314,318,321		313,314,322
	322,324	PIONEER	333,312,317
AIM	321	PROSCAN	327
ARCHER	334	QUASAR	302,307,317
BELL & HOWELL	313	RADIO SHACK	334
CONTEC	302,305,307,308	RCA	328,302,307
	311,318,320,324	REGAL	330,307,320
CPI	319	REMBRANT	305,309
DIAMOND	320	SAMSUNG	310,312
EAGLE	313	SCIENTIFIC
EMERSON	334	ATLANTA	327,307,324
GEMINI	334	SIGNAL	310
GENERAL		SIGNATURE	300,309,321,322
INSTRUMENTS	303,309,311,320	SPRICER	302,307,316
	321,322,323,300	STARCOM	332,309,311,321
GOLDSTAR	312		322,323
GOODMIND	334	STARGATE	309,310,311,321
HAMLIN	330,320		322,334
HITACHI	309	TELEVIEW	310
HYTEX	318	TOCOM	300,303,304,305
JERROLD	303,308,309,311		306,307
	313,319,320,321	TOSHIBA	331,309,311
	322,323,300		316,322
MAGNAVOX	325,329,301	UNIKA	314
	313,314,322	UNITED AIRTISTS	318
MEMOREX	332,313,314	UNITED CABLE	309
MOVIE TIME	306,310,314	U.S.
NORTHCOAST	316	ELECTRONICS	309,322,324
NSC	305,306,314	VIEWSTAR	326,313,315
OAK	305,318,320	WARDS	321,322
PANASONIC	302,307,317	WARNER	312
PARAGON	313,314	ZENITH	331,316,322,324

DVD PLAYER Codes Chart

BRAND NAME	CODE NO.	BRAND NAME	CODE NO.
APEX......523		PHILIPS......508,502
DENON......501,520		PIONEER......511,505,518
EMERSON......521		PROSCAN......504
FISHER......500		RCA......504
GE......504		SAMSUNG......512
HARMAN/KARDON......513		SANYO......500
JVC......510,515		SHARP......517
KENWOOD......507		SHERWOOD......519
MAGNAVOX......508,502		SONY......506
MARANTZ......508		TECHNICS......501
MITSUBISHI......503		THETA DIGITAL......511
ONKYO......502,516		TOSHIBA......502
OPTIMUS......511		YAMAHA......501,509
ORITRON......522		ZENITH......514,502
PANASONIC......501,518

Replacing Batteries

The programming code numbers will remain in memory for 5 minutes as you replace the batteries.

Record your VCR, Cable Box, and DVD Player codes for future reference.

VCR Code:
Cable BoxCode:
DVD PlayerCode:

Multimedia Remote Control Keys Functions Chart

REMOTE KEYS FUNCTION	IN TV MODE FUNCTION	IN VCR MODE FUNCTION	IN CABLE MODE FUNCTION IN	DVD MODE
POWER On/Off On/Off On	Off	On/Off
NUMBER KEYS (0 ~ 9)	Used to Select Channels	Used to Select Channels	Used to Select Channels	No Function
INPUT	Selects TV/Video mode	Selects TV/VCR mode	Selects TV/Video mode	Selects TV/Video mode
RECALL	Selects previous channel	Selects previous channel	No Function	Select Repeat
CHANNEL (UP)	Selects next channel up	Selects next channel up	Selects next channel up	Next or Skip Forward
CHANNEL (DOWN)	Selects next channel dn	Selects next channel dn	Selects next channel dn	Previous or Skip Reverse
PLAY	Selects VCR Play Mode	Selects VCR Play Mode	Selects VCR Play Mode	Selects DVD Play Mode
FAST FORWARD	Fast Forwards tape	Fast Forwards tape	Fast Forwards tape	Fast Forwards disc
REWIND	Rewinds tape	Rewinds tape	Rewinds tape	Steps backward
STOP	Selects VCR Stop	Selects VCR Stop	Selects VCR Stop	Stops disc
PAUSE	Selects VCR Pause	Selects VCR Pause	Selects VCR Pause	Pause (still) disc
NOTE: Other remote control keys operate only TV functions.

TV ADJUSTMENT AND SETUP

The on-screen menu provides the viewer with easy access to adjustments and settings. Just use the keys on the remote control and follow the instructions.

HOW TO MAKE ADJUSTMENTS

1. Press MENU key.
2. Use the /keys to highlight the desired feature.
3. Use the 🔊key to choose desired option (▶ indicates selected item).

Items with submenus requires additional steps.

keys

- + keys

Audio

Picture/ Sound

▶Stereo

Mono SAP

(二)交易对方及标的

und ➤Sports

Movie

Antenna

▶Cable

VHF/UHF

CH. Search

NO

Start

CH. Scan Memory

C 34

Added

Menu Language

→English

Français

Press MENU key for adjustment

SETTING AUDIO MODE

Select desired sound setting, Stereo, Mono, or SAP (secondary audio program).

Note: Stereo and SAP must be part of the broadcast signal.

1. Choose Stereo, Mono, or SAP from the Audio options.
2. Press the MENU key to exit.

Note: The TV will automatically reset to stereo if unplugged or a power interruption occurs.

ADJUSTING PICTURE/ SOUND

For automatic picture adjustment:

Choose Sports, Movie, or News from the Picture/Sound options.

Adjust the picture/ sound manually:

1. Choose Manual from the Picture/Sound options.
2. Press the MENU key to open the picture/sound settings submenu.
3. Use the /keys to highlight the picture or sound setting you want to change.
4. Use the 🔊key to adjust settings.
5. Press the MENU key to exit.

RESETTING THE ANTENNA/CABLE MODE AND CHANNEL SEARCH

Resetting the Antenna/Cable Mode or CH. (Channel) Search is required only if additional channels become available, such as moving to another city or having a cable service installed.

1. Choose Start from the Ch. Search menu options.

Quick Tips

■ Always follow on-screen instructions.
- All TV adjustments are controlled through the menu.
- The menu will display on the screen for approximately 20 seconds. Press MENU again to redisplay.
■ Under weak stereo signal conditions, you may receive better quality sound in the "Mono" position.
■ To expand your viewing experience select Sports, Movie, or News to match the program you are watching.
- Use the color enhancer feature to highlight the picture flesh tones and color highlights. Selecting warm will deepen the picture red tints and cool will highlight the picture blue tints.
- When setting the Antenna mode, choose Cable if your TV is connected to a cable system, otherwise choose VHF/UHF.

Need help?

visit our website at

www.sanyoctv.com

or

Call 1-800-877-5032

Quick Tips

• Channels deleted from scan memory can be selected with the number keys.
• The channel number area must be highlighted before pressing the key to add or delete.
• Restoring deleted channels, use the on-screen menu to manually add channels or start CH. (Channel) Search from the menu.
  ■ Make sure all cable connectors are fully seated on jacks.
• Always match cables according to the colors; RED for right audio, WHITE for left audio and YELLOW for video.
• A solid Blue screen with the word Video displayed means that the Video is selected, but no signal is being detected at the Video jack.

Need help?

visit our website at

www.sanyoctv.co

m

or

ADDING OR DELETING CHANNELS

1. Press MENU key.
2. Use the 📋/ 🔊 keys to highlight CH. Scan Memory.
3. Press the key to highlight the channel number entry area.
4. Enter the channel number you want to add or delete (example): C34. For cable channels above 99, press and hold the 1 key until C1-- appears. Then enter the other two numbers.
5. Press the key to change the present setting. Example: Added will change to Deleted.
6. Press the MENU key to exit.

SELECTING THE DISPLAY LANGUAGE

1. Choose English, Francais, or Espanol from the Menu Language options.
2. Press the MENU key to exit.

USING THE FRONT AUDIO/VIDEO INPUT JACKS

CONNECTING A VIDEO GAME OR OTHER EXTERNAL EQUIPMENT

Switch off TV and video game before connecting cables.

1. Connect game Audio Output (R/L) to the TV Audio Input (R/L). Then connect game Video Out to the TV Video In ①.
2. Press POWER key ② to turn on the TV. Turn on external equipment also.
3. Press the INPUT key ③ on the remote control.

USING THE REAR AUDIO/VIDEO INPUT JACKS

CONNECTING A VCR OR OTHER EXTERNAL EQUIPMENT

Switch off TV and external equipment before connecting cables. (Cables are not supplied.)

1. Connect VCR or other equipment's Audio Out (R/L) to the TV Audio Input (R/L) ①. For Mono VCR (Single Audio Jack) connect VCR Audio Out to TV Audio (L) In.

2. Connect VCR or other equipment's Video Out to the TV Video In ②.

3. Press POWER ③ to turn on the TV. Turn on external equipment also.

4. Press the INPUT key ④ to select program source: TV signal or signal from the equipment you have connected to the A/V jacks.

USING THE AUDIO OUTPUT JACKS

CONNECTING A STEREO AMPLIFIER TO AUDIO OUT JACKS

1. Connect the TV Audio Out (R/L) ① to the Stereo Amplifier In (R/L) ②.

2. Press POWER to turn on the TV. Turn on external equipment also.

Quick Tips

■ Make sure all cable connectors are fully seated on jacks.

■ Always match cables according to the colors; RED for right audio, WHITE for left audio and YELLOW for video.

- A solid Blue screen with the words Video displayed means that the Video mode is selected, but no signal is being detected at the Video jack.

■ Position your TV at least 2 feet from stereo speakers. The magnets in the speakers may affect the picture quality.

■ Do not connect external speakers directly to the TV.

Need help?

visit our website at

www.sanyoctv.co

m

or

Quick Tips

- Use the CHANNEL

VOLUME /keys

to navigate through the menus and to make selections from the menus.

• V-Guide feature is accessible only from the remote control.
• The TV guidelines rating icon will generally appear in the upper left hand corner of your TV screen.
• The V-Guide display remains on screen for approximately 20 seconds. If it disappears, press the V-Guide key.

Need help?

visit our website at

www.sanyoctv.co

m

or

V-GUIDE INFORMATION

NOTE: THIS FEATURE IS DESIGNED TO COMPLY WITH THE UNITED STATES OF AMERICA'S FCC V-CHIP REGULATIONS. THEREFORE, IT MAY NOT FUNCTION WITH BROADCASTS THAT ORIGINATE IN OTHER COUNTRIES.

With the introduction of "V-Chip" technology, it is now possible for Sanyo televisions to interpret MPAA and TV Parental Guidelines rating codes. When these codes are detected, the TV will automatically display or block the program, depending upon choices you make when setting up the V-Guide system.

ABOUT MPAA AND TV PARENTAL GUIDELINES

MPAA and TV Parental Guidelines are rating systems that provide advance cautionary information to parents about the content of movie and television programming.

MPAA is a voluntary rating system used by the movie industry. TV Parental Guidelines are modeled after the MPAA ratings and were designed to be simple to use, easy to understand, and easy to find.

TV Parental Guidelines contain both age-based and content-based information. This gives parents discretionary ways of choosing appropriate material for their children to view.

Content ratings are represented by the initials D (Suggestive Dialog), L (Adult Language), S (Sexual Situations), V (Violence), and FV (Fantasy Violence). When programming contains any or all of these conditions, these letters become part of the icon that is displayed on the TV screen.

A rating icon will generally appear in the upper left hand corner of the TV screen for about fifteen seconds at the beginning of a program and should be repeated at the beginning of the second hour of a long program. It may also appear when returning from commercials. There may be other instances when these icons will be displayed as well. Parents are encouraged to become familiar with these icons and their meanings.

WHERE CAN I FIND ADVANCE NOTICE OF PROGRAM RATING

Publishers of programming guides have been asked to include these ratings along with other information they publish. You can expect to find this information in newspapers, magazines, and on-screen listings and guides.

TYPES OF PROGRAMS TO RECEIVE RATING

The TV Parental Guidelines will apply to various types of TV programming, including: specials, mini-series, and movies. Sports and news shows will not carry the guidelines.

C 34

Rating: TVPG-V

V-GUIDE OPERATION

Use this feature to supervise television viewing for young children. This television can be set to automatically block programs with content you deem as inappropriate for your children to view, including: suggestive dialog, adult language, sexual situations, violence, and fantasy violence.

The ability of the television to block the reception of specific programming content depends upon several conditions: 1) The program must be rated, 2) Networks must broadcast the rating code data, 3) Cable companies must transmit the rating code signal, and 4) The TV must be properly setup to decode the signal.

The TV guidelines rating icon will generally appear at the upper left hand corner of your TV screen.

SETTING MPAA MOVIE RATING

1. Press the V-GUIDE key on the remote control to display menu.
2. Press the Key to switch V-Guide ON.
3. Press the key again. Then use the / keys to highlight rating.
4. Press the MENU key to Block (B) or Unblock (U) selected rating. (→ Arrow indicates selection.)
5. Press the ☑y to return to the V-Guide Options menu.

SETTING AGE-BASED GUIDELINES

1. Use the keys to highlight TV Parental Guidelines.
2. Press the Key. Then use the / keys to highlight rating.
3. Press the MENU key to Block (B) or Unblock (U) selected rating. (→ Arrow indicates selection.)

SETTING CONTENT-BASED GUIDELINES

1. Follow steps 6 and 7. Use the keys to highlight Content.
2. Press the MENU key to display the Content Option menu.
3. Use the /Keys to highlight a category (D-Suggestive Dialog, L-Adult Language, S-Sexual Situations, V-Violence, FV-Fantasy Violence).
4. Press the ☑y. Then use the / keys to highlight a rating.
5. Press the MENU key to Block (B) or Unblock (U) selected rating. (→ Arrow indicates selection.)
6. Press the V-GUIDE key to exit; or press the key to return to the Content Options menu.
7. Repeat steps 11 through 13 to Block (B) or Unblock (U) additional content ratings, if desired.

TURNING OFF THE V-GUIDE

1. Press the V-GUIDE key.
2. Use the / keys to select OFF.

Quick Tips

■ The TV will automatically block (B) ratings above or unblock (U) ratings below selection. For example, if you block rating R, NC17 and X will be blocked as well.
■ Blocking TVY7 does not block higher ratings.
- You can block a content rating such as TVPG-V and still be able to watch TVPG programs with ratings of S-L-D provided TVPG is unblocked (U).
- To view Blocked (B) programs, set V-GUIDE to OFF, or press the RESET key twice to clear all Blocked (B) ratings and customized settings.
- When in the V-Guide menu system, the ⏻ I keys allows you to navigate between the ratings and the options menu.

Need help?

visit our website at

www.sanyoctv.com

or

Call 1-800-877-5032

Note: Networks and local stations may or may not include the content ratings portion of the TV Parental Guidelines.

Quick Tips

- If Caption Text mode is selected and no captioned text is broadcasted, a black box may appear and remain on the TV screen.

Black-and-white photo of a person standing in front of a dark rectangular frame (no visible text or symbols)

To remove this black box, set captioning to any mode other than Text1 or Text2 or press the RESET key to cancel captioning and customized settings.

- When captioning is turned on, the channel display will not stay on the screen. For these displays to stay on the screen you must set Captioning to OFF.

Need help? visit our website at www.sanyoctv.com or

CLOSED-CAPTIONING

Captioning is textual information transmitted along with the picture and sound so it can be displayed on the TV screen. Because different types of captions can be transmitted with the TV signal, separate captioning modes are provided. The captioning modes recognized by this model are: Caption1, Caption2, Text1, and Text2. Local broadcasters decide which caption signals to transmit. They may not choose to provide captions or may provide captions in one or all of the available modes.

Caption1: This is the main mode used for program captioning (words match the program you are watching). Almost all broadcasters will use Caption1 to transmit program captions. These captions are generally one or two lines.

Caption2: This is an alternative mode for program captioning. Caption2 may be used by the broadcaster to provide captions in another language, such as, Spanish or French.

Text1: This mode is used to display large amounts of text. This text will appear within a black box that may be nearly as large as the TV screen. Text displayed in this manner does not generally relate to the program. These captions may be used by broadcasters to provide weather reports, community bulletins, stock quotes, etc.

Text2: This is an alternative mode used to display large amounts of text. The same types of information displayed in Text1 can be displayed in Text2.

Quikcap: Quikcap allows captions to toggle on and off with the Mute function. For example, the phone rings; you press the MUTE key on the remote control to block the TV sound; the captions display automatically. When you finish your conversation and press the MUTE key again to restore the sound, the captions will disappear.

Quikcap displays program captions in the Caption1 mode.

SETTING CAPTIONS

1. Press the CAPTION key on the remote control.
2. Use the 0 key to select OFF, Caption1, Caption2, Text1, Text2, or Quikcap.

Caption1/ Caption2

Text1/ Text2

SETTING THE SLEEP TIMER

The Sleep Timer will switch off the TV automatically.

1. Press the SLEEP key.
2. Use the 0 key to select the desired time (from 30 minutes up to 3 hours).

Note: The Sleep Timer cancels when the TV is turned off or if a power failure occurs.

RESETTING THE TV

Press the RESET key to automatically reset the television to factory settings. These features will automatically reset:

• Picture/Sound Adjustments: Color, Tint, Contrast, Brightness, Sharpness, Color Enhancer, and Tone
- Channel Memory
- Audio to Stereo
- Caption to OFF
• V-Guide to OFF
• Language to English
- Sleep Timer (if previously set)

If desired, personal settings can be made again using the menu options.

CARE AND CLEANING

The surface of the cabinet can be damaged if not properly maintained. Many common household aerosol sprays, cleaning agents, solvents and polishes will cause permanent damage to the fine surface.

1. Unplug the power cord before cleaning the television.

2. Clean the screen and cabinet with a soft dry cloth.

Note: Never spray liquids on the screen because they can run down and drip onto the chassis. This may cause component failure not covered under Warranty.

Two circular diagrams showing a person playing with a computer and another without it, both without any text or symbols.

TROUBLESHOOTING

Before calling for assistance, please look for the condition that most closely resembles your problem in the following charts, then follow the instructions for that condition. Visit our web site at www.sanyoctv.com or call toll free 1-800-877-5032.

TV Turns off by itself

No Picture or Poor Picture

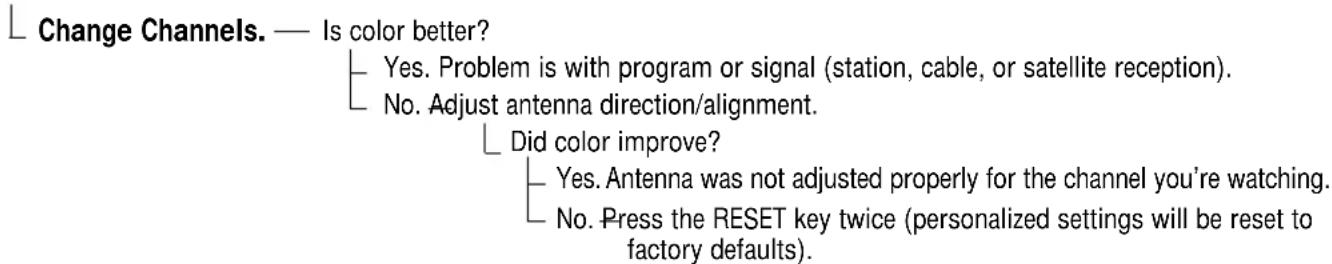

Poor color or no color

My TV screen is solid blue

TROUBLESHOOTING (Continued)

No sound, Poor Stereo sound

No Captioning

A Black box appears on the screen

I don't recognize words in the on-screen menu

Cannot select or scan some channels

TROUBLESHOOTING (Continued)

My remote control will not operate my Television

My remote control will not operate my Cable Box or other auxiliary equipment

The cabinet makes a popping sound

This is a normal condition during the warm-up and cool down of the plastic cabinet parts.

This symbol on the nameplate means the product is Listed by Underwriters' Laboratories Inc. It is designed and manufactured to meet rigid U.L. safety standards against risk of fire, casualty and electrical hazards.

MEXICO GUARANTEE

THIS APPARATUS THAT YOU HAVE ACQUIRED, HAS A ONE YEAR GUARANTEE FOR MANUFACTURING DEFECTS AND A ONE YEAR SERVICE WARRANTY FROM THE DATE OF PURCHASE GRANTED BY:

COMERCIALIZADORA MEXICO--AMERICANA, S.A. DE C.V.

UNDER THE FOLLOWING CONDITIONS:

1. TO MAKE THE GUARANTEE EFFECTIVE, SIMPLY SHOW THIS POLICY FILLED OUT BY THE STORE OR SUPPLIER UNIT OR THIS SALES INVOICE, WITH THE APPARATUS IN ANY OF THE SERVICE CENTERS INDICATED ON THIS GUARANTEE.
2. IF THE FAULT IS ATTRIBUTED TO A MANUFACTURING DEFECT, THE APPARATUS WILL BE FIXED WITH NO COST TO THE CONSUMER.
3. REPAIR TIME WILL NEVER BE MORE THAN 30 DAYS. IF THIS TIME HAS ELAPSED, AND THE PRODUCT ISN'T REPAIRED, COMERCIALIZADORA MEXICO-AMERICANA, S.A. DE C.V. WILL PROCEED TO EFFECTUATE THE EXCHANGE FOR AN EQUIVALENT APPARATUS OR THE RETURN OF THE BUYING-SALE COST RESPECTIVELY.

THE GUARANTEE WILL BE NULL AND VOID IN THE FOLLOWING CIRCUMSTANCES:

A) IF THE APPARATUS HAS BEEN USED IN A MANNER INCONSISTENT WITH THE MANUFACTURERS INSTRUCTIONS.
B) IF THE APPARATUS HAS BEEN USED IN A MANNER INCONSISTENT WITH THE MANUFACTURERS WARNINGS OR PRECAUTIONS.
C) IF THE APPARATUS HAS BEEN EXPOSED TO SUDDEN CHANGES IN VOLTAGE.
D) IF THE APPARATUS HAS SUFFERED IRREPARABLE AND ESSENTIAL DETERIORATION DUE TO THE ACTIONS OF THE CONSUMER.
E) IF THE APPARATUS HAS BEEN OPENED OR SOMEONE OTHER THAN OURSELVES HAS ATTEMPTED TO REPAIR IT.
F) THIS POLICY IS NULL IF IT DOESN'T HAVE THE REQUIRED DATES BELOW AND THE STAMP OF THE STORE WHERE THE SALE TOOK PLACE.
G) THE TRANSPORTATION COSTS OF THE PRODUCT DERIVED FROM THE EFFECTUATION OF THIS POLICY WILL BE BILLED TO THE BUSINESS.

APPARATUS:____ SERIAL No.____

CLIENT'S NAME:

DOMICILE:

CITY: ____ STATE: ____

DATE OF SALE:

TALLER DE SERVICIO Y VENTA DE

United States and Canada Warranty

ONE-YEAR LIMITED WARRANTY

THIS LIMITED WARRANTY IS VALID ONLY ON SANYO TELEVISIONS PURCHASED AND USED IN THE UNITED STATES OF AMERICA, CANADA, AND PUERTO RICO, EXCLUDING THE UNITED STATES, OTHER TERRITORIES, AND PROTECTORATES. THIS LIMITED WARRANTY APPLIES ONLY TO THE ORIGINAL PURCHASER, AND DOES NOT APPLY TO PRODUCTS USED FOR INDUSTRIAL OR COMMERCIAL PURPOSES.

FOR ONE YEAR from the date of purchase, Sanyo Manufacturing Corporation will replace any defective TV without charge to the original purchaser.

To insure proper warranty exchange, keep the original sales receipt for evidence of purchase. Return the defective TV to the retailer along with the receipt and the included accessories, such as the remote control. The defective TV will be exchanged for the same model, or a replacement model of equal or greater value, if necessary. Replacement model will be contingent on availability and at the sole discretion of Sanyo Manufacturing Corporation.

THE FOREGOING WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

OBLIGATIONS

For one year from the date of purchase, Sanyo Manufacturing Corporation warrants this product to be free from defects in material and workmanship under normal use and conditions. Should replacement be necessary under this warranty for any reason due to manufacturing defect or malfunction during the first year from date of original purchase, Sanyo Manufacturing Corporation will provide a new TV via exchange at the retailer at no charge.

For customer assistance, whether during or out of the warranty period, call toll free 1-800-877-5032.

Weekdays 7:30 AM – 7:00 PM Central Time

Saturday 7:30 AM – 4:00 PM Central Time

This warranty expresses specific contractual rights; retail purchasers may have additional statutory rights which vary from state to state.

(EFFECTIVE: April 1, 2000)

For your protection in the event of theft or loss of this product, please fill in the information requested below and KEEP IN A SAFE PLACE FOR YOUR OWN PERSONAL RECORDS.

Model No. Date of Purchase

Serial No. ____ Purchase Price ____

(Located on back of unit)

Where Purchased

Sanyo Manufacturing Corp.

3333 Sanyo Road, Forrest City, AR 72335

ESPAÑOL

PESO (APROX.) 71.1 lbs. (32.3 Kg.)

Diagram of a remote control device showing battery casing, battery pack, and internal components (no text or labels)

Consejos Rápidos

Antena ▶Cable VHF/UHF

Loc. Canales ▶NO Iniciar

Sanyo Manufacturing Corp.

3333 Sanyo Road, Forrest City, AR 72335

Child Safety:

Two baby babies sitting side by side, one covering face with hand on cheeks, the other looking down (no text or symbols visible)

It Makes A Difference Where Your TV Stands

Congratulations on your purchase! As you enjoy your new product, please keep these safety tips in mind:

The Issue

If you are like most Americans, you have a television in your home. Many homes, in fact, have more than one television.
The home theater entertainment experience is a growing trend, and larger televisions are popular purchases and are not always supported on the proper TV stands.
Sometimes televisions are improperly secured or inappropriately situated on dressers, bookcases, shelves, desks, audio speakers, chests, or carts. As a result, TV sets may fall over and may cause unnecessary injury.

Child sitting on a chair with a red prohibition symbol overlay (no text or symbols on the image itself)

Sanyo Cares!

The industry is committed to making home entertainment enjoyable and safe.
The Consumer Electronics Association formed the Home Entertainment Support Safety Committee comprised of television and consumer electronics furniture manufacturers to advocate children's safety and educate customers and their families about television safety.

Tune Into Safety

1 One size does NOT fit all. Use the appropriate furniture that is large enough to support the weight of your television (and other electronic components).

2 Use appropriate angle braces, straps, and anchors to secure your furniture to the wall (but never screw anything directly into the TV).

3 Carefully read and understand the other enclosed instructions for proper use of this product.
4 Don't allow children to climb on or play with furniture and television sets.
5 Avoid placing any items on top of TVs such as VCRs and remotes that may pique the children's curiosity.
6 Remember that children can become excited while watching a program and can potentially push or pull a TV over.
7 Share our safety message on this hidden hazard of the home with your family and friends. Thank you!

Computer monitor with a yellow rubber duck on top, crossed out by a red prohibition symbol (no text or symbols present)
