Welcome to the World of Sanyo

Thank you for purchasing a Sanyo Color Television. You made an excellent choice for Performance, Reliability, and Value. The TV is designed with easy on-screen set-up instructions and operating features. To meet the growing needs of our customers, this television has a "V-Chip" for parental controlled viewing.

CONTENTS

Important Safety Tips 2

Features 3

Specifications 3

Basic Setup 3

Basic Hookup Methods .... 4

Rear Panel 5

Universal Remote Control 5 \~ 7

TV Adjustment and Setup 8 \~ 10

Setting the Sleep Timer 10

Closed-Captioning .....11

Using the Audio/Video Input Jacks ..... 12

Using the Audio Output Jacks ..... 13

Using the Audio/Video Input Jacks for PIP .. 13

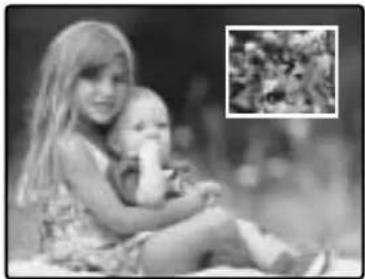

Picture-In-Picture (PIP) Operation ..... 14 \~ 15

Resetting the TV 15

V-Guide Information 16

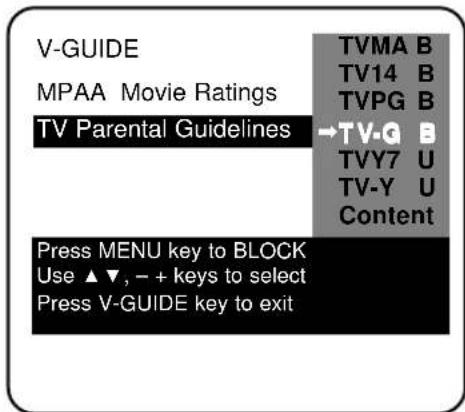

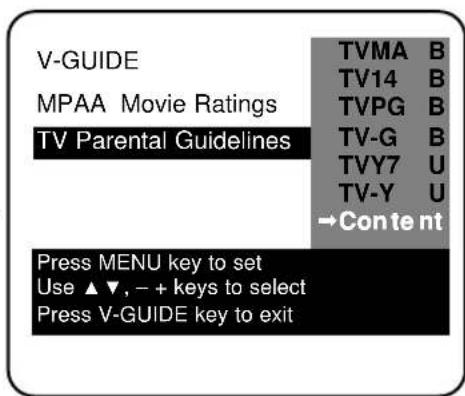

V-Guide Operation (Parental Control) .. 16 \~ 17

Helpful Hints-Problems/Solutions ..... 18 \~ 19

Care and Cleaning 19

Warranty 20

ESPAÑOL 21 \~ 40

Contenido 21

Black-and-white photo of a sports monitor displaying a running athlete jumping over hurdles, with inset images showing a close-up of the athlete's head (no visible text or symbols)

TV screen image / Imagen de la Pantalla del Televisor © 2000 PhotoDisc, Inc.

AVM-3280G pictured / Ilustró

"As an ENERGY STAR® Partner, Sanyo has determined that this product meets the ENERGY STAR® guidelines for energy efficiency."

Printed in U.S.A. SMC, June 2000 / Impreso en U.S.A. SMC, Junio 2000 Part No. / No. de Parte : 1AA6P1P2117--

Service Code/Código de Servicio : 610 282 3363

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

THIS SYMBOL INDICATES THAT DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT.

THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THIS UNIT.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

IMPORTANT SAFETY INSTRUCTIONS

CAUTION: PLEASE ADHERE TO ALL WARNINGS ON THE PRODUCT AND IN THE OPERATING INSTRUCTIONS. BEFORE OPERATING THE PRODUCT, PLEASE READ ALL OF THE SAFETY AND OPERATING INSTRUCTIONS. RETAIN THIS LITERATURE FOR REFERENCE. Follow all instructions...

Positioning the appliance

1. Do not place your appliance on an unstable cart, stand, shelf or table. Serious injury to an individual, and damage to the appliance, may result if it should fall. Your salesperson can recommend approved carts and stands or shelf and wall mounting instructions. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

2. Slots and openings in the cabinet and in the back or bottom are provided for ventilation. To ensure reliable operation of the appliance and to protect it from overheating, these openings must not be blocked or covered. The openings should never be covered with a cloth or other material, and the bottom openings should not be blocked by placing the unit on a bed, sofa, rug, or other similar surface. This appliance should never be placed near or over a radiator or heat register. This appliance should not be placed in a built-in installation such as a bookcase unless proper ventilation is provided.

3. Do not expose the appliance to rain or use near water . . . for example, near a bathtub, swimming pool, kitchen sink, in a wet basement, etc.

Hooking Up Outdoor Antenna

LIGHTNING PROTECTION FOR YOUR ANTENNA AND SET AS PER NATIONAL ELECTRICAL CODE INSTRUCTIONS.

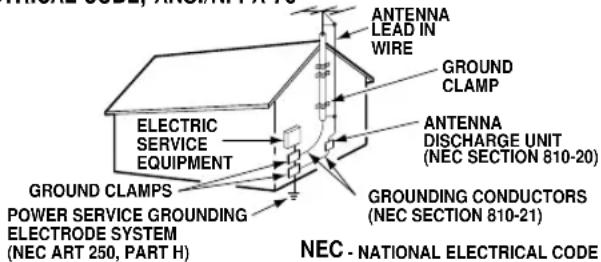

EXAMPLE OF ANTENNA GROUNDING ACCORDING TO NATIONAL ELECTRICAL CODE, ANSI/NFPA 70

"Note to CATV system installer:
This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical."

1. If an outside antenna is connected to the receiver, be sure the antenna system is grounded so as to provide some protection against voltage surges and built up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

Plug in the power cord

1. The design of many appliances does not require a polarized AC line plug (one blade wider than the other). However, if your appliance is equipped with a polarized AC line plug, it is a safety feature which
   prevents the plug being inserted incorrectly. If you have difficulty inserting the plug, try reversing it. If the plug still does not fit fully into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of this polarized plug.

1. Do not allow anything to rest on the power cord. Do not locate the appliance where the cord will be abused by persons walking on it.

Cleaning

1. Before cleaning, unplug the unit from the wall outlet. Do not apply liquid cleaners or aerosol cleaners directly to the unit. Use a dry cloth for cleaning.

Service & Repair

1. Unplug the appliance from the wall outlet and refer servicing to qualified service personnel under the following conditions:

A. If the power cord or plug is damaged or frayed.

B. If liquid has been spilled into the appliance.

C. If the appliance has been exposed to rain or water.

D. If the appliance has been dropped or the cabinet has been damaged.

E. If the appliance exhibits a distinct change in performance.

F. If the appliance does not operate normally by following the operating instructions, adjust only those controls that are covered in the operating instructions. Improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the appliance to normal operation.

1. Upon completion of any service or repair, request the service technician's assurance that only Factory Authorized Replacement Parts that have the same characteristics as the original parts were used, and that routine safety checks have been performed to determine that the appliance is in safe operating condition. Unauthorized substitutions may result in fire, electrical shock, or other hazards.

2. Never add accessories that have not been specifically designed for use with this appliance.

3. For added protection during a lightning storm, or when the set is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage to the set due to lightning or power line surges.

FEATURES

◆ Trilingual On-Screen Menu
◆ Automatic Channel Search
◆ Auto Shut Off
◆ Closed-Captioning/Quikcap
◆ Digital picture controls with on-screen display
◆ Initial Channel
◆ Comb Filter
◆ MTS stereo/dbx®/SAP Decoder
◆ Color Enhancer
◆ Auto Flesh Tone
◆ XDS (Extended data service) station call letters, title of show, ratings
◆ Automatic picture/sound adjustments for Sports/Movie/News
◆ Bass/Treble
◆ V-Guide (Parental Control)
◆ Picture-in-Picture (PIP)
◆ Audio/Video Input Jacks (2 sets—R/L)
◆ S-Video Input Jack (2 sets for Model AVM-3680G only)
◆ Fixed Audio Output Jacks
◆ Front Surround Sound

◆ Clock
◆ Sleep Timer (3 hours)
TV Reset

181 Channel Tuning System

VHF Channels 2-13

UHF Channels 14-69

Cable TV (CATV) 1, 14-125

Automatic Fine Tuning

VHF and Cable Channels

UNIVERSAL Remote Control

Multi-Brand: Cable/VCR/TV

Large Glow-in-the-Dark basic operating keys

Numbered Channel Selection

Channel Scanning

Volume Mute

Power Recall

Display Sleep

Caption Reset

Menu VCR keys

PIP keys Video Mode

V-Guide

dbx ^® is a registered trademark of

Carillon Electronics Corporation

CAUTION:FCC Regulations state that improper modifications or unauthorized changes to this unit may void the user's authority to operate the unit.

SPECIFICATIONS

PICTURE TUBE SIZE (Measured Diagonally)

AVM-3280G 32-inch screen

AVM-3680G 36-inch screen

PICTURE RESOLUTION .... 330 Lines / Video Input 600 Lines

ANTENNA INPUT ..... UHF/VHF/CATV 75Ω

POWER REQUIREMENT .... 120VAC 60Hz

POWER AVM-3280G ... 89 watts / AVM-3680G ..102 watts

HORIZONTAL DIM. (Width)

AVM-3280G 30.0 in. (762mm)

AVM-3680G 33.4 in. (848mm)

VERTICAL DIM. (Height)

AVM-3280G 27.8 in. (707mm)

AVM-3680G 29.5 in. (750mm)

DEPTH DIM. (Thickness)

AVM-3280G ..... 21.2 in. (538mm)

AVM-3680G 24.4 in. (620mm)

WEIGHT (LB.) (Approx.)

AVM-3280G 108.6 (49.3 Kg.)

AVM-3680G 144.3 (65.5 Kg.)

SOUND AVM-3280G ..... 2 Speakers, Size: 10 cm

AVM-3680G ..... 2 Speakers, Size 6x12 cm

AMPLIFIER .... Built-in with 3.0W

A/V INPUT JACKS ... Video Input and Audio Input (2 sets-R/L),

S-Video Input (2 sets Model AVM-3680G)

AUDIO OUTPUT JACKS .... Fixed Audio Output (R/L)

(RCA Connectors)

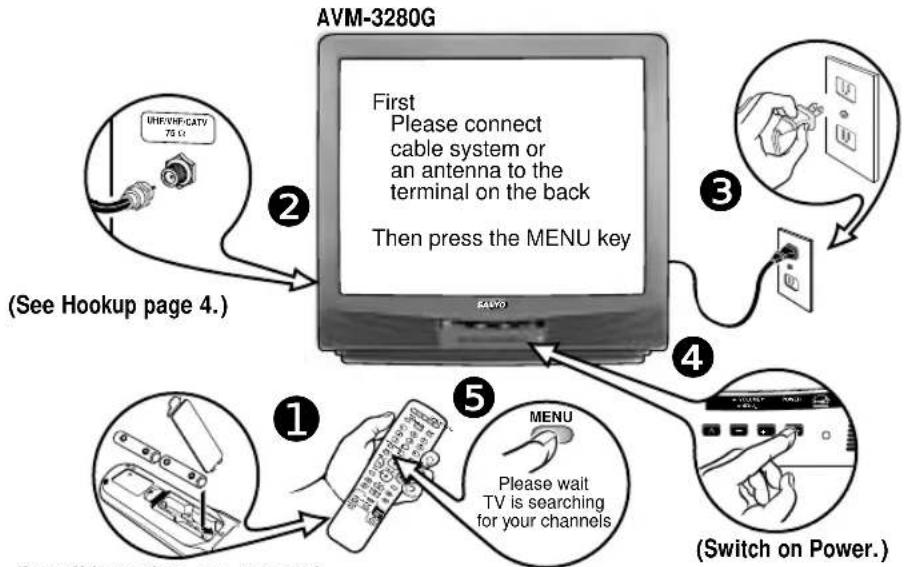

BASIC SETUP

(Install batteries, see page 5.)

Quick Tips

■ Do not position the TV in a confined area. Allow normal air circulation for electronic parts.
■ Position your TV at least 2 feet from stereo speakers. The magnets in the speakers may affect the picture quality.
■ The TV will automatically select the correct Antenna mode for the type of signal you connect.

Quick Tips

■ The TV will automatically select the correct Antenna mode for the type of signal you connect.
■ TV will switch off automatically after 15 minutes if there is no signal reception (cable out or station not broadcasting).

Exception—When the Video mode is selected, the TV will not automatically switch off when signal reception has stopped for 15 minutes.

BASIC HOOKUP METHODS

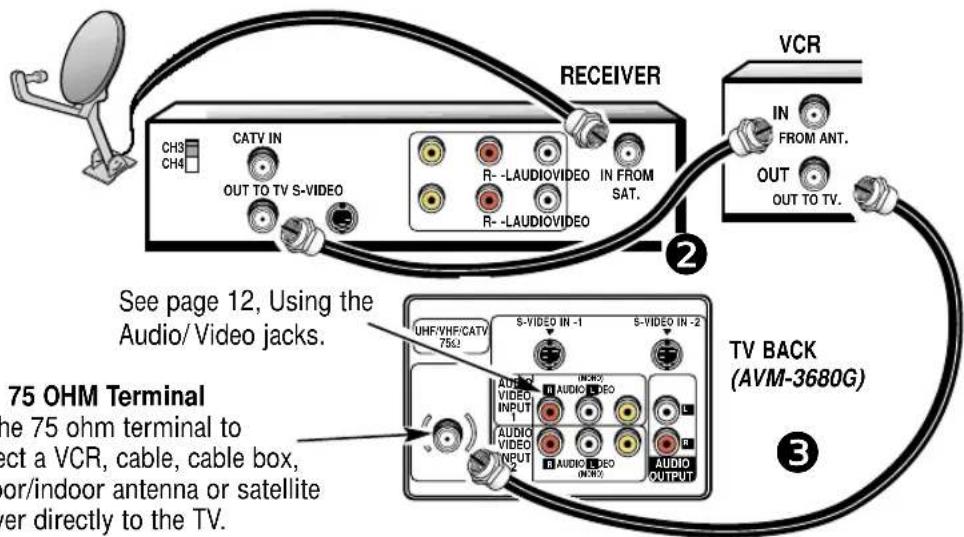

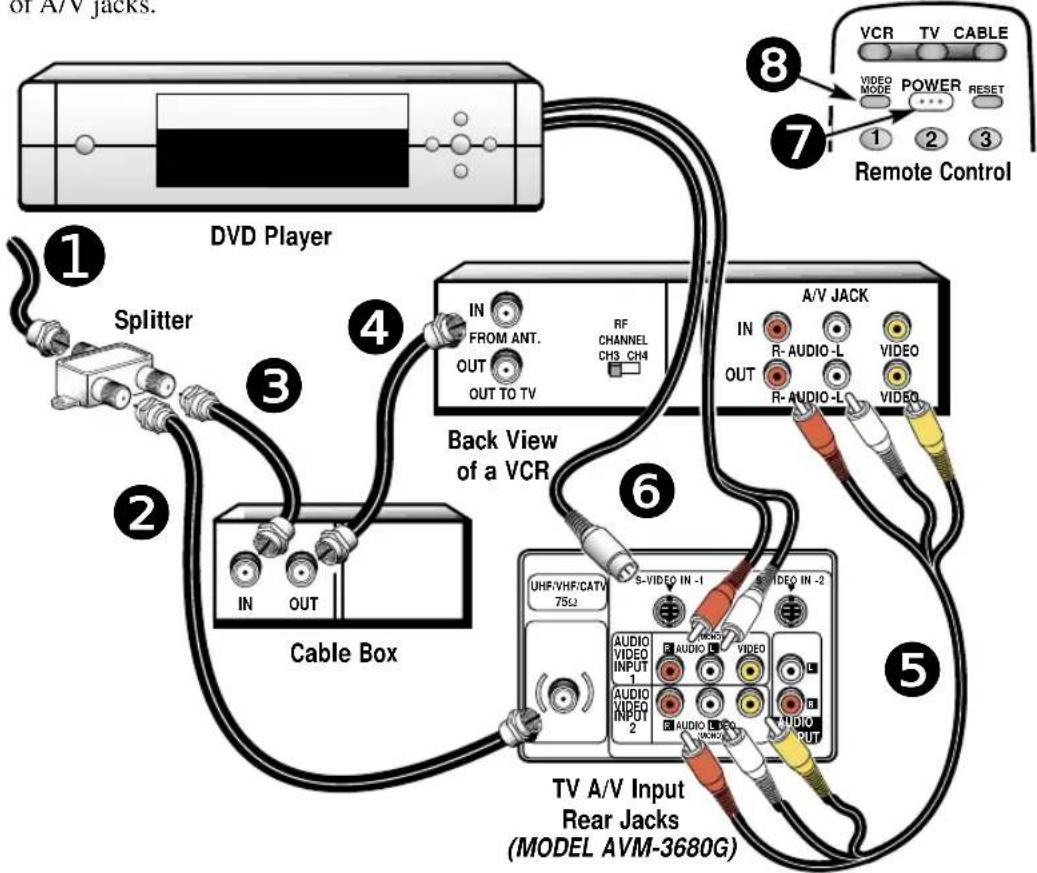

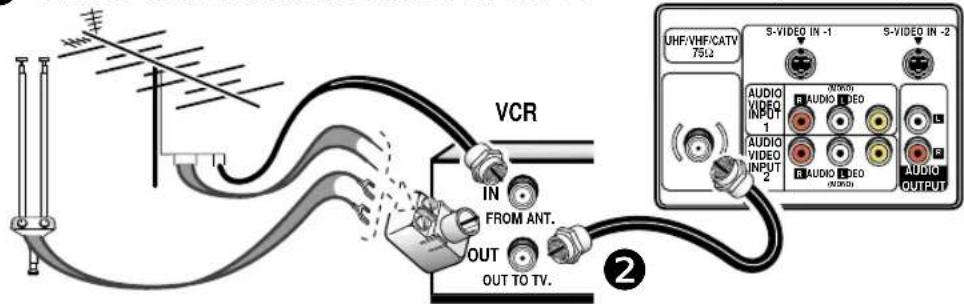

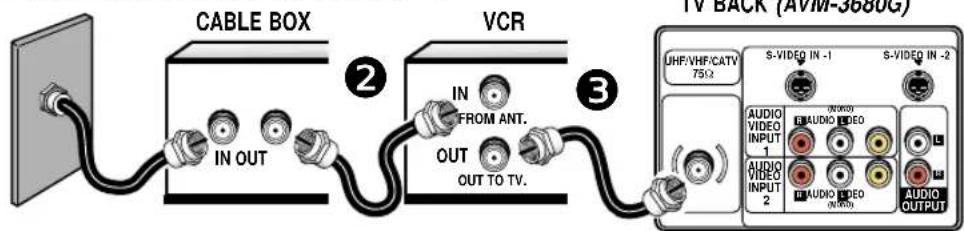

Use one of these methods to connect a signal to your TV. Select 1a—if you have cable service and a VCR, 1b—if you have a cable box and a VCR, 1c—if you have an outdoor or indoor antenna and a VCR, or 1d—if you have a satellite dish and a VCR. Connect your cable or antenna directly to the TV if you don't have any optional accessories.

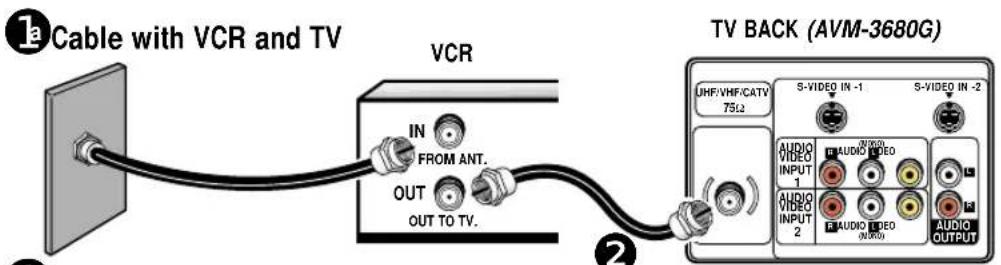

12 Cable with Cable Box, VCR and TV

    subgraph Cable Box
        INOUT["IN OUT"]
        IN["IN FROM ANT."]
        OUT["OUT TO TV."]
    end

    subgraph VCR
        IN["IN FROM ANT."]
        OUT["OUT TO TV."]
    end

    subgraph TV Back
        SVIDEN_SVIDEN_IN_1["S-VIDEO IN -1"]
        SVIDEN_SVIDEN_IN_2["S-VIDEO IN -2"]
        SVIDEN_SVIDEN_IN_1["AUDIO VIDEO INPUT 1"]
        SVIDEN_SVIDEN_IN_2["AUDIO VIDEO INPUT 2"]
        SVIDEN_SVIDEN_IN_1["AUDIO VIDEO (NTRD)"]
        SVIDEN_SVIDEN_IN_2["AUDIO VIDEO (NTRD)"]
    end

12 Outdoor or Indoor Antenna with VCR and TV

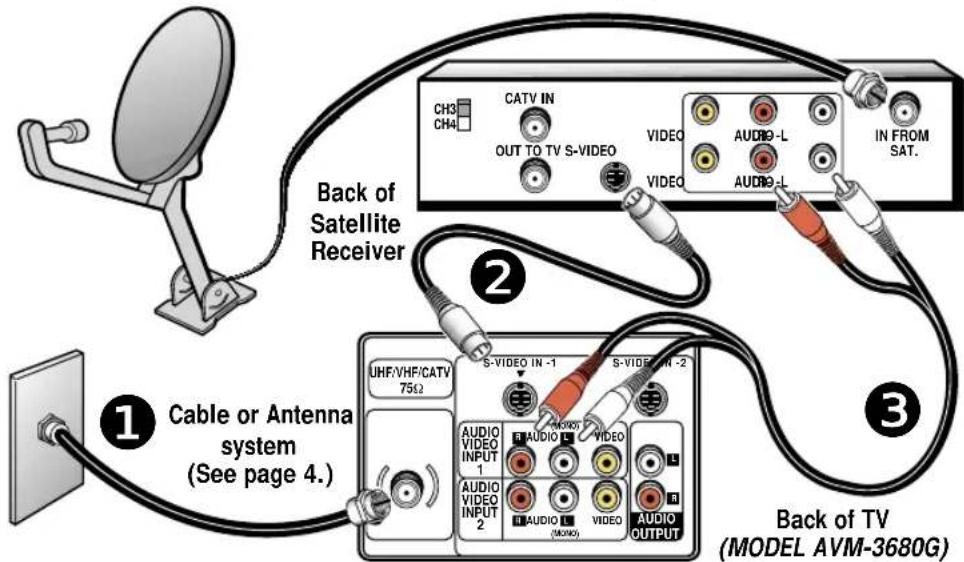

Satellite Dish with Receiver, VCR and TV

CATV FRANCHISE NOTE: Cable companies, like public utilities, are franchised by local government authorities. To receive cable programs, even with equipment which is capable of receiving cable channels, the consumer must subscribe to the cable company's service.

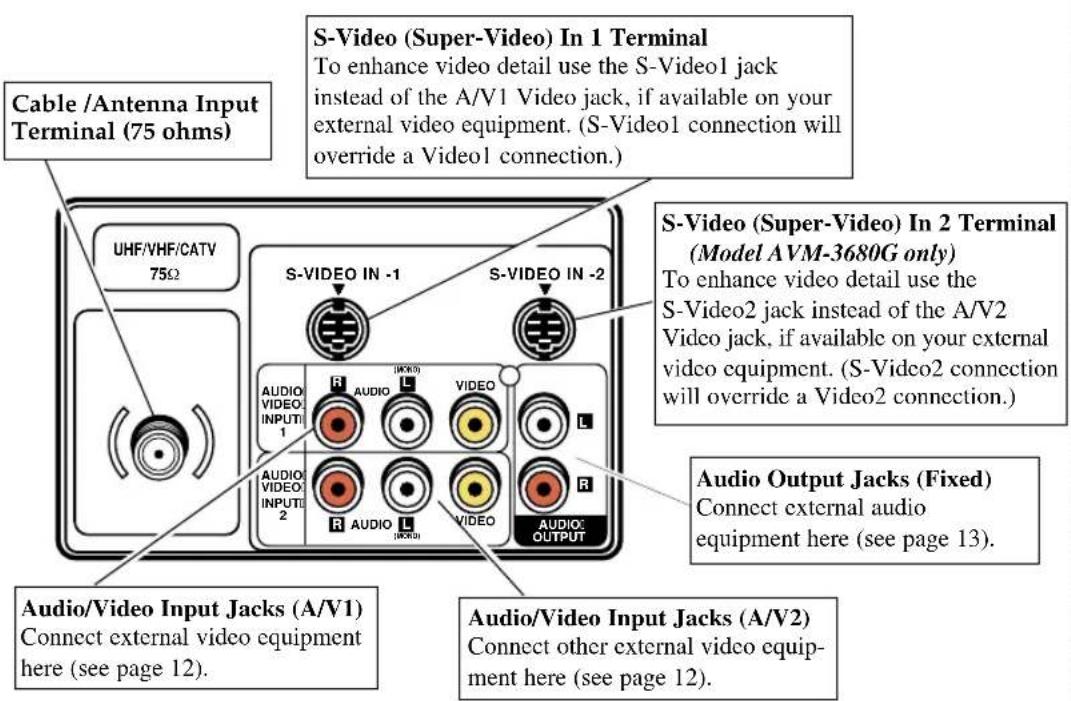

REAR PANEL

UNIVERSAL REMOTE CONTROL

Operates your TV, VCR and Cable converter box. To familiarize yourself with this remote control, see page 6. To program the remote control, see page 7.

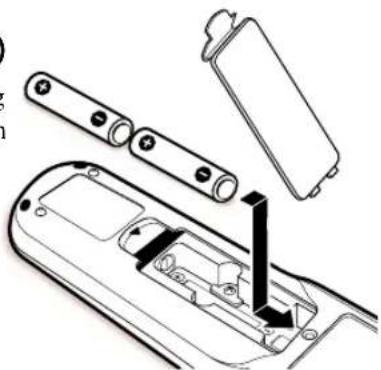

INSTALLING BATTERIES (2 AA not included)

1. Remove the battery cover by pressing the tab and tilting the cover upward. Insert batteries. Make sure you match

+ / - signs on the batteries with marks inside the remote control.

1. Replace battery cover. The remote control is ready!

Notes:

- Do not mix old batteries with new ones or mix different types of batteries together.

- Remove the batteries if the remote control will not be used for a month or more. Weak batteries may leak and cause damage.

Technical line drawing of a device's internal components, showing battery, switch, and housing (no text or symbols)

IMPORTANT NOTE: Spent or discharged batteries must be recycled or disposed of properly in compliance with all applicable laws. For detailed information, contact your local County Solid Waste Authority.

Quick Tips

■ Make sure all cable connectors are fully seated on jacks. See pages 12 and 13 before connecting external video equipment.

■ Cables are not supplied for connecting your external equipment.

- A solid Blue screen with the word Video1 or Video2 displayed means that the Video mode is selected, but no signal is being detected at the Video jack. Check connection, and turn on external equipment.

- Be sure batteries are installed correctly.

■ Point the remote control toward the equipment you want to control. Objects between the remote control and the equipment may cause misoperation of the remote control function.

Quick Tips

• Point the remote control toward the equipment you want to operate. Objects between the remote and the equipment may cause misoperation of the remote control function.
  ■ Make sure batteries have been installed correctly.
  ■ If the remote control does not work: Press TV key (see item 1).
• The remote control must be programmed before it will operate your VCR or Cable Box. See page 7.
• Cannot select channel with number keys. Press "0" in front of numbers 1 \~ 9. Example: Channel 05.
• The “C” in front of the channel number indicates a Cable channel.
• Adjusting the volume level: Right flashing arrow indicates volume is increasing and left flashing arrow indicates volume is decreasing.
  ■ Channel number will not display continuously when captioning is on.
• Using V-Guide TV Parental Guidelines settings can be changed only by using the Remote Control. See pages 16 and 17.

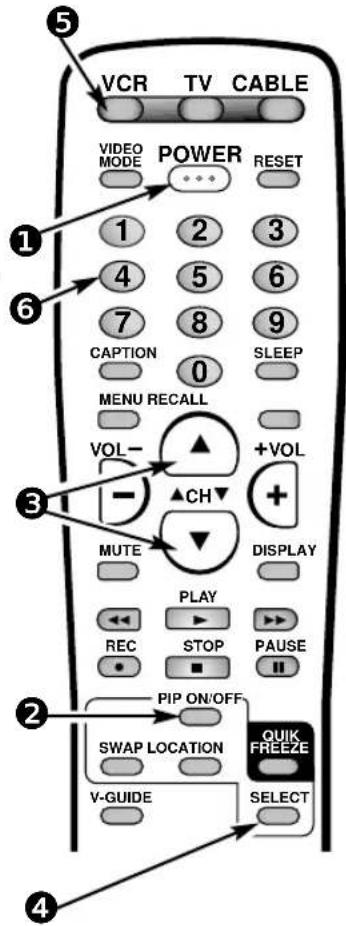

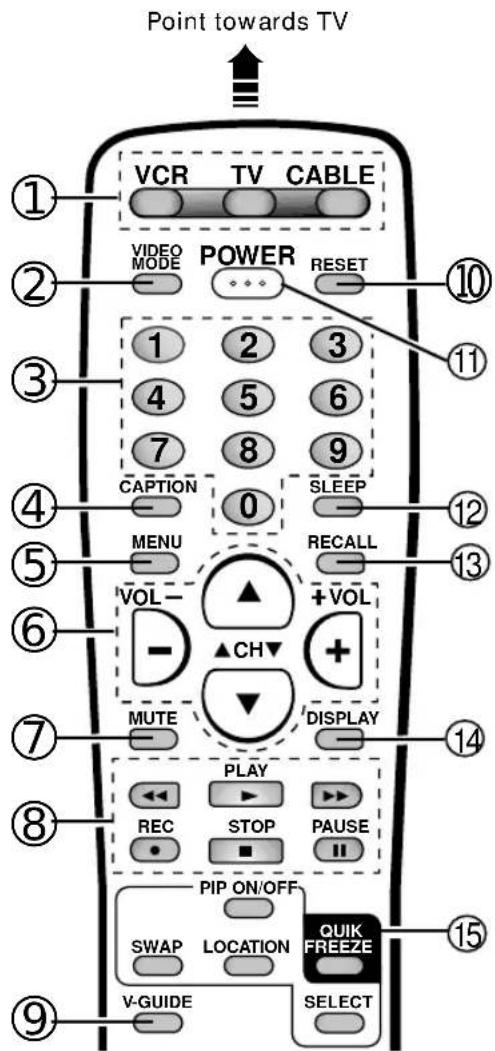

UNIVERSAL REMOTE CONTROL KEYS

①Mode Keys

Use these keys to program the remote control and to select the operating mode (VCR, TV, or Cable).

②Video Mode Key

Press to select the program source to be displayed on the screen: TV signal or signal from the equipment you have connected to the A/V jacks.

③Number Keys

Two keys must be pressed to select a channel. Example: Press 0 then 6 to select channel 6. For cable channels 100 through 125, press and hold the 1 key until Ⓐ4—appears. Then press the other two numbers.

④Caption Key (See page 11.)

⑤Menu Key

Use this key with the Ⓐ/ card ☐/ keys to navigate and adjust features of the on-screen menu system (see pages 8 \~10).

⑥Channel (CH) Scanning (▲/▼) and Volume (●/○) Keys

Press to scan through the channels in memory and to adjust the volume.

⑦Mute Key

Press once to turn off the volume. Press again to restore. Note: When using the audio out jacks this key will not mute the sound.

⑧VCR Keys

These keys control the VCR's Fast Forward ( ), Rewind ( ), Play ( ), Record ( ), Stop ( ), and Pause ( ) functions.

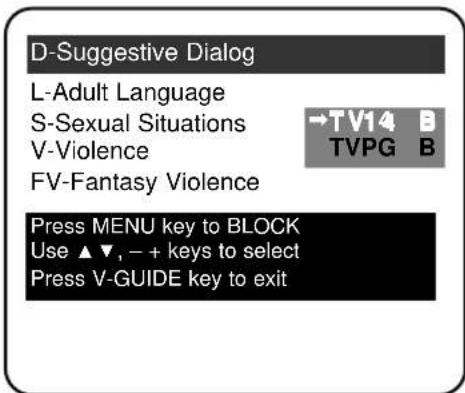

⑨V-Guide Key (See pages 16 and 17.)

⑩Reset Key

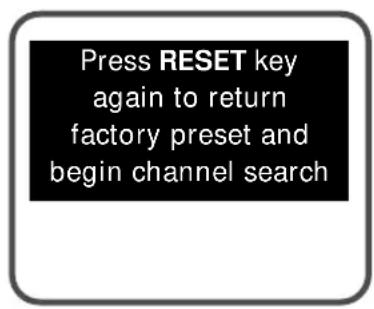

Press this key twice to restore factory settings. The TV will automatically start Channel Search and clear all customized settings. (See page 15.)

⑪Power Key

Press to turn TV on or off.

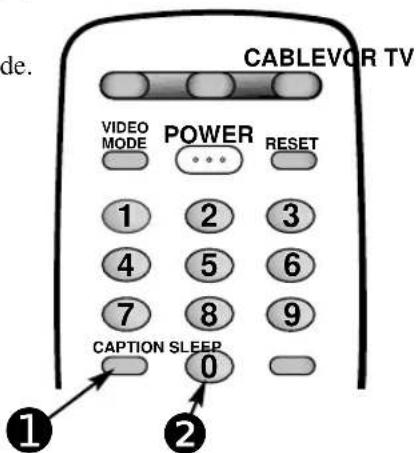

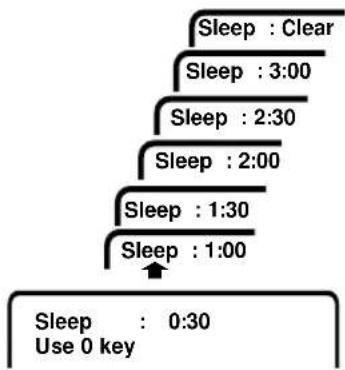

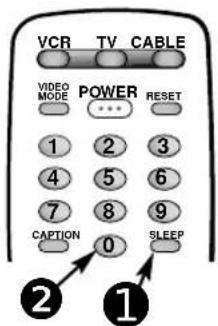

⑫Sleep Key

Use this key with the "0" key to set the Sleep Timer (see page 10).

⑬Recall Key

Select a channel then select another channel using the number keys. Press Recall to switch between the channels.

⑭Display Key

Press once to display the channel number and time. Press twice to display the channel number continuously. Press again to remove the display.

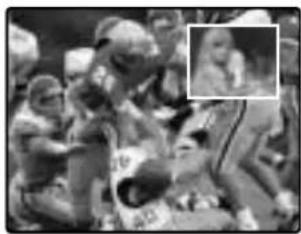

⑮PIP Keys (See pages 14 and 15.)

PROGRAMMING THE UNIVERSAL REMOTE CONTROL

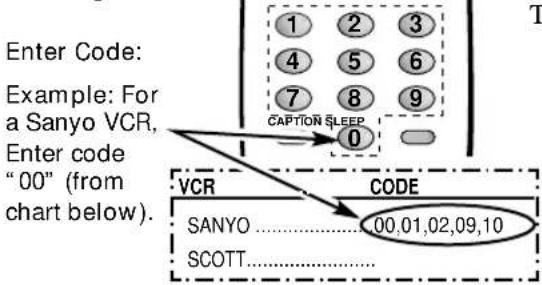

Find your code. It is next to the brand name of your equipment in the chart below. (The illustrated example is for a Sanyo VCR.)

① Press and hold VCR or CABLE key.

② Using the NUMBER keys on the remote, enter the two-digit code number for your VCR or Cable box. The key will flash 5 times when released if the code was accepted.

③ Press the POWER and CHANNEL keys to check programming. If they operate properly, programming is completed. If not, use another code, if available and repeat steps.

Notes:

- There may be VCRs and cable boxes that this remote control cannot operate.

- Some manufacturers use different types of remote controls. If your brand has several codes listed, repeat steps ① and ② with each number until you find the correct code. Write your codes in the spaces on back of remote control and below for quick reference.

To Operate Your...

VCR—Press the VCR key. Cable Box—Press the CABLE key. Television—Press the TV key.

Replacing Batteries

The programming code numbers will remain in memory for 5 minutes as you replace the batteries.

Quick Tips

■ Make sure batteries have been installed correctly.

■ The remote control will not operate my VCR or Cable Box.

- Press the VCR or CABLE key.

- Reprogram the remote control.

- Special key functions: The VIDEO MODE key functions as the VCR's TV/VCR key when the Remote Control is in the VCR mode.

- The associated mode key lights when you press any operating key (channel, volume, etc.) to indicate which equipment is being controlled.

VCR BRAND NAME CODE	VCR BRAND NAME CODE	CABLE BOX BRAND NAME CODE
ADMIRAL .....20,21,27,29,38AIWA .....08,22BROKSONIC .....20,21CRAIG .....02,05,07,31CURTIS MATHES .....19,22,27DAEWOO .....04,37EMERSON .....06,08,13,14,20,21,22FISHER .....00,01,02,09,10FUNAI .....22GE .....19,27,33,39,40GOLDSTAR .....08HITACHI .....03,22,33,39J.C.PENNY .....03,05,07,19,31JVC .....11,12,28,33KENWOOD .....00,28,33MAGNAVOX .....18,19,26MARTA .....08MEMOREX .....00,02,05,07,08,19,22,29,31MITSUBISHI .....32,34,35,36,41,42M.WARD .....02,03,19,22,29MTC .....05,07,22,31NEC .....11,12,28,33	ORION .....13,15PANASONIC .....16,17,19PHILCO .....18,19,26PHILIPS .....18,19,26PIONEER .....26,28PROSCAN .....03,19,27,33,39,40QUASAR .....16,17,19RCA .....03,19,27,33,39,40REALISTIC .....00,05,07,08,19,22,29,31SAMSUNG .....04,05,07,31SANSUI .....28,33SANYO .....00,01,02,09,10SCOTT .....04,20,21SEARS .....00,02,03,08,19SHARP .....29,30SONY .....19,23,24,25SYLVANIA .....19,32SYMPHONIC .....22TEAC .....22,23TOSHIBA .....04,32,40ZENITH .....23,24,38	ABC .....14,15,16,21,24GEN. INSTRUMENTS .....13,14,15,16,17,18,19,20,25HAMLIN .....12,26,27,28JERROLD .....13,14,15,16,17,18,19,20,25MACOM .....03MEMOREX .....11OAK .....02,23,24PANASONIC .....04,05,09PARAGON .....11PIONEER .....01,10RCA .....04,05,09REGAL .....06,26,27,28SAMSUNG .....01SCI. ATLANTA .....06,07,08SIGNATURE .....14,15,16SPRUCER .....04,05,09STARCOM .....14,15,16,17,18,19,20STARGATE .....14,15,16,17,18,19,20TOCOM .....21,22TOSHIBA .....00,11,17,18,19,20ZENITH .....00,11,17,18,19,20

Quick Tips

■ Always follow on-screen instructions.
- The menu will display on the screen for approximately 20 seconds. Press MENU again to redisplay.
- Arrow (→) indicates current selection or mode.
- All TV adjustments are controlled through the menu.
- ① To see the time of day after setting the clock, press the DISPLAY key.
■ Under weak stereo signal conditions, you may receive better quality sound in the "Mono" position.
- Extended Data Service (XDS) signal may not be transmitted by all broadcasters.
- To expand your viewing experience select Sports, Movie or News to match the program you are watching.
- Use the CHANNEL / keys and the VOLUME keys to navigate through the menus and to make selections from the menus.

TV ADJUSTMENT AND SETUP

The on-screen menu system allows the viewer to program television features to their personal preference. Adjustments can be made easily using the remote control.

HOW TO MAKE ADJUSTMENTS

1. Press

1. Use the

desired feature.

f i g h i g h t h e

1. Use the /keys to adjust the selected feature (→ indicates selected item).

Items with submenus requires additional steps.

▲▼ keys

- + keys

Clock

0:00

Audio

Stereo Mono SAP

Picture/ Sound

Sports Movie

(1)本说明仅供参考。

Auto Manual

Initial Channel

OFF ON C---

Antenna

Cable VHF/UHF

CH. Search

NO Start

CH. Scan Memory

C 34 Added

Menu Language

English Francais

Press MENU key to exit

SETTING THE CLOCK

1. Press
2. Use the key to set the hour and the key to set the minutes.
3. Press the MENU key to exit.

▲▼ keys

- + keys

Clock

10:30

Audio

SETTING AUDIO MODE

Select desired sound setting, Stereo, Mono or SAP (secondary audio program). Stereo and SAP can be received only if the television station is broadcasting the signal.

1. Choose StereoMono, oA P from the Audio options.
2. Press the MENU key to exit.

▲▼ keys

- + keys

Clock

Audio

→81e160

Mono

SAP

Note: The TV will automatically reset to stereo if unplugged or a power interruption occurs.

ADJUSTING PICTURE/ SOUND

For automatic picture settings:

Choose Sports, Music, or News from the Picture/ Sound options.

(See page 9 to manually customize the picture/sound.)

▲▼ keys

- + keys

Clock

Audio

Picture Sound

Sports

Movie

Initial Channel

News

Manual

Antenna

CH. Search

CH. Scan Memory

Menu Language

Press MENU key to exit

To manually customize the picture:

1. Choose from the Picture/ Sound options.
2. Press the key to open the controls submenu.
3. Use the /keys to highlight the control you want to adjust.
4. Use the keys to make adjustments.
5. Press the KEY to exit.

To manually customize the sound:

1. Press MENU key.
2. Use the keys to highlight PictureSound.
3. Use the keys to choose
4. Press the key to open the controls submenu.
5. Use the Key to select Table, or Around.
6. Use the ⏻keys to adjust the sound.
7. Press the MENU key to exit.

INITIAL CHANNEL SETUP

The TV can be programmed to tune to your favorite channel each time it is turned on, such as, a news or sports network, or the output of your VCR.

1. Press MENU key.
2. Use the 🔒 keys to highlight Channel Initial
3. Press the Ⓧ key to turn ⓄN. Select favorite channel (example): Ⓔ08. T o select cable channels above 99, press and hold the 1 key until Ⓔ 1-- appears.
4. Press the MENU key to exit.

Picture/Sound Controls Submenu

Sound Controls Submenu

Quick Tips

■ Use the color enhancer feature to enhance the picture flesh tones and color. Selecting warm will deepen the picture color.
■ Surround sound will be automatically ON when Sports or Movie in the Picture/Sound Setup is selected. Surround expands the sound effects while receiving MTS stereo signals.
- When Initial Channel is set to OFF the TV will tune to the last channel selected when powered on.
- Press the RESET key twice to clear all settings. The TV will automatically start Channel Search and clear all customized settings.

Quick Tips

• When setting the Antenna mode, choose Cable if your TV is connected to a cable system, otherwise choose VHF/UHF.
• Channels deleted from scan memory can be selected with the number keys.
• The channel number area must be highlighted before pressing the Ⓧ key to add or delete.
• Restoring deleted channels, use the on-screen menu to manually add channels or start CH. (Channel) Search from the menu.
• Press the RESET key twice to clear all settings. The TV will automatically start Channel Search and clear all customized settings.

RESETTING THE ANTENNA/CABLE MODE AND CHANNEL SEARCH

Resetting the Antenna/Cable Mode or CH. (Channel) Search is required only if additional channels become available, such as moving to another city or having a cable service installed.

1. Choose from the Ch. Search menu options.
2. Press the MENU key to exit.

ADDING OR DELETING CHANNELS

1. Press MENU key.
2. Use the /key to highlight
3. Press the key to highlight the channel number entry area.
4. Enter the channel number (example): C34. For cable channels above 99, press and hold the 1 key until C44—appears. Then enter the other two numbers.
5. Press the key to select option (example): D1.e.
6. Press the key to exit.

SELECTING THE DISPLAY LANGUAGE

1. Choose English, Francais, or Espanol from the Menu Language options.
2. Press the MENU key to exit.

SETTING THE SLEEP TIMER

The Sleep Timer will switch off the TV automatically.

1. Press the SLEEP key.
2. Use the 0 key to select the desired time (from 30 minutes up to 3 hours).

Note: The Sleep Timer cancels when the TV is turned off or if a power failure occurs.

CLOSED-CAPTIONING CC

Captioning is textual information transmitted along with the picture and sound so it can be displayed on the TV screen. Because different types of captions can be transmitted with the TV signal, separate captioning modes are provided. The captioning modes recognized by this model are: Caption1, Caption2, Text1, and Text2. Local broadcasters decide which caption signals to transmit. They may not choose to provide captions or may provide captions in one or all of the available modes.

Caption1: This is the main mode used for program captioning (words match the program you are watching). Almost all broadcasters will use Caption1 to transmit program captions. These captions are generally one or two lines.

Caption2: This is an alternative mode for program captioning. Caption2 may be used by the broadcaster to provide captions in another language, such as, Spanish or French.

Text1: This mode is used to display large amounts of text. This text will appear within a black box that may be nearly as large as the TV screen. Text displayed in this manner does not generally relate to the program. These captions may be used by broadcasters to provide weather reports, community bulletins, stock quotes, etc.

Text2: This is an alternative mode used to display large amounts of text. The same types of information displayed in Text1 can be displayed in Text2.

Quikcap: Quikcap allows captions to toggle on and off with the MUTE function. For example, the phone rings; you press the MUTE key on the remote control to block the TV sound; the captions display automatically. When you finish your conversation and press the MUTE key again to restore the sound, the captions will disappear.

Quikcap displays program captions in the Caption1 mode.

SETTING CAPTIONS

1. Press the CAPTION key on the remote control.
2. Use the 0 key to select OFF, Caption1, Caption2, Text1, Text2, or Quikcap.

Caption1/ Caption2

Text1/Text2

Quick Tips

- If Caption Text mode is selected and no captioned text is broadcasted, a black box may appear and remain on the TV screen.

To remove this black box, set captioning to any mode other than Text1 or Text2 or press the RESET key to cancel captioning and customized settings.

- When captioning is turned on, the channel display will not stay on the screen. For these displays to stay on the screen you must set Captioning to OFF.

Quick Tips

■ Make sure all cable connectors are fully seated on jacks.
- Always match cables according to the colors; RED for right audio, WHITE for left audio and YELLOW for video.
- A/V1 and A/V2 jacks have identical functions. Any compatible video equipment can be connected to either set of jacks.
- A solid Blue screen with the word Video1 or Video2 displayed means that the Video mode is selected, but no signal is being detected at the Video jack. Check connection, and turn on external equipment.
- Make sure you select TV channel to match your VCR output (Ch. 3 or 4).
- You may be able to use the remote control to operate your VCR, Cable Box and TV. (See page 7.)

USING THE AUDIO/VIDEO INPUT JACKS

CONNECTING A VCR OR OTHER EXTERNAL EQUIPMENT

Switch off TV and external equipment before connecting cables.

1. Connect signal (cable) to splitter ①.
2. Connect cable from splitter ② to the TV 75Ω (ohm) terminal ②.
3. Connect cable from splitter ③ to cable box ③.
4. Connect cable from cable box out ④ to VCR Antenna In terminal ④.
5. Connect DVD, VCR, DSS, or other equipment's Audio Out (R/L) and Video Out to the TV Audio Input (R/L) and Video Input ⑤.

For Mono VCR (Single Audio Jack) connect VCR Audio Out to TV Audio (L) Input.

Note: Use either A/V1 or A/V2 Input jacks.

Optional

1. Connect DVD, VCR, DSS, or other equipment's S-Video Out to the TV S-Video In Jack ⑥.

Note: Using the S-Video In 1 jack overrides the Video1 Input jack and the S-Video In 2 jack overrides the Video2 In jack (Model AVM-3680G).

1. Press POWER to turn on the TV. See ⑦. Turn on external equipment also.
2. Press the VIDEO MODE key ⑧ to select program source: TV signal or signal from the equipment you have connected to the A/V1 and A/V2 jacks.

Follow the same procedure to connect other compatible video equipment to the second set of A/V jacks.

USING THE AUDIO OUTPUT JACKS

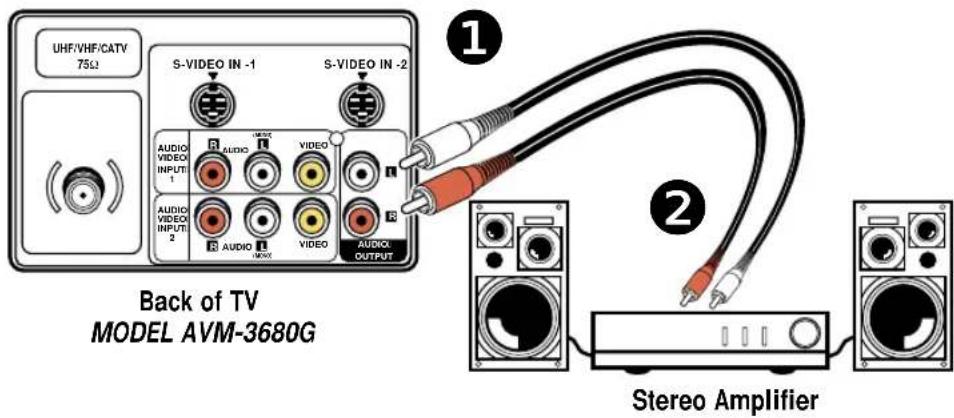

CONNECTING A STEREO AMPLIFIER TO AUDIO OUT JACKS

1. Connect the TV Audio Output (R/L) ① to the Stereo Amplifier In (R/L) ②.

2. Press POWER on remote control to turn on the TV. Turn on external equipment also.

USING THE AUDIO/VIDEO INPUT JACKS FOR PIP

The PIP feature requires two signals to work: You must connect signals to the 75 ohm terminal and to one set of the A/V jacks; or you must connect signals to both sets of A/V jacks.

CONNECTING A SATELLITE SYSTEM AND CABLE

1. Connect signal (cable or antenna) to the TV 75Ω (ohm) terminal ①.

2. Connect Satellite S-Video Out to TV S-Video In jack.

Using the S-Video In 1 jack overrides the Video1 Input jack and the S-Video In 2 jack overrides the Video2 In jack (Model AVM-3680G).

1. Connect the Satellite Audio Out (R/L) jacks to TV Audio Input (R/L) jacks.

Press POWER key to turn on the TV. Turn on external equipment also.

Quick Tips

■ Position your TV at least 2 feet from stereo speakers. The magnets in the speakers may affect the picture quality.

■ Do NOT connect external speakers directly to the TV.

■ Always match cables according to the colors; RED for right audio, WHITE for left audio and YELLOW for video.

■ Make sure all cable connectors are fully seated on the jacks.

■ Make sure you select TV channel to match your VCR output (Ch. 3 or 4). See chart on page 15.

■ To view two TV programs or watch a TV program and pre-recorded tape at the same time follow steps on page 14.

- If you are connecting your TV to a satellite dish, you must have two (2) receivers or use a cable system or antenna with the satellite to use the PIP feature.

Quick Tips

- PIP window is black with no picture:

1. Check cable connections.
2. Make sure VCR is turned on.
3. Select another channel on your VCR.
   ■ Same picture appears in Big and Small windows. Set VCR to TV mode.
   ■ To view two TV programs or watch a TV program and prerecorded tape at the same time, follow steps on this page and chart on page 15.

PIP KEYS

• Use the SWAP key to exchange programs between the windows.
  ■ Use the LOCATION key to change the position of the small window (Top: L/R or Bottom: L/R).
  ■ Use the QUIKFREEZE key to stop the action (see page 15).
  ■ Use the SELECT key to choose the PIP video source (Video1, Video2, or TV RF Signal).

PICTURE-IN-PICTURE (PIP) OPERATION

For PIP to function you must connect two signals to the TV. (Use the TV's 75 ohm input and A/V inputs.) Connect VCR (or other accessory equipped with a video output jack) to the TV's audio video jacks as shown on page 12. If you are using a satellite dish, you must connect two receivers or a cable system or antenna with the satellite to use the PIP feature (see page 13). For operation with Cable Box, see chart on page 15.

USING PIP TO VIEW TWO TV PROGRAMS

Note: The following steps correspond to numbers on the art below.

1. Switch VCR and television ON.
2. Press PIP ON/OFF key. Set VCR to TV mode, if necessary.
3. Select channel for big window.
4. Press SELECT key to select Video1 or Video2 screen.
5. Press VCR key.

Note: If the remote control cannot be programmed to operate your VCR, you must use the VCR's remote to perform VCR functions.

1. Select channel on VCR for small window.

USING PIP TO VIEW TV PROGRAM AND PRERECORDED TAPE

Note: The following steps do not have corresponding reference numbers on the remote control art.

1. Set TV channel to match output of VCR (Channel 3 or 4).
2. Insert prerecorded tape into VCR.
3. Press PLAY, if necessary (wait for tape to load).
4. Set VCR to TV mode.

Note: When the remote control is in the VCR mode, the VIDEO MODE key works like the TV/VCR key on the VCR.

Black-and-white photo of a young woman holding a baby, with an inset showing two baby photos (no text or symbols visible)

VCR set to VCR mode. Same image appears in both windows.

Black-and-white photo of a crowded sports event with spectators and a small inset showing a person (no visible text or symbols)

VCR set to TV mode. Different images appear in each window.

1. Press SWAP key to view PIP image in big window.

Black-and-white photo of a young girl holding a baby, with an inset showing a close-up of flowers (no text or symbols visible)

(Continued on page 15.)

Press the QUIKFREEZE key to instantly stop an image for a longer view. A still image will be shown (displayed) in the small PIP window. Use the QuikFreeze to hold an advertised phone number or address on the screen until the viewer collects the information. Pressing any key will turn QuikFreeze feature OFF.

PIP and Cable Box Operating Guide
Option Cable Box VCR TV
Normal Viewing. Select channel. Turn VCR on. Select		channel (3 or 4) to match Cable Box out.	Select Video mode (PIP off).
Using PIP (2 channels).	Select channel for small window.	Select channel (3 or 4) to match Cable Box out.	Select TV mode (PIP on). Select channel for big window.
Record one channel and watch another (except Premium).	Select channel to record (can be Premium).	Select channel (3 or 4) to match Cable Box out.	Select TV mode. Select channel to watch (cannot be Premium).

Operating Hints:

• PIP (small) window program sound will not be heard.
• If the Remote cannot be programmed to operate your VCR, you must use the VCR's remote to perform VCR functions.

Troubleshooting Hints:

PIP window is black with no picture:

1. Check cable connections.
2. Make sure VCR is turned on.
3. Select another channel on your VCR.

RESETTING THE TV

Press the RESET key to automatically reset the television to factory settings. These features will automatically reset:

• Picture/Sound Adjustments: Color, Tint, Contrast, Brightness, Sharpness, Color Enhancer, Bass, Treble, and Surround Sound
• Channel Memory
• Audio to Stereo
• Initial Channel
• Caption to OFF
  • V-Guide to OFF
• Language to English
• Clock and Sleep Timer (if previously set)

If desired, personal settings can be made again using the menu options.

Quick Tips

• Use the CHANNEL /keys and the VOLUME /keys to navigate through the menus and to make selections from the menus.
• V-Guide feature is accessible only from the remote control.
• The TV guidelines rating icon appears in the upper left hand corner of your TV screen.
  ■ The V-Guide display remains on screen for only 20 seconds. If it disappears, press the V-GUIDE key.

V-GUIDE INFORMATION

NOTE: THIS FEATURE IS DESIGNED TO COMPLY WITH THE UNITED STATES OF AMERICA'S FCC V-CHIP REGULATIONS. THEREFORE, IT MAY NOT FUNCTION WITH BROADCASTS THAT ORIGINATE IN OTHER COUNTRIES.

With the introduction of "V-Chip" technology, it is now possible for Sanyo televisions to interpret MPAA and TV Parental Guidelines rating codes. When these codes are detected, the TV will automatically display or block the program, depending upon choices you make when setting up the V-Guide system.

ABOUT MPAA AND TV PARENTAL GUIDELINES

MPAA and TV Parental Guidelines are rating systems that provide advance cautionary information to parents about the content of movie and television programming.

MPAA is a voluntary rating system used by the movie industry. TV Parental Guidelines are modeled after the MPAA ratings and were designed to be simple to use, easy to understand, and easy to find.

TV Parental Guidelines contain both age-based and content-based information. This gives parents discretionary ways of choosing appropriate material for their children to view.

Content ratings are represented by the initials D (Suggestive Dialog), L (Adult Language), S (Sexual Situations), V (Violence), and FV (Fantasy Violence). When programming contains any or all of these conditions, these letters become part of the icon that is displayed on the TV screen.

A rating icon will appear in the upper left-hand corner of the TV screen for fifteen seconds at the beginning of a program and should be repeated at the beginning of the second hour of a long program. It may also

appear when returning from commercials. There may be other instances when these icons will be displayed as well. Parents are encouraged to become familiar with these icons and their meanings.

WHERE CAN I FIND ADVANCE NOTICE OF PROGRAM RATING

Publishers of programming guides have been asked to include these ratings along with other information they publish. You can expect to find this information in newspapers, magazines, and on-screen listings and guides.

TYPES OF PROGRAMS TO RECEIVE RATING

The TV Parental Guidelines will apply to various types of TV programming, including: specials, mini-series, and movies. Sports, news, weather, emergency bulletins, locally originated programming, public service announcements,

political, and religious shows do not currently carry guidelines.

V-GUIDE OPERATION

Use this feature to supervise television viewing for children. This television can be set to automatically block programs with content you deem as inappropriate for your children to view, including: suggestive dialog, adult language, sexual situations, violence, and fantasy violence.

The ability of the television to block the reception of specific programming content depends upon several conditions: 1) The program must be rated, 2) Networks must broadcast the rating code data, 3) Cable companies must transmit the rating code signal, and 4) The TV must be properly setup to decode the signal.

The TV guidelines rating icon appears at the upper left hand corner of your TV screen.

(Continued on page 17.)

SETTING MPAA MOVIE RATING

1. Press the key of the remote control to display menu.
2. Press the key to switch V-Guide
3. Press the key again. Then use the / keys to highlight rating.
4. Press the MENU key to BLOCK (B) or UNBLOCK (U) selected rating. (→ Arrow indicates selection.)
5. Press the key to return to the V-Guide Options menu.

SETTING AGE-BASED TV PARENTAL GUIDELINES

1. Use the keys to highlight TV Parental Guidelines
2. Press the Key. Then use the / keys to highlight rating.
3. Press the MENU key to BLOCK (B) or UNBLOCK (U) selected rating. (→ Arrow indicates selection.)

SETTING CONTENT-BASED TV PARENTAL GUIDELINES

1. Follow steps 6 and 7. Use the /keys to highlight Content
2. Press the key to display the Content Option menu.
3. Use the /keys to highlight a category (D-Suggestive Dialog, L-Adult Language, S-Sexual Situations, V-Violence, FV-Fantasy Violence).
4. Press the Key. Then use the / keys to highlight a rating.
5. Press the MENU key to BLOCK (B) or UNBLOCK (U) selected rating. (→ Arrow indicates selection.)
6. Press the key to exit, or press the key to return to the Content Options menu.
7. Repeat steps 11 through 13 to BLOCK (B) or UNBLOCK (U) additional content ratings, if desired.

TURNING OFF THE V-GUIDE

1. Press V-GUIDE key.
2. Use the ⊖/⊕ keys to select OFF.

Quick Tips

• The TV will automatically block (B) ratings above or unblock (U) ratings below selection. For example, if you block rating R, NC17 and X will be blocked as well.
• Blocking TVY7 does not block higher ratings.
• You can block a content rating such as TVPG-V and still be able to watch TVPG programs with ratings of S-L-D provided TVPG is unblocked (U).
• To view Blocked (B) programs, set V-GUIDE to OFF, or press the RESET key twice to clear all Blocked (B) ratings and customized settings.
• When in the V-Guide menu system, the D/Keys allows you to navigate between the ratings and the options menu.

Note: Networks and local stations may or may not include the content ratings portion of the TV Parental Guidelines.

HELPFUL HINTS - PROBLEMS/SOLUTIONS

BEFORE REQUESTING SERVICE CHECK THE FOLLOWING CHART.

Problem: Check these Conditions: Try these Solutions:

TV turns off automatically.	Check signal (Cable/Ant.) connection.Power surge protection feature.	Press POWER key.The sleep timer may have been set.Unplug TV momentarily.
No picture, poor picture.	Check antenna connections.May be station trouble.Brightness or Contrast misadjusted.Possible interference from house-hold appliance.	Adjust antenna.Try a different channel.Press RESET key.
Black box on screen.	Caption Text Mode without display information.	Press RESET key.Switch OFF Captions (see page 11).
No picture or same picture in PIP (small) window.	Check cable connection.Check if VCR is turned ON.Are two signals connected to the TV?	Try a different channel on your VCR.Video jack cablemustbe connected to VCR and TV.Connect Ant./Cable and VCR/Satellite/DVD, etc.
Poor color or no color.	Check if program is in color.Check antenna connections.Color or Tint misadjusted.May be station trouble.	Try a different channel.Adjust antenna.Press RESET key.
Blue Screen with Video1 or Video2 displayed.	Check Audio/Video connections.Check external equipment.	Press VIDEO MODE key.Switch on external equipment.
No sound, poor sound.	May be station trouble.May be MUTE function.Check Audio/Video connections.	Try a different channel.Adjust Volume.
No TV stereo sound.	Check if station is broadcasting a true MTS stereo signal.	Select Stereo from Audio on-screen menu.
No TV SAP sound.	Check if station is broadcasting a SAP signal.	Select SAP from Audio on-screen menu.
No Cable channels above number 13.	Cable Channel Indicator C should appear next to channel number.	Select Cable from Antenna on-screen menu; then start CH.(channel) Search using the menu.
No UHF channels, VHF OK.	Cable Channel Indicator C should not appear next to channel number.	Select VHF/UHF from Antenna on-screen menu; then start CH.(channel) Search using the menu.

(Continued on the next page.)

HELPFUL HINTS - PROBLEMS/SOLUTIONS (Continued)

BEFORE REQUESTING SERVICE CHECK THE FOLLOWING CHART.

Problem: Check these Conditions: Try these Solutions:

Cannot select or scan some channels.	· Channel may be removed from memory.· Check antenna connections.· V-Guide is set to block programming (see pages 14 and 15).	· Select CH. Scan Memory and manually add channels or start CH. (channel) search.· Press RESET key to clear setting.· Set V-Guide to OFF or press the RESET key.
No Captioning.	· Check if station is broadcasting a Closed-Caption signal.· Check Caption Channel.	· Select Caption1 or Caption2 (see page 11).
Menu System words seem misspelled.	· May be a foreign language is selected.	· Reselect your menu language choice using the on-screen menu or press RESET key.
Remote Control will not work.	· Check batteries.· Check if TV is plugged in.· Press TV key.	· Replace batteries.· Aim remote control at front of TV.
Remote Control will not operate VCR and Cable Box.	· Press VCR or CABLE key.· Check external equipment.	· Re-enter brand code (see page 7).
Cabinet makes popping sound.	· This is a normal condition during warm-up and cool down of the plastic cabinet parts.

CARE AND CLEANING

The surface of the cabinet can be damaged if not properly maintained. Many common household aerosol sprays, cleaning agents, solvents and polishes will cause permanent damage to the fine surface.

1. Unplug the power cord before cleaning the television.

1. Clean the screen and cabinet with a soft dry cloth.

Note: NEVER spray liquids on the screen because they can run down and drip onto the chassis. This may cause component failure not covered under Warranty.

This symbol on the nameplate means the product is Listed by Underwriters' Laboratories Inc. It is designed and manufactured to meet rigid U.L. safety standards against risk of fire, casualty and electrical hazards.

SANYO Television Limited Warranty

OBLIGATIONS

To obtain Warranty service, television between the size of 13" \~ 27" (measured diagonally) must be delivered to and picked up from an authorized SANYO Service Center at the user's expense unless specifically stated otherwise in this warranty.

For 32" and above (measured diagonally), in-home service is available.

THIS WARRANTY IS VALID ONLY ON SANYO PRODUCTS PURCHASED AND USED IN THE UNITED STATES OF AMERICA, EXCLUDING ALL U.S. TERRITORIES AND PROTECTORATES. THIS WARRANTY APPLIES ONLY TO THE ORIGINAL RETAIL USER, AND DOES NOT APPLY TO PRODUCTS USED FOR ANY INDUSTRIAL, PROFESSIONAL OR COMMERCIAL PURPOSE. THE ORIGINAL DATED BILL OF SALE OR SALES SLIP MUST BE SUBMITTED TO THE AUTHORIZED SANYO SERVICE CENTER AT THE TIME WARRANTY SERVICE IS REQUESTED.

The name and addresses of Authorized Sanyo Service Centers may be obtained by calling the toll free number listed below.

CUSTOMER/ TECHNICAL INFORMATION(Product operation, authorized service center referral, service assistance or problem resolution)	PARTS ORDER INFORMATION(Accessories and/or parts not available from an authorized dealer)
1-800-877-5032Weekdays 7:30 A.M. ~ 4:00 P.M. Central Time	1-800-726-9662Weekdays 8:30 A.M. ~ 5:00 P.M. Pacific Time

Subject to the OBLIGATIONS set up above and the EXCLUSION AND CONDITIONS set out below, SANYO MANUFACTURING CORPORATION (SMC) warrants this SANYO product against defects in materials and workmanship for the periods of LABOR and PARTS specified below. SMC will repair or replace (at its option) within a reasonable time the product and any of its parts which fail to conform to this warranty. Repair or replacement of the product or its parts shall be the exclusive remedies available to user. The user is responsible for all other costs. Such costs may include, but are not limited to all necessary or incidental costs incurred to install the repaired product. The warranty period commences on the date the product was first purchased at retail.

LABOR	PARTS PICTURE TUBE
90 DAYS	1 YEAR 2 YEARS

EXCLUSIONS AND CONDITIONS

This warranty does not cover (A) the adjustment of customer-operated controls as explained in the appropriate model's instruction manual, or (B) the repair of any product whose serial number has been altered, defaced or removed.

This warranty shall not apply to the cabinet or cosmetic parts, antenna, knobs, batteries or image burns to projection or picture tubes caused by electronic devices or games.

This warranty does not apply to uncrating, setup, installation, removal of the product for repair, or reinstallation of the product after repair.

This warranty does not apply to repairs or replacements necessitated by any cause beyond the control of SMC including, but not limited to, any malfunction, defect or failure caused by or resulting from unauthorized service or parts, improper maintenance, operation contrary to furnished instructions, shipping or transit accidents, modification or repair by the user, abuse, misuse, neglect, accident, incorrect line voltage, fire, flood or other Acts of God, or normal wear and tear.

The foregoing is in lieu of all other expressed warranties with respect to the television or installation, operation, repair or replacement of the television. SMC shall not be responsible for the loss of use of the unit, inconvenience, loss or damage to personal property, whether direct or indirect and whether arising in tort or contract.

THE DURATION OF ANY WARRANTIES WHICH MAY BE IMPLIED BY LAW (INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS) IS LIMITED TO THE TERM OF THIS WARRANTY. IN NO EVENT SHALL SMC BE LIABLE FOR SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING FROM OWNERSHIP OR USE OF THIS PRODUCT, OR FOR ANY DELAY IN THE PERFORMANCE OF ITS OBLIGATIONS UNDER THIS WARRANTY DUE TO CAUSES BEYOND ITS CONTROL. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS AND/OR DO NOT ALLOW THE EXCLUSION OR LIMITATION OF CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS AND EXCLUSIONS MAY NOT APPLY TO YOU.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE.

For your protection in the event of theft or loss of this product, please fill in the information requested below and KEEP in a safe place for your own personal records.

Model No. ____ Serial No. ____

Date of Purchase ____ Purchase Price ____

Where Purchased

SANYO MANUFACTURING CORPORATION

3333 Sanyo Road

Forrest City, AR 72335

ESPAÑOL

AVM-3280G 30.0 in. (762mm)

AVM-3680G 33.4 in. (848mm)

AVM-3280G 27.8 in. (707mm)

AVM-3680G 29.5 in. (750mm)

AVM-3280G 21.2 in. (538mm)

AVM-3680G 24.4 in. (620mm)

PESO (Lbs.) (APROX.)

AVM-3280G 108.6 (49.3 Kg.)

AVM-3680G 144.3 (65.5 Kg.)

Diagram of a car interior showing battery pack, battery casing, and internal components (no text or labels)

Consejos Rápidos

TRANSMISIÓN CAPTADA CC (Closed-Caption)

Black-and-white photo of a young girl holding a baby, with an inset showing a close-up of flowers (no text or symbols visible)

Black-and-white photo of a young woman holding a baby, with an inset showing a close-up of the child (no text or symbols visible)

Black-and-white photo of a group of people in motion, one person highlighted in an inset (no visible text or symbols)
